Products

North benz 20 CBM fuel tanker

  • FOB Price

    $41000-$46000

  • Production time

    25 days

  • Payment terms

    T/T, west union

enquiry
Product Details

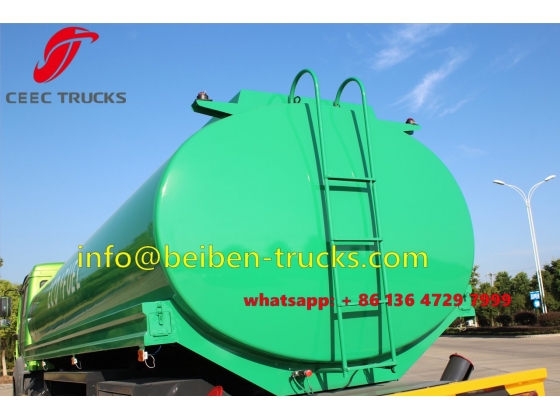

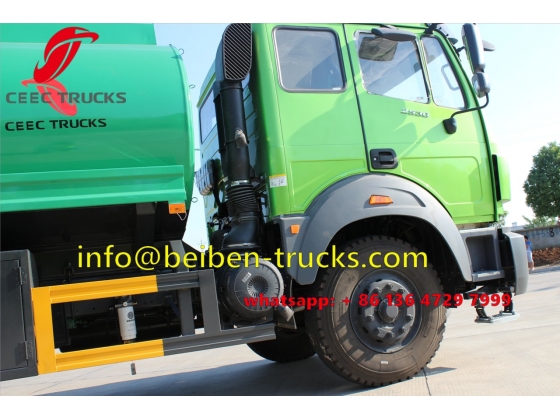

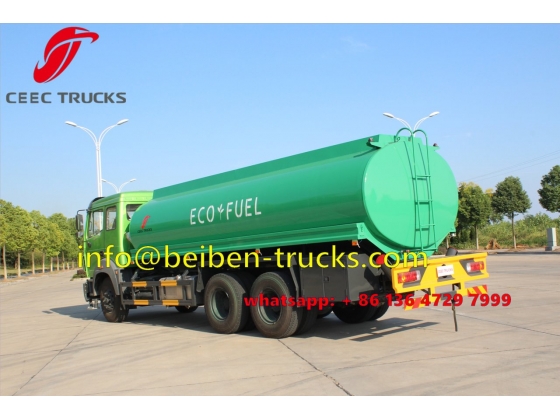

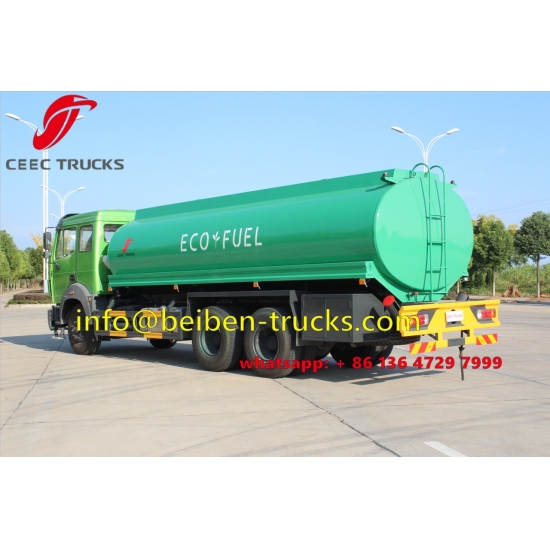

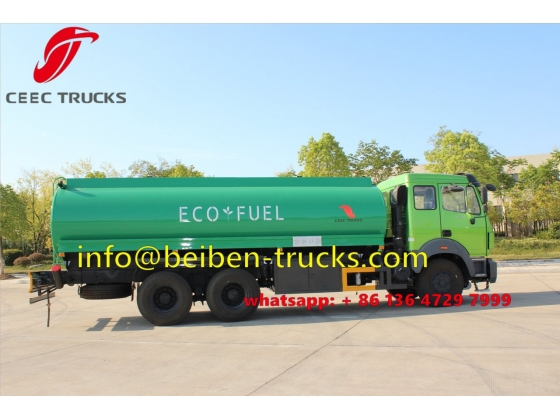

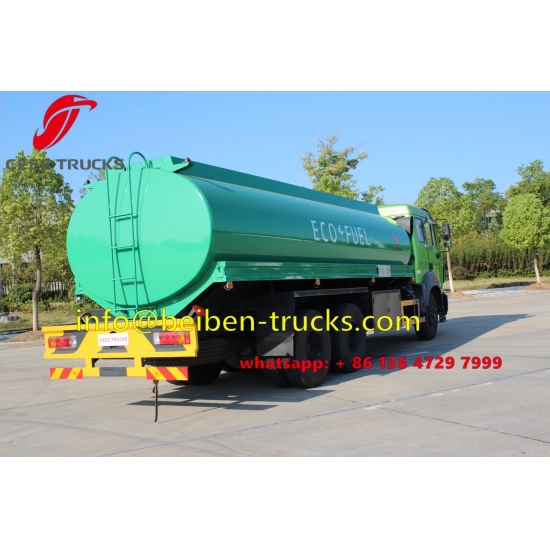

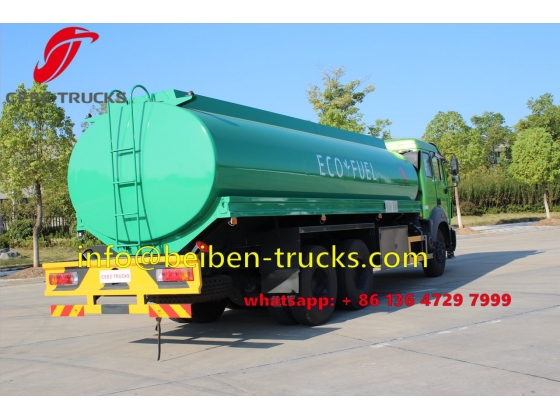

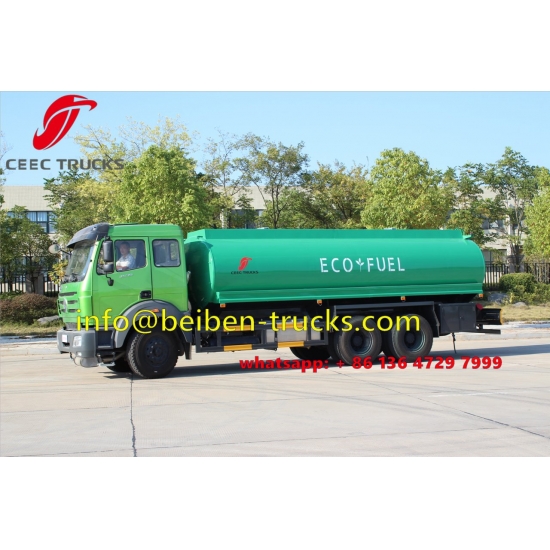

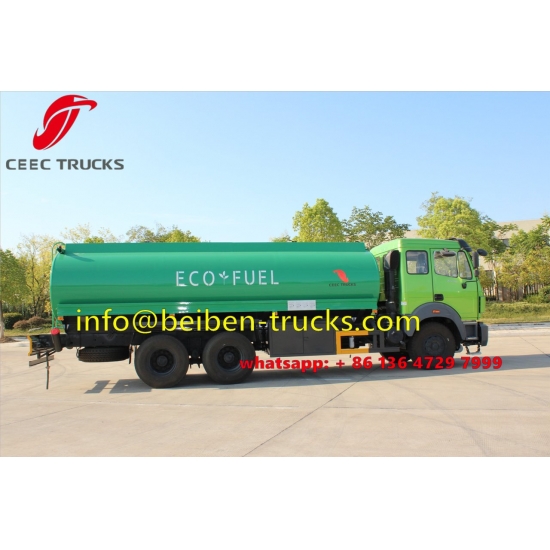

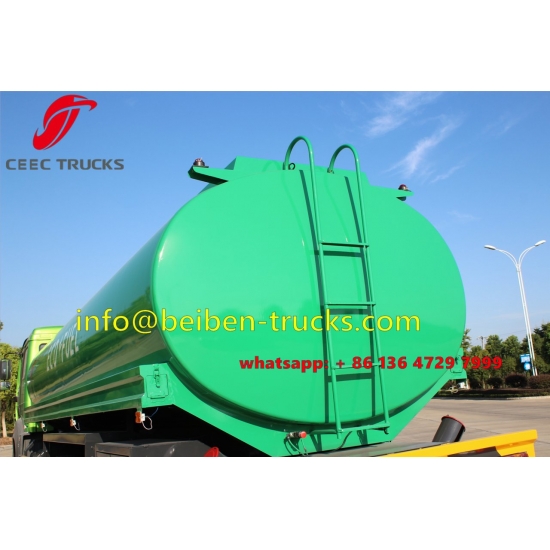

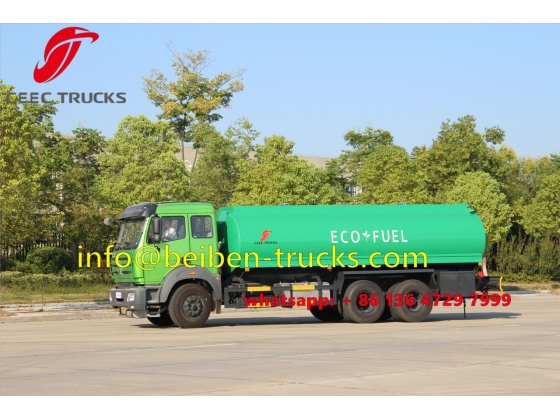

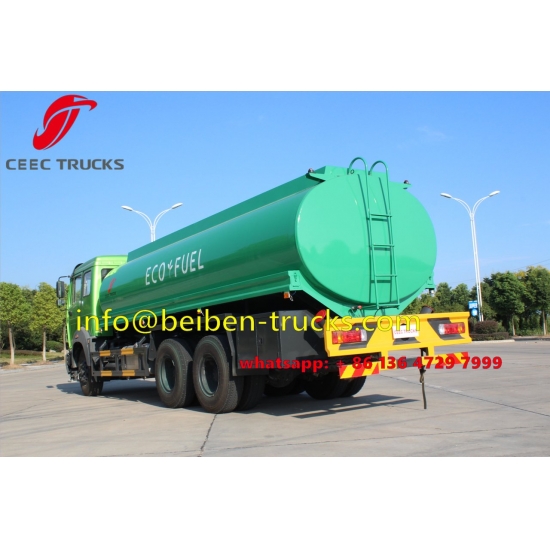

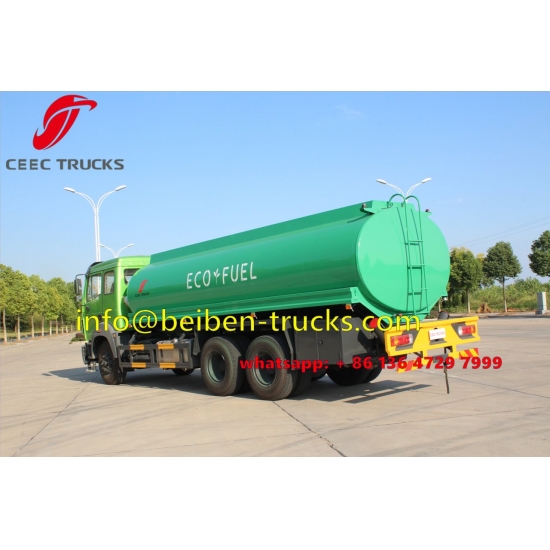

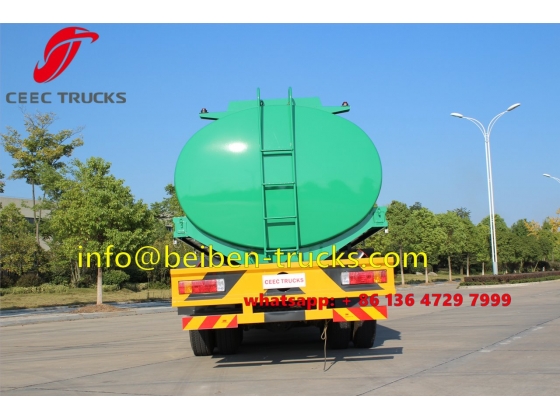

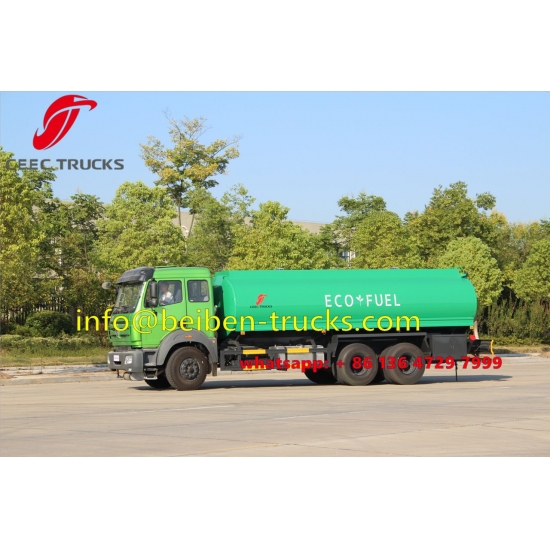

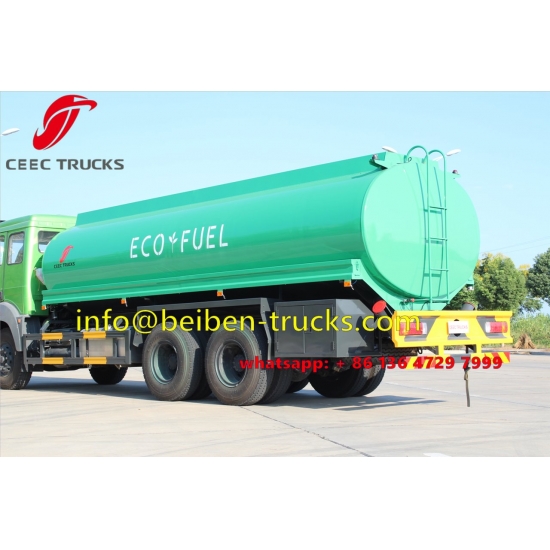

North benz 20 CBM fuel tanker

beiben 20 cbm fuel truck

Function:


Beiben 20 CBM fuel truck is normally called as beiben 20,000 L oil truck, beiben 20 cbm fuel truck, beiben 20,000 L capacity  fuel bowser. North benz 2530 fuel tanker truck. congo beiben 6*4 drive fuel tanker supplier.

Beiben oil trucks thanks to German and Mercedes Benz technology and heritage are manufactured to the highest international standards and the strictest military quality controls.

Our prices are considerably lower than European, American and Asian competitors; including Mercedes Benz Actros
fuel tanker trucks.



beiben 20 cbm fuel truck

Advantage:


  Beiben oil trucks and Mercedes Benz trucks share many features such as HL7, HD7 and VL4 axles used in the Actros and Atego models.

the only Asian heavy duty truck company capable of providing the quality found among European and American manufacturers.

Beiben fuel truck and benz trucks share familiar gearboxes - ZF and Fuller Fast.

Mercedes Benz and Weichai WD615, WP10 and WP12. They comply with Euro 2, 3 and 4; have displacements of 10 and 12 liters and HP of 270 to 480.

Bosch Common Rail injection, the Euro 2 with linear pump, motor and brake valve MAN Exhaust (Jack-Brake), among other qualities.

  CEEC TRUCKS 20 years experience on beiben oil truck designing and manufacring.

 beiben 2530 oil tanker truck

Specification:


More than 15 years experience on beiben oil tanker truck manufacturing, we have great advantage on designing and producing beiben 2527,2530,2534,2538 fuel tanker trucks.

CEEC TRUCKS plant have export huge quantity tanker truck upper structure to congo, ghana, algeria, ethopia, nigeria, and other africa area. we welcome beiben truck dealer


Beiben 2530 oil truck /6×4/4500+1450 mm /Long Cab




Dimension 9800*2495*3095mm
Approaching angle/Departure angle 16/40°
Overhang(front/rear) 1410/1085mm
Wheel base 4450+1450 mm
Max speed 110km/h
Curb weight 12000kg
Max towing weight 20000kg

Max loading on fifth wheel, Permitted(kg)

20070kg

Slope climbing capability Max.40%
Engine Model WP10.340E32,water-cooled,4 Strokes 6 cylinders in line,turbocharged, directly injection
Displacement 9.726L/Diesel
Stroke 126/130mm
Max. power 240/2200 (kw/rpm)
Max.torque 1160/1200-1600(Nm/rpm)
Emission stantard EuroⅢ
Fuel tanker capacity 400L
Clutch ∮420, Single dry frictional disc,Hydraulic boosting
Gearbox 9JS119B, mechanism,9 forward gears,1 reverse gear, manual operated
Gear ratio of gear box 11.02/6.55/4.64/3.36/2.71/1.95/1.38/1.00/0.81 R: 11.52
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 9pcs
Rear Non-free standing stablization spring, balance suspension system, 9+6pcs
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system D50,whole circulation in ball, hydraulic booster
Frame Fish belly shape, variable width, variable sections
Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 12.00-20
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C

T

ruck Chas

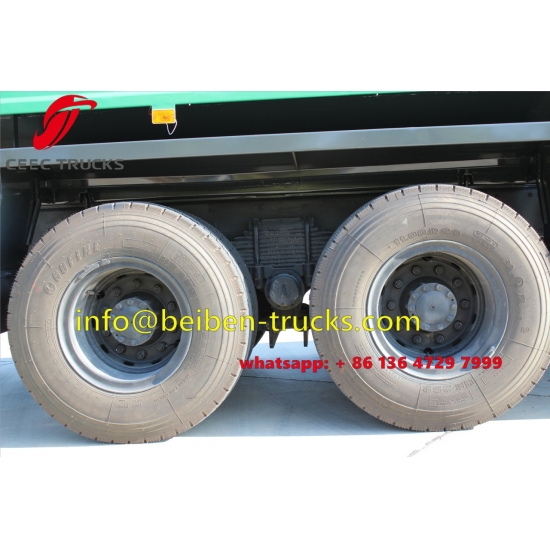

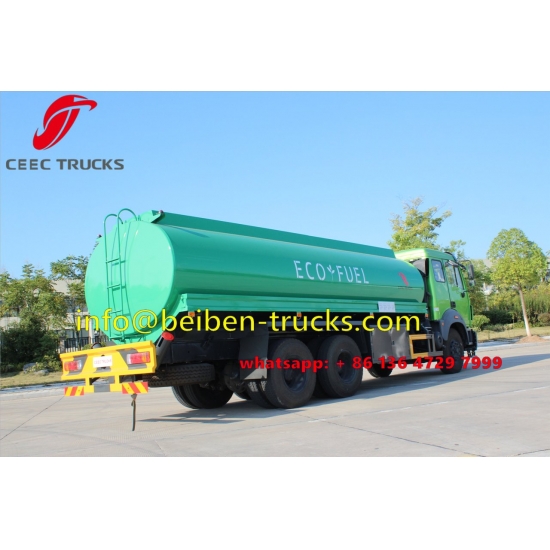

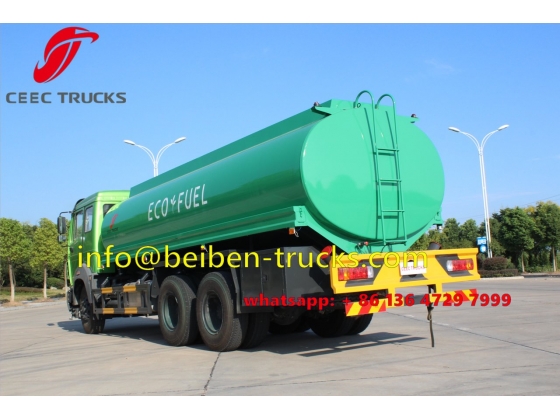

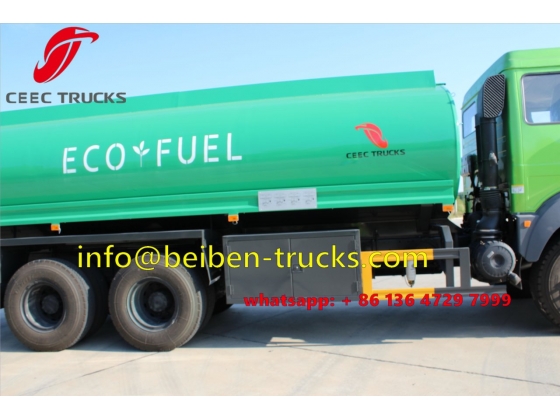

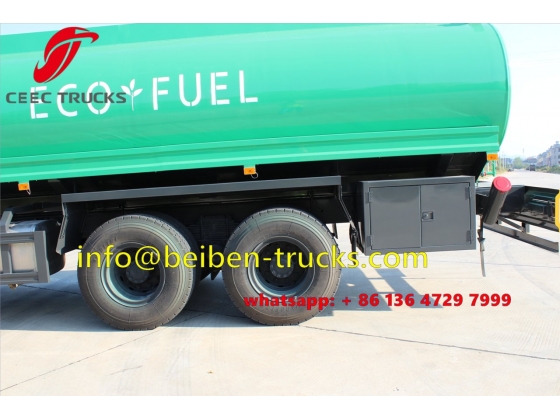

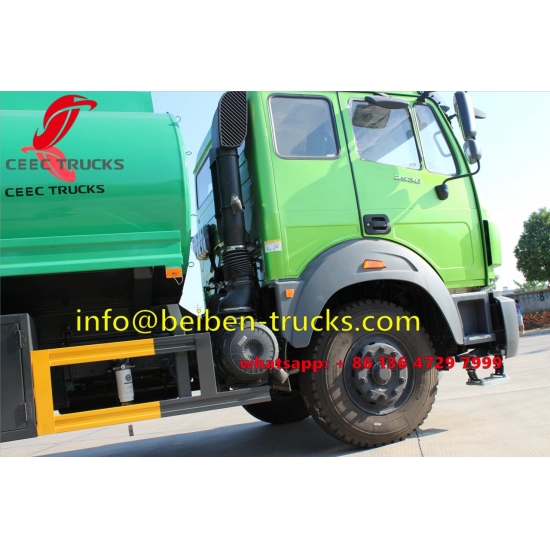

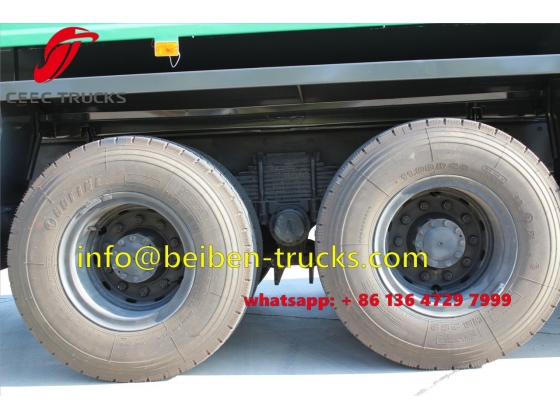

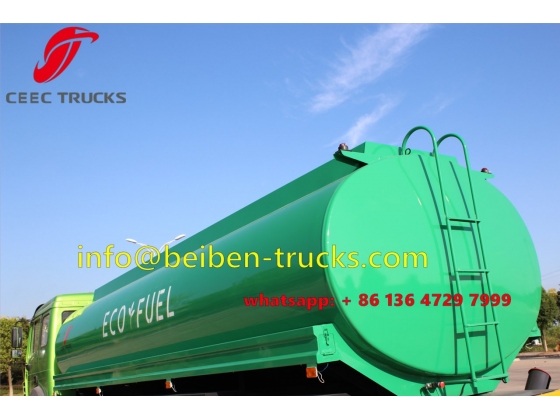

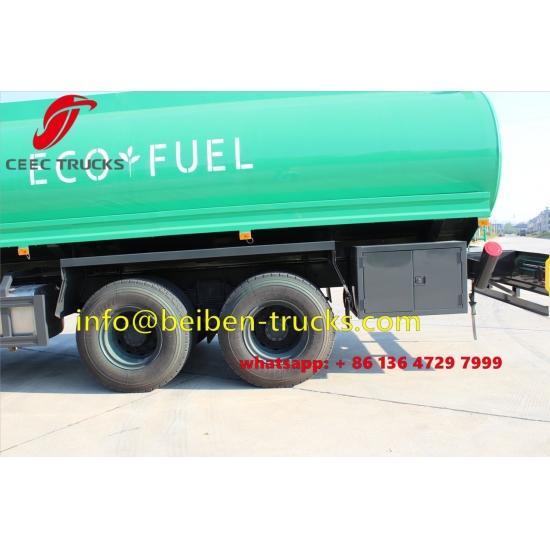

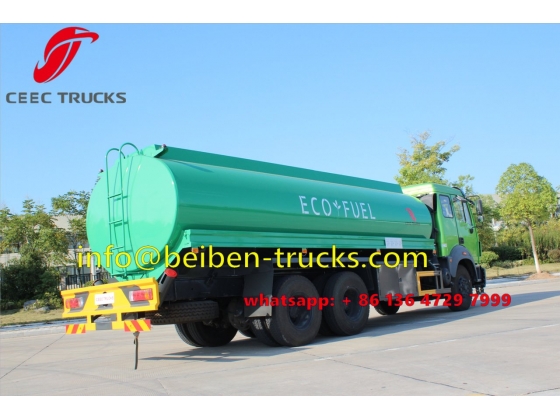

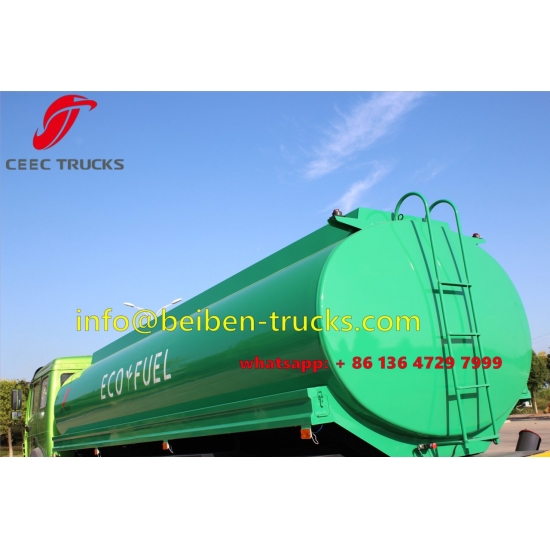

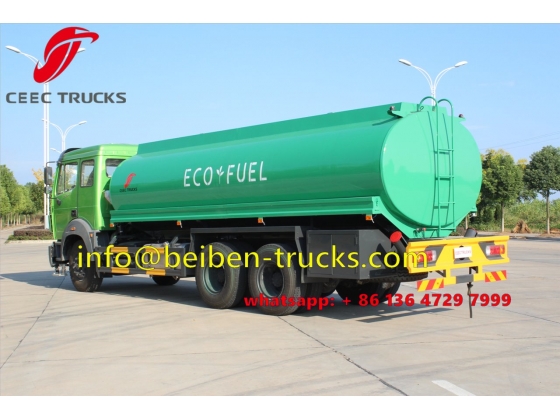

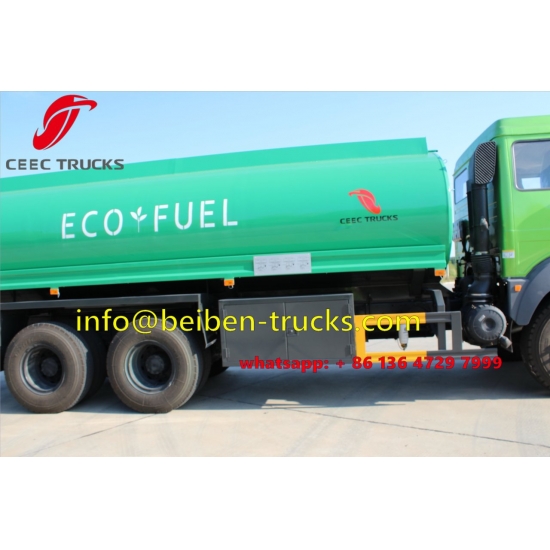

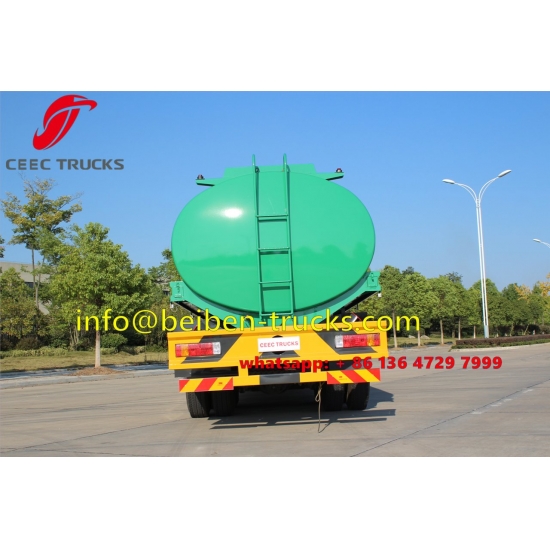

 north benz 20 cbm fuel truck



north benz 20 cbm fuel truck

north benz 20 cbm fuel truck

north benz 20 cbm fuel truck



 north benz 20 cbm fuel truck







Watch Beiben 2530 fuel truck on YOUTUBE.

Beiben 2530 dumper in production :

             https://youtu.be/FYhNm95hLQY

            https://youtu.be/Il9tOyKQ-Cc

              https://youtu.be/EIsld7ZdVvU


Beiben 2530 oil truck in road testing :

https://youtu.be/U9qrJFRiOc4

https://youtu.be/_wfqsZInTA

https://youtu.be/DjfMTbdyy-I

https://youtu.be/U9qrJFRiOc4
