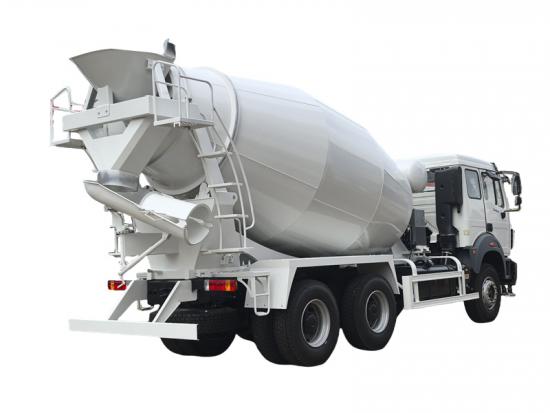

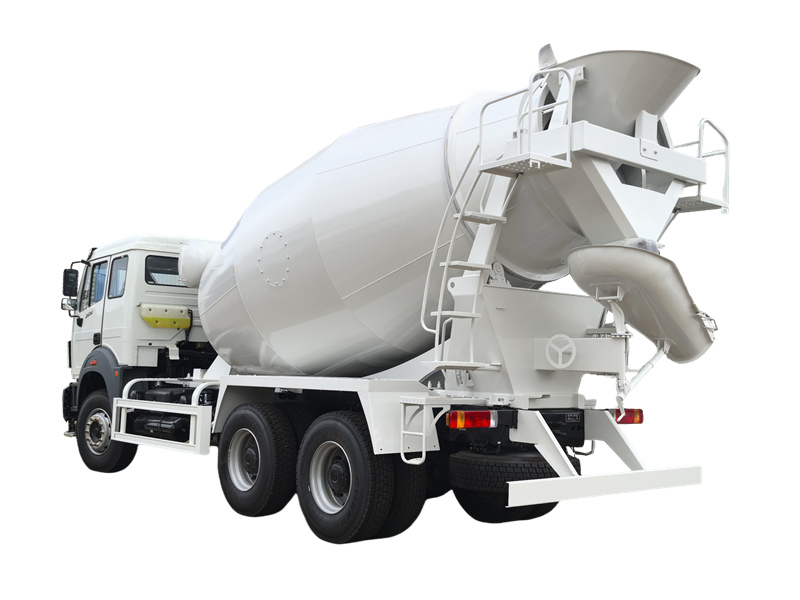

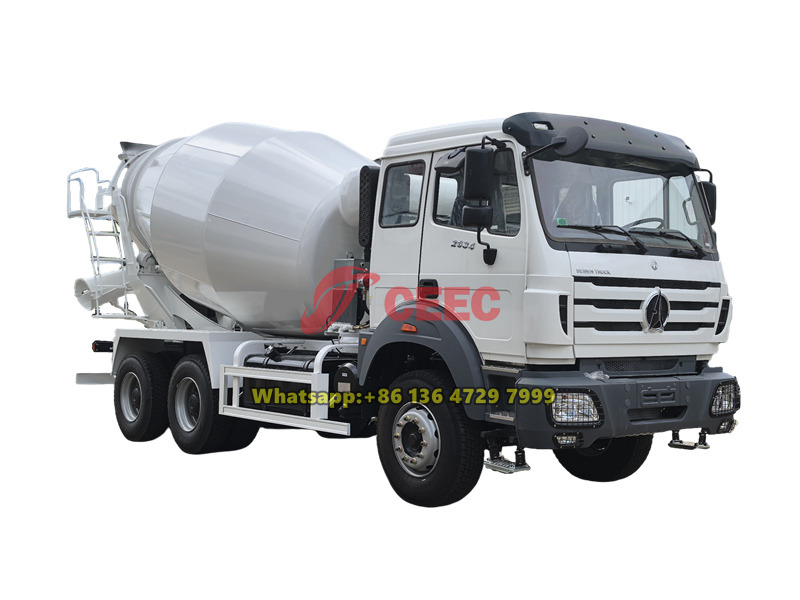

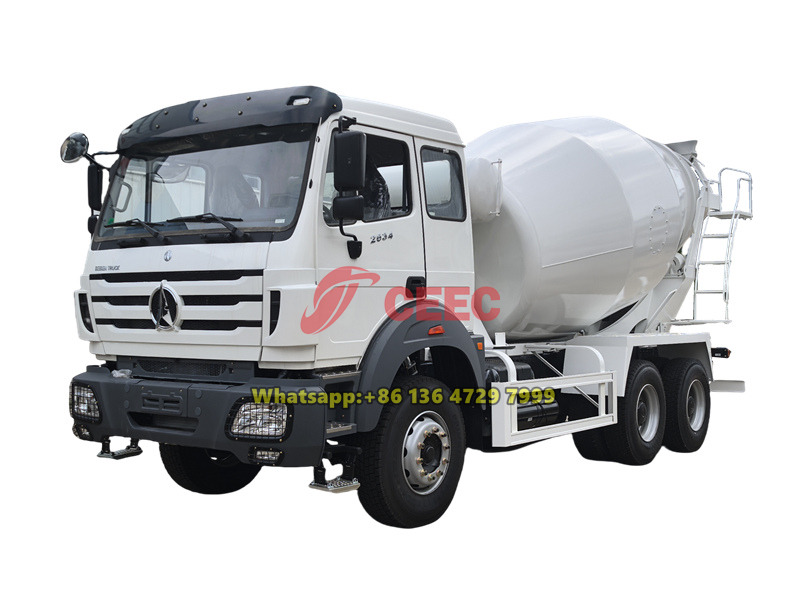

Beiben 10-cubic-meter mixer truck is an efficient and reliable specialized vehicle for concrete transportation. Equipped with a Weichai 340-horsepower engine and a robust chassis, it delivers strong power and excellent load-bearing capacity. Its core mixing system is driven by internationally renowned hydraulic components, with a drum effective volume of 10 cubic meters, ensuring continuous and uniform mixing of concrete during transit to prevent solidification. Designed for various urban construction and road engineering projects, this Beiben mixer truck is a key asset on construction sites.
Working capcity:
10 CBMCabin type:
NG80B long cabinDimension ( mm ) :
9400×2500×3900Drive system:
6×4Wheelbase (mm):
3800+1450Engine power / Model:
340HP/WP10.340E32Gear Box:
9JS150ARemark:
6×6, 8×8, RHD drive is optionalBeiben 10CBM mixer truck, also known as the Beiben 6×4 10CBM concrete mixer truck, is a specialized truck designed for transporting ready-mix concrete for construction purposes. It consists of a Beiben 2634 chassis, a 10CBM rotating mixing drum, an imported hydraulic drive system, and loading/unloading devices. The mixing drum, driven by the hydraulic system, rotates continuously, while internal spiral blades forcefully mix the concrete to ensure uniformity and prevent solidification during transit. Powered by a Weichai 340-horsepower engine, the vehicle offers robust and reliable performance. Its sub-frame is made of high-torsion-resistant seamless steel pipes, providing stable connections and effectively extending the chassis’s service life.
The working principle of the Beiben construction mixer truck involves transferring power from the chassis via the power take-off (PTO), which is then converted by the reducer and hydraulic pump into rotational power for the mixing drum, enabling continuous concrete mixing. Its loading and unloading system is scientifically designed with a large, wear-resistant inlet and an inspection handle on the feed hopper. The discharge chute can rotate 180 degrees to adapt to various unloading scenarios, effectively preventing concrete residue from contaminating the road surface. Suitable for a wide range of applications, including construction projects, roadworks, and precast component plants, this vehicle is an ideal choice for ensuring concrete quality and construction efficiency.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
Specially designed for heavy-duty conditions
Drive Type6×4 Left Hand Drive Mixing Drum10 cubic meters
» Ⅱ. Product Specifications:
|
Beiben 6×4 10CBM construction mixer truck |
||
|
Dimension |
9400*2500*3900mm |
|
|
Approaching angle/Departure angle |
26/15° |
|
|
Overhang(front/rear) |
1410/2530mm |
|
|
Wheel base |
3800+1450mm |
|
|
Max speed |
85km/h |
|
|
Curb weight |
12870kg |
|
|
Gross vehicle weight |
26000kg |
|
|
Slope climbing capability |
Max.40% |
|
|
Engine |
Model |
WEICHAI WP10.340E32 |
|
Type |
water-cooled, four strokes,6 cylinders in line, turbocharged, directly injection |
|
|
Displacement |
9.726L/Diesel |
|
|
Stroke |
126/130mm |
|
|
Max. power |
250kW/340HP |
|
|
Max. torque |
1250 N.m |
|
|
Rated speed |
2200 rpm |
|
|
Emission standard |
Euro 3 |
|
|
Fuel tanker capacity |
400L |
|
|
Clutch |
430, Single dry frictional disc, Hydraulic boosting |
|
|
Gearbox |
9JS150A, mechanism, 9 forward gears,1 reverse gear, manual operated, with synchronizer |
|
|
Suspension system |
Front |
Non-free standing leaf spring, telescopic shock absorber with stablizer bar suspension, 10pcs |
|
Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
TAS85, whole circulation in ball, hydraulic booster |
|
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tyre |
12.00R20 Radial |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cabin |
NG80B short cabin; |
|
|
Full steel skeleton structure, covered with double layer steel plate; |
||
|
Can be tipped forwardly; |
||
|
High back seat for driver, high back seat for co-driver; With inner A/C |
||
|
Main technical parameters of concrete mixer |
||
|
Drum performance parameter |
Geometric Volume m3 |
13.1 m3 |
|
Effective Volume m3 |
10 m3 |
|
|
Filling Ratio |
64.50% |
|
|
Gradient of the Drum |
15° |
|
|
Filling speed m3/min |
≥3 |
|
|
Discharging Speed m3/min |
≥2 |
|
|
Surplus Ration % |
<1% |
|
|
Range of Slump mm |
20~300 |
|
|
Hydraulic System |
Pump |
Eaton 54 |
|
Motor |
Danfoss |
|
|
Reducer |
Italy Brand: Bonfiglioli |
|
|
Radiator |
Kaipeng |
|
|
Water supply system |
Volume of water tank |
400L |
|
Water supply type |
Air pressure type |
|
» Ⅲ. Product Features:
Beiben 2634 Chassis
Based on Beiben 2634 heavy-duty chassis, powered by a Weichai 340-horsepower engine, which offers a long service life, high reliability, and substantial torque output.

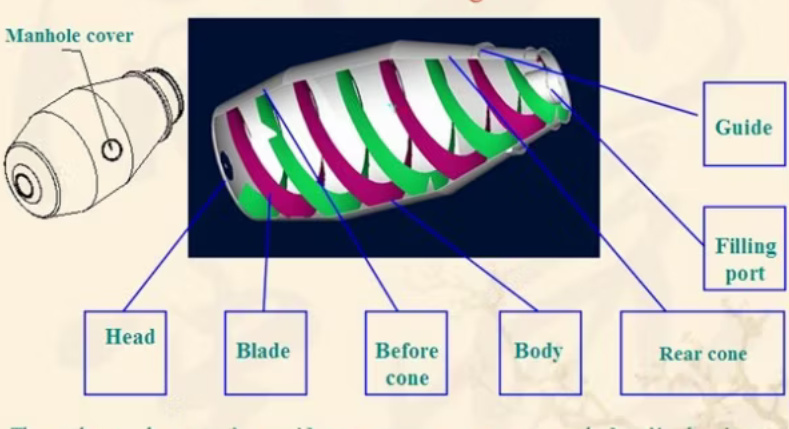

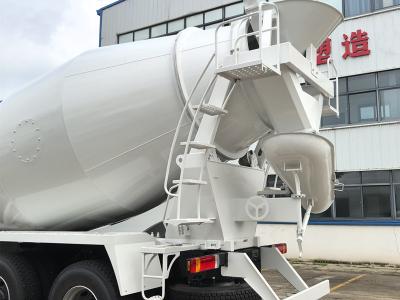

Mixing Drum
The sealed pipe is designed in a funnel shape, effectively preventing concrete spillage.
The blades feature a curved design, significantly improving the discharge efficiency of low-slump concrete.
The head plates are rolled from high-strength steel to ensure rigidity.
All types of blades and the shell are manufactured from high-strength, wear-resistant steel plates to guarantee durability.

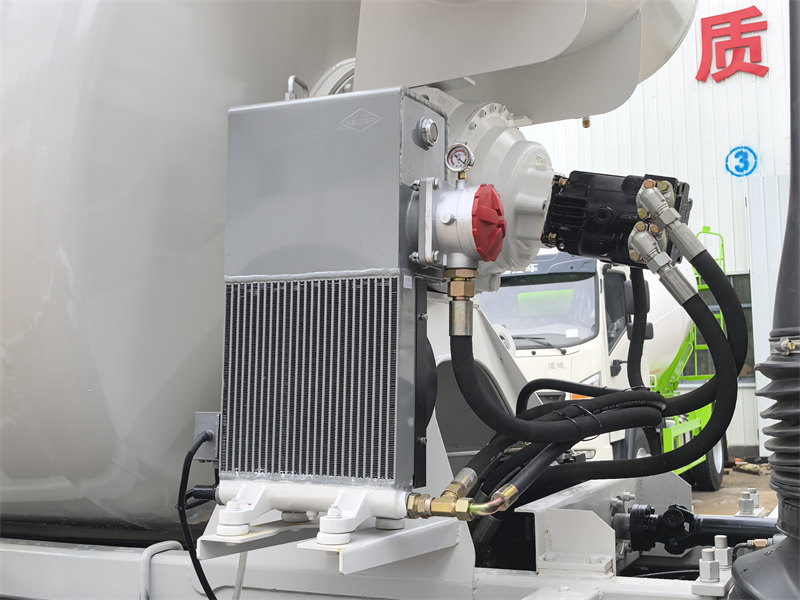

Reliable Hydraulic System

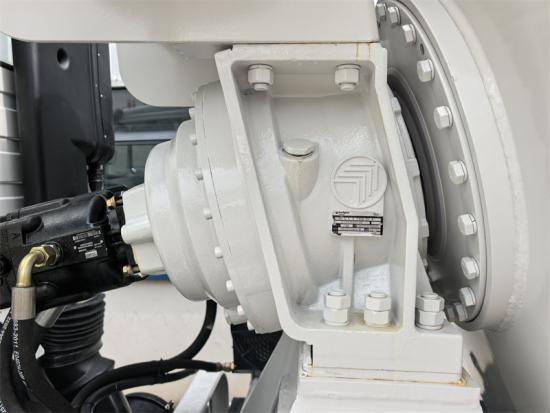

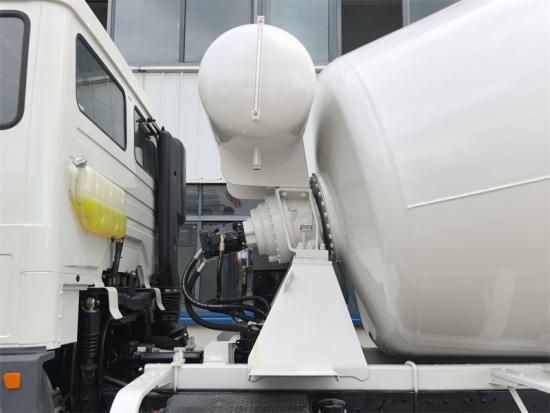

The reducer, hydraulic pump and hydraulic motor are all imported well-known brands to ensure more stable performance.

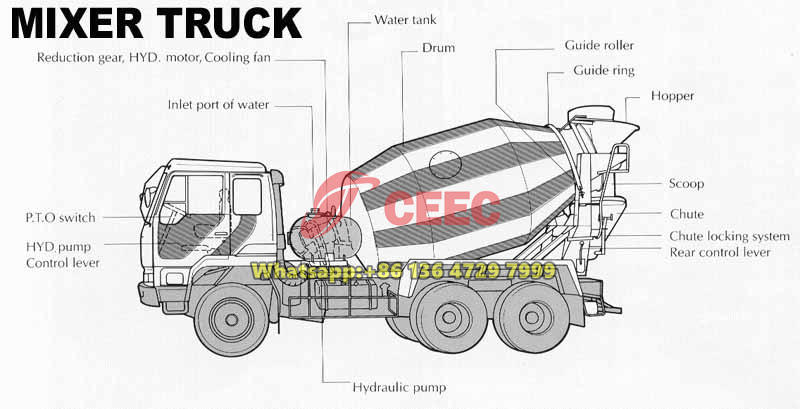

» Ⅳ. Product Structure:
» Ⅴ. Customer Case:
Beiben 6×4 concrete mixer trucks exported to Africa

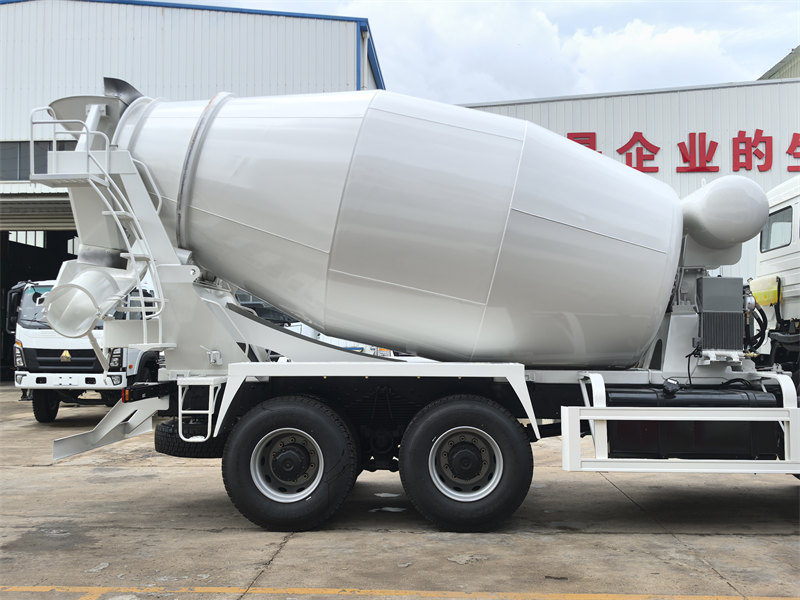

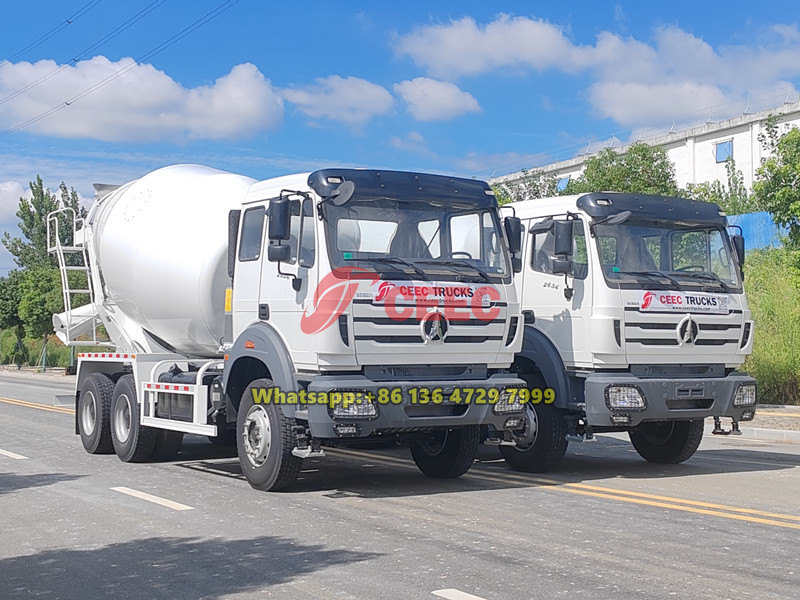

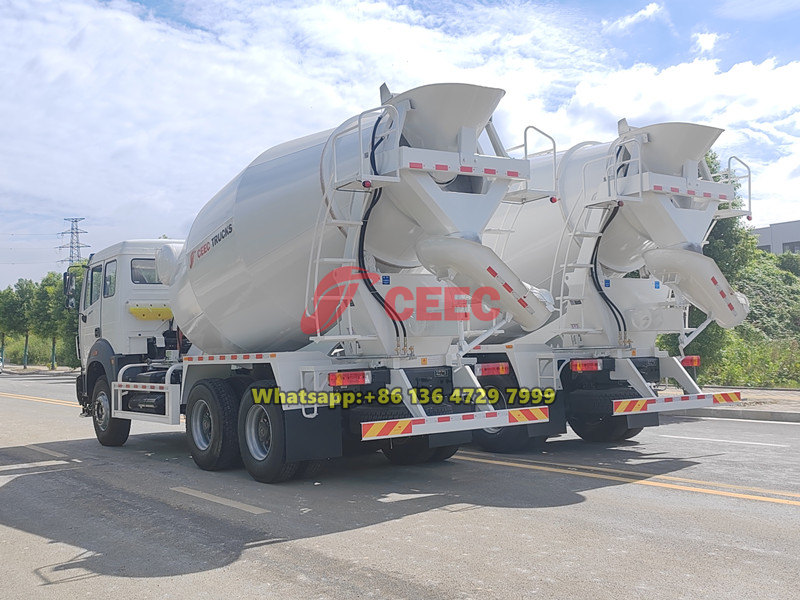

Beiben 10 cubic mixer trucks are ready for shipment
