Beiben 1848 towing tractor, engineered for heavy-duty logistics, exhibits compatibility with diverse semi-trailer configurations to address multifaceted transport demands. Its robust 480-520 HP engine and 2,500-2,800 Nm torque output enable seamless coupling with multiple trailer types while adhering to axle load regulations.
Primarily, it pairs with flatbed semi-trailers (13.5-17.5m length) for bulk cargo like steel coils or machinery, leveraging its 40-tonne GCW capacity. . Refrigerated units (45-48ft) benefit from the tractor's PTO-driven cooling systems, maintaining precise temperature control for perishables.
Working capcity:
60 tonsCabin type:

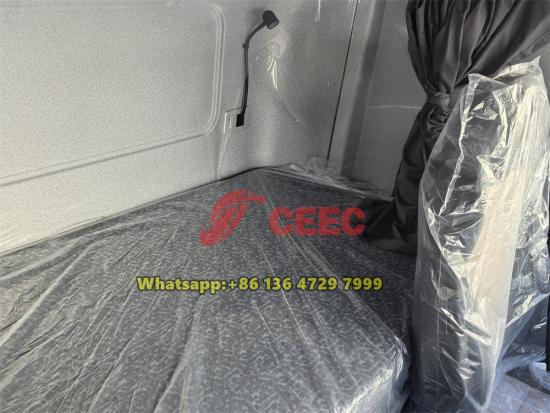

Beiben V3 cabin, with sleeper bedDimension ( mm ) :
7160 x2500x3180Drive system:
6×4Wheelbase (mm):
3550Engine power / Model:
480 HP, WP13H480E62Gear Box:
12JSDX240TARemark:
6x4,6x6 drive avaiableBeiben 1848 towing tractor is a robust heavy-duty vehicle engineered for superior performance in demanding logistics and industrial applications. Equipped with the advanced WP13H480E62 engine, beiben 1848 towing tractor truck delivers exceptional power and efficiency. The 12.9-liter diesel engine generates 480 horsepower and 2,300 Nm of torque, ensuring reliable hauling capacity while adhering to China VI emission standards. Its optimized combustion system enhances fuel economy, reducing operational costs and environmental impact.

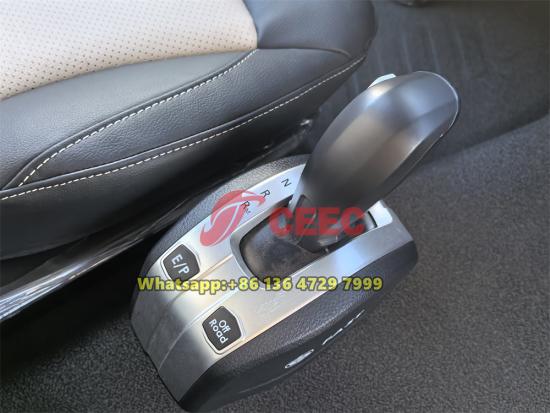

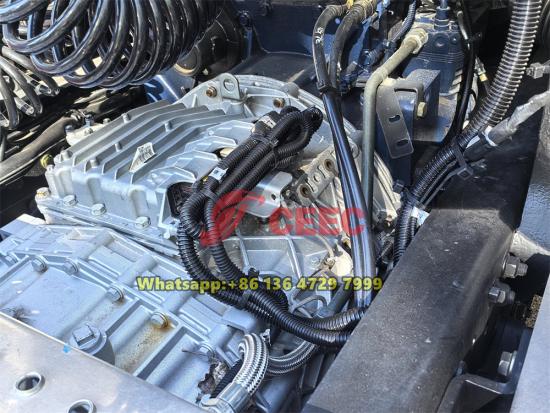

A standout feature is the FAST 12JSDX240TA automated transmission, which combines a 12-speed gearbox with intelligent shift control. This transmission ensures seamless gear transitions, minimizes driver fatigue, and adapts to varying load conditions through real-time data analysis. The integration of automated clutch management further improves durability and reduces maintenance intervals.
Beiben 1848 towing tractor is a robust heavy-duty vehicle engineered for industrial and logistical operations. Powered by a high-torque diesel engine, it delivers exceptional traction and stability, making it ideal for demanding environments. Its reinforced chassis and advanced hydraulic systems enable precise handling under extreme loads.
Four primary applications define its utility:
Product Specifications
|
Wheelbase (mm) |
3550 |
|
|
Curb weight (kg) |
9920 |
|
|

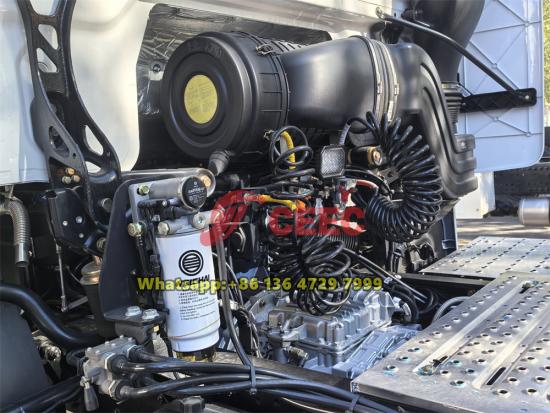

Engine |
Model |
WP13H480E62 |
|
Type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Fuel type |
Diesel |
|
|
Min rate of consuming fuel(g/(kw.h)) |
196g/Kw. h |
|
|
Horsepower |
480 HP |
|
|
Rated Power / rotating |
352Kw/2100rpm |
|
|
Emission |
EURO VI |
|
|
Maximum Torque / rotating speed (n.m/(r/min) |
2150Nm/1200-1500rpm |
|
|
Displacement(ml) |
11596 |
|
|
Fuel tanker capacity (L) |
400 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T, mechanical type, Based on Fuller Eaton technology, AMT |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
ZF8098, whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13pcs |
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle. |
|
|
Tire |
12.00R20 radial tire |
|
|
Qty of tire |
11 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cab |
Long cab with one sleeper |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|

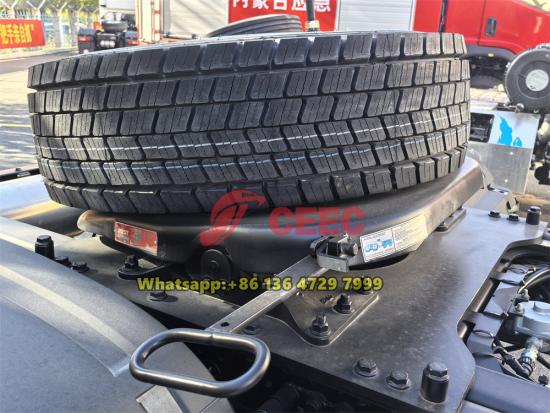

Fifth wheel |
#50 single direction |
|

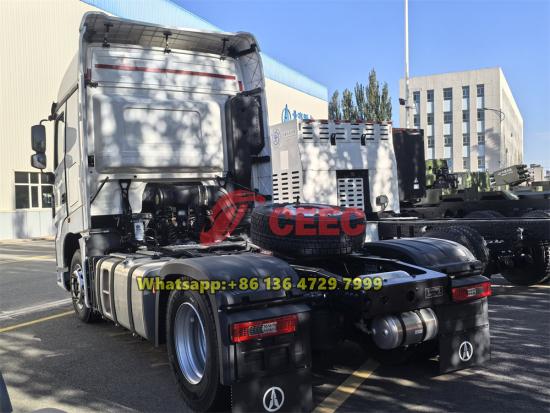

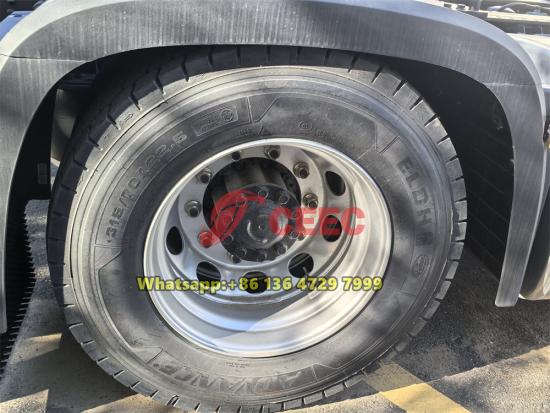

Beiben 6x4 tractor head with 12.00R20 tyres
Performance & Advantages
Beiben 1848 towing tractor is a robust heavy-duty vehicle designed to handle diverse semi-trailer configurations across multiple industries. Its high-torque engine, reinforced chassis, and advanced coupling system enable compatibility with several semi-trailer types.
Primarily, it pairs with flatbed semi-trailers for transporting bulk cargo like construction materials or machinery. The tractor’s 480+ horsepower and stability control suit unevenly distributed loads. For temperature-sensitive goods, refrigerated semi-trailers are ideal, leveraging the 1848’s consistent power output to maintain cooling systems during long hauls.
In logistics, curtain-side semi-trailers benefit from the tractor’s maneuverability in urban settings, while lowboy semi-trailers align with its high towing capacity (up to 70 tons) for oversized industrial equipment. Tanker semi-trailers for fuel or chemicals are also compatible, supported by the 1848’s precise braking and ABS features to ensure safe liquid transport.
Additionally, container carriers can be coupled for intermodal shipping, utilizing the tractor’s adjustable fifth-wheel height to accommodate standard 20ft or 40ft containers. Specialized trailers, such as dump semi-trailers for mining or agriculture, integrate seamlessly due to the 1848’s rugged suspension and off-road capabilities.

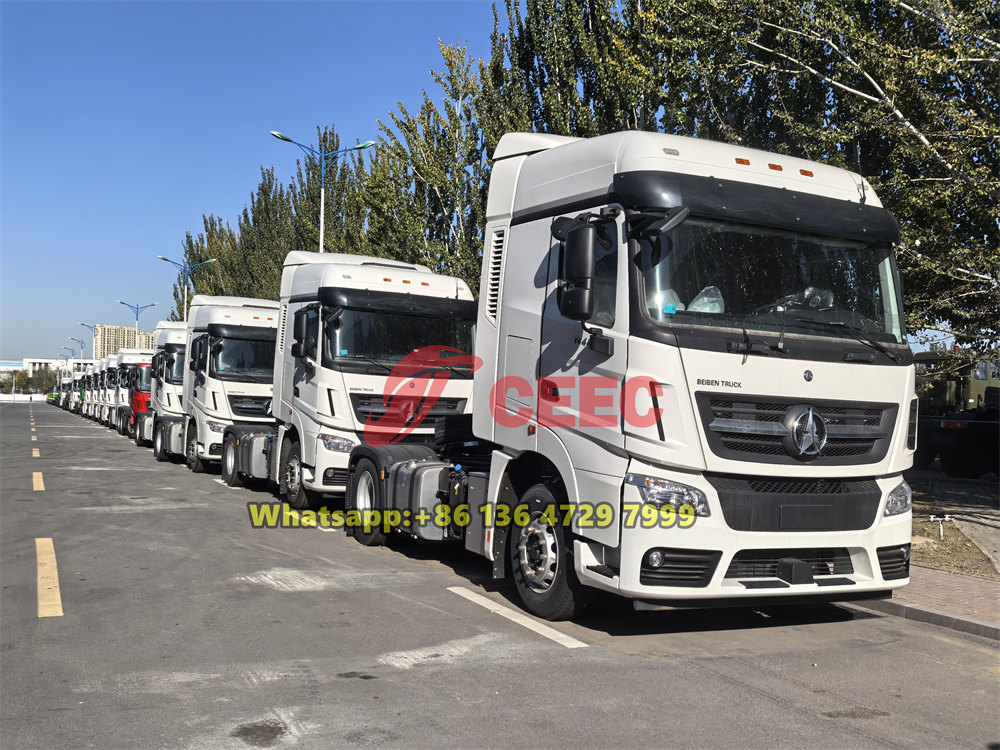

Product Pictures

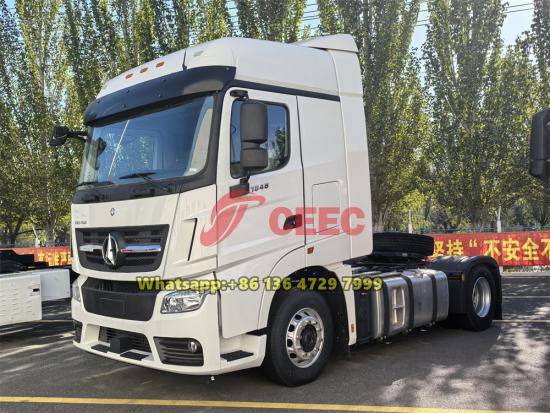

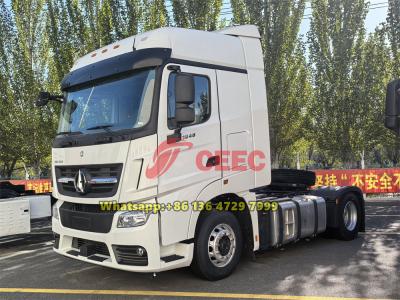

Beiben 6x4 towing tractor truck
Beiben 2642 cabin tractor truck with kingpin
Beiben 6x4 tractor truck with NG80B sleeper bed cabin
