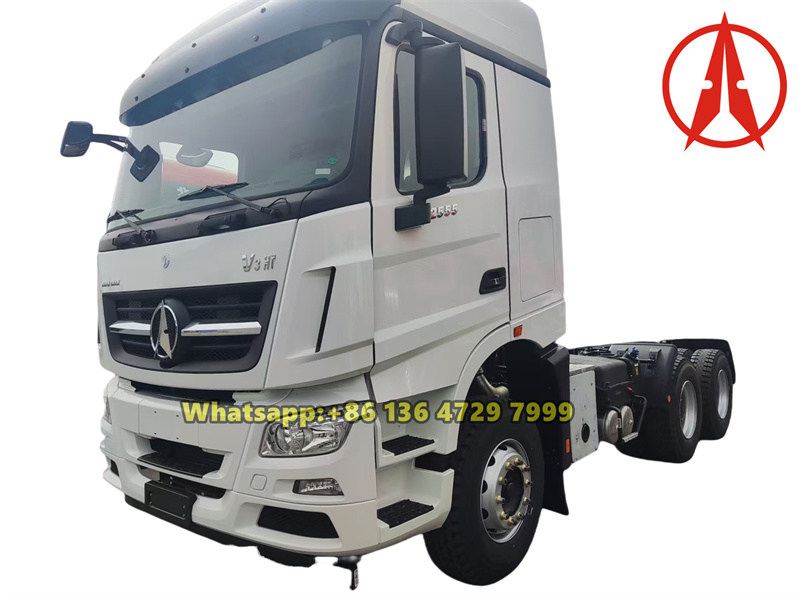

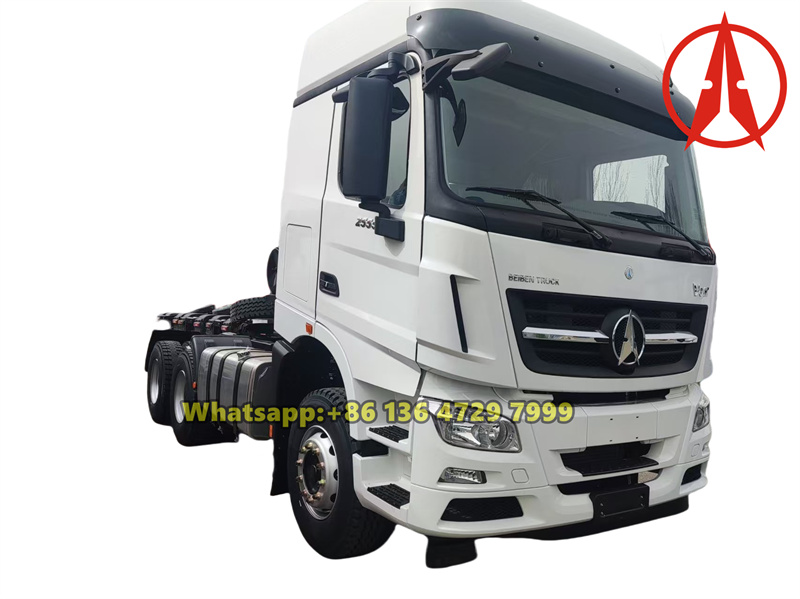

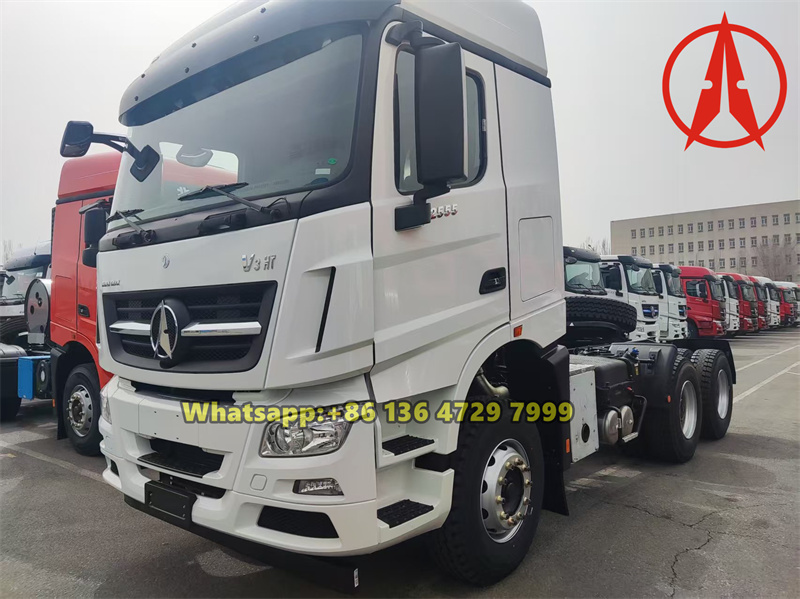

Beiben 2555 High-Head Tractor Truck is engineered for demanding heavy-duty logistics and long-haul transportation tasks. Its primary application lies in efficiently transporting oversized or high-weight cargo across intercity and cross-regional routes, leveraging its robust chassis design and high-torque powertrain. Equipped with a 550-horsepower diesel engine and optimized 16-speed transmission system, this model delivers superior traction performance for container logistics, bulk commodity transport, and specialized heavy equipment haulage.
Working capcity:
100 tonsCabin type:
Beiben V3 cabin, high headDimension ( mm ) :
7160 x2500x3180Drive system:
6×4Wheelbase (mm):
3550+1450Engine power / Model:
550 HP, WP13H550E62Gear Box:
12JSDX240TARemark:
6x6 drive avaiableBeiben 2555 High-Head Tractor Truck is a robust and versatile heavy-duty vehicle engineered for long-haul transportation and demanding logistics operations. Equipped with a high-roof sleeper cab, beiben 2555 tractor truck prioritizes driver comfort during extended journeys, featuring ergonomic seating, climate control, and ample storage. The cab’s aerodynamic design reduces wind resistance, enhancing fuel efficiency and stability at high speeds.
Powering the 2555 is a high-performance Euro V-compliant diesel engine, delivering up to 550 horsepower and exceptional torque for tackling steep gradients and heavy payloads. Coupled with a synchronized manual transmission system, it ensures smooth gear transitions and optimal power distribution across varied terrains. The chassis incorporates a reinforced steel frame and multi-axle suspension, providing durability and load-bearing capacity up to 55 tons, ideal for containerized or bulk cargo.
Beiben 2555 High-Head Tractor Truck is engineered for heavy-duty logistics and long-haul transportation, prioritizing power, durability, and driver comfort. Its primary application lies in freight transport across challenging terrains, including mountainous regions, construction sites, and intercity highways. Equipped with a high-torque diesel engine and reinforced chassis, the vehicle excels in hauling oversized loads such as construction machinery, bulk cargo containers, and multi-axle trailers, making it indispensable for mining, infrastructure development, and cross-regional logistics operations.
Beiben 2555 High-Head Tractor Truck, manufactured by Beiben Trucks Group, is a robust heavy-duty vehicle designed for demanding transportation tasks. Equipped with a high-head cab, it offers enhanced driver comfort and visibility, making it ideal for long-haul operations. Powered by a high-torque diesel engine, this model delivers exceptional performance with a horsepower range of 400–550 HP and a torque output exceeding 2,200 Nm. Its reinforced chassis, advanced suspension system, and optimized load-bearing capacity ensure stability under extreme loads. Additionally, the truck incorporates fuel-efficient technologies and compliance with Euro V/VI emission standards, balancing power with environmental responsibility. Safety features such as ABS, EBS, and lane departure warnings further underscore its reliability.
Four Primary Applications:
Heavy Cargo Logistics: The Beiben 2555 excels in transporting oversized or bulk goods, including steel coils, machinery, and construction materials, across long distances. Its high load capacity (up to 60 tons) and durable chassis make it suitable for industrial supply chains.
Construction and Mining: With superior off-road capabilities and traction control, this truck is widely used in mining sites and construction zones to haul raw materials, aggregates, and heavy equipment like excavators or bulldozers.
Intermodal Freight Transport: Its compatibility with standard trailers enables efficient container transportation between ports, rail terminals, and warehouses, supporting global logistics networks.
Specialized Heavy-Duty Tasks: Customized variants serve niche sectors, such as transporting wind turbine components, oilfield machinery, or military vehicles, leveraging its adaptability to specialized trailers and rugged terrains.
Product Specifications
Wheelbase (mm) |
3500+1450 |
|
Curb weight (kg) |
11920 |
|
Engine |
Model |
WP13H550E62 |
Type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
Fuel type |
Diesel |
|
Min rate of consuming fuel(g/(kw.h)) |
196g/Kw. h |
|
Horsepower |
550 HP |
|
Rated Power / rotating |
404Kw/2100rpm |
|
Emission |
EURO VI |
|
Maximum Torque / rotating speed (n.m/(r/min) |
2150Nm/1200-1500rpm |
|
Displacement(ml) |
11596 |
|
Fuel tanker capacity (L) |
400 |
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
Gearbox |
Model |
12JS200T, mechanical type, Based on Fuller Eaton technology, AMT |
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system |
Model |
ZF8098, whole circulation in ball type, hydraulic boosting |
Suspension System |
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13pcs |
Frame |
Fish belly shape, variable width, variable sections |
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle. |
|
Tire |
12.00R20 radial tire |
|
Qty of tire |
11 |
|
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-35A |
|
Starter |
5.4Kw/24V |
|
Cab |
Long cab with one sleeper |
|
Interior trimming: |
||
Exterior trimming: |
||
Fifth wheel |
#50 single direction |

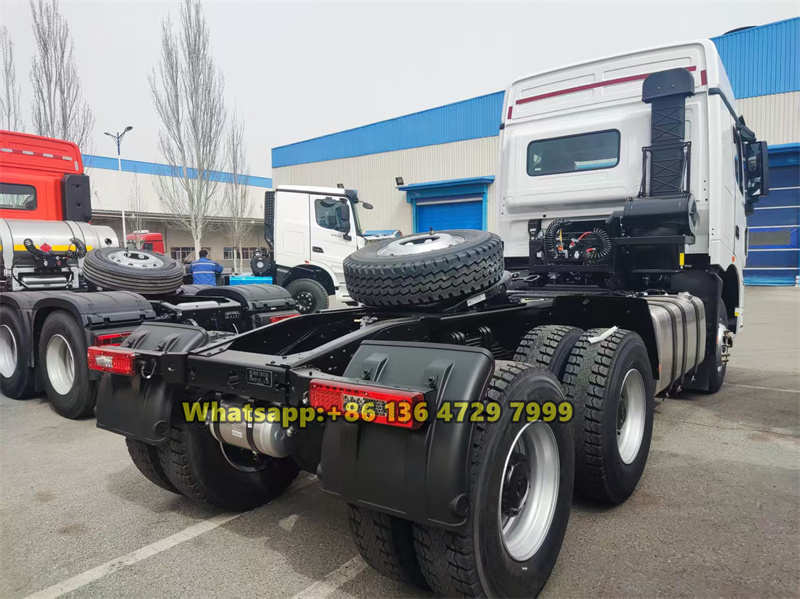

Beiben 6x4 tractor head with 12.00R20 tyres
Performance & Advantages
Beiben 1848 towing tractor is a robust heavy-duty vehicle designed to handle diverse semi-trailer configurations across multiple industries. Its high-torque engine, reinforced chassis, and advanced coupling system enable compatibility with several semi-trailer types.
Primarily, it pairs with flatbed semi-trailers for transporting bulk cargo like construction materials or machinery. The tractor’s 480+ horsepower and stability control suit unevenly distributed loads. For temperature-sensitive goods, refrigerated semi-trailers are ideal, leveraging the 1848’s consistent power output to maintain cooling systems during long hauls.
In logistics, curtain-side semi-trailers benefit from the tractor’s maneuverability in urban settings, while lowboy semi-trailers align with its high towing capacity (up to 70 tons) for oversized industrial equipment. Tanker semi-trailers for fuel or chemicals are also compatible, supported by the 1848’s precise braking and ABS features to ensure safe liquid transport.
Additionally, container carriers can be coupled for intermodal shipping, utilizing the tractor’s adjustable fifth-wheel height to accommodate standard 20ft or 40ft containers. Specialized trailers, such as dump semi-trailers for mining or agriculture, integrate seamlessly due to the 1848’s rugged suspension and off-road capabilities.
Product Pictures

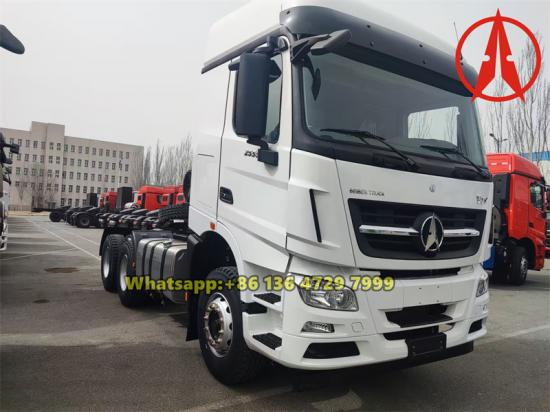

Beiben 6x4 towing tractor truck

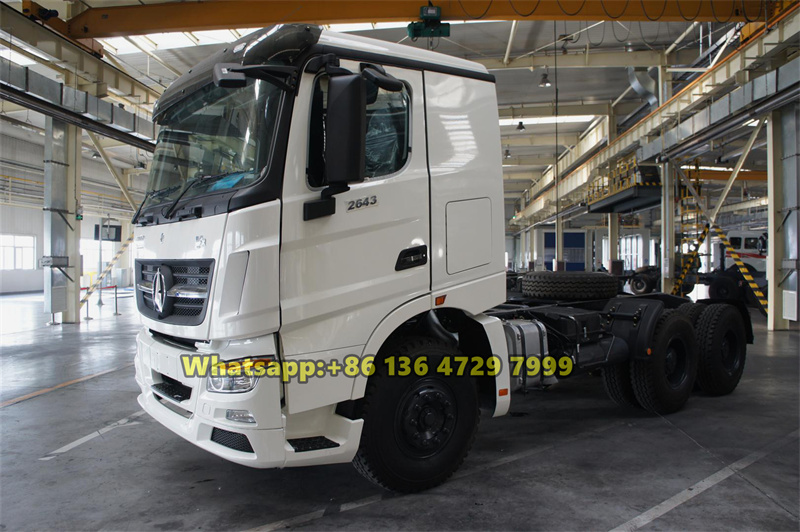

Beiben 2642 cabin tractor truck with kingpin
Beiben 6x4 tractor truck with NG80B sleeper bed cabin
