Products

beiben 1932 off road truck

  • FOB Price

    58,000-$69,000

  • Production time

    60 days

  • Payment terms

    T/T

enquiry
Product Details
Product Details

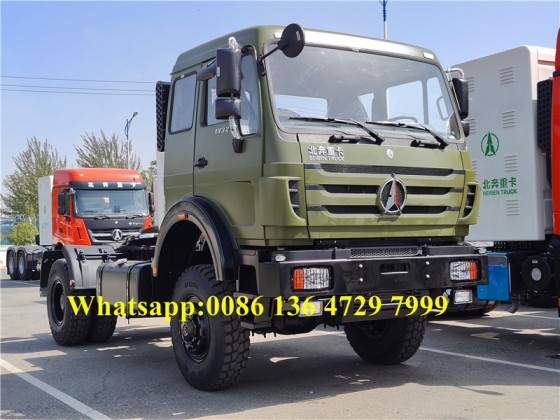

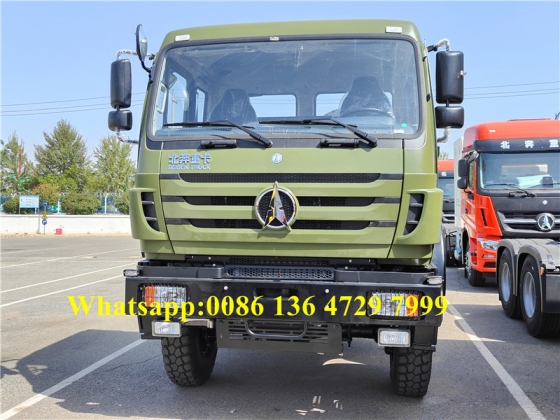

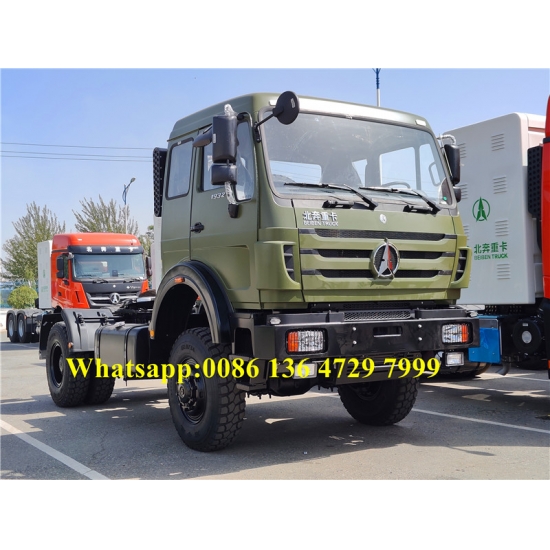

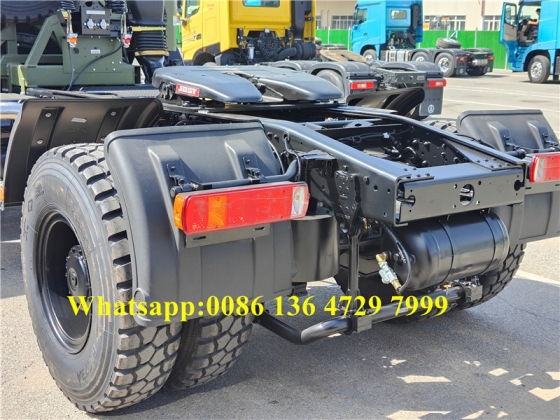

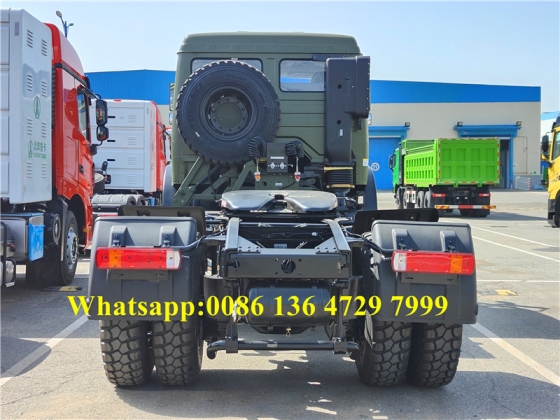

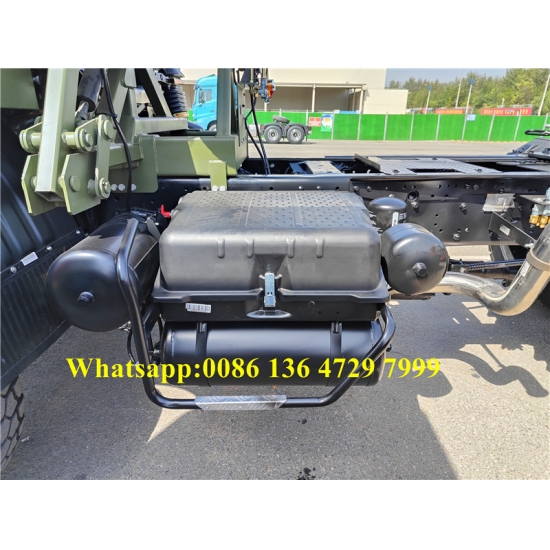

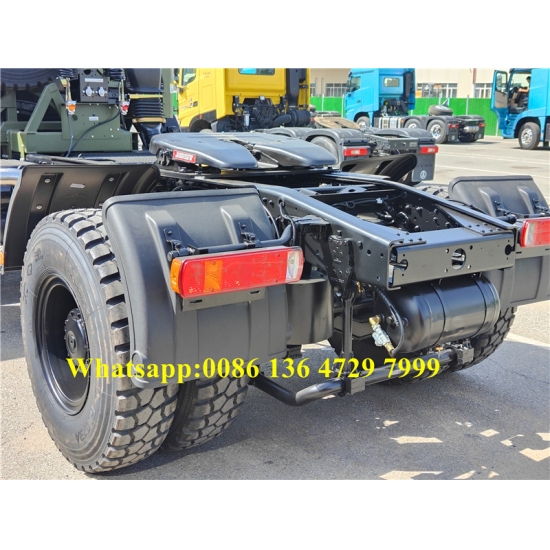

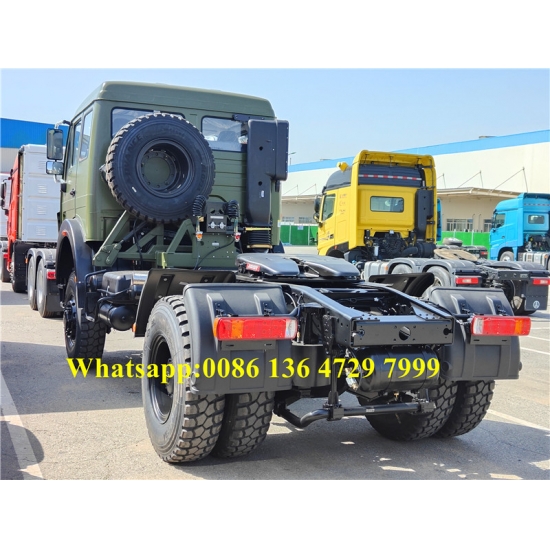

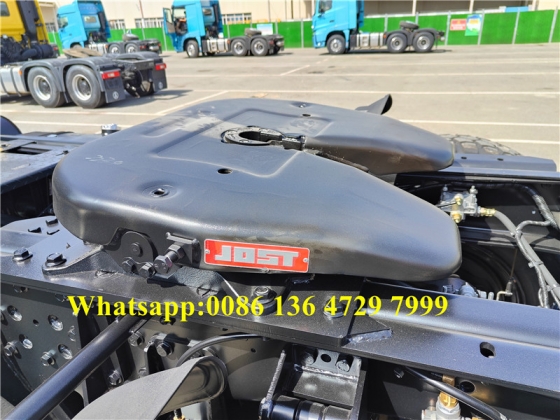

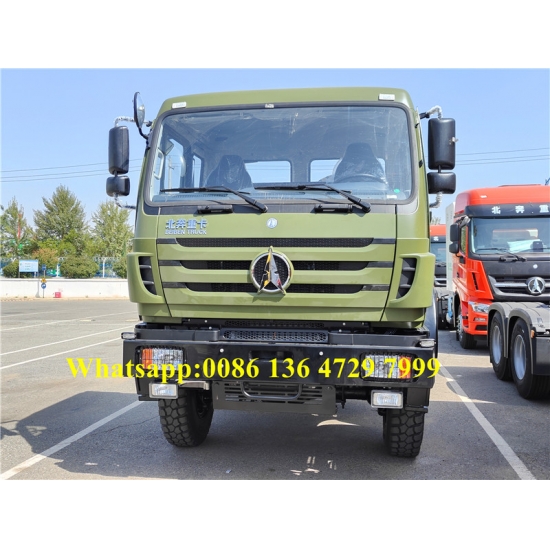

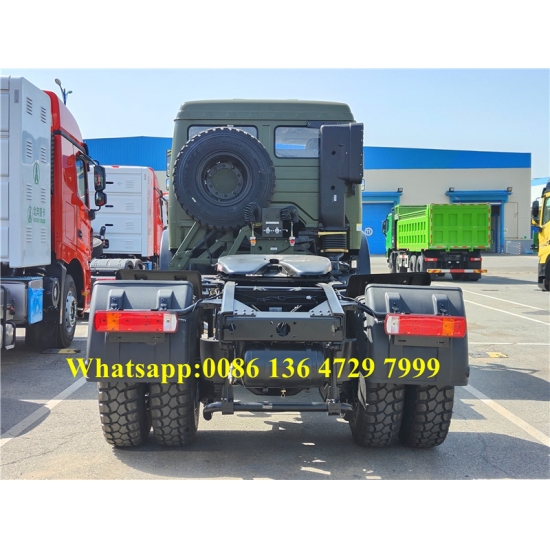

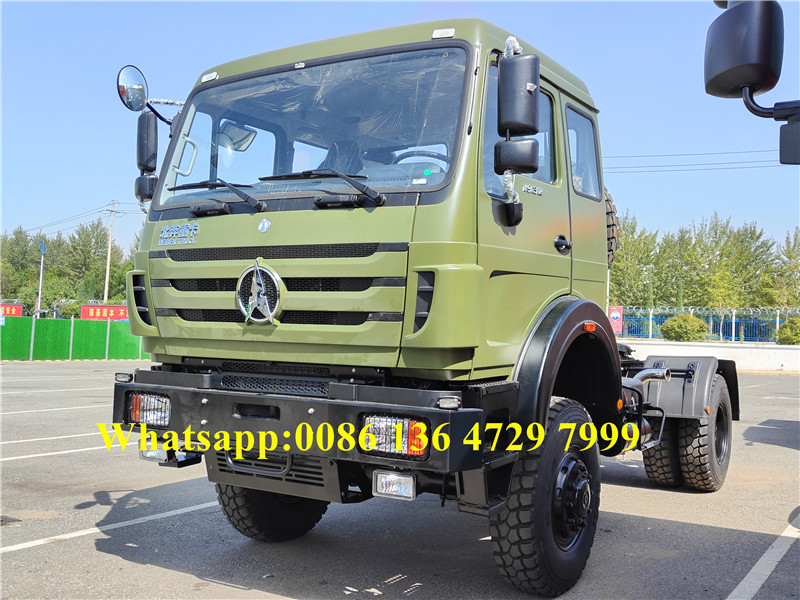

                                                                beiben 4*4 off road truck

  Beiben 4*4 drive truck chassis




 Applications:



Beiben 4*4 drive truck chassis  ,also called as beiben  4 wheel drive truck chassis, beiben 4*4 drive cargo truck, china beiben 1934 all wheel drive truck, north benz 1938 all wheel drive truck,      is designed for producing beiben water truck, beiben fuel truck, beiben crane truck, and beiben cargo trucks. . This beiben heavy duty truck chassis can  loading, transporting and discharging heavy duty material , also can be used in for extremely road and weather situation, can be used in wild area, off road area.



china beiben 1934 truck chassis apply germany benz technology device, with extremely work performance.



The north benz 4*4 wheel drive  cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.



 Key Features:



---- North benz 1934 chassis, strong military driving system

---- Military quality , Mercedes benz technology

---- 9JS150A transmission, super combination.

---- Patented axle technology, with wheel reducer

---- Completely steel cabin , safety and reliable.



 Specifications:



Africa  beiben 1934 off road truck

Model

 Beiben 1934 all wheel drive crane truck

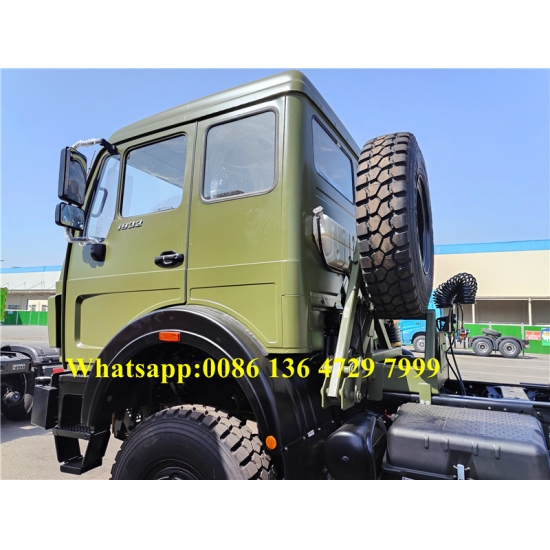

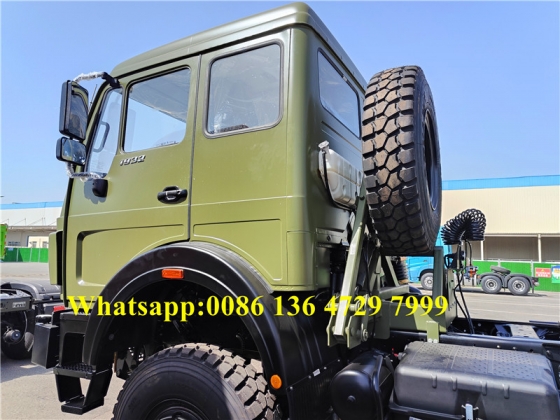

Driver's cab

Long cabin, one sleeper

Engine

Maker: North Benz

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling

Engine model: WP10.340NE32
EURO II/EUROIII emission standard

Maximum output:340hp@2200rpm

Number of cylinder:6

Displacement: 11.726L

Clutch

Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance

Transmission

Fuller 9JS150T transmission.

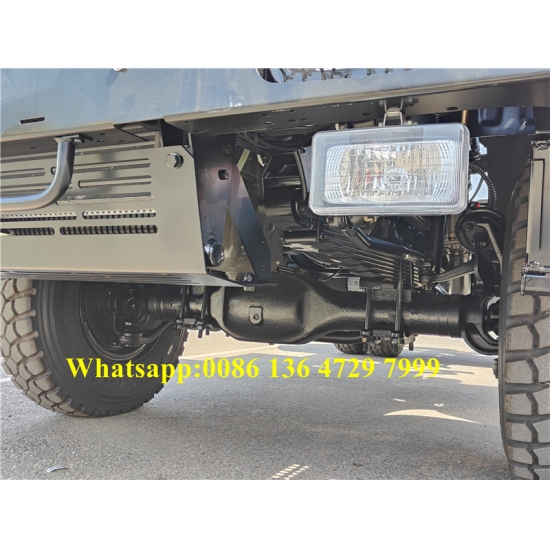

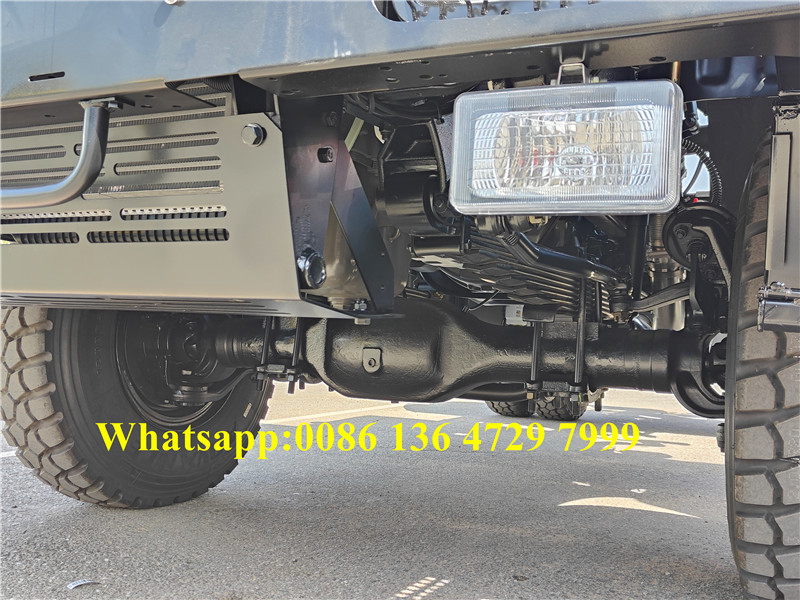

Front Axle

Mercedes Benz, drum brake

Rear Axle

Mercedes Benz double reduction drive axle, ratio=5.2

Steering

ZF8098

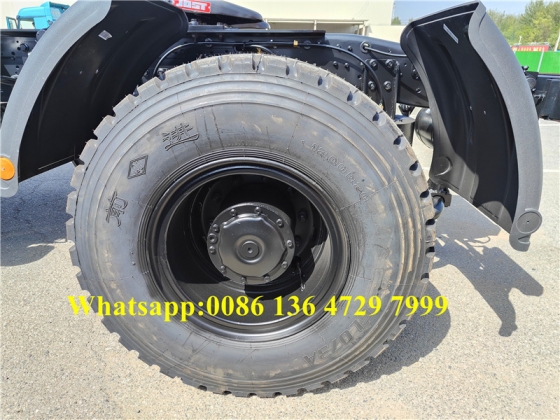

Wheel & Types

Rims:8.5-20

Tyre:12.00R20 tube

Optional: 12R22.5//315/80R22.5

Radial tire is optional

Electrics

Operating voltage: 24V,negative grounded

Dimensions in mm

Wheel base : 4500

Overall size: 9850x2500x3385

Weight in kg

Kerb. mass: 8400 kg

Total mass: 25000kg

Performance

Maximum driving speed(km/h) 85

Body in mm

6000x2300x800

The manufacture reserves the right of technical alteration/change for better improvement prior notice
