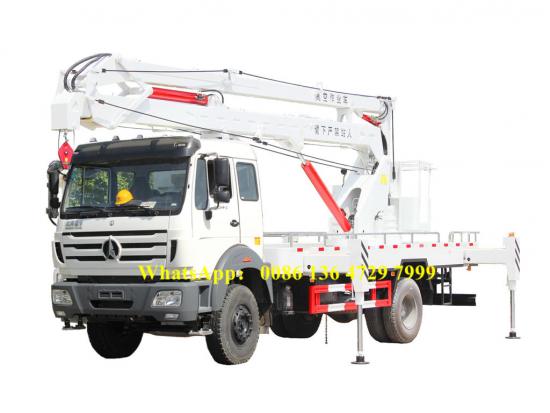

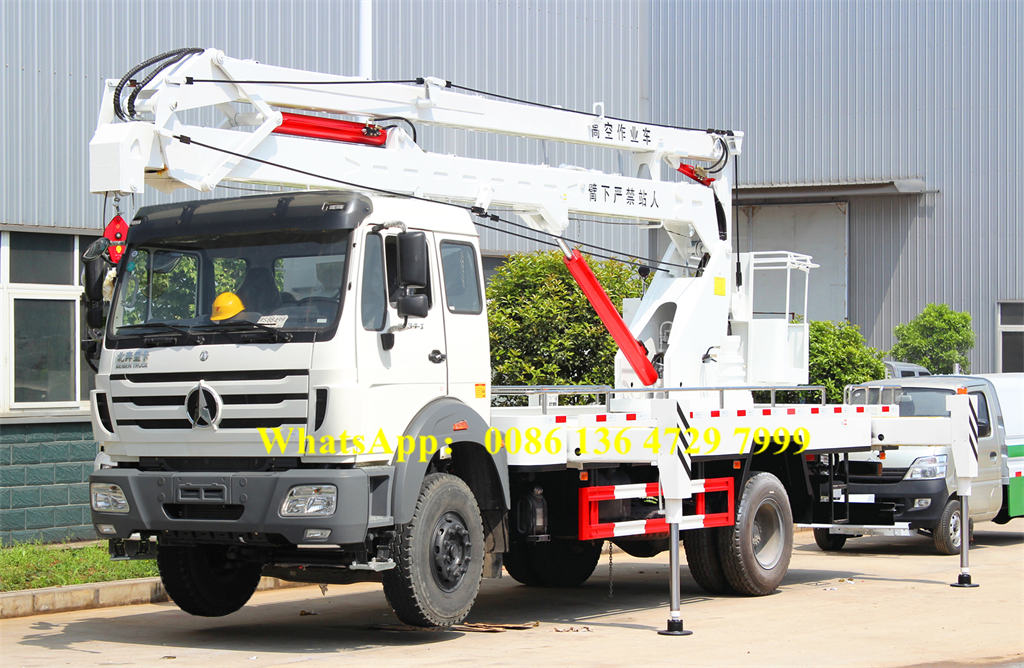

Beiben 4×2 aerial work platform truck is equipped with WP6.240E32 engine, with 240 horsepower and 900N.m torque. The working height can reach 20 meters and the maximum working radius is 9 meters. It is equipped with Beiben NG80 single-row air-conditioned cab, providing a comfortable driving environment. With its excellent performance and stable working ability, this vehicle has become a reliable choice in the field of aerial work.
Order(MOQ):
1Payment:
30% deposit + balance before deliveryProduct Origin:
ChinaColor:
WhiteShipping Port:
Shanghai, Qingdao, DalianLead Time:
35 daysWorking Capcity:
20 mCabin Type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
8600*2500*3750Drive System:
4×2, left hand driveWheelbase (mm):
4600Engine Power:
240 HP/WP6.240E32Gear Box:
9JS150ARemark:
4×4, RHD is optionalProduct Description
Beiben aerial work platform truck has won the recognition of customers for its excellent performance parameters and stable operating performance. The truck adopts the NG80 single-row air-conditioned cab, which provides a comfortable working environment for operators. The total mass of the vehicle reaches 18,000kg, ensuring stability and carrying capacity during operation.
Beiben 4×2 manlift truck is equipped with a WP6.240E32 turbocharged engine, which adopts turbocharging and intercooling technology to ensure efficient and stable output of the engine. The engine has a displacement of 6.75L, a maximum output power of 176KW/240HP, a maximum torque of 900N.m, and a rated speed of 2500rpm. Such a power configuration enables the vehicle to handle various operations with ease.

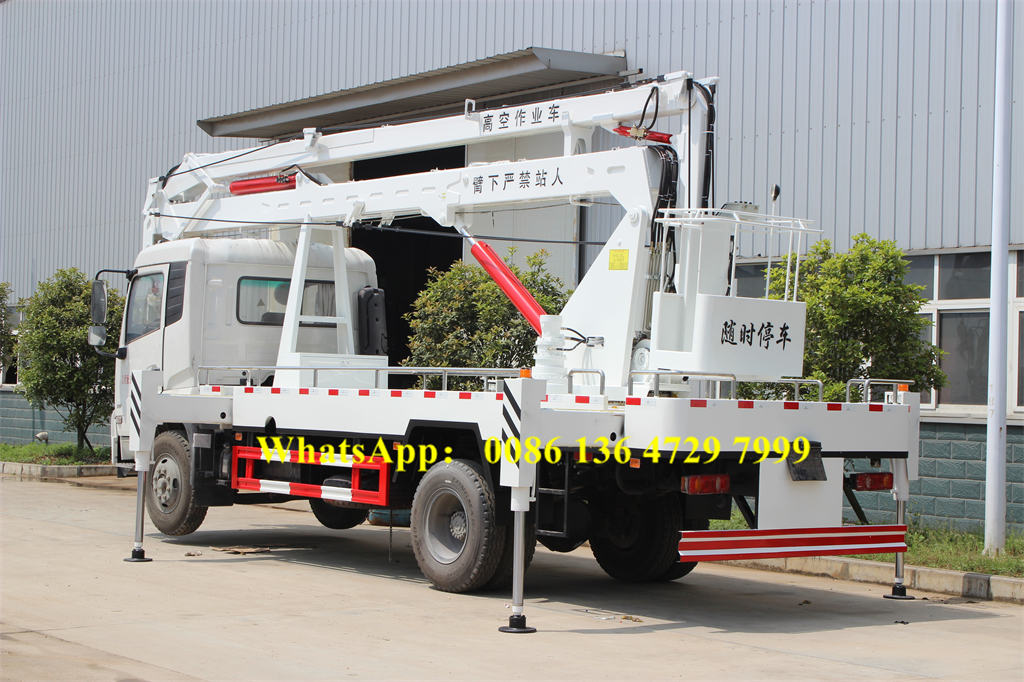

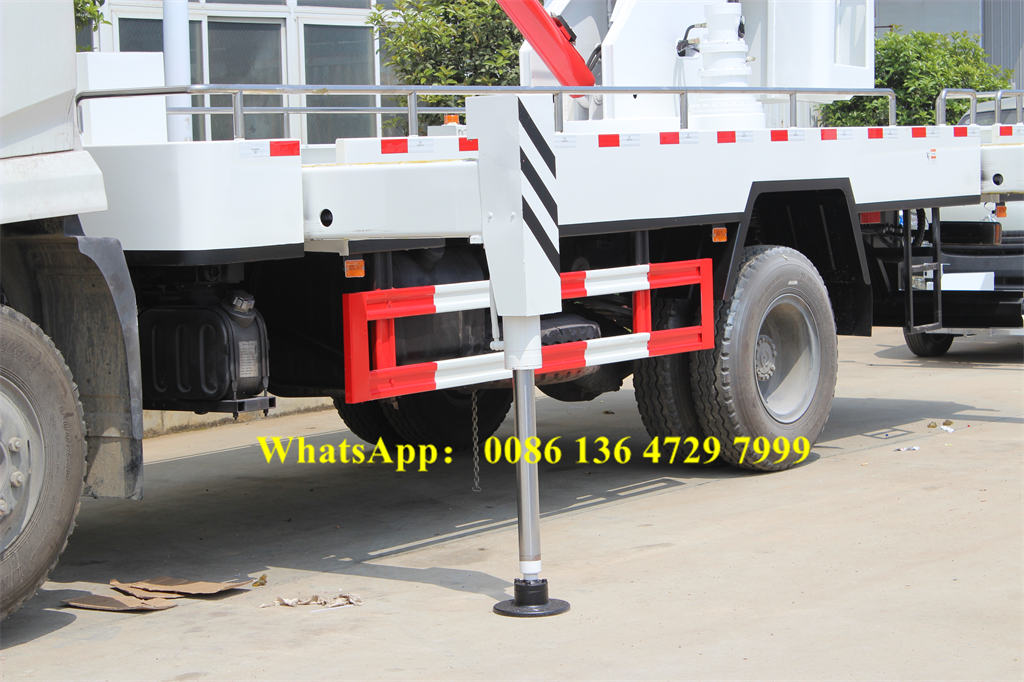

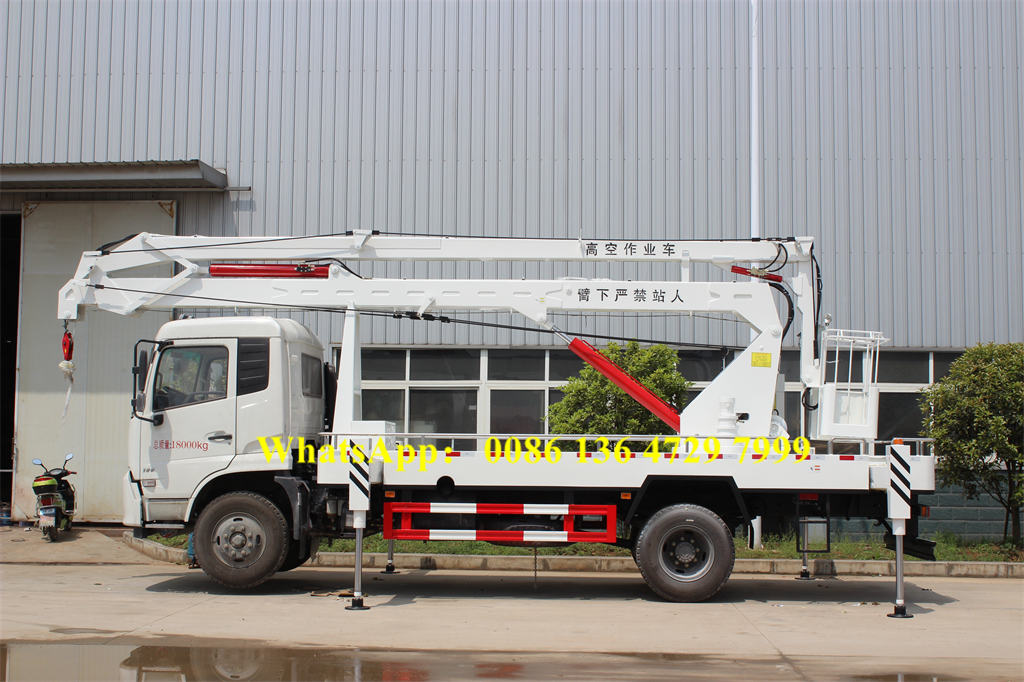

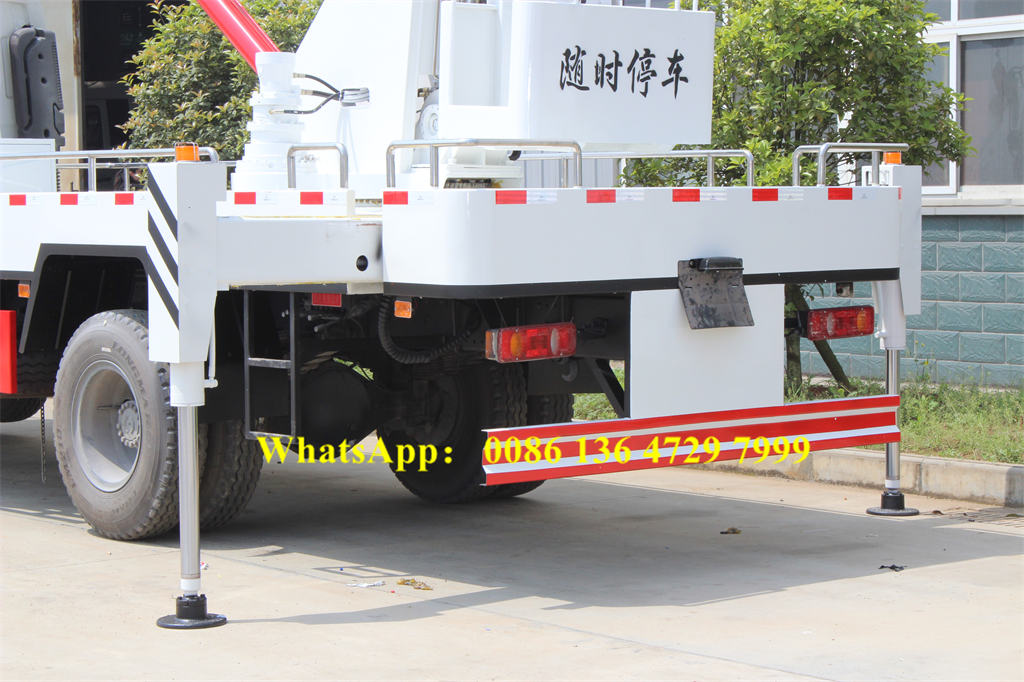

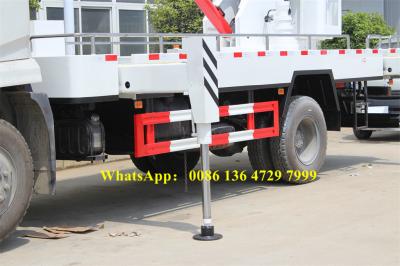

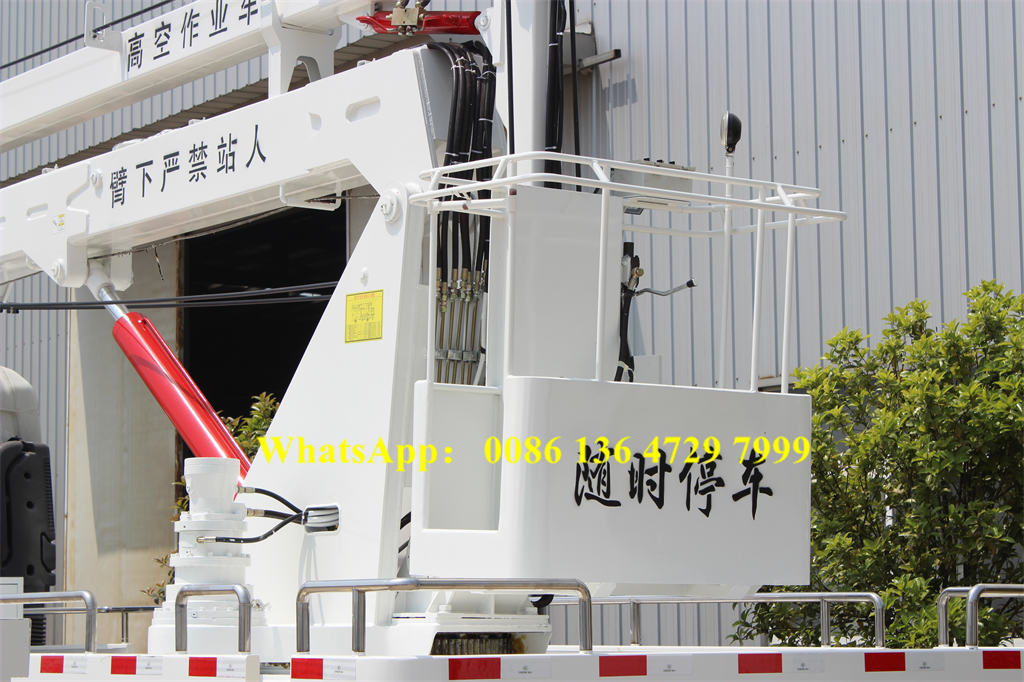

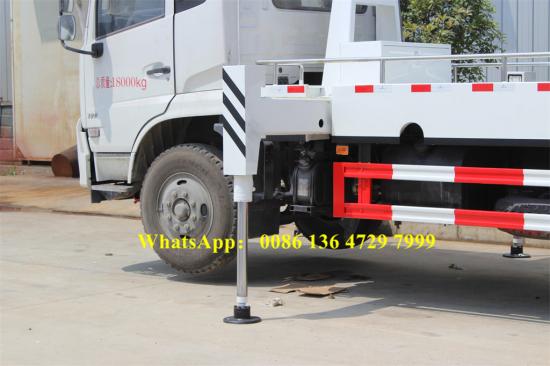

The aerial work system is one of the highlights of Beiben bucket truck. The vehicle is equipped with a powerful hydraulic power system, which provides stable power support for aerial operations. Four H-type hydraulic outriggers ensure the stability of the vehicle during aerial operations. The working bucket is made of fiberglass, which has excellent insulation performance, can carry a rated load of 200kg, and allows two people to work at the same time. The working height can reach 20m, the maximum working radius is 9m, the rotation speed is 0-2r/min, and the rotation angle is 360°, which fully meets various high-altitude work needs. In addition, the vehicle is also equipped with a hook load capacity of 1000kg, providing more possibilities for high-altitude work.
Product Specifications
|
Beiben aerial work platform truck specifications |
|||
|
Cab |
NG80, single row with A/C |
||
|
Gross vehicle weight |
18000 kg |
||
|
Curb weight |
17500 kg |
||
|
Max. Speed |
95 Km/h |
||
|
Dimension |
8600*2500*3750 |
||
|
Steering |
Left-hand driving (power-assisted) |
||
|
Gear box |
FAST 9-Speed |
||
|
Electric system |
24 |
||
|
Braking system |
Air brake |
||
|
Chassis |
Brand |
Beiben |
|
|
Wheelbase |
4600 mm |
||
|
Axle load |
7/18 Ton |
||
|
Tire |
10.00R20 |
||
|
Wheel track |
Front |
2060 mm |
|
|
Rear |
1855/1855 mm |
||
|
Suspension |
Front |
1525 mm |
|
|
Rear |
1770 mm |
||
|
Angle |
Approach |
17° |
|
|
Departure |
13° |
||
|
Engine |
Model |
WP6.240E32 |
|
|
Type |
Turbocharged |
||
|
Intercooled, turbocharged |
|||
|
6 cylinders, high pressure common rail |
|||
|
Displacement |
6.75L |
||
|
Emission standard |
Euro 3 |
||
|
Max. Power |
176KW/240HP |
||
|
Max. torque |
900 N.m |
||
|
Rated speed |
2500 rpm |
||
|
Superstructure parameters |
|||
|
Power of movement |
Hydraulic pump |
||
|
Hydraulic outriggers |
4, H type |
||
|
Bucket material |
Fiberglass, insulated |
||
|
Rated loading of bucket |
200 kg |
||
|
Allowed person in bucket |
2 |
||
|
Working height |
20 m |
||
|
Max. Working radius |
9 m |
||
|
Rotating speed |
0-2 r/min |
||
|
Rotating angle |
360° |
||
|
Loading of hook |
1000 kg |
||
Product Details
BEIBEN tow truck with military quality Benz technolgy Common used parts with Benz WEICHAI engine Favorable price Chassis specification Model: ND4257B34J Driving type:6*4 RHD Wheel base (mm) :3450+1450 Curb weight (kg) : 9200 Fuel tank capacity:400L

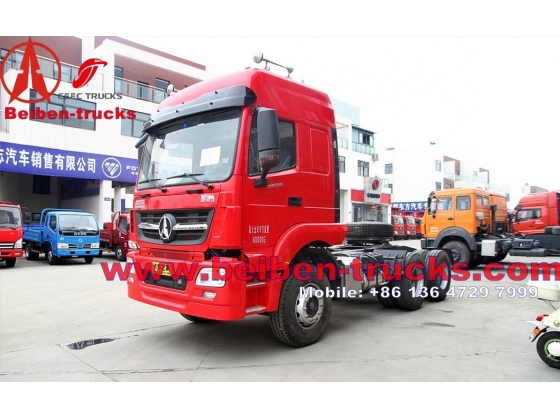

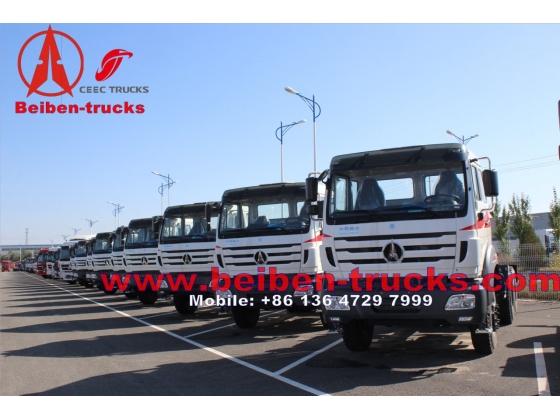

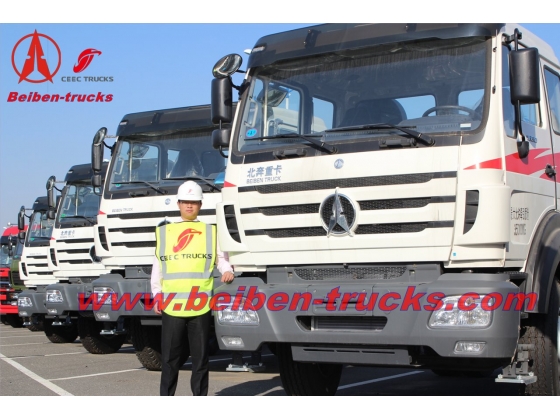

North Benz Tractor Head Weichai Engine Latest design. Mercedes Benz Steering:ZF8098 Fuller gear box eiben NG80 6x4 or 6x6 Tractor Truck and Truck Head For Hot Sale North Benz BEIBEN Tractor Head 60Tons with WEICHAI engine ND42601B34J North Benz Tractor Head
The Beiben 2638 log transport truck is specially designed for efficient and heavy-load transportation, with wide applications in the forestry, construction, furniture manufacturing, and other industries. This vehicle employs advanced chassis technology, meets Euro 3 emission standards, and is equipped with a powerful 280KW/380HP diesel engine. With a length of 13000mm, a width of 2500mm, and a height of 4000mm, it has a loading capacity of up to 60,000kg. Its high-strength steel main beams, sturdy fences, and comprehensive configuration ensure cargo safety and efficient transportation.
Military quality North Benz 2638 truck tractor Beiben 380hp haul truck, 420 hp haul truck, 460 hp haul truck
Beiben Tractor Truck and Head Weichai Engine Mercedes Benz Technology Best After - Sales Service 10 Yeas Experiences

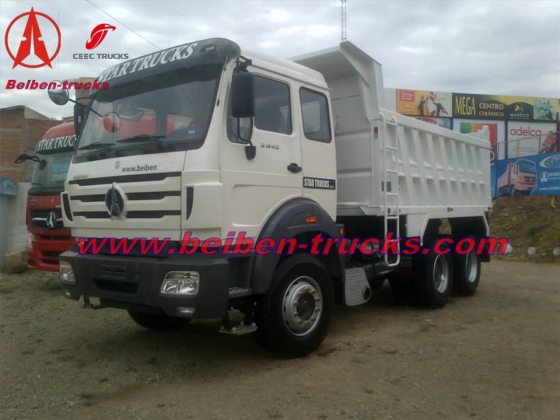

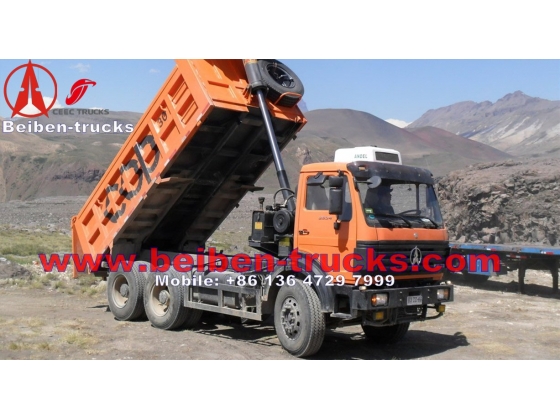

Using Mercedes-Benz Technology China beiben 30 ton dump truck sale Product Description Model 6x4 dump truck Cabin Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C Engine Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. Model: WP10. 380E32 WEICHAI Diesel engine MAX Horse power: 380HP/280KW Displacement(L): 9.726liter (Euro 2 standard) Max torque: 1500NM@1200-1600rpm Bore/stoke: 126mm/130mm Gear box Max torque:2000NM Model: 12JS200T, mechanism,12gears,2reverse gear, manual, synchronization Speed: 12speed,2reverse Axle(front/rear) Front axle Double-shoe pneumatic brake, non-driving steering axle Tandem Double-shoe pneumatic brake, casting, double reduction driving axle Clutch Single dry frictional disc,Hydraulic boosting Brake Service brake: Brake gap can be adjusted automatically, double circulation air brake system Parking brake: Potential springs pressing on middle and rear wheels Engine brake: Engine exhaust brake(EVB) Steering TAS85, driver sit at the left hand side Electric Equipment Operating voltage: 24Vnegative grounded Starter: 24V,5.4KW Alternator 28V,758W Battery voltage 12V/135Ah,cigar lighter Frame Fish belly, shape, variable width, variable sections, side beam structure. Tyre 12+1 spare tyre with rim 12.00-R20 Suspension system: strongthen heavy duty Leaf spring type Front/Rear 12/12/13 Dump body: Inside size of Body(mm): 8900x2300x1000,6x8mm, made of high intensity steel Lifting type: Front lifter “T” type hydraulic system. Overall dimension(mm): 11730x2500x3484(Length x width x height) Wheelbase 1950+4600+1450mm Track: Front/Rear 2045/1872 Approach/Departure angle 26/27 Front /Rear overhang 1410/2320 Max speed 90km/h Kerb weight: 15500kg Oil tank capacity 300L fuel tank

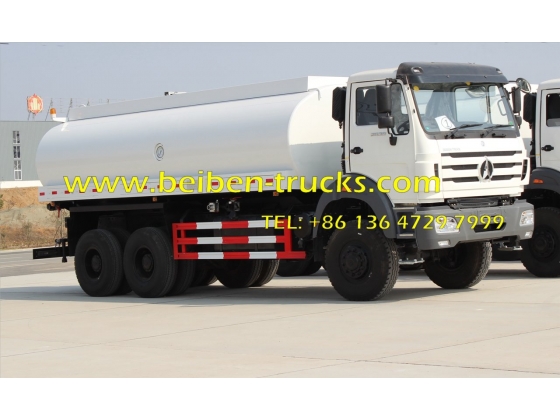

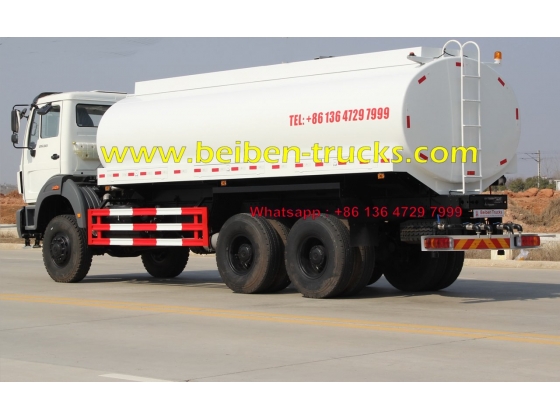

The beiben oil tanker truck features a 20,000-liter tank body, ensuring that it can carry a substantial amount of fuel at once. This large capacity makes it ideal for long-distance transportation and refueling operations, reducing the need for frequent trips to refuel. The Beiben 2638 fuel bowser truck is built with a durable and sturdy Beiben NG80B cab, providing a comfortable and ergonomic driving experience for the operator. The cab is designed with the driver's needs in mind, offering ample space and visibility to ensure safe and efficient operation.
Reinforced Type Beiben Full Drive 6x6 Tractor Head Trailer Head Truck, the best professional north benz 4*4,6*6,8*8 truck supplier.

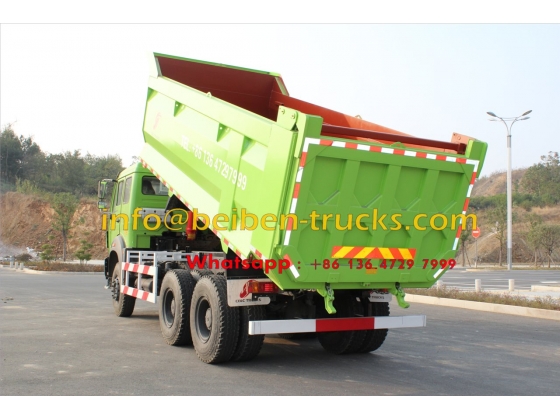

Building new profit concept in the age of “light weight” (This series mainly refers to the Beiben light dump truck with internal length above 6.5m, Beiben Dump Truck 6X4 Tipper ND32500B48J7 Heavy Duty Truck
