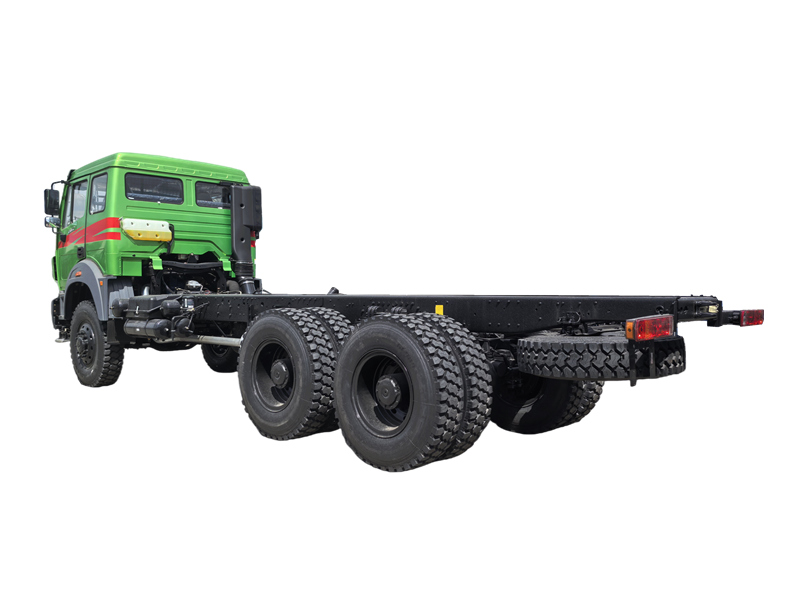

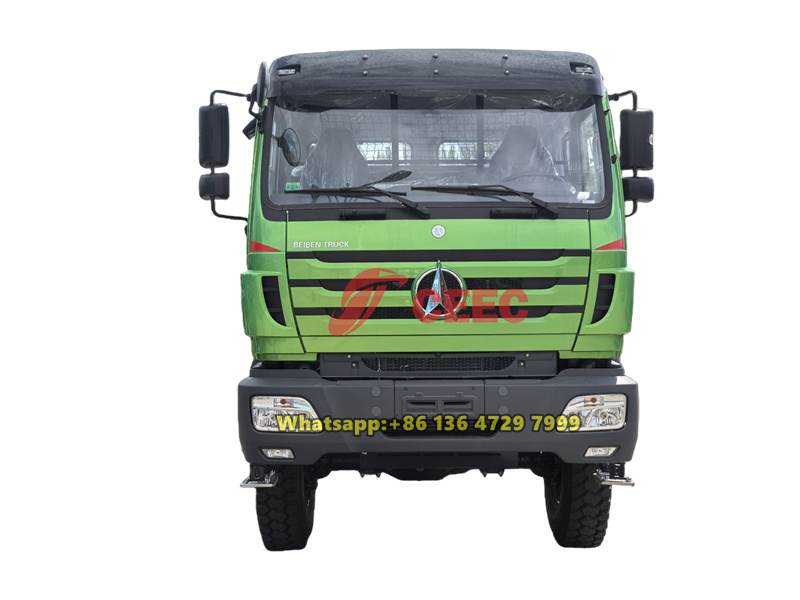

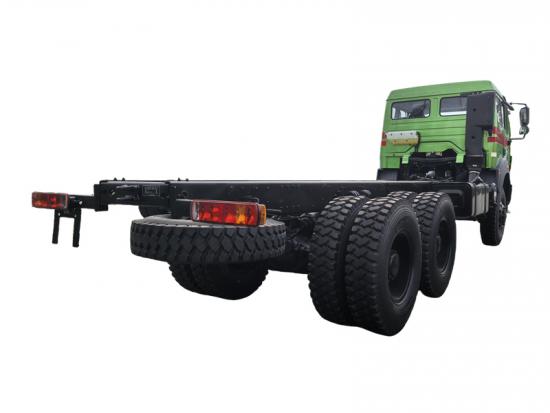

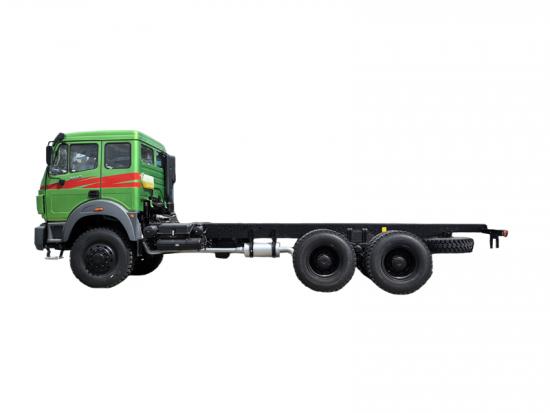

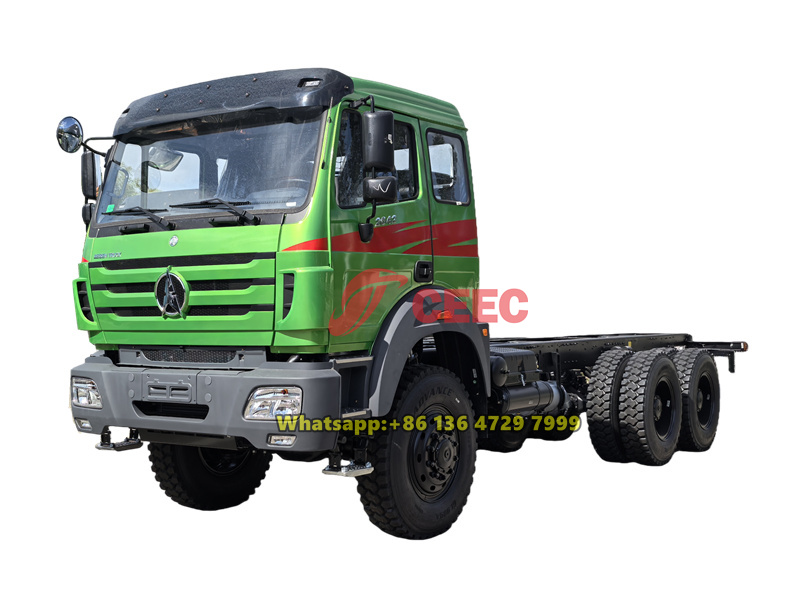

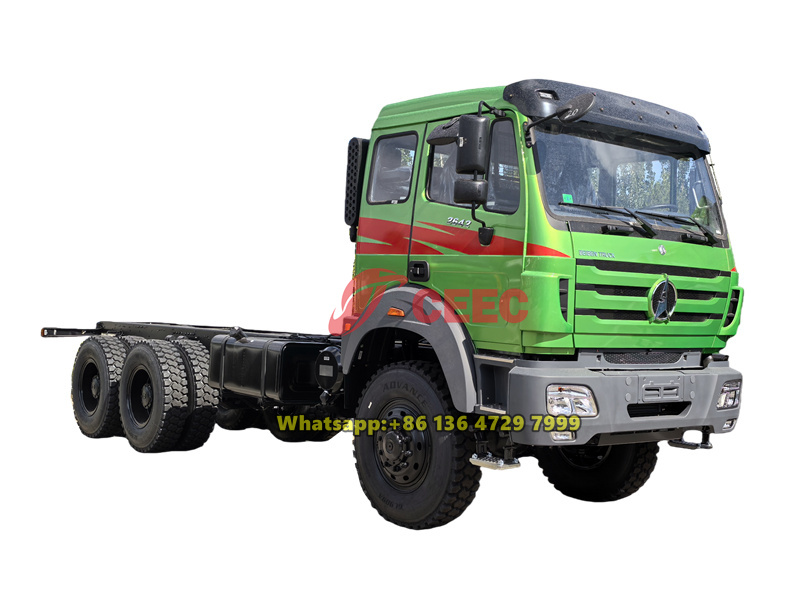

Beiben NG80 6×6 420HP all-wheel-drive chassis is built upon the proven Mercedes-Benz NG80 military technology. It is powered by a Weichai engine and paired with a Fast gearbox, featuring Beiben hub-reduction axles with differential locks. The frame offers exceptional torsional rigidity, making it suitable for extreme road conditions, while reserving ample space for modifications. It serves as a highly reliable all-terrain carrier platform for special operations and field exploration scenarios.
Market Price:
$40200Working Capcity:
30 tonsCabin Type:
NG80B long cabinDimension ( mm ) :
9920×2500×3380Drive System:
6×6Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
8×8, 14.00R20 tire, RHD is optionalBeiben NG80 6×6 420 HP all-wheel-drive chassis is derived from the mature Mercedes-Benz NG80 series technology, with R&D standards aligned with military vehicle requirements. The cab complies with European ECE R29 safety regulations, ensuring ample survival space for occupants in case of collision or rollover. The frame, manufactured using a one-piece stamping process, offers torsional strength far exceeding that of conventional heavy-duty trucks in its class, and remains resistant to deformation and cracking even after prolonged operation on unpaved roads. The entire production process adheres to military-grade quality control standards, providing the core support for stable performance under extreme working conditions.

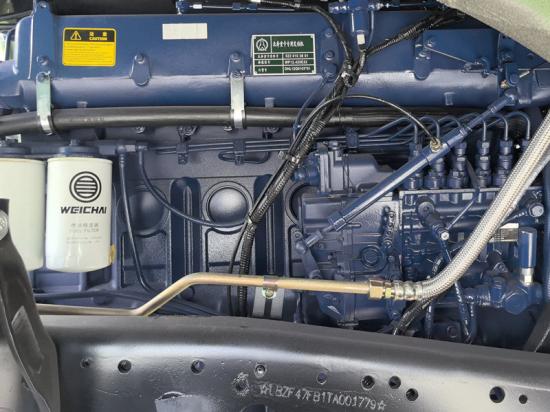

The Beiben 2642 6×6 AWD chassis is equipped with the Weichai WP12 series 6-cylinder diesel engine, with a displacement of 11.596 L, rated power of 420 HP, and peak torque of 1,750 N·m. It delivers strong output at low RPMs and performs reliably at high altitudes and in low-temperature environments. It is mated to a Fast 12-speed manual transmission and Beiben hub-reduction tandem axles, with a rear axle ratio of 5.263. The powertrain is well-calibrated and proven, enabling easy climbing and traction even when fully loaded. The 6×6 drive configuration minimizes wheel slip on low-traction surfaces, making it well-suited for all-terrain mobility in field exploration, emergency rescue, and similar scenarios.
CEEC factory is authorized supplier for Beiben 6x6 off-road trucks,
guarantee all Beiben 6x6 all wheel drive vehicles Brand-New and High-Quality.
» Ⅰ.Chassis Features:
Manufacturer: CEEC TRUCKS
» Ⅱ. Product Specifications:
|
Model |
Beiben 6×6 Heavy Cargo Chassis |
|
Gross vehicle weight (kg) |
26000 |
|
Overall dimension (mm) |
9920×2500×3380 |
|
Wheel base (mm) |
4450+1450 |
|
Engine |
Make: WEICHAI Max. power: 420HP Max. Torque(Nm/rpm): 1750/1200～1500 Displacement (L): 11.596 |
|
Transmission |
FAST 12JS200T, 12 forward & 2 reverse manual gearbox |
|
Steering Gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Clutch |
430 Single disc, dry type, friction clutch |
|
Number of axle |
3 |
|
Front axle |
7 T, driving steering axle, drum brake |
|
Rear axles |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
Frame |
Variable width and section 317×70×8.5+7+8.5 mm |
|
Front and rear suspension |
Front/rear: Leaf spring, 10/13 pieces |
|

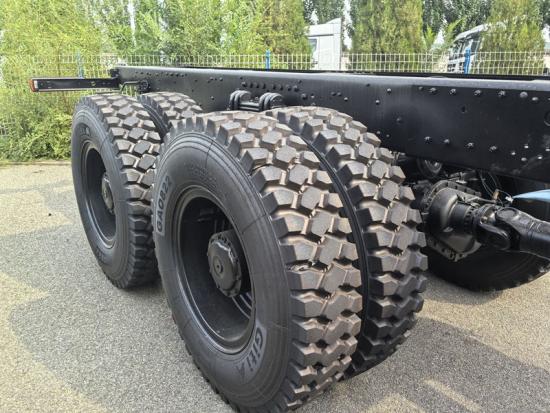

Tires |
12.00R24 off-road tires, 10+1 pcs |
|
Fuel Tank |
400L |
|
Electrical System |
Voltage: 24V |
|
Braking System |
Service brake: Dual-circuit air brake |
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
Interior trimming: Air suspension seat, 2 seats and 2 sleepers, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
» Ⅲ. Product Features:
Cab: Derived from the classic Mercedes-Benz NG80 design, the cab is constructed with high-strength all-steel material and complies with the most stringent European ECE R29 safety regulations.

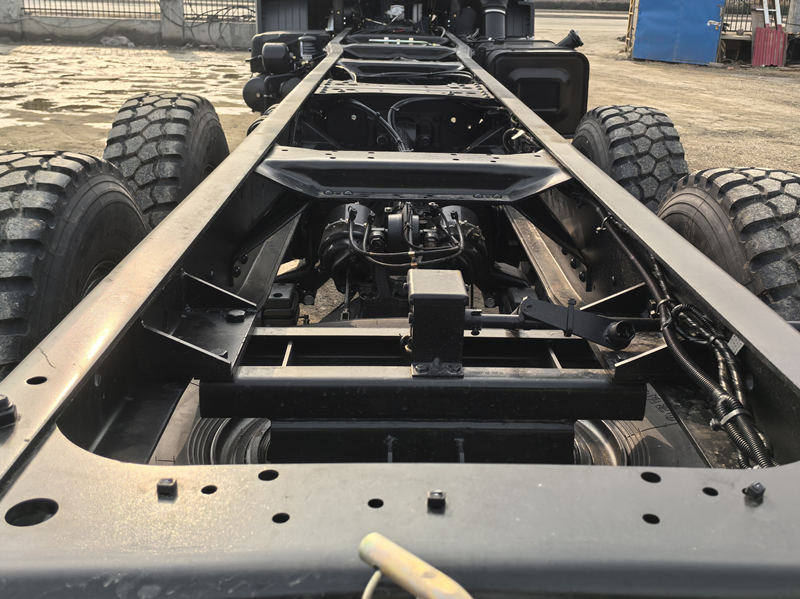

Frame: Adopting the Mercedes-Benz technology-based constant-strength variable-section flexible frame design, it ensures high load-bearing capacity while effectively absorbing road impacts, reducing curb weight, and enhancing the vehicle's durability.

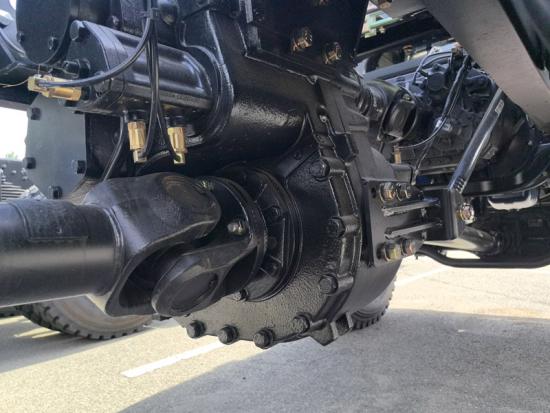

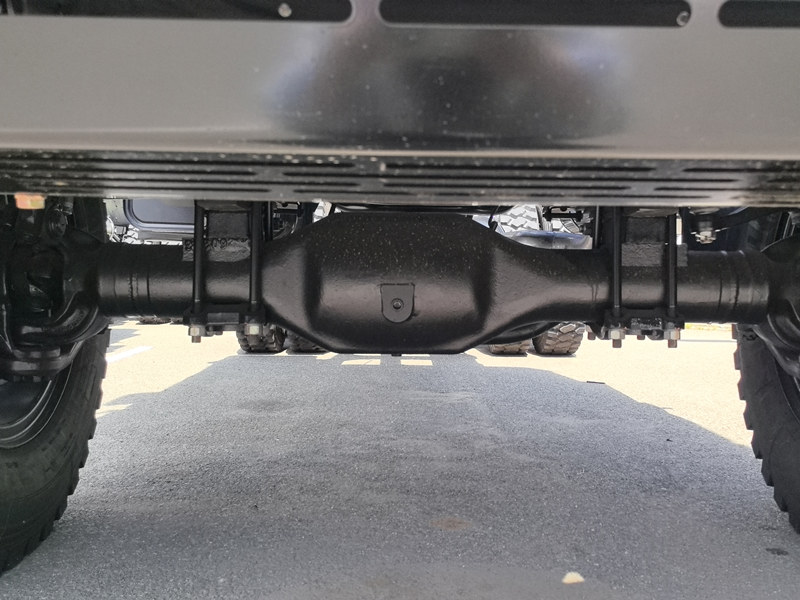

Axles: As a 6×6 all-wheel-drive model, the front axle is also a drive axle to enable full-wheel drive. The axle technology originates from Mercedes-Benz, particularly the Mercedes-Benz two-stage reduction axle, which delivers exceptional torque output and ground clearance, serving as a guarantee for extreme road conditions and heavy-load transportation.

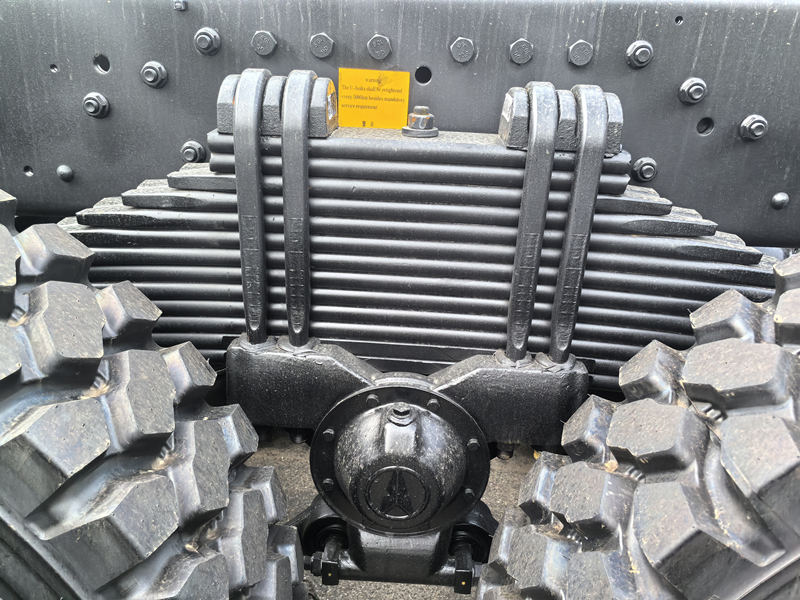

Suspension System: Equipped with multi-leaf spring suspension, it provides first-class load-carrying capacity and reliability, making it highly suitable for heavy-duty operations and harsh working conditions.

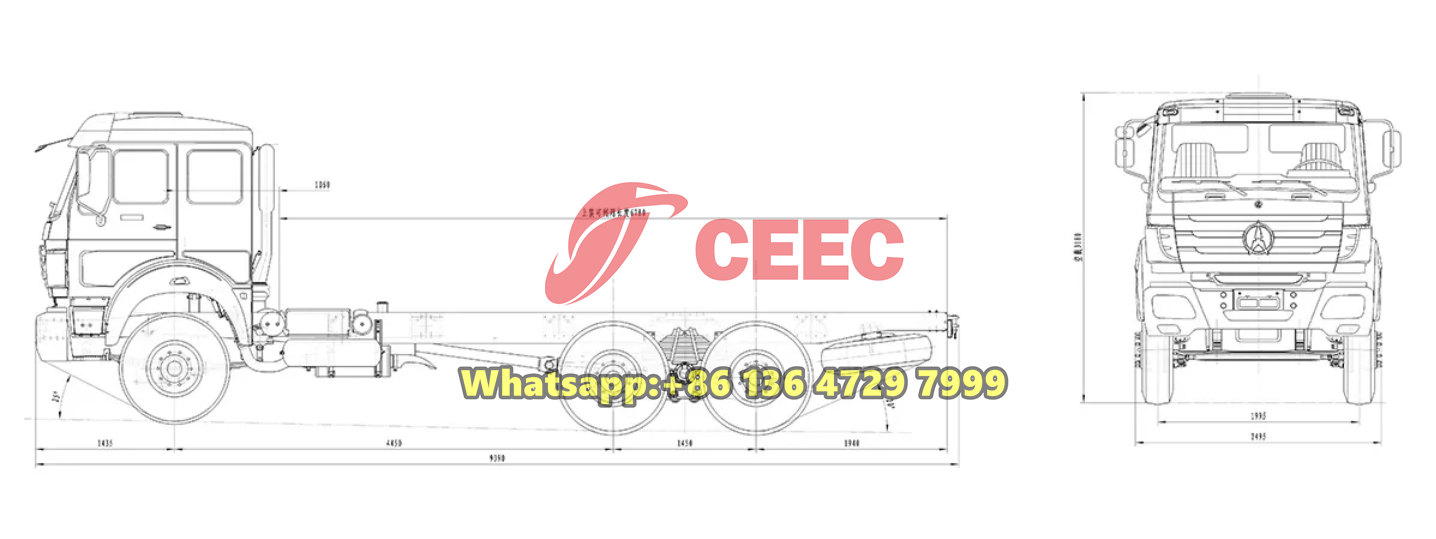

» Ⅳ. Beiben 6×6 all-wheel-drive chassis drawing

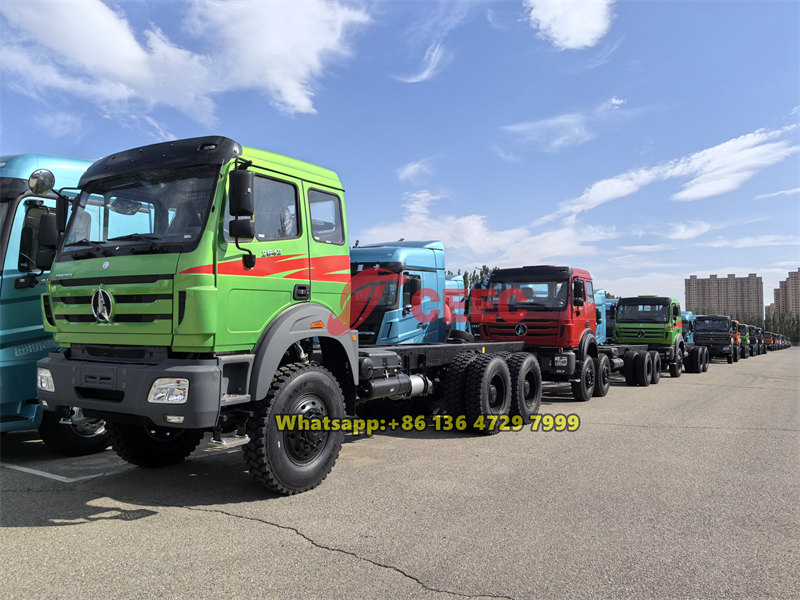

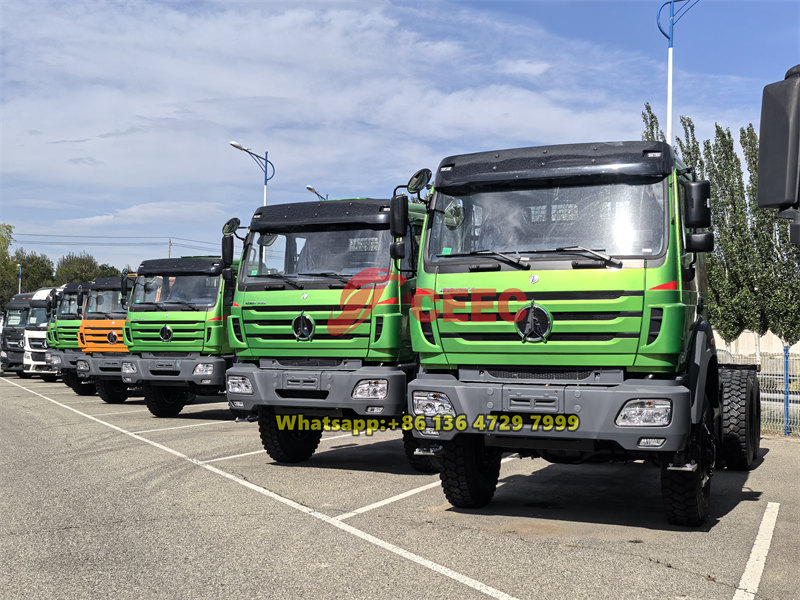

» Ⅴ. Batch delivery of Beiben 6×6 off-road trucks
