Beiben 8×4 heavy-duty dump truck is a reliable vehicle designed for engineering transportation, featuring an 8×4 drive configuration powered by a 380 HP Weichai engine and a 12-speed FAST gearbox for robust performance. With a gross weight of 31 tons, it comes equipped with a manganese steel-reinforced cargo box (7.4×2.35×1.5m) and a front-mounted hydraulic lifting system, making it ideal for heavy-duty hauling of ores, gravel, and similar materials. Its short wheelbase and 24° approach angle ensure excellent off-road capability, while the 400L fuel tank provides extended range. Thanks to its durable chassis, high load capacity, and adaptability to harsh working conditions, this truck is a top choice for construction sites, mines, and similar applications.
Working capcity:
40 tonsCabin type:
Beiben NG80 short cabinDimension ( mm ) :
10530×2550×3480Drive system:
8×4, LHDWheelbase (mm):
1950+3700+1450Engine power / Model:
380HP/WP10.380E32Gear Box:
12JS200TRemark:
6×6, 8×8, RHD is optionalProduct Description
Beiben 8×4 heavy-duty dump truck is an engineering vehicle built on a modified Beiben 8×4 heavy-duty dump truck chassis, with a gross weight of 31 tons. It is powered by a Weichai WP10.380E32 engine (380 HP/Euro III emission standard) paired with a FAST 12-speed transmission, specifically designed for heavy-load operations. The chassis features a high-strength structure with a wheelbase of 1950+3700+1450mm, 12.00R20 tires, and a dual-stage leaf spring suspension. The NG80 short cab, constructed with an all-steel frame and double-layer steel panels, includes air conditioning. The 7.4-meter-long manganese steel cargo box is equipped with a front-mounted hydraulic lifting system, making it suitable for transporting bulk materials such as ores and sand.
With its outstanding reliability, superior load-bearing capacity, and localized adaptability, the Beiben 8×4 dump truck has gained widespread popularity in African markets. The Weichai WP10.380 engine delivers strong power while ensuring easy maintenance and readily available spare parts. The reinforced manganese steel cargo box and four-axle heavy-duty chassis effortlessly handle overloads and rough terrain. The short wheelbase and 24° approach angle enhance maneuverability in complex environments. Additionally, the Euro III emission standard meets basic environmental requirements without the added costs of higher emission standards, while the 400L fuel tank ensures long-range operation. These features make it an ideal choice for heavy-duty applications in African mining, construction sites, and similar demanding work scenarios.
Product Specifications
|
BEIBEN 8×4 DUMP TRUCK SPECIFICATION |
|
|
Vehicle basic information |
|
|
Drive model |
8×4, LHD |
|
Overall dimensions |
10530×2550×3480mm |
|
GVW |
31000 kg |
|
Curb weight |
14800 kg |
|
Wheelbase |
1950+3700+1450 mm |
|
Front wheel track |
2042/2042 mm |
|
Rear wheel track |
1878/1878 mm |
|
Approach/departure angle |
24°/17° |
|
Engine |
|
|
Model |
WP10.380E32 |
|
Brand |
WEICHAI |
|
Horsepower |
380HP (280KW) |
|
Emission standard |
Euro 3 |
|
Type |
4-stroke direct injection diesel engine |
|
Displacement |
9726 ml |
|
Rated speed |
2200 rpm |
|
Max. torque |
1600 N.m |
|
Cabin |
|
|
Model |
Beiben NG80 short cabin, two seats, A/C |
|
Other |
Full steel skeleton structure, covered with double layer steel plate; can be tipped forwardly |
|
Gearbox |
|
|
Model |
12JS200T, 12 forward and 2 reverse gear |
|
Brand |
FAST |
|
Tire |
|
|
Model |
12.00R20,12+1 pcs |
|
Brand |
TRIANGLE |
|
Fuel Tank |
|
|
Model |
400L |
|
Material |
Aluminum alloy |
|
Axle |
|
|
Front axle load |
6500/6500 kg |
|
Rear axle load |
18000kg |
|
Brake Type |
Drum brake |
|
Cargo Body |
|
|
Size |
7400x2350x1500mm |
|
Material |
manganese steel |
|
Lifting system |
Front lifting, hydraulic cylinder |

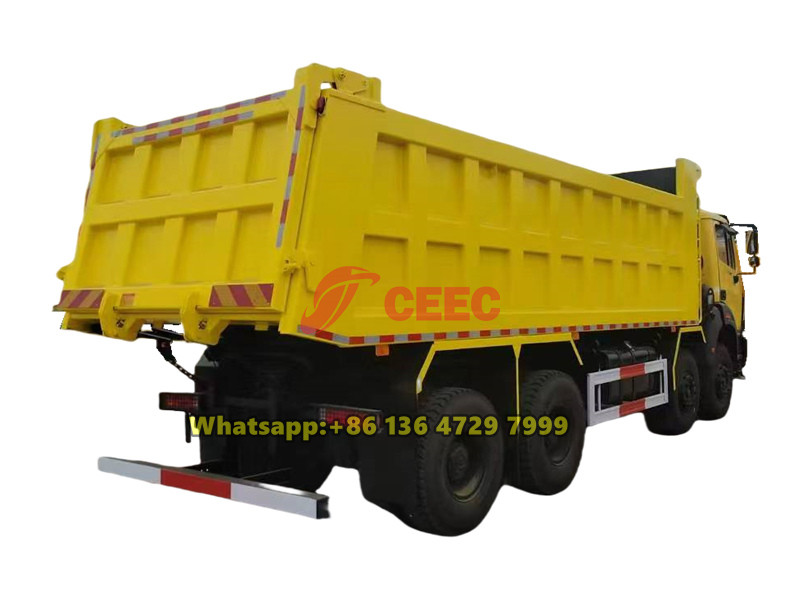

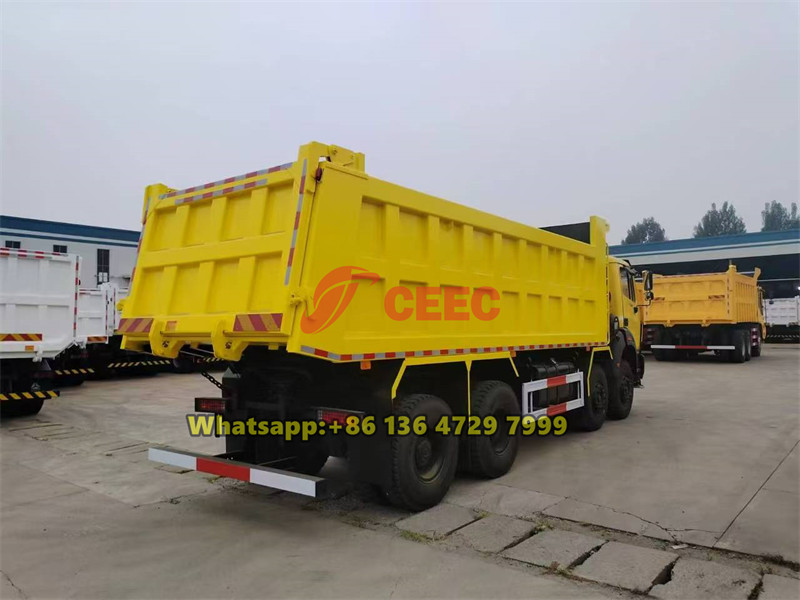

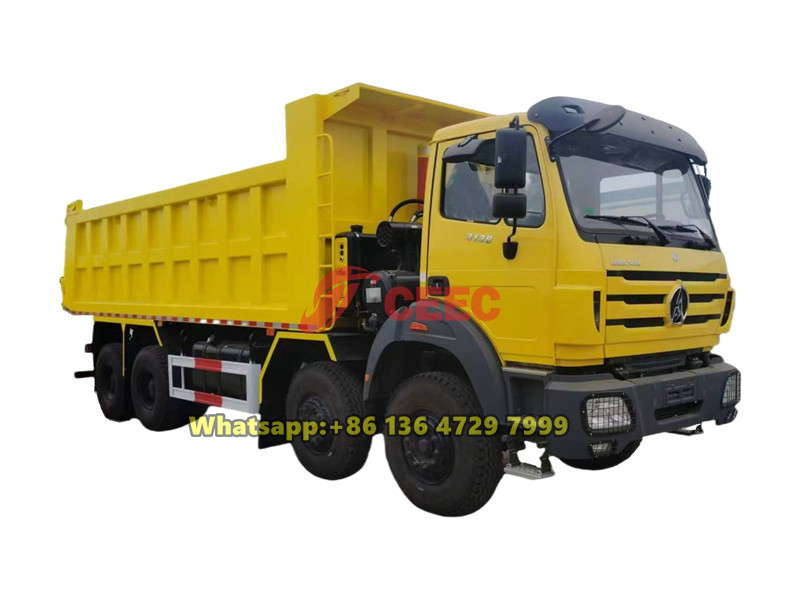

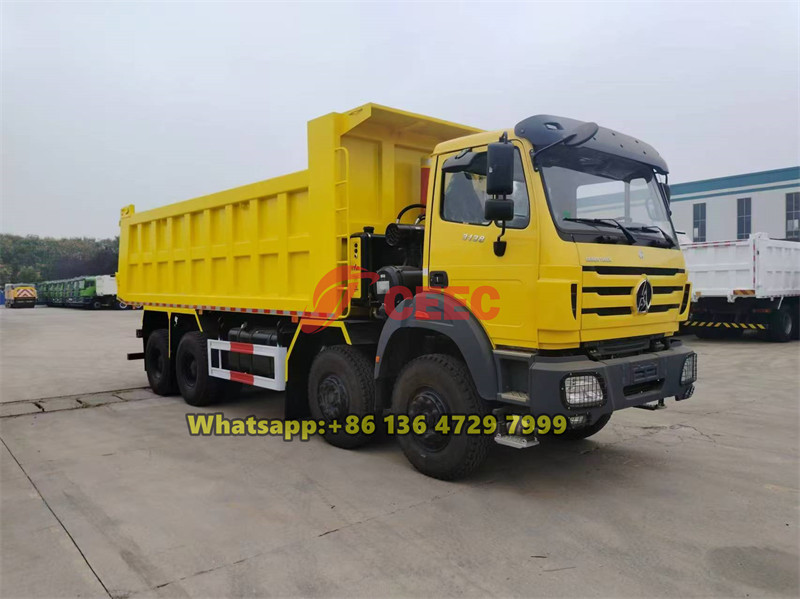

Product Pictures
As the best baotou beiben 12 wheeler dump trucks manufacturer, we can produce Beiben 12 wheeler dump truck 8*4 driving sytem, with beiben special 340 horse power diesel engine, fast gear 12 shift transmission. The north benz 340 hp dump trucks are widely used for transporting sand, construction material and low density material .
Beiben 3138 dump trucks is also called as beiben 3138 dumper, with beiben 380 hp diesel engine and full germany benz technology. Our north benz 380 hp 12 wheeler dump truck are very polulare in africa countries, such as CONGO, TANZANIA, GHANA, NIGERIA.
North benz 12 wheeler 420 Hp dumpers , with beiben 420 hp diesel engine, fast 12 shift transmission, fully applyied Benz truck technology, with latest beiben dumper trucks technology.
As the best dealer of baotou beiben heavy duty trucks plant, we can produce the best type for beiben 420 hp dump trucks. It is beiben 6*4 dumper with 420 hp engine. All the beiben 420 hp dumper from our plant will have long guarantee more than 12 months.
Made in China Powerful Beiben V3 8X4 tipper for sale With Low Price, we are best china made beiben V3 12 wheeler dump trucks manufacturer, more than 10 years in beiben V3 dump trucks producing.
Durable Beiben V3 8X4 dumper truck With Low Price , we can make sure the best price for beiben V3 dump trucks. Our price for beiben 12 wheeler dump trucks is the factory price .
Drive Wheel: 8x4 Capacity (Load): 41 - 50t Horsepower: 351 - 450hp Condition: New Transmission Type: Manual Emission Standard: Euro 3 Fuel Type: Diesel Engine Capacity: > 8L Gross Vehicle Weight: 31000 Place of Origin: Shandong, China (Mainland) Brand Name: BEIBEN Model Number: 3138K Dimensions (L x W x H) (mm): 7500x2500x1500 Color: white orange
beiben truck north benz NG80 3138 heavy dump tipper trucks dumper 8x4 380hp Africa hot sale low price,New design European vehicles security level Stemping vehicle frame Benz unique axle technique High reliability fuel economy
north benz NG80 3138 heavy dump tipper trucks manufacturer , best quality north benz 3138 dump truck for sale
