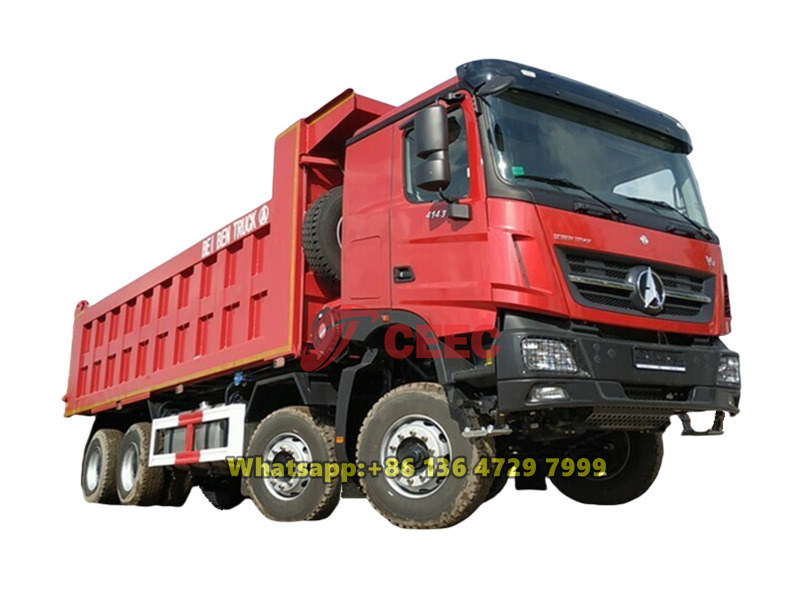

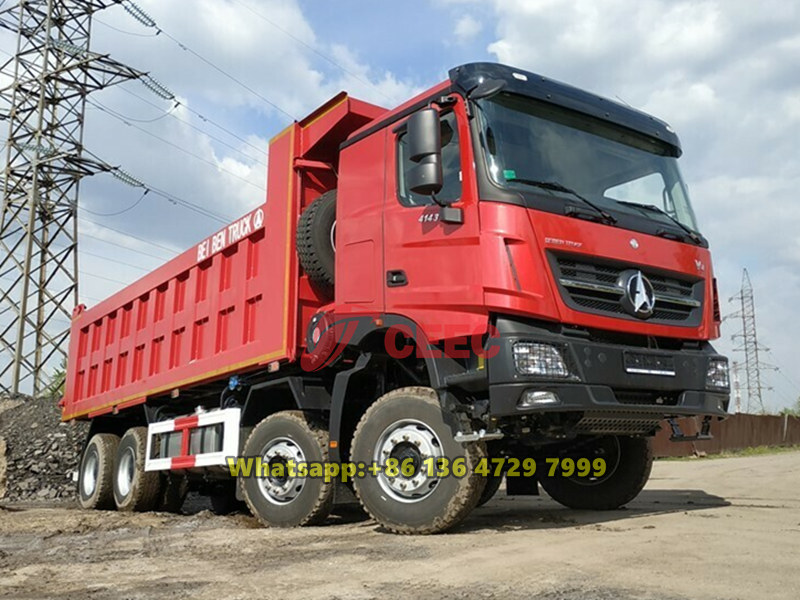

Beiben V3 8×4 Heavy-Duty Dump Truck is a high-capacity transport vehicle specifically designed for mining operations and large-scale engineering projects. Equipped with a 430-horsepower Weichai WP12 Euro V engine and a Fast 12-speed transmission, it boasts a maximum gross weight of 41 tons. The truck features a 25-cubic-meter high-strength steel cargo box and a Hyva hydraulic system. Its 8×4 drivetrain, 13-ton rear axle, and 315/80R22.5 large tires ensure adaptability to extreme road conditions. The cabin is fitted with air-suspension seats, a 220V power supply, air conditioning, and other comfort-enhancing features, making it an efficient and reliable heavy-duty transport solution for engineering applications.
Working capcity:
40 tonsCabin type:
Beiben V3 cabin, with sleeper bedDimension ( mm ) :
10500×2550×3480Drive system:
8×4, LHDWheelbase (mm):
1950+3700+1450Engine power / Model:
430HP/WP12.430E50Gear Box:
12JS200TRemark:
6×6, 8×8, RHD is optionalProduct Description
Beiben V3 8×4 Mining Dump Truck is an engineering transport vehicle developed on the four-axle (8×4 drivetrain) heavy-duty truck platform of the Beiben V3 series. It is specifically designed for high-intensity earth and rock transportation, mining operations, and large-scale infrastructure projects. The truck's frame and axles incorporate Mercedes-Benz technology, with the axle housing made of high-strength, rigid nodular cast iron, ensuring excellent manufacturability, defect resistance, and stable performance.
The Beiben V3 4-axle tipper truck adopts a large-capacity cargo box design, reducing transport frequency and improving overall efficiency. The cargo box measures 7,400mm in length, 2,300mm in width, and 1,500mm in height. Its spacious and robust structure caters to the high-tonnage, high-frequency transport demands of infrastructure projects, significantly enhancing transport efficiency and offering diverse options for dump truck users with varying scenarios and requirements.
Product Specifications
BASIC PARAMETERS |
|
Model |
4143K |
Wheelbase, mm |
1950+3700+1450 |
Wheel formula |
8×4 |
Curb weight, kg |
16,500 |
Load capacity, kg |
25,000 |
Technically permissible maximum weight, kg |
41,000 |
- on front axle , kg |
7500+7500 |
- on back axle , kg |
13500 + 13500 |
CABIN |
|
Model |
V3-L ( MB Actors MP3 license ) |
Sleeping bag |
One sleeping bed (620 mm ) |
Height from floor to ceiling |
1,576 mm |
Description |
- Electric doors; - Central lock with remote control; - A/C; - Mechanical sunroof; - Multimedia Bluetooth ; - Converter 220 V / 1000 W; - Driver's seat on air suspension with heating; - ERA-GLONASS system; - Multifunctional steering wheel; - Autonomous heater 4 kW; - Cabin insulation; - Electric heating of rear-view mirrors; - Digital instrument panel. |
ENGINE |
|
Engine Model |
WP12.430E50 (WEICHAI) |
Type |
Four-stroke |
Number and arrangement of cylinders |
6, in-line |
Displacement |
11,596 ml |
Emission standard |
Euro - 5 |
Maximum torque, N ∙ m |
2,060 |
Speed at max. torque, rpm |
1000-1400 rpm |
Engine Power, hp |
430 |
TRANSMISSION |
|
Model |
12JSD200T (FAST) |
Gearbox type |
Mechanical |
Quantity transmission |
forward - 12, backward - 2 |
SUSPENSION |
|
- 1st axle |
Dependent, on leaf springs, with hydraulic shock absorbers and anti-roll bar, 7 t |
- 2nd axle |
Dependent, on leaf springs, with hydraulic shock absorbers, 13 t |
- 3rd axle |
Dependent spring balance beam, 13 t |
Brakes on 1, 2 and 3 axis |
Drums |
DUMPER BODY |
|
Volume , m³ |
25 |
Size body , mm |
7,400 x 2,300 x 1,500 |
Body material |
High strength carbon steel |
Thickness of body walls (bottom / side) |
8mm / 6mm |
Hydraulic cylinder |
HYVA or China famous brand |
OTHER PARAMETERS |
|
Fuel tank, l |
600 |
Clutch |
FAST, dry , single disc |
Steering control |
With hydraulic booster |
Tires |
315/80R22.5, 12+1 pcs |
Maximum speed |
80 km /h |
AKB |
2 x 220 A |
Additional characteristics |
- Diesel filter heating; - Urea tube heating; - Cabin and door thermal insulation; - BEIBEN telematics system Connect . |
Product Advantages
Advantages of the Beiben V3 8×4 Heavy-Duty Tipper Truck:
1. Exceptional Load Capacity: The Beiben 8×4 dump truck features an 12-wheel configuration, providing a larger cargo space and greater load capacity for transporting more materials.
2. Superior Off-Road Performance: Equipped with a powerful engine and a professional off-road suspension system, it handles complex terrain and harsh construction environments with ease.

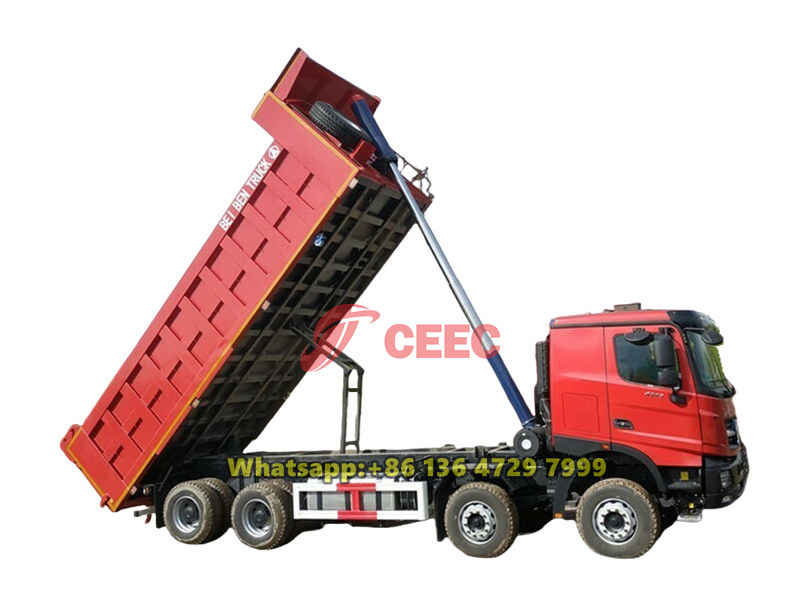

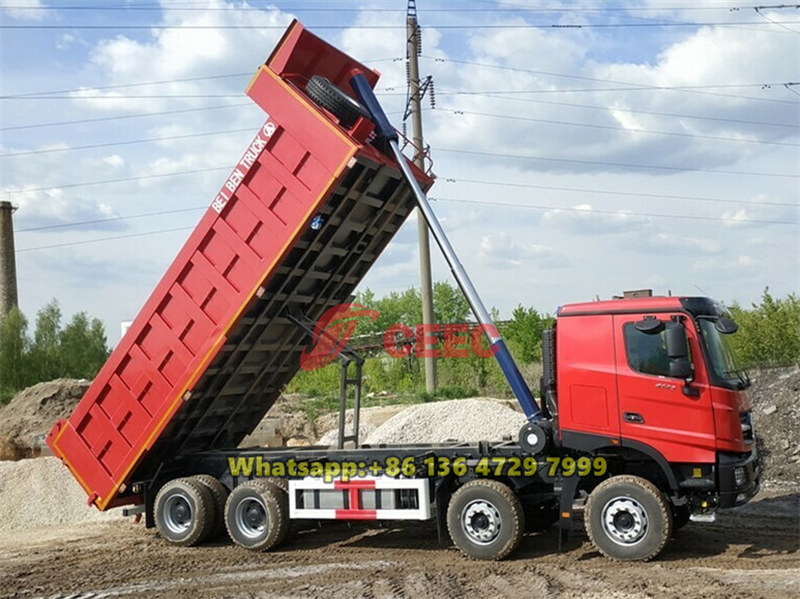

3. Efficient Unloading Capability: The Beiben V3 dump truck utilizes a renowned-brand hydraulic tipping system, enabling fast unloading with a wide tipping angle for rapid and efficient operations.
4. Stable Handling: Advanced suspension and stability control technologies ensure high stability and maneuverability, enhancing safety during high-speed driving and lane changes.
5. Durable Body Structure: The Beiben 8×4 tipper truck is built with a rugged and long-lasting body structure, capable of enduring tough working conditions over extended periods.
6. Fuel Efficiency & High Cost Performance: Its high-efficiency engine and advanced fuel management system reduce fuel consumption while optimizing utilization, delivering excellent cost performance.
