The Beiben 2642 6×6 cargo chassis is equipped with a WP12.420E32 engine, boasting a maximum power of 309 kW (420 horsepower) and a maximum torque of 1750 Nm, while complying with EURO 3 emission standards. Featuring a fish-belly variable-width and variable-section frame design, with both front and rear axles utilizing Mercedes-Benz technology and a gear ratio of 5.263, it ensures stable driving under complex road conditions. The dual-circuit air brake system is equipped to guarantee driving safety. The interior design is humanized, with a full steel frame and double-layer steel plate for sound insulation, providing a spacious and comfortable driving environment.
Working capcity:
40 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9500×2500×3300Drive system:
6×6Wheelbase (mm):
3800=1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:
RHD is optionalProduct Descriptions
The Beiben 2642 6×6 cargo chassis, as the flagship product of Beiben Trucks, has set a new benchmark in the field of heavy transport with its exceptional performance and outstanding design. Utilizing Mercedes-Benz technology from Germany, the chassis features a fish-belly design with variable width and section, which not only enhances the vehicle's load-bearing capacity and stability but also optimizes weight distribution, ensuring smooth and safe operation during travel.
The Beiben 6×6 AWD cargo chassis is equipped with a WP12.420E32 engine, a water-cooled, four-stroke, inline six-cylinder turbocharged diesel engine renowned for its powerful output and efficient fuel economy. With a maximum power of 309 kW (420 hp) and a rated speed of 2100 rpm, it not only meets the demands of various heavy-duty transport tasks but also complies with EURO 3 emission standards, demonstrating Beiben's perfect balance between environmental protection and performance. Furthermore, the engine's maximum torque reaches 1750 Nm, achieved within the range of 1200-1500 rpm, ensuring strong power at low speeds.
As the foundation of a vehicle, the stability and off-road capability of the chassis are crucial. The Beiben 6×6 off-road cargo chassis adopts a fish-belly design with variable width and section for the frame, based on Mercedes-Benz technology, ensuring the frame's strength and rigidity. The frame section measures 317×70×8.5+7+8mm, effectively enhancing the vehicle's load-bearing capacity and torsional resistance. Both the front and rear axles utilize Mercedes-Benz technology, with the front axle being an 8-ton drive and steering axle, and the middle and rear axles being 13-ton dual-reduction drive axles with a gear ratio of 5.263, ensuring stable driving and powerful traction in complex road conditions.
The Beiben 2642 6×6 truck chassis is equipped with an advanced control system to ensure driver safety and comfort. The service brake system employs a dual-circuit air brake with automatic adjustment of the brake gap, enhancing braking stability and reliability. The auxiliary brake system utilizes engine exhaust braking to effectively reduce brake wear and heat accumulation. The parking brake applies spring pressure to the middle and rear wheels, ensuring safe vehicle parking. The steering system features a hydraulic-assisted full-circulating ball-type steering gear for easy and flexible operation.
Product Specifications
|
Wheelbase(mm) |
3800+1450 |
|
|
L*W*H |
9500X2500X3300 |
|
|
Gross vehicle weight(kg) |
25000 |
|
|
Approach angle/Departure angle(°) |
26/20 |
|
|
Max Speed (Km/h) |
≤85 |
|
|
Engine |
Model |
WP12.420E32 |
|
Engine type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Power (r/min) |
309Kw(420HP) |
|
|
Rated speed |
2100 rpm |
|
|
Emission standard |
EURO 3 |
|
|
Maximum Torque (r/min) |
1750Nm |
|
|
Speed at max. torque |
1200-1500 rpm |
|
|
Displacement(ml) |
11.596 |
|
|
Fuel tanker capacity(L) |
400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |

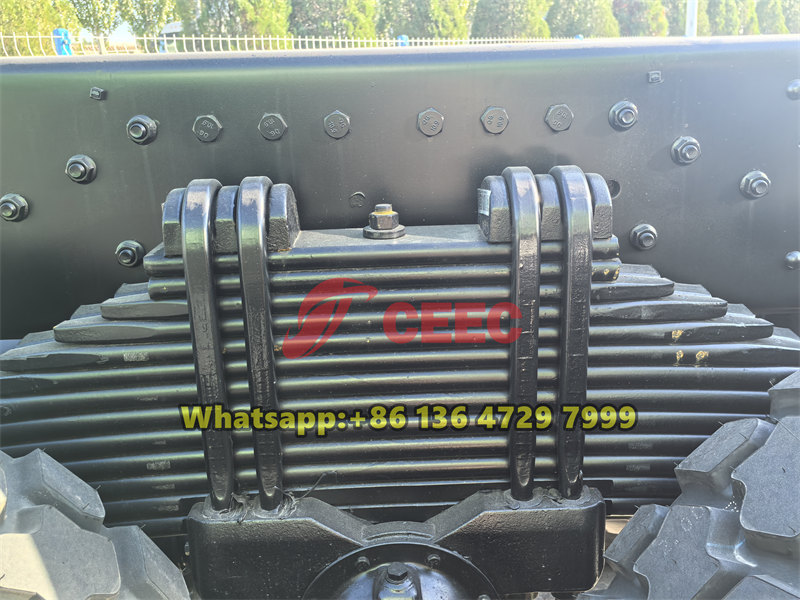

Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24, radial tire, 10+1 pcs |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
|
Upper body |
Cargo box size 7000×2500×1500mm (reference) |
|
Product Pictures
Beiben 8*4 drive chassis, with benz NG80B cabin, 8*4 drive, benz 7 t double front axle, double 13 t rear axle with wheel reducer, 12.00R20 tyre. with CEEC TRUCKS latest bulk cement tanker technology.
The Russia Beiben 6x6 off-road cargo truck is also utilized for emergency and rescue operations in Russia. Its robust construction and high ground clearance allow it to navigate through disaster-stricken areas, such as floods, snowstorms, and rugged terrains, to provide essential aid and support to affected communities. The truck is equipped with various features, such as winches, towing capabilities, and cargo space, making it a versatile and reliable vehicle for emergency response teams. The truck is often used to transport heavy machinery, materials, and equipment to remote construction sites, mining operations, and oil and gas fields. Its rugged design and off-road capabilities make it an indispensable vehicle for industries that require reliable transportation solutions in harsh and remote locations.
The Congo Beiben 6 Wheeler Drive 2642 truck is an essential vehicle in the Democratic Republic of Congo for various purposes due to its durability, versatility, and reliability. This truck is known for its robust construction and powerful engine, making it suitable for navigating the challenging terrain and harsh conditions often encountered in the country. In the Democratic Republic of Congo, the Beiben 6 Wheeler Drive 2642 truck is widely used for transporting goods, materials, and supplies to remote and hard-to-reach areas. Its 6-wheel drive capability allows it to traverse rough and unpaved roads, ensuring that essential items can be delivered to communities in need.
The Beiben 2629 all wheel drive military truck is a highly versatile and robust vehicle designed to meet the demanding needs of military operations. With its powerful engine and all-wheel drive capability, this truck is capable of navigating through rough terrain and harsh environmental conditions with ease. The Beiben 2629 is equipped with a robust chassis and suspension system, allowing it to carry heavy loads and withstand the rigors of off-road driving. Its all-wheel drive system ensures maximum traction on various surfaces, making it an ideal choice for military missions in challenging environments.
The Beiben 2629 all wheel drive military truck is a off road heavy duty vehicle designed to meet the demanding needs of military operations. With its powerful WP10.290 diesel engine and military 6x6 off road drive capability, this beiben military all wheel drive truck is capable of navigating through rough terrain and harsh environmental conditions with ease. The Beiben 2629 is equipped with 6x6 drive chassis and 4 Ubolt suspension system,Fast 12JS200T transmission allowing it to carry heavy loads and withstand the rigors of off-road driving. Its benz technology all-wheel drive system ensures maximum traction on various surfaces, making it an ideal choice for military missions in challenging environments.
Beiben 6x6 offroad 290hp Cargo Truck Lorry Truck, classical NG80B truck Benz cabin, long cab with one sleeper, WEICHAI Brand new Model WP10.290E32 model 290hp diesel engine with 9726cc emission. Gear box is FAST brand with 9 speeds (9JS150). Clutch is single dry plate with 430 Diaphragm type. Powerful Steering device ZF8098. Front axle is Benz front axle(7.5t), Rear axle is Benz strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock). Customized super Tyres model is 12.00R24 with 6+1 pcs, tire is higher and stonger and very suitable for tough road in DRC. Springs 13/13 pcs for heavy duty support. Wheel base is 4450+1450 mm, Front/rear overhang(mm)1410/3076, Front/rear track(mm)1995; 1800/1800, Approach/departure angle(º )26/30.
Beiben 2642 cargo truck chassis, offroad Beiben 6x6 all wheel drive truck, equipped with WEICHAI WP12.420E32 diesel engien with 420HP, FAST 12-shift manual gearbox with 12 forward and 2 reverse back, Beiben truck wheelbase 4450+1450mm, and overall dimension 9500x2500x3200mm, Classical NG80B cabin with comfortable driver seat and customized double sleeper bed. equipped with ZF8098 steering system, which is whole circulation in ball type and hydraulic boosting. Front axle 7tons and rear double axle 13tons, durable quality double reduction with speed ration 5.263. Mounted with 12.00R24 radial tires, which is much higher and very suitable for rough road in Africa countries DR Congo, Tanzania, etc.
Beiben 6x6 offroad cargo truck chassis supply from us, the Beiben trucks equipped with Top 1 WEICHAI WP12.420E32 diesel engine, which have 420HP and 15681cc emission, international good quality FAST 12-shift manual gearbox with 12 forward and 2 reverse back, Beiben truck wheelbase 4450+1450mm, with very strong truck chassis and the cross section is 317x70x8.5+7mm, and overall dimension 9500x2500x3200mm, Classical NG80B cabin with ZF8098 steering system. Beiben military 6x6 offroad truck chassis with Mercedes Benz technology, and front axle 7tons and rear double axle 13tons, the durable quality double reduction with speed ration 5.263. Mounted with 12.00R24 radial tires, which is much higher and very suitable for rough road in Africa countries.
Beiben 6x6 drive off-road truck is all-terrain vehicle engineered for extreme operational environments. Equipped with the Beiben 2642 NG80B cabin, it offers enhanced durability and operator comfort, featuring a reinforced structure to withstand harsh conditions. Powered by the WP12.420 engine, a 12-liter diesel unit delivering 420 horsepower, the truck ensures reliable torque and fuel efficiency for demanding tasks. The FAST 12JS200T 12-speed manual transmission provides precise gear control, optimizing power distribution across rugged terrains. Its 4450+1450 mm wheelbase configuration enhances stability and load distribution, while the 12.00R24 tires deliver superior traction on loose or uneven surfaces.
