Beiben 6x6 drive off-road truck is all-terrain vehicle engineered for extreme operational environments. Equipped with the Beiben 2642 NG80B cabin, it offers enhanced durability and operator comfort, featuring a reinforced structure to withstand harsh conditions. Powered by the WP12.420 engine, a 12-liter diesel unit delivering 420 horsepower, the truck ensures reliable torque and fuel efficiency for demanding tasks. The FAST 12JS200T 12-speed manual transmission provides precise gear control, optimizing power distribution across rugged terrains. Its 4450+1450 mm wheelbase configuration enhances stability and load distribution, while the 12.00R24 tires deliver superior traction on loose or uneven surfaces.
Working capcity:
40 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9500×2500×3300Drive system:
6×6Wheelbase (mm):
3800+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:
RHD is optionalBeiben 6x6 drive off-road truck is a robust, high-performance vehicle engineered for demanding terrains and heavy-duty operations. Equipped with the Beiben 2642 NG80B cabin, beiben 6x6 drive truck prioritizes operator comfort and safety. The benz technology NG80B sleeper cabin features an ergonomic design with reinforced steel construction, vibration-dampening mounts, and advanced climate control, ensuring optimal functionality in extreme environments.
Beiben 6×6 Off-Road Truck Technical Overview
The Beiben 6×6 drive off-road truck is engineered for extreme terrain and heavy-duty applications, integrating advanced components for optimal performance. Below is a structured breakdown of its key specifications:
1. Cabin Configuration
2. Powertrain System
3. Chassis & Suspension
4. Tire Specifications
5. Performance Attributes
Product Specifications
Wheelbase(mm) |
4450+1450 |
|
L*W*H |
9500X2500X3300 |
|
Gross vehicle weight(kg) |
25000 |
|
Approach angle/Departure angle(°) |
26/20 |
|
Max Speed (Km/h) |
≤85 |
|
Engine |
Model |
WP12.420E32 |
Engine type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
Power (r/min) |
309Kw(420HP) |
|
Rated speed |
2100 rpm |
|
Emission standard |
EURO 3 |
|
Maximum Torque (r/min) |
1750Nm |
|
Speed at max. torque |
1200-1500 rpm |
|
Displacement(ml) |
11.596 |
|
Fuel tanker capacity(L) |
400L Iron |
|
Transfer case |
LF200 |
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
Tire |
12.00R24, radial tire, 10+1 pcs |
|
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-70A |
|
Starter |
5.58Kw/24V |
|
Cab |
NG80B left hand drive |
|
Interior trimming: |
||
Exterior trimming: |
||
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
Upper body |
Cargo box size 7000×2500×1500mm (reference) |

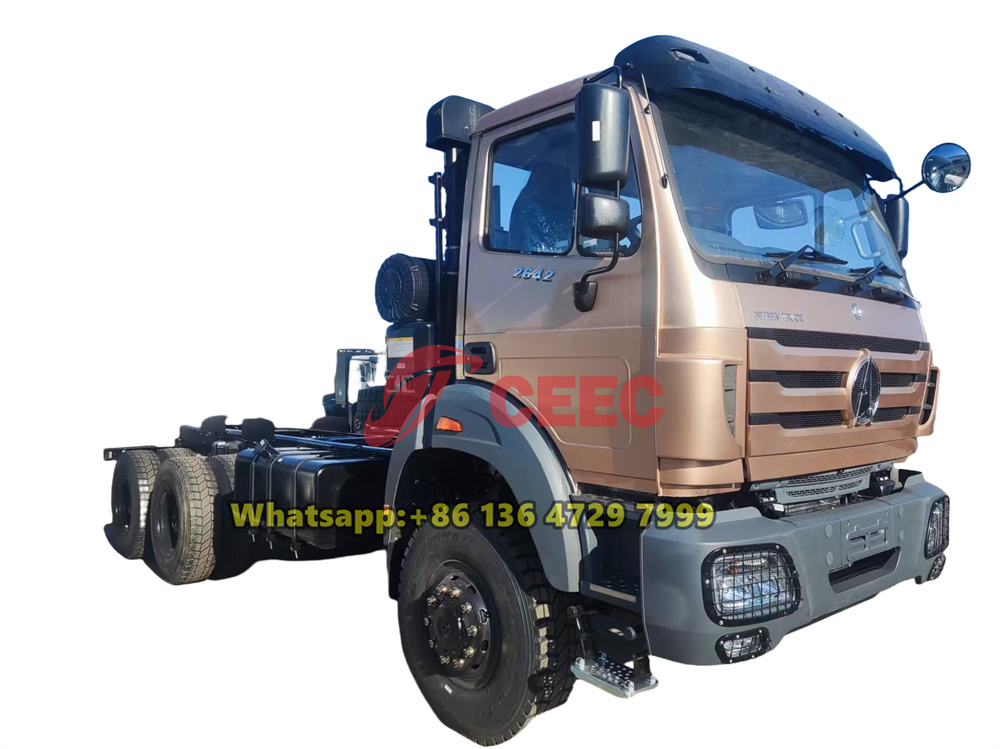

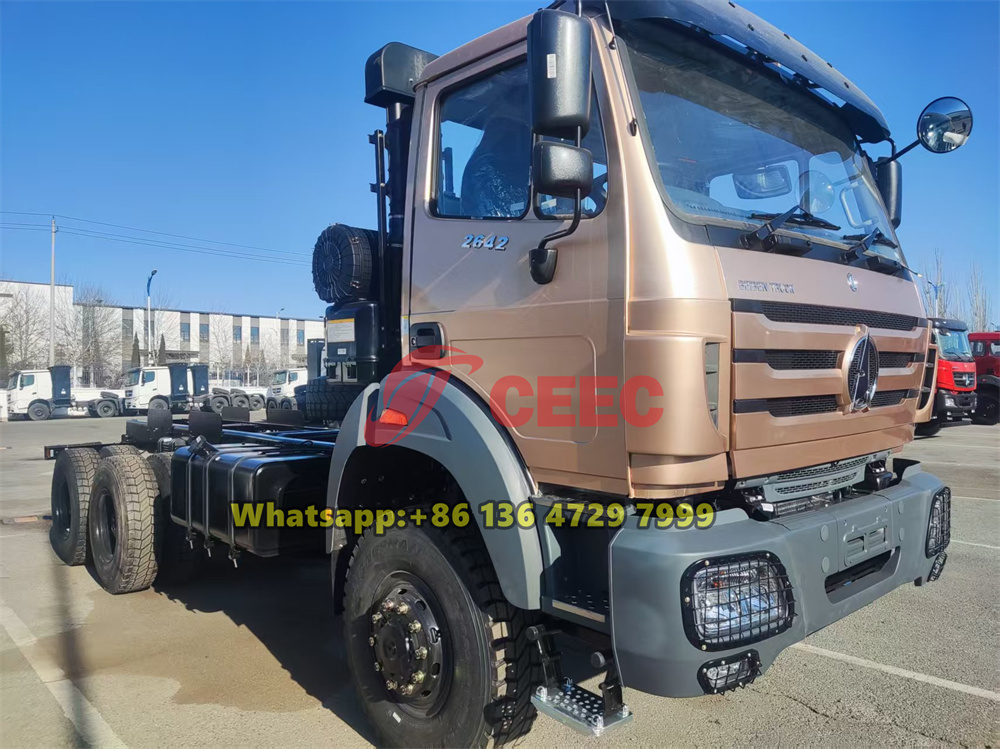

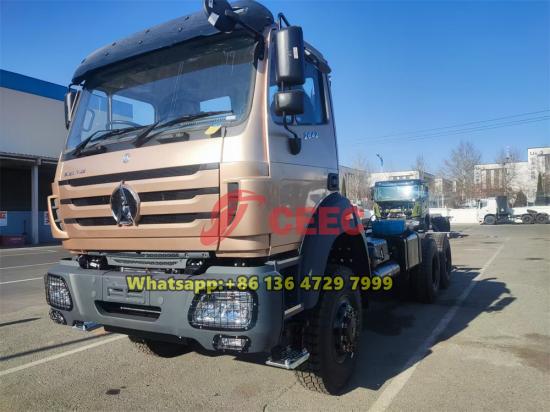

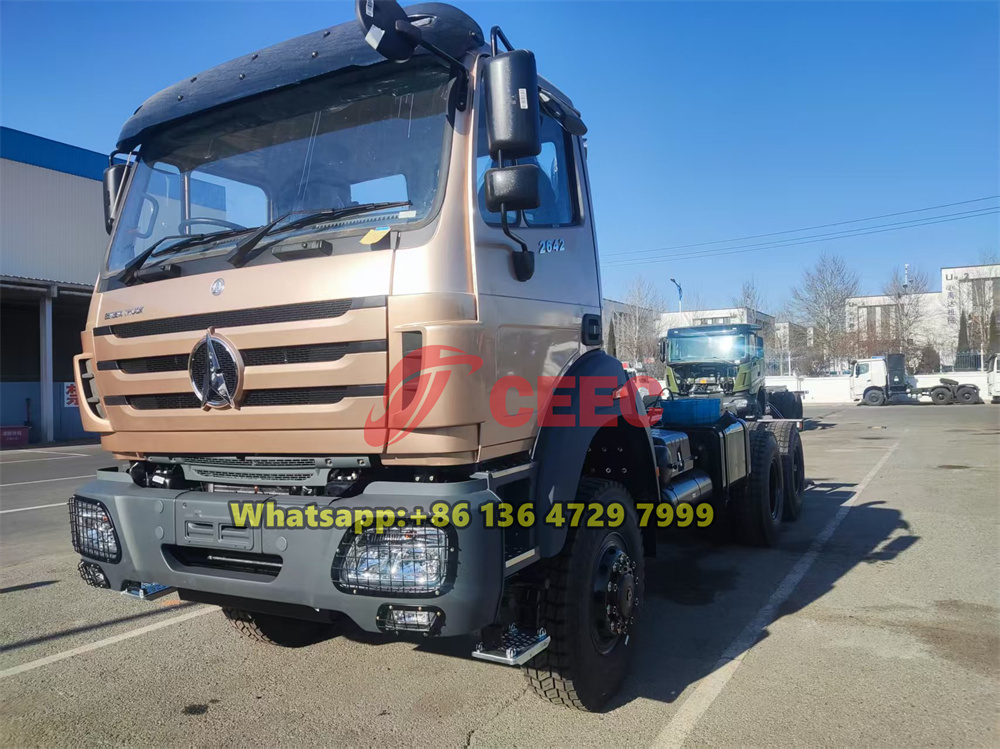

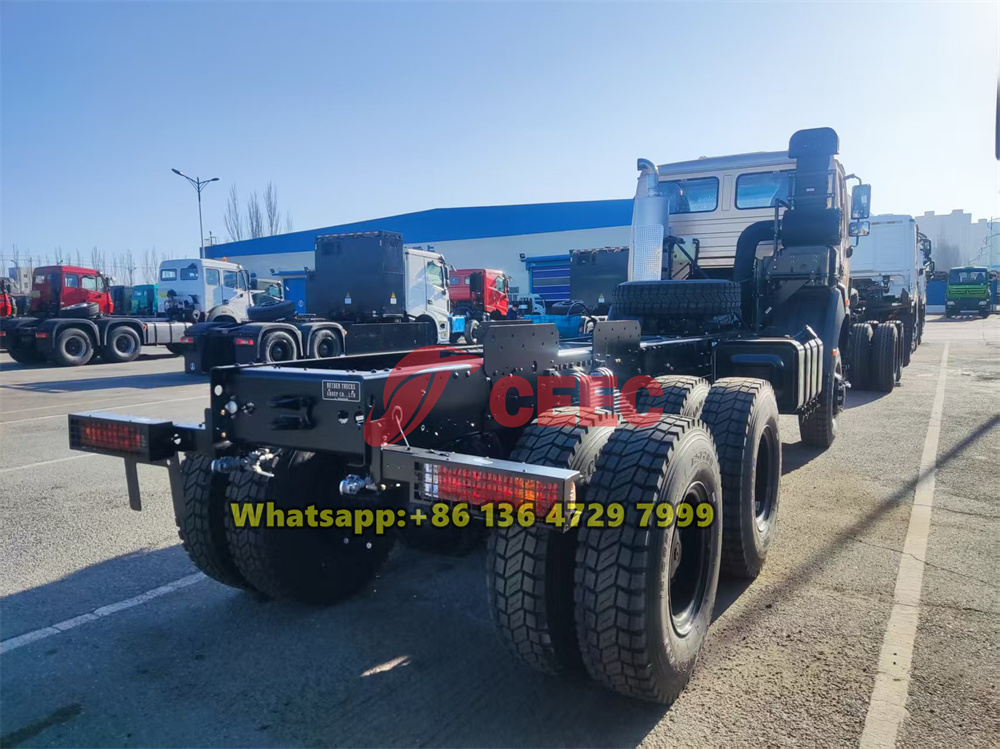

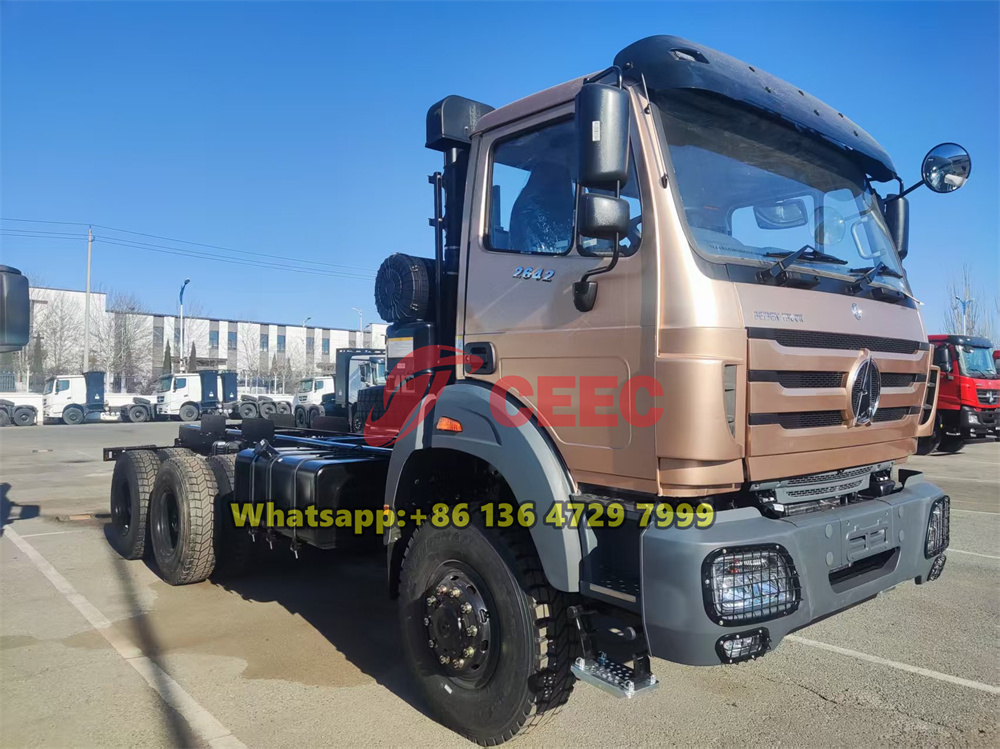

Product Pictures
