Beiben 6x6 all-wheel-drive heavy-duty truck integrates robust engineering with advanced components for extreme operational demands. Powered by the WP12.420 engine, it delivers 420 HP and 2,000 Nm torque, ensuring high-performance output. The FAST12JS200T 12-speed manual transmission optimizes power distribution across terrains. Its Benz 7.5-ton front axle and 13-ton rear axle provide exceptional load-bearing capacity and structural resilience. The NG80B extended cabin enhances operator comfort during prolonged missions, featuring ergonomic controls and reinforced safety systems. Designed for off-road logistics, mining, and construction, this truck combines Mercedes-derived axle technology with Beiben's rugged chassis architecture
Working capcity:
40 tonsCabin type:
Beiben NG80 cabin, 2642 modelDimension ( mm ) :
9500×2500×3300Drive system:
6×6Wheelbase (mm):
4450+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:
RHD is optionalBeiben 6x6 all-wheel-drive heavy-duty truck epitomizes rugged versatility, engineered for extreme operational demands across military, construction, and mining sectors. Its tri-axle drivetrain integrates a permanently engaged 6x6 configuration with inter-axle differential locks, enabling torque vectoring across challenging terrains while minimizing wheel slippage. Powered by a high-compression diesel engine delivering 350-450 hp and 1,600-2,200 Nm torque, the powertrain couples with a 16-speed automated manual transmission featuring terrain-adaptive shift logic.
Beiben 6x6 All-Wheel Drive Heavy Truck: Technical Overview
1. General Configuration
The Beiben 6x6 all-wheel-drive heavy-duty truck is engineered for extreme off-road performance and heavy-load transportation. Its robust chassis and optimized drivetrain ensure reliability in challenging environments, such as mining, construction, and logistics.
2. Powertrain System
3. Axle Configuration
4. Cabin Design
The NG80B long cabin prioritizes operator comfort and safety. Key attributes include:
5. Performance Features
6. Applications
Ideal for heavy-haul operations, including oilfield logistics, military transport, and resource extraction. Its modular design allows customization with specialized add-ons like cranes or dump bodies.
Beiben 2642 all wheel drive system truck chassis with 12.00R24 tyre
Product Specifications
Dimension |
10500×2500×3840(mm) |
|||
Approaching angle/Departure angle |
26/64° |
|||
Overhang(front/rear) |
1410/825mm |
|||
Wheel base |
4450+1450mm |
|||
Max speed |
99km/h |
|||
Curb weight |
9400 kg |
|||
Payloading weight |
39600kg |
|||
Slope climbing capability |
Max.40% |
|||
Engine |
Model |
WP12.420E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
||
Displacement |
11.726L/Diesel |
|||
Stroke |
126/155 mm |
|||
Max. power |
308/2100 (kw/rpm) |
|||
Max.torque |
1600/1800(Nm/rpm) |
|||
Fuel tanker capacity |
400L |
|||
Clutch |
∮430, Single dry frictional disc,Hydraulic boosting |
|||
Gearbox |
12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer |
|||
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 |
|||
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 13pcs |
||
Rear |
Non-free standing stabilization spring, balance suspension system, 13pcs |
|||
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
||
Assistant brake |
Engine exhaust brake |
|||
Park brake |
Potential springs pressing on middle and rear wheels |
|||
Steering system |
TAS85, whole circulation in ball, hydraulic booster |
|||
Transfer box |
L200 |
|||
Frame |
Fish belly shape, variable width, variable sections |
|||
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, driving steering axle, 7.5 Ton |
|||
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle, 13 Ton |
|||
Tyre |
12.00R24 |
|||
Electrical system |
Battery |
2X12V/135Ah |
||
Generator |
28V-35A |
|||
Starter |
5.4Kw/24V |
|||
Cabin |
NG80B Long-Flat roof cabin with single sleeper Covered with double layer steel plate; |
Product Pictures

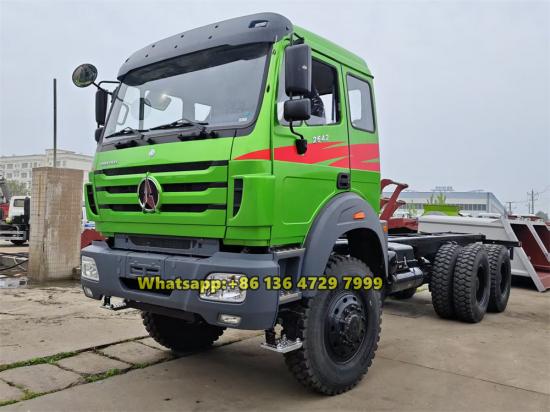

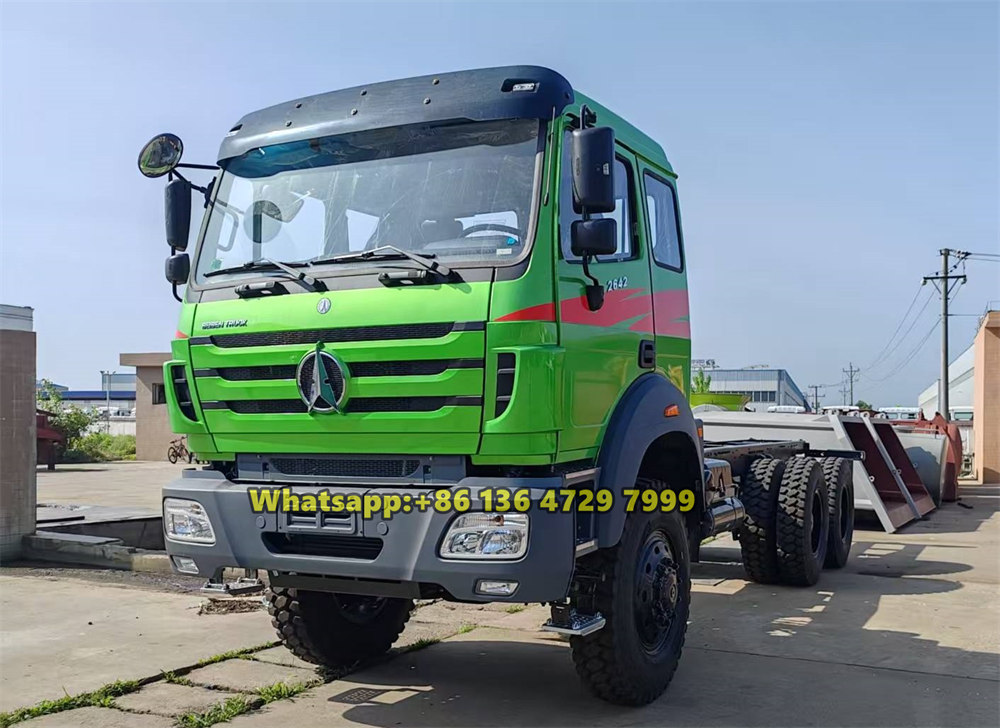

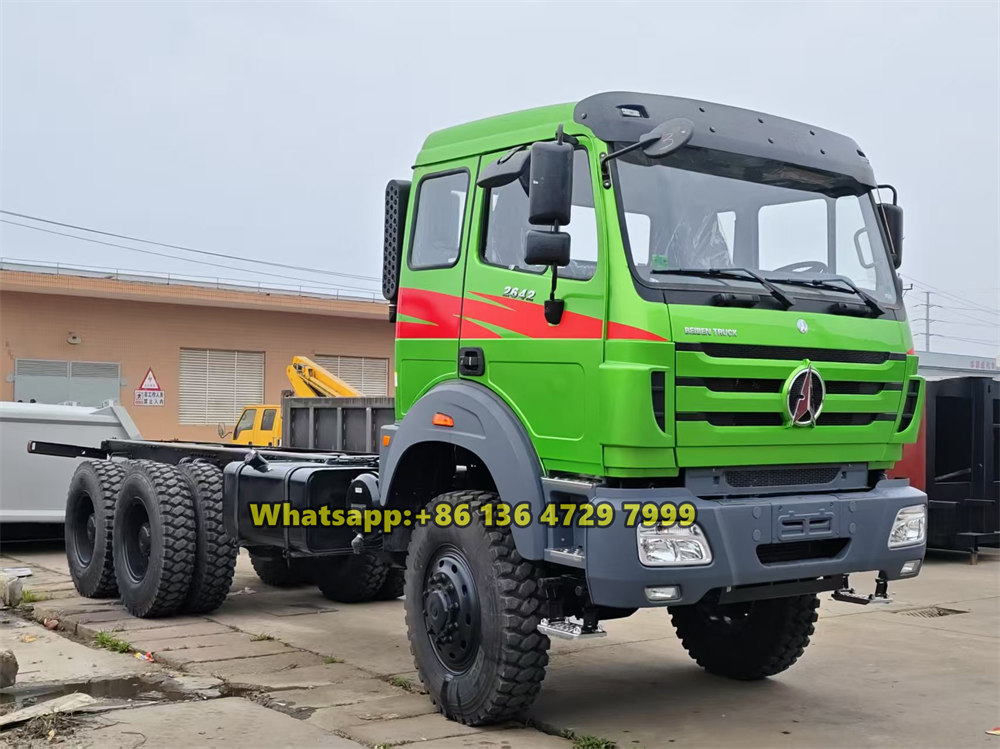

Beiben 6x6 drive truck, with 2642 cabin

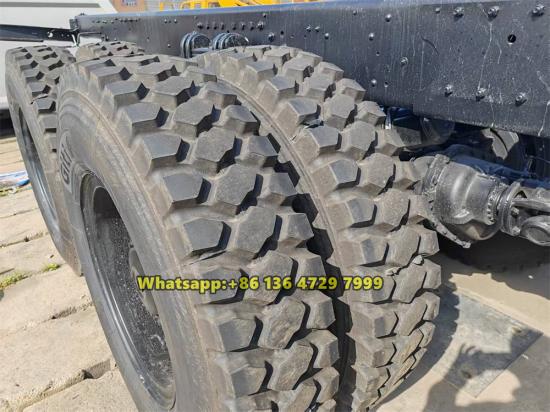

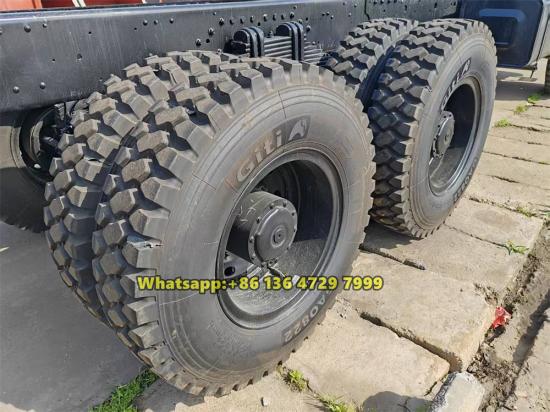

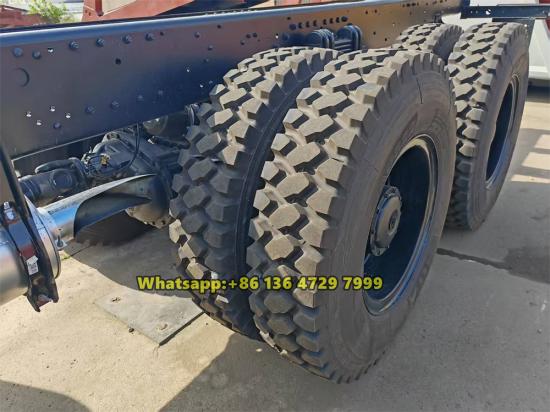

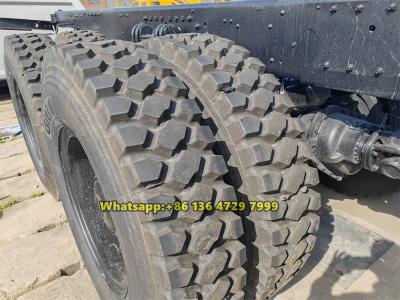

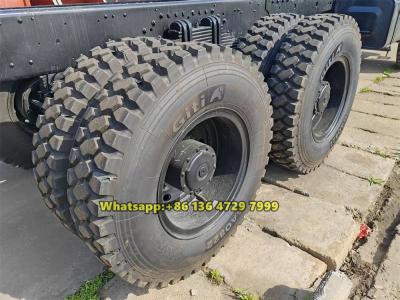

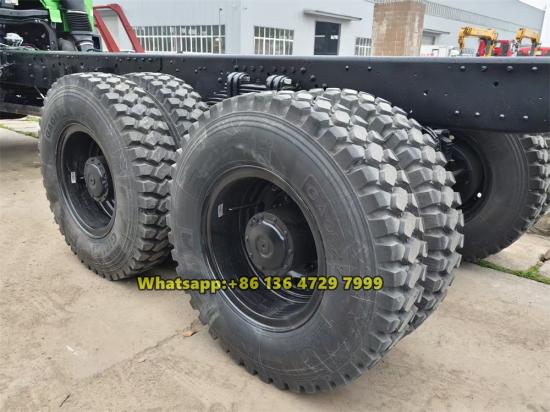

12.00R24 off road tyres for beiben 2642 off road truck chassis

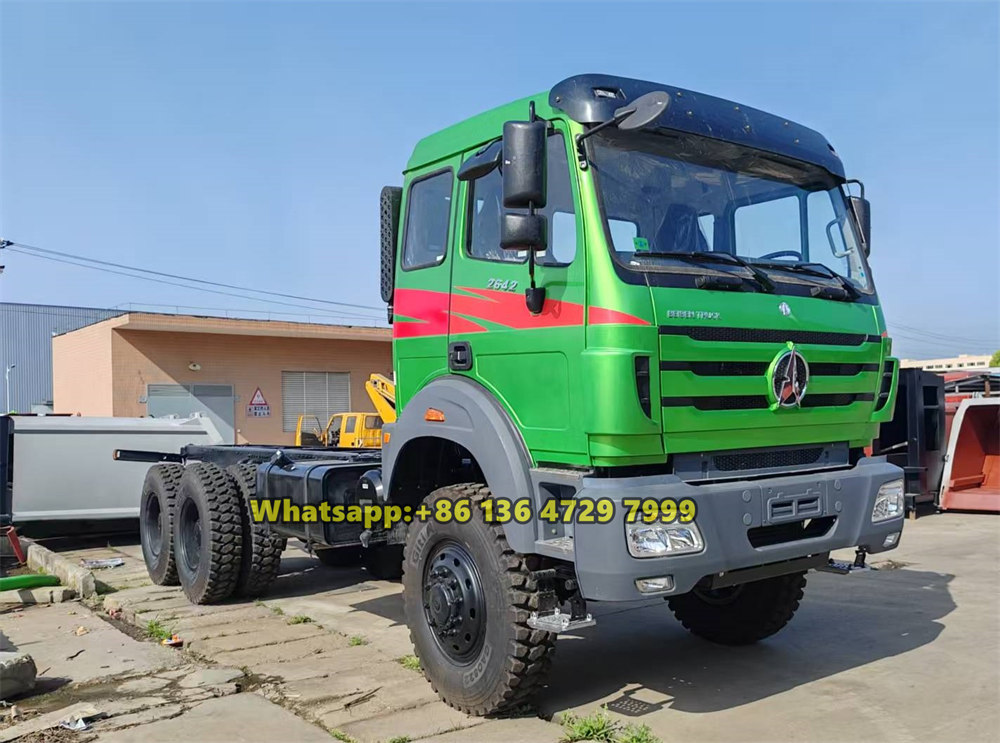

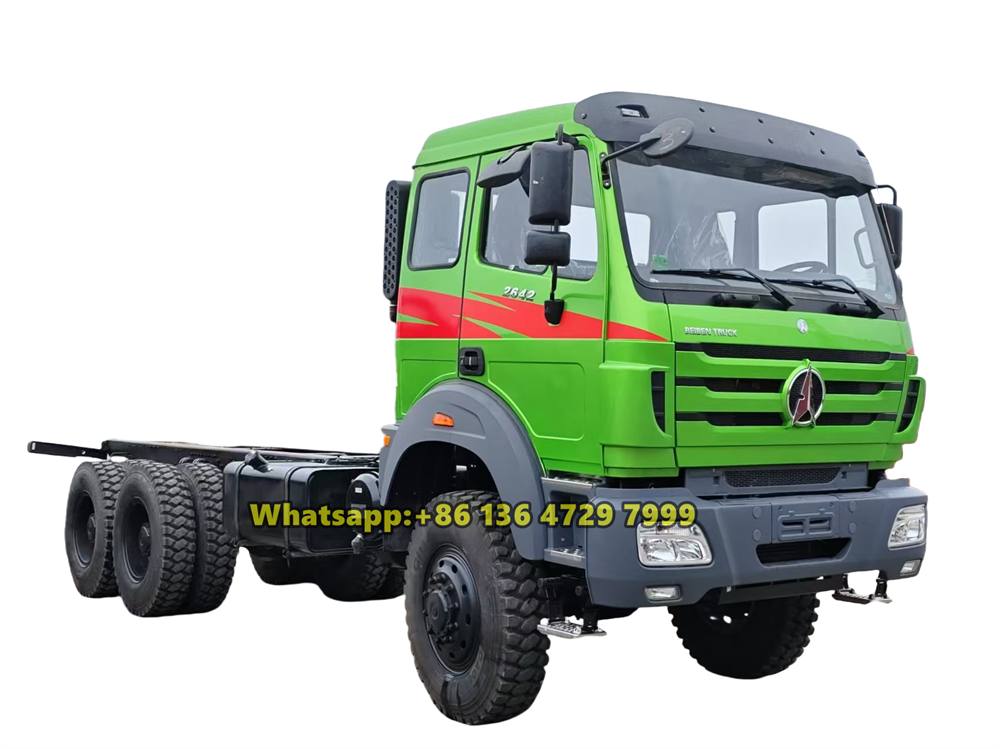

Beiben 2642 truck with 6x6 drive system, NG80B long head cabin
