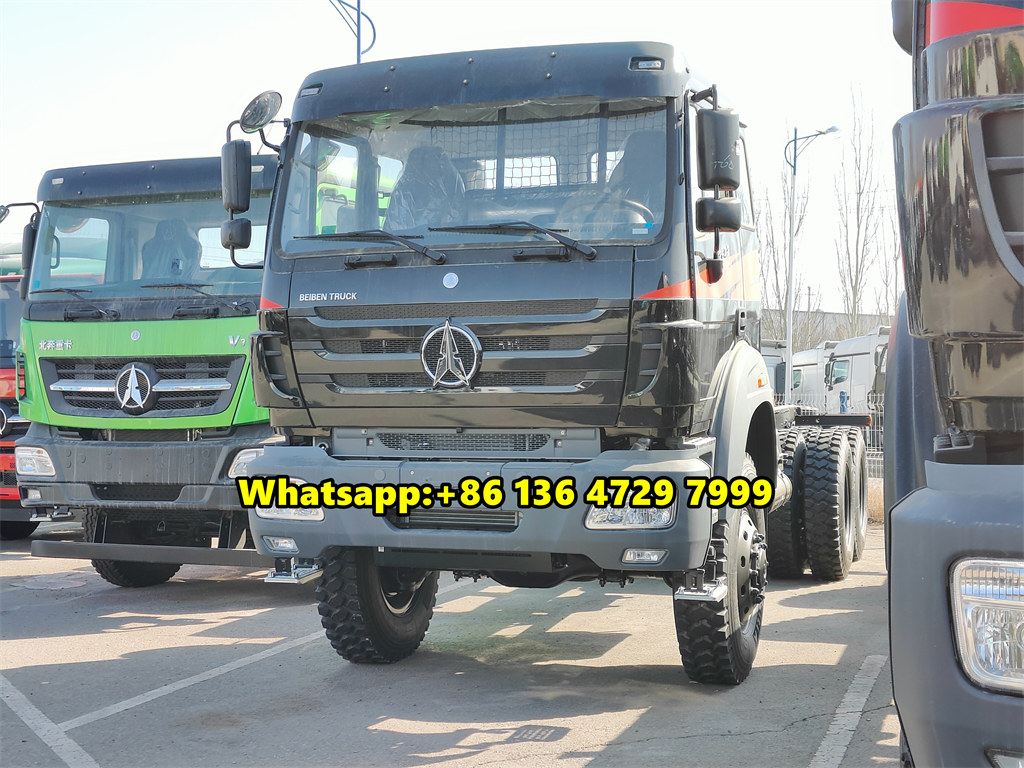

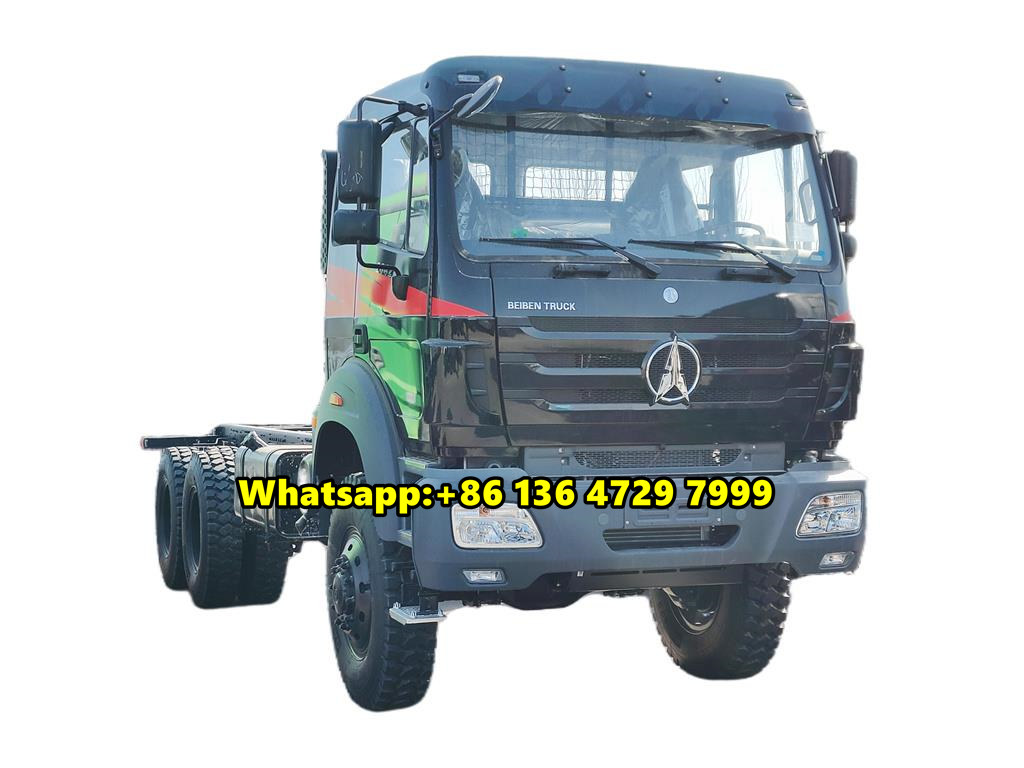

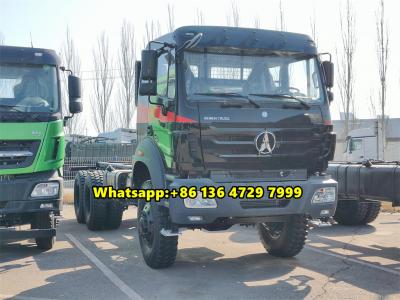

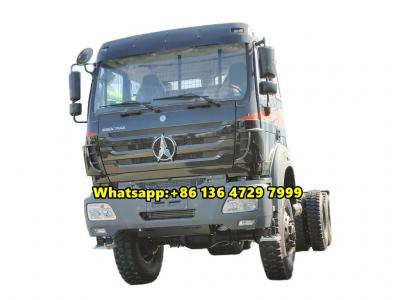

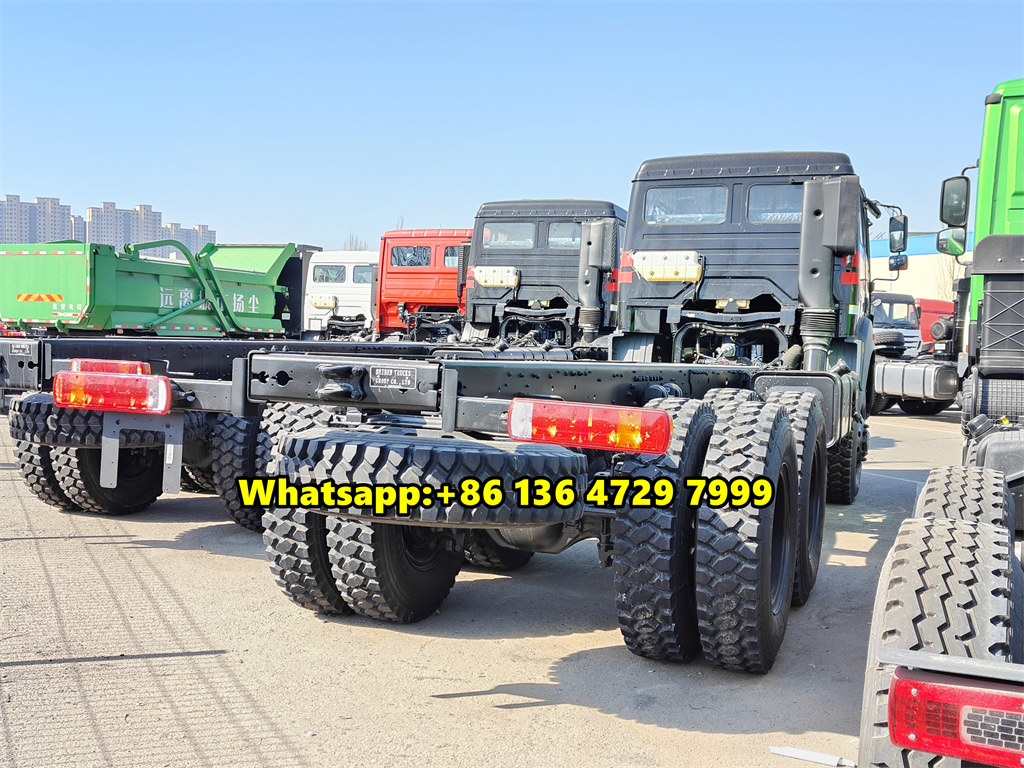

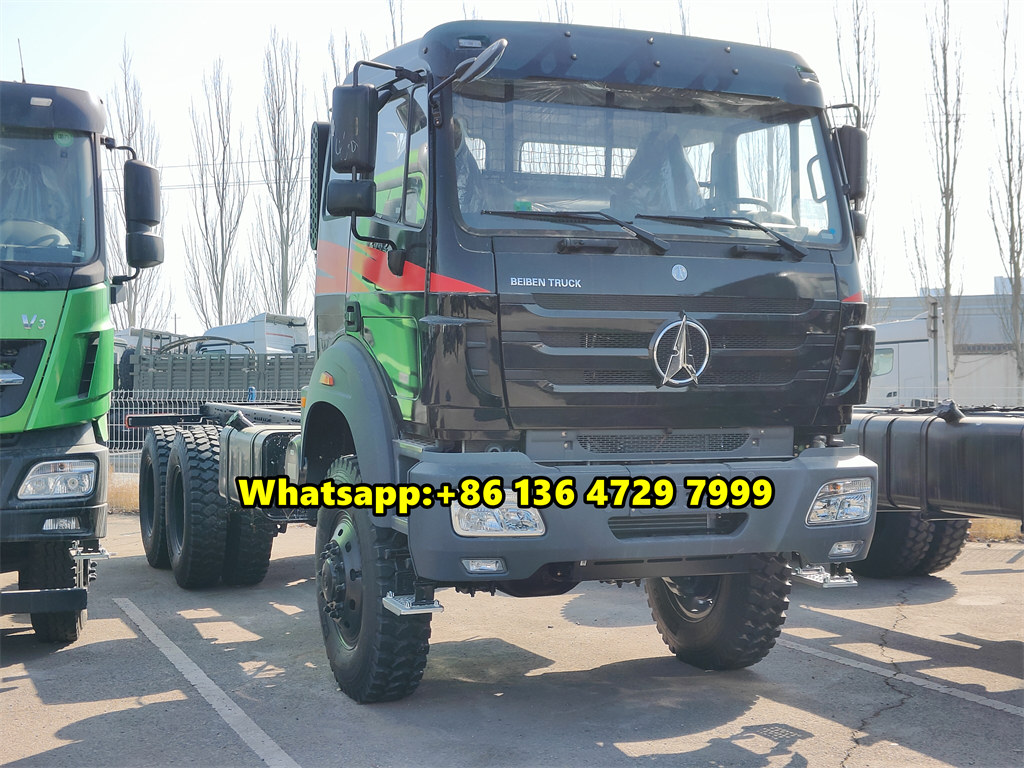

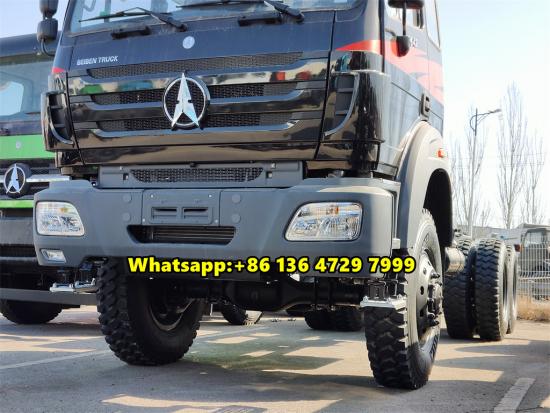

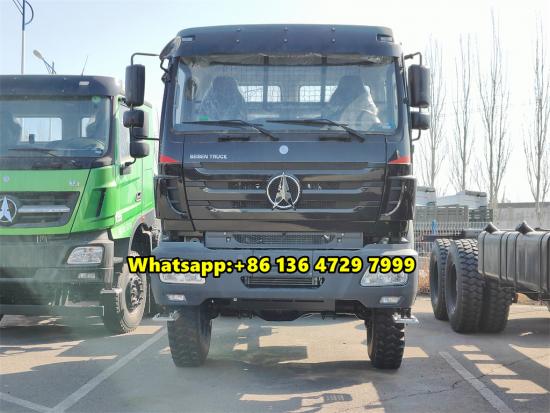

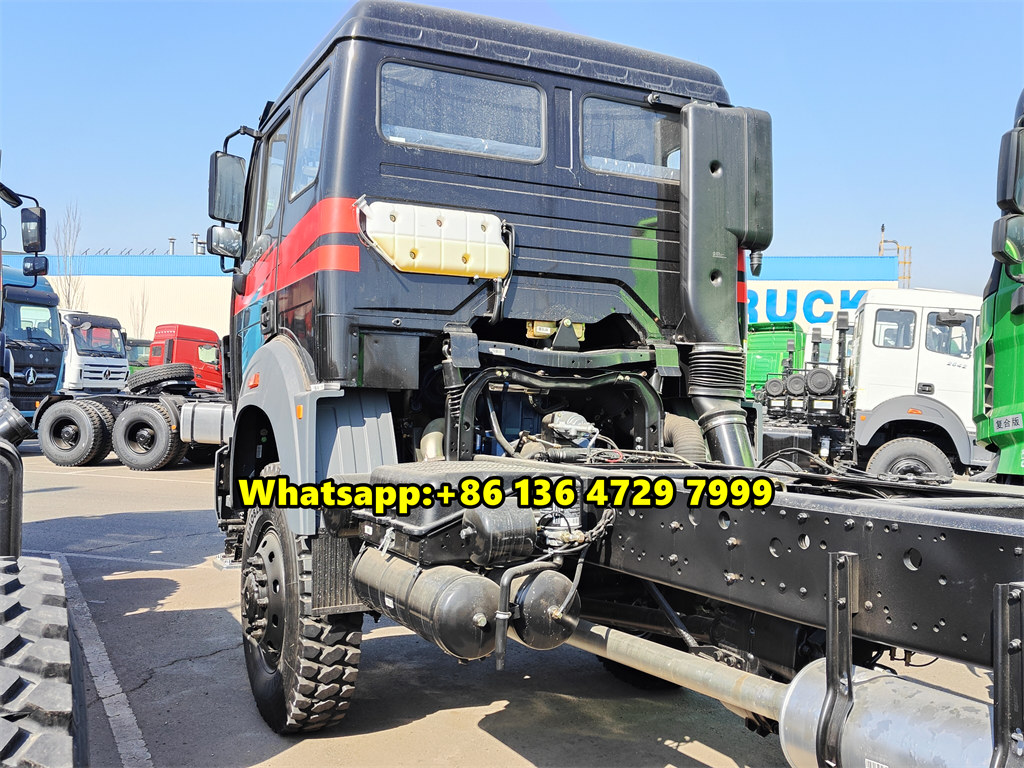

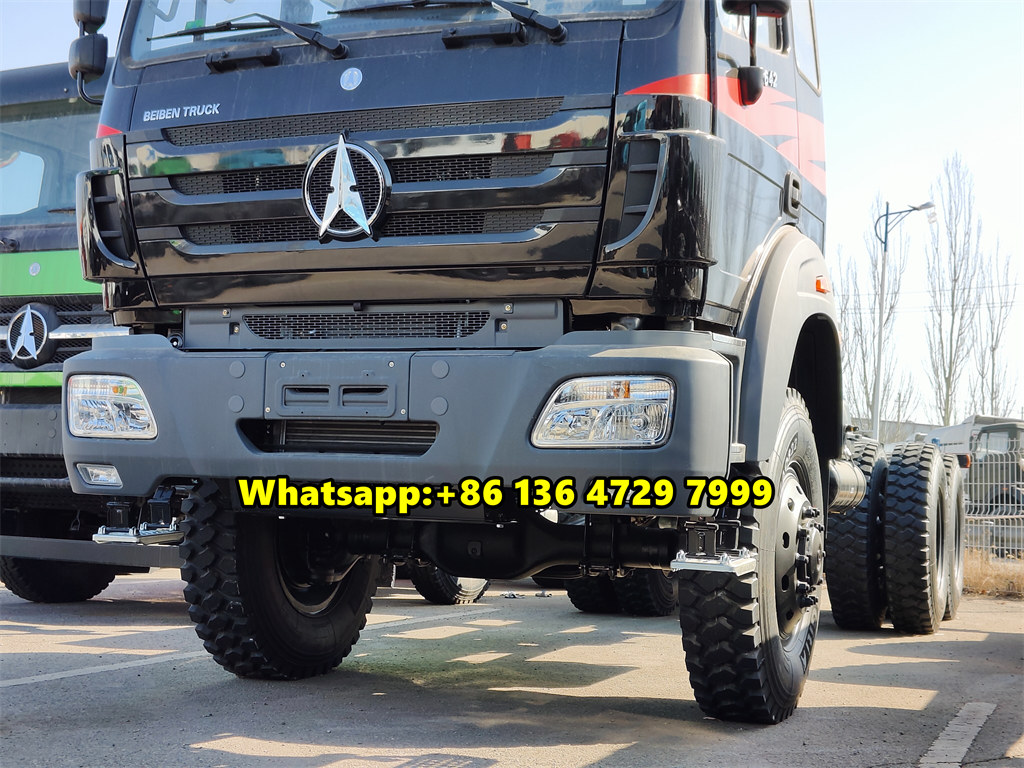

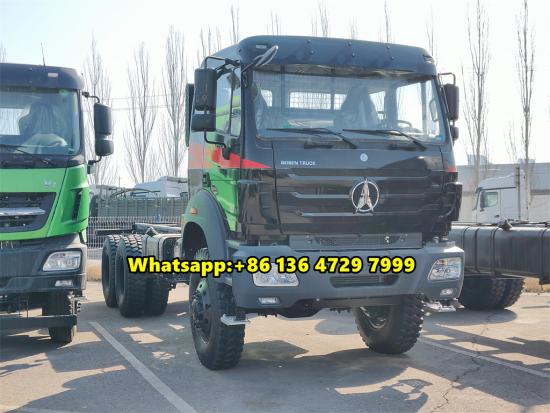

Beiben 6x6 offroad lorry truck chassis, mounted with NG80B cabin, WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, mounted with 12.00R24 tires with 11 pcs. DRC congo customer purchased Beiben 6x6 LHD 2642 lorry truck chassis with long cabin, BeiBen Axle factory produces Mercedes-Benz licensed axles for the heavy duty trucks. Axle models include the planetary hub-reduction axles HL-7/HD-7, and the steering axles VL-4, Beiben 6x6 cargo truck can have cabin different painting as required.
Working capcity:
30-40 tonsCabin type:
Beiben NG80 cabin, with sleeperDimension ( mm ) :
9500X2500X3300Drive system:
6x6Wheelbase (mm):
4450+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:
RHD is optionalBEIBEN Trucks is one of the famous domestic top-class heavy-duty truck manufacturing companies in China. With abundant technical staff, advanced equipment and modern managing system, Our company has series of products, such as Beiben offroad cargo truck, heavy-duty trucks, dump trucks, tractors and special trucks. The driving type includes 4 x 2, 4 x 4, 6 x 2, 6 x 4, 6 x 6, 8 x 4, 8 x 8 and 10 x 4. We can match with Germany Benz, Deutz Engine and domestic Weichai, Yuchai Engine. As far as power concerned, we have covered series types from 240 to 480Ps, and can also meet customers' different needs.
As the only one who manufacture under the license of Germany Benz Heavy-Duty Truck technology, our company established the domestic first-level production lines of general assembling, axle machining, transfer case machining, covering parts of large-scale cab, frame punching, Eisenman spray painting, and vehicle testing in Baotou City.
The series products of our BEIBEN trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. Now Beiben 6x6 cargo lorry chassis are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth.
| Wheel base(mm) | 4450+1450 | |
| L*W*H | 9500X2500X3300 | |
| Curb weight(kg) | 9900 | |
| Front overhang/rear overhang (mm) | 1410/1940 | |
| Approach angle/Departure angle | 26/20 | |
| Max Speed:(Km/h) | ≤85 | |
| Model | WP12.420E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged, | |
| Engine | Fuel type | Diesel |
| Min rate of consuming fuel(g/(kw.h)) | 192g/kw.h | |
| Rated Power / rotating(kw/(r/min) | 309Kw(420HP)/2200rpm | |
| Emission | EURO3 | |
| Maximum Torque / rotating speed(n.m/(r/min) | 1750Nm/1500-1800rpm | |
| Displacement(ml) | 11.596 | |
| Fuel tanker capacity(L) | 400L+400L Iron | |
| Transfer case | LF200 | |
| Clutch | Model | #430, Single dry frictional disc,Hydraulic boosting |
| Gearbox | Model | 12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake | Engine exhaust brake | |
| Park brake | Potential springs pressing on middle and rear wheels | |
| Steering system | Model | 8098 whole circulation in ball type, hydraulic boosting |
| Suspension System | Front Suspension | Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
| Rear Suspension | Non-free standing stabilization spring, stabilization suspension,13 pcs springs | |

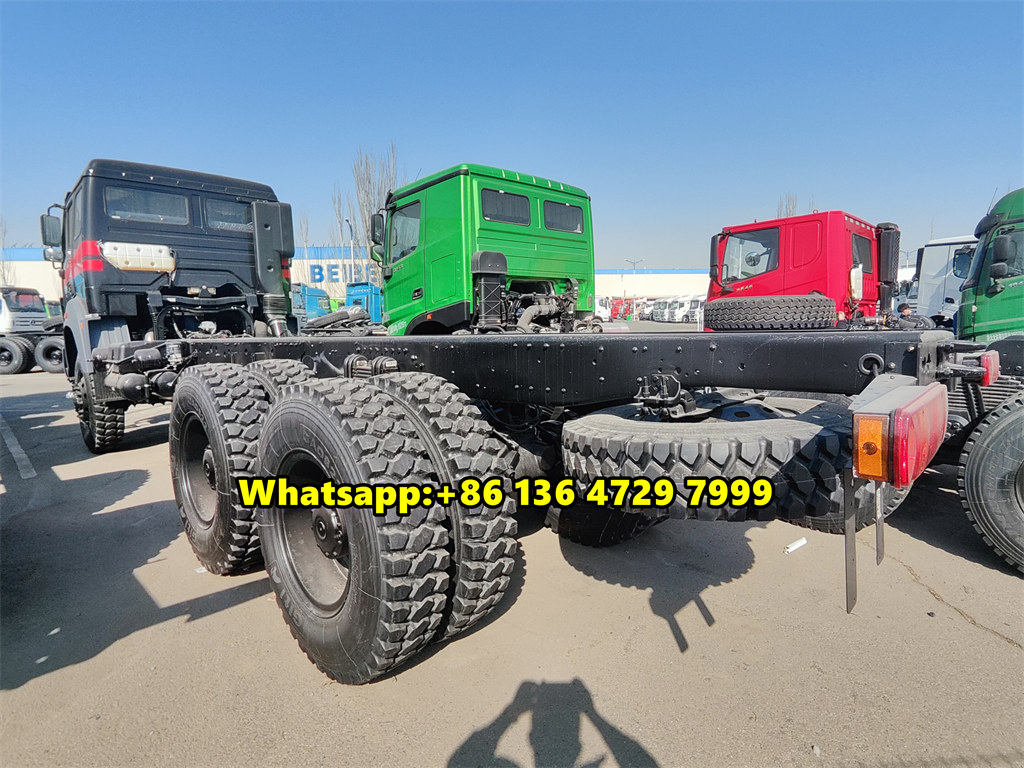

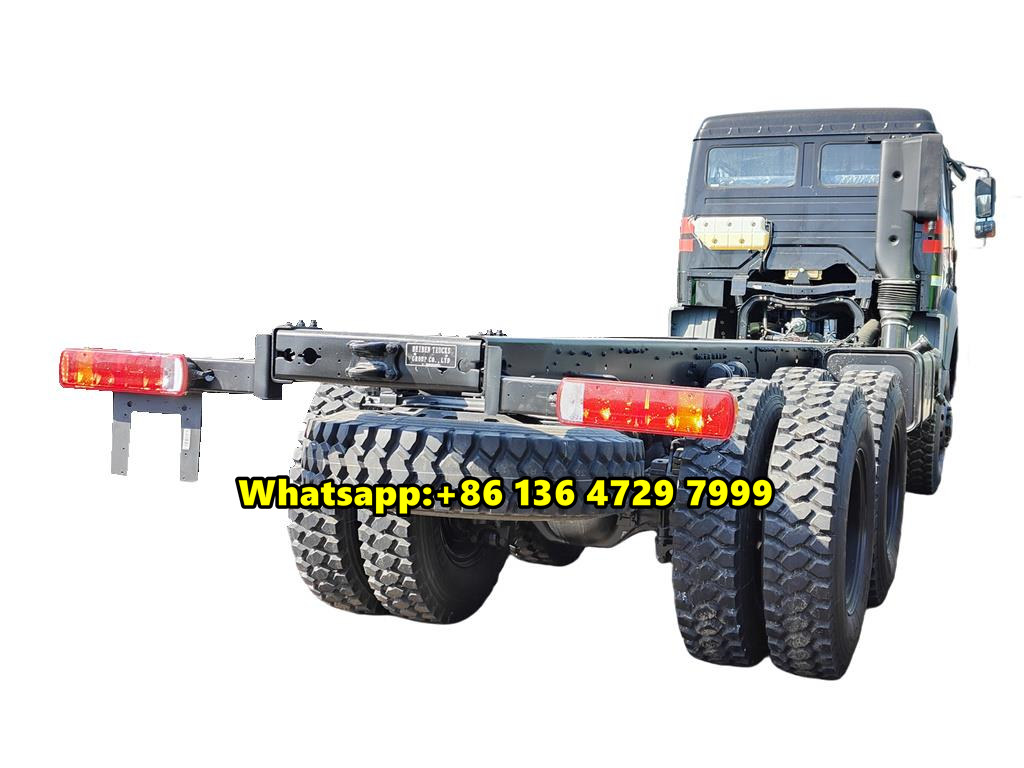

| Frame | Fish belly shape, variable width, variable sections, Based on Germany Benz Technology | |
| Cross section dimension of frame(mm) | 317×70×8.5+7+8mm | |

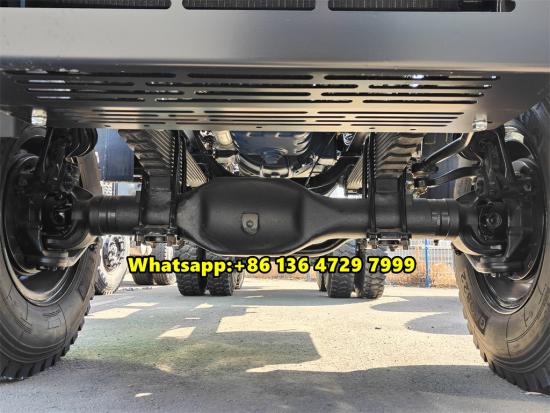

| Front axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, 8 ton driving steering axle | |
| Middle and Rear axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 | |
| Tire | 12.00R20 OR 12.00R24 radial tire | |
| Electrical system | Battery | 2X12V/135Ah |
| Generator | 28V-70A | |
| Starter | 5.58Kw/24V | |

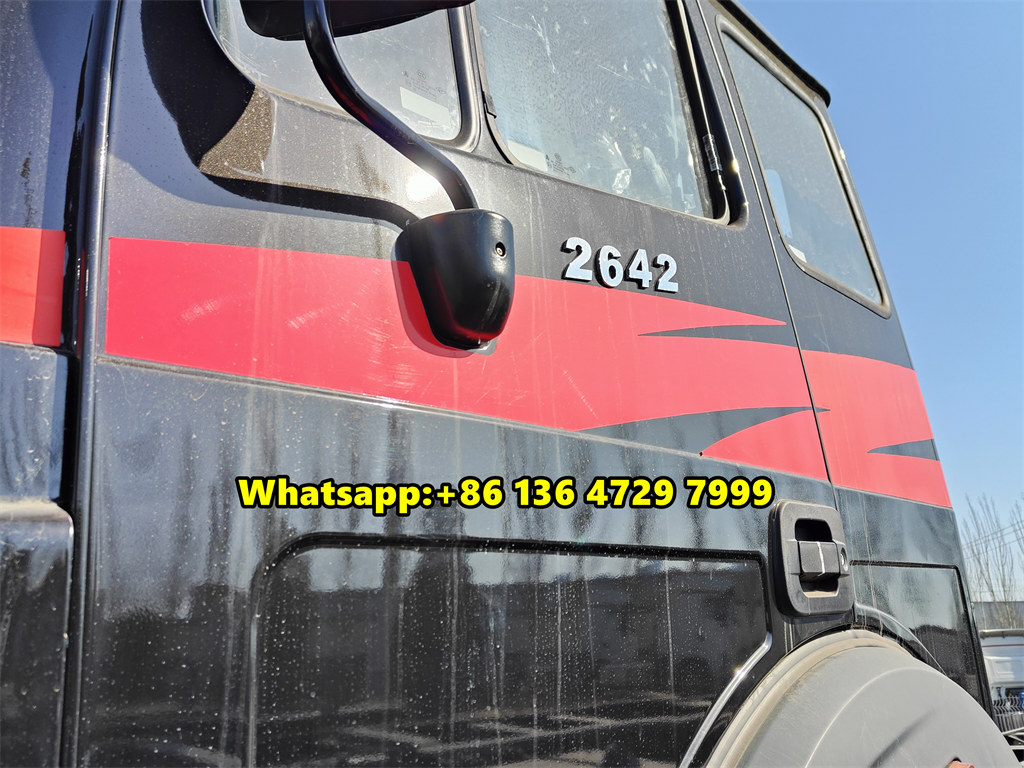

| Cab | NG80B left hand drive Long cab with one sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
|

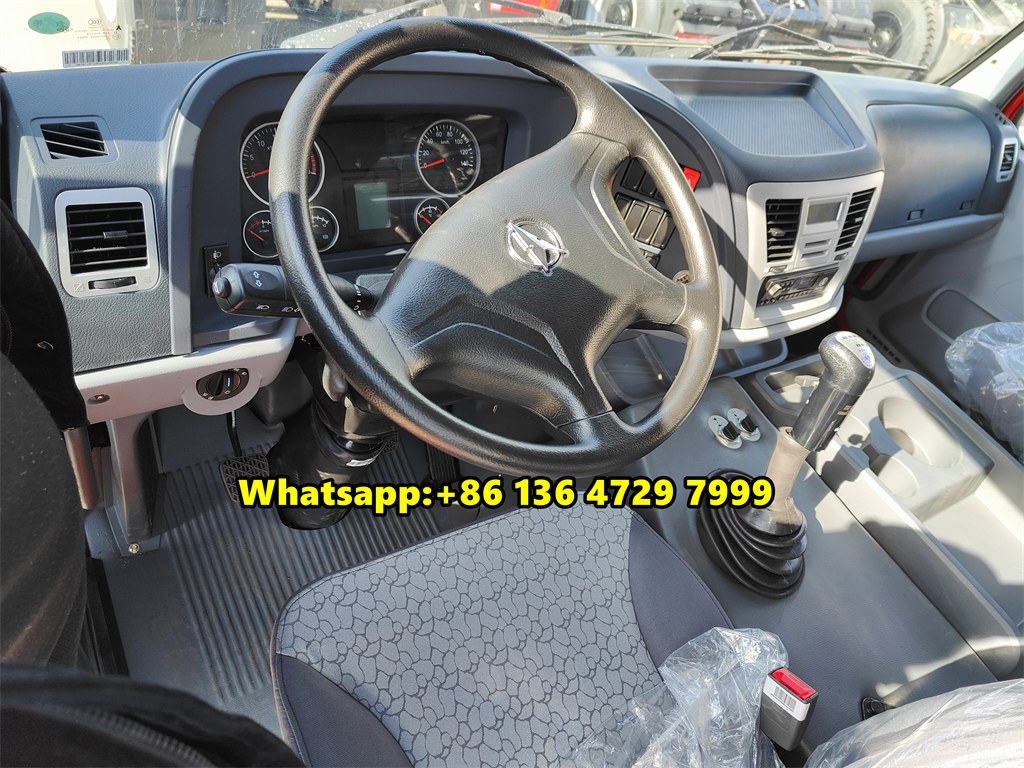

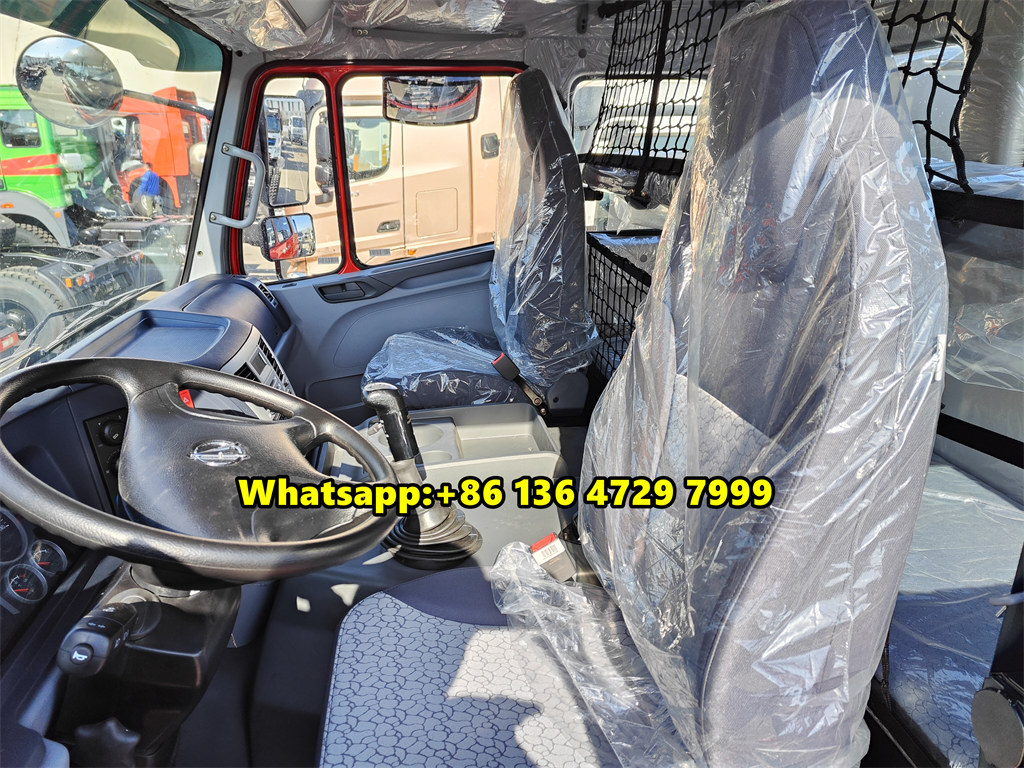

| Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C |
||

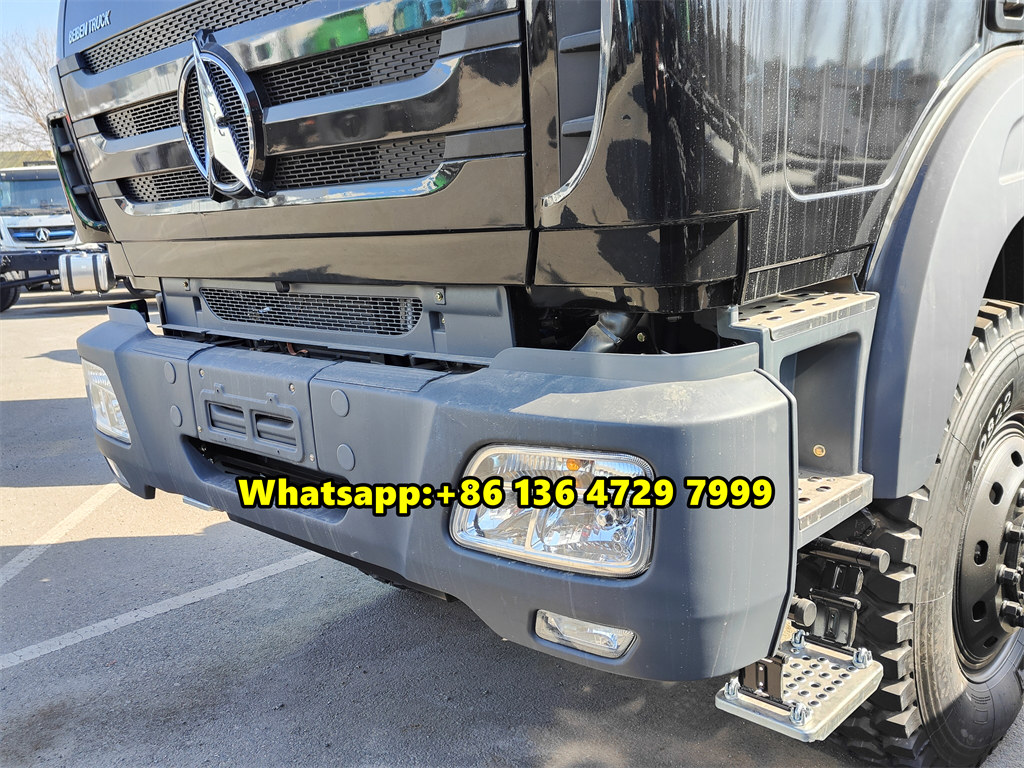

| Exterior trimming: Metal bumper, two steps, new mirror. |
||
| Other specifications | Two-stage air filter, 76°Tropical thermostat. | |
| Upbody | Longth 7m | |
--Heavy duty Beiben 6x6 cargo truck chassis advanced features
Beiben 2642 heavy-duty truck chassis has the advantages of excellent carrying capacity, excellent stability, excellent handling, efficient power system, reliable safety performance, wide applicability and high-quality after-sales service. These advantages make Beiben heavy-duty chassis highly competitive in the market and can meet the needs of different customers.
