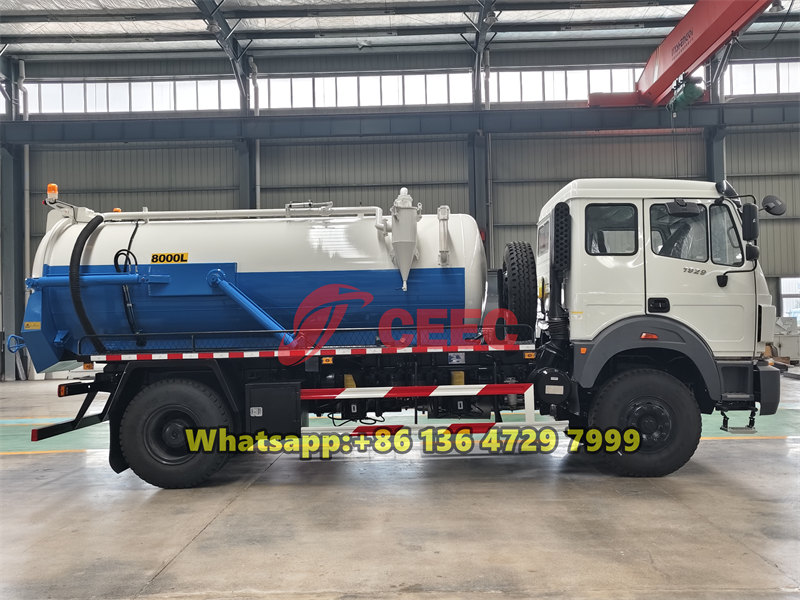

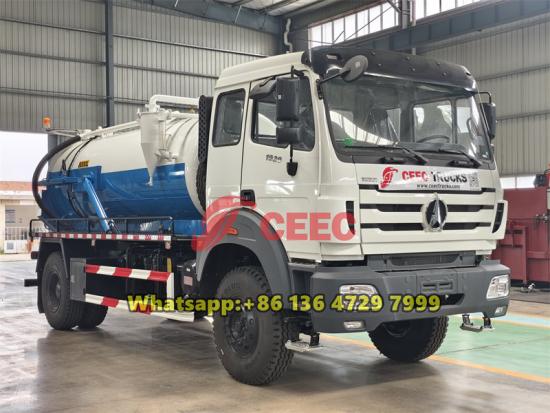

The Beiben 8000L Vacuum Sewer Truck is a highly efficient and professional sanitation cleaning vehicle, built on the Beiben NG80 chassis. It features an 8000L large-capacity carbon steel tank and a Wloong 68/7000 vacuum pump, delivering fast suction speed (68L/s) and high vacuum pressure (93%), enabling a full-load operation in just 8 minutes. Powered by a 290 HP Weichai engine and a 9-speed transmission, it offers robust performance for demanding working conditions. Ideal for municipal sanitation, industrial wastewater treatment, septic tank cleaning, and more, it stands out for its efficiency, durability, and user-friendly operation, making it the perfect choice for modern cleaning operations.
Working capcity:
8000 litersCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
8230×2550×3150 mmDrive system:
4×2, left hand driveWheelbase (mm):
4800 mmEngine power / Model:
290 HP/WP10.290E32Gear Box:
9JS150ARemark:
4×4, RHD is optionalThe Beiben 8000L Vacuum Sewer Truck is a high-performance professional vehicle designed for municipal sanitation and industrial cleaning. Built on the Beiben NG80 chassis, it combines large capacity, powerful suction, and stable performance. Equipped with an 8000L carbon steel tank and a Wloong vacuum pump system, it efficiently handles sewage, sludge, and industrial waste suction tasks. As a reliable assistant in municipal and industrial cleaning, it is particularly suitable for drainage unclogging, septic tank cleaning, and industrial waste liquid recovery.
The Beiben vacuum pump truck is powered by a Weichai WP10.290E32 engine, delivering 290 HP, paired with a FAST 9JS150A 9-speed transmission, ensuring high operational efficiency in various conditions. The vehicle is designed for durability and practicality, from its 6mm-thick carbon steel tank to its reinforced 10.00R20 tires, every detail reflects professional quality. For users requiring high-capacity, high-efficiency suction equipment, this 8000L vacuum sewer truck is an ideal choice.

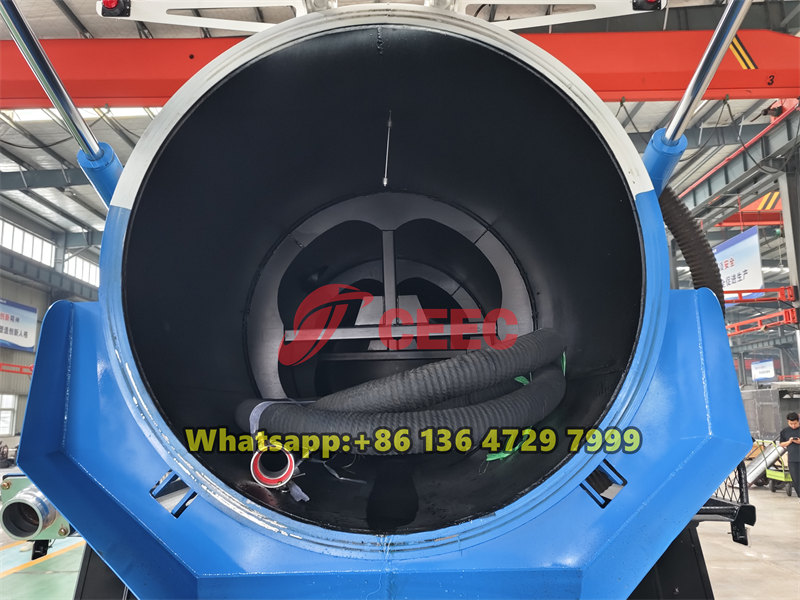

The core feature of the Beiben 8000L Vacuum Septic Truck lies in its precision-engineered superstructure. The 8000L cylindrical carbon steel tank, made of 6mm-thick material, offers excellent pressure resistance and corrosion resistance. The tank interior is specially treated for corrosion protection, ensuring long-term durability against sewage and chemical liquids. The vacuum system, driven by a Wloong 68/7000 vacuum pump, generates 7000 Pa of negative pressure and a suction speed of 68L/s, with a maximum vacuum level of 93%, ensuring fast and thorough suction.

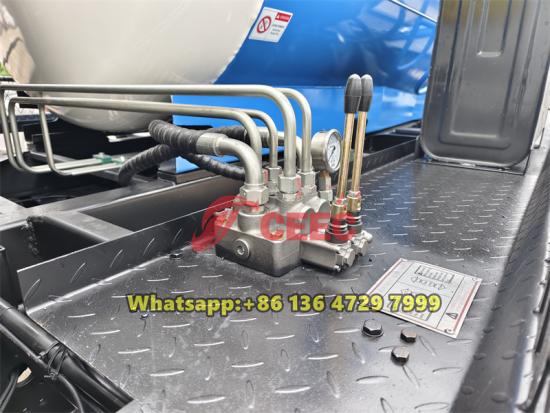

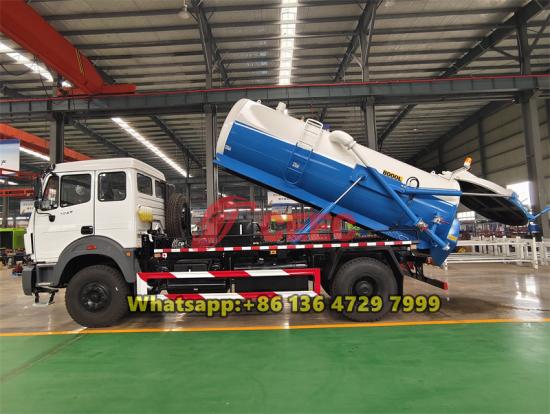

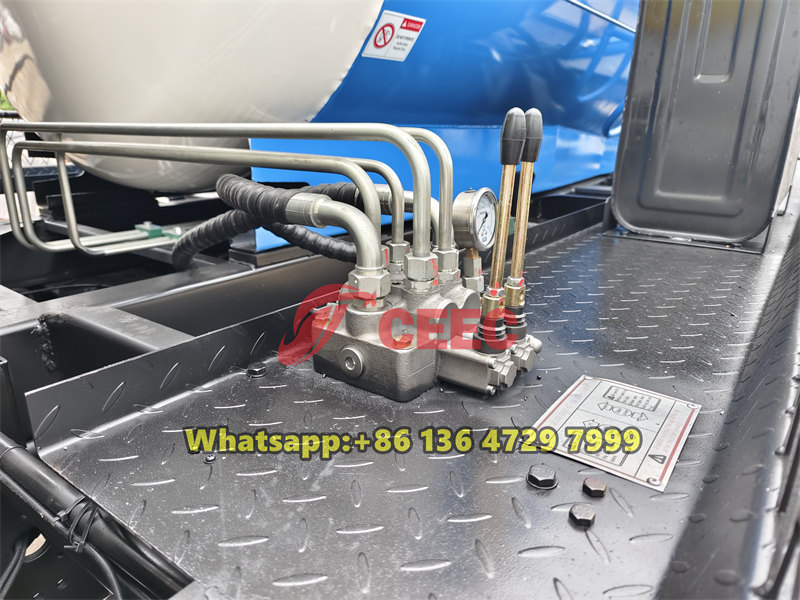

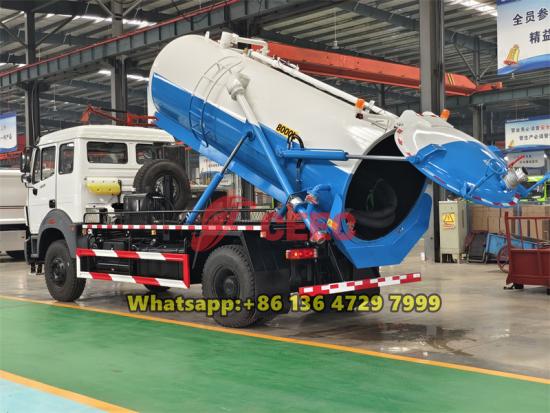

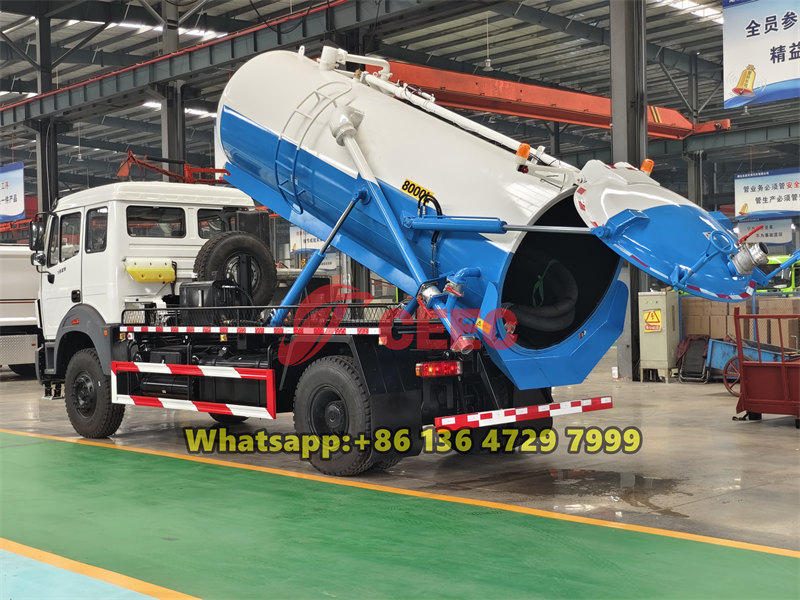

The hydraulic system provides smooth operation, with precisely designed control valves for seamless switching between suction and discharge. The 10-meter-long, 100mm-diameter suction hose is made of wear-resistant material with quick-connect fittings for easy adaptation to various tasks. Operators can manage all functions—vacuum pump start/stop, tank lifting, and discharge valve control—via the control valves at the rear of the cab. The specially designed 45°+ dumping angle ensures complete waste discharge, preventing residue buildup.
Product Speicifications
|
Beiben 8000L Sewer Vacuum Truck Technical Specification |
||
|
Chassis Model |
Beiben NG80 |
|
|
Fuel type |
Diesel |
|
|
Emission Standard |
Euro 3 |
|
|
Cabin |
NG80B long cabin, with sleeper |
|
|
Drive type |
4×2 |
|
|
Vehicle main dimensions (mm) |
Overall dimensions (LxWxH) |
8230*2550*3150 |
|
Wheelbase |
4800 |
|
|
Front/rear overhang |
1260/2200 mm |
|
|
Weight data (kg) |
G.V.W |
18000 |
|
Curb weight |
9800 |
|
|
Rated payload |
8200 |
|
|
Vehicle |
Max. speed (km/h) |
95 |
|
Max. slope of climb (%) |
30 |
|
|
Engine |
Brand |
WEICHAI |
|
Model |
WP10.290E32 |
|
|
Maximum power |
290HP/213kw |
|
|
Number of cylinders |
6 |
|
|
Displacement |
9726 ml |
|
|
Emission standard |
Euro 3 |
|
|
Rated speed |
2200 rpm |
|
|
Max. torque |
1160 N.m |
|
|
Gear box |
Model |
FAST 9JS150A |
|
Number of gears |
9 forward gears &1 reverse |
|
|
Axle |
Front Load capacity (ton) |
6 |
|
Rear Load capacity (ton) |
13 |
|
|
Steering Wheel |
left/right hand drive |
LHD |
|
Brake system |
Service brake |
Air braking |
|
Electric device |
Rated voltage |
24V |
|
Tyres & Quantity |
10.00R20, 6+1 pcs |
|
|
Superstructure Description |
||
|
Tank |
Capacity |
8000 liters |
|
Material |
high quality carbon steel |
|
|
Thickness of material |
6mm |
|
|
Structure |
Welding, cylindrical |
|
|
Vacuum pump |
Brand |
Wloong (China famous brand) |
|
Model |
68/7000 |
|
|
Ultimate pressure |
7000 pa |
|
|
Pumping speed |
68 L/s |
|
|
Maximum vacuum |
93% |
|
|
Rotation speed |
800 rpm |
|
|
Suction pipe |
10 meters suction and discharge pipe with diameter 100mm |
|
|
Special function |
Suction time ≤ 8min, |
|

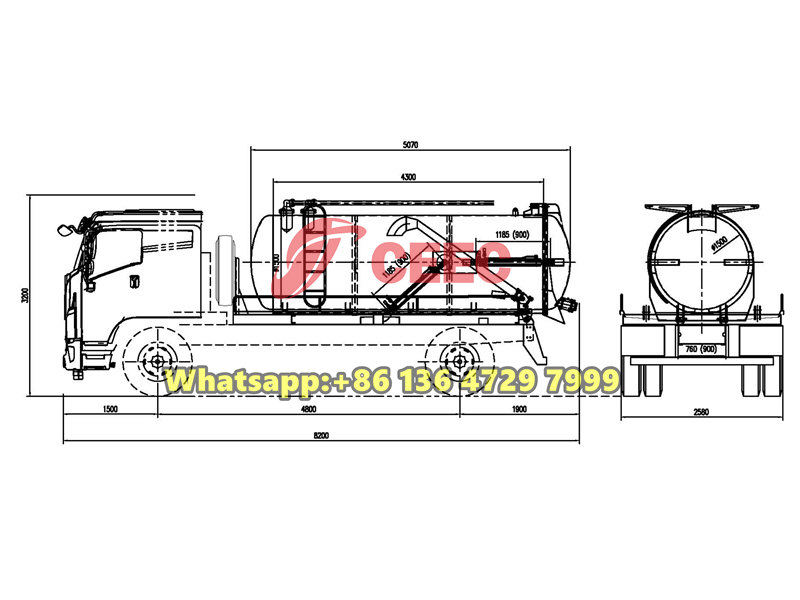

Product Drawing
Product Applications
With its large capacity, powerful suction, and high efficiency, the Beiben Vacuum Tank Truck is widely used in:
1. Municipal Sanitation – Efficiently cleans urban sewer sludge, storm drain sediment, and resolves road flooding issues; rapidly empties public septic tanks, maintaining urban hygiene.
2. Industrial Cleaning – Handles oil-contaminated wastewater, chemical waste liquids, and sludge in factories and mines, meeting environmental discharge standards.
3. Residential Property Maintenance – Regularly maintains sewage pipes and septic tanks, preventing clogs and odors.
4. Livestock Farms & Food Processing – Extracts manure from farms and organic waste from food factories, improving sanitation standards.
5. Emergency Response – Used for post-storm water drainage, sudden underground pipe blockages, and other emergencies, ensuring quick recovery of traffic flow.

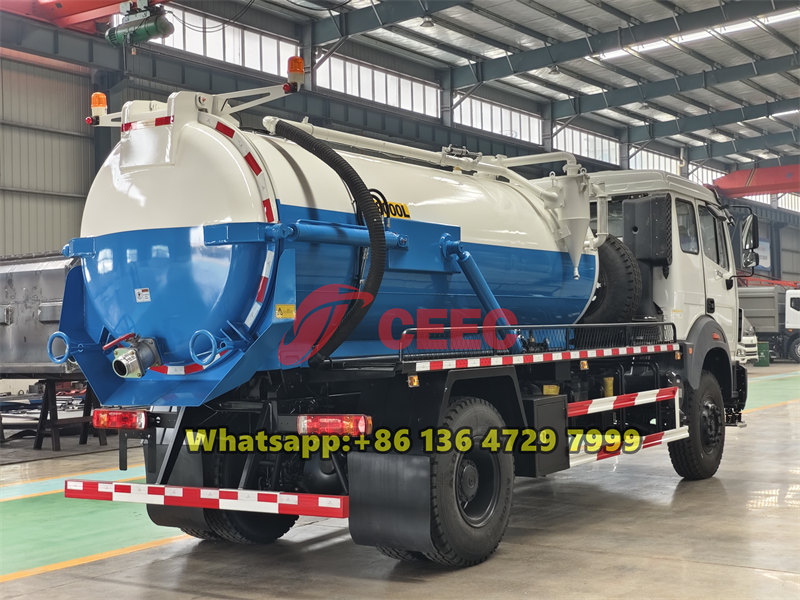

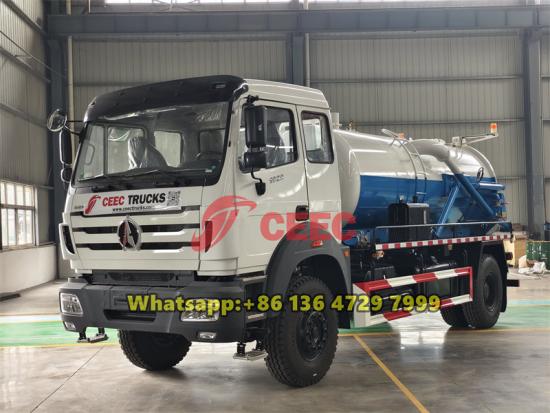

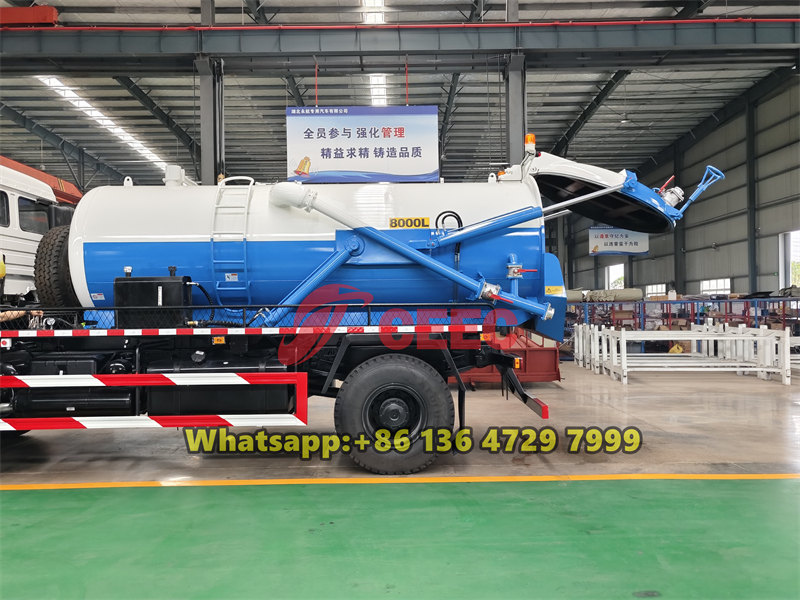

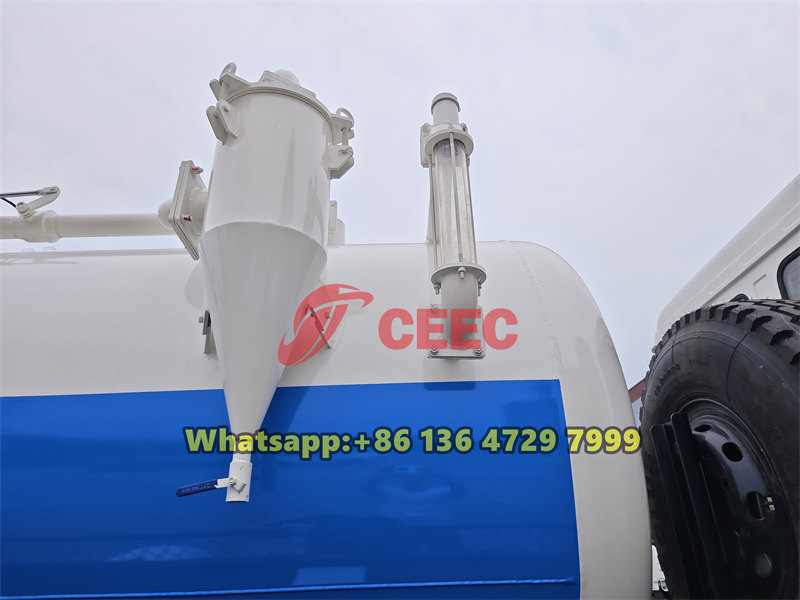

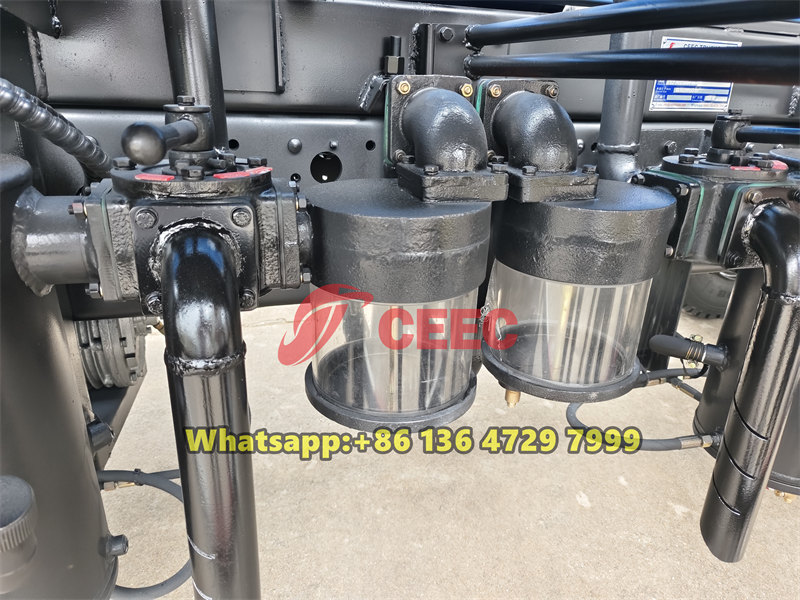

Product Pictures

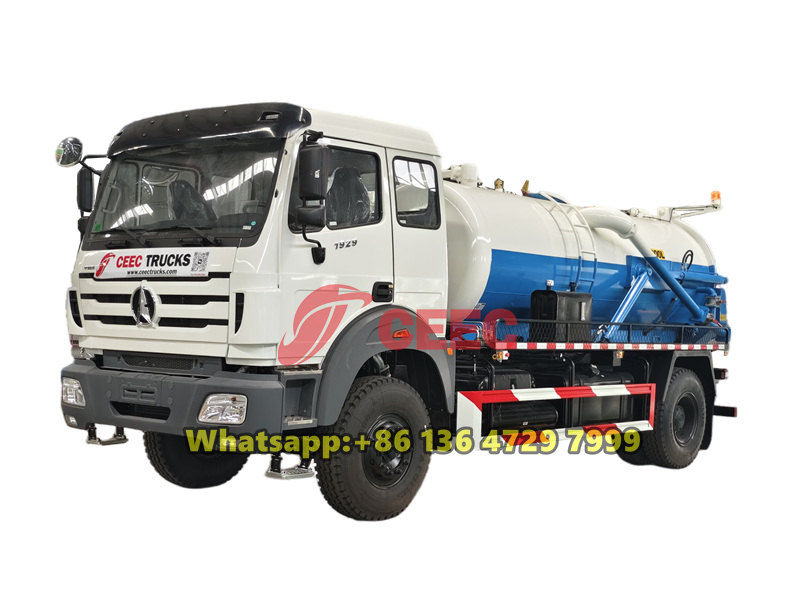

The Beiben 4×4 Vacuum Tank Truck is a specialized cleaning vehicle built on a Beiben 4×4 all-wheel-drive chassis. With dimensions of 8900×2550×3250mm and a gross vehicle weight of 19,000kgs, it is powered by a 213Kw Weichai engine and equipped with a 10m³ sewage tank and dual 68/7000 vacuum pumps, providing strong suction power. Renowned for its excellent off-road capability, high-efficiency suction performance, and wide applicability, this vehicle is widely used in municipal services, industrial cleaning, agriculture, and emergency rescue, making it the preferred cleaning equipment for industry users.
China north benz vacuum truck, vacuum tanker, vactor truck, vactor, vac-con truck, vac-con is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable transport of the liquid material via road to another location. Vacuum trucks transport the collected material to a treatment or disposal site, for example a sewage treatment plant.A common material to be transported is septage (or more broadly: fecal sludge) which is human excreta mixed with water, e.g. from septic tanks and pit latrines. They also transport sewage sludge, industrial liquids, or slurries from animal waste from livestock facilities with pens. Vacuum trucks can also be used to prepare a site for installation or to access underground utilities. These trucks may use compressed air or water to break up the ground safely, without risk of damage, before installation may begin. Beiben Vacuum trucks can be equipped with a high pressure pump if they are used to clean out sewers from sand.
Beiben 2638 vacuum jetter truck is a multifunctional vacuum tank vehicle designed for the industrial field. It is equipped with Beiben NG80 long cab and provides a comfortable driving environment. The vehicle is equipped with WEICHAI brand WP10.380E32 engine with a power of 380HP and meets Euro 3 emission standards. The vacuum tank has a volume of 12000L and is made of 16Mn low-carbon steel with a design pressure of -0.9bar. The vehicle is also equipped with advanced suction and filtration systems and vacuum systems to ensure efficient and stable operating performance.
beiben 2530 truck chassis, weichai 300 hp engine, fast 9 shift transmission, beiben 7 ton front axle, benz 13 T rear axle, 11.00R20 tyre.
The Beiben 4×4 all-wheel drive sewer suction truck is a specialized vehicle designed for complex working conditions in Africa, built on the Beiben NG80 all-wheel drive chassis and powered by a 290HP Weichai engine. It features a 10m³ carbon steel vacuum tank and a dual Wloong vacuum pump system with a suction efficiency of 68L/s×2 and ultimate vacuum pressure of 7000Pa. With a 4800mm wheelbase and 12.00R24 all-terrain tires, it delivers excellent off-road performance, offering 320mm ground clearance and 800mm wading depth. The reinforced chassis protection and anti-corrosion design make it ideal for harsh environments like Congolese mining areas and construction sites, perfectly suited for municipal pipeline maintenance and emergency drainage.
The Beiben 8000L Sewer Vacuum Truck is a highly efficient professional sanitation vehicle built on the Beiben NG80 chassis. Powered by a 290HP Weichai engine, it features an 8000L large-capacity carbon steel tank and a Wloong 68/7000 vacuum pump system with a suction speed of 68L/s, enabling full-load operation in just 8 minutes. Equipped with a 10-meter DN100 suction hose and a 45° dumping angle design, it is suitable for various applications, including municipal pipeline cleaning, industrial wastewater treatment, and septic tank emptying. The 12.00R20 reinforced tires and air brake system ensure operational safety, making it an ideal choice for modern urban sanitation and industrial cleaning.
Beiben tractor truck 2638 North Benz 380hp prime mover 10 wheel truck head, africa best supplier for 2638 tractor trucks, 2642 tractor truck, 2648 tractor trucks.
cheapest beiben dump truck price, supply best quality beiben dumper, beiben 2534 dumper, beiben 2538 dumper

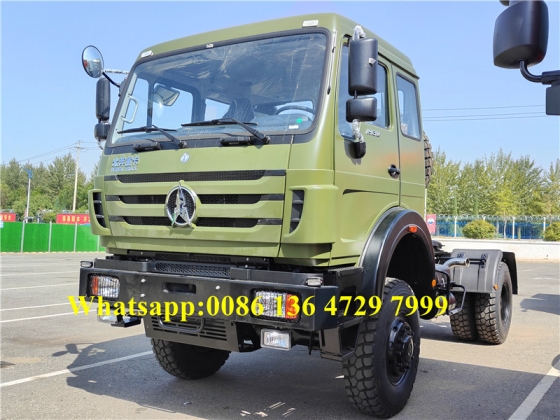

Beiben 4*4 all wheel drive truck chassis ,military off road drive system strong 340 hp engine,lef hand drive , mercedes benz technology cabin, mercedes benz technology front axle and rear alxe.
