The Beiben 4×4 all-wheel drive sewer suction truck is a specialized vehicle designed for complex working conditions in Africa, built on the Beiben NG80 all-wheel drive chassis and powered by a 290HP Weichai engine. It features a 10m³ carbon steel vacuum tank and a dual Wloong vacuum pump system with a suction efficiency of 68L/s×2 and ultimate vacuum pressure of 7000Pa. With a 4800mm wheelbase and 12.00R24 all-terrain tires, it delivers excellent off-road performance, offering 320mm ground clearance and 800mm wading depth. The reinforced chassis protection and anti-corrosion design make it ideal for harsh environments like Congolese mining areas and construction sites, perfectly suited for municipal pipeline maintenance and emergency drainage.
Working capcity:
10000 litersCabin type:
Beiben NG80 short cabinDimension ( mm ) :
8900*2550*3250Drive system:
4×4Wheelbase (mm):
4800Engine power / Model:
290 HP/WP10.290Gear Box:
9JS150ARemark:
RHD is optionalThe Beiben 4×4 vacuum septic truck is a specialized vehicle designed for complex African working conditions, built on the Beiben NG80 4×4 all-wheel drive heavy-duty chassis. With overall dimensions of 8900×2550×3250mm, a 4800mm wheelbase, 19-ton gross weight, and 10-ton rated load capacity, it perfectly adapts to muddy roads and field operations in regions like Congo. Powered by a Weichai WP10.290E32 diesel engine delivering 290HP with full-time four-wheel drive, it reaches a top speed of 85km/h while meeting Euro III emission standards. The practical two-seat cab and 12.00R24 all-terrain tires provide exceptional traction, making it ideal for harsh environments like muddy mountain roads and rugged mining terrain.

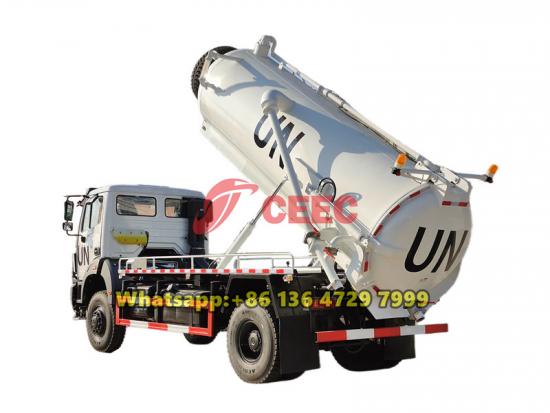

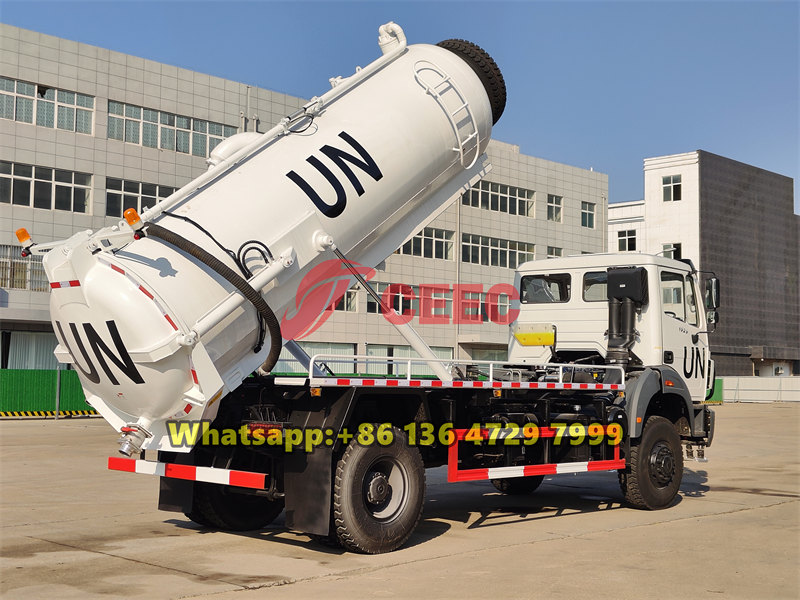

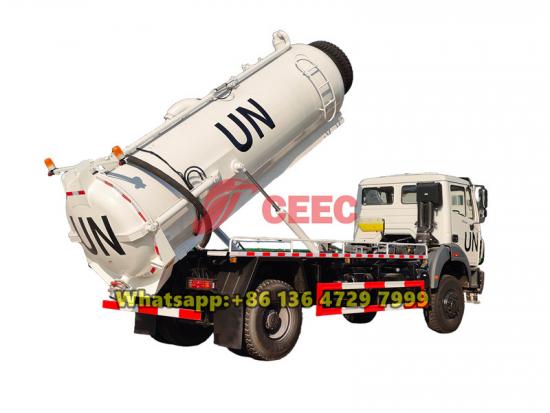

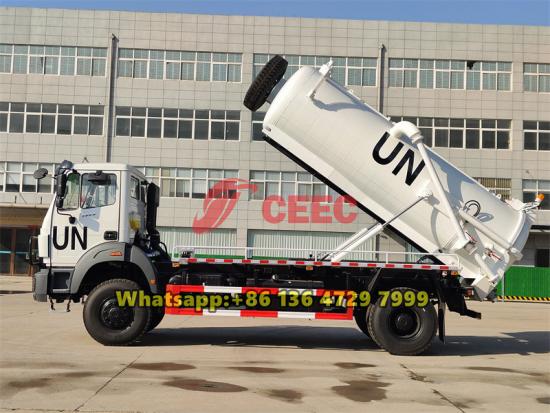

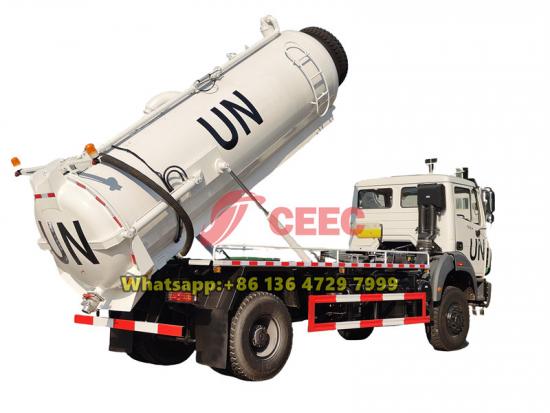

This Beiben 4×4 sewer vacuum truck features a 6mm thick high-quality carbon steel tank constructed with laser cutting and robotic welding for optimal sealing and pressure resistance. The interior is coated with anti-rust epoxy resin while the exterior uses weather-resistant polyurethane paint, protecting against Congo's humid climate and corrosive wastewater. The rear hydraulic lifting device tilts up to 45°, with automatic hydraulic rear cover opening achieving less than 0.5% residual wastewater, significantly improving operational efficiency.

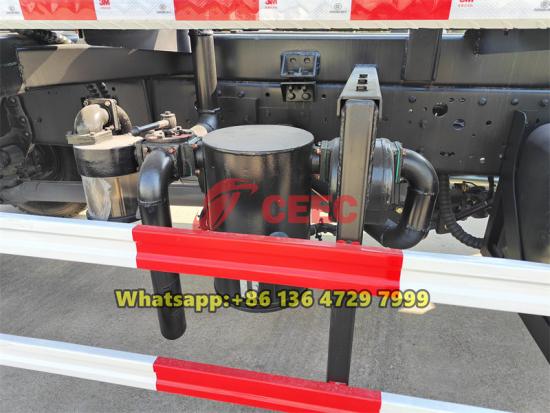

The Beiben off-road vacuum pump truck is equipped with dual Wloong 68/7000 vacuum pumps from a renowned Chinese brand. Each pump delivers 68L/s flow with 7000Pa ultimate vacuum pressure, increasing sewage extraction speed by 30% when operating in parallel - capable of emptying a 10m³ septic tank in just 5 minutes. The wear-resistant alloy steel pump bodies operating at 800rpm withstand Congo's sandy, debris-filled sewage environments, reducing failure rates by 50% compared to single-pump systems.
Product Specifications
Beiben 4×4 Septic Tank Truck Technical Specifications |
|||
Vehicle |
Brand |
BEIBEN |
|
Overall Dimensions L*W*H |
8900*2550*3250mm |
||
Weights |
GVW |
19,000kgs |
|
Curb Weight |
9800kgs |
||
Rated Payload |
10000kgs |
||
Chassis |
Chassis Brand |
Beiben |
|
Drive Type |
4×4, all wheel drive |
||
Steering |
LHD |
||
Engine |
Brand |
Weichai engine |
|
Model |
WP10.290E32 |
||
Power |
213 Kw /290 HP |
||
Displacement |
9726 ml |
||
Rated speed |
2200 rpm |
||
Emission standard |
EURO III |
||
Wheel base |
4800 mm |
||
Tyre Specifications |
12.00R24 |
||
No. of Tyre |
6 pcs (1 spare tyre included) |
||
Cab |
Model |
NG80 |
|
Cab Capacity |
2 persons allowed |
||
Superstructure |
Vacuum tank |
Capacity |
10 m³ |
Material |
6mm high quality carbon steel |
||
Lifting angle |
45°,hydraulic lifting |
||
Rear cover |
Can be opened and closed hydraulically |
||
Vacuum pump |
Model |
68/7000, China famous brand Wloong |
|
Number of pump |
2 |
||
Ultimate pressure |
7000 Pa |
||
Pumping speed |
68 L/s |
||
Rotating speed |
800 r/min |

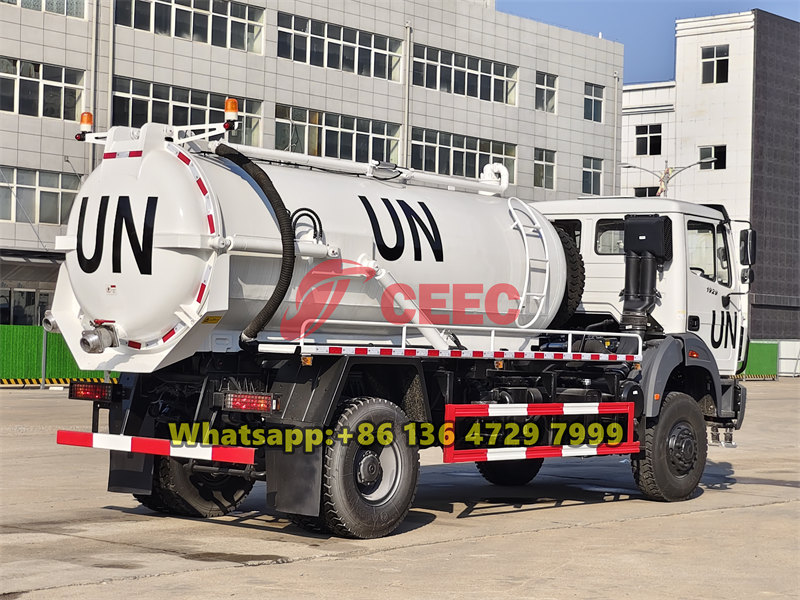

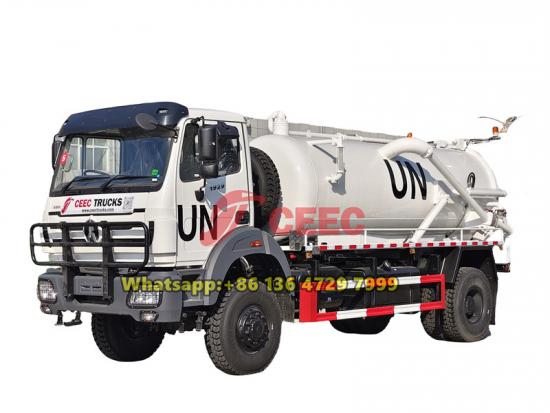

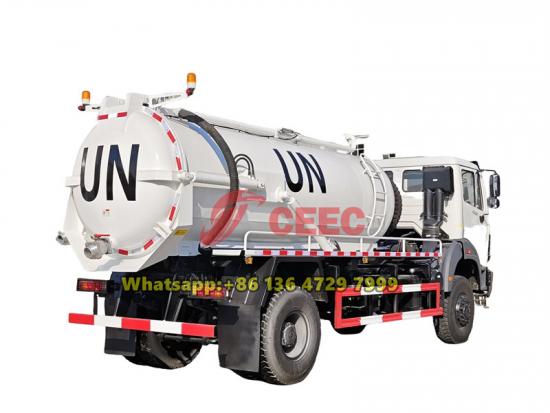

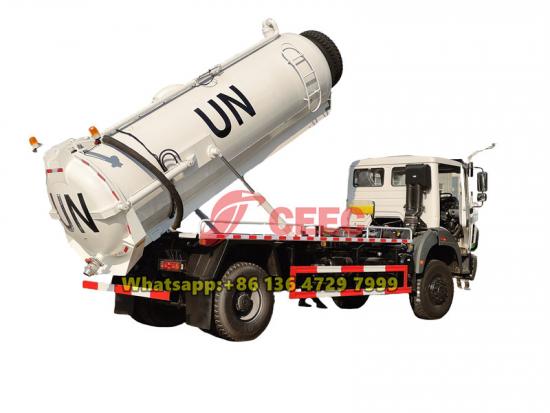

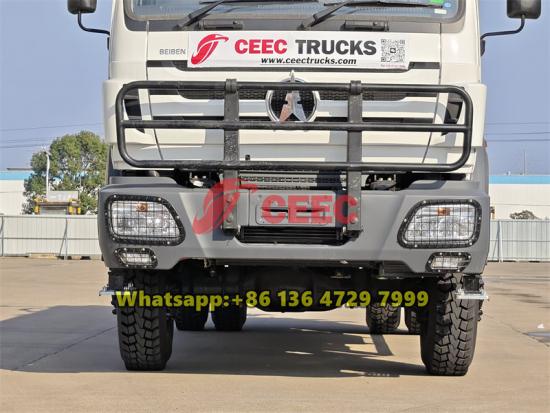

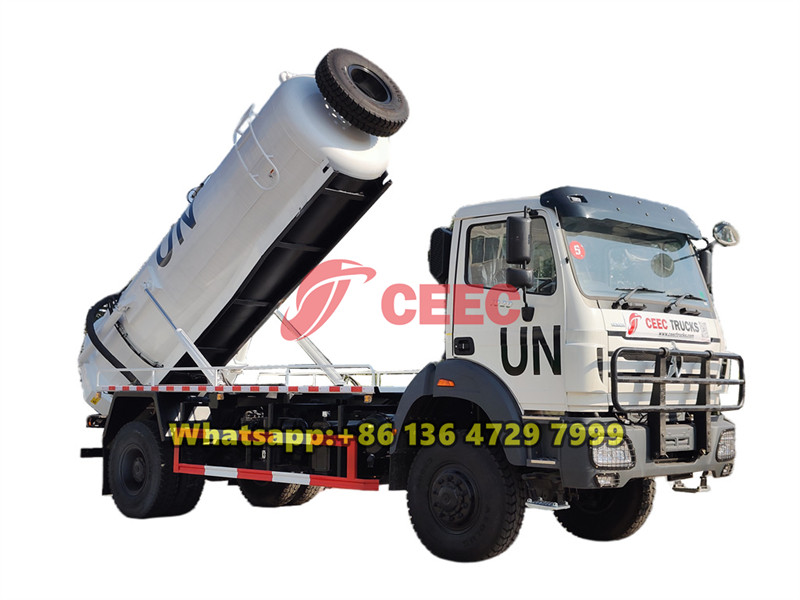

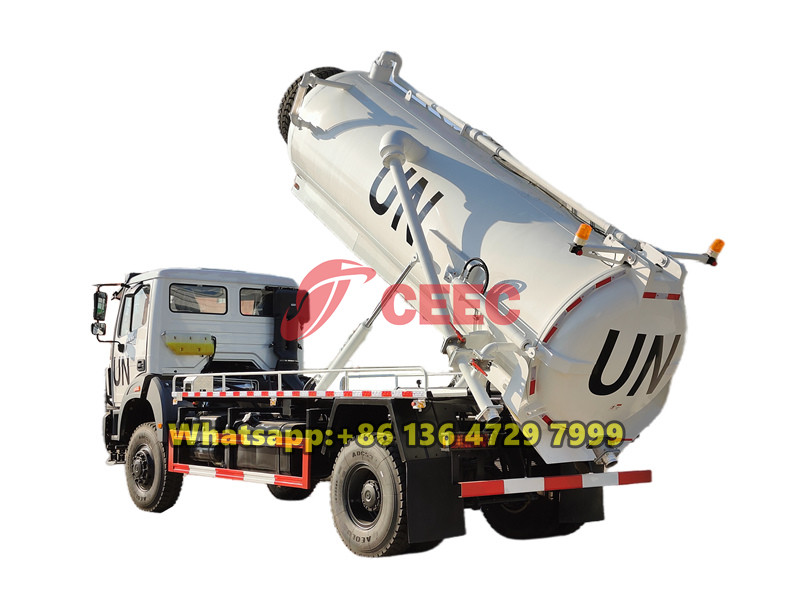

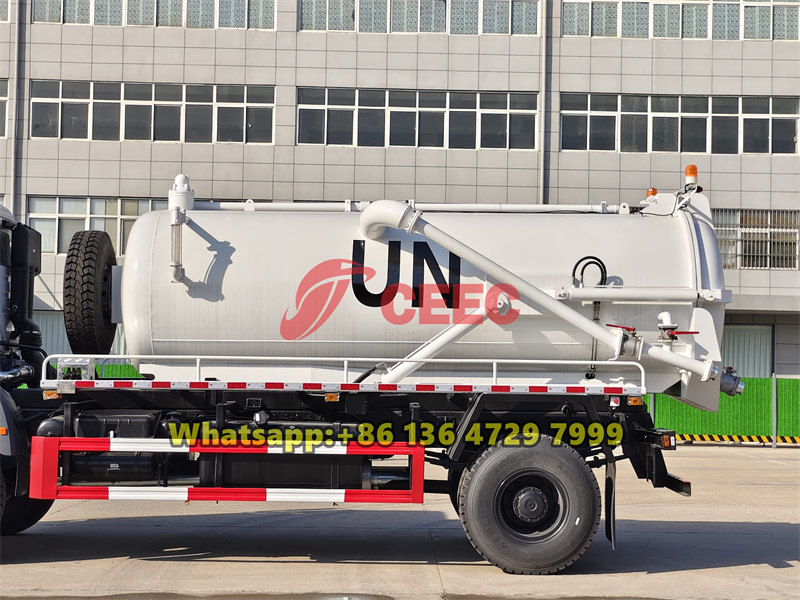

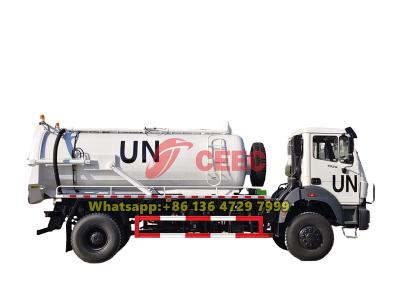

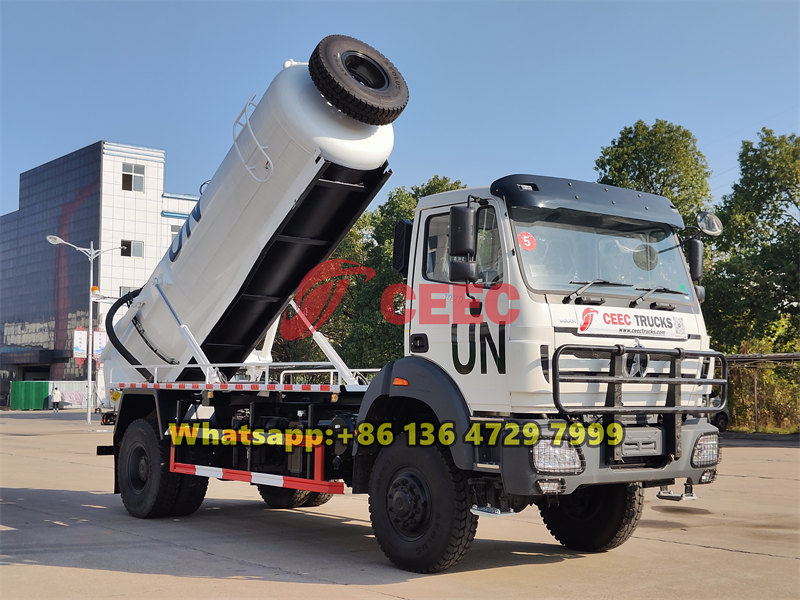

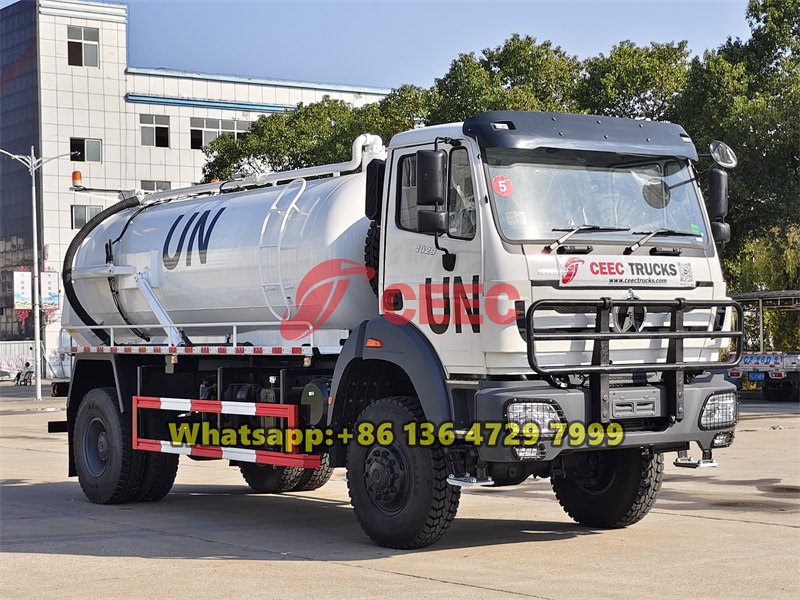

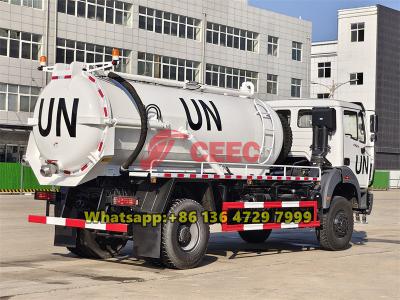

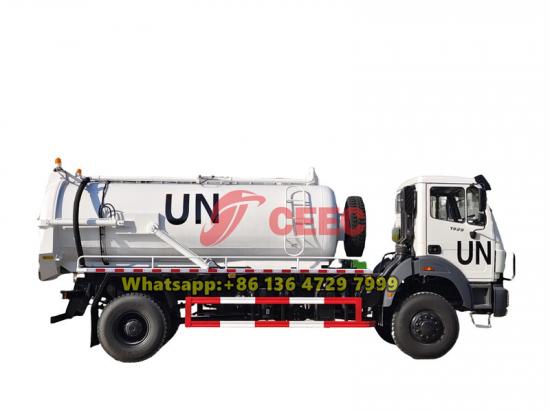

Product Pictures
