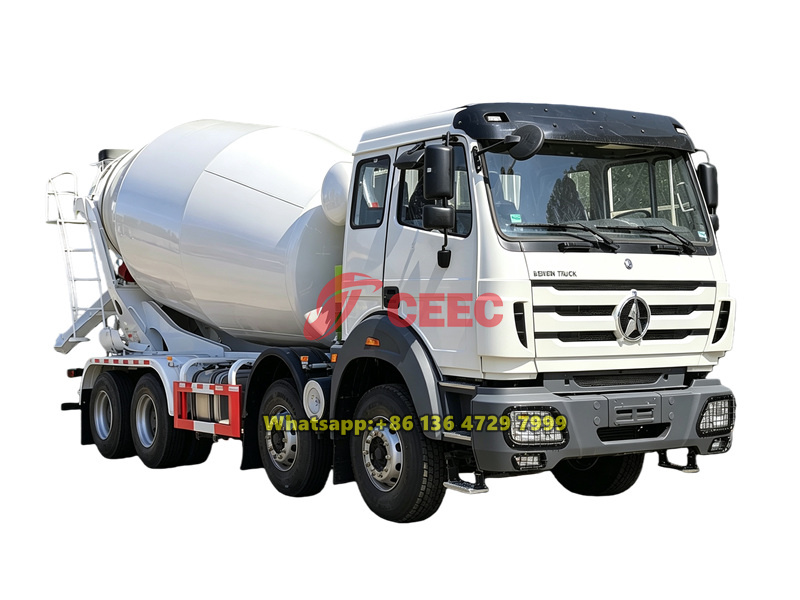

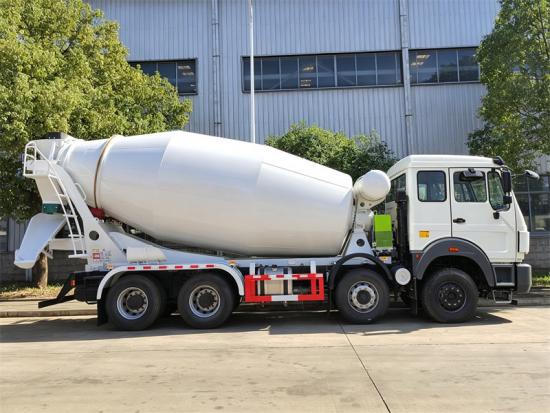

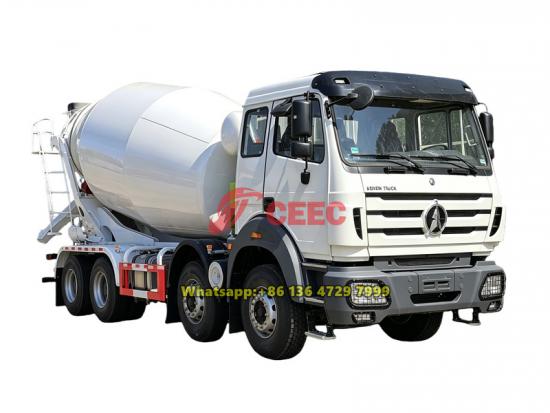

Beiben 8x4 14CBM concret mixer truck
Beiben 14CBM concrete mixer truck is an 8×4 heavy duty engineering specialized vehicle. Equipped with a powerful Weichai WP12 engine, a Fast transmission and Benz quality axles, it delivers outstanding driving performance. With a tank capacity of 14 CBM, it features high mixing efficiency and low residual rate. Adopting an integrated lightweight design, the truck achieves fast feeding speed and lower fuel consumption. Fitted with a reliable imported hydraulic system and multi brake configurations, it is well suited for concrete transportation in all kinds of infrastructure construction projects.
Working Capcity:
14CBMCabin Type:
Beiben NG80B long cabinDimension ( mm ) :
10300×2500×3960Drive System:
8×4, LHDWheelbase (mm):
1500+3550+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JST200TRemark:
6×6, 8×8, RHD is optionalProduct introduction
The Beiben 14m³ concrete mixer truck is a professional engineering vehicle built on the Beiben 8×4 heavy‑duty chassis. It is powered by the high‑output 6‑cylinder Weichai WP12 engine and a Fast 12JS200T transmission, paired with Benz‑quality front and rear axles for stable power output and excellent trafficability. The mixer drum is made of Q355 manganese steel with an actual mixing volume of 14 cubic meters. It meets standard feeding and discharging speed requirements with low concrete residue, making it ideal for concrete transportation across various infrastructure‑construction projects.
This Beiben mixer truck is fitted with core imported hydraulic components and a high‑quality domestic radiator to guarantee stable hydraulic‑system operation. The integrated lightweight design of sub‑frame and chassis effectively reduces curb weight and energy consumption. A tapered enlarged‑flow feeding structure improves working efficiency, while optimized powertrain matching cuts fuel consumption. Equipped with a multi‑circuit braking system and an ergonomic cab, the vehicle balances safety, fuel economy and practicality, adapting to complex construction‑site conditions.
Core Configurations of Beiben Mixer Truck
• Engine: WEICHAI WP12 engine, stable quality, powerful output and high low speed torque, fully meeting power requirements
• Transmission: FAST 12JST200T gearbox with double countershaft structure, featuring compact length and heavy load bearing capacity
• Axles: 7.5 ton Benz front axles and 13 ton double reduction rear axles, excellent trafficability and outstanding off road performance

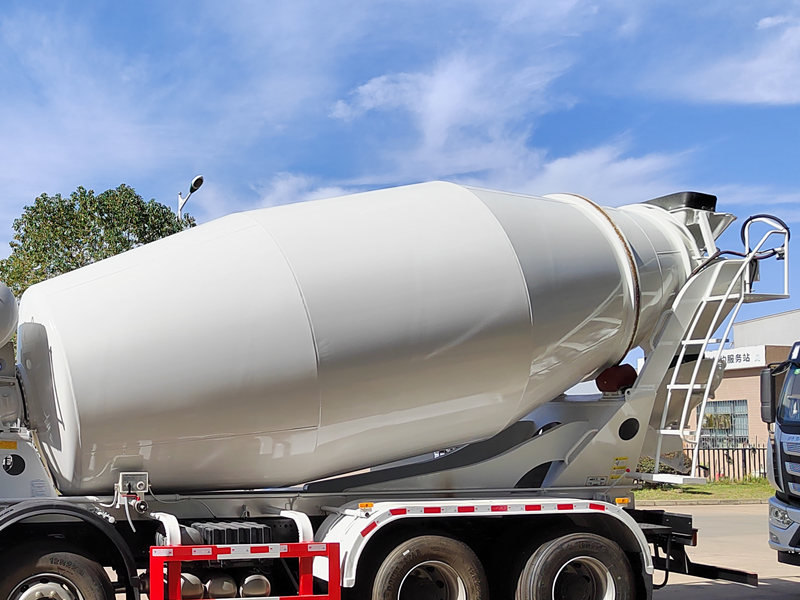

• Mixer Drum: High strength alloy steel drum, mixing capacity up to 14 CBM

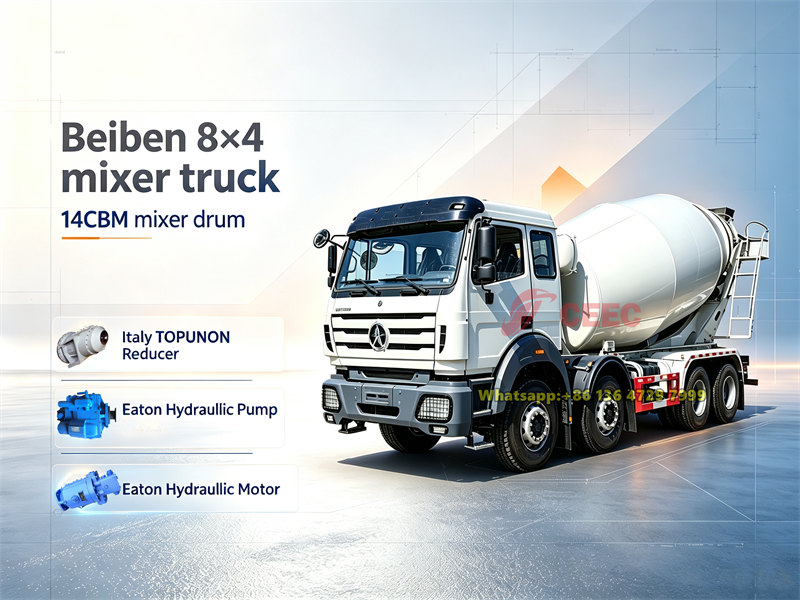

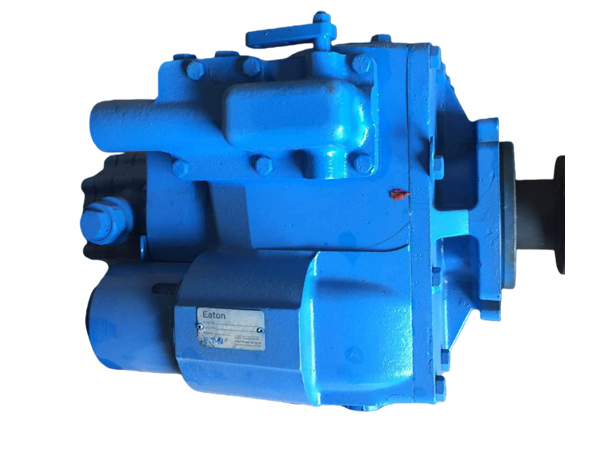

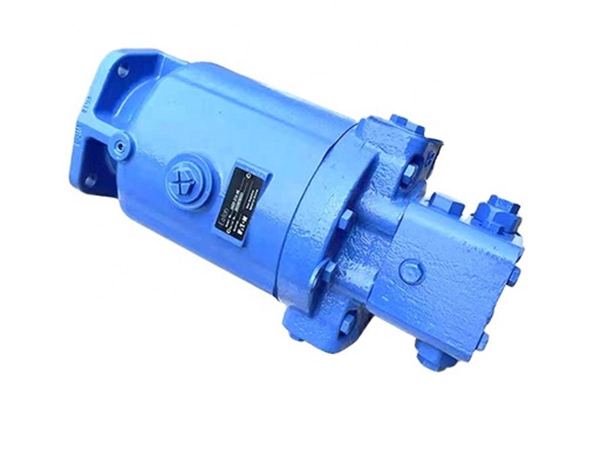

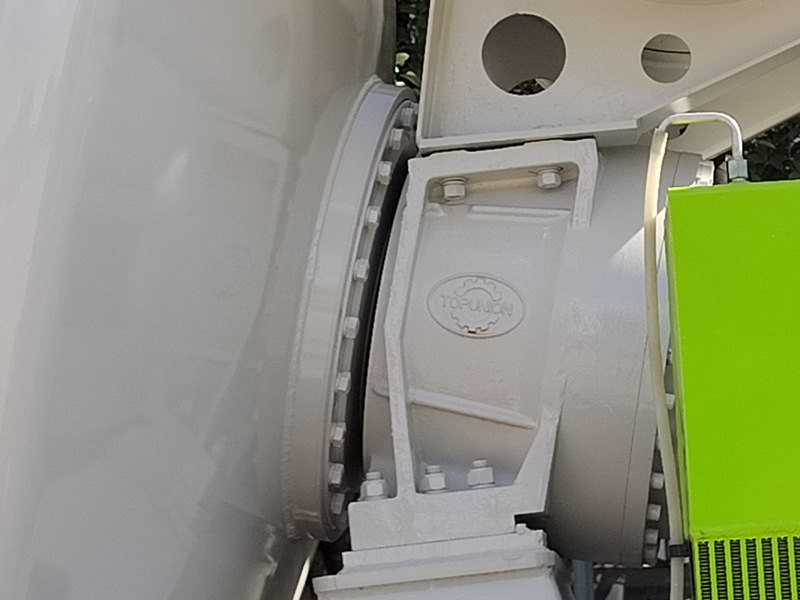

• Hydraulic system: Italy TOPUNON reducer, America Eaton hydraulic pump and motor
Paramters of Beiben 14CBM Transit Mixer Truck
|
Basic parameter |
Model |
3142K/8×4 |
|
Length×width×height(mm) |
10300×2500×3960 |
|
|
Wheel-base(mm) |
1500+3550+1450 |
|
|
Curb weight(kg) |
15800 |
|
|
Drum system |
Material |
Manganese steel Q355 |
|
Mixing volume |
12 CBM |
|
|
Drum obliquity |
11° |
|
|
Feeding speed |
≥3 m3/min |
|
|
Discharge speed |
≥2 m3/min |
|
|
Discharge residual rate |
≤1% |
|
|

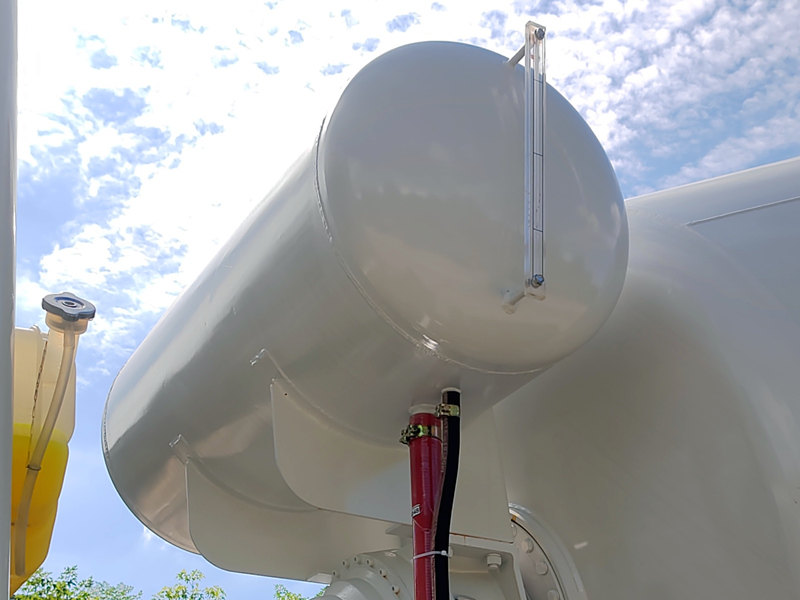

Water tank capacity |
400 L |
|
|

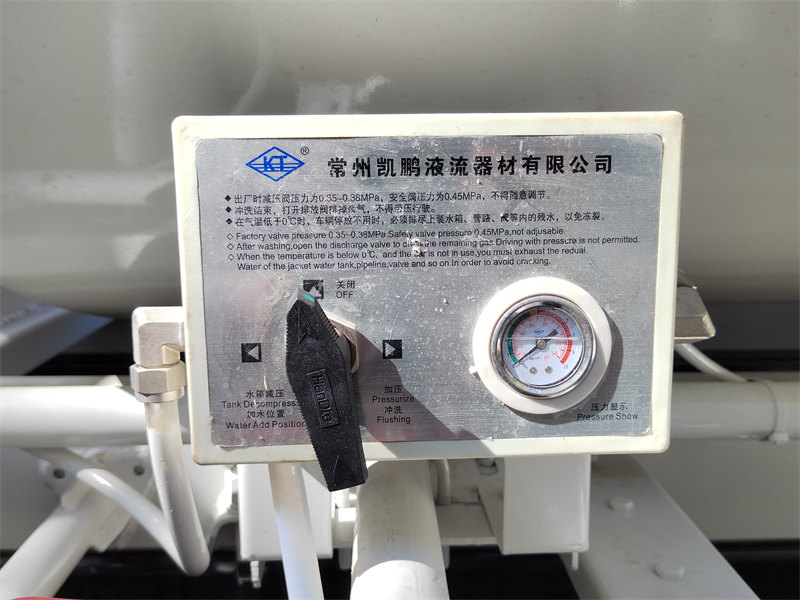

Water pressure |
0.35-0.38 Mpa |
|
|
Painting |
Primer, mid-coat and top coat |
|
|
Hydraulic system |

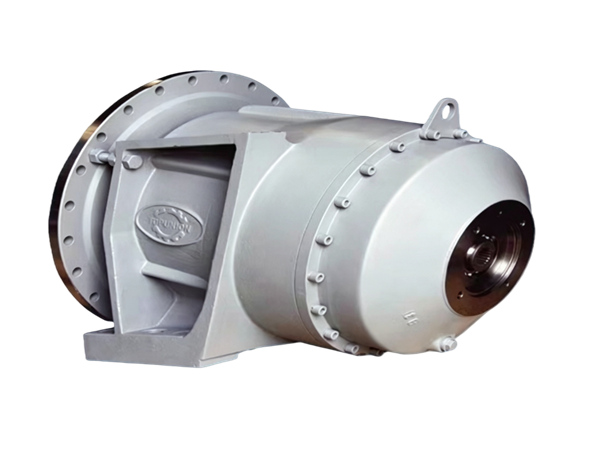

Reducer |
Italy TOPUNON brand |
|
Hydraulic pump |
American Eaton brand |
|
|
Hydraulic motor |
American Eaton brand |
|
|
Radiator |
KAIPENG, Chinese brand |
|
|
Engine parameter |
Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1750/1200～1500 |
|
|
Displacement(lit) |
11.596 L |
|
|
Fuel tank capacity |
400L Iron fuel tank |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 12JS200T |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5 T, non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Leaf spring, front 12/12 pcs, rear 13 pcs； |
|
|
Tire |
12.00R20 |
|
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
 |
 |
Advantages of Beiben 14CBM Concret Mixer Truck
▶ Lightweight Structure: Integrated design of sub frame and chassis reduces curb weight

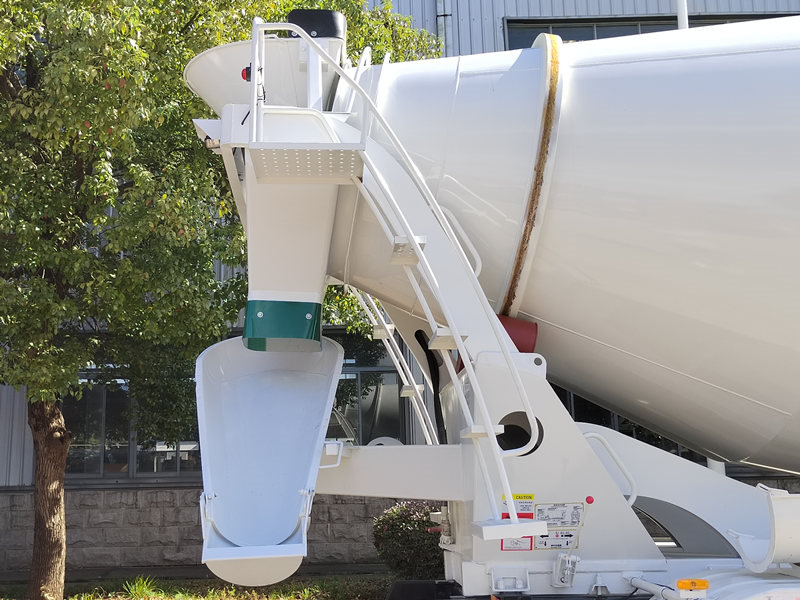

▶ Fast Feeding Speed: Tapered enlarged flow inlet expands concrete suction coverage to boost feeding efficiency
▶ Low Fuel Consumption: Optimized powertrain matching achieves low fuel consumption performance
Beiben Heavy-duty Concret Mixer Truck Applications
Beiben concrete mixer trucks are mainly used to transport ready mixed concrete from batching plants to construction sites, ensuring that the concrete does not set or segregate during transit. They have a wide range of application scenarios, covering almost all engineering projects involving concrete pouring. Its main applications include the following categories:
● Urban Construction: Serving urban roads, municipal pipeline networks, residential buildings, commercial complexes and other construction works.
● Transportation Infrastructure: Supplying concrete for linear projects such as railways, highways and airport runways.
● Large scale Projects: Participating in the construction of water conservancy projects, wind power installations and various large scale building sites.
● Mines and Harsh condition Works: Beiben mixer trucks feature excellent off road performance and are capable of operating in tough environments such as mining areas.
 |
 |

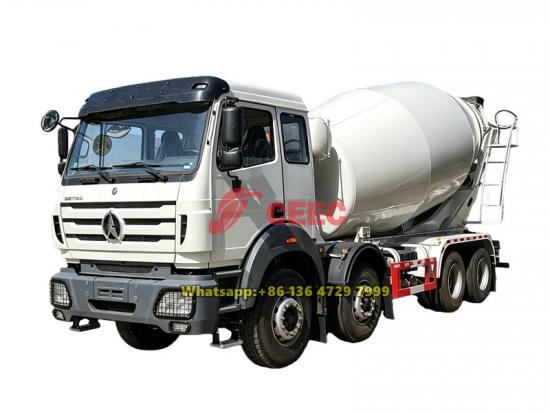

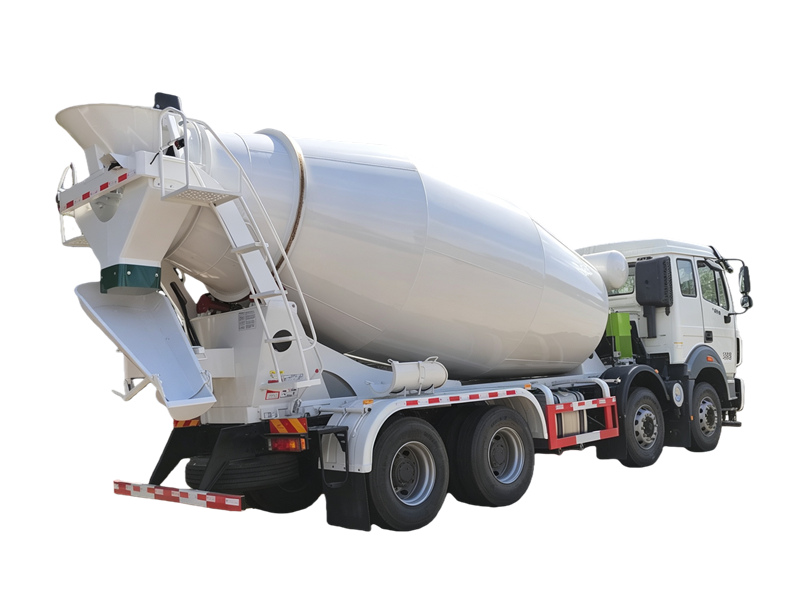

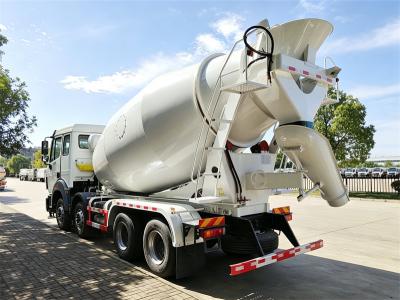

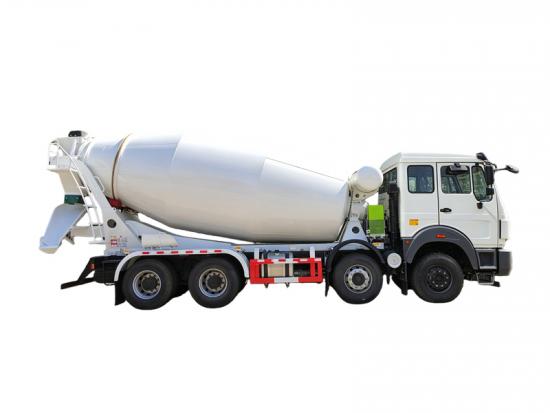

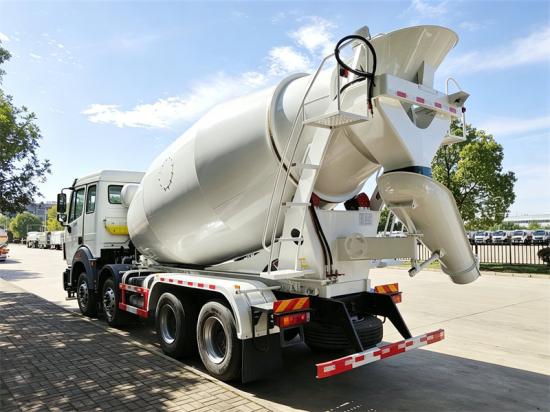

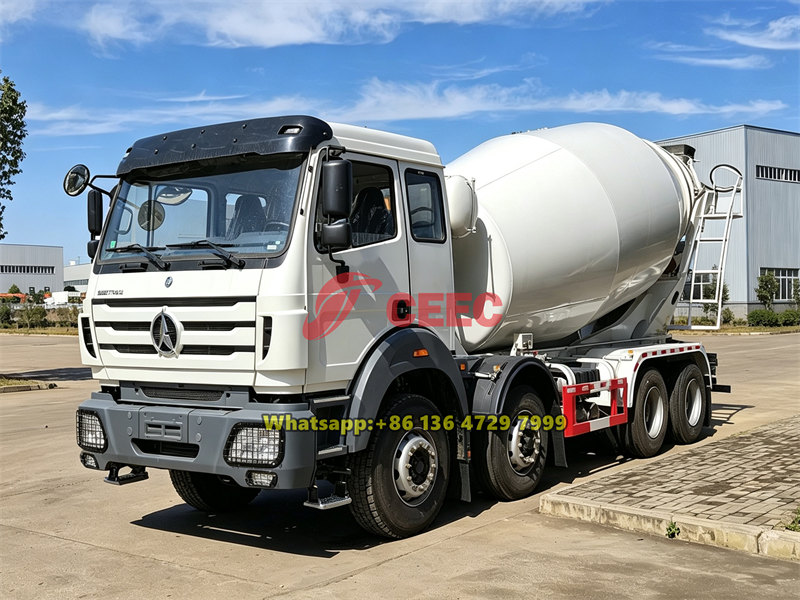

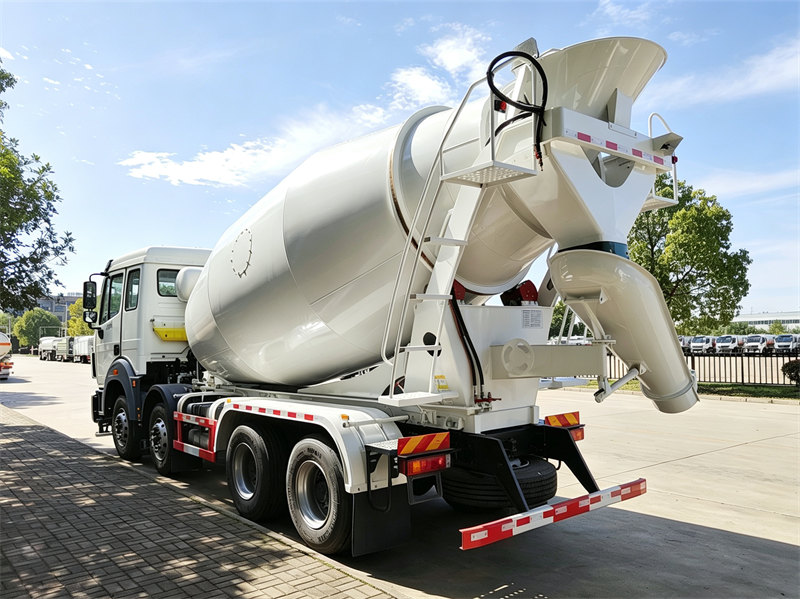

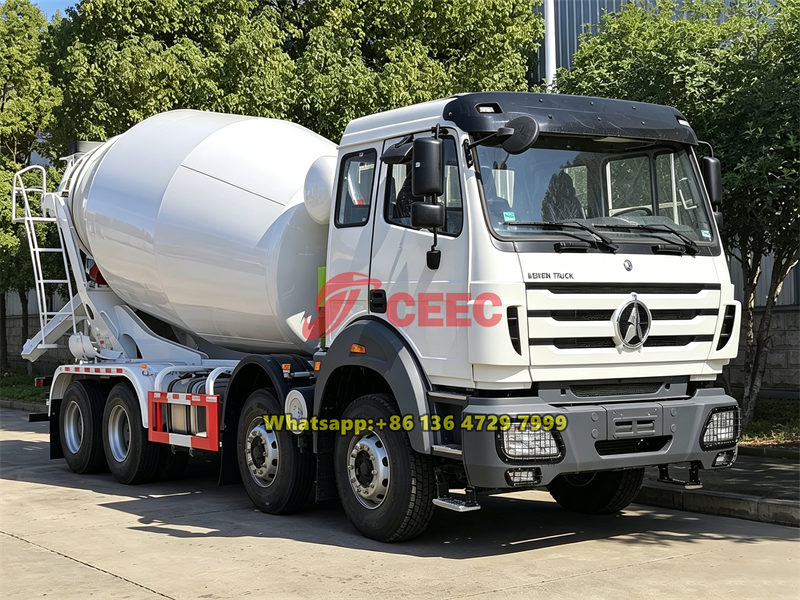

Beiben 8×4 14m3 Mixer Truck Details

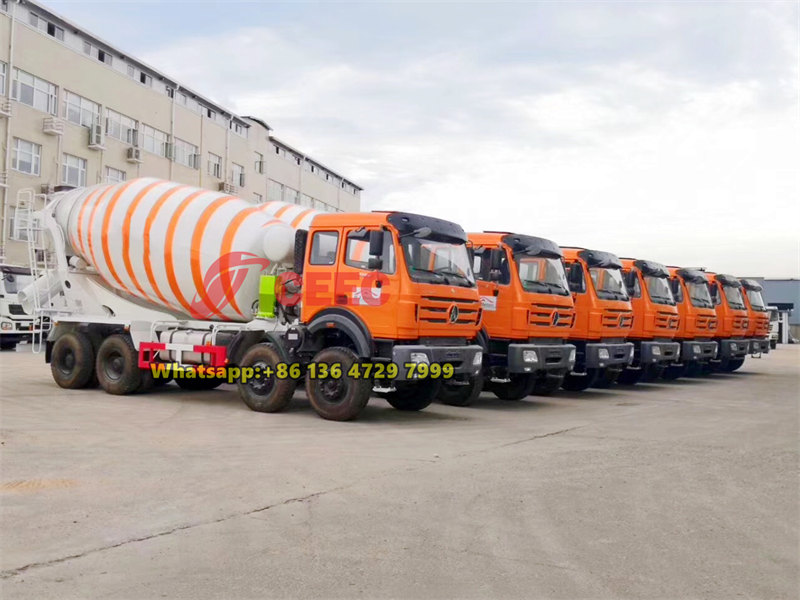

Customer Case

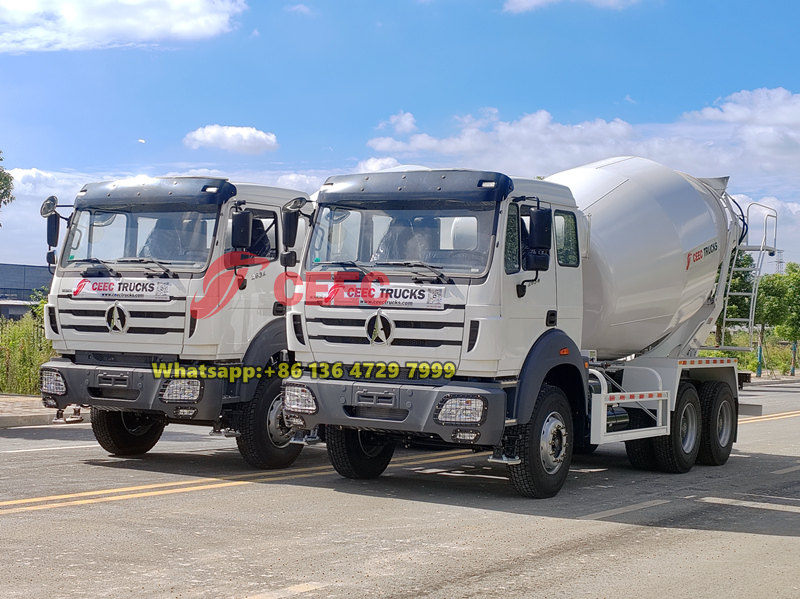

Beiben 10CBM mixer trucks exported to Congo
