Order(MOQ):

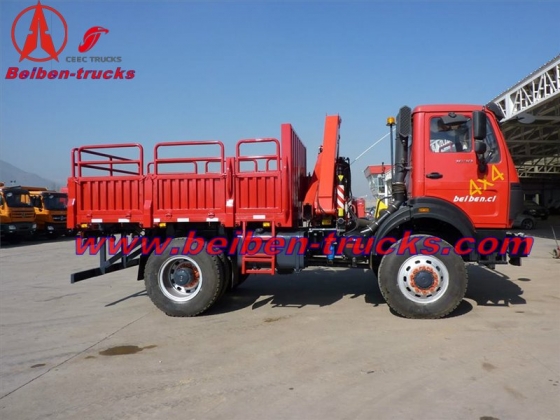

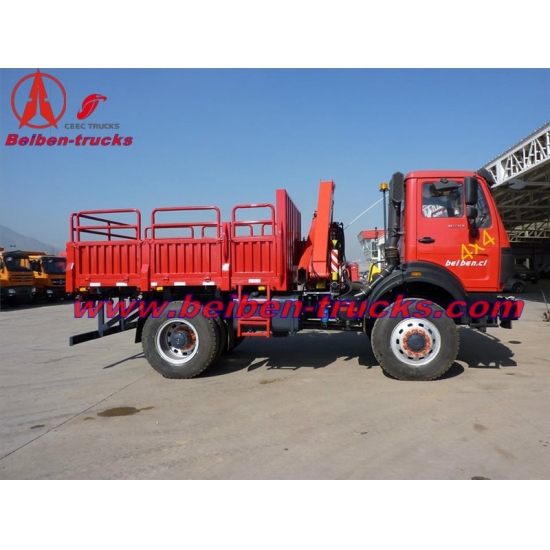

15 ton Beiben 4x4 truck mounted crane
China best beiben 5 T truck mounted crane manufacturer.
DurableHydraulic Beiben 5000kg Truck Mounted Crane , BeibenTruck Mounted Knuckle BoomCrane
| Sales No. |
1630PZ |
|
| Dimension（mm) |
Long |
8990 |
| Wide |
2500 |
|
| High |
3500 |
|
| Wheel base（mm） |
5500 |
|
| Drive |
4×2 |
|
| Engine |
Model |
WP10.300N |
| Cabin |
NG80B/ short cab |
|
| Clutch（mm） |
Φ430 |
|
| Front Axle |
7.5T |
|
| Rear/Mid Axle |
Model/speed radio |
Double Reduction Driving Axle /5.263 |
| Steering System |
ZF8098 |
|
| Braking System |
Dual Circulation Air Brake System |
|
| Fuel Tank（L） |
400L |
|
| Frame/mm |
317×70×8.5+7 |
|
| Tire |
12.00R20 |
|
| Front/Rear Overhang |
1410/2055 |
|
| Transmission |
Fuller 9JS135 |
|
| Curb Weight（kg) |
7900 |
|
| Max loading Weight(kg) |
7950 |
|
| Max Speed（km/h) |
90 |
|
china north benz 10 T crane trucks manufacturer, supply the best quality north benz 8 T, 10 T, 12 T, 15 T truck mounted crane, china best quality north benz crane trucks supplier.
china north benz 12 T crane trucks manufacturer, supply the best quality north benz 8 T, 10 T, 12 T, 15 T truck mounted crane, china best quality north benz crane trucks supplier.
6.3 ton Beiben V3 truck mounted crane supplier in china, the most professional
Beiben V3 crane truck with 10 T crane, with Beiben international performance V3 cabin, China weichai diesel 340 Hp engine, fast 9 shift transmission. 12.00R20 type. With XCMG 10 T telescopic crane.
China beiben ND1253 truck chassis, 6*4 drive system, benz technoloy 7 T front axle, military benz 16 T double reducer axle, famous weichai 300 hp diesel engine, fast 9 shift transmission.
China beiben ND1258 truck chassis, weichai 340 hp engine , Germnany mercedes benz benz technoloy 7 T front axle, military benz 16 T double reducer axle, fast 9 shift transmission,12.00R20 tyre.
China 16 T truck mounted XUZHOU XCMG crane , left hand drive system, benz technoloy 7 T front axle, military benz 16 T double reducer axle, diesel weichai 300 hp engine, fast 9 shift transmission.12.00R20 tyre.
beiben 10 CBM Refrigerator truck ,beiben 1928 4*2 drive system, Brand WeiChaiWD615.50 / Diesel 280 hp engine, ZF 5S-111GP 8-forward &1-reverse gears transmission, GFX420, single disc, dry type, diaphragm spring, 4800 wheel base, 12.00R20 tyre.

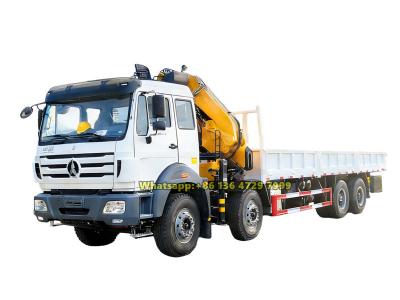

The Beiben 6x4 knuckle boom crane truck is a versatile piece of engineering machinery that integrates lifting, loading, and transportation functions. It is equipped with an XCMG SQZ200 crane, offering a maximum lifting capacity of 10,000 kg and a maximum lifting height of 12.5 meters. Powered by the WEICHAI WP10.340E32 engine with an output of 250 kW, the vehicle features a wheelbase of 4450+1450 mm. Its compact design and flexible operation make it suitable for various fields such as logistics, construction, and power industries, making it an ideal choice for efficient operations.
