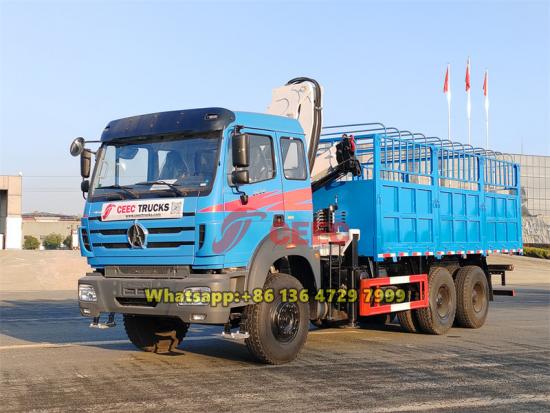

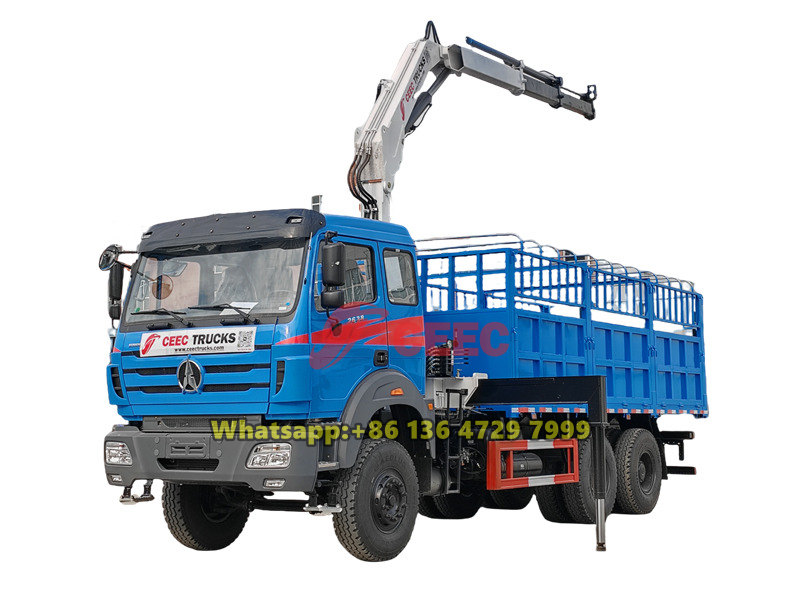

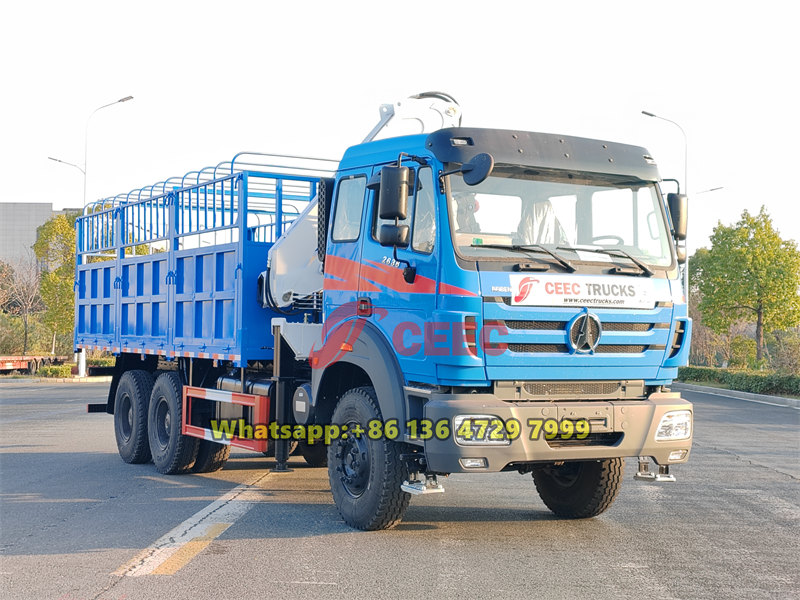

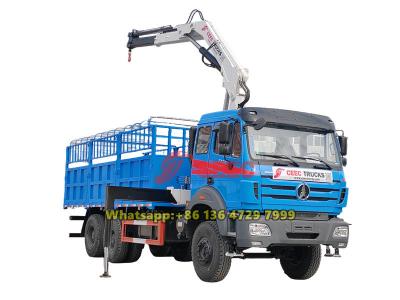

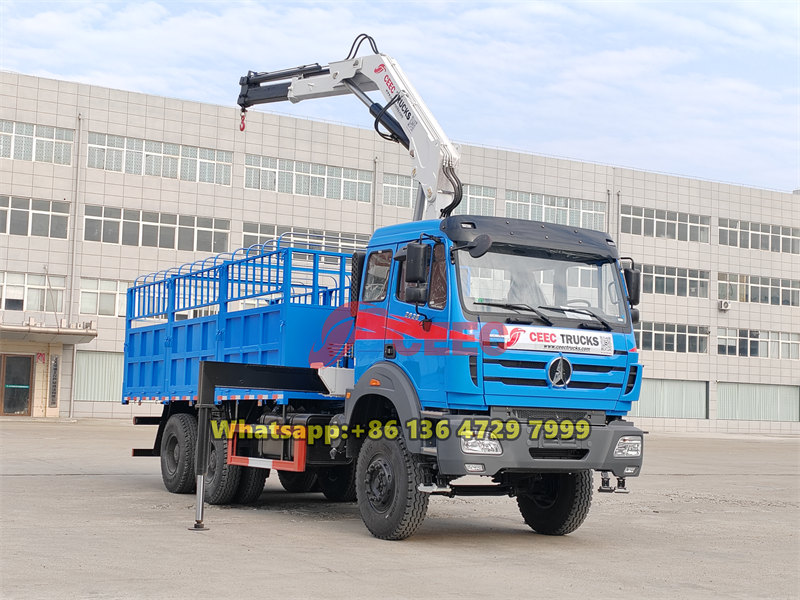

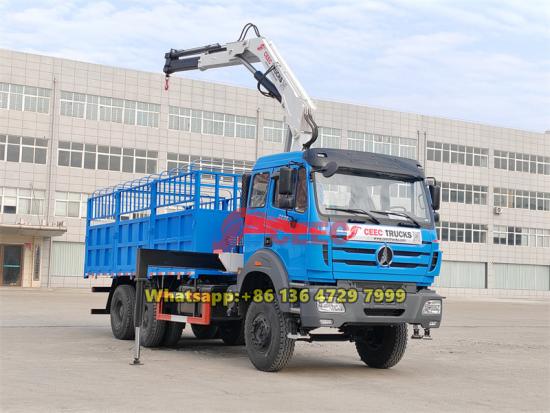

The Beiben 6×4 truck-mounted crane is a versatile engineering transport vehicle equipped with a 380-horsepower Weichai engine and a 5-ton four-section folding boom crane system, offering a maximum lifting height of 12.8 meters. Its 7-meter-long cargo bed can carry up to 20 tons of goods, while dual hydraulic outriggers ensure operational stability. The 12-speed transmission, paired with an 18-ton rear axle, delivers robust power and precise control. Suitable for scenarios such as construction material handling, municipal engineering, and equipment installation, it is an efficient integrated solution combining lifting and transportation.
Working Capcity:
5 tonCabin Type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9960×2500×3348Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS200TARemark:
6×6, RHD is optionalThe Beiben 6×4 knuckle boom truck, also known as the Beiben truck mounted crane, is a multifunctional engineering vehicle that integrates lifting and transportation. Built on a Beiben 6×4 heavy-duty chassis, it is powered by a Weichai WP10.380 engine, delivering 380HP and a displacement of 9.726L, ensuring reliable power for lifting operations. With overall dimensions of 9960×2500×3348 mm and a dual-wheelbase design of 4450+1450 mm, the vehicle features a 7-ton front axle and an 18-ton rear axle for enhanced stability. As a flagship model in the Beiben boom crane truck series, it boasts a maximum lifting capacity of 5 tons and a maximum lifting height of 12.8 meters, making it ideal for heavy-duty lifting tasks such as construction material transport and equipment installation.

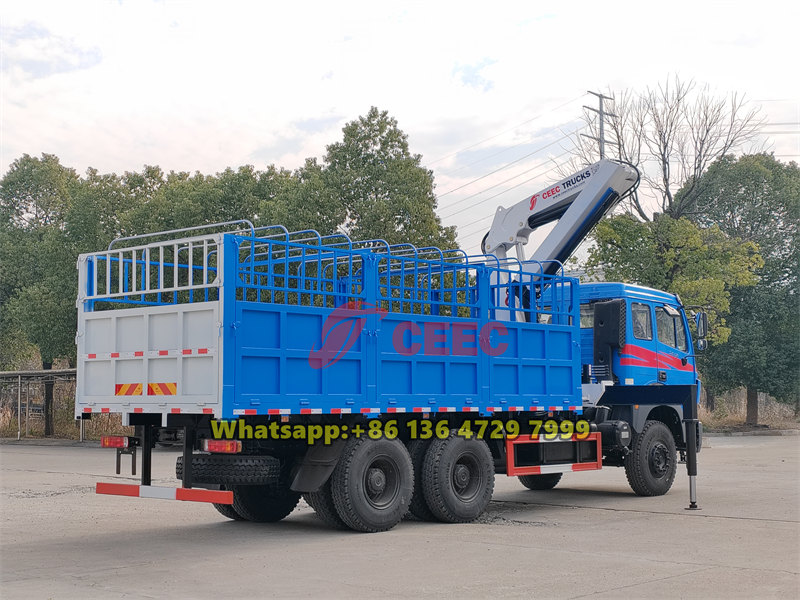

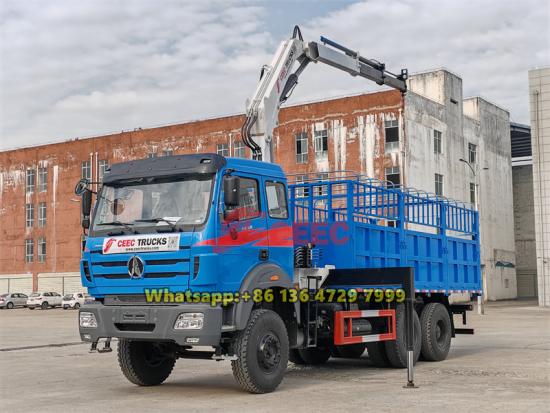

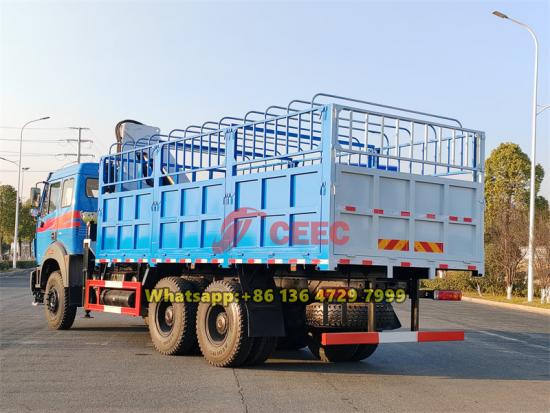

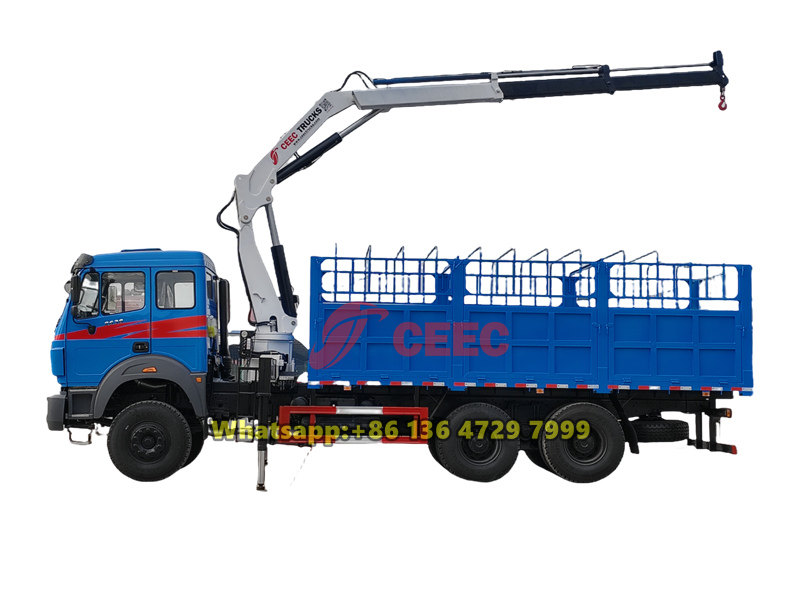

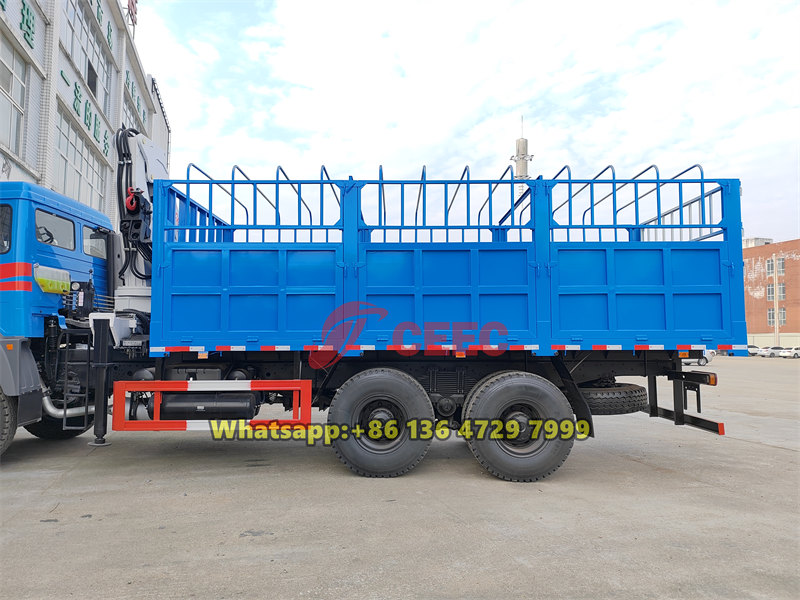

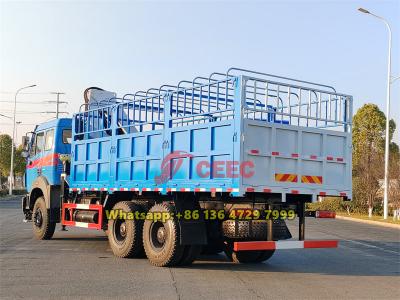

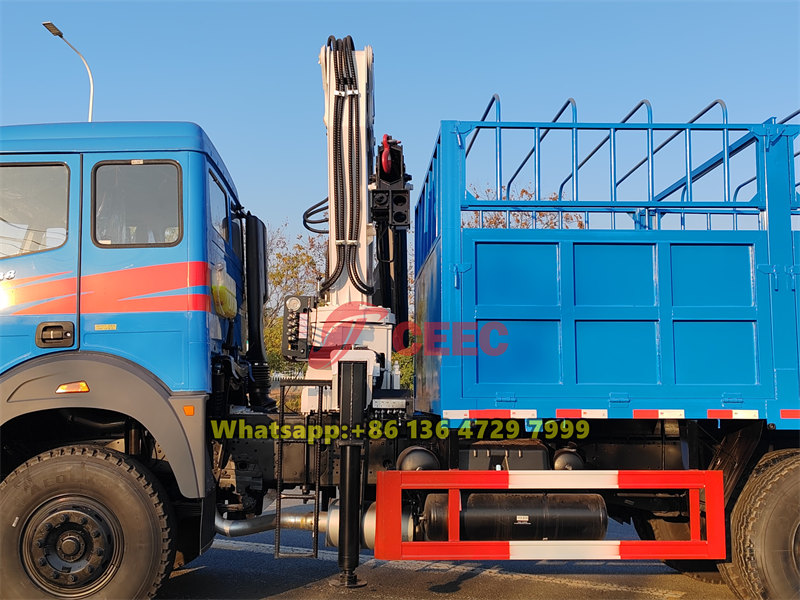

The superstructure of the Beiben 6×4 lorry-mounted crane consists of five core modules: the boom, slewing platform, frame, outriggers, and cargo bed, forming a complete lifting and transport system. The boom adopts a four-section folding design, with a maximum lifting capacity of 5,000 kg, a maximum lifting height of 12.8 meters, and a maximum working radius of 10 meters, covering most engineering lifting requirements. The hydraulic outrigger system is equipped with dual outrigger units, stabilizing the vehicle during operation via hydraulic control to ensure anti-tipping performance. The cargo bed measures 7000×2300×800 mm, offering a total volume of 12.88 cubic meters and a load capacity exceeding 20 tons, meeting the demands of large-scale material transport. Additionally, the cargo bed is constructed from high-strength welded steel plates, providing excellent impact resistance for heavy-duty transport under challenging road conditions.
The Beiben heavy duty crane truck is widely applicable across various industries. In municipal engineering, it can be used for tasks such as streetlight installation, billboard lifting, and tree transplantation. In coal mines and oil fields, it handles the lifting and transport of heavy equipment like drilling rigs and pipelines. In logistics and warehousing, its large-capacity cargo bed and flexible lifting capabilities significantly improve cargo turnover efficiency. Furthermore, the vehicle is suitable for emergency scenarios such as power repair and communication base station construction, enabling rapid response to urgent needs.
Product Specifications
|
BEIBEN 6×4 knuckle boom crane truck |
|
|
Emission Standard |
EURO 3 |
|
Chassis type |
Cargo truck type |
|
Chassis brand |
Beiben |
|
Driving Type |
6×4 |
|
Dimensions |
|
|
Wheelbase(mm) |
4450+1450 |
|
Overall Dimension(mm) |
9960×2500×3348 |
|
Cargo box dimension(mm) |
7000x2300x800 |
|
Weight parameters |
|
|
GVW(kg) |
25,000kgs |
|
Curb weight(kg) |
Approx. 13,550kgs |
|
Real load weight(kg) |
More than 20,000kgs |
|
Chassis parameter |
|
|
Front axle |
7 Ton load capacity, drum brake |
|
Rear/middle axle |
18Ton/axle (2 axle combined) |
|
Front/rear overhang(mm) |
1410/2530 |
|
Approach angle (°) |
34 |
|
Departure angle (°) |
24 |
|
Max speed (km/h) |
85 |
|
Suspension |
Leaf spring suspension |
|
Engine performance |
|
|
Engine model |
WP10.380 (WEICHAI brand) |
|
Engine type |
Straight in-line, 6 cylinders, 4 strokes, water-cooling, Turbo charge with inter-cooling, diesel engine |
|
No. of cylinders |
Straight-6 cylinders |
|
Displacement(L) |
9.726L |
|
Max. output (KW) |
279kw (380hp) |
|
Fuel type |
Diesel |
|
Max. output (kw/Ps/rpm) |
279kw(380ps) /2200 rpm |
|
Max torque/Speed (N.m/rpm) |
1460 N.m/1200-1600rpm |
|
Tire specification |
12.00R20, total 10 units tire+1 spare tire |
|
Drive Line |
|
|
Clutch description |
¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
|
Transmission |
12 forwarder, 2 reverse gear, synchronous meshing by manual |
|
Braking system |
Service brake: Brake gap can be adjusted automatically double circulation air brake system |
|
Suspension system |
|
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
Electrical Equipment |
|
|
Voltage |
24V |
|
Batteries |
2X12V/135Ah |
|
Starter |
6.2Kw/24V |
|
Cab description |
|
|

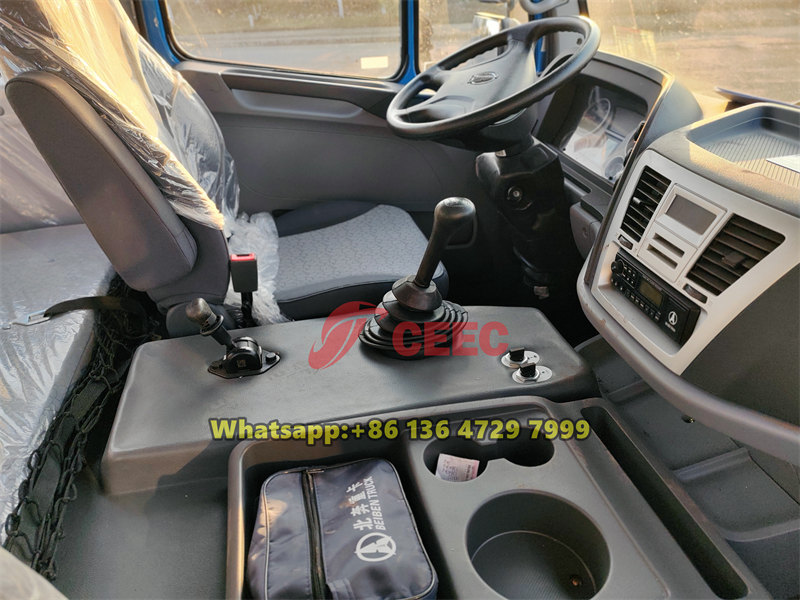

NG80 long cab, with one sleeper, cool and heating air-conditioner, Hydraulic suspension driver's seat, four point safety belt for driver and co-driver |
|
|
Crane |
|
|
Type |
Knuckle boom crane, 4 sections |
|
Max. lifting capacity |
5000 kg |
|
Max. lifting height |
12.8 meters |
|
Max. working range |
10 meters |
|
Hydraulic outriggers |
2 units |
