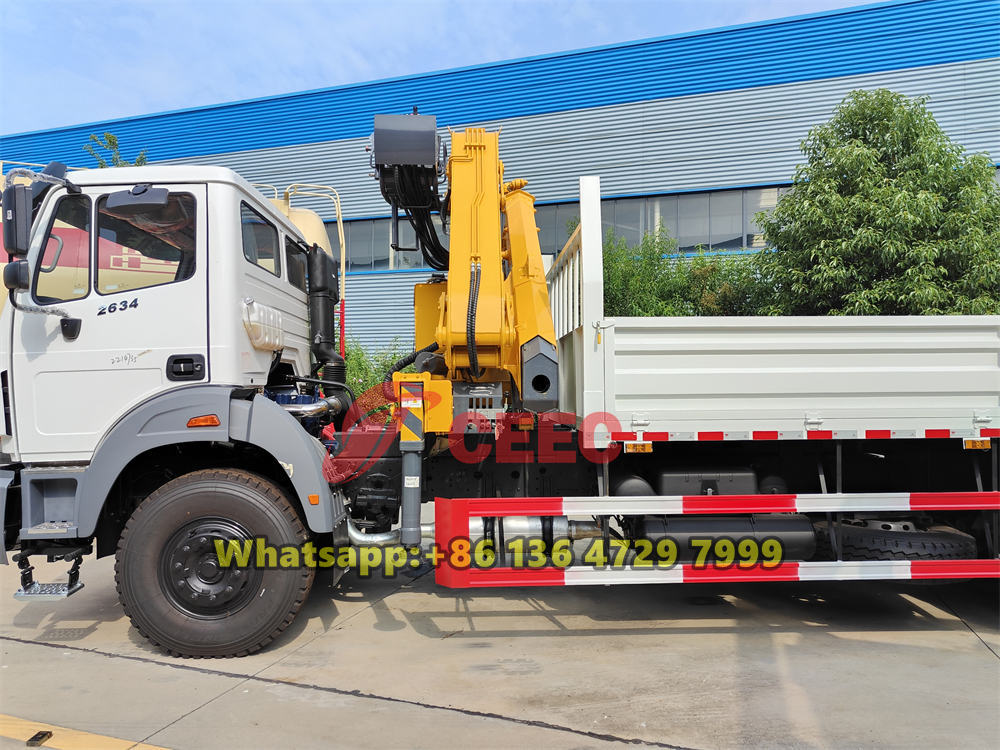

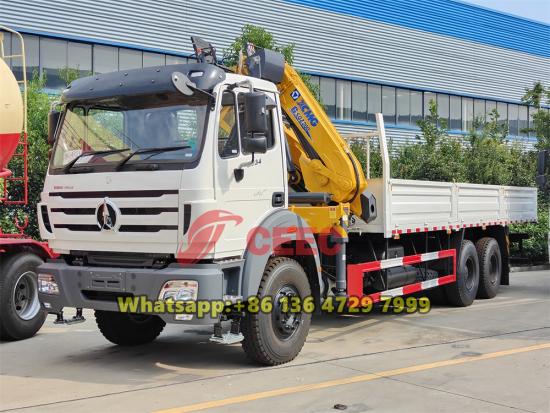

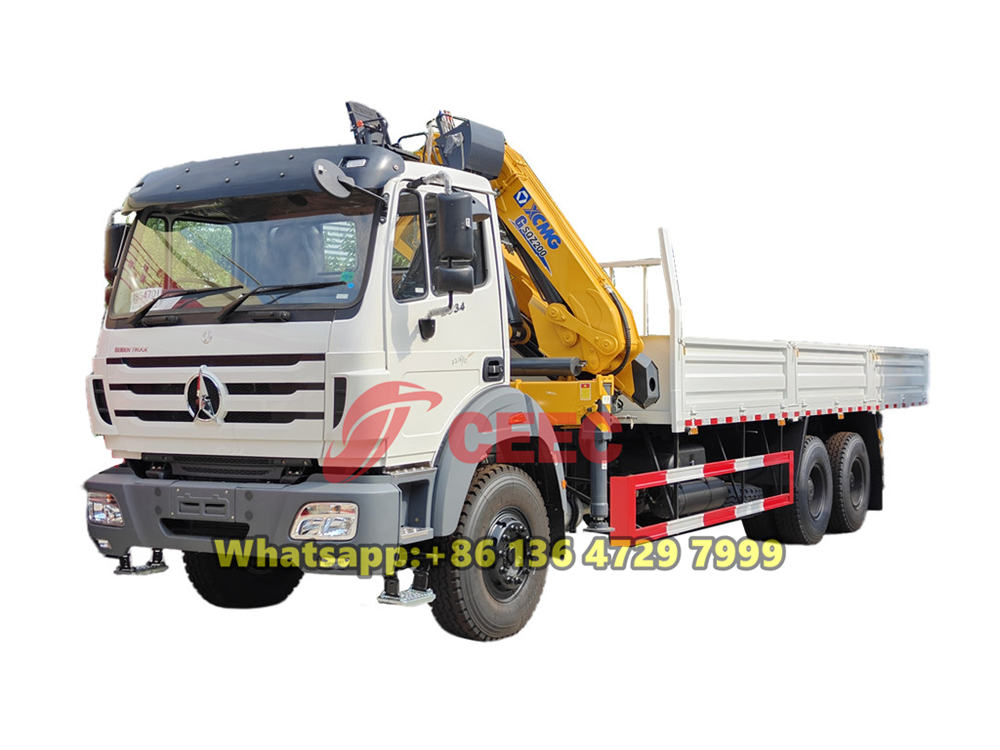

The Beiben 6x4 knuckle boom crane truck is a versatile piece of engineering machinery that integrates lifting, loading, and transportation functions. It is equipped with an XCMG SQZ200 crane, offering a maximum lifting capacity of 10,000 kg and a maximum lifting height of 12.5 meters. Powered by the WEICHAI WP10.340E32 engine with an output of 250 kW, the vehicle features a wheelbase of 4450+1450 mm. Its compact design and flexible operation make it suitable for various fields such as logistics, construction, and power industries, making it an ideal choice for efficient operations.
Working Capcity:
10 tonsCabin Type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
10200×2550×3348Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
340 HPGear Box:
12JS200TARemark:
Telescopic boom crane is optionalProduct Description
The Beiben 6x4 truck-mounted crane is a multifunctional engineering machine that integrates lifting, loading, and transportation, specifically designed to meet the efficient operational demands of modern industrial and logistics sectors. Featuring an advanced knuckle boom design, this crane not only boasts powerful lifting capabilities but also excels in operating flexibly within confined spaces, making it an indispensable asset in fields such as power, municipal construction, highways, and bridges. Known for its efficiency, flexibility, and reliability, the Beiben 2634 knuckle boom crane truck has earned a strong reputation in the industry and has become the preferred choice for many users.
The chassis of the Beiben 2634 crane truck serves as the foundation for its high-performance operations. Constructed with high-quality materials and advanced manufacturing techniques, the chassis ensures structural strength and durability. The front axle has a load capacity of 7 tons and is equipped with drum brakes, while the rear/middle axles have a combined load capacity of 18 tons per axle, enabling the vehicle to handle complex road conditions and heavy-duty requirements with ease. Powered by the WEICHAI WP10.340E32 engine—a straight-six, four-stroke, water-cooled, turbocharged and intercooled diesel engine with a displacement of 9.726 liters—the vehicle delivers a maximum power output of 250 kW (340 hp) and a peak torque of 1,250 N·m at 1,400-1,600 rpm, ensuring robust performance across various working conditions.

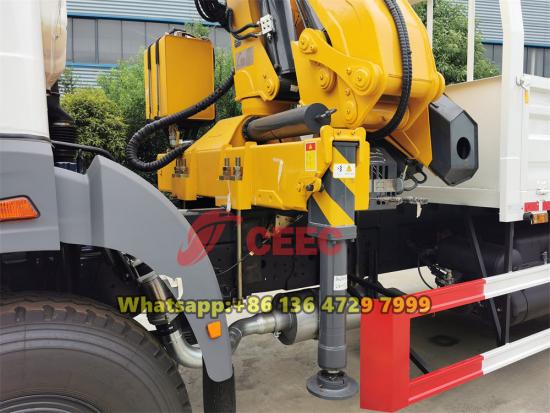

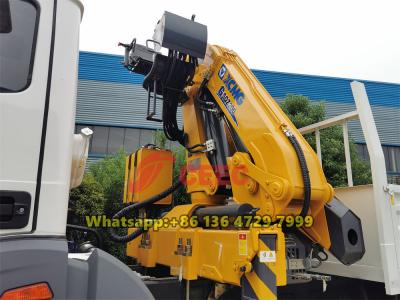

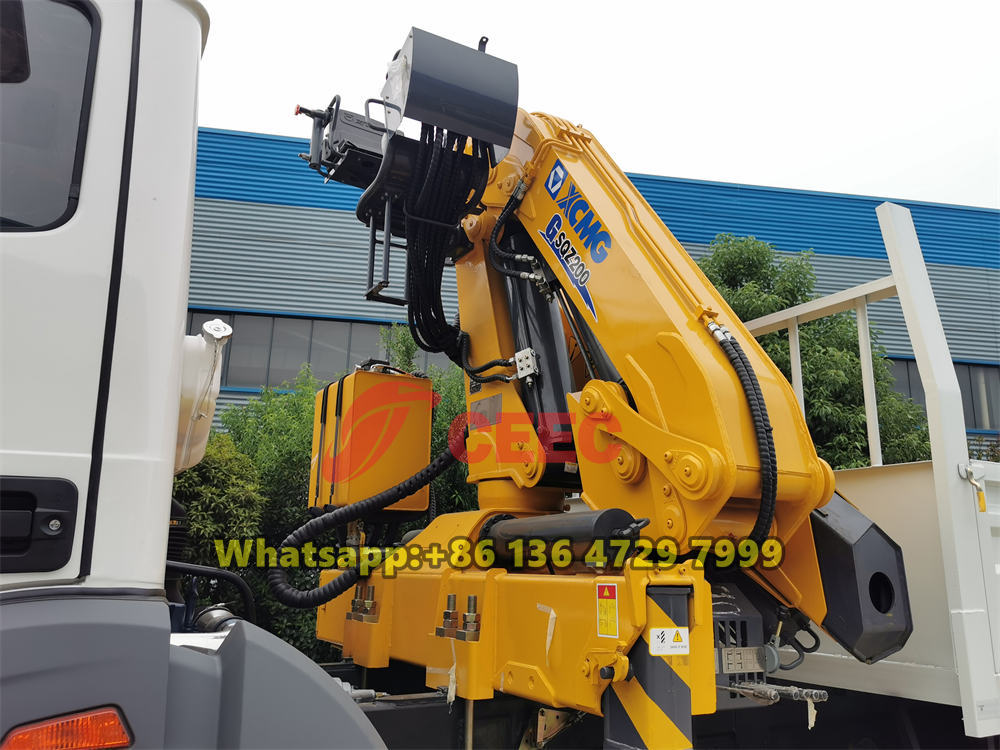

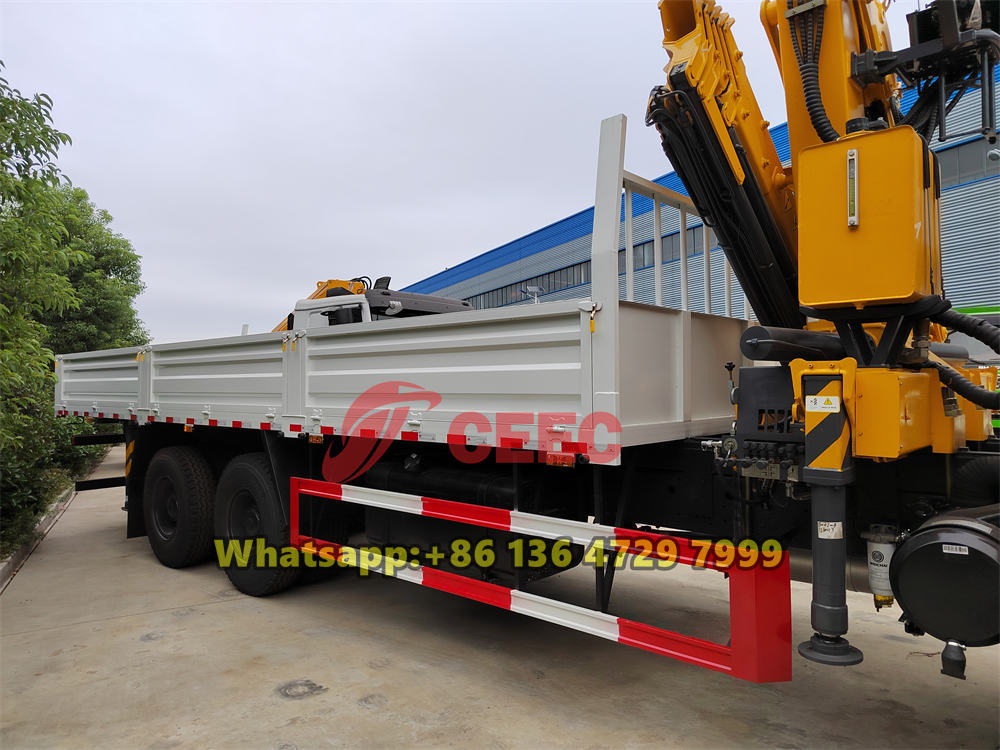

The Beiben 6x4 truck-mounted crane is equipped with the XCMG SQZ200 knuckle boom crane, renowned for its efficiency, flexibility, and reliability, making it a standout in the truck-mounted crane market. The crane offers a maximum lifting capacity of 10,000 kg, a maximum lifting height of 12.5 meters, and a maximum working radius of 9.9 meters, fully meeting the demands of diverse lifting tasks. The hydraulic system of the crane delivers a maximum flow rate of 40 L/min and a maximum pressure of 28 MPa, ensuring smooth and efficient lifting operations. With a hydraulic oil tank capacity of 140 liters, the crane provides ample hydraulic power for extended operations. The crane's 360° full rotation capability allows for lifting operations in any direction, significantly enhancing operational flexibility and efficiency.
The Beiben 2634 boom crane truck is also equipped with multiple safety protection devices, such as overload limiters, moment limiters, and height limiters, ensuring the safety and reliability of lifting operations. The crane is user-friendly, featuring an advanced remote control system that allows operators to precisely control the crane from a safe distance, greatly improving operational safety and efficiency.
Product Specifrications
|
BEIBEN 6x4 truck mounted knuckle boom crane specifications |
||
|
Emission Standard |
EURO 3 |
|
|
Chassis type |
Cargo truck type |
|
|
Chassis model |
ND1250 |
|
|
Driving Type |
6×4 |
|
|
Dimensions |
||
|
Wheelbase (mm) |
4450+1450 |
|
|
Overall Dimension (mm) |
10200×2550×3348 |
|
|
Cargo Box Dimension (mm) |

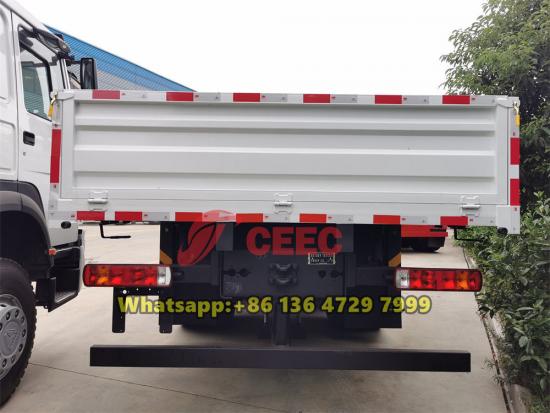

6000x2500x800 |
|
|
Weight parameters |
||
|
GVW (kg) |
25,000kgs |
|
|
Curb weight (kg) |
13,550kgs |
|
|
Real load weight (kg) |
More than 20,000kgs |
|
|
Chassis parameter |
||
|
Front axle |
7 Ton load capacity, drum brake |
|
|
Rear/middle axle |
18Ton/axle (2 axle combined) Benz double reduction with wheel side reducer |
|
|
Front wheel track (mm) |
1940 |
|
|
Rear wheel track (mm) |
1847/1847 |
|
|
Front/rear overhang(mm) |
1410/2530 |
|
|
Approach angle (°) |
34 |
|
|
Departure angle (°) |
24 |
|
|
Max speed (km/h) |
85 |
|
|
Suspension |
Leaf spring suspension |
|
|
Engine performance |
||
|
Engine brand |
WEICHAI |
|
|
Engine model |
WP10.340E32 |
|
|
Engine type |
Straight in-line, 6 cylinders,4 strokes, water-cooling, Turbo charge with inter-cooling, diesel engine |
|
|
No. of cylinders |
6 cylinders |
|
|
Displacement(L) |
9.726L |
|
|
Max. output (KW) |
250 kw (340hp) |
|
|
Fuel type |
Diesel |
|
|
Max. output (kw/Ps/rpm) |
250kw(340ps)/2200 rpm |
|
|
Max torque/Speed(N.m/rpm) |
1250 N.m/1400-1600rpm |
|
|

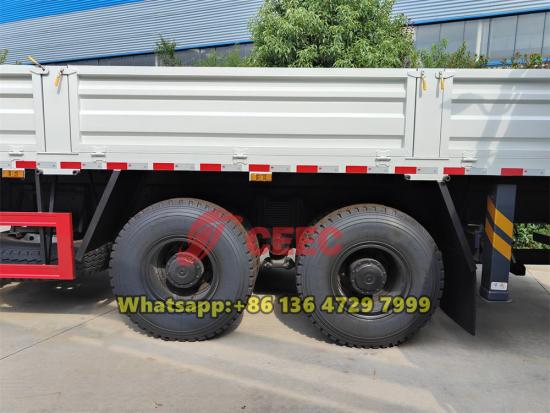

Tire specification |
12.00R20, total 10 units tire+1 spare tire |
|
|
Drive Line |
||
|
Clutch description |
¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
|
|
Transmission |
12 forwarder, 2 reverse gear, synchronous meshing by manual |
|
|
Braking system |
Service brake: Brake gap can be adjusted automatically double circulation air brake system |
|
|
Suspension system |
||
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
|
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
|
Electrical Equipment |
||
|
Voltage |
24V |
|
|
Batteries |
2X12V/135Ah |
|
|
Starter |
6.2Kw/24V |
|
|
Cab description |
||
|
NG80 short cab, cool and heating air-conditioner, Hydraulic suspension driver's seat, four point safety belt for driver and co-driver |
||
|
10 Ton knuckle boom crane specifications |
||
|
Crane brand |
XCMG |
Unit |
|
Crane model |
SQZ200 |
|
|
Max lifting capacity |
10000 |
kg |
|
Max lifting height |
12.5 |
M |
|
Max. working radius(m) |
9.9 |
m |
|
Recommend power |
28 |
kw |
|
Max Oil Flow of Hydraulic System |
40 |
L/min |
|
Max Pressure of Hydraulic system |
28 |
Mpa |
|
Oil Tank Capacity |
140 |
L |
|
Rotation Angle |
360° All rotation |
|
|
Crane Weight |
3477 |
kg |
|
Installation Space |
1150 |
mm |
Features of BEIBEN 6x4 knuckle boom crane truck:
1. Powerful Lifting Capacity: Equipped with a high-performance knuckle boom crane, it offers exceptional lifting capabilities, enabling it to handle heavy-duty lifting tasks with ease.
2. Flexible Operation: The knuckle boom design allows the crane to operate flexibly in confined spaces, making it particularly suitable for complex environments such as urban streets and narrow construction sites.

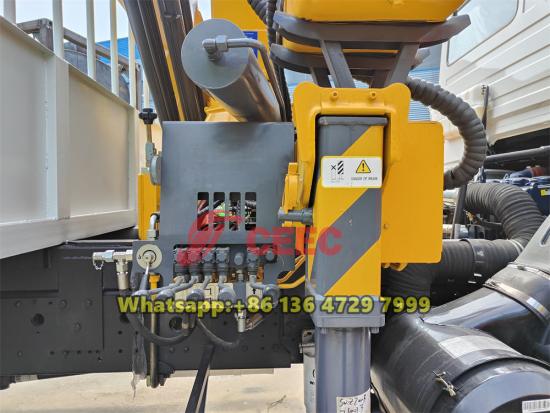

3. Efficient Hydraulic System: The crane is equipped with an advanced hydraulic system that delivers stable and powerful hydraulic force, ensuring smooth and efficient lifting operations.
4. Advanced Remote Control: Featuring a remote control system, operators can precisely control the crane from a safe distance, enhancing both safety and operational efficiency.
5. Multiple Safety Protections: Built-in safety devices such as overload limiters and moment limiters ensure the safety of lifting operations and reduce the risk of accidents.
6. High Quality and Durability: Constructed with high-quality materials and advanced manufacturing techniques, the vehicle ensures structural strength and durability, minimizing failure rates and operational costs.
7. Wide Range of Applications: Suitable for various fields including logistics, construction, power, municipal construction, highways, and bridges, meeting the operational needs of diverse users.
