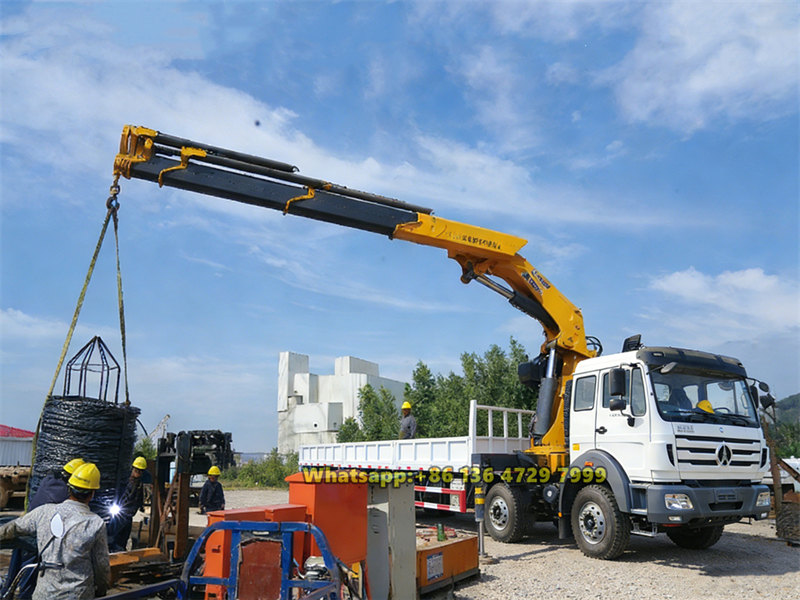

The Beiben 8×4 Knuckle Boom Crane Truck is a heavy-duty specialized vehicle that integrates transportation and lifting capabilities. Built on a robust Beiben 8×4 chassis with a powerful 420 horsepower engine, it is equipped with a folding crane that offers a maximum lifting capacity of 16 tons and a boom length exceeding 16 meters. The crane's boom can be flexibly folded and rotated, making it particularly suitable for efficient loading, unloading, and lifting operations in confined spaces such as logistics hubs and construction sites.
Market Price:
$56500Working Capcity:
16000 kgCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
12000×2550×3850Drive System:
8×4Wheelbase (mm):
1500+4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:

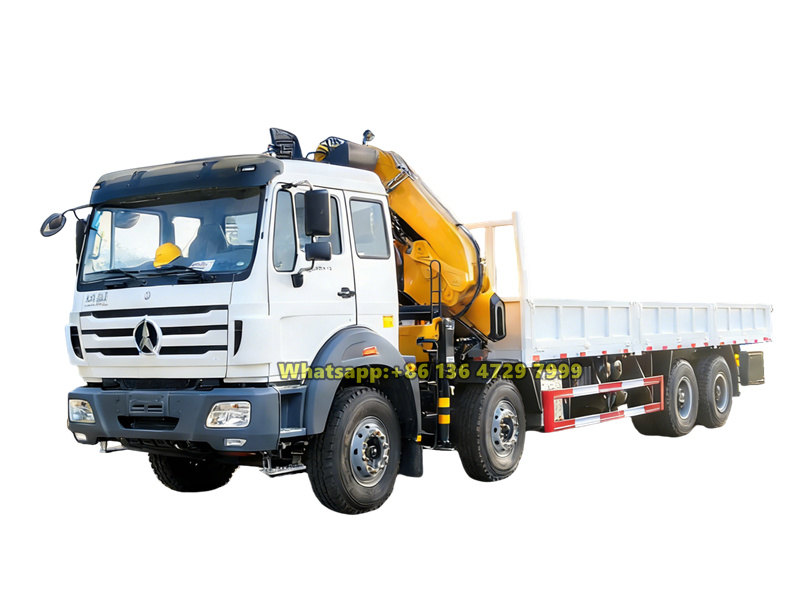

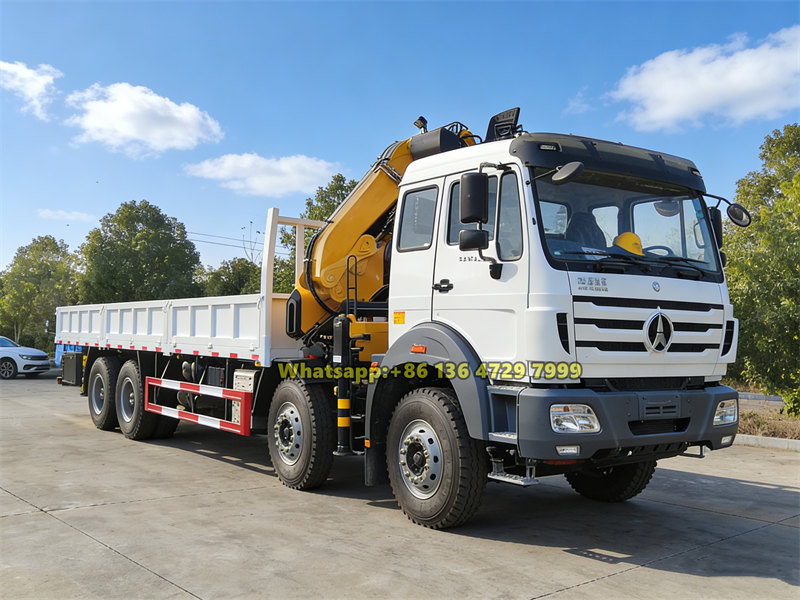

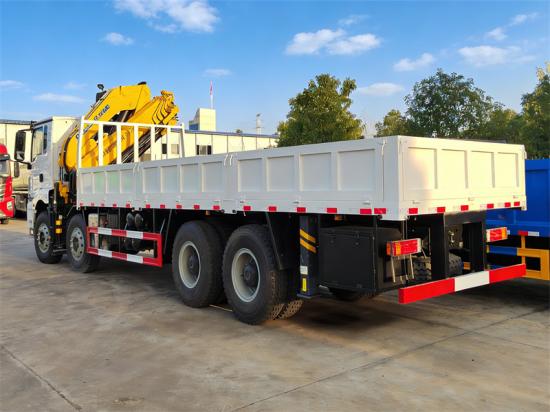

XCMG, palfinger/unic crane is optionalBeiben 8×4 Knuckle Boom Truck is a heavy-duty engineering vehicle based on a Beiben 8×4 chassis, featuring a XCMG GSQZ330 folding boom crane. With an 8×4 drive configuration, this model boasts a lifting capacity of 16 tons and a maximum lifting height of 19 meters. Its folding boom structure allows flexible operation within a 400° rotation range, making it especially suitable for scenarios like logistics transfer and site handling that require efficient lifting operations in space-constrained environments.
The Beiben truck mounted knuckle crane is powered by a Weichai WP12.420E32 diesel engine, delivering 420 horsepower. Paired with a Fast 12-speed manual transmission and a two-stage reduction drive axle, it ensures reliable load-bearing capacity and off-road performance in complex working conditions. The chassis utilizes multi-leaf spring suspensions at both the front and rear, equipped with a 400-liter fuel tank and a 200-liter hydraulic oil tank. The cargo bed measures 8000×2450×600 mm, effectively balancing transportation and lifting functions. As a professional piece of equipment, it combines strong load-bearing capacity, high mobility, and excellent spatial adaptability.
CEEC factory is authorized supplier on beiben hydraulic crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 8×4 chassis, NG80B long cabin, Weichai 380HP diesel engine, Fast 12-speed gearbox
▶ Crane model: XCMG GSQZ330, knuckle boom crane
▶ Crane lifting capacity: 16 tons
▶ Crane slewing angle: 400°
▶ Cargo box dimensions: 8000×2450×600 mm
» Ⅱ. Product Specifications:
|
Beiben 8×4 Lorry Mounted 16-ton Crane |
|
|
Parameters of chassis |
|
|
Cabin |
Beiben NG80B long cab, 2 seats and one sleeper berth, with air conditioning |
|
Driving Type |
8×4, left hand drive |
|
GVW |
31000(kg) |
|
Curb weight |
19300(kg) |
|
Rated loading capacity |
11570(kg) |
|
Overall dimensions |
12000*2550*3850(mm) |
|
Box dimensions |
8000*2450*600(mm) |
|
Allowable passengers in cab |
3 passengers |
|
Number of axles |
3 |
|
Wheelbase |
1500+4450+1450 (mm) |
|
Front axle |
7500kg+7500kg, non-drive steering |
|
Middle & rear axle |
13000kg+13000kg, double reduction driving axle, differential lock |
|
Suspension |
Front 12pcs×2，rear 13 pcs hard parabolic spring |
|
Brakes |
Service: dual circuit air brakes Parking: spring potential brake Auxiliary: EVB |
|
Transmission |
FAST 12JS200T, 12 speed forward. Manual |
|
Tire specification |
12.00R20 |
|
Number of tire |
12+1 |
|
Fuel tank |
400 liters |
|
Parameters of engine |
|
|
Model |
WEICHAI WP12.420E32 |
|
Fuel |
Diesel |
|
Number of cylinders |
6 |
|
Cylinder arrangement |
Direct, in line |
|
Power |
420HP/309KW |
|
Displacement |
11.596 (L) |
|
Parameters of cargo box |
|
|
Cargo box dimension |
8000*2450*600(mm) |
|
Box material |
Q235, carbon steel |
|
The thickness of side walls |
3mm |
|
The thickness of the floor |
4mm |
|
Parameters of crane |
|
|
Crane model |
XCMG GSQZ330 |
|
Maximum lifting moment |
330 kN.m |
|
Maximum hydraulic outreach |
16.37 m |
|
Number of boom sections |
7 |
|
Slewing angle |
400° |
|
Outriggers span |
2342-7782 mm |
|
Maximum operating pressure |
31 Mpa |
|
Recommended pump capacity |
63 L/min |
|
Oil tank capacity |
200L |
|
Crane weight |
5100 kg |
» Ⅲ. Chassis Advantages:
Beiben NG80B long cabin, 2 seats and one sleeper berth, with A/C
Weichai WP12.420E32 engine, 420HP, 6-cylinder, 11.596L displacement
FAST 12JS200T transmission, 12-speed forward and 2-speed reverse
Front axle 7500kg+7500kg; rear axle 13000kg+13000kg
» Ⅳ. XCMG GSQZ330 Crane Specifications:
|
Number of Crane Boom Sections |
7 sections |
|
Maximum Lifting Capacity |
16.5 tons |
|
Maximum Working Radius |
16.37 m |
|
Maximum Lifting Height |
19 m |
|
Maximum Lifting Moment |
330 kN·m |
|
Luffing Angle Range |
0 - 75° |
|
Slewing Angle |
400° |
|
Outrigger Span |
2.342 - 7.782 m |
|
Recommended System Flow Rate |
63 L/min |
|
System Rated Pressure |
31 MPa |
|
Crane Weight |
5100 kg |
|

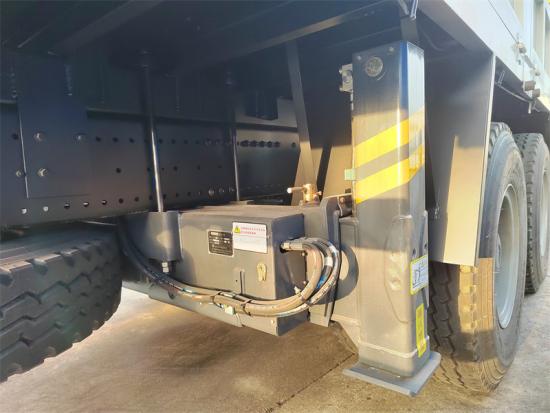

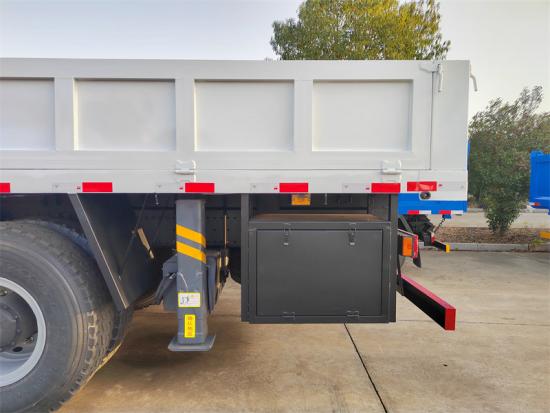

Rear Outriggers |
2 pieces |

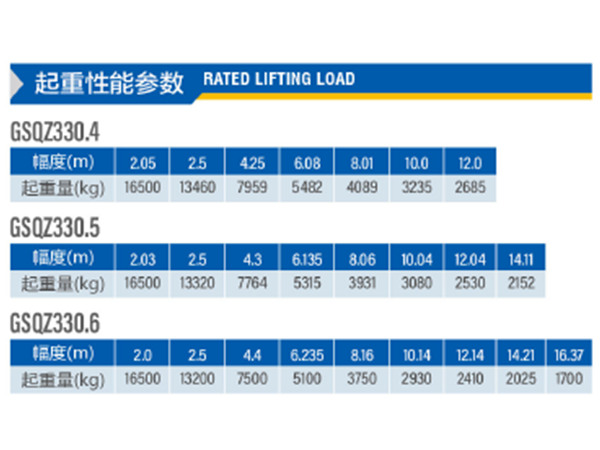

Crane rated lifting load
 |
 |

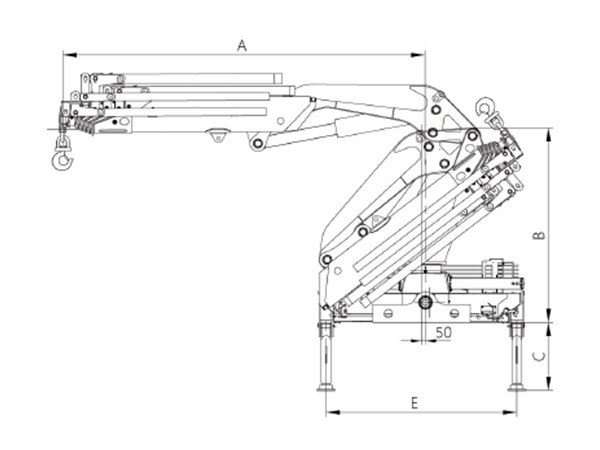

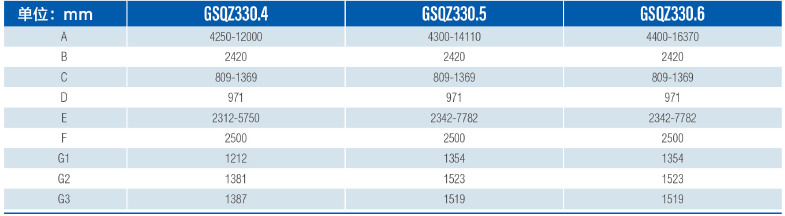

Crane Dimensions
 |
 |

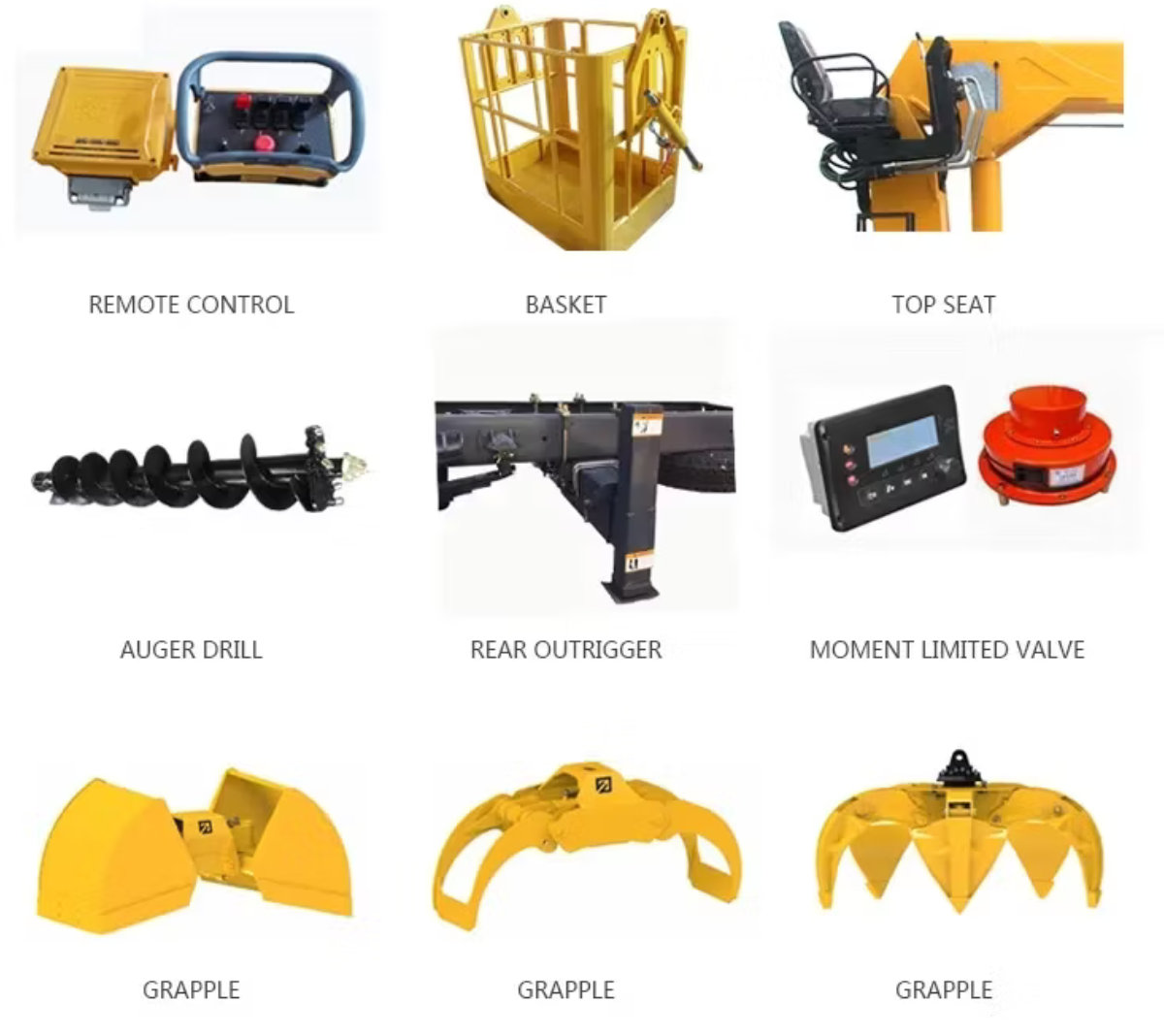

» Ⅴ. XCMG crane options:

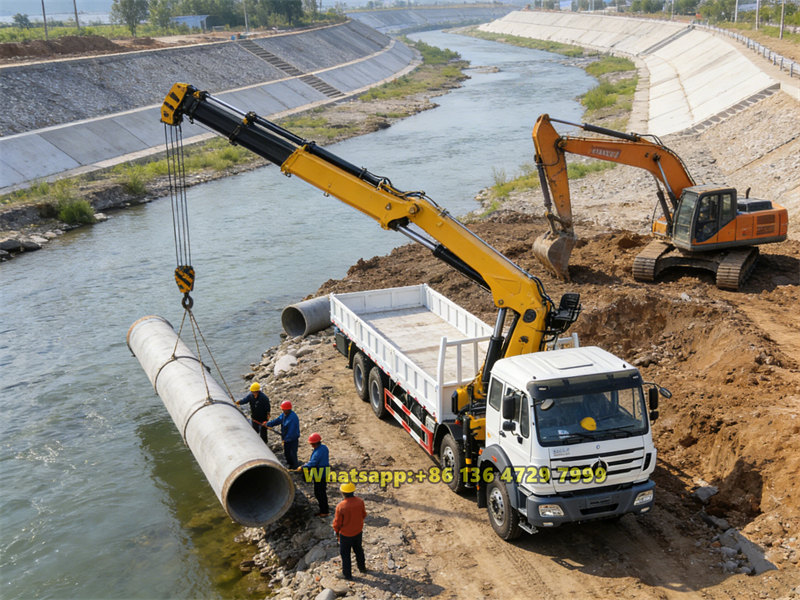

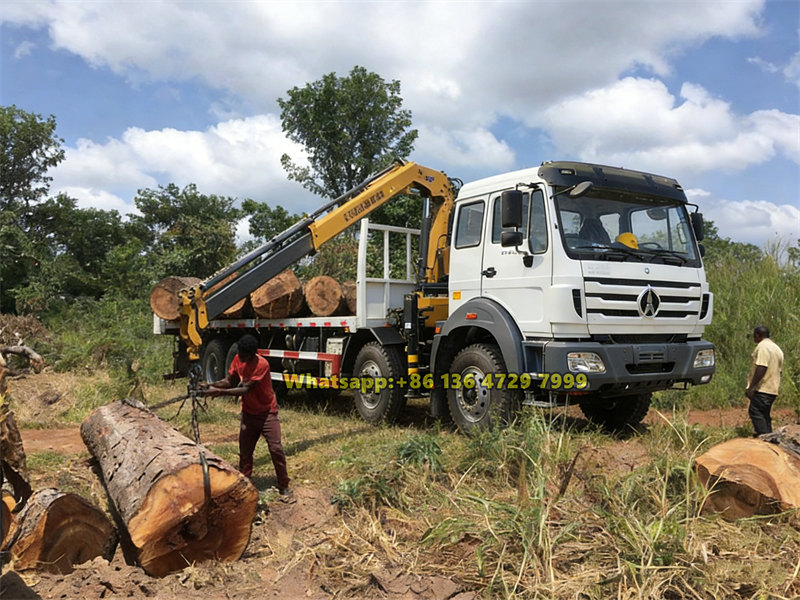

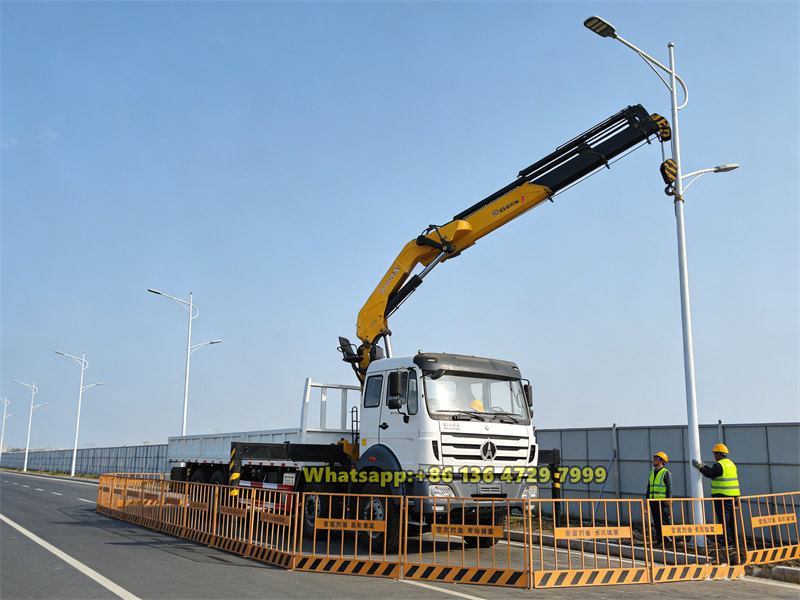

» Ⅵ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option
2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg
3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option
4. Optional: remote control, moment limited valve, high sesat on column, drill, etc.
