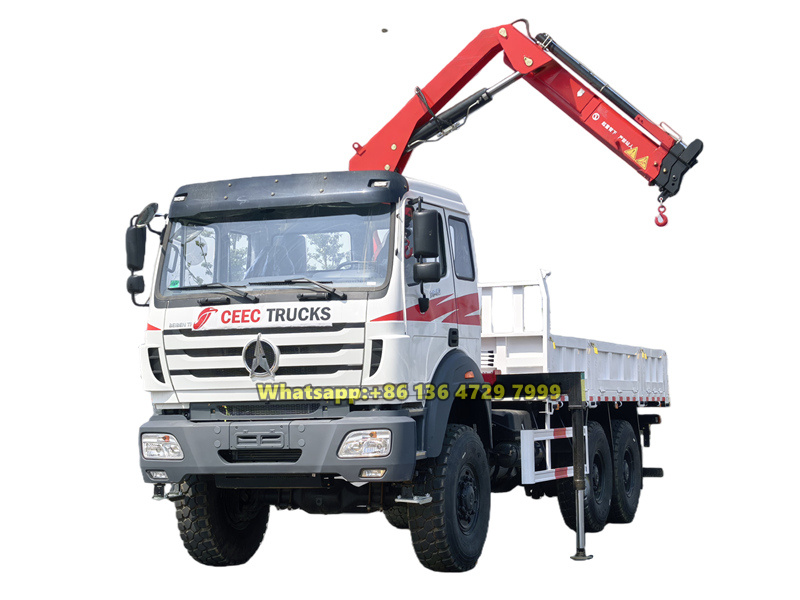

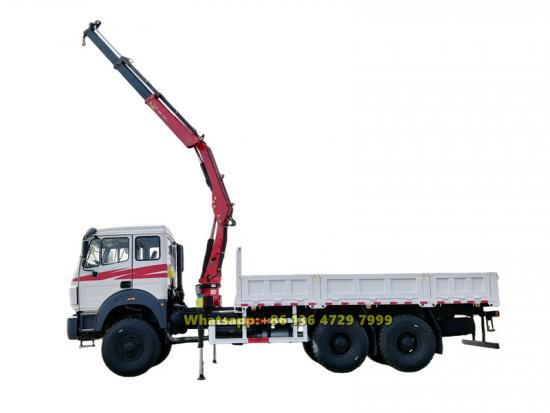

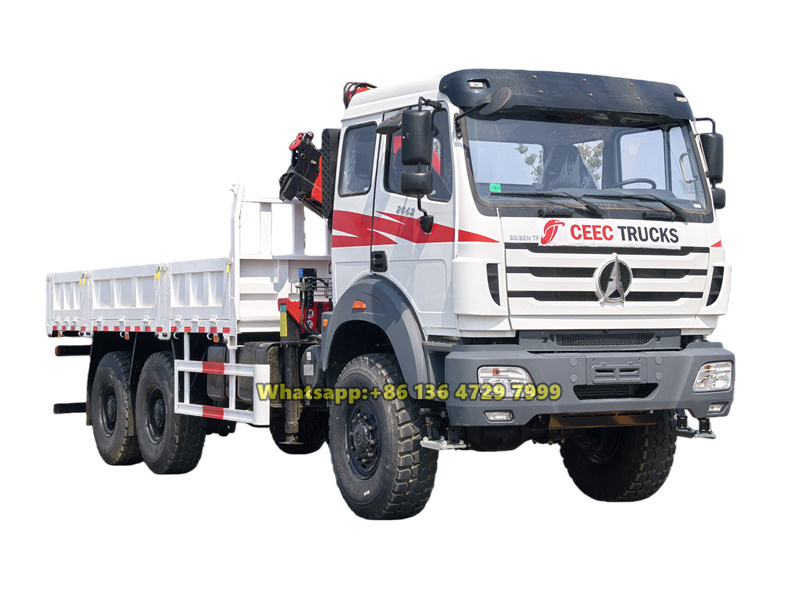

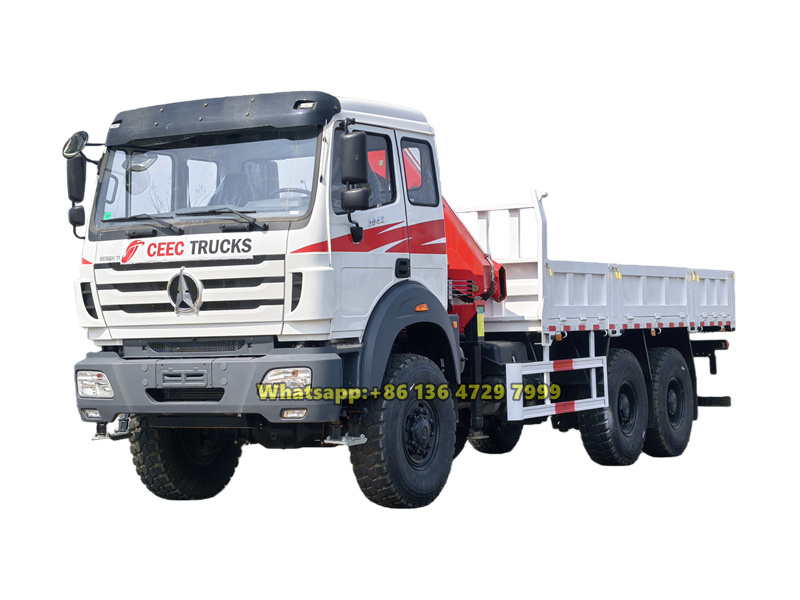

The Beiben 6×6 truck-mounted crane is a heavy-duty lifting and transport vehicle built on a Beiben six-wheel-drive off-road chassis. It is equipped with a WEICHAI 420 horsepower engine and a 4-ton class knuckle boom crane. The vehicle boasts exceptional off-road mobility and a load capacity exceeding 20 tons, making it suitable for lifting and material transport in complex terrains, ideal for construction projects and field operations.
Market Price:
$58500Working Capcity:
4000 kgCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
9350×2550×3530Drive System:
6×6Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TTyres:
14.00R20, 6+1 pcsRemark:
XCMG, palfinger/unic crane is optionalThe Beiben 6×6 boom crane truck is a specialized off-road lifting and transport vehicle designed for demanding working conditions. Its core advantage lies in the Beiben six-wheel-drive chassis, which provides outstanding off-road capability and stability on rugged terrain. Powered by the WEICHAI WP12.420E32 high-horsepower engine, it delivers robust performance and is paired with a FAST 12-speed gearbox, ensuring reliability and maneuverability under various road conditions while meeting Euro III emission standards.
This Beiben 6×6 loader crane is equipped with an SQZ80-3 4-ton knuckle boom crane, offering a maximum lifting torque of 80 kN·m and a working radius of up to 6.2 meters, enabling efficient loading, unloading, and transport of goods. The vehicle features an NG80 long cab, complete with air conditioning and a sleeper bed, ensuring operational comfort and practicality for long-distance tasks. With a gross vehicle weight of 26 tons and impressive rated load capacity, it is a heavy-duty solution for field operations, construction projects, and similar applications.
CEEC factory is authorized supplier of beiben boom crane trucks,
guarantee all beiben trucks with crane Brand-New and High-Quality.

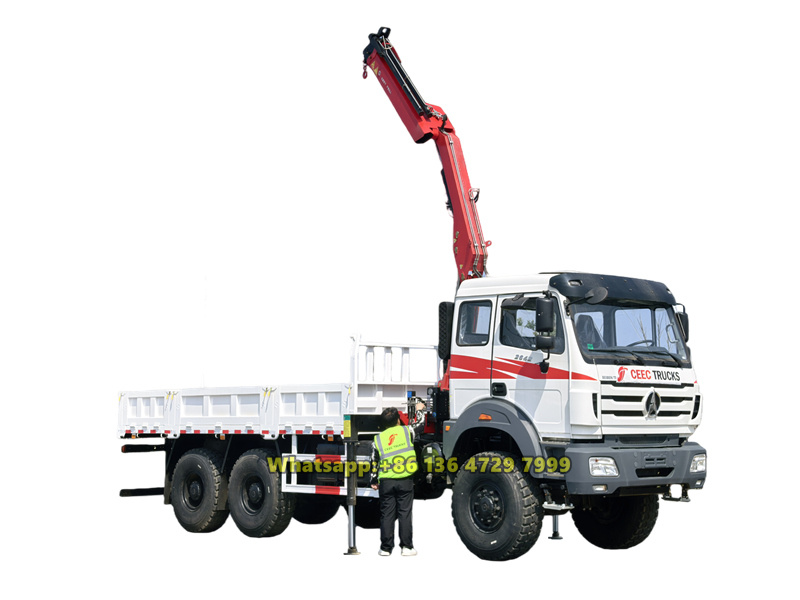

» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×6 chassis, NG80B long cabin, Weichai 420HP diesel engine, Fast 12-speed gearbox
▶ Crane model: CEEC SQZ80-3, knuckle boom crane
▶ Crane lifting capacity: 4 tons
▶ Crane lifting height: 8.6 m
▶ Cargo box dimensions: 6000×2550×550 mm
» Ⅱ. Product Specifications:
|
BEIBEN 6x6 truck mounted 4-ton knuckle boom crane |
|
||
|
Emission Standard |
EUR 3 |
|
|
|
Chassis type |
Cargo truck type |
|
|
|
Chassis model |
ND2260FD |
|
|
|
Driving Type |
6×6 |
|
|
|
Dimensions |
|
||
|
Wheelbase(mm) |
4450+1450 |
|
|
|
Overall Dimension(mm) |
9350×2550×3530 |
|
|
|
Cargo box dimension(mm) |
6000x2550x550 |
|
|
|
Weight parameters |
|
||
|
GVW(kg) |
26,000kgs |
|
|
|
Curb weight(kg) |
13,500kgs |
|
|
|
Real load weight(kg) |
More than 20,000kgs |
|
|
|
Chassis parameter |
|
||
|
Front axle |

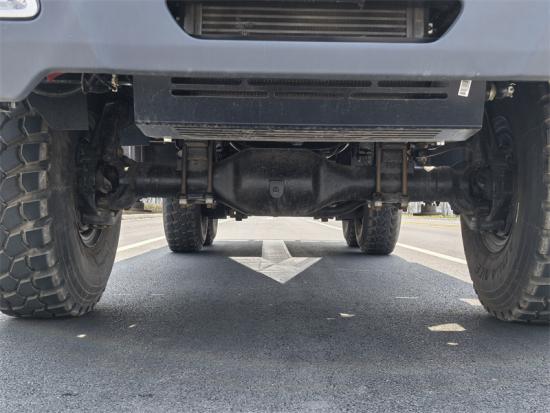

7 Ton drive axle |
|
|
|
Rear axle |

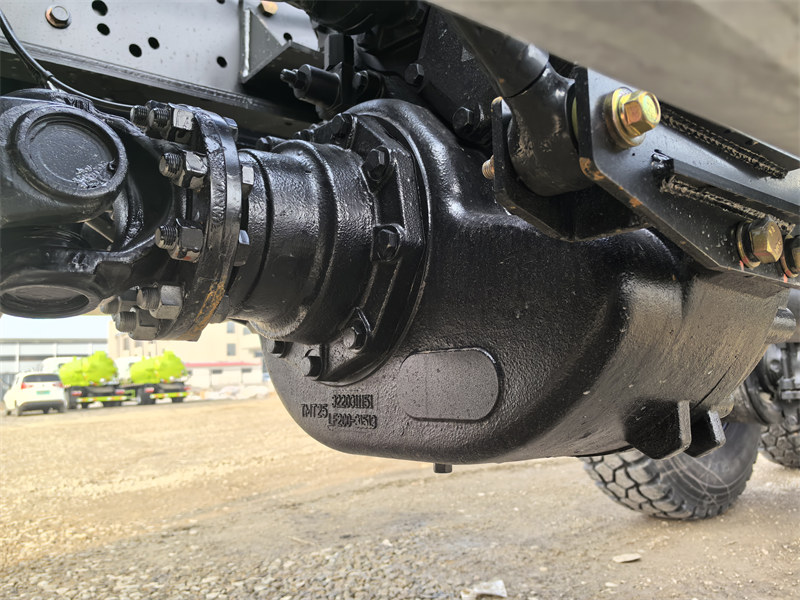

13 Ton×2, Beiben double reduction axle |
|
|
|
Front wheel track (mm) |
2070 |
|
|
|
Rear wheel track (mm) |
2040/2040 mm |
|
|
|
Front/rear overhang(mm) |
1410/1310 |
|
|
|
Approach angle(°) |
29 |
|
|
|
Departure angle(°) |
52 |
|
|
|
Max speed(km/h) |
90 |
|
|
|
Suspension |
Leaf spring suspension |
|
|
|
Engine performance |
|
||
|
Engine brand |
WEICHAI |
|
|
|
Engine model |
WP12.420E32 |
|
|
|
Engine type |
Straight in-line, 6 cylinders, 4 strokes, water-cooling, Turbo charge with inter-cooling, diesel engine |
|
|
|
No. of cylinders |
Straight-6 cylinders |
|
|
|
Displacement(L) |
11.596 L |
|
|
|
Max. output (KW) |
309kw (420hp) |
|
|
|
Fuel type |
Diesel |
|
|
|
Max. output (kw/Ps/rpm) |
309kw(420ps)/2100 rpm |
|
|
|
Max torque/Speed (N.m/rpm) |
1750 N.m/1200-1500rpm |
|
|
|
Tire specification |
14.00R20, total 6 units tire+1 spare tire |
|
|
|
Drive Line |
|
||
|
Clutch description |
¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
|
|
|
Transmission |
FAST 12JS200T, 12 forwarder, 2 reverse gear, synchronous meshing by manual |
|
|
|
Braking system |
Service brake: Brake gap can be adjusted automatically double circulation air brake system |
|
|
|
Suspension system |
|
||
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
|
|
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
|
|
Electrical Equipment |
|
||
|
Voltage |
24V |
|
|
|
Batteries |
2X12V/135Ah |
|
|
|
Starter |
6.2Kw/24V |
|
|
|
Cab description |
|
||
|
NG80 long cab, 2 seats and one sleeper bed, cool and heating air-conditioner, hydraulic suspension driver's seat, four point safety belt for driver and co-driver, with FM/AM radio player, USB interface |
|
||
|
Crane specifications |
|
||
|
Crane model |
SQZ80-3 |
Unit |
|
|
Max lifting capacity |
4,000 |
kg |
|
|
Max lifting moment |
80 |
kN.m |
|
|
Max. outreach |
6.25 |
m |
|
|
Max. lifting height |
8.6 |
m |
|
|
Crane working radius |
6.2 |
m |
|
|
Rated Flow of Hydraulic system |
32 |
L/min |
|
|
Hydraulic oil tank capacity |
60 |
L |
|
|
Rated pressure of hydraulic system |
20 |
Mpa |
|
|
Slewing angle |
360 |
° |
|
|
Outrigger span |
3457 |
mm |
|
|
Crane weight |
1500 |
kg |
|
» Ⅲ. Product Features:
Beiben 2642 off-road chassis

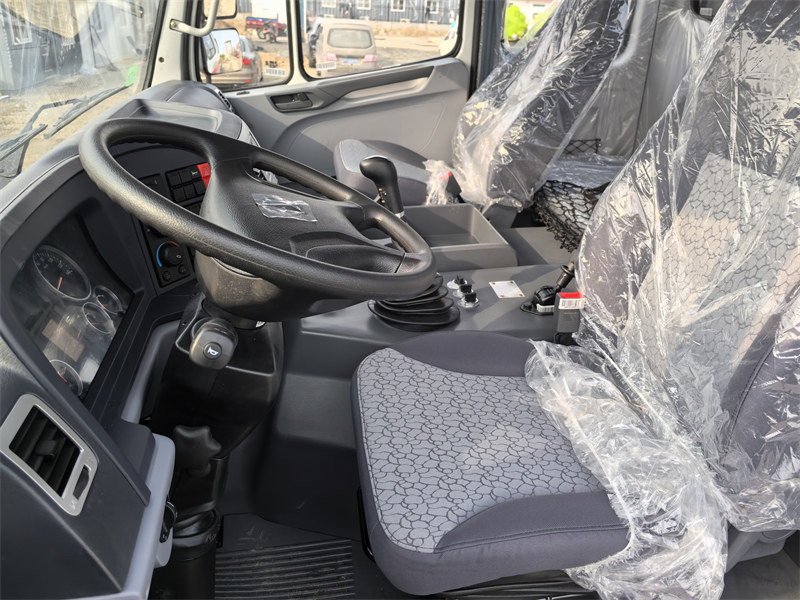

◆ Cabin: Beiben NG80B long cabin

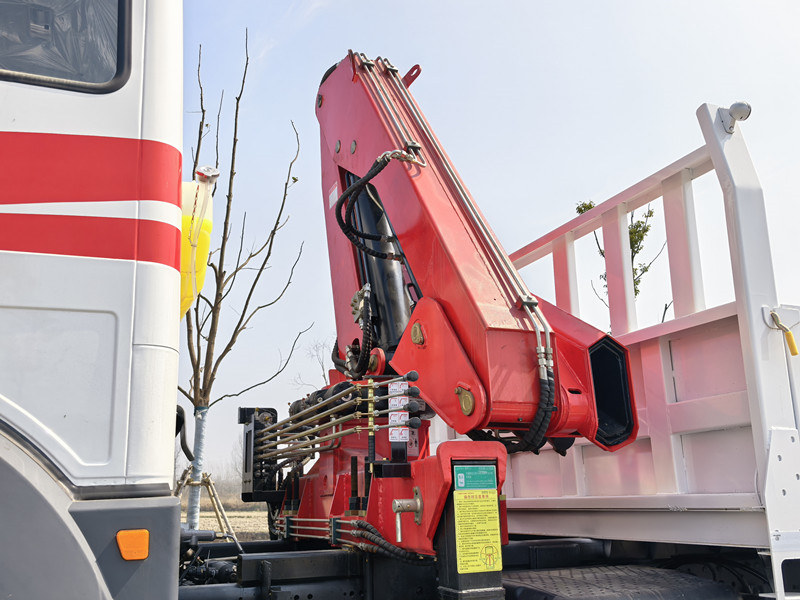

Customzied Knuckle Crane
1. Hexagonal boom design with integral bending ensures light weight, high strength, and stability.
2. Cylinder telescoping mechanism offers proven reliability and high efficiency.
3. Three-hinge luffing system adjusts boom from 0° to 75°.
4. Hydraulic outriggers with horizontal/vertical cylinders expand support for safe lifting and travel.

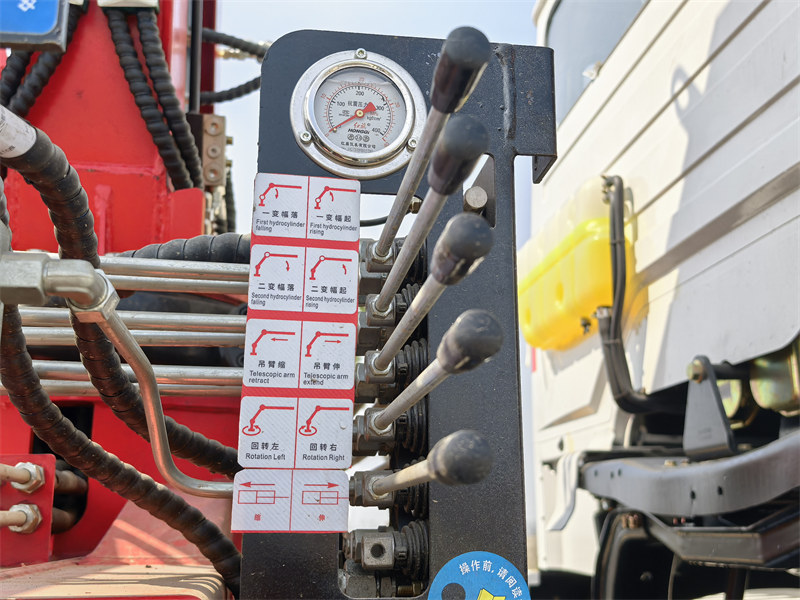

5. Open-loop system with independent valves for easy outrigger and crane control.

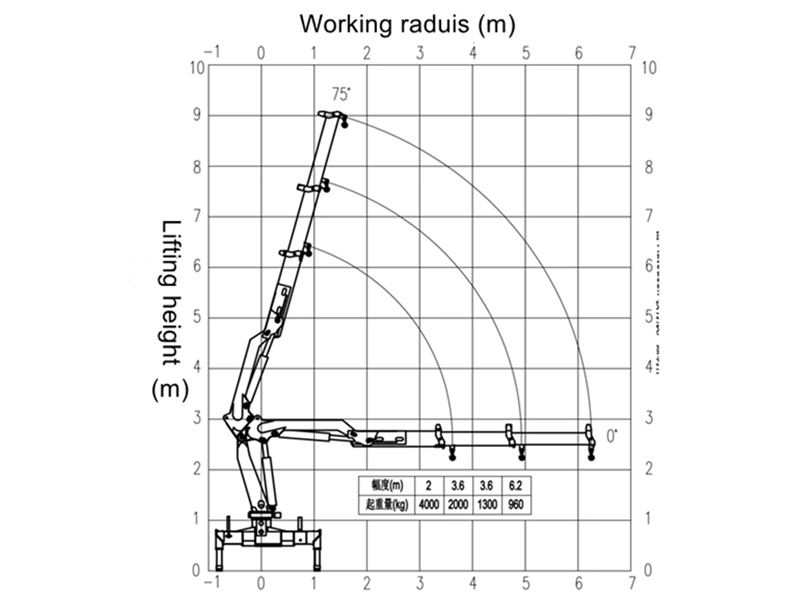

» Ⅳ. CEEC 4-ton Knuckle Boom Crane Specifications:
 |
|

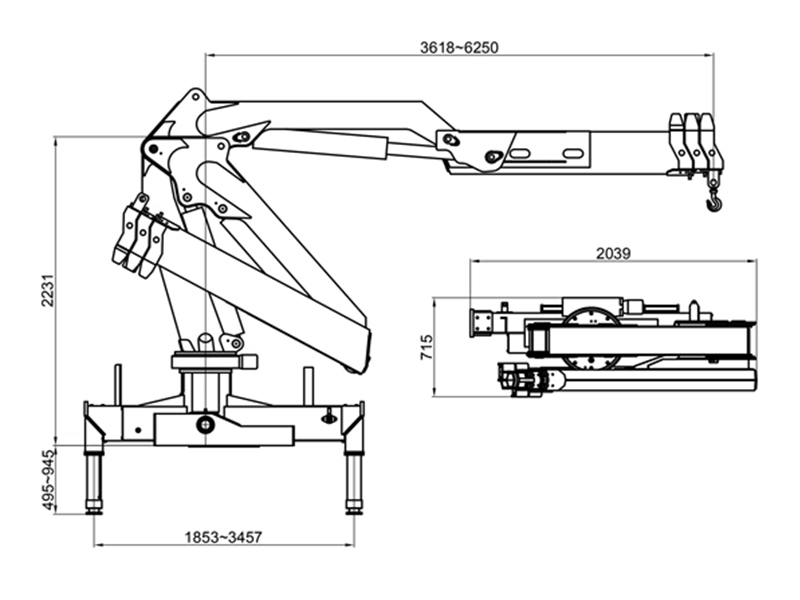

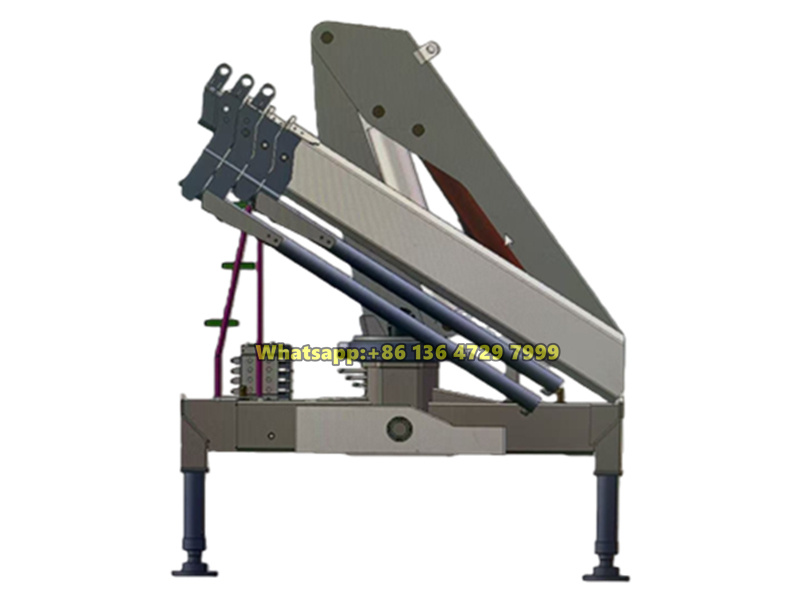

Crane Dimension
 |
 |

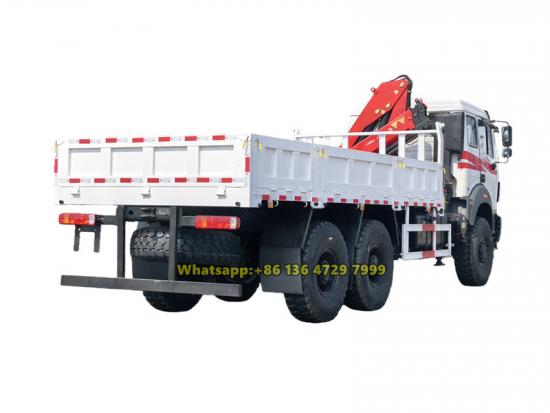

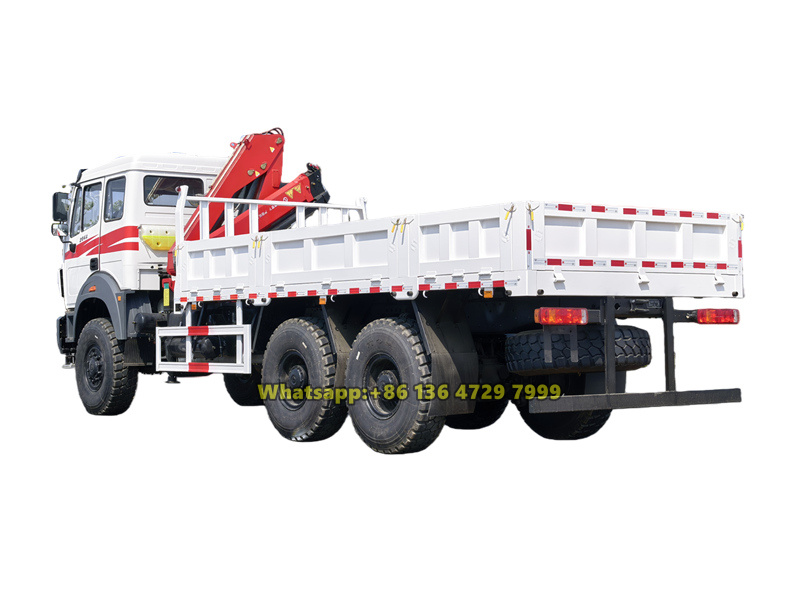

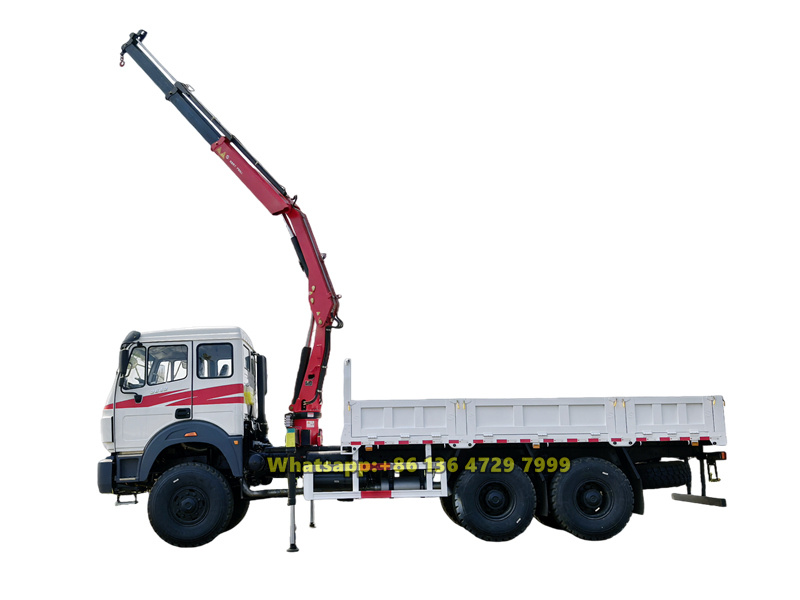

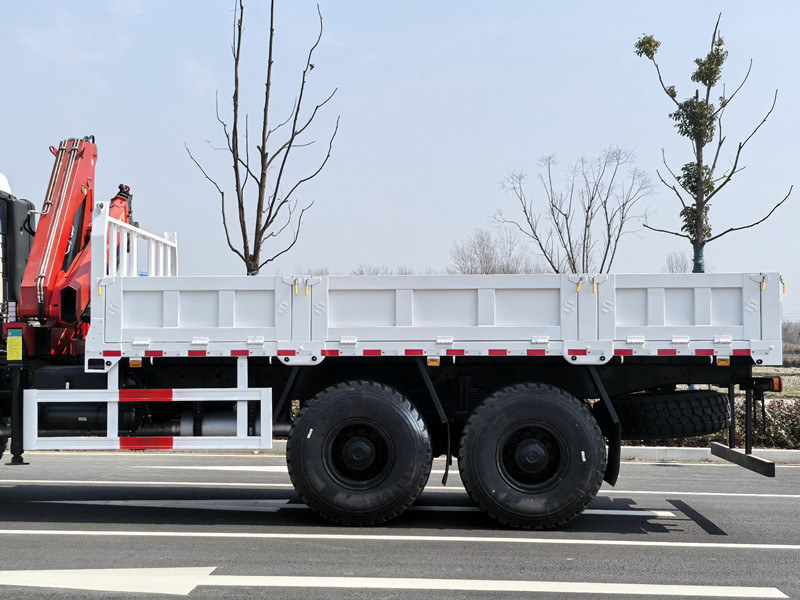

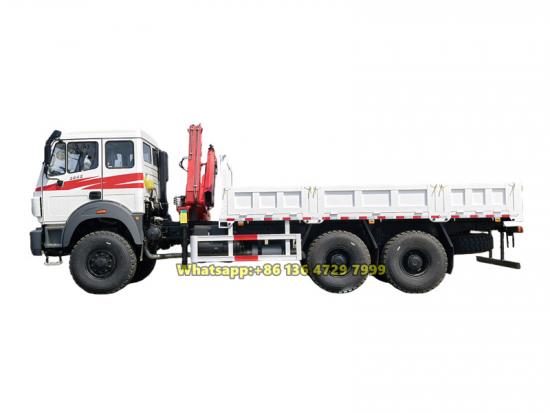

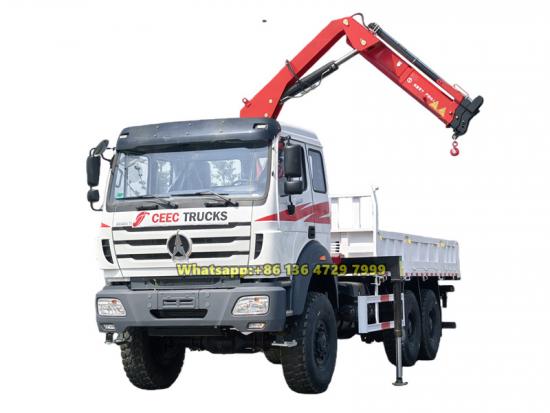

» Ⅴ. Beiben 6×6 AWD boom crane truck details:

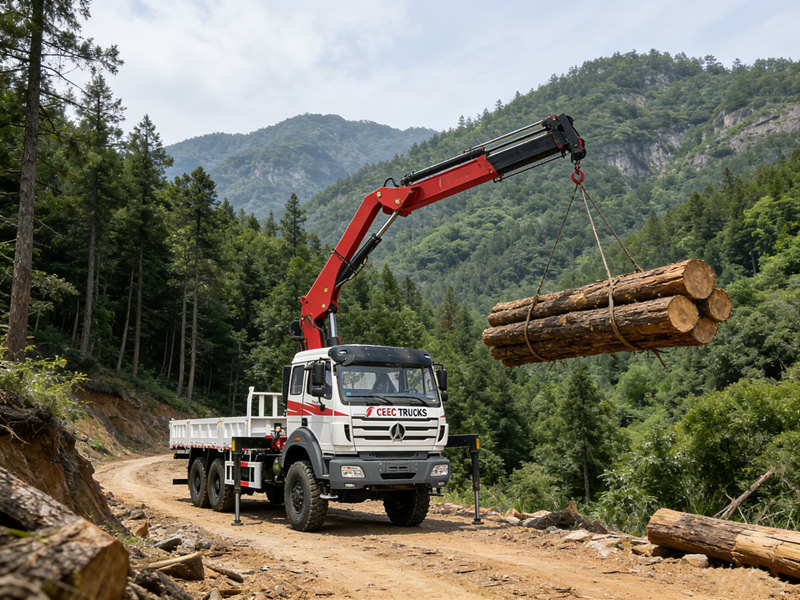

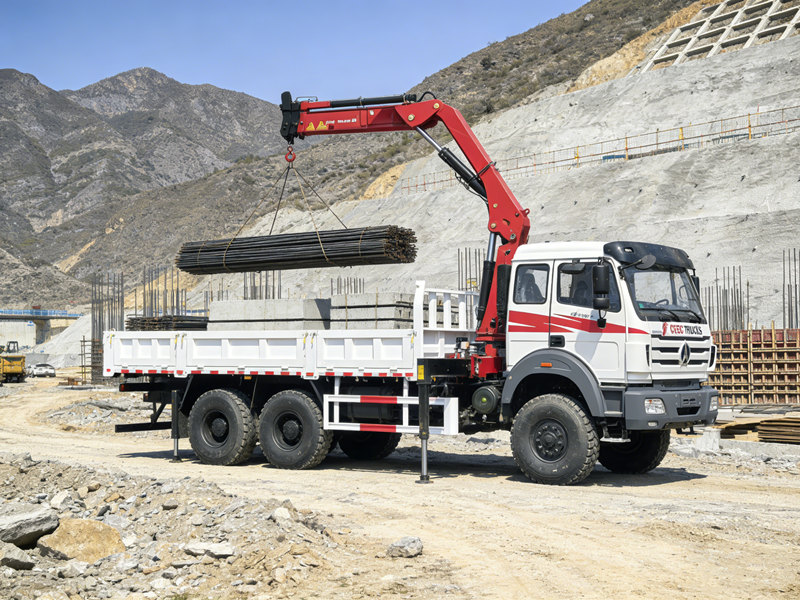

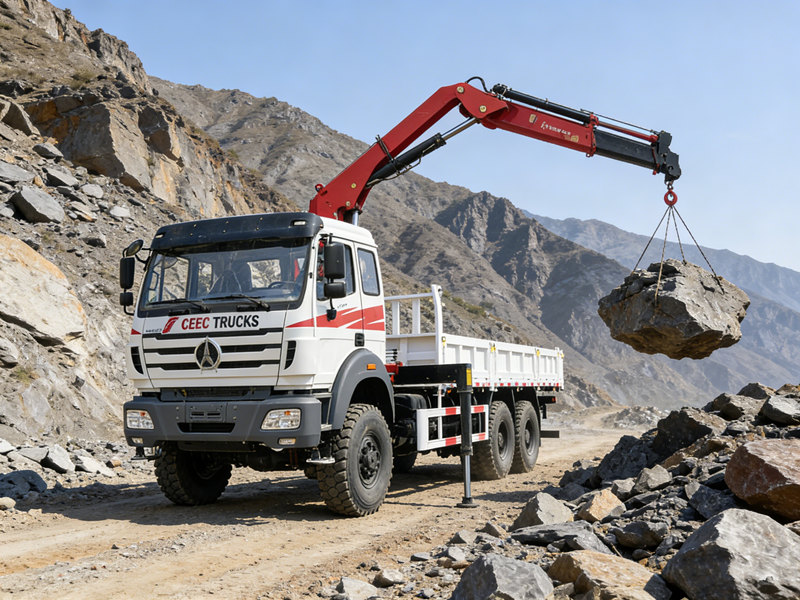

» Ⅵ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option
2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg
3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option
4. Optional: remote control, moment limited valve, high sesat on column, drill, etc.
