Order(MOQ):
1Production time:
60 daysPayment terms:
T/T, L/C

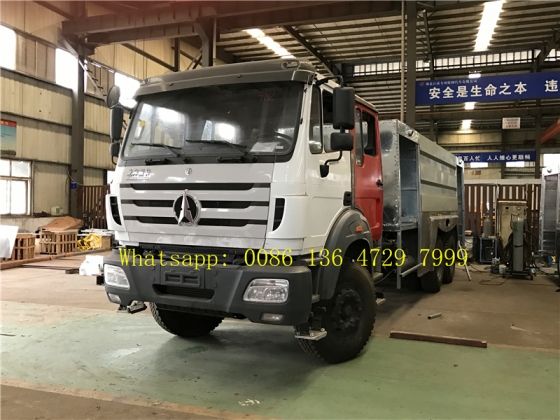

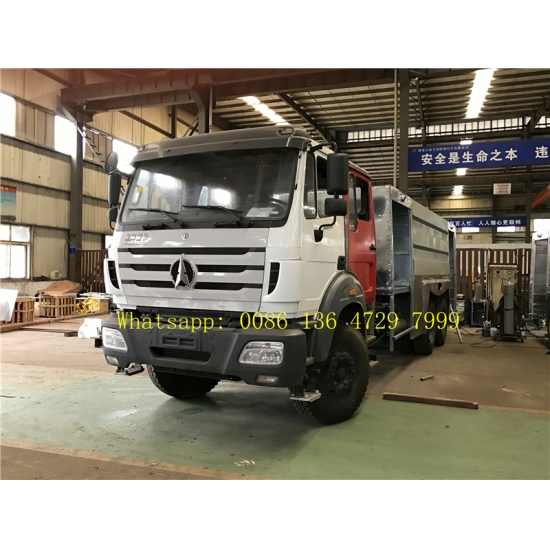

beiben 2638 fire fighting truck
Applications:
Beiben fire trucks,also called as beiben fire fighting truck, beiben 2638 fire truck, north benz fire fighting truck, china beiben fire trucks, china north benz fire trucks, is include liquid tanker, pump room, equipment boxes, power output and transmission system, pipeline system, electrical system and so on, widely used in urban public fire brigade, petroleum chemical industry and other departments, can quickly close to the fire field fire-fighting, to fighting a variety of fire, is the ideal fire- fighting equipment.
As china most professional beiben fire trucks exporter, we supply with beiben 10 cbm, 12 cbm, 16 cbm fire fighting trucks. supply north benz 4*2, 4*4, 6*4,6*6 drive fire fighting truck.
The beiben fire ruck can be beiben 1934 fire truck, beiben 2634 fire truck, beiben 2638 fire fighting truck, beiben 2642 fire fighting trucks. If you need any beiben fire truck, we will ensure the best quality and super price.
Key Features:
---- Benz technology 6*4 Heavy-duty chassis, durable & performance
---- Easy access to Pump room – positioned at chest height making it faster and easier to pull out and set up.
---- Huge fire equipment equip with your fire truck, put into service immediately.
---- Mercedes benz front axle , rear axle.
---- Easy access to Pump room
Specifications:
|
Name |
Standard configuration |
|
|
♦ Model: |
CEEC5150XFC |
|
|
♦ Chassis |
BEIBEN 6*4 truck for Fire Engine application |
|
|
♦ Drive type: |
6x4 Left hand drive |
|
|
♦ Wheel base |
5050+1450 mm |
|
|
♦ Dimension size (LxWxH) |
10105×2480×3380mm |
|
|
♦ Cabin Structure: |
The all-steel stamping parts welded structure, install double-row seat to rollover the double-cab hydraulic oil tanks overturned, can be moved overturned forward |
|
|
♦ Inside cabin equipment |
automatic temperature control air conditioning system of environmental protection (R134A refrigerant, without Freon), Radio + MP3. In addition to the car equipment, the installation of P.O.T. controlled switches, siren, alarms lights, indicator lights, sign lights, profile signal controlled switches |
|
|
♦ Number Of Seats |
2+4 seats with Four-door |
|
|
♦ Air condition |
Yes |
|
|
♦ Engine |
Model |
WP10.336E40 |
|
Power |
247 Kw (336 Ps) |
|
|
Torque |
1360/1450 N.m/r/min |
|
|
Advantage |
Beiben brand new engine,4 stork, 6 cylinder, New ultra high pressure common rail fuel injection system, strength of electronically controlled cooled EGR system, electronically controlled variable geometry turbocharger systems (VGS) |
|
|
Fuel |
Diesel |
|
|
Displacement |
9800 ml |
|
|
♦ Transmission gear: |
FAST 9-speed gearbox, suitable to all kinds of roads, more fuel-efficient |
|
|
♦ Front axle: |
Reverse Elliot, I-Beam |
|
|
♦ Rear axle: |
Single Reduction Banjo Design Full Floating |
|
|
♦ Clutch |
Single-plate dry coil-spring clutch, hydraulically operating with air assistance |
|
|
♦ Fuel tank |
400 L |
|
|
♦ Tyres: |
12.00R20 |
|
|
♦ Curb Weight |
11205 kg |
|
|
♦ Brakes |
Service brake: dual circuit compressed air brake Parking brake: Spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
|
|
♦ Electrics |
Operating voltage: 24V 120 AH Battery, negative grounded |
|
|
♦ Maximum Speed: |
90 km/h |
|
|
♦ Maximum gradeability: |
35 % |
|
-

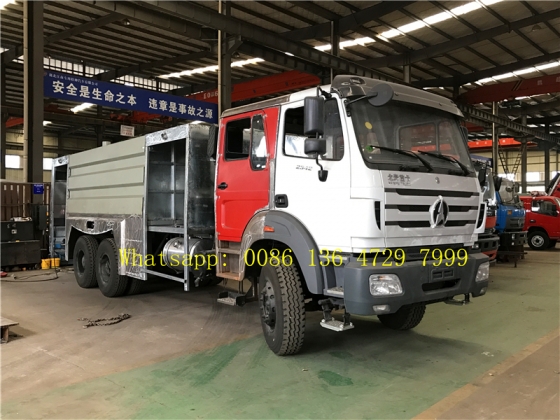

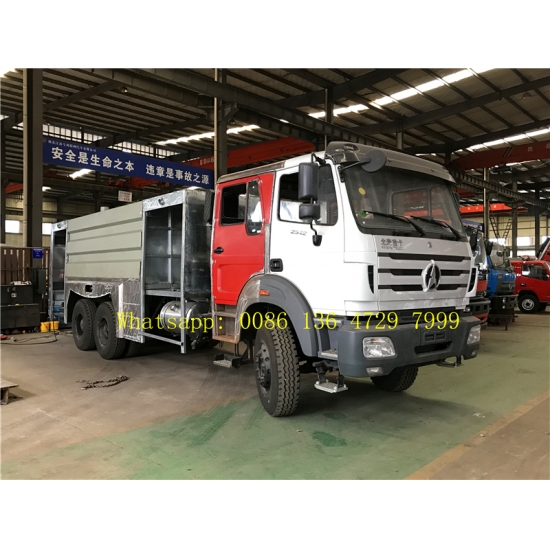

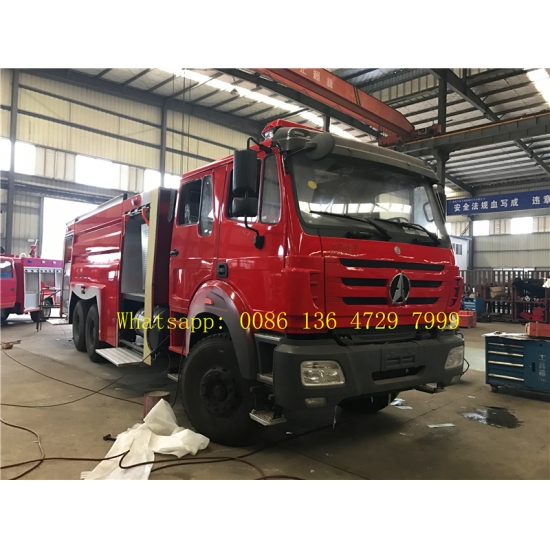

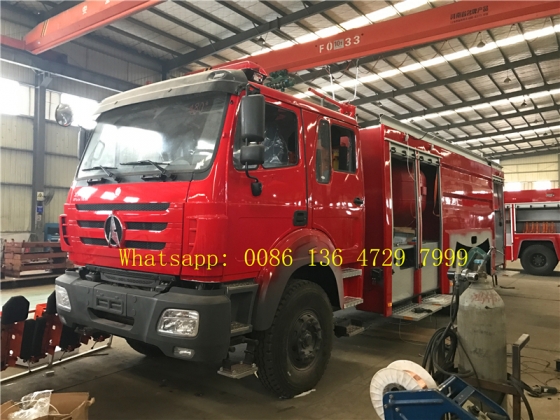

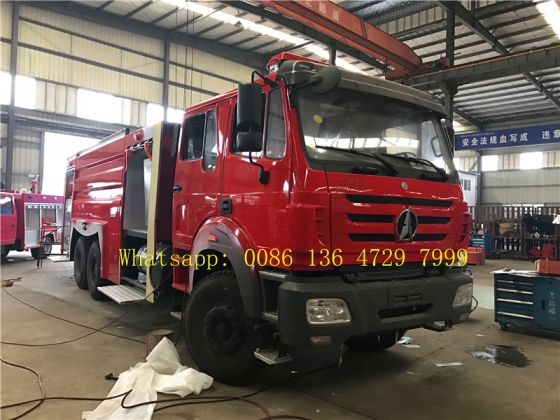

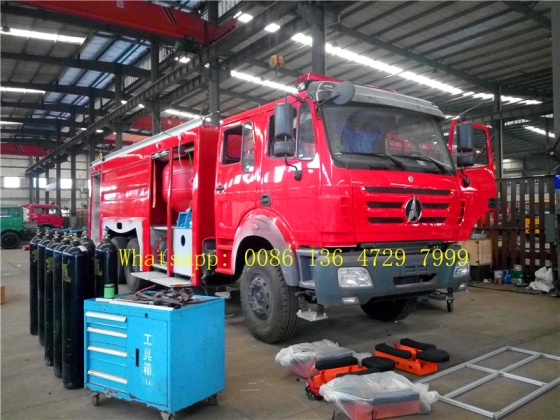

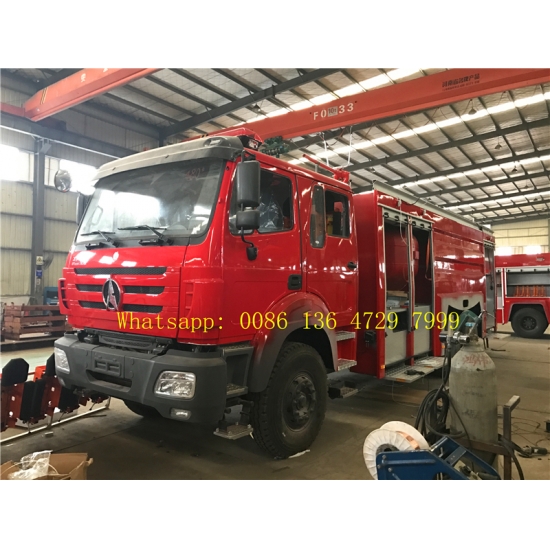

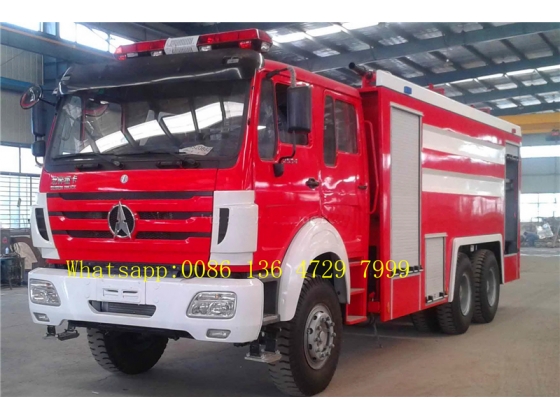

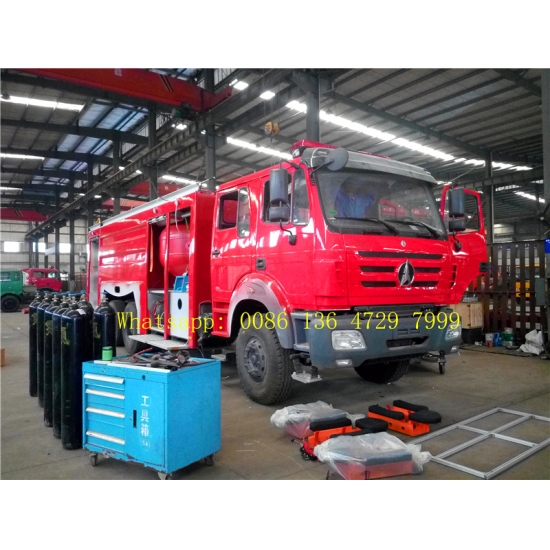

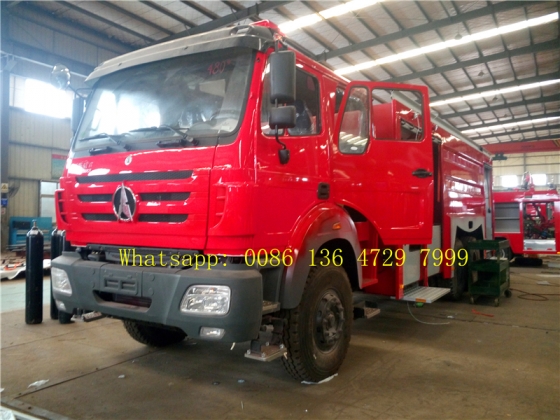

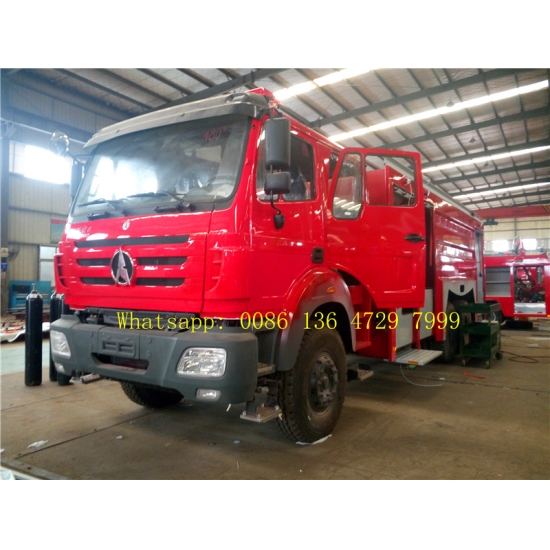

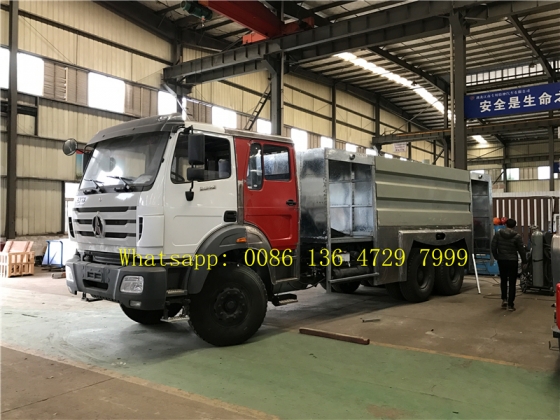

Beiben 2638 fire fighting trucks, china beiben 6*4 drive fire trucks
North benz 2638 fire fighting truck, with 15 cbm capacity tanker body.
2.1 Tanker System:
|
Name |
Standard configuration |
|
♦ Water tank volume |
8000 L |
|
♦ Foam tank volume |
2000L |
|
♦ Tank material |
High quality carbon stell plate, anti- treatment , thickness:5 mm |
|
♦ Manhole |
DN500mm, with quick lock/open device |

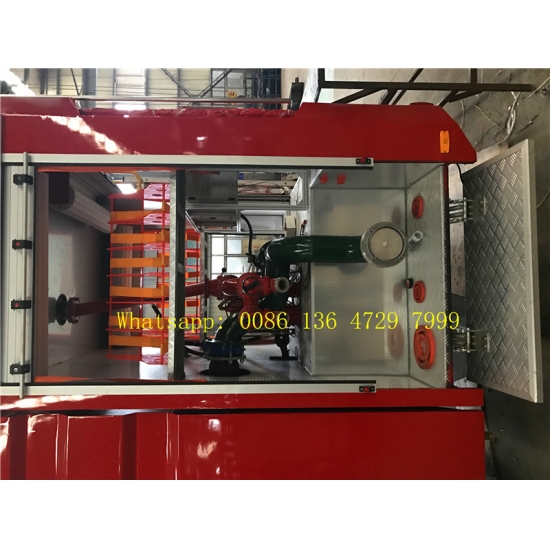

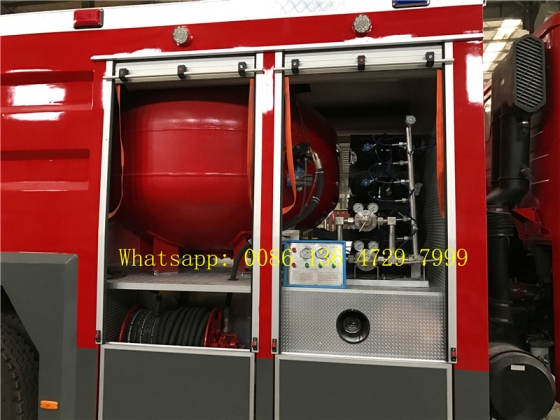

2.2 Fire Pump and Monitor
|
Name |
Standard configuration |
|
|
♦ Fire pump |
Model |
CB10.60/20.40, middle and normal pressure fire pump,rear back mounted, with aluminum roller shutter door |
|
Maker |
XIONGZHEN / RONGSHEN (China TOP brand) |
|
|
Flow |
25L/S (middle pressure) 60L/s (low pressure) |
|
|
Pressure |
2.0 MPA (middle pressure) 1.0 MPA (low pressure) |
|
|
Installation |
Rear mounted |
|
|
♦ Fire monitor |
Model |
SP40 |
|
Maker |
China Famous brand |
|
|
Location |
Top of tank |
|
|
Jet monitor rotation angle |
360° |
|
|
Angle of elevation |
≥70° |
|
|
Angle of depression |
≤-15° |
|
|
Throw |
Water throw≥65meter, Foam throw ≥60m |
|
|
Rotation |
360º; elevation: 0-80°, depression -10° |
|
|

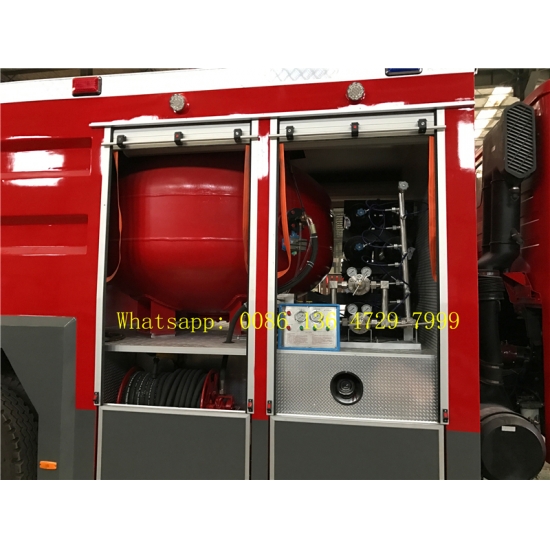

Name |
Standard configuration |
|
♦ Material |
Framework made out of the high-quality carbon steel, interior strake of the 2.5 mm aluminum jacquard card (anode treatment). Outside covered skin made out of high-quality carbon steel plate. |
|
♦ Stucture |
(1) the interior frame of storage compartment made out of welding structure, the top face to be 2.5 mm jacquard steel plate, high strength, rigid, and nice. (2) the inside storage compartment to be aluminum plate. (3) convenient switch of roll shutter, with push-button locking handle |
