Beiben 6x4 dump truck

Home Beiben Dump Truck Beiben 6x4 dump truck

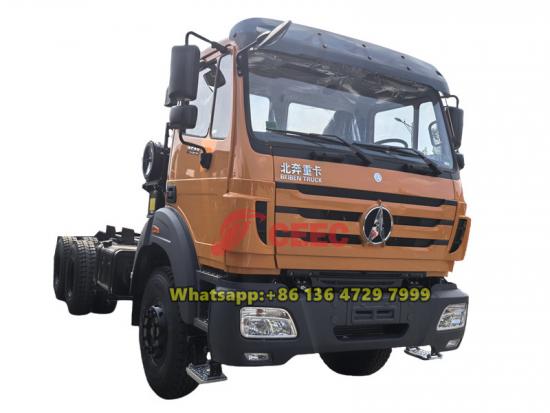

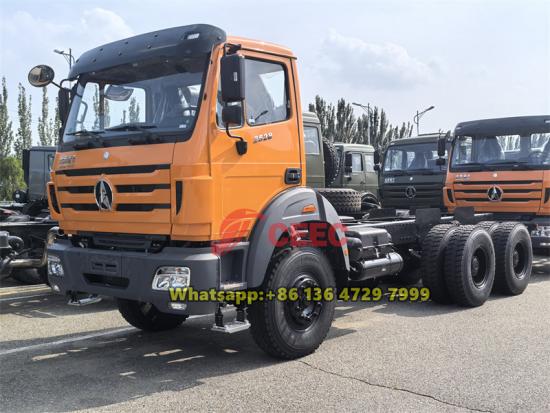

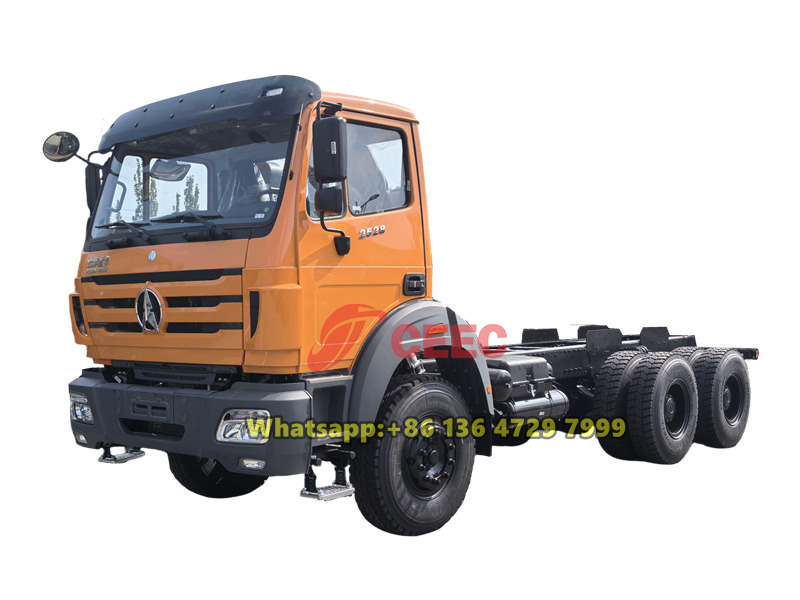

Beiben tandem axle dump truck chassis

Beiben 6×4 chassis for tipper truck
Beiben 6×4 chassis for tipper truck
Beiben 6×4 chassis for tipper truck
Beiben 6×4 chassis for tipper truck
Beiben 6×4 chassis for tipper truck
Beiben 6×4 chassis for tipper truck
Beiben 6×4 chassis for tipper truck
Beiben 6×4 chassis for tipper truck
Beiben 6×4 chassis for tipper truck
Beiben 6×4 chassis for tipper truck
Beiben 6×4 chassis for tipper truck
Beiben 6×4 chassis for tipper truck

Beiben tandem axle dump truck chassis

BeiBen 2528 dump truck chassis is a 6×4 heavy-duty engineering vehicle designed for harsh working conditions. It is equipped with a Euro II 290HP engine, a 9-speed synchronized transmission, and a two-stage reduction axle with a 5.263 ratio. With a 400L fuel tank and a 13-leaf spring suspension system, it offers a load capacity of 13,000 kg × 2. Thanks to its exceptional reliability and heavy-load performance, the BeiBen dump truck chassis is widely used in mineral transportation and construction projects, making it particularly suitable for the complex terrain and heavy-duty requirements of African regions.

  • Working capcity:

    40 tons
  • Cabin type:

    NG80B short cabin
  • Dimension ( mm ) :

    7100×2495×3180
  • Drive system:

    6×4
  • Wheelbase (mm):

    3800+1450
  • Engine power / Model:

    290HP/WD615.50
  • Gear Box:

    9JS150A
  • Remark:

    6×6, RHD drive is optional
New Products

BeiBen tandem axle chassis is a 6×4 chassis specifically designed for modifying heavy-duty construction dump trucks. It is renowned for its reliability and load-bearing capacity. It is powered by a WD615.50 Euro II engine (290 HP), paired with a 9JS150A synchronized transmission and a two-stage reduction axle with a 5.263 ratio. Featuring a long wheelbase of 3800+1450 mm and a 13-leaf parabolic spring suspension, it ensures outstanding load-bearing stability. The chassis is suitable for mounting a 5600×2300×1500 mm cargo box, making it ideal for mineral transportation and construction projects.

With its 13-ton two-stage reduction drive axle, 30% maximum gradeability, and 400L large-capacity fuel tank, the BeiBen heavy duty dump chassis is well-adapted to rugged mountain roads and challenging working conditions in Africa. The 430 mm clutch disc and EVB engine auxiliary braking system significantly enhance safety during long downhill drives. These features make it an ideal choice for mining operations, earth and rock transportation, and infrastructure construction in Africa.



beiben 6×4 dump truck chassis

*Beiben 3-axle chassis for truck

-----------------------------------------------------------------

CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.







» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS



Features:



Specially designed for heavy-duty conditions

  • # Engine Power
    290HP/2200RPM
    380HP/2200RPM
    420HP/2100RPM
  • # Rear Axle Type
    13-ton dual-stage reduction drive axle
    With differential lock
    Mercedes-Benz technology
  • # Cargo Box
    5600×2300×1500mm
    High strength steel
    Front telescopic lifting cylinder



» Ⅱ. Product Specifications:



Beiben 6×4 dump truck chassis specifications

Model

Beiben 2528

Driving Type

6×4

Engine

Type: WD.615.50

Emission standard: EURO II

Displacement (l): 9,726

Max. Power (HP/rpm): 290/2200

Max. Torque (N.m): 1160

Speed at Max. Torque (rmp): 1100-1600

Cylinder: 6 in-line

Transmission

Model: 9JS150A

Gears: 9 speed forward

Synchromesh or Constant Mesh: Synchromesh

Power Take-Off (P.T.O.): yes

Steering System

8098 Recirculating ball steering gear, hydraulic booster

Clutch

Ø430mm single dry friction disc, diaphragm spring, pushing type

Fuel Tank

400L (iron)

Front Axle

7500kg, non-drive steering

Middle & Rear Axle

13000kg+13000kg, double reduction driving axle, differential lock

Suspension

Front 13pcs / Rear 13pcs hard parabolic spring

Brakes

Service: dual circuit air brakes

Emergency/Parking: spring potential brake

Auxiliary: EVB (optional ABS)

Electrical Equipment

Alternator: 70AmpStarter

Motor: 5.5kW

Batteries: 2×12V – 135AH

Performance Data

Gradeability@GVM: 30%

Max. Geared Road Speed: 80km/h

Final Drive Ratio: 5.263 (optional 4.769, 5.921)

Tyre

Size and Ply Rating: 12.00R20-18PR

Steel Rim

Dumper Cargo Box

Size: 5600×2300×1500mm, front lifting system

Dimensions

Wheel Base (WB): 3800+1450mm

Overall Length (OL): 8500mm

Overall Width (OW): 2500mm

Overall Height (OH): 3670mm

Front Overhang (FOH): 1435mm

Rear Overhang (ROH): 1600mm

Total Vehicle Weight

15500kg





» Ⅲ. Product Details:

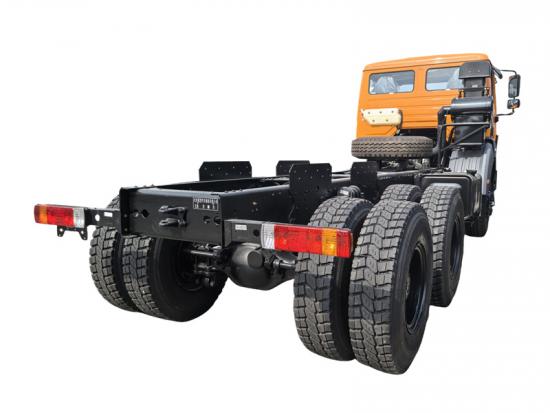

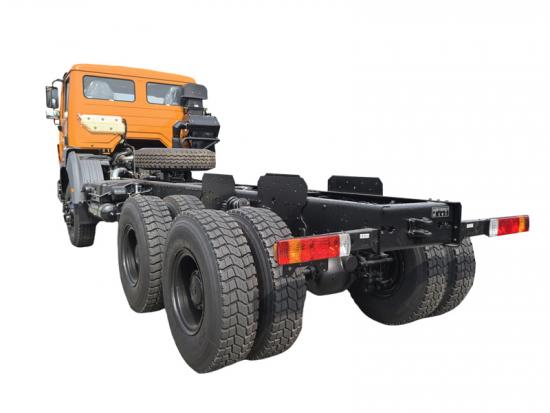

Beiben 6×4 chassis for tipper truck

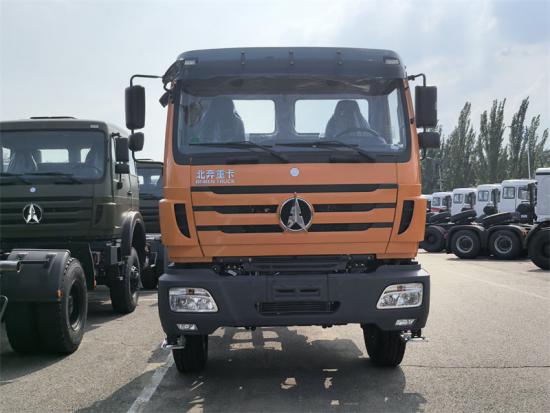

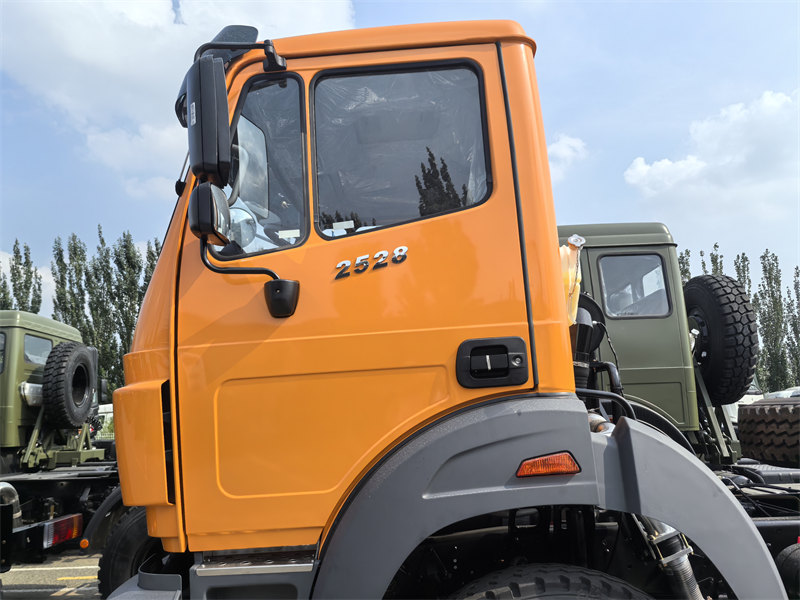

NG80 Cab



Adopts Beiben NG 80B short cab, with 2 seats and A/C. The cab has a semi-floating suspension system, providing high structural rigidity, strong energy absorption, and enhanced driver protection.

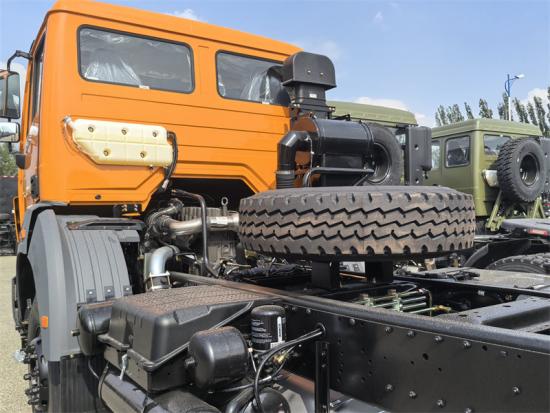

Beiben 6×4 mining dumper truck

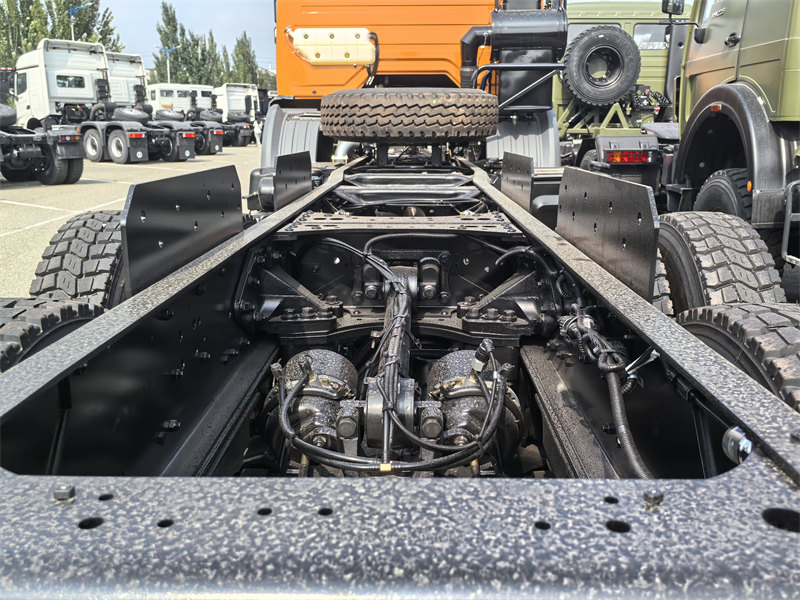

Durable Frame

The frame devoleped using Mercedes-Benz technology, adopts a variable-section fish-belly composite beam design, and the inner and outer longitudinal beams are stamped in one step, with excellent load-bearing performance.



Beiben NG80B dump truck chassis

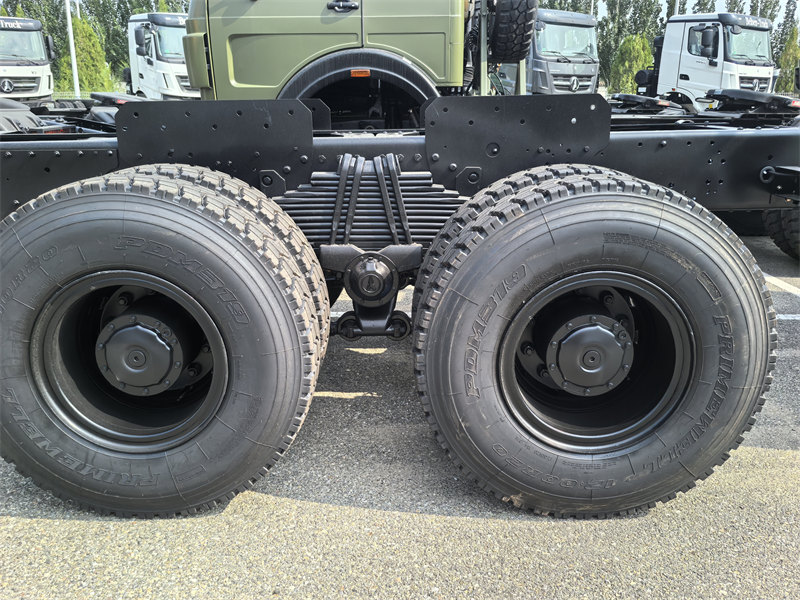

Reliable Suspension

The suspension adopts a combination of leaf springs, balance suspension, thrust rods, and stabilizer bars to ensure stability under load.





» Ⅳ. Product Drawing:

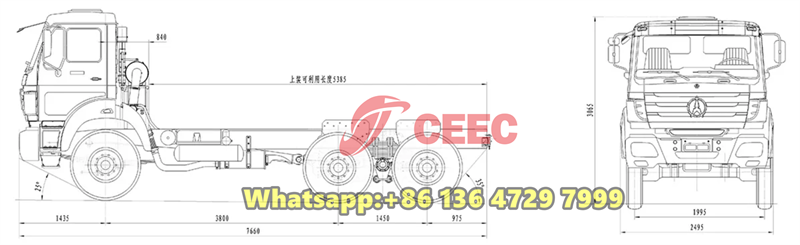

Beiben dump truck chassis drawing



» . Customer Case:

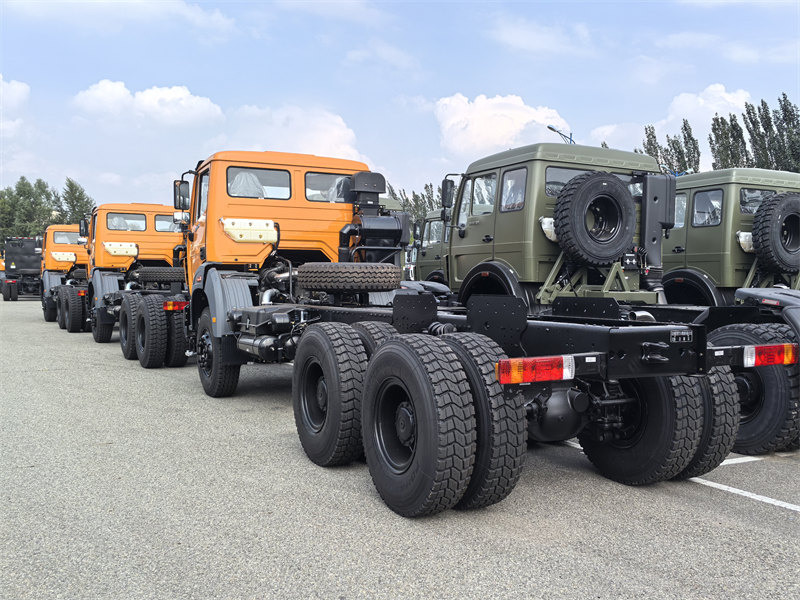

Beiben 6×4 construction tipper truck chassisBeiben dump trucks chassis exported to Africa



Beiben dump truck chassis for export

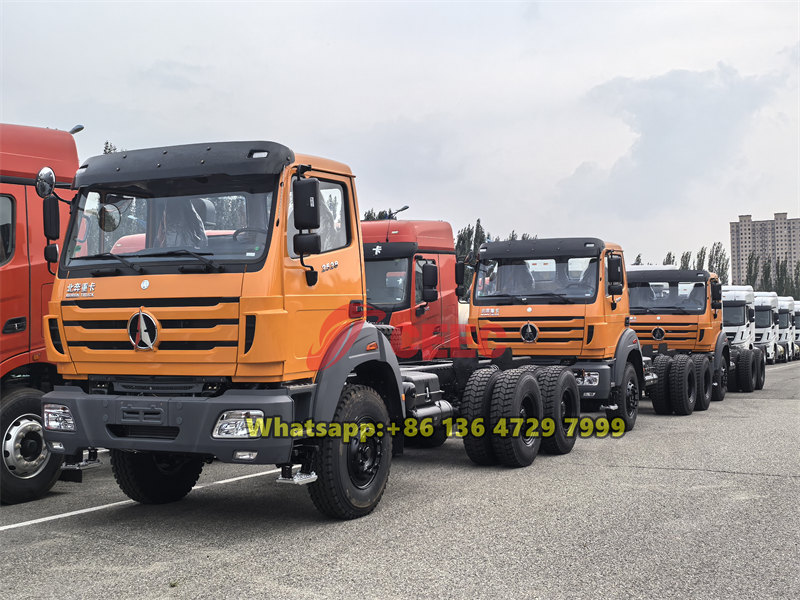

Beiben heavy duty construction chassis are ready for shipment







Products--100% china beiben factory trucks!

Shipping --100% fast, Convenience, Efficient!

Guarantee--7days + 24hours Safetify Service!




1.Beiben 4x4, 6x6, 8x8 drive tractor truck, all upon on your need !



2. Factory bottom price, save your china vist cost



3.12 months after sale service guarantee, quality assurance.



4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
