Beiben V3 6×4 dump truck is a highly efficient and durable engineering transport vehicle featuring a 6×4 drive configuration. It is powered by a Weichai 430HP engine, compliant with Euro-5 emission standards. With a curb weight of 15.8 tons, a rated load capacity of 20 tons, and a maximum gross weight of 33 tons, it delivers outstanding load-bearing performance. Equipped with a high-roof V3-L cab, it provides a comfortable driving environment, including an air-suspension seat, a sleeper berth, and a multimedia system. The high-strength steel cargo box, paired with a stable hydraulic lifting system, achieves a maximum tipping angle of 50°, ensuring efficient unloading. It is particularly suitable for medium- and short-haul transportation of bulk materials such as sand, gravel, and coal.
Working capcity:
20~30 tonsCabin type:
Beiben V3 cabinDimension ( mm ) :
8800×2500×3200 mmDrive system:
6×4Wheelbase (mm):
4100+1450Engine power / Model:
430HP/WP12.430E50Gear Box:
12JSD200TRemark:
6×6 drive is optionalProduct Description
Beiben V3 6×4 heavy dump truck is an engineering transport vehicle built on the Beiben V3 chassis, designed for automated unloading via a hydraulic lifting mechanism, also known as Beiben tipper lorry. It consists of key components such as the vehicle chassis, hydraulic lifting system, cargo box, and power take-off (PTO) device. The truck adopts a 6×4 drive configuration with a wheelbase of 4100+1450 mm and is powered by a Weichai WP12.430E50 engine, delivering a maximum power of 430 hp and a peak torque of 2060 N·m, meeting Euro-5 emission standards. With a curb weight of 15.8 tons, a rated load capacity of 20 tons, and a maximum allowable gross weight of 33 tons, it features a well-balanced axle load distribution, with the rear axles supporting a maximum load of 13 tons × 2, demonstrating exceptional load-bearing capability.
The truck is equipped with a V3-L high-roof cab, featuring a 620mm sleeper berth, an air-suspension heated seat, a multimedia system, and a 220V power converter for enhanced comfort. The cargo box is constructed from high-strength steel, offering a volume of 20 CBM, with reinforced floor and side panels. It also includes a hydraulically locked rear gate and a stable lifting system, achieving a maximum tipping angle of 50° for efficient unloading. Thanks to its reliable powertrain, robust frame structure, and user-friendly design, the Beiben V3 construction tipper truck is ideally suited for medium- and short-haul transportation of bulk materials such as sand, gravel, and coal.
Product Specifications
|
BASIC PARAMETERS |
|
|
Model |
3343K |
|
Wheel base , mm |
4 100 + 1 450 |
|
Wheel formula |
6x4 |
|
Curb weight, kg |
15,800 |
|
Load capacity, kg |
20,000 |
|
Technically permissible maximum weight, kg |
33,000 |
|
- on front axle , kg |
7,000 |
|
- on back axle , kg |
13,000 + 13,000 |
|
CABIN |
|
|
Model |
V3-L ( MB Actors MP3 license ) |
|
Sleeping bag |
One sleeping bed (620 mm ) |
|
Height from floor to ceiling |
1,576 mm |
|
Description |
- Electric doors; - Central lock with remote control; - A/C; - Mechanical sunroof; - Multimedia Bluetooth ; - Converter 220 V / 1000 W; - Driver's seat on air suspension with heating; - ERA-GLONASS system; - Multifunctional steering wheel; - Autonomous heater 4 kW; - Cabin insulation; - Electric heating of rear-view mirrors; - Digital instrument panel. |
|
ENGINE |
|
|
Engine Model |
WP12.430E50 (WEICHAI) |
|
Type |
Four-stroke |
|
Number and arrangement of cylinders |
6, in-line |
|
Displacement |
11,596 ml |
|
Emission standard |
Euro - 5 |
|
Maximum torque, N ∙ m |
2,060 |
|
Speed at max. torque, rpm |
1000-1400 rpm |
|
Engine Power, hp |
430 |

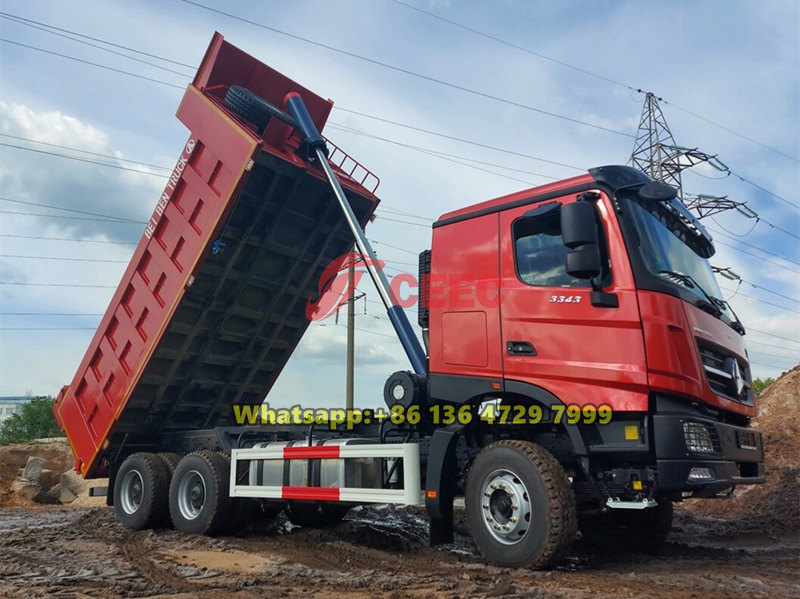

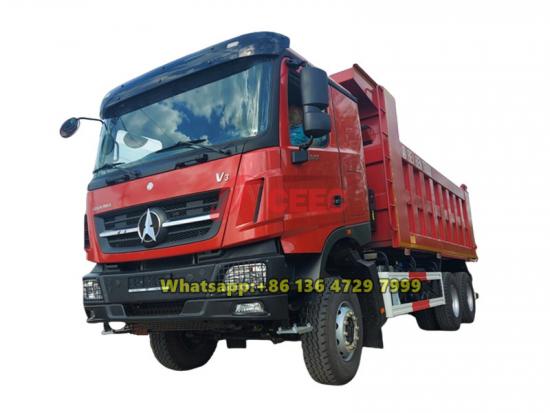

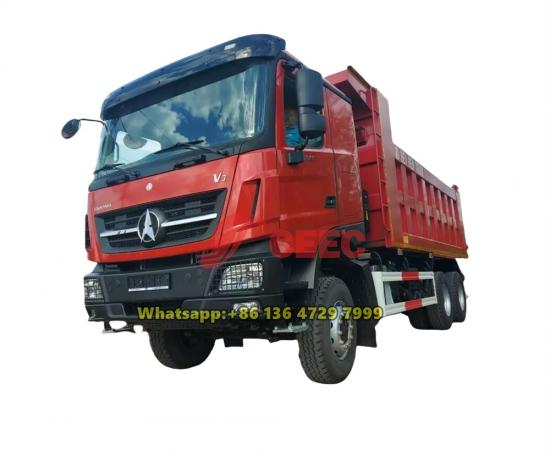

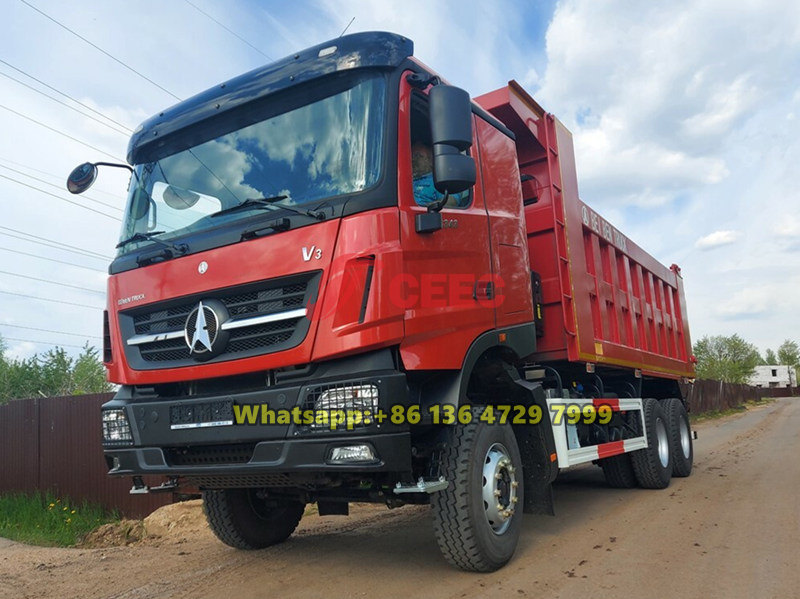

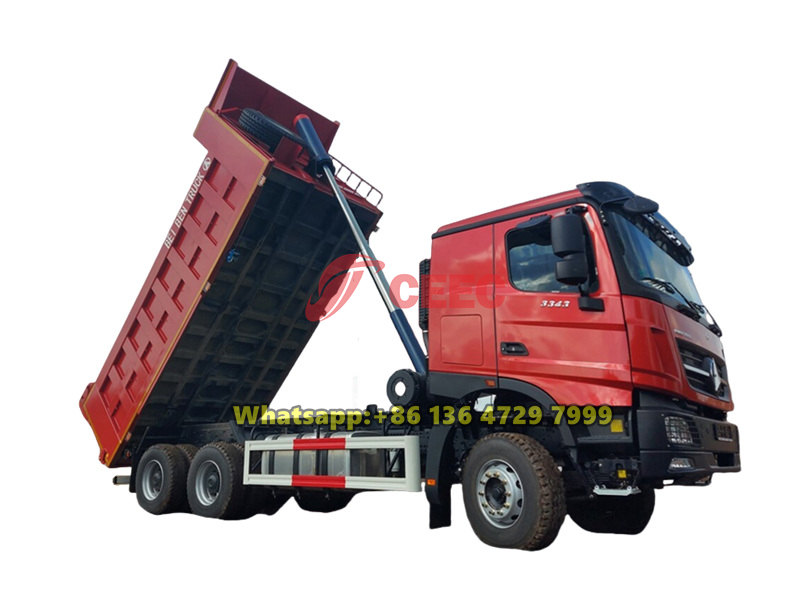

Product Pictures
More than 15 years on Beiben 2529 tippers,Beiben2534dumper, Beiben 2538dump trucks , beiben 6*4 dump truck,beiben 10 wheeler tipper trucks, ,beiben 10 wheeler tipper,dumpers.We are the best beiben 10 wheeler dump trucks manufacturer in china.
China baotou 2529 dump trucks is totally applied benz truck technology, with CEEC TRUCKS latest design on the 2529 heavy duty dump trucks , to ensure the best work situation of beiben 2529 tippers .
Beiben 2530 dump truck 6*4 driving, with latest technology on beiben 2530 dump truck chassis, china weichai diesel engine and fast 9 shift transmission. we can supply both new beiben 6*4 heavy truck and used beiben 6*4 trucks .
Beiben 6*4 420 hp dump trucks, with china famous 420 horse power diesel engine, we aim at supplying the best quality north benz 420 hp dumper and parts .
Beiben 2534 off road dump truck is with beiben advanced 6*6 driving system, can be suitable for different kinds of working situation. China beiben 6*6 dump trucks can payload at least 25 ton material in very tough road of africa .
Beiben NG80 6x4 dump truck for congo country, we are the authorized and best manufacturer of congo beiben dump trucks supplier, have exported more than 300 units beiben dump trucks to Congo , pointe noire seaport.
Power Star Beiben 6x4 tipper truck With Low Price , we produce and supply power star 6*4 dump trucks, power star left hand drive dump truck and power star right hand drive dump truck.
Beiben Best Performance NG80 Euro2 6x4 dumper, this is the classic cabin of beiben NG80 dump trucks, with benz truck reliable technology, our beiben NG80 dump truck get great reputation in congo country.
Powerful Beiben 420HP 6x4 dump 10 wheeler trucks, this kind of beiben dump trucks with the stronger beiben 420 hp diesel engine, germany benz technology axle and germany zf8098 steering stem .
