The Beiben 2638 RHD Construction Tipper Truck is specifically designed for the African market, powered by a 380 HP Weichai engine paired with a 9-speed gearbox. With a maximum load capacity of 12.67 tons and a climbing ability of 30%, it features a Mercedes-Benz technology chassis and a high-strength steel cargo box (5600×2300×1500mm) equipped with a front-mounted hydraulic lifting system, making it ideal for heavy-duty operations in mining and infrastructure construction. The right-hand drive (RHD) cab comes with air conditioning and shock-absorbing seats for enhanced driving comfort. Dual-circuit air brakes and an exhaust brake ensure safety, making it the perfect choice for African construction transport.
Working capcity:
25 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
8290*2500*3310Drive system:
6×4, right hand driveWheelbase (mm):
3800+1450Engine power / Model:
380 HP/WP10.380E32Gear Box:
9JS150ARemark:
6×6 is optionalThe Beiben 2638 RHD Construction Tipper Truck is a high-performance heavy-duty tipper designed for complex working conditions in Africa, particularly in Tanzania. Built on Beiben's proven heavy-duty truck chassis technology and incorporating Mercedes-Benz engineering, it delivers exceptional load-bearing capacity, powerful performance, and superior off-road capability, making it suitable for heavy-load transport in mining, construction sites, and road projects. Its optimized chassis structure, large-capacity cargo box, and highly reliable powertrain make it an ideal solution for engineering transportation in Africa.
The Beiben RHD Heavy-Duty Sand Tipper is equipped with a Weichai WP10.380E32 diesel engine, with a displacement of 9.726L, delivering a maximum power of 380 HP and peak torque of 1600 N·m, complying with Euro III emission standards while balancing power and fuel efficiency. Paired with a FAST 9JS150A manual 9-speed transmission and a first-gear ratio of 13.04, it achieves a climbing capacity of up to 30%, making it well-suited for Tanzania's mountainous terrain. The 400L steel fuel tank ensures long-range operation, reducing refueling frequency and improving operational efficiency.
Product Specifications
|
Beiben 2638 RHD construction tipper truck specifications |
||
|
Dimension |
8290*2500*3310mm |
|
|
Cargo box inner dimension |
5600X2300X1500mm bottom 8mm side 6mm front lifting |
|
|
Approaching angle/Departure angle |
26/32° |
|
|
Overhang(front/rear) |
1410/1630mm |
|
|
Wheel base |
3800+1450mm |
|
|
Max speed |
85km/h |
|
|
Curb weight |
12200kg |
|
|
Loading capacity |
12670kg |
|
|
Slope climbing capability |
Max.30% |
|
|
Engine |
Model |
WP10.380E32, water-cooled, four strokes,6 cylinders in line, turbocharged, direct injection |
|
Displacement |
9.726L/Diesel |
|
|
Stroke |
126/130mm |
|
|
Max. power |
280KW (380HP) |
|
|
Max.torque |
1600 N.m |
|
|
Emission standard |
Euro III |
|
|
Fuel tanker capacity |
400L Steel |
|
|
Clutch |
∮430, Single dry frictional disc, Hydraulic boosting |
|
|
Gearbox |
9JS150A, mechanism,9 forward gears,1 reverse gear, manual operated |
|
|
Gear ratio of gear box |
13.04/8.48/6.04/4.39/13.43/2.471.76/1.28/1.00 R: 11.77 |
|
|
Suspension system (Mercedes Technology) |
Front |
Non-free standing leaf spring, telescopic shock absorber with stablizer bar suspension, 10pcs |
|
Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
ZF8098, whole circulation in ball, hydraulic booster |
|
|
Frame (Mercedes Technology) |
Fish belly shape, variable width, variable sections,317X70X8.5+7+8mm |
|
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake,7.5 Ton non-driving steering axle,7.5 |
|
|
Middle and Rear axle (Mercedes Technology) |
13 ton double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle 13 |
|
|
Tyre |
12.00R20 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cabin |
NG80B long cabin with one sleeping bed; Full steel skeleton structure, covered with double layer steel plate; |
|

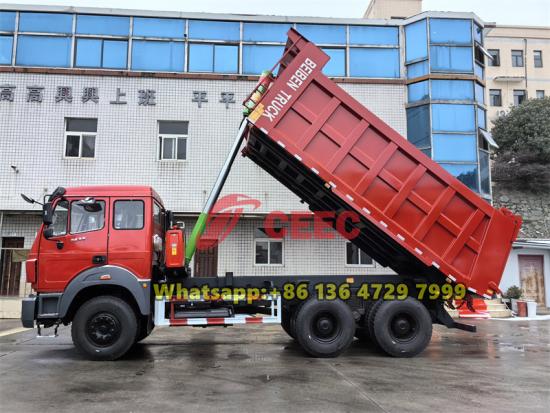

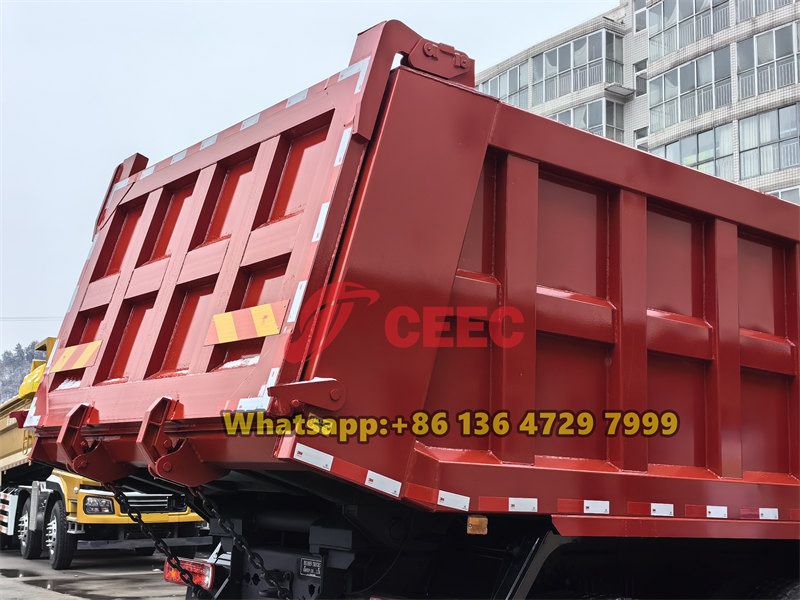

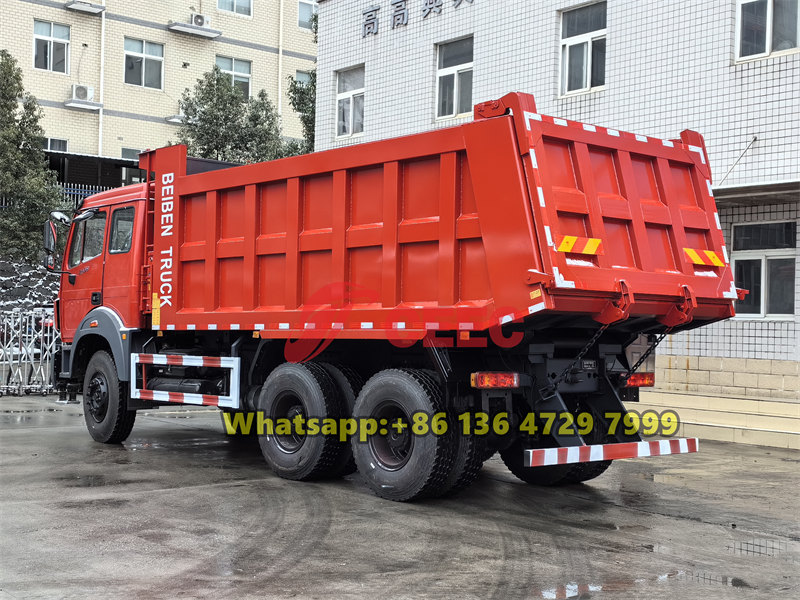

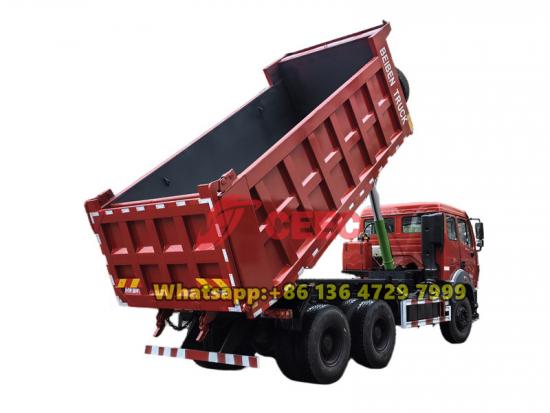

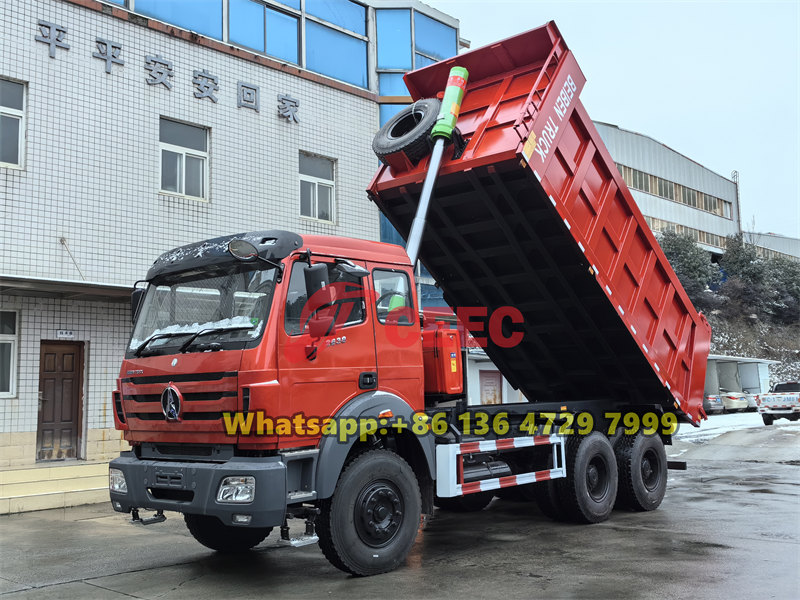

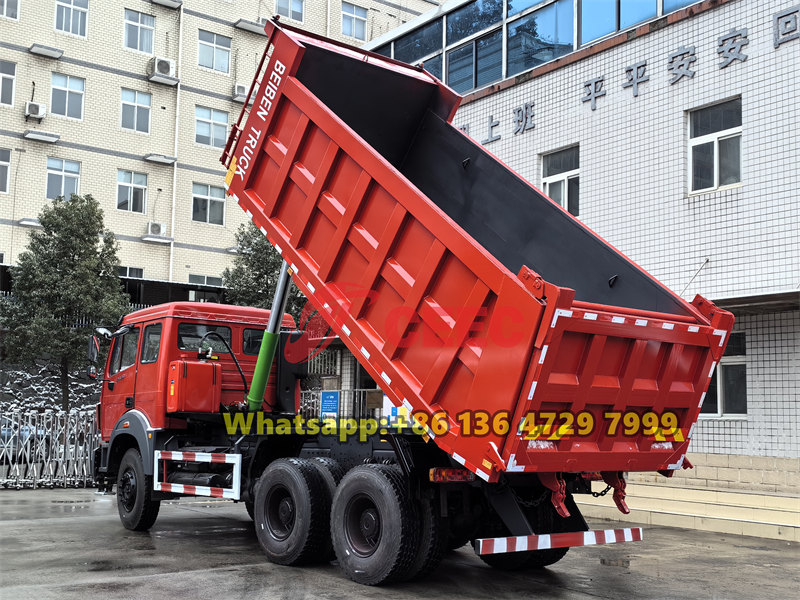

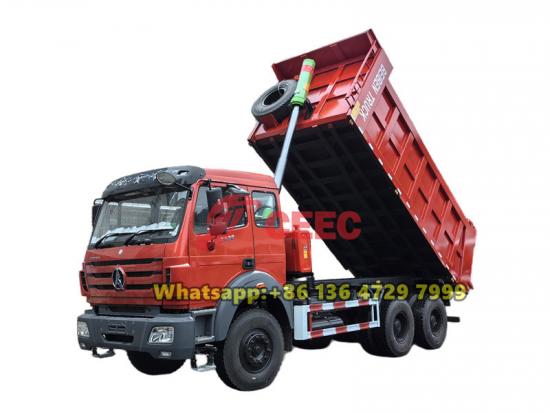

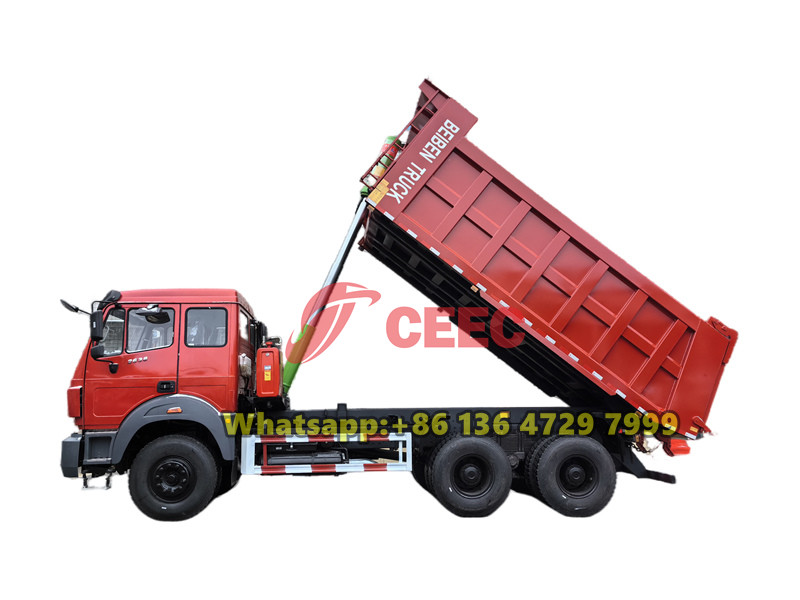

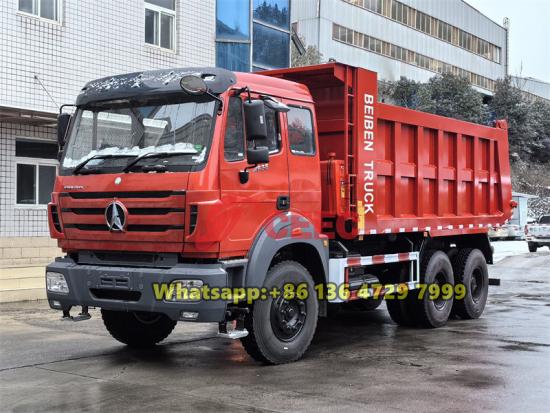

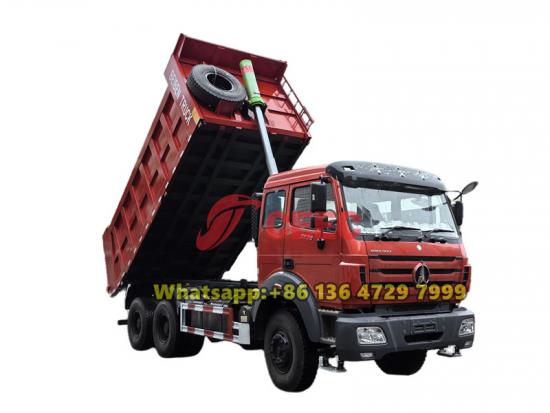

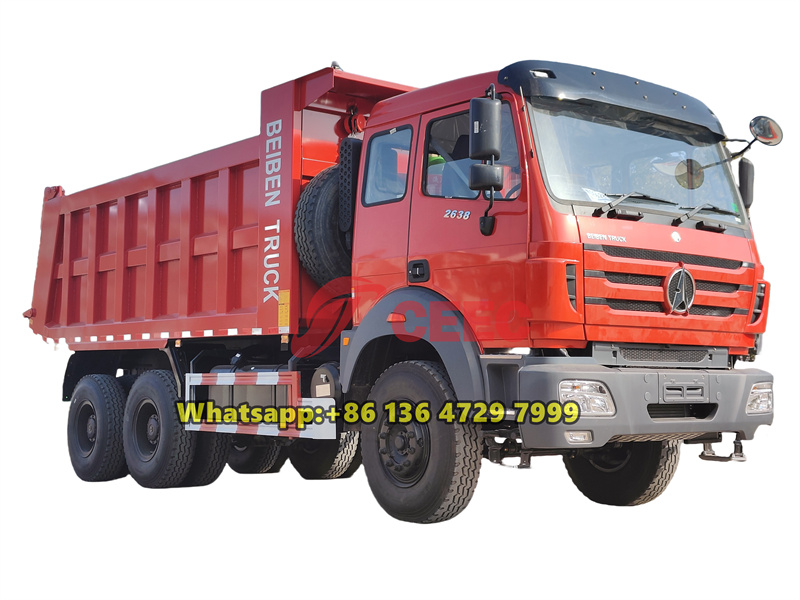

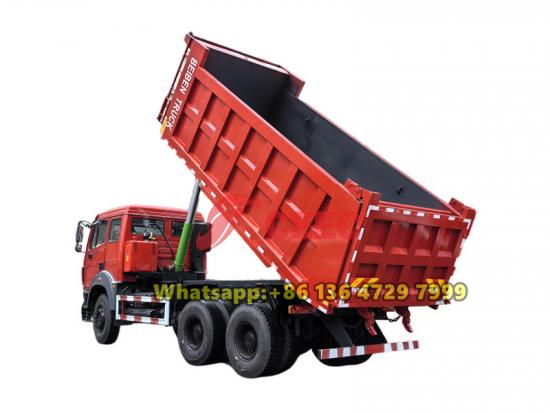

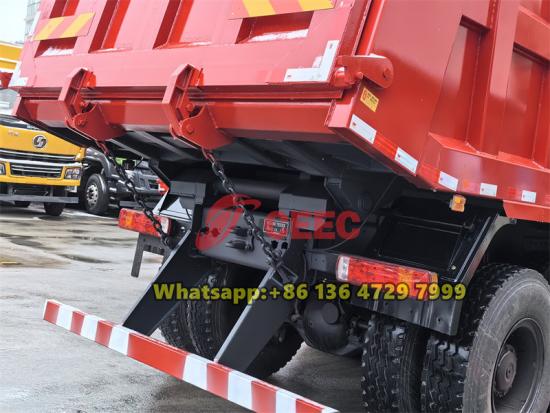

Product Pictures
