Beiben 1848 tractor head is a high-efficiency highway tractor equipped with a 480-horsepower Weichai WP13 engine and a FAST automatic transmission, offering a maximum towing capacity of 44 tons. It features an ECAS electronically controlled suspension, dual fuel tanks (700+400 liters), and a Mercedes-Benz-inspired cab with a double-layer sleeper and digital instrument panel. Integrated with an intelligent safety system, it is ideal for long-haul, high-efficiency transportation.
Working capcity:
44 tonsCabin type:
Beiben V3 cabinDimension ( mm ) :
7150×2500×3200Drive system:
4×2, left hand driveWheelbase (mm):
3600Engine power / Model:
480HP/WP13.480E501Gear Box:
FAST automaticRemark:
6×4 is optionalProduct Description
Beiben 1848 tractor is a 4x2 model specifically designed for efficient long-distance transportation. It is powered by the Weichai WP13.480E501 engine, delivering a maximum output of 480 horsepower and a peak torque of 2,400 N·m, complying with Euro V emission standards for a balance of power and environmental performance. Paired with the FAST F12JZ24 automatic transmission, its intelligent shifting system significantly reduces driver fatigue while improving fuel efficiency. The vehicle adopts a lightweight design, with a GVW of 18 tons and a maximum towing capacity of 44 tons. Equipped with dual fuel tanks (700+400 liters), it offers exceptional range, making it well-suited for high-intensity operations such as trunk logistics.

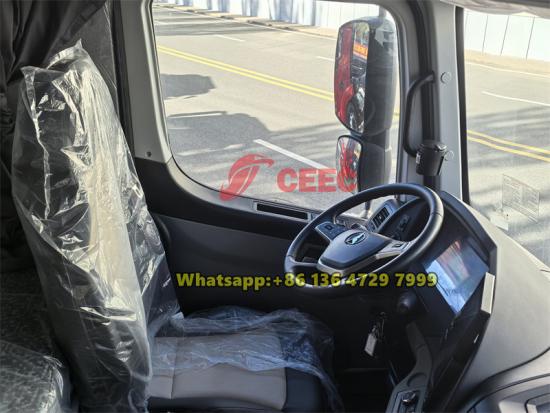

The cab of Beiben V3 1848 tractor truck is built on Mercedes-Benz technology, featuring a high-roof, dual-berth layout (890mm + 610mm) and amenities such as an air-suspension seat, a multimedia system, a 220V power supply, and a 4kW independent heater for superior comfort. The chassis incorporates front parabolic leaf springs and a rear ECAS electronically controlled air suspension, along with all-disc brakes for enhanced safety. Additionally, the vehicle comes standard with the BEIBEN Connect telematics system, urea line heating, and full-vehicle insulation, ensuring reliable operation in harsh conditions. As a modern logistics solution, the Beiben 1848 prime mover is an excellent choice for efficient and dependable transportation.
Product Specifications
|
BASIC PARAMETERS |
|
|
|
Model |
Beiben 1848 |
|
|
Wheel formula |
4x2 |
|
|
Wheel base , mm |
3,600 / 3,900 |
|
|
Gross mass in running order, kg |
7,000...7,500 |
|
|
Maximum load on fifth wheel, kg |
10,500...11,000 (Jost) |
|
|
Gross vehicle weight, kg |
18,000 |
|
|
Max. towing weight, kg |
44,000 |
|
|
Height of the fifth wheel, mm |
1,160 |
|
|
ENGINE |
|
|
|
Model |
WP13.480E501 (WEICHAI) |
|
|
Type |
Four-stroke |
|
|
Number and arrangement of cylinders |
6 – cylinder, in-line |
|
|
Displacement (ml) |
12,540 ml |
|
|
Emission standard |
Euro 5 |
|
|
Max. power (KW) |
353KW (480HP) |
|
|
Maximum torque, N ∙ m |
2,400 |
|
|

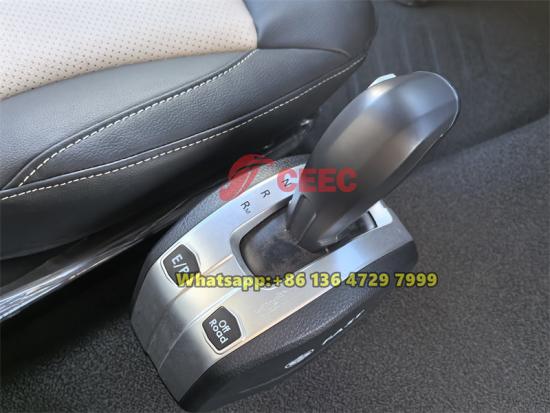

TRANSMISSION |
|
|
|
Brand |
FAST |
|
|
Model |
F12JZ24 |
|
|
Gearbox type |
Automatic |
|
|
SUSPENSION |
|
|
|
Front |
Parabolic springs with anti-roll bar, 7 t |
|
|
Back |
Electronically controlled (ECAS), 13 t |
|
|
Brakes on 1 and 2 axis |
Disk |
|
|
CABIN |
||
|
Model |
High V3-LH ( MB Actros MP3 License ) |
|
|
Sleeping bed |

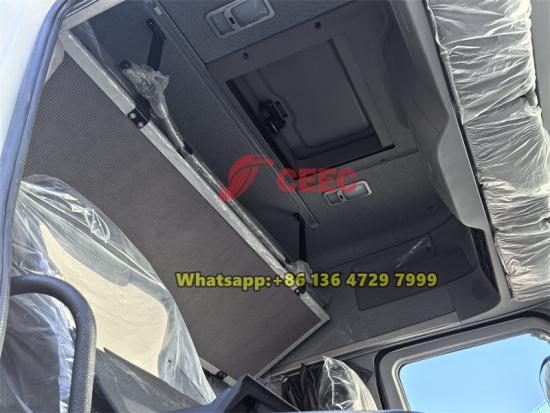

Two berths (890 mm + 610 mm) |
|
|
Height from floor to ceiling |
1,906 mm |
|
|
Description |

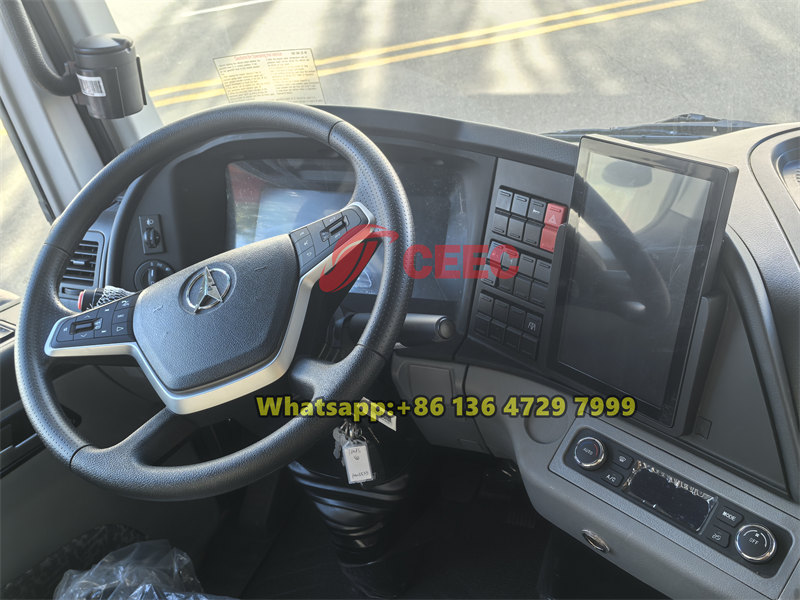

- Electric doors; - Central lock with remote control; - AC; - Mechanical sunroof; - Multimedia Bluetooth ; - Converter 220 V / 1000 W; - Driver's seat on air suspension with heating; - Upper and side aerodynamic spoilers; - ERA-GLONASS system; - Multifunctional steering wheel; - Autonomous heater 4 kW; - Cabin insulation; - Electric heating of rear-view mirrors; - Digital instrument panel. |
|
|
Suspension |
Pneumatic 4- point |
|
|
OTHER PARAMETERS |
||
|
Fuel tank , l |
700 + 400 |
|
|
Suspension cabins |
Pneumatic 4- point |
|
|
Clutch |
FAST, dry , single disc |
|
|
Steering control |
With hydraulic booster |
|
|
Tires |
315/70R22.5 |
|
|
Maximum speed |
90 km /h |
|
|
Additional specifications |
- Diesel filter heating; - Urea tube heating; - Cabin and door thermal insulation; - BEIBEN telematics system Connect . |
|

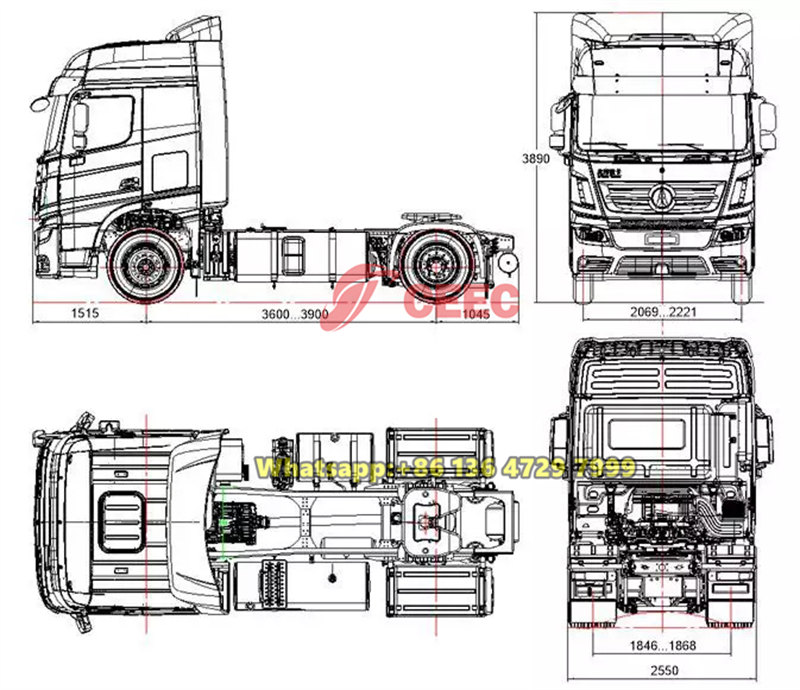

Product Drawing

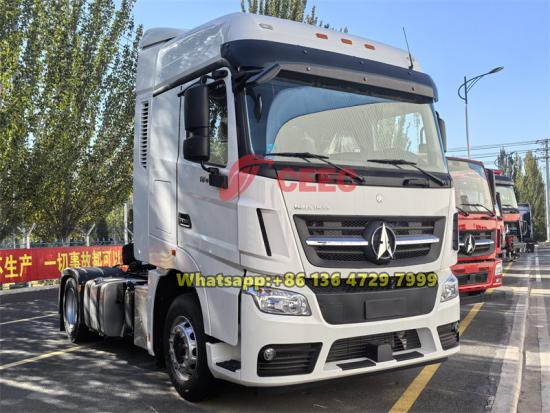

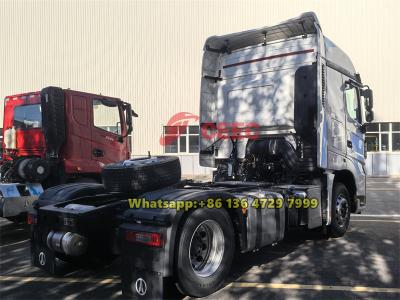

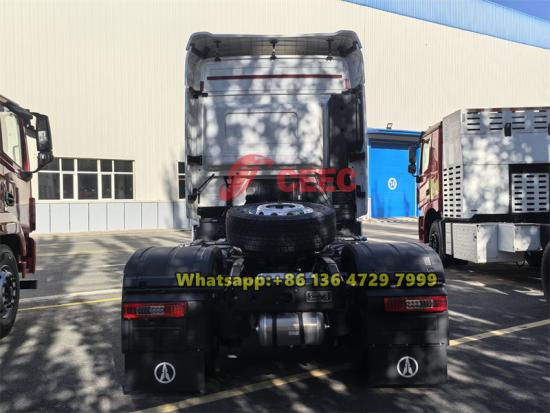

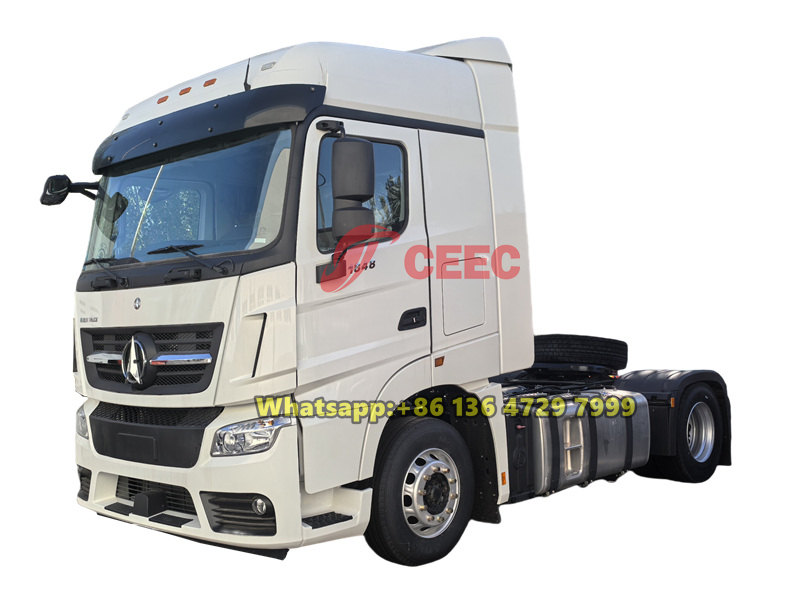

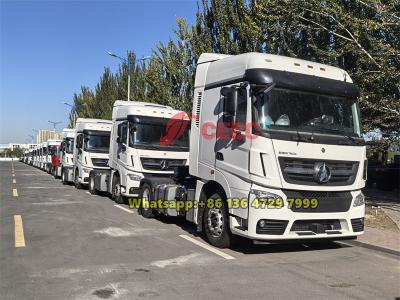

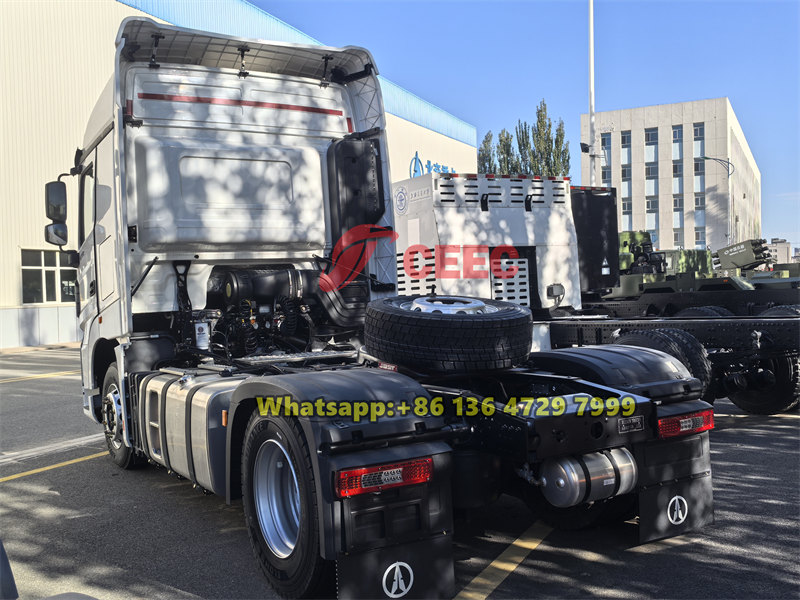

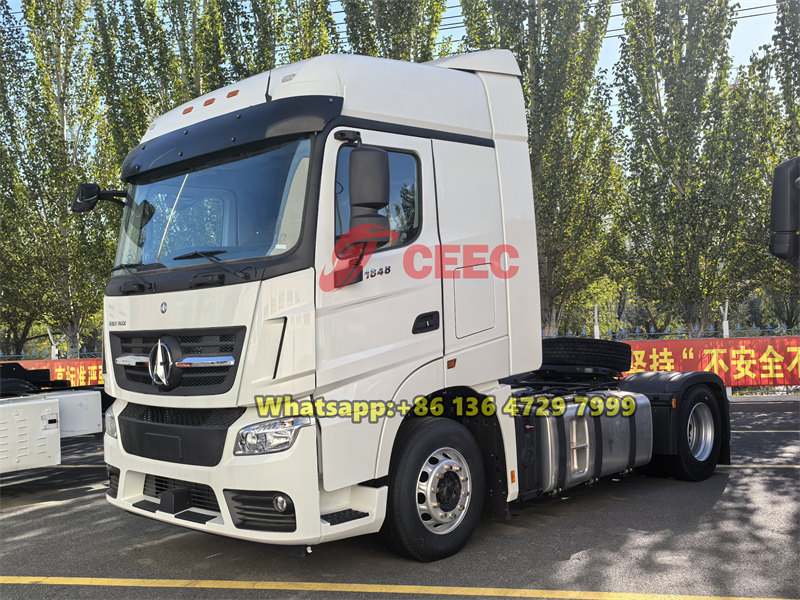

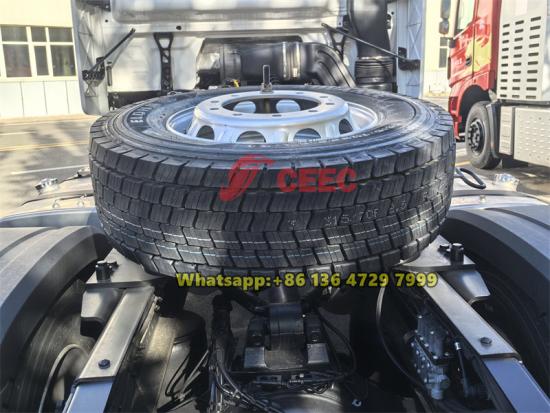

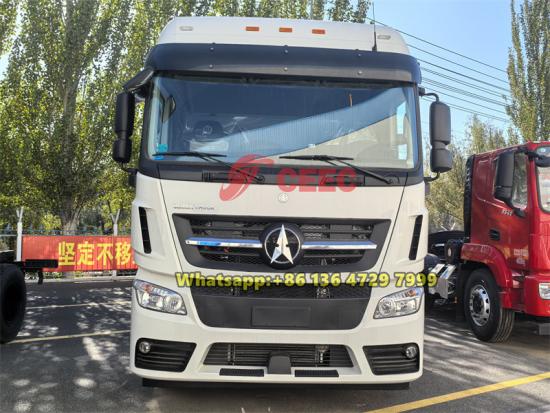

Product Pictures
