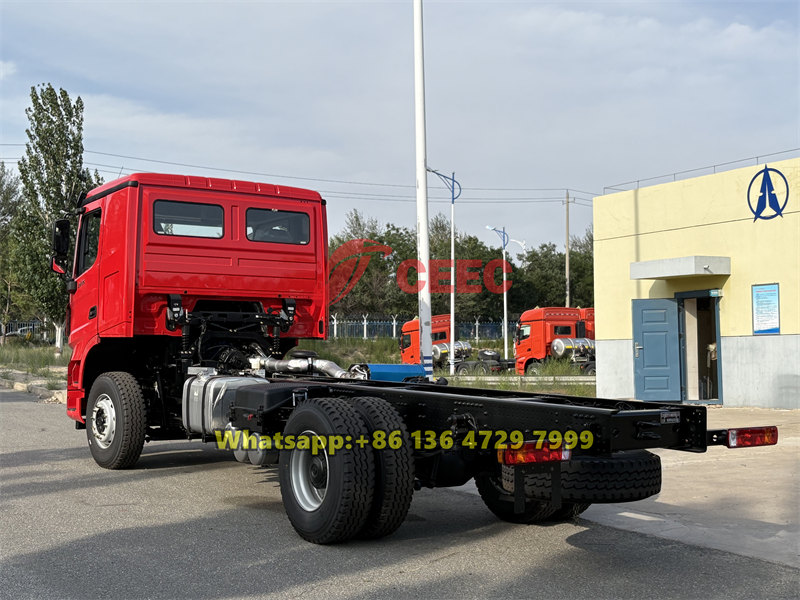

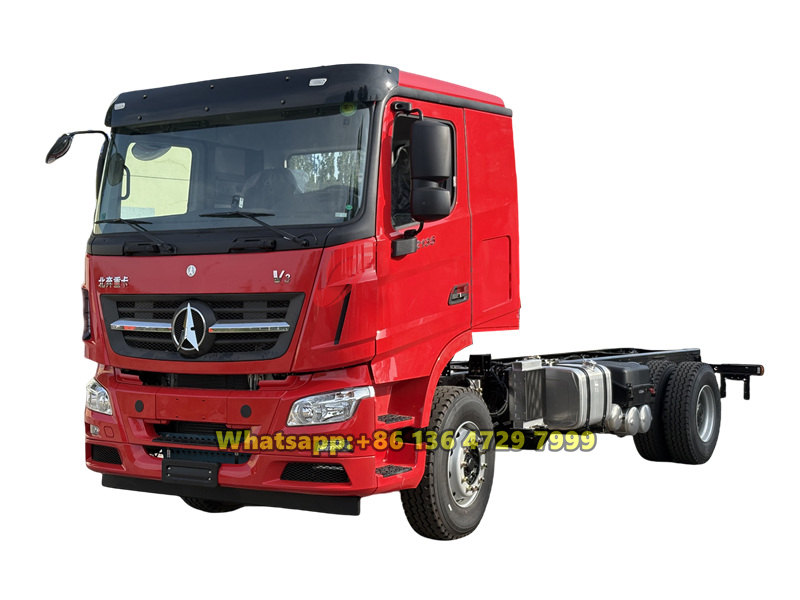

The Beiben V3 fire truck chassis (Model ND5210TTZZ) is powered by a 350-horsepower WEICHAI WP8.350E62 diesel engine, with a GVW of 21 tons. It features a long cab accommodating 6 occupants. Optimized for firefighting operations, the chassis boasts a 4,800mm wheelbase and a reinforced frame, while also supporting modifications for pump trucks, wreckers, and other specialized vehicles, making it a high-performance, multi-functional dedicated chassis.
Working Capcity:
10 tonsCabin Type:
Beiben V3 cabinDimension ( mm ) :
8615×2550×3200Drive System:
4×2, left hand driveWheelbase (mm):
4800 mmEngine Power:
350HP/WP8.350E62Gear Box:
9JS150TRemark:
4×4 is optionalProduct Description

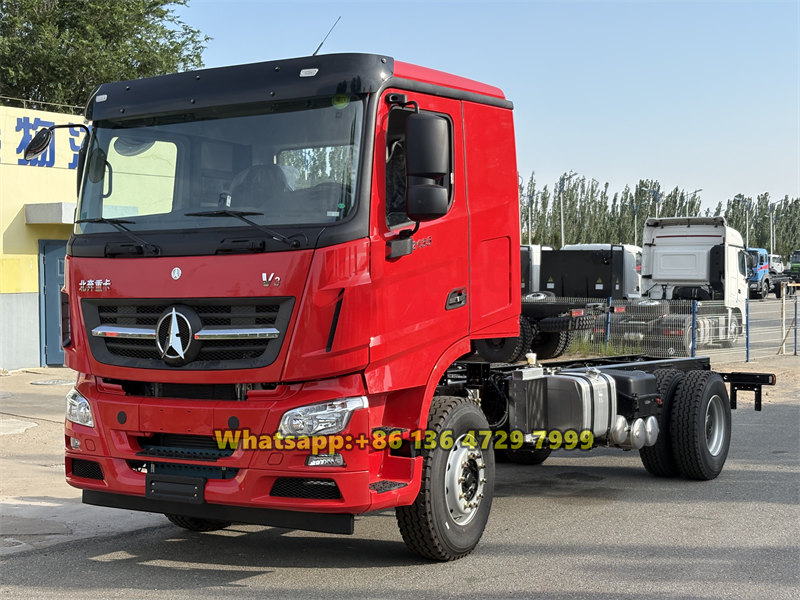

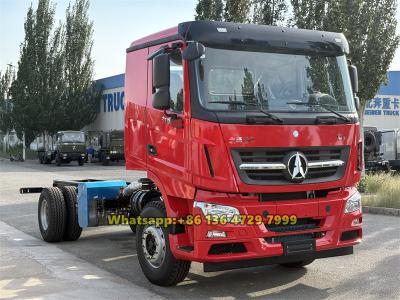

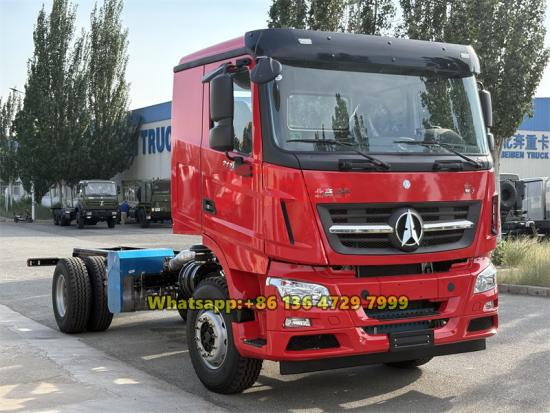

The Beiben V3 fire truck chassis (Model ND5210TTZZ) is equipped with a WEICHAI WP8.350E62 engine, delivering 350HP power. With a GVW of 21,000 kg, it offers exceptional load-bearing capacity. The chassis features a Beiben V3 long cab accommodating 2+4 people, providing spacious interiors that balance comfort and functionality. Its striking red painting meets fire vehicle identification requirements, while structural enhancements—including optimized wheelbase and strengthened suspension—ensure stability and maneuverability in complex rescue scenarios.
Designed specifically for fire trucks, the Beiben V3 heavy-duty chassis offers high reliability and adaptability for modifications. Beyond firefighting applications, it can be retrofitted into various specialized vehicles, such as truck-mounted cranes, concrete pump trucks, wreckers, and oilfield service trucks. Its modular design facilitates rapid integration with different superstructures, addressing diverse needs in engineering emergency response and oilfield services, making it a versatile and professional platform for specialized vehicles.
Product Specifications
|
Beiben V3 fire truck chassis specifications |
|||
|
Traction type |
4×2 |
||
|
Driving type |
LHD |
||
|
Cabin |
Beiben V3 long cabin, 2=4 seats |
||
|
Dimension (Lx W xH) |
8615×2550×3200 |
||
|
Wheelbase(mm) |
4800 |
||
|
Max speed(km/h) |
96 |
||
|
Gross vehicle weight (kg) |
21000 |
||
|
Curb weight(kg) |
8100 |
||
|
Loading Weight(kg) |
13000 |
||
|
Front/rear overhang (mm) |
1515/2300 |
||
|
Approach/departure angle (°) |
15/15 |
||
|
Engine |
Model |
WP8.350E62 |
|
|
Type |
Water-cooled, four strokes, 6 cylinders in line, turbocharged, direct injection with the exhaust valve brake, EGR (gas exhausted recycling), diesel engine |
||
|
Displacement(L) |
7.8 |
||
|
Bore X stroke(mm) |
110/136 |
||
|
Max power(kw/rpm) |
257/2200 |
||
|
Hose power (hp) |
350 |
||
|
Max torque (Nm/rpm) |
1400/1200-1600 |
||
|
Emission standard |
EURO 6 |
||
|

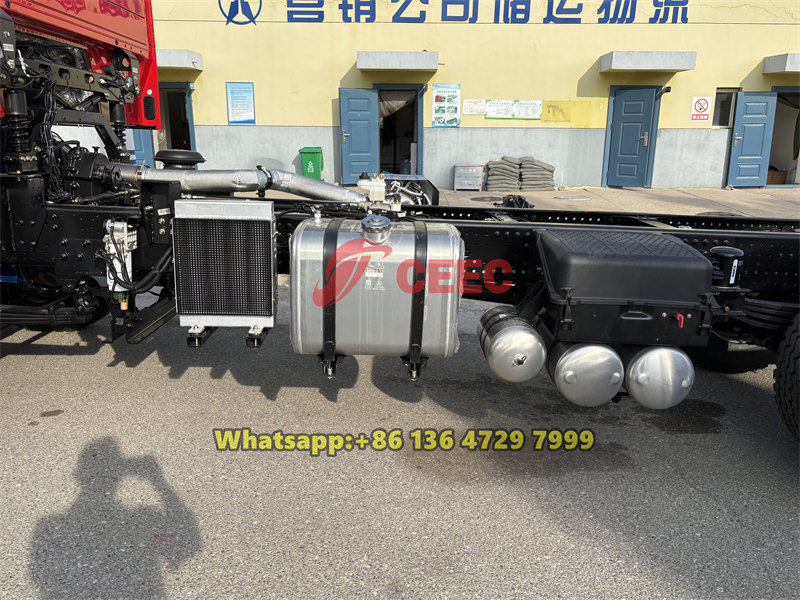

Fuel tanker(L) |
400L steel fuel tanker |
||
|
Clutch |
Model |
430 Diaphragm type |
|
|
Gearbox |
Model |
9JS150T mechanism, 9 forward gears, 1 reverse gear |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
|
Assistant brake |
Engine exhaust brake |
||
|
Park brake |
Potential springs pressing on middle and rear wheels |
||
|
Steering system |
Model |
ZF8098 |
|
|
Frame |
Fish belly, shape, variable width, variable sections, side beam structure |
||
|
Front axle (Mercedes Benz Technology) |
8 T Double-shoe pneumatic brake, non-driving steering axle |
||
|
Middle and Rear axle (Mercedes Benz Technology) |
13T Double-shoe pneumatic brake, casting, double reduction driving axles with inter-wheel & inter-axles differential locks |
||
|
Tyre |

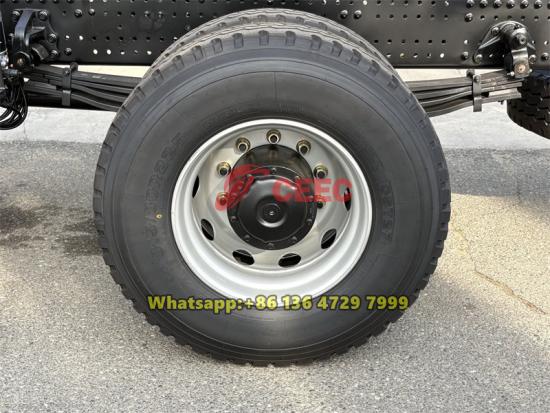

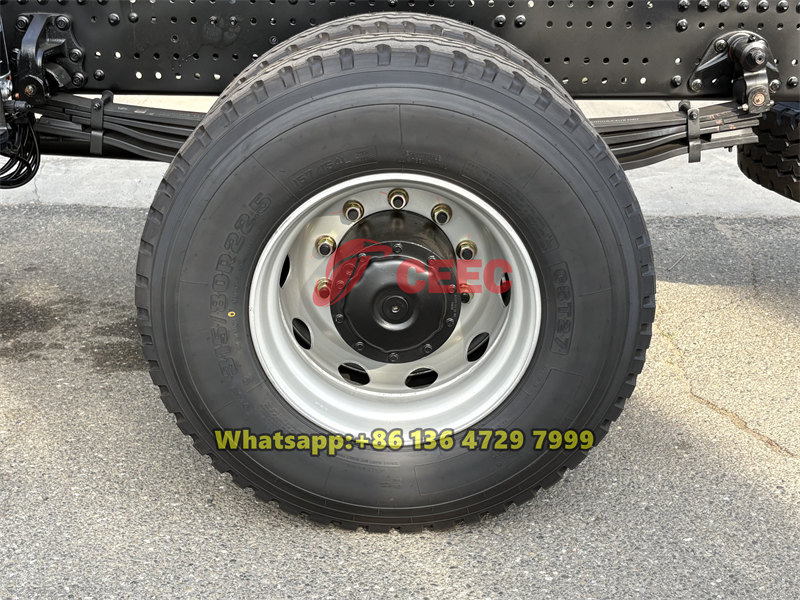

315/80R22.5 20PR, 6+1 pcs |
||
|
Electrical system |
Battery |
2X12V/135Ah |
|
|
Generator |
28V-35A |
||
|
Starter |
5.4Kw/24V |
||
|
Cab |
Beiben NG80B cabin, with air-conditioner Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
||
Product Details
 |
 |
 |
 |
