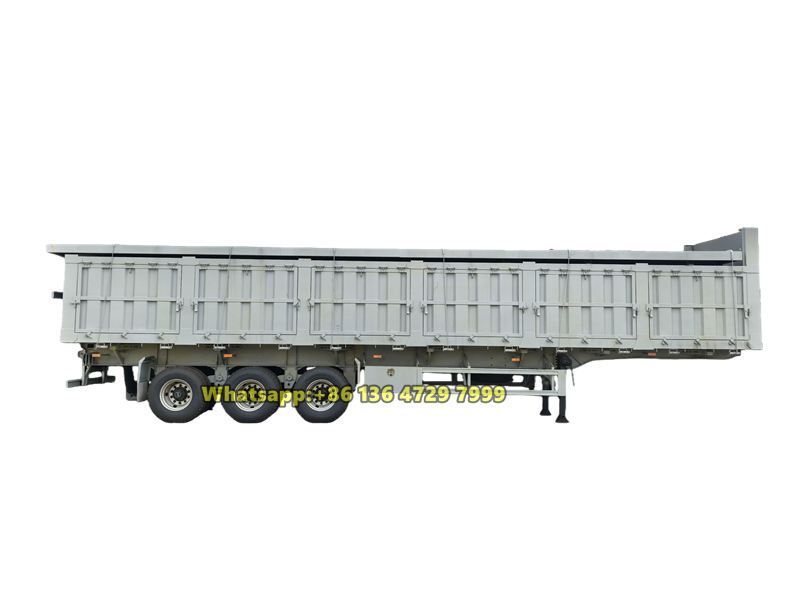

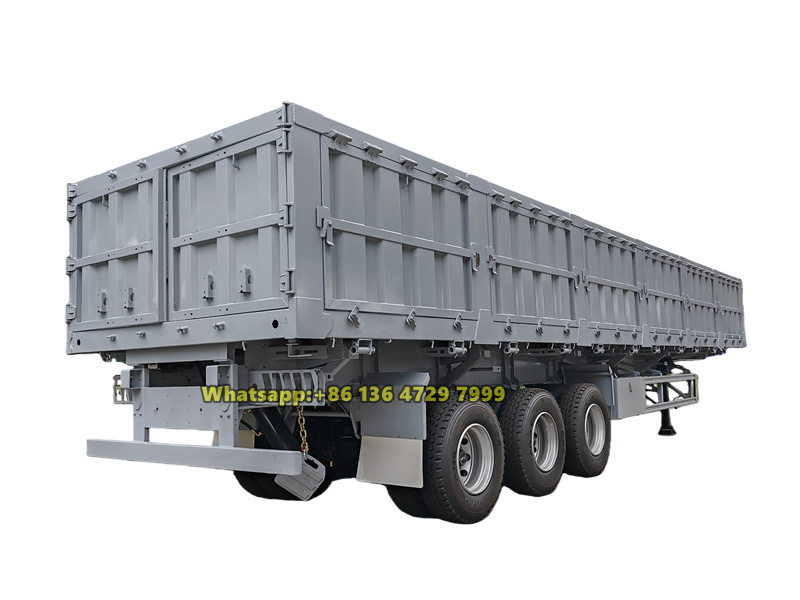

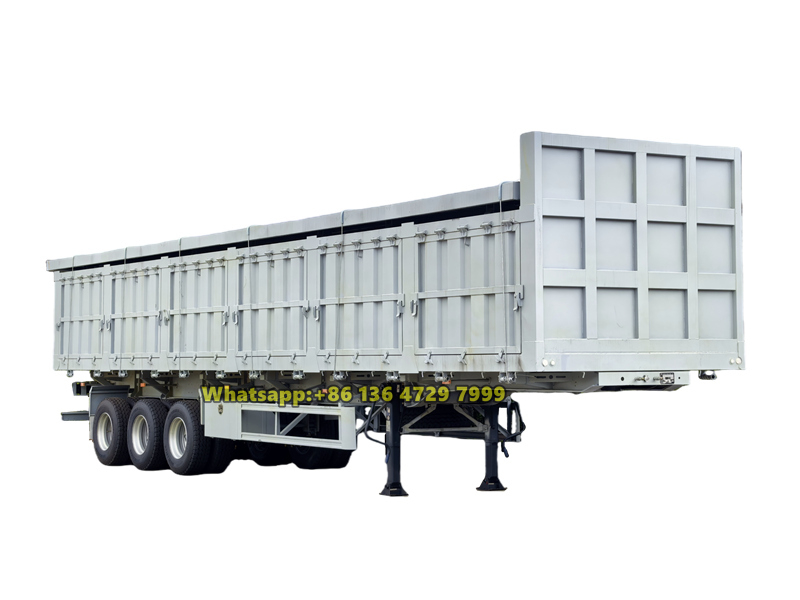

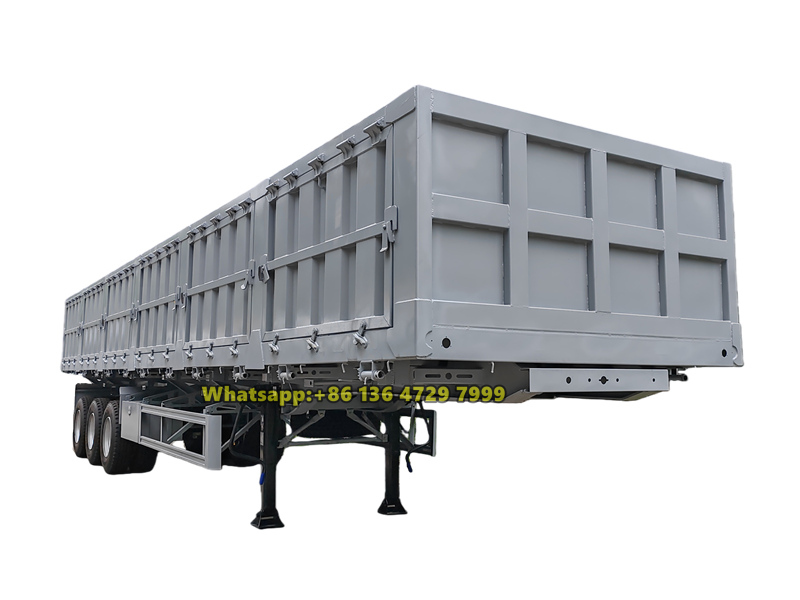

The 3-axle sidewall semi-trailer is a medium-to-long-distance transport vehicle with a flatbed structure. It features a 13-meter-long body and is equipped with three 13-ton FUWA axles, offering a load capacity of 60 tons. The 600 mm high sides facilitate flexible loading and unloading. The landing gear consists of FUWA-branded 28-ton two-speed manual operation legs, ensuring stability and reliability. With a rugged structure and strong adaptability, this vehicle is suitable for transporting various goods such as building materials and food over medium-to-long distances.
Working Capcity:
60 tonsDimension ( mm ) :
13000×2550×3000Axle Type:
FUWA, 13-ton, 3 pcsLand Gear:
JOST, 28 tonKingpin:
2' or 3.5'Suspension:
Leaf springTyres:
315/80R22.5, 13 pcsRemark:
Customized cargo box size※ Ⅰ.Product Introduction:
The 3-axle sidewall semi-trailer is a medium-to-long-distance freight vehicle with a flatbed cargo section. It features three 13-ton FUWA axles and FUWA 28-ton outriggers, giving it a load capacity of 60 tons. As an important tool for logistics transportation, its unique and practical design provides ample space for cargo transport. The sideboard design facilitates easy loading and unloading, enhancing transport efficiency. This 3 axle 60-ton dropside semi-trailer boasts a large load capacity, robust structure, and high durability, making it suitable for long-distance transport of various goods, such as building materials and food.
CEEC factory is premium supplier of cargo box semi-trailers,
guarantee all dropside cargo semi-trailers Brand-New and High-Quality.
※ Ⅱ. Product Specifications:
|
Product name |
Sidewall semi-trailer |
|
Loading capacity |
60 tons |
|
Axle |
3 pieces, 13T FUWA axle |
|
Dimensions (LxWxH) |
13000 x 2550 x 3000mm |
|
Curb weight |
14600 kg |
|
Axle spacing |
1310mm |
|

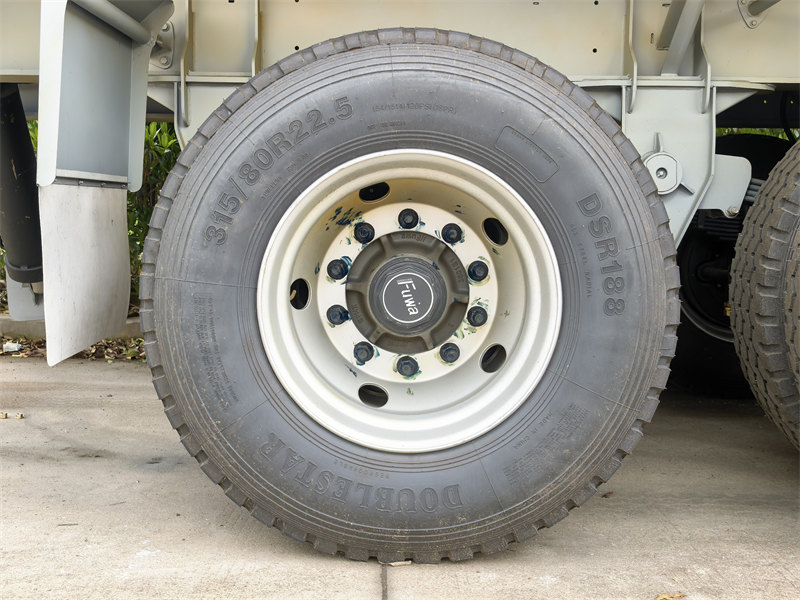

Tyre |
12 pieces, 315/80R22.5 |
|
Rims |
9.0-20 |
|
Suspension System |
Leaf spring suspension |
|
Brake System |
Dual line pneumatic brake system with WABCO emergency relay valve |
|
Main Beam |
Height 500mm Q345 |
|
Chassis |
Upper 12mm, lower 14mm. Mid web 10mm |
|
Twist locks |
12 nos |
|
Side Wall |
600mm height; 800mm,1000mm optional |
|
Kingpin |
2' or 3.5' interchangeable |
|

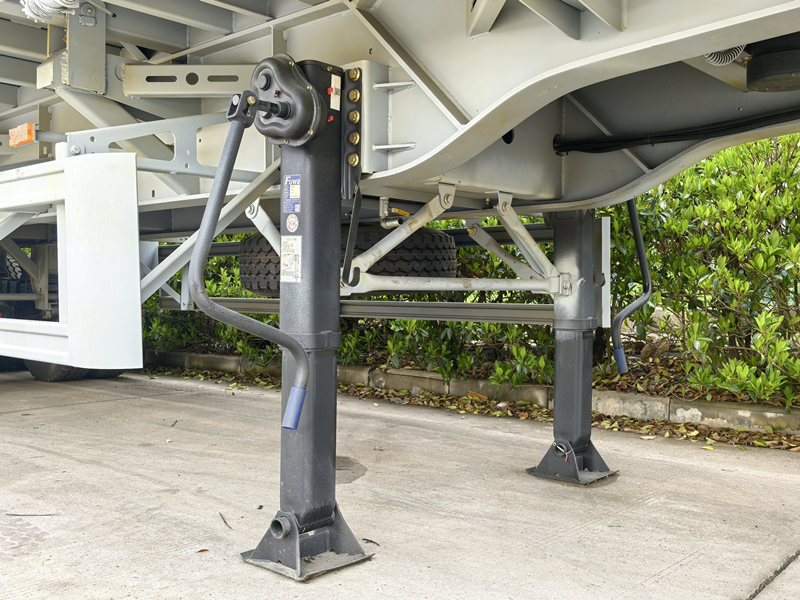

Landing Gear |
FUWA brand, 28 Tons , two speed manual operation |
|
Electrical System |
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
|
Lights and Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Painting |
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm; Any color is available |
|

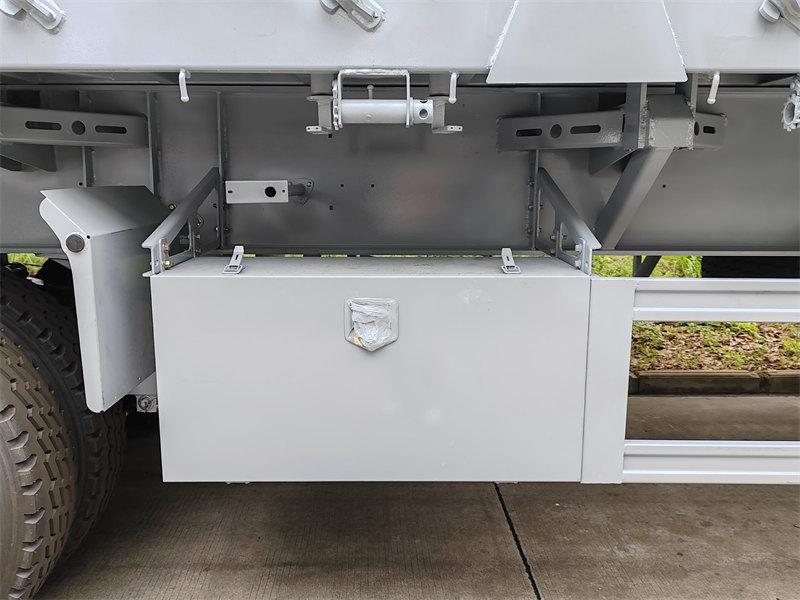

Tool Box |
One tool box with a set of standard trailer tools |
|
Spare Tyre Carrier |
One piece or two pieces |
※ Ⅲ. Product Highlights:
 |
● High tensile steel fabricated main beams ● FUWA brand 13 ton axles ● Heavy duty suspensions ● Custom height of the sidewalls ● Removable/foldable side walls ● High load capacity of up to 60 tons |

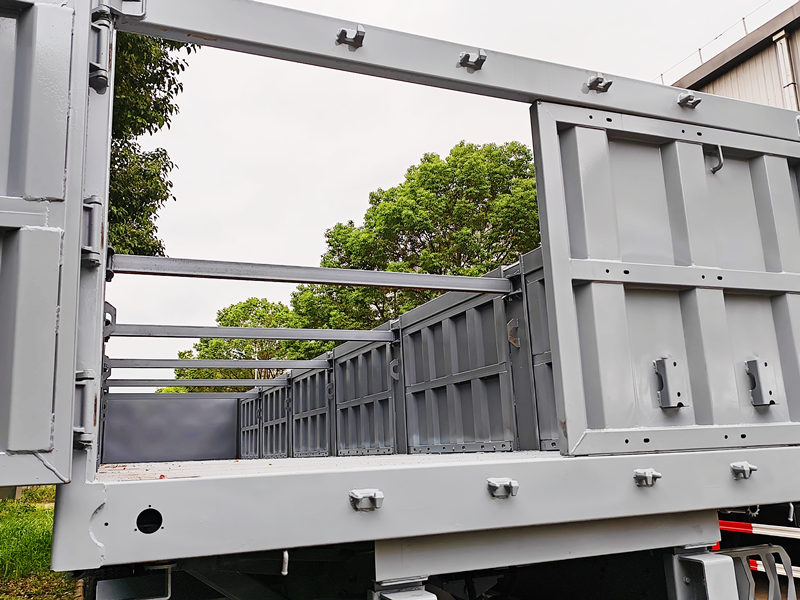

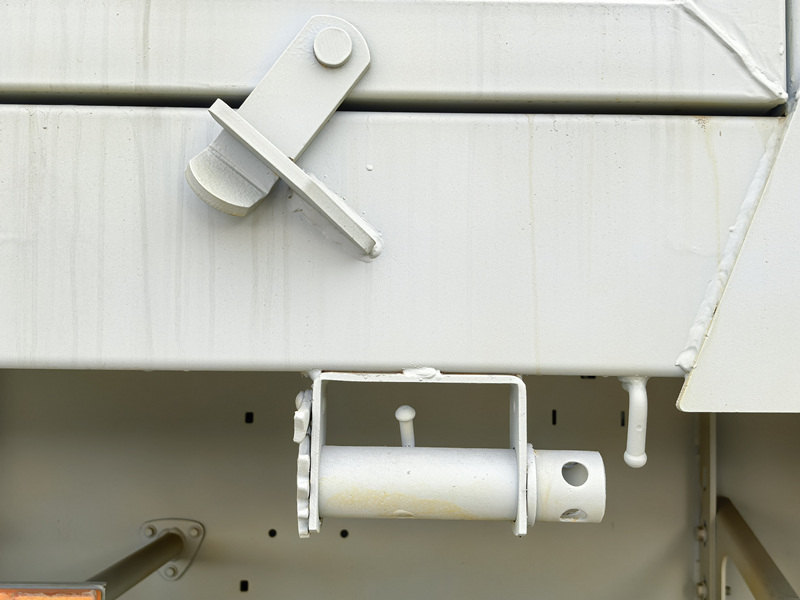

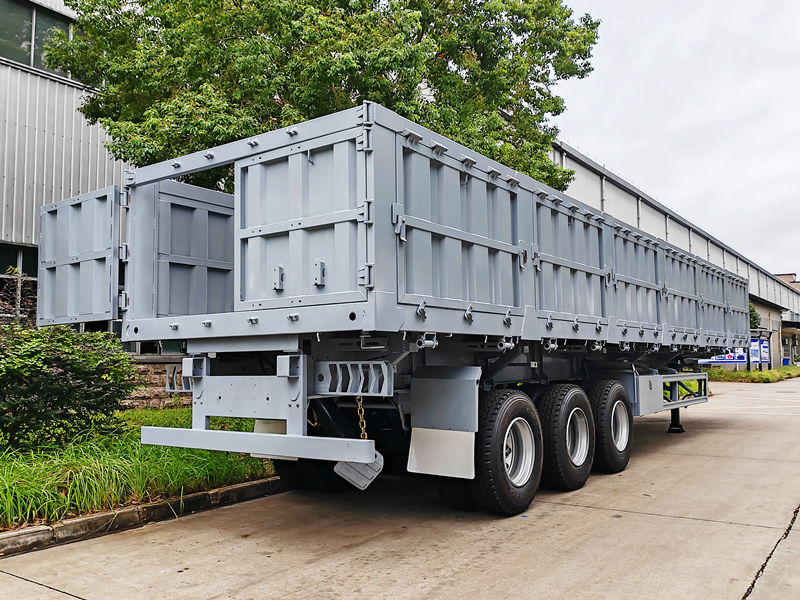

» Ⅳ. Product Details:

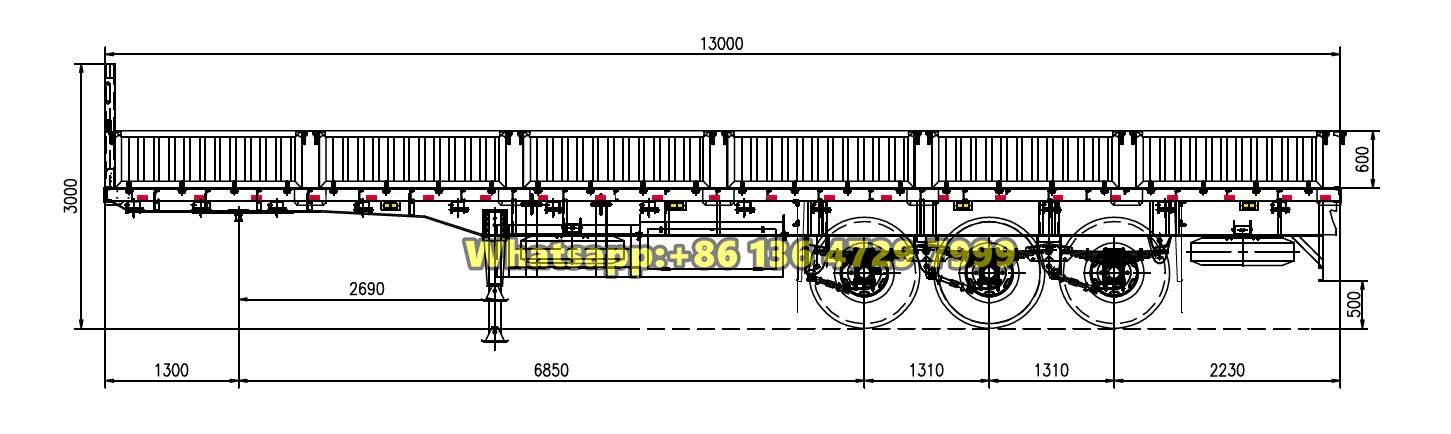

※ Ⅴ. Product Drawing:

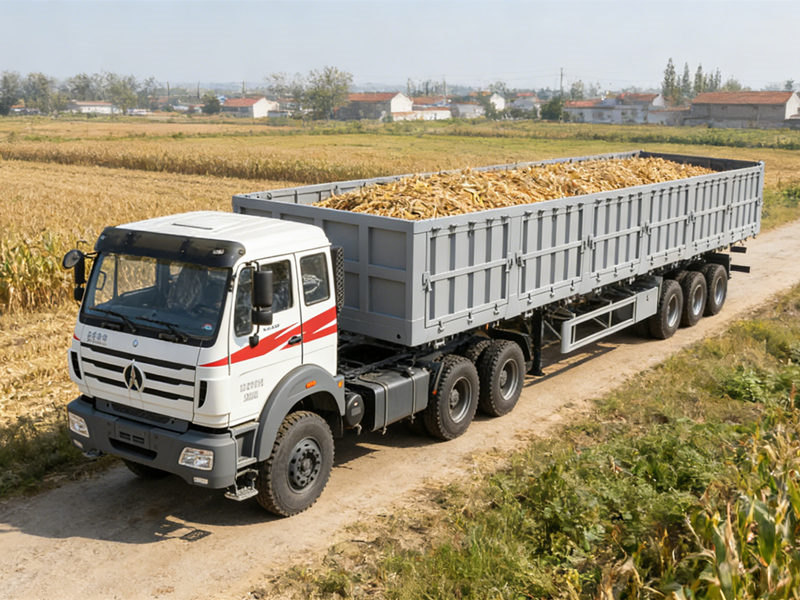

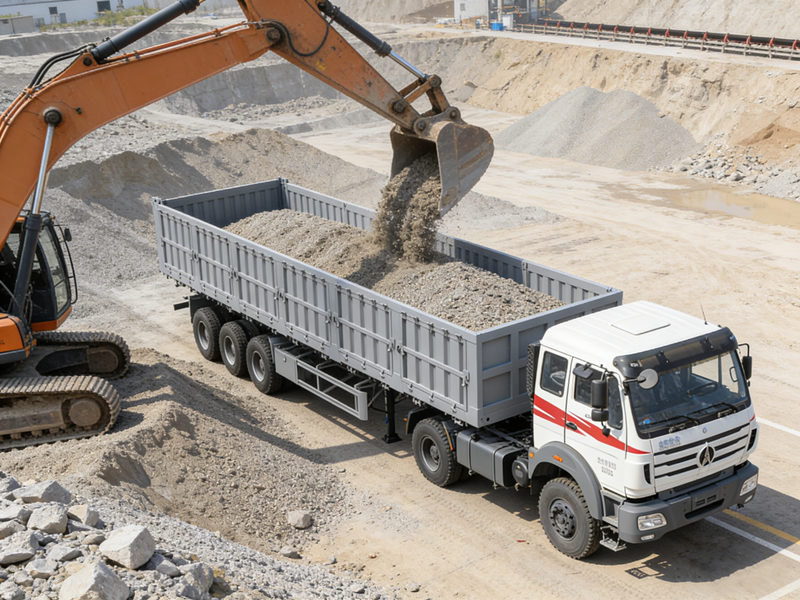

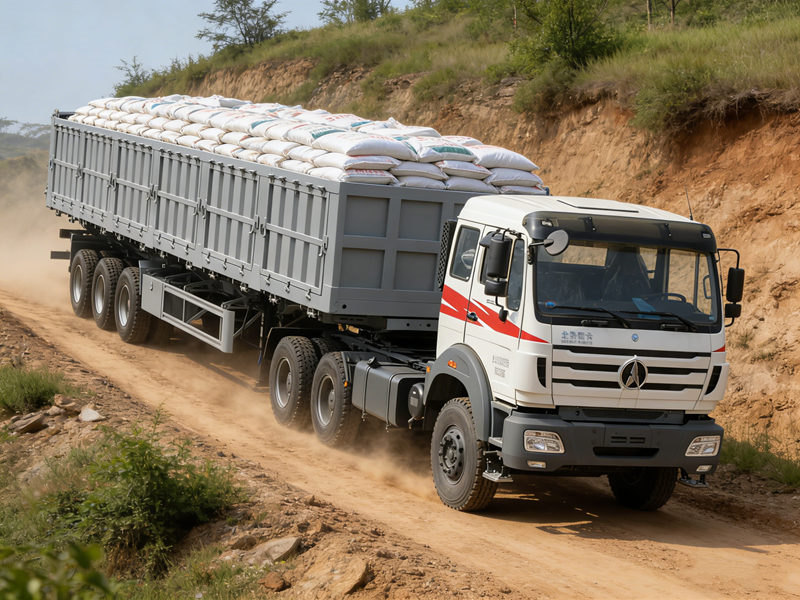

※ Ⅵ. Applications of Sidewall Trailers:
