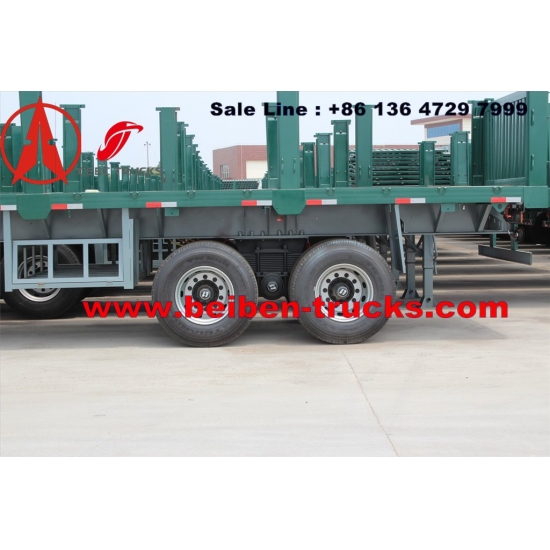

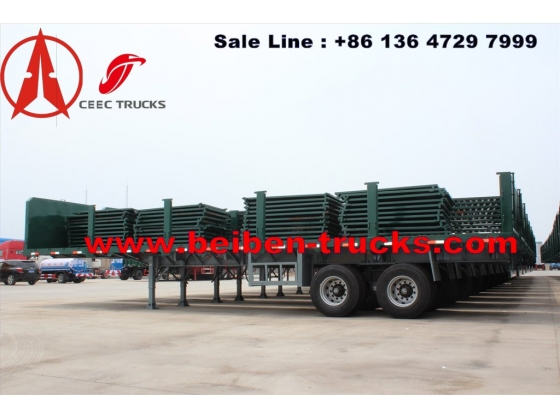

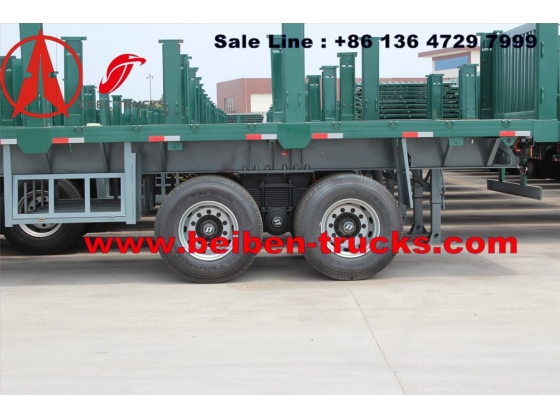

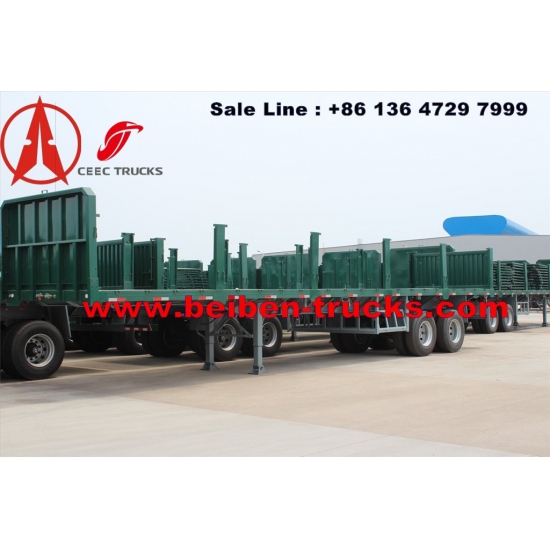

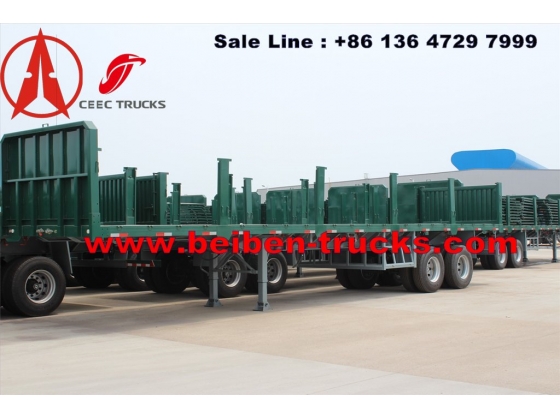

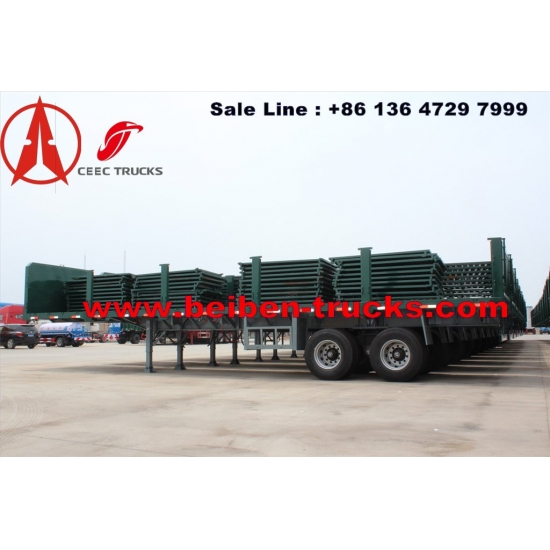

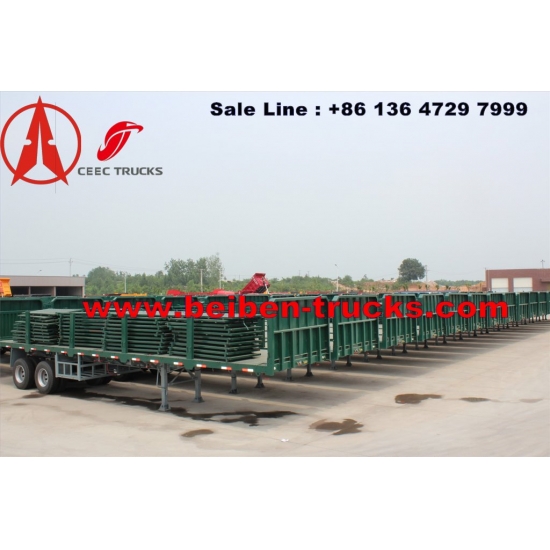

40Feet 2Axles Bogie suspension Container Semi-trailer

DIMENSIONS

Tare Weight

5000kg

Payload

35000kg

Total Weight

40000kg

Overall Length

12400mm

Overall Width

2480mm

Overall Height

1480mm

Wheel track

1840mm

Wheel base

8350mm+1300mm

STANDARD SPECIFICATION

Main Frame

Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm;Bottom Flange 16mm,width 140mm

Axle

Two Units of Germany BPW(brand) 13Ton axle,15T axle, 16Taxle

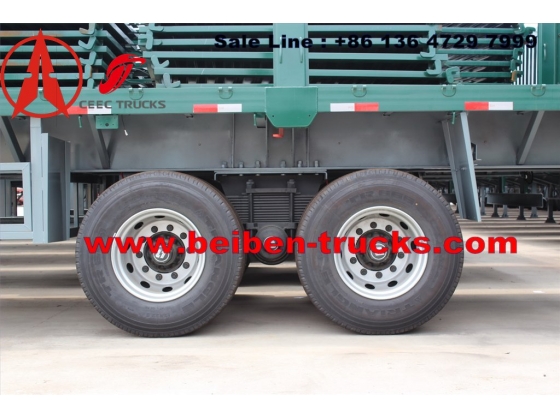

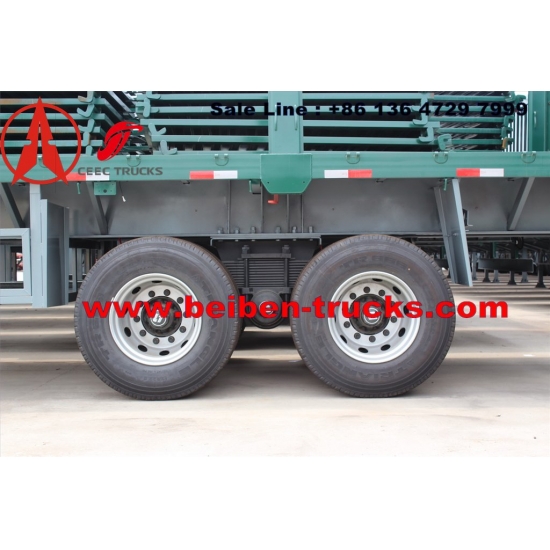

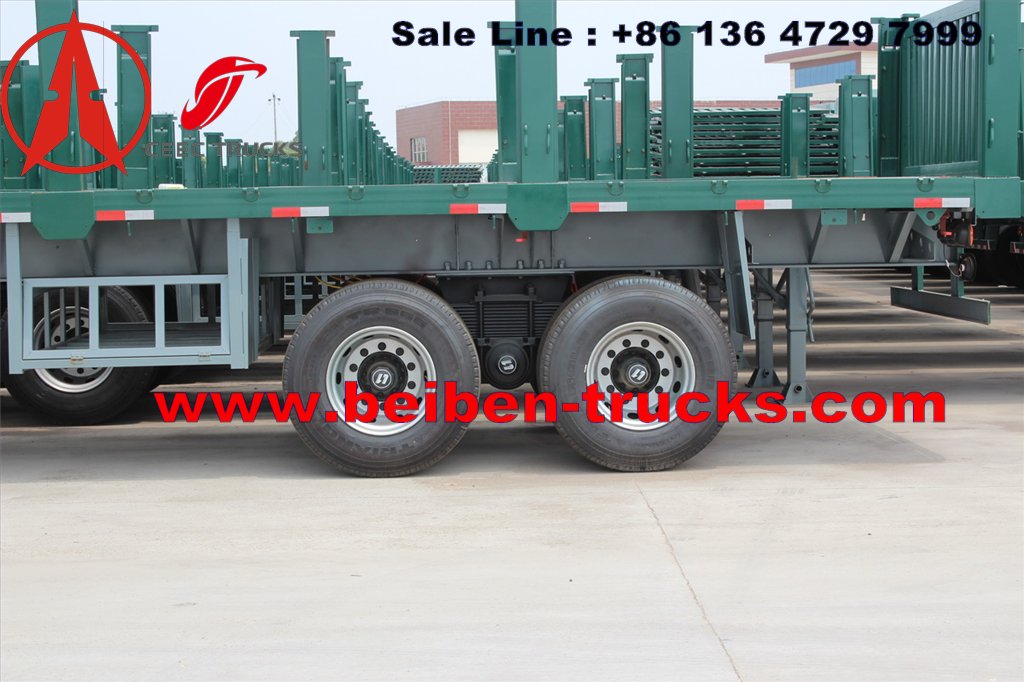

Suspension

Germany BPW  (brand) mechanical 2-axle suspension

Leaf Spring

Four sets of reliable local brand, 7-piece leaf spring,16x90mm

King Pin

One unit of 2`` SAE standard bolted-in kingpin

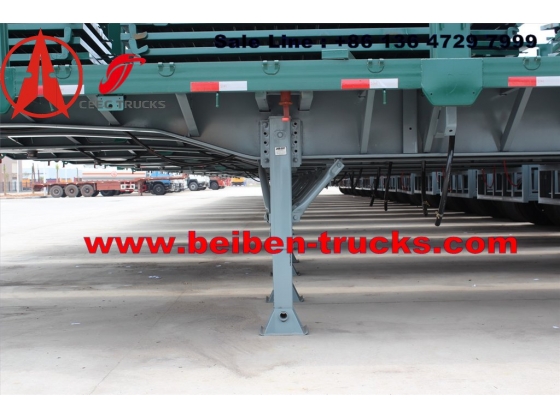

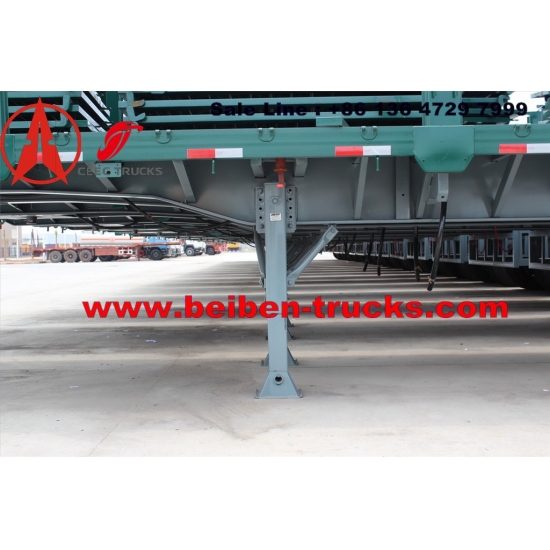

Landing Gear

JOST-D200,Two-speed manual operation, heavy duty landing gear

Wheel Rim

Eight units of 8.0-20 rim

Tyre

Eight units of 12.00R20 nylon tyre

Twist Lock

12 pieces---four pieces are fasten mode, eight pieces are up-down mode, of ISO twist lock for 2x20ft;1x40ft container, central locks can be laid down.

Spare Wheel Carrier

One set of spare wheel carrier including a riser.

Pneumatic Braking System

One unit of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber; one unit of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector.

Electrical System

One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; two sets of reliable ,local brand standard rear light, turn light, rear reflector, side light, side reflector etc.
One set of DAFA(brand ) 6-core standard Cable.

Painting

Sand blasting before painting;

two coats of primer, anti corrosion;

one coat of finish painting;

Color advised by client.

Accessory

One box with a set of standard trailer tool

For the specification above, we reserve the right to make any changes without notice.
