used beiben 2636 dump truck

Product Details

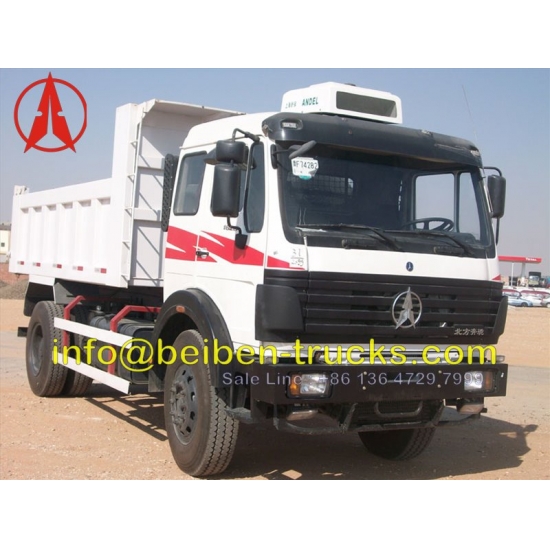

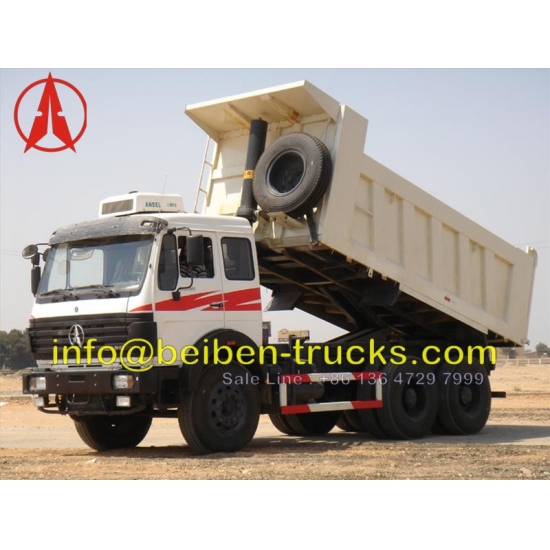

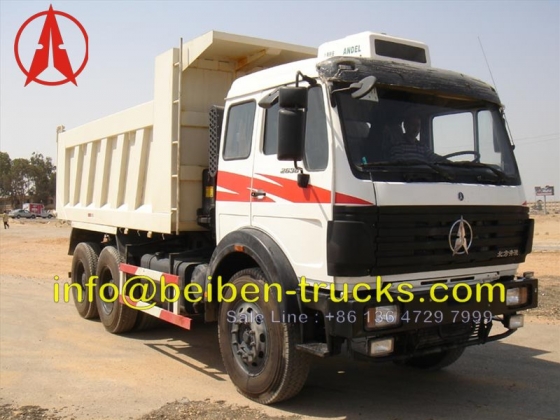

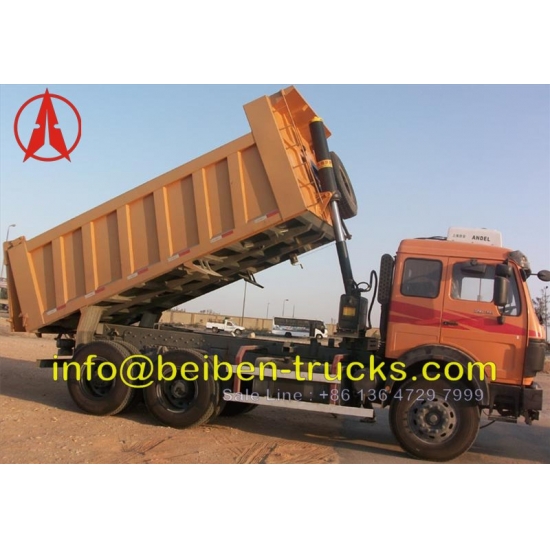

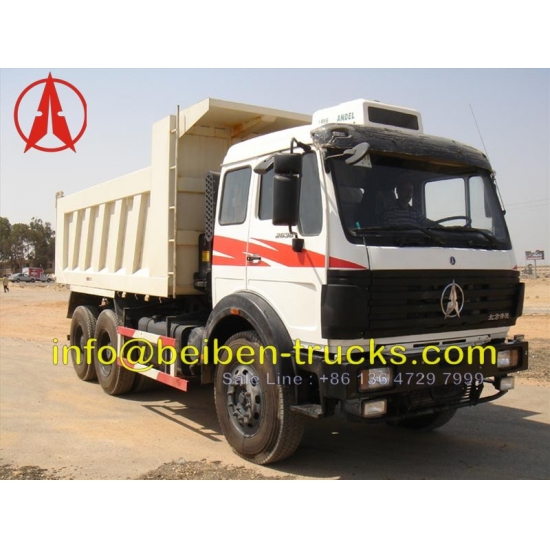

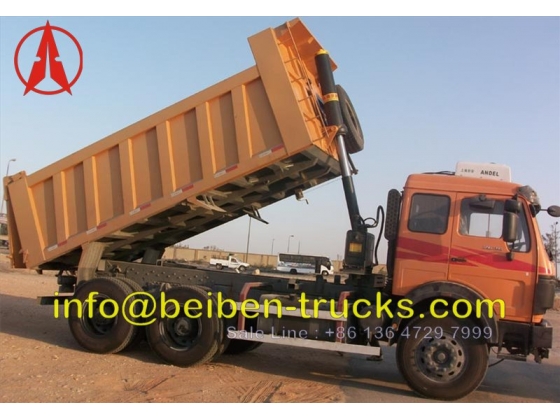

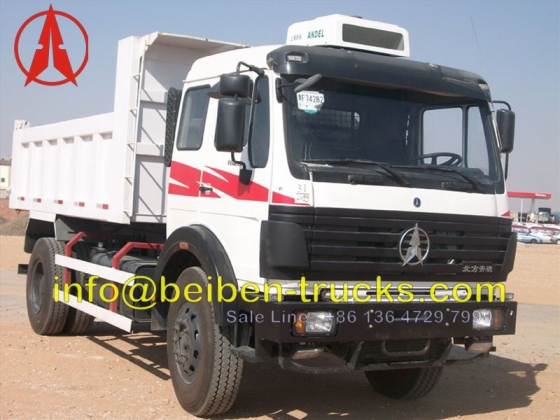

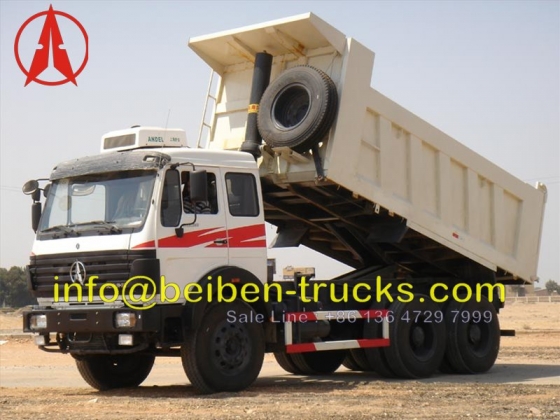

China used beiben 2636 Dumper Truck 6 x 4 drive system

china beiben 2636 dump truck manufacturer.

The selection of Dumper Truck 6 x 4 BEI BEN is the ideal choice for serious business, where it’s enjoy a high capabilities and provides them to work under maximum operating conditions

china beiben 2636 dump truck manufacturer.

2536K /6×4/4100+1450/Short Cab/LHD or RHD

Dimension

8880*2500*3430mm

Cargo box

5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

4100+1450mm

Max speed

85km/h

Curb weight

12650kg

Engine

Model

WP10.360E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection


Displacement

9.726L/Diesel


Stroke

126/130mm


Max. power

280/2200 (kw/rpm)


Max.torque

1600/1800(N.m/rpm)


Emission

Euro III

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs


Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system


Assistant brake

Engine exhaust brake


Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

315/80R22.5 tubeless tyres

Electrical system

Battery

2X12V/135Ah


Generator

28V-35A


Starter

5.4Kw/24V

Cabin

NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C





The Dumper Truck 4 x 6 BEI BEN engine type is Diesel of 6 cylinders in line, turbo charger, intercooler, the power of this engine is HP/RPM 2200/360, torque N.M/RPM (1600-1400)/1460 and is compatible with the requirements of European environmental Euro 2.



china beiben 2636 dump truck manufacturer.

The gear box in the dumper truck 4 x 6 BEI BEN type is Eaton (Fuller) with number of speed 9 front plus one rear and 12 front plus tow rear.


china beiben 2636 dump truck manufacturer.

The cabin of the dumper truck BEI BEN is equipped with a long cab with double bed and driver suspend seat, the steering system in the BEI BEN dumper truck is power steering model ZF 8098.

china beiben 2636 dump truck manufacturer.

The suspension system in the dumper truck is front and rear heavy duty leaf spring with shock Absorbers and front stabilizer bar with body type 17 m3 (cubic meters).


china beiben 2636 dump truck manufacturer.
The additional equipment includes A/C for cabin, Air Deflectors, fog light, Radio/Cassette, Adopt for towing.

Beiben Genuine 12 months spare parts list

DESIGNATION

QTY

1

ACCELERATOR CABLE

10

2

UNIVERSAL JOINT (BIG)

6

3

UNIVERSAL JOINT (SMALL)

6

4

CYLINDER GASKET

6

5

CYLINDER SEAL

6

6

OIL PUMP ASSEMBLY

6

7

DIESEL FILTER

30

8

OIL FILTER

30

9

AIR FILTER

15

10

SECURY FILTER

21

11

FUEL FILTER

30

12

OIL WATER SEPARATOR

6

13

FRONT WHEEL BOLT

12

14

REAR WHEEL BOLT

12

15

FAN BELT

6

16

CRAN SHAFT FRONT OIL SEAL

12

17

AFTER CRANK OF SEAL

12

18

ALL BEARINGS OF REAR TYRE

12 X 6

19

ALL BEARINGS OF FRONT TYRE

8 X 9

20

HYDRAULIC PUMP

3

21

HYDRAULIC OIL FILTER

3

22

STEERING PUMP

3

23

MAIN CYLINDER OF CLUTCH

6

24

RECEPT CYLINDER OF CLUTCH

6

25

REGULATOR

3

26

ALTERNATOR

3

27

STATER

3
