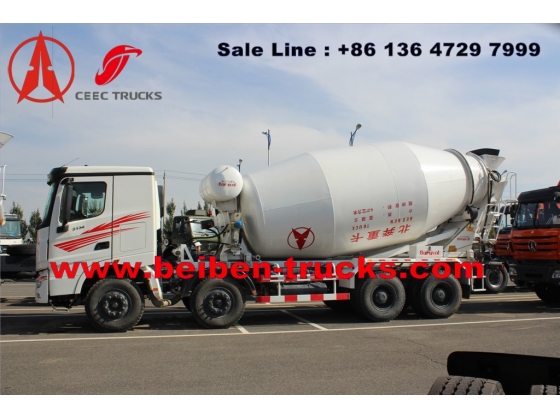

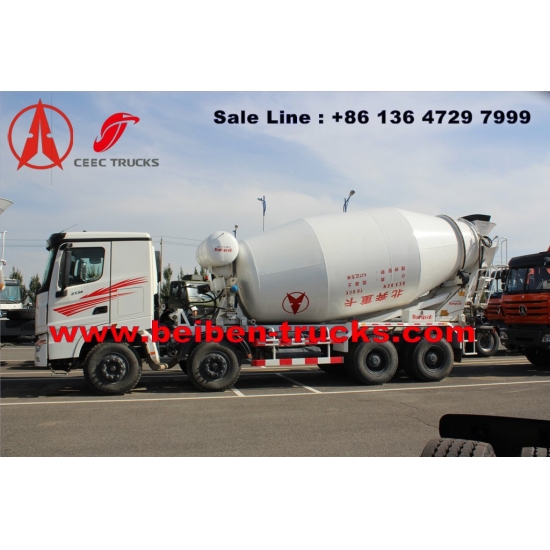

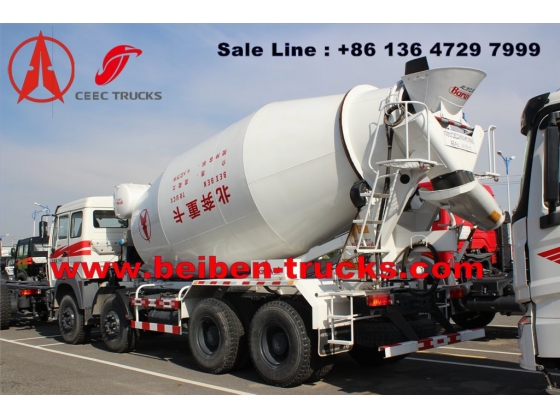

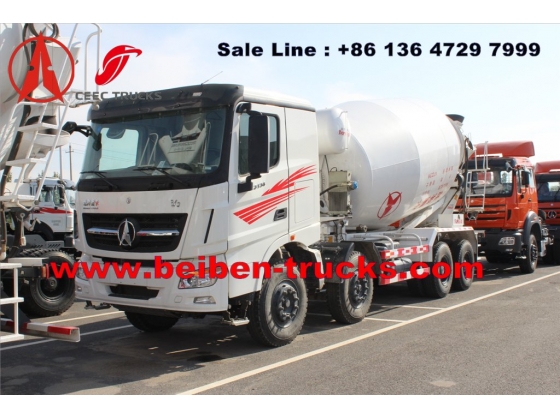

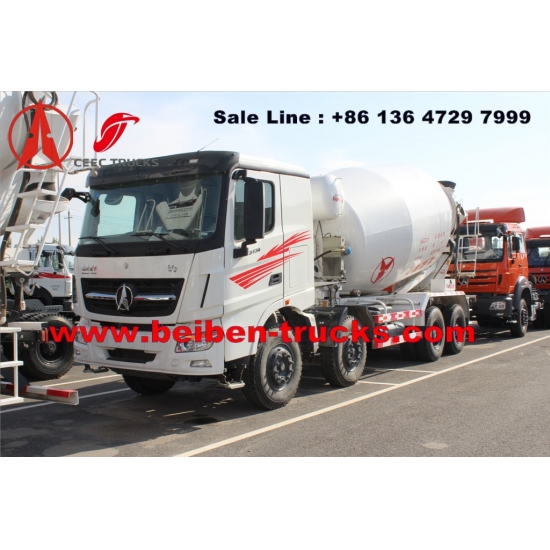

14 CBM Beiben V3 mixer truck

North benz 8*4 concrete mixer truck supplier in china, supplying the best quality north benz 320 hp concrete mixer truck, beiben 340 hp transit mixer truck, beiben 380 hp concrete mixer truck

beiben 12 wheeler concrete mixer truck manufacturer, supply the best quality beiben 12 wheeler cement mixer truck. we have more than 10 years on beiben 8*4 mixer trucks producing and designing.

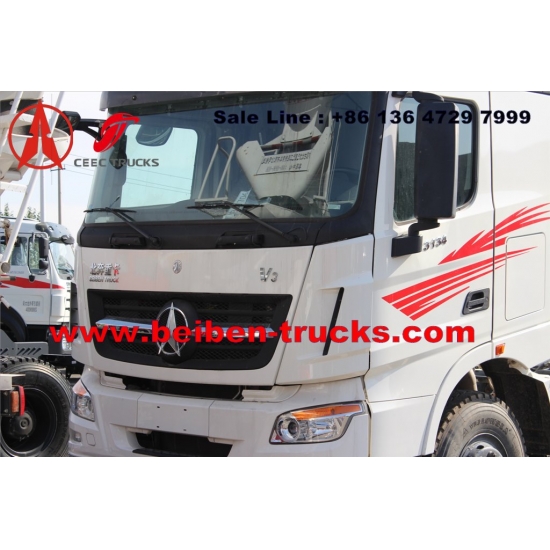

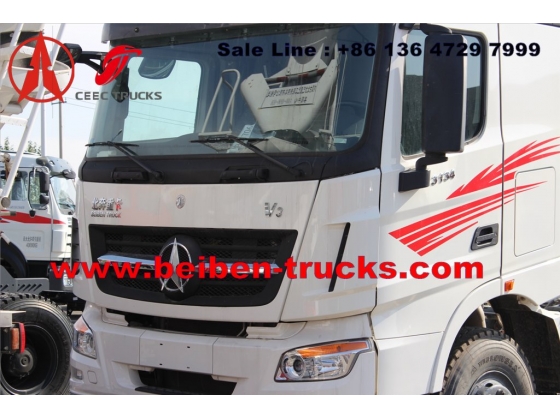

China north benz  3134 concrete mixer truck supplier , 8*4 drive with China V3 cabin ( germany benz actors cabin ) , weichai 340 hp diesel engine, fast 12 shift transmission, 12.00R20 tyre.

North benz 8cbm 6x4 concrete mixer truck sale in Africa      PRODUCTS   ADVANTAGE * Original Price: FOB, CNF/CFR, CIF   * Certificates: CCC, ISO, BV, GJB, CQC   * Promptly Delivery: 15-30 days   * Excellent After-sale Service and Customization Service. Product Description 2529BY /6×4/3450+1450/Short Cab/LHD Dimension 尺寸 9300*2500*3900mm Approaching angle/Departure angle 26/20° Overhang(front/rear) 1410/2640mm Wheel base 3800+1450mm Max speed 80km/h Curb weight 13650kg Loading capacity 11220kg Slope climbing capability Max.40% Engine Model WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection Displacement 9.726L/Diesel Stroke 126/130mm Max. power 250/2200 (kw/rpm) Max.torque 1350/1200-1600（Nm/rpm） Emission stantard EuroⅢ Fuel tanker capacity 300L Clutch ∮430, Single dry frictional disc，Hydraulic boosting Gearbox 9T-160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer Gear ratio of gear box 12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02 Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs Rear Non-free standing stablization spring, balance suspension system, 13pcs Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system Assistant brake Engine exhaust brake Park brake Potential springs pressing on middle and rear wheels Steering system TAS85,whole circulation in ball, hydraulic booster Frame Fish belly shape, variable width, variable sections Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle Tyre 12.00R20 Radial Electrical system Battery 2X12V/135Ah Generator 28V-35A Starter 5.4Kw/24V Cabin NG80B Long cabin with single sleeper; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C Main technical parameters of concrete mixer Drum performance parameter Geometric Volume m3 15.5 m3 Effective Volume m3 10 m3 Filling Ratio % 64.5% Gradient of the Drum ° 15° Filling speed m3/min ≥3 Discharging Speed m3/min ≥2 Surplus Ration % <1% Range of Slump mm 20～300 Hydraulic System Pump Eaton 54 (ACA542337R) Motor Eaton 54 (HHD542337R) Gear Box PMB6sp Water supply system Volume of water tank 400L Water supply type Air pressure Type

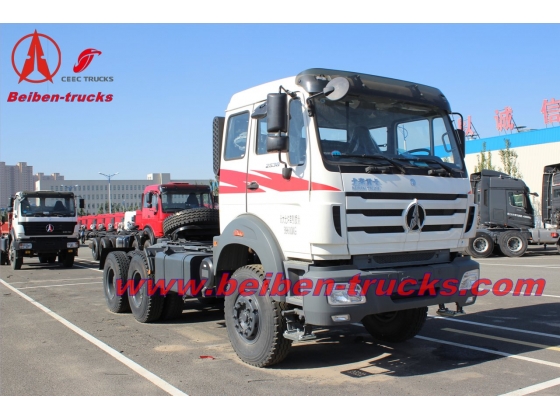

Beiben 2638 towing tractor head is a powerful and reliable vehicle designed for heavy-duty towing tasks. With a robust 6x4 drive train and a high-torque engine, it can easily pull trailers and other large vehicles with ease. The well-designed cabin provides a comfortable and ergonomic working environment for the driver, ensuring long hours of operation without fatigue. The vehicle is equipped with advanced safety features, such as ABS and EBS systems, to ensure smooth and safe driving even under challenging road conditions.

NORTH BENZ TRUCK WHOLESALER for tractor truck, dumper, lorry truck 3.480hp WEICHAI engine 4.FAST transmission 5.Military axles

The Beiben 6×4 right-hand drive tractor truck, as a powerful assistant in heavy-load transportation, demonstrates its strong carrying capacity and excellent driving performance. The truck has a maximum towing capacity of 40 tons, meeting various heavy-load requirements. It is equipped with a Weichai WP10.380E32 engine, delivering an output power of 380HP/280kW, and is matched with a FAST 12JS200T transmission for smooth shifting. Additionally, it features a comfortable and safe NG80B long cab, ensuring a worry-free long-distance driving experience for the driver.

baotou beiban left hand drive 4*4 wheel military truck chassis supplier , based on china benz technology ND1921 military truck , original from baotou beiben heavy duty trucks co.,limited.

This tri-axle oil tank semi-trailer has a capacity of 40,000 liters and is equipped with 5 independent compartments. The tank body is made of Q235 high-strength carbon steel and features 3 x 13-ton Fuwa axles, heavy-duty leaf spring suspension, and a WABCO braking system, ensuring stability and safety under heavy loads. It comes standard with European-standard manhole covers, pneumatic bottom valves, and other professional devices, making it an efficient and reliable liquid transportation solution for oilfields, gas stations, and other scenarios.
