20000 Liter beiben Water Spray Tank Truck

Product Details

20000 Liter beiben Water Spray Tank Truck

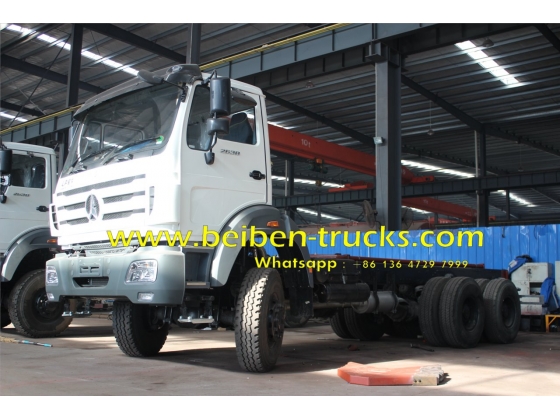

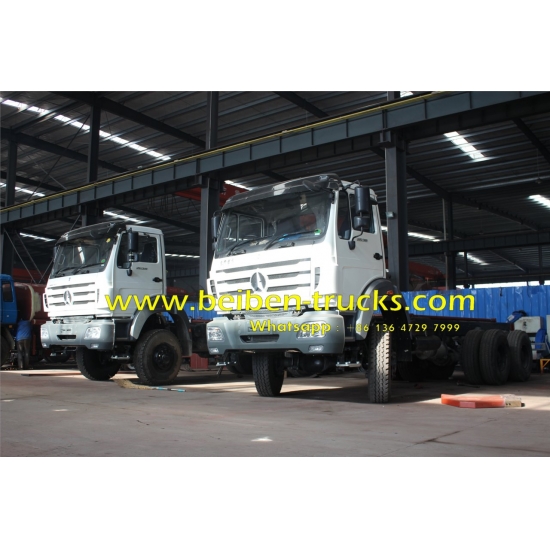

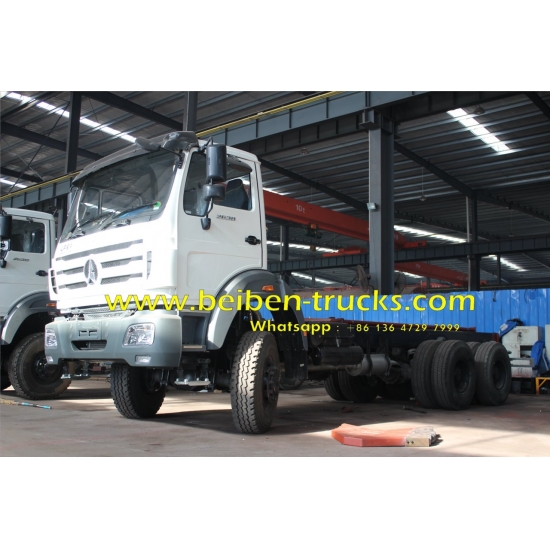

20000 Liter beiben Water Spray Tank Truck , mostly on beiben 2534,2538 truck chassis, the beiben 10 wheeler 20,000 liters beiben water spray tanker trucks get good reputation in africa countries. currently we supply beiben 20,000 liter water spray trucks.





20000 Liter beiben Water Spray Tank Truck , mostly on beiben 2534,2538 truck chassis, the beiben 10 wheeler 20,000 liters beiben water spray tanker trucks get good reputation in africa countries.



Water wagon

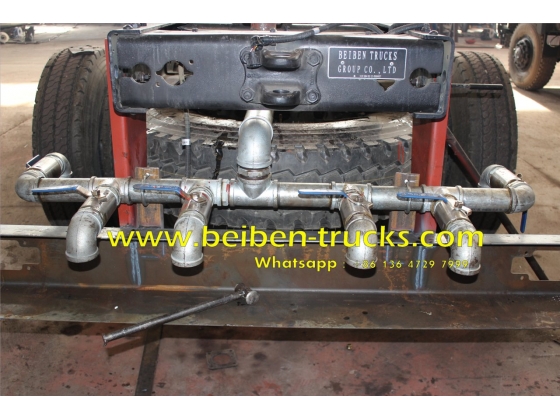

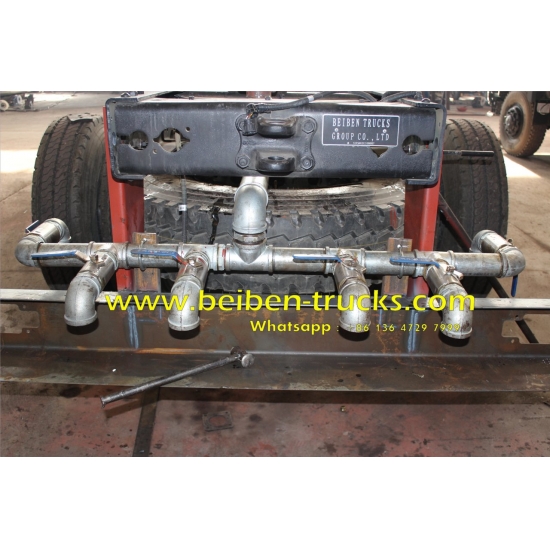

dust control, street cleaning, potable water, fire control,etc.
watering truck
water truck

ng type

6*6 RHD

Dimension(Lx W x H) (unloaded) (mm)

9826x2500x3400

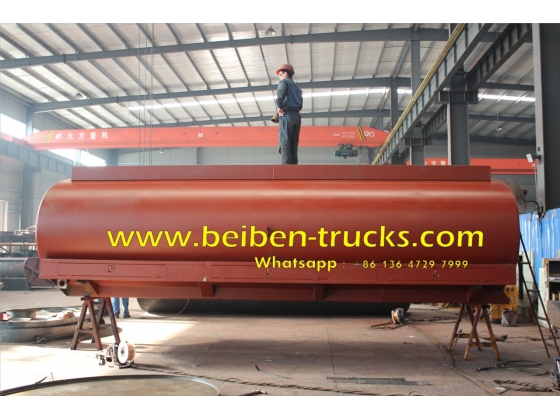

Inner dimension (mm)

6500x2300x600

Approaching angle/Departure angle(°)

30/26

Overhang(front/rear) (mm)

1410/2616

Wheel base (mm)

4450+1450

Max speed (km/h)

90

Curb weight (kg)

7980

Engine Styr technology, made in China

Model (WP615.38)

WEICHAI Diesel engine, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection

Displacement (L)

9.726/Diesel

Bore x stroke (mm)

126/130

Max power (kw/rpm)

280/2200

Max torque (Nm/rpm)

1800/1200-1500

Emission

EURO III

Clutch

Model

Single dry frictional disc, Hydraulic boosting

Gearbox

Model

RT11509C, mechanism,9gears,1reverse gear, manual

Brake system

Service brake

Double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

(ZF company)

Model

ZF8098,whole circulation in ball, hydraulic booster

Frame

Fish belly, shape, variable width, variable sections, side beam structure

Front axle

(Mercedes Benz)



Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle

(Mercedes Benz Technology)

Double-shoe pneumatic brake, casting, double reduction driving axle

Tyre

12.00-20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly, short cabin without sleeper

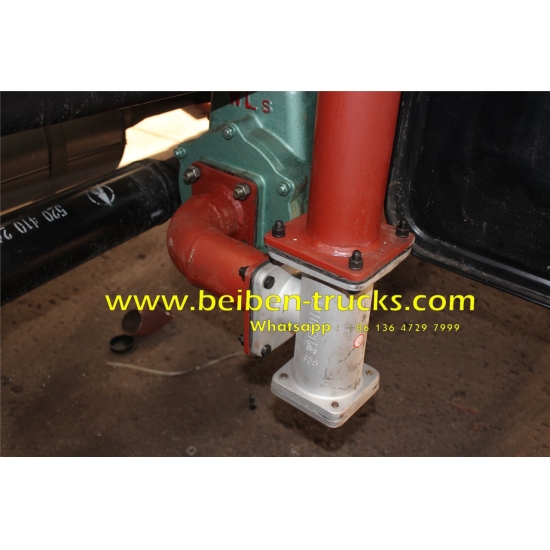

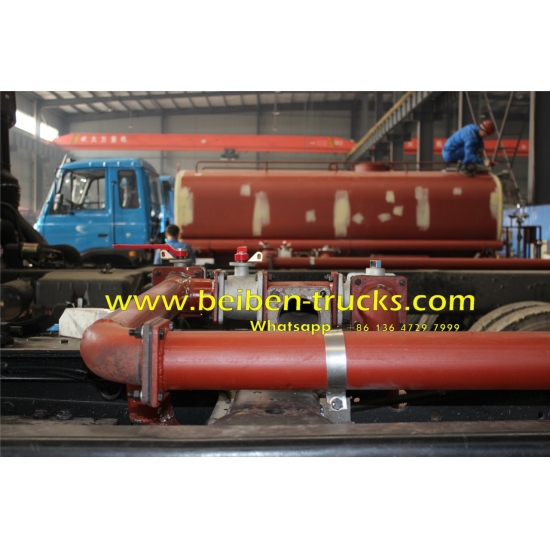

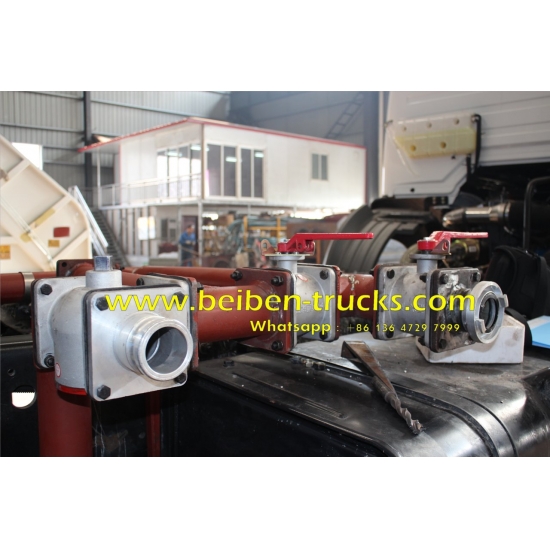

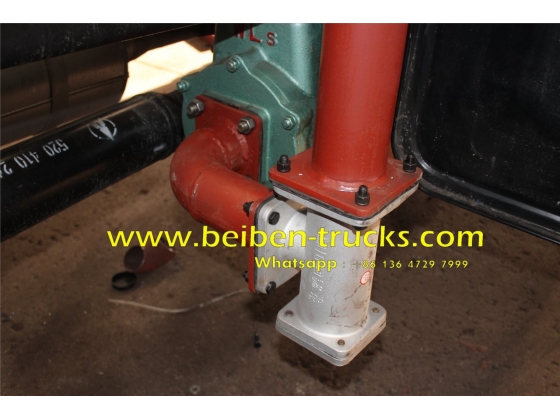

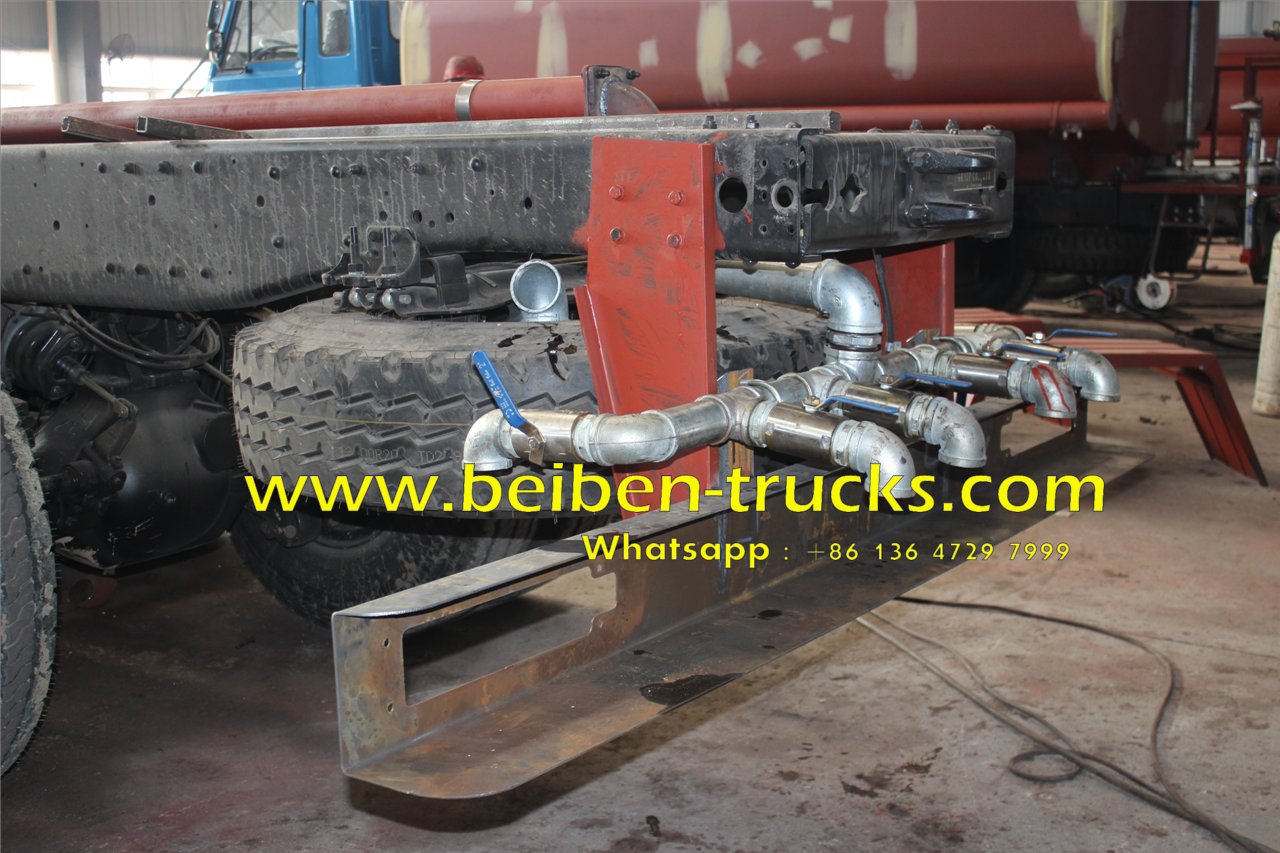

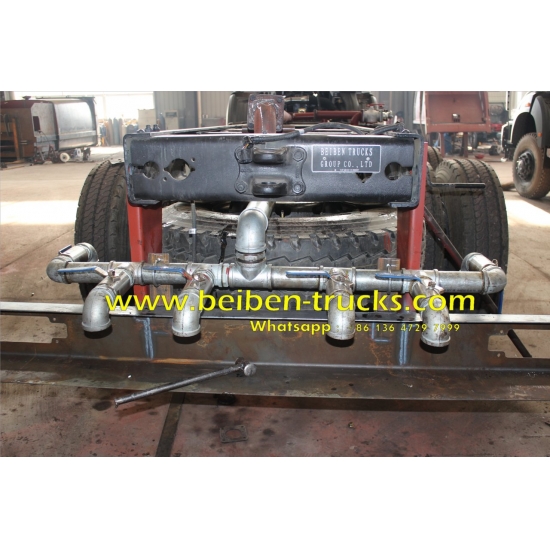

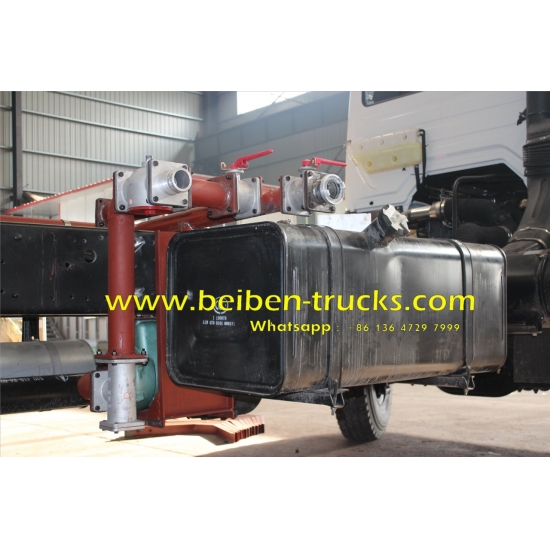

water wagonwater truck, spraying-vehicle,watering truck,sprinkler,watering cart,tank car,street sprinkler van, roadway flusher, watering lorry,road-sprinkler,water wagon The water Trucks we produced are virescence and multi-functional, they satisfy different users to use in different environment. All water trucks have transporting water function, and the water pump can absorb water and pressurize, drain off water, can also drain off water without pump. Water truck can also be used as medicine car, but if you want a medicine truck please tell us, we will carry on a specialized deal with antiseptically. Have special use of requirement, please tell us ahead of time so that we can offer to add various attachments work, Such as adding the powder charge, pneumatic valve, the spraying medicine apparatus Take these products introduction only as a consultation; please contact the detailed conditions with us



We are the most professional beiben water tanker truck manufacturer in china, No 1 beiben water transportation trucks supplier.

20000 Liter beiben Water Spray Tank Truck

20000 Liter beiben Water Spray Tank Truck

20000 Liter beiben Water Spray Tank Truck

20000 Liter beiben Water Spray Tank Truck

20000 Liter beiben Water Spray Tank Truck

20000 Liter beiben Water Spray Tank Truck

20000 Liter beiben Water Spray Tank Truck
