North Benz cement transit vehicle concrete mixer truck weight

Product Details

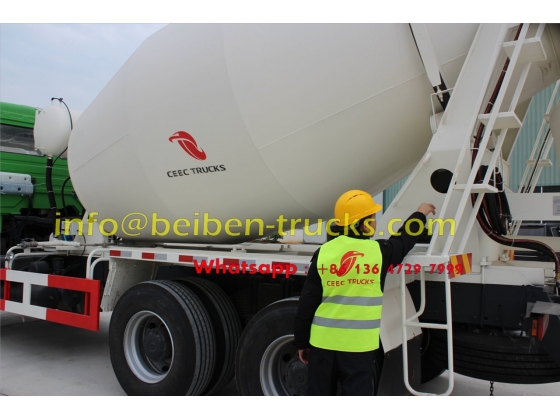

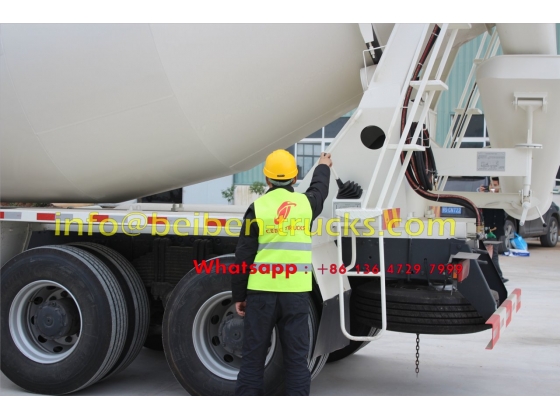

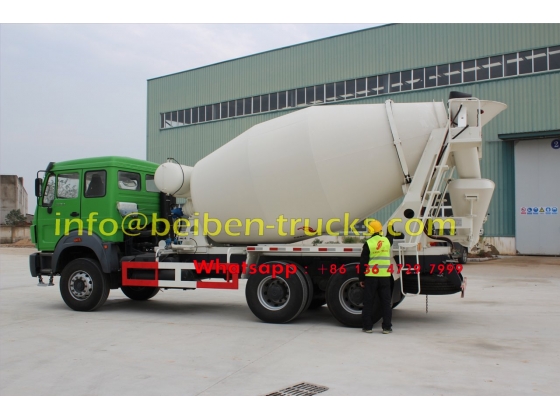

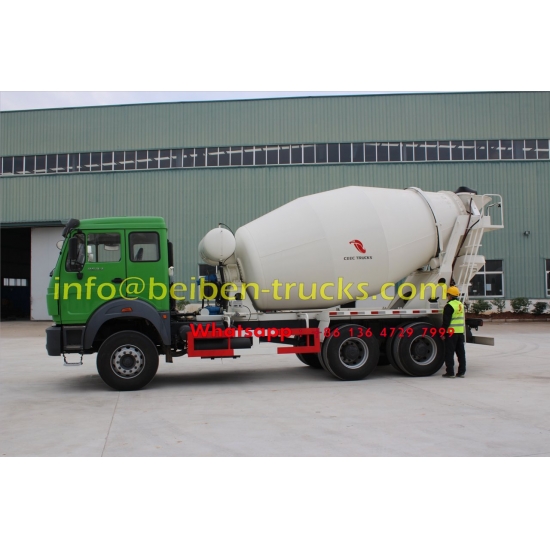

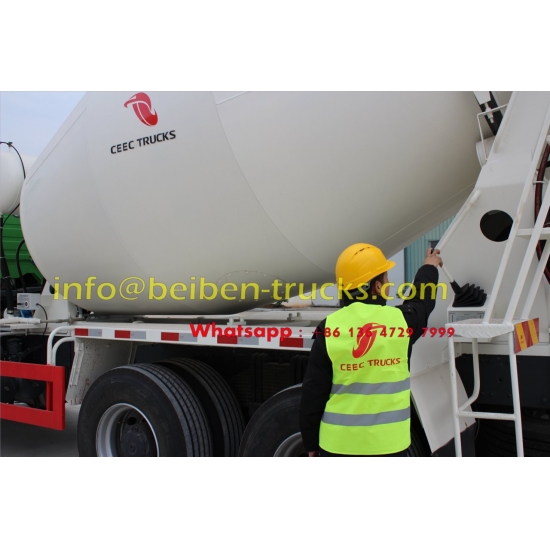

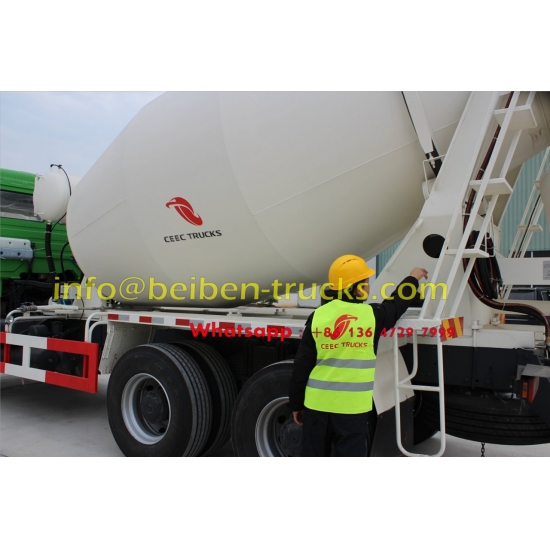

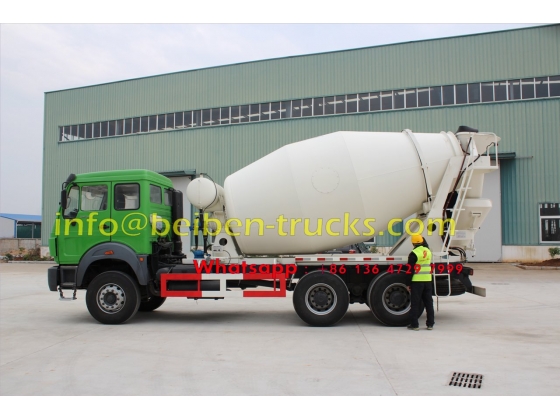

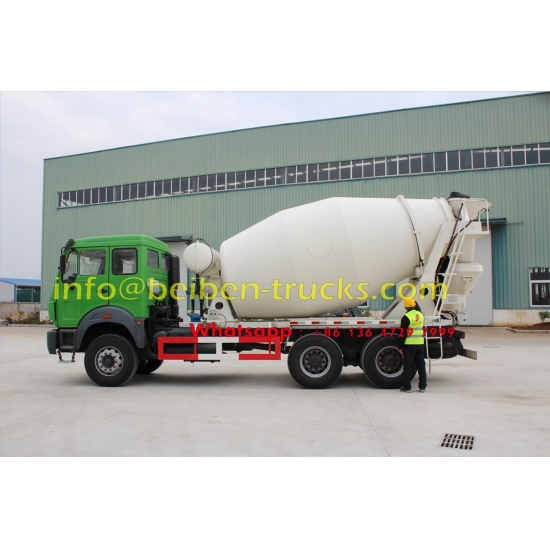

North Benz cement transit vehicle concrete mixer truck weight

 North Benz cement transit vehicle concrete mixer truck weight

Engine: WP10.340hp

Mixing volume: 4--8cbm

Residual ratio: nearly zero

Product Description



Model

6x4 4.5m3 concrete mixer truck

Whole Vehicle Performance & Parameters

Chassis

BEIBEN

Curb Weight (Kg)

12870

Total Vehicle Weight (Kg)

25000

Outline Dimension(L*B*H) (mm)

9400x2500x3900

Wheelbase (mm)

4100+1450

Front Overhang (mm)

1410

Rear Overhang (mm)

2640

Max

Traveling speed

85

Vehicle Configuration

Clutch

Dry Single Disc Clutch (φ430)

Gear Box

FAST 9T-1680

Driving Type

6x4

Steering Mechanism

TAS85

Service Brake

Dual-circuit Air Brake

Parking Braking

Spring-powered Air-cut-off Brake

Auxiliary Brake

Engine Exhaust Brake

Tyre

12.00R20 radial tyre

Engine Parameters

Model

WP10.340E32

Type

Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Emission Standard

Euro 3

Max Power (KW)

340HP(2200r/min)

Max Torque

1500 N.m

Mixing Drum Parameters

Max Mixing Cubage (m3)

4.5

Feeding Speed (m3)

≥3.5

Discharging Speed (≥m3)

≥3

Leftover Rate

Nearly Zero

Max Rotating Speed (r/min)

14---16

Mixing Drum Obliquity (°)

10

Max Mixing Drum Diameter (mm)

φ2412

Driving System

Hydraulic Pump

Italian TOP089

Hydraulic Motor

TOP 089

Speed reducer

TOP P68

Water supply mode

Water pump; pneumatic pump

North Benz cement transit vehicle concrete mixer truck weight

North Benz cement transit vehicle concrete mixer truck weight

North Benz cement transit vehicle concrete mixer truck weight

North Benz cement transit vehicle concrete mixer truck weight

North Benz cement transit vehicle concrete mixer truck weight

North Benz cement transit vehicle concrete mixer truck weight

North Benz cement transit vehicle concrete mixer truck weight

North Benz cement transit vehicle concrete mixer truck weight

North Benz cement transit vehicle concrete mixer truck weight
