North benz right hand drive heavy duty recovery truck

Product Details

China Beiben 380 Hp engine recovery truck price

Heavy duty benz technology towing truck

north benz 8*4 drive wrecker

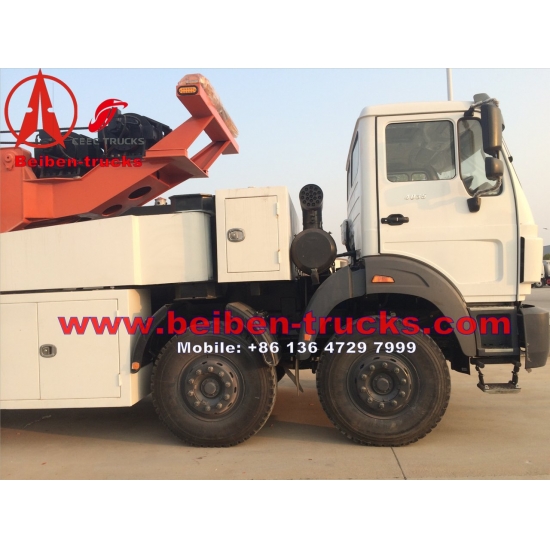

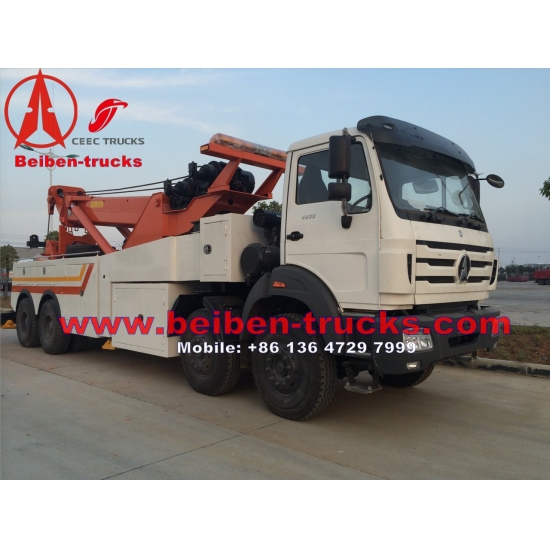

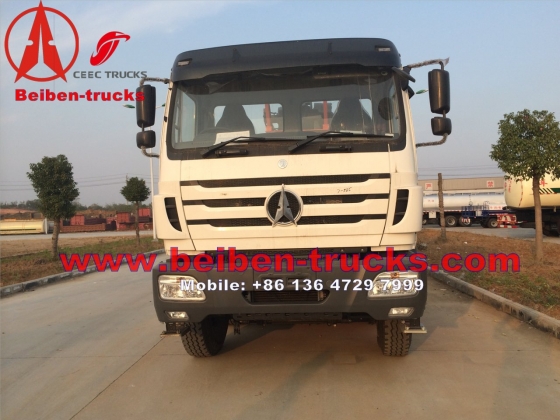

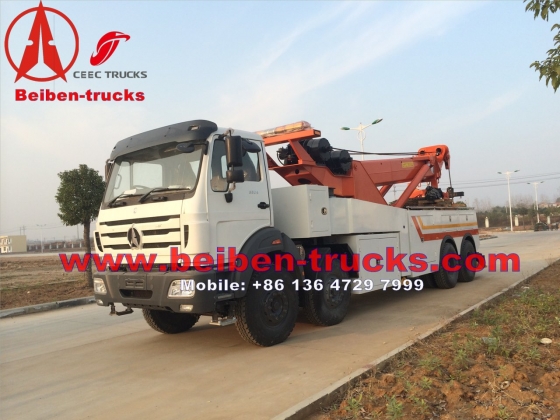

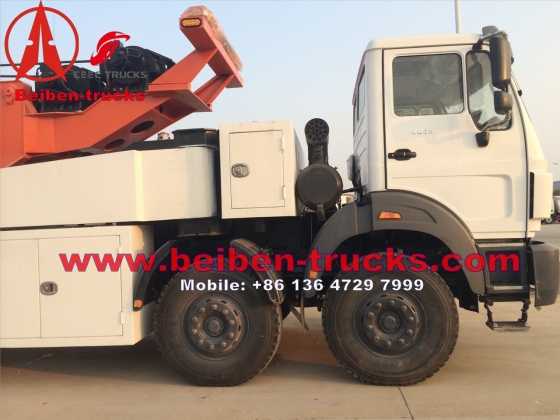

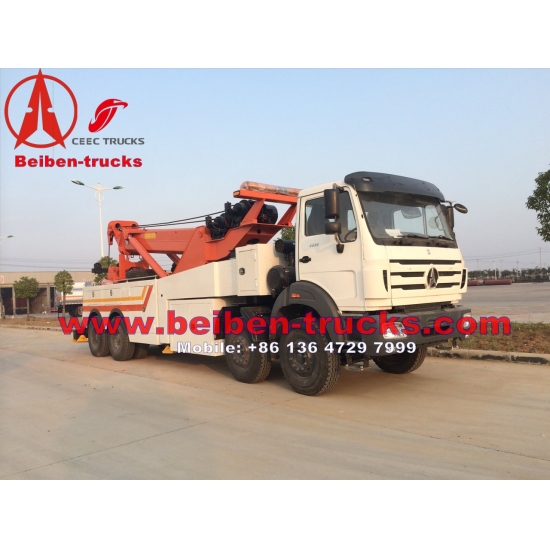

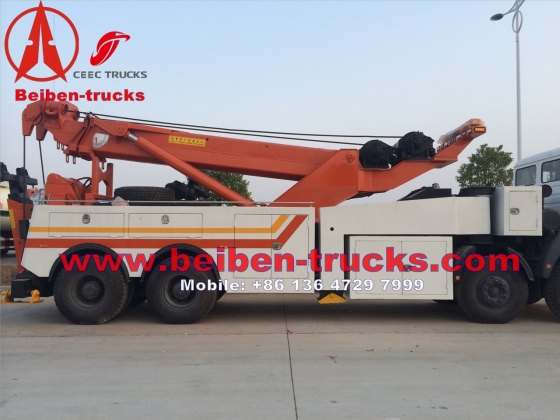

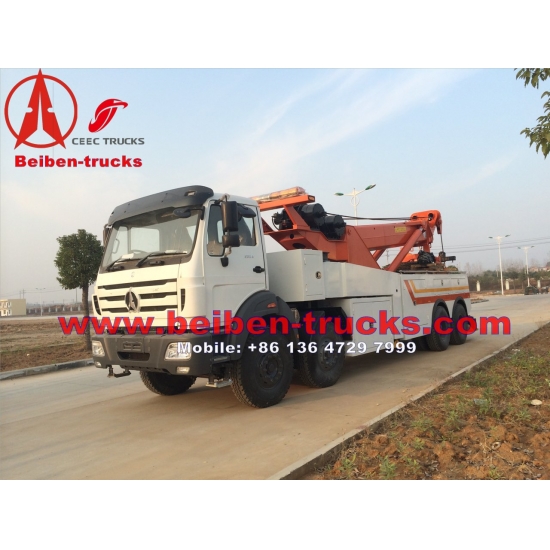

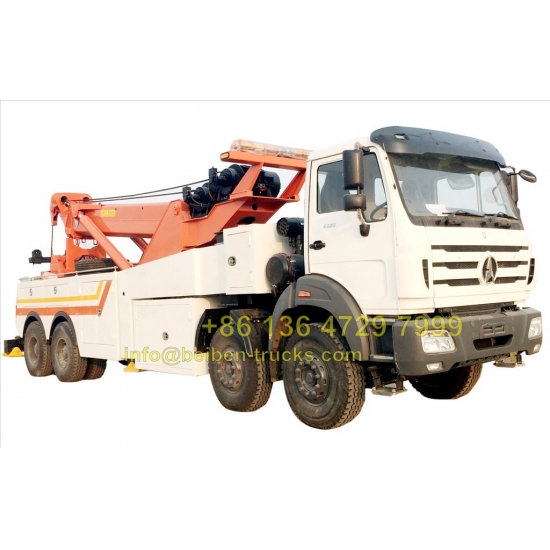

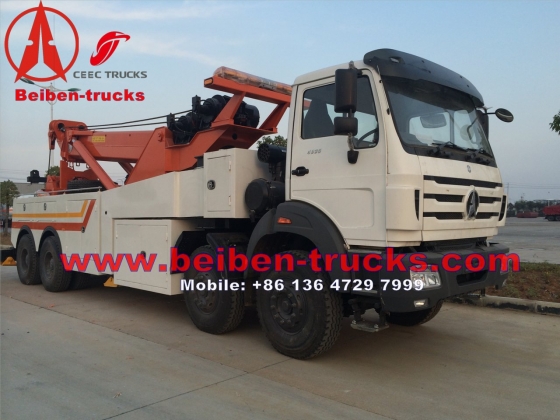

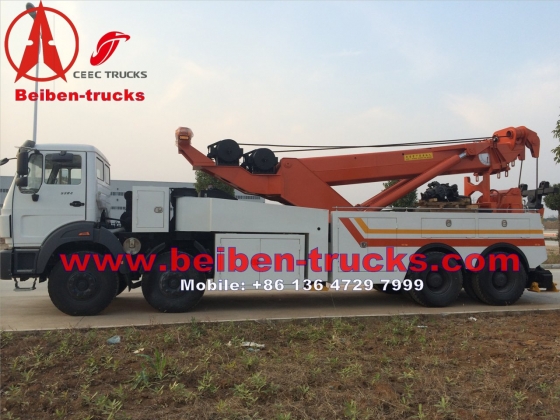

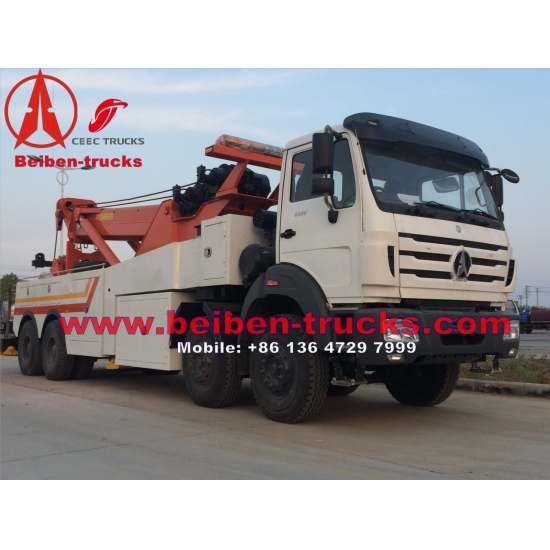

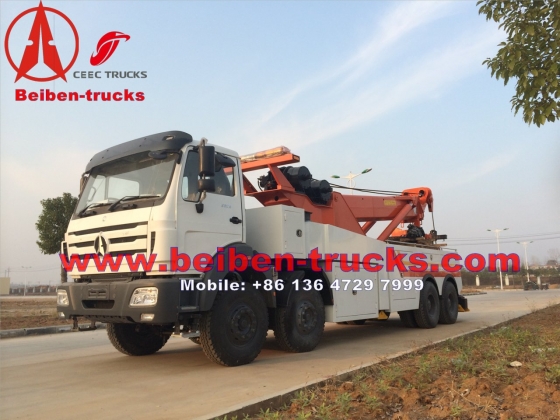

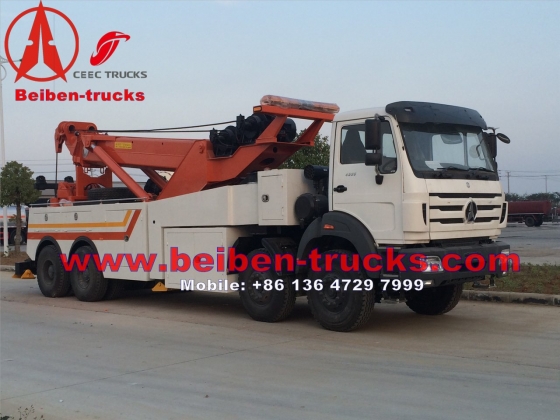

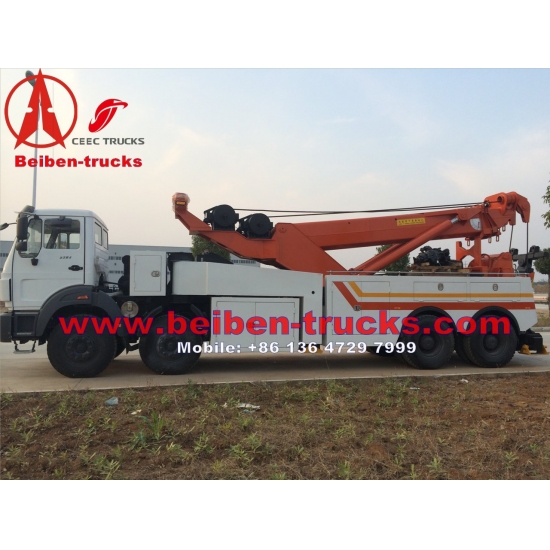

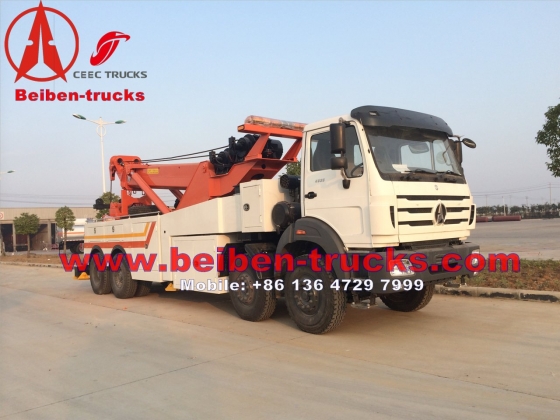

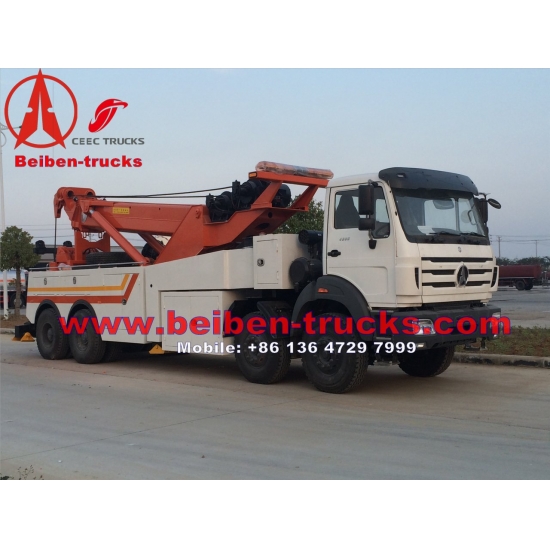

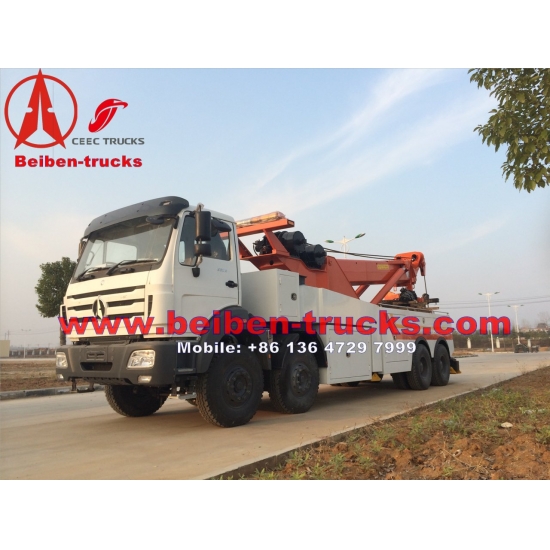

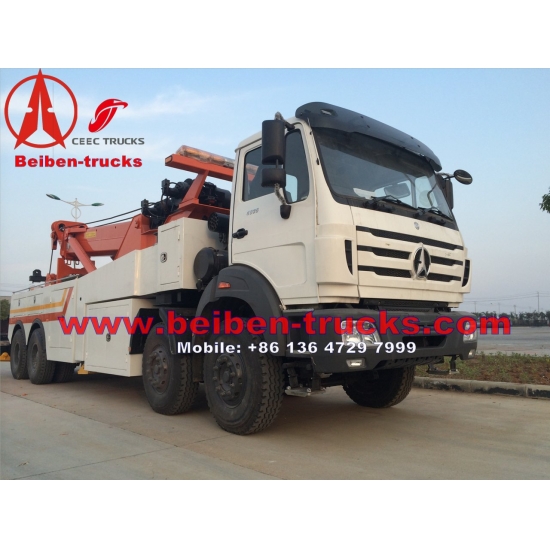

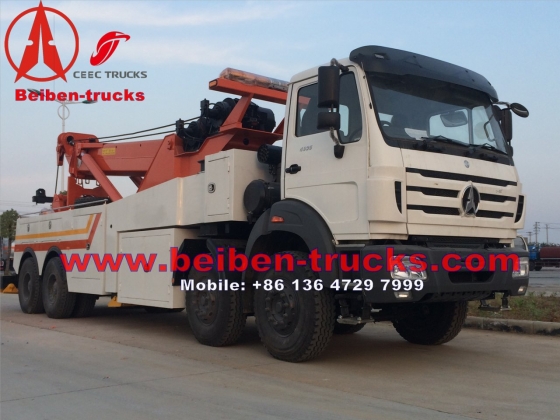

North benz right hand drive heavy duty recovery truck


China beiben heavy duty wrecker truck SPECIFICATION

Dimension (mm×mm×mm)

11986×2500×3600


Wheel base (mm)

1500+4750+1450


Curb weight (kg)

14500


Max Speed:(Km/h)

≥80


Front overhang/rear overhang

1410/1720


Engine

Model

WD615.50,water-cooled,four strokes,6 cylinders straight in line,turbocharged,


Fuel type

Diesel


Min rate of consuming fuel(g/(kW.h))

206g/Kw.h


Rated Power / rotating

(KW/(r/min)

206Kw/2200rpm


Emission

EUROⅡ


Maximum Torque / rotating speed(N.m/(r/min))

1160Nm/1100-1600rpm


Displacement(ml)

9726

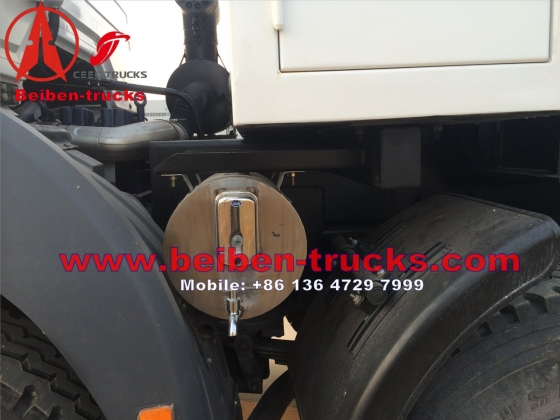

Fuel tanker capacity (L)

400


Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting


Gearbox

Model

5S-112GP mechanical type,Based on ZF German technology ,9Forward speed gear.


Gear ratio of speed

8.48/6.04/4.39/3.43/2.47/1.76/1.28/1.00

Crawler:13.04 Reverse:11.77


Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system


Assistant brake

Engine exhaust brake


Park brake

Potential springs pressing on middle and rear wheels


Steering system

Model

ZF8098, whole circulation in ball type, hydraulic boosting


Suspension system

Rear Suspension

Non-free standing stabilization spring, stabilization suspension, 13pcs


Frame

Fish belly shape, variable width, variable sections


Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering axle


Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle


Tire

12.00R20 radial tire


Qty of tire

13


Electrical system

Battery

2X12V/135Ah


Generator

28V-35A


Starter

5.4Kw/24V

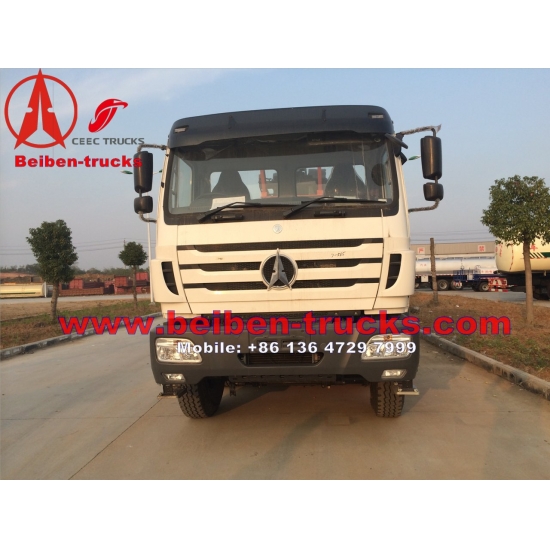

Cab

Long cab with sleeper,

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

With Tropical thermostat(71C)


Interior trimming:

Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.


Exterior trimming:

Metal bumper, two steps, new mirror.

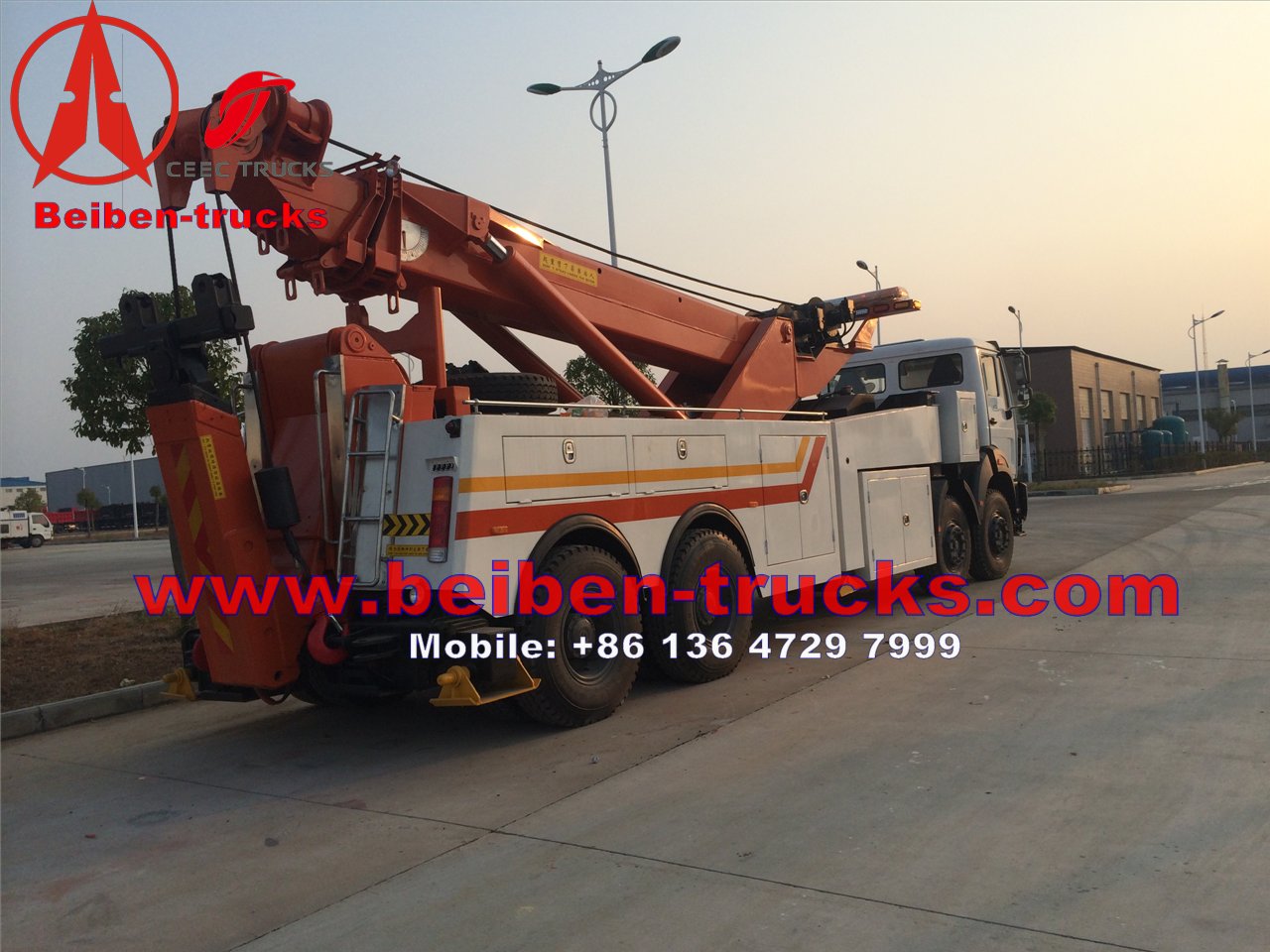

Specification of the Upper body(Wrecker)

towing equipment

30DZ+16T( 2stage boom )

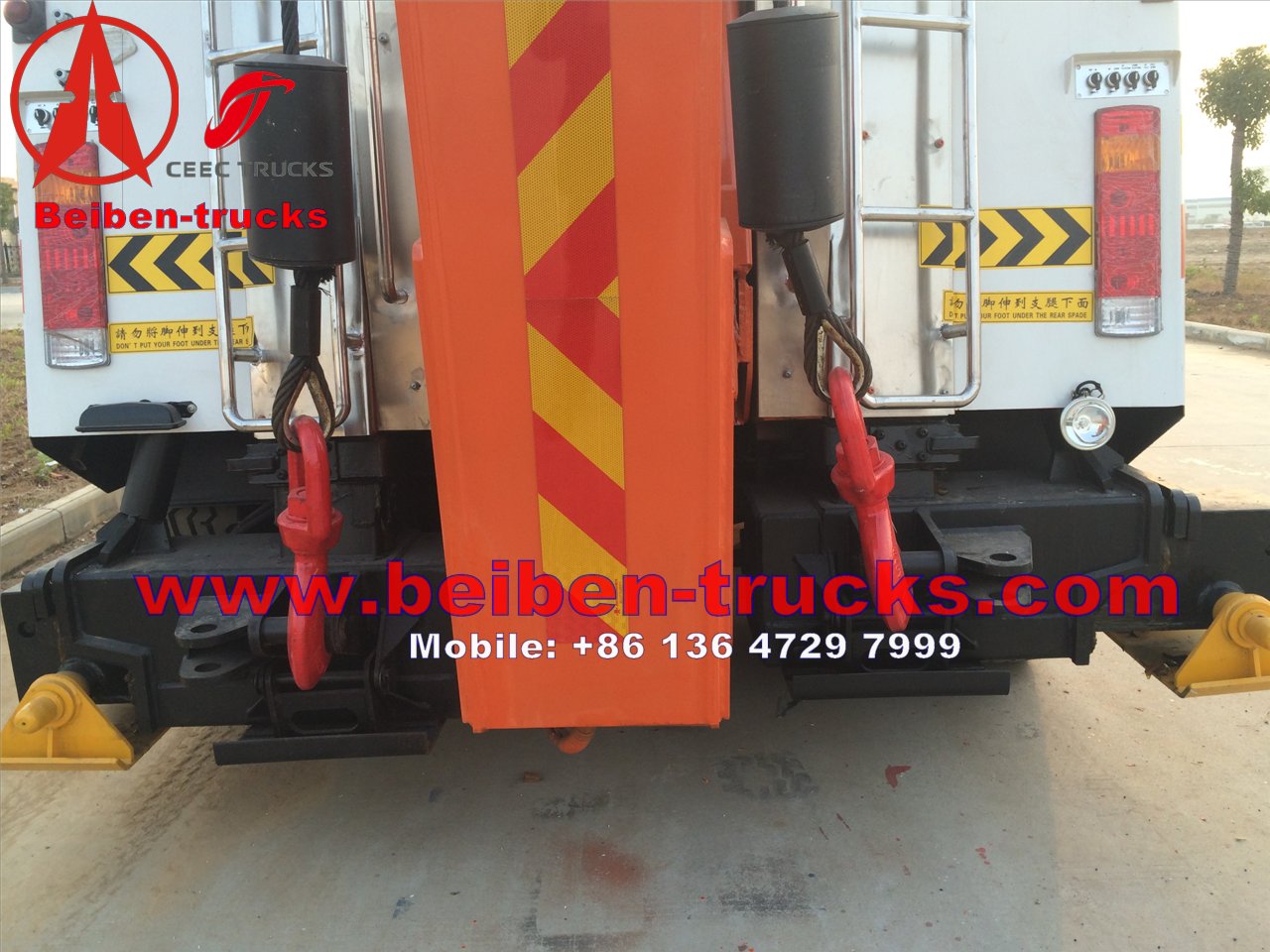

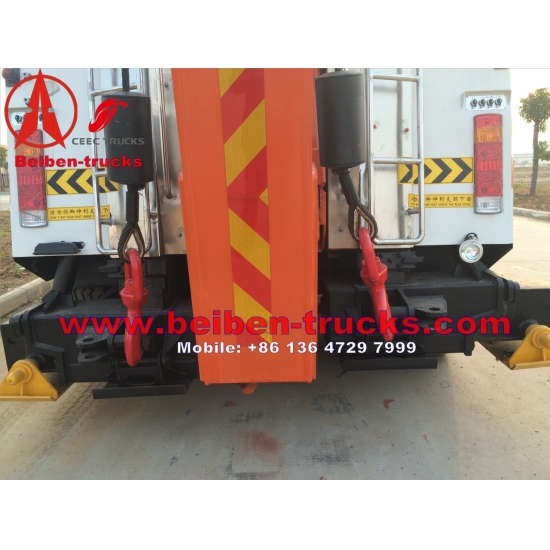

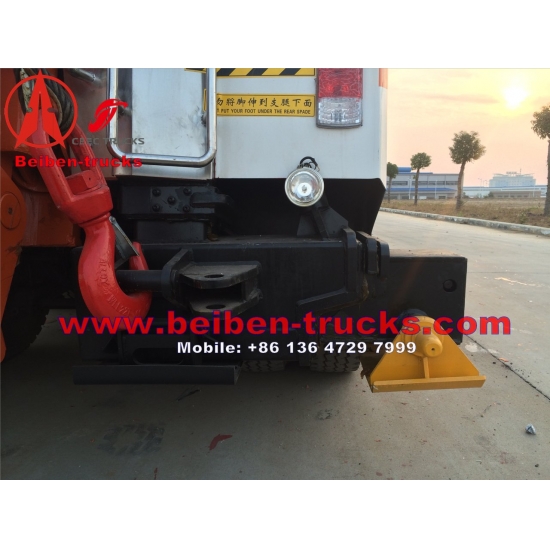

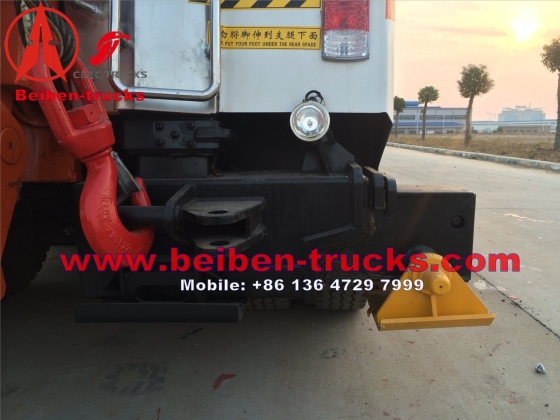

Under

lift

Max lift @all extend (kg)

7200

Max lifting (kg)

16000

Length of arm (mm)

1375~3014

In/out length (mm)

1639

Title angle (0)

-10

Moving angel(0)

-10~93

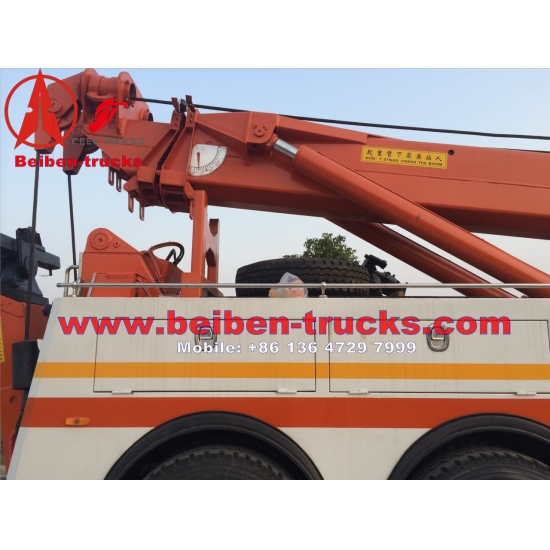

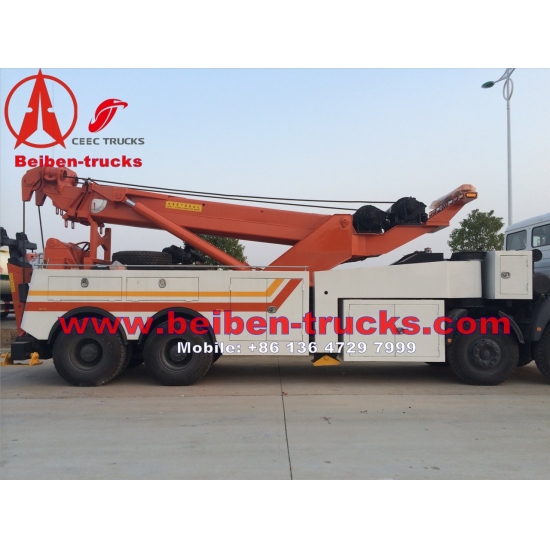

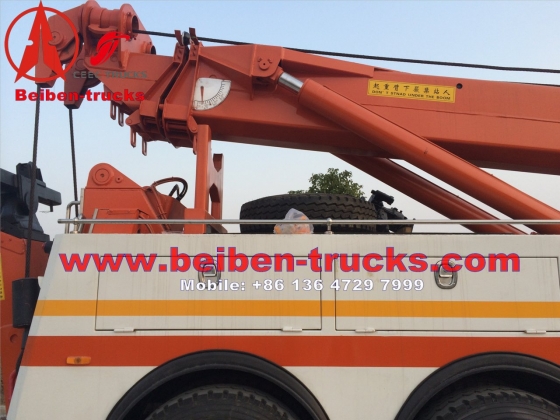

Boom system

Max lifting (kg)

30000

Lifting at all extend (kg)

5000

Length of 1st stage boom (mm)

5280

Total length of boom(mm)

8380

High of lifting (mm)

8680

move angle (0)

0~50

rotator (0)

360°

Winch

Qty

2

diameter of cable (mm)

φ18

Length of cable (m)

45×2

Sport legs

Front legs span (mm)

5110

Rear legs span (mm)

4000

Front to rear (mm)

7065

Previousnorth benz 16 T truck mounted crane

NextBeiben 8 CBM road sweeper truck

Success Cases

10 units beiben 2534 truck chassis, 6*6 driving truck export to CONGO, Brazavaiile

CONGO customer make beiben trucks business with our company more than 3 years, this time they order 10 units beiben 6 wheel driving trucks .   all these beiben 2534 all wheel drive trucks will be used in the mine area, for payloading timber.    Beiben 2534 trucks chassis under waxing before shippment .   Bureau Veritas inspectio...

10 units beiben 2534 truck chassis, 6*6 driving truck export to CONGO, Brazavaiile

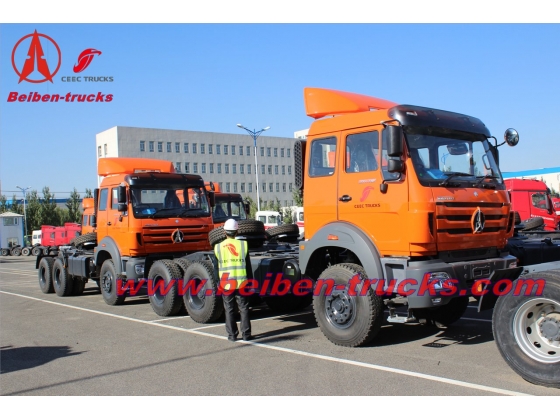

10 units beiben 2538 tractor truck and beiben 1934 tractor trucks are shipped at shanghai seaport
