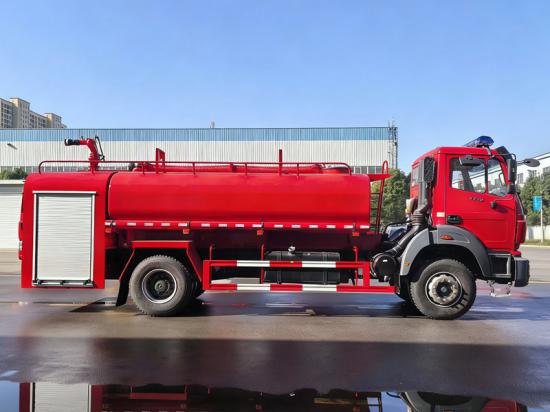

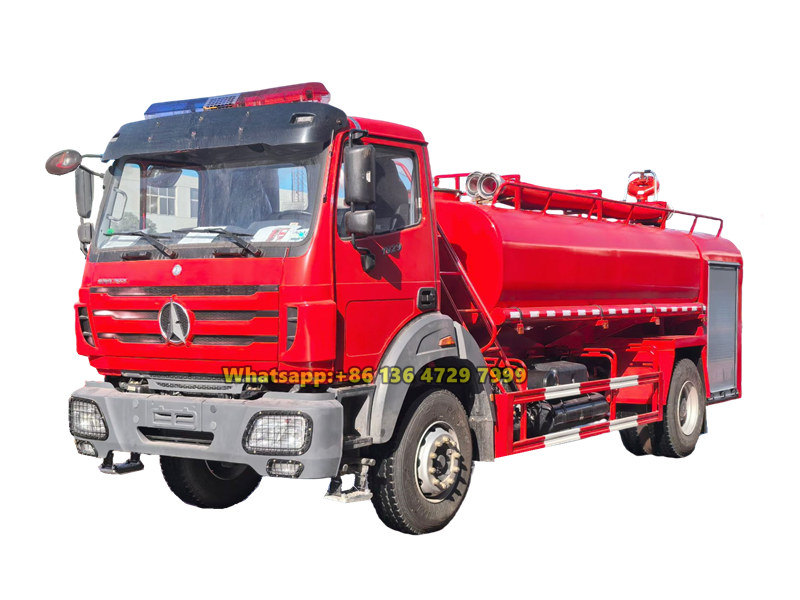

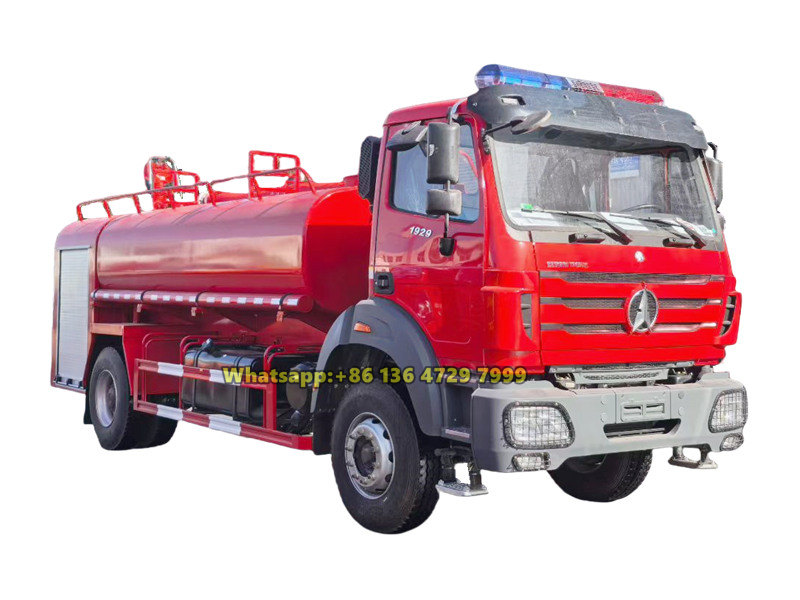

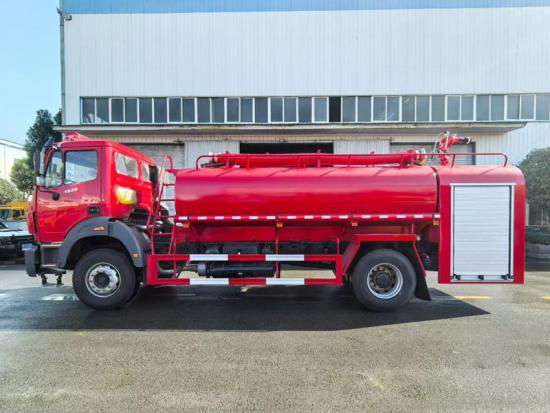

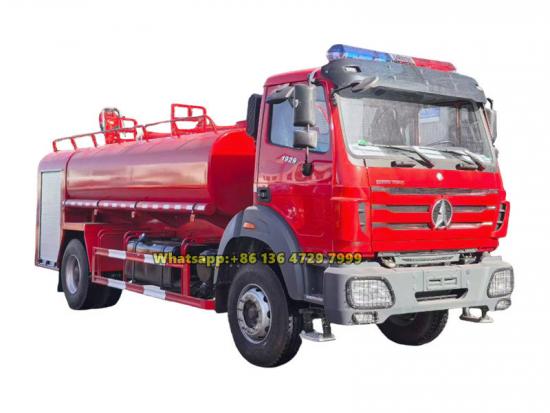

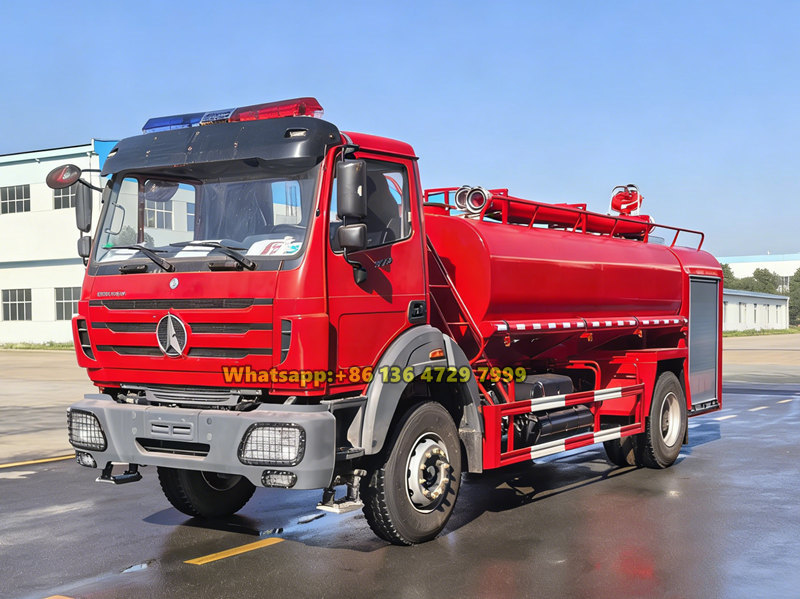

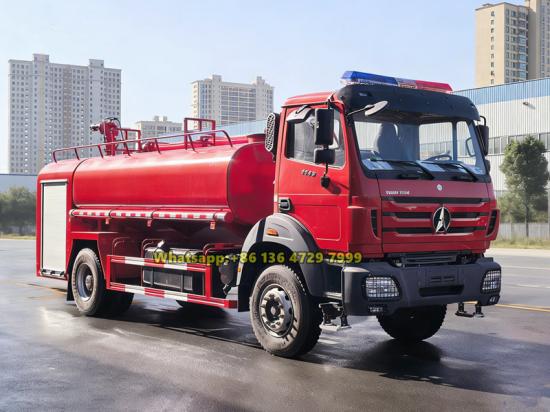

The Beiben 10000L water tender is a versatile emergency response vehicle based on a Beiben 4×2 chassis. Equipped with a 290-horsepower engine, it offers excellent mobility and flexibility. It features a large 10,000-liter water tank, a professional fire pump, and a fire monitor, providing independent firefighting and long-range water supply capabilities. This vehicle can quickly draw water from natural sources for fire suppression and also functions as a high-capacity water transport vehicle, making it particularly suitable for firefighting and emergency water supply tasks in urban areas, forests, and other narrow or water-scarce environments.
Working Capcity:
10000 litersCabin Type:
NG80B short cabinDimension ( mm ) :
8100×2500×3200Drive System:
4×2Wheelbase (mm):
4800Engine Power:
290HP/WP10.290E32Gear Box:
9JS150ARemark:
4×4 drive, stainless steel tank is optionalThe Beiben 10000L water tender is a multifunctional specialized vehicle that integrates firefighting and water transport capabilities. Built on a Beiben 4×2 chassis, it is compact and highly maneuverable, powered by a 290-horsepower Weichai engine with a maximum speed of 90 km/h, enabling easy navigation through narrow roads. It is equipped with a 10,000-liter carbon steel water tank, a CB10/40 fire pump, and a PS8/48W fire monitor, delivering a water jet range exceeding 65 meters, allowing it to independently perform fire suppression and long-range water supply operations.
The advantage of this Beiben water fire tender lies in its large 10,000-liter water tank, which ensures extended operational endurance. Additionally, it comes standard with professional fire pump and monitor, providing comprehensive firefighting capabilities. It can efficiently draw water from natural sources for firefighting and serve as a critical water transport and supply unit in water-deficient areas, achieving multiple functions with a single vehicle. Its outstanding overall performance makes it a reliable asset for firefighting in urban streets and forests, as well as various emergency rescue scenarios.
CEEC factory is authorized supplier on beiben fire trucks,
guarantee all beiben fire resuce trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Built on Beiben 4×2 heavy-duty chassis, strong load capacity

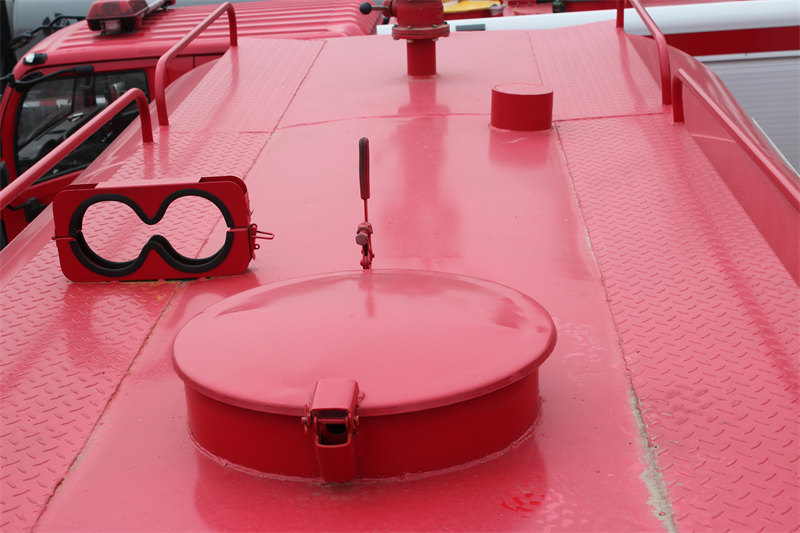

▶ Tank Volume: Tank capacity up to 10000 liters, with manhole cover on top
▶ Tank construction: Made of high-strength carbon steel, 5mm thickness, anti-rust treatment inside

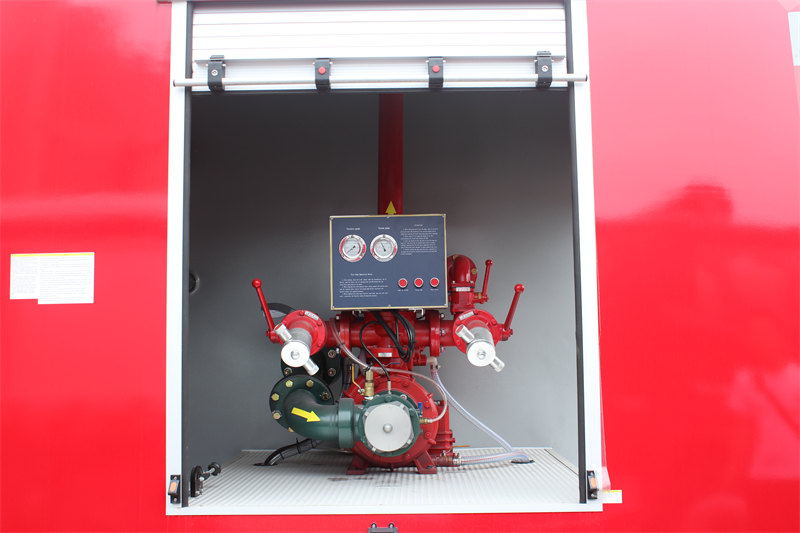

▶ Fire pump: Intalled at rear of the vehicle, model CB10/40, flow rate 40L/s

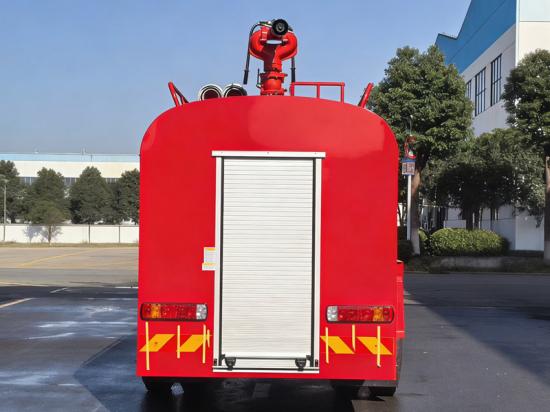

▶ Fire monitor: Installed at top of the tank, model PS8/48, water range up to 65m
» Ⅱ. Product Specifications:
|
Beiben 10000 liters water tender truck specifications |
||
|
Chassis |
||
|
Cabin |
Beiben NG80B short cabin |
|
|
4x2, left hand drive |
||
|
With air conditioner, 2 seats, with USB, radio, loud speaker |
||
|
Vehicle Main Dimensions |
Overall dimensions (mm) |
8100×2500×3200 |
|
Wheel base (mm) |
4800 |
|
|
Front/rear overhang (mm) |
1260/2320 |
|
|
Approach angle (°) |
19 |
|
|
Departure angle (°) |
11 |
|
|
Weight in KGS |
Gross Vehicle Weight (kg) |
19000 |
|
Curb Weight (kg) |
8600 |
|
|
Payload (kg) |
10000 |
|
|
Max. driving speed(km/h) |
90 |
|
|

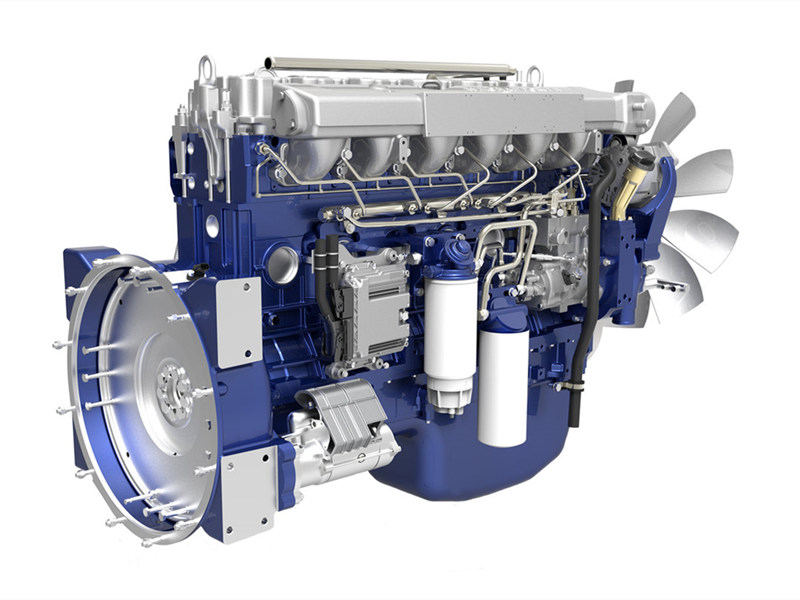

Engine |
Brand |
WEICHAI |
|
Model |
WP10.290E32 |
|
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Displacement |
9726 ml |
|
|
Max. output power |
213 kW |
|
|
Horse power |
290HP |
|
|
Rated speed |
2200 rpm |
|
|
Max. torque |
1160 N.m |
|
|
Gearbox |

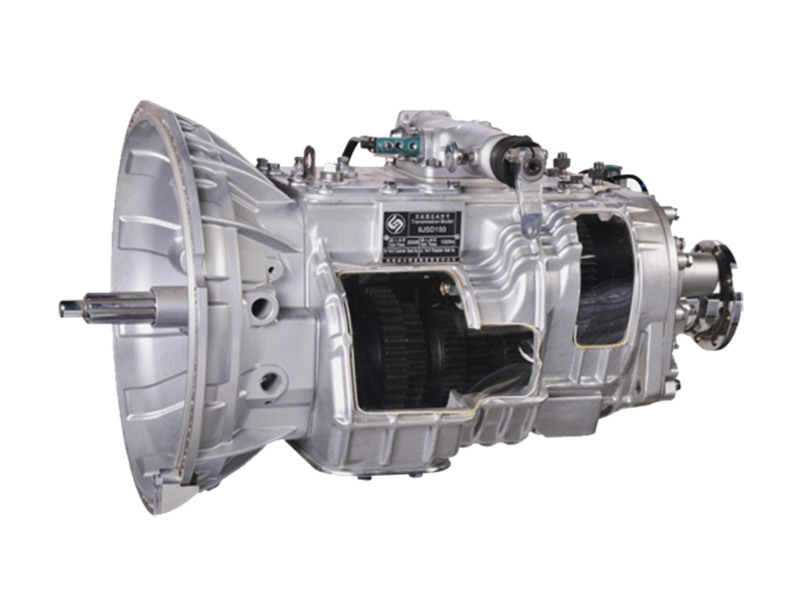

FAST, 9JS150A, 9 Forwards gear & 1 reverse gear |
|
|
Tire |
10.00R20, 6 pcs+1 spare tire |
|
|
Axle load |
Front axles 7500kg, rear axle 13000kg |
|
|
Brakes |
Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS) |
|
|
Upper-body parameters |
||
|
Water tank volume |
10000 liters |
|
|
Manhole in the tank |
DN450 |
|
|
Thickness |
5mm |
|
|
Material |
Carbon steel |
|
|
Standard configuration of the tank |
Equipped with fire pump |
|
|
Fire pump |
||
|
Model |
CB10/40 |
|
|
Type of pump |
Centrifugal pump |
|
|
Rated working pressure |
1.0 Mpa |
|
|
Water flow rate |
40L/S @ 1.0MPa |
|
|
Maximum suction depth |
7m |
|
|
Diversion device |
Self-contained slide pump |
|
|
Diversion time |
Maximum depth of suction < 50s |
|
|
Fire monitor |
||
|
Model |
PS8/40W |
|
|
Rated Flow |
40 L/s |
|
|
Rated working pressure |
0.8 Mpa |
|
|
Max. working pressure |
1.0 Mpa |
|
|
Water Range(m) |
≥65 m |
|
|
Rotation angle |
Horizontal: 0~360° |
|
|
Pipe system |
||
|
Pipe Line inlet |
2 inlet, φ125 inlet in the pump |
|
|
Pipe Line outlet |
2 outlet, φ65, at the back of pump |
|
|
Firefighting Equipment |
||
|
Fire electric siren |
1 Nos |
|
|
Emergency rotation lamp |
1-Nos |
|
|
Fire axe |
1-Nos |
|
|
Fire hook |
1-Nos |
|
|
Fireman ladder |
1-Nos |
|
|
Jet&spray nozzle |
1-Nos |
|
|
Jet nozzle |
1-Nos |
|
|
Fire hoses (b/s system) (65mm, 20m) |
4-Nos |
|
|
Suction pipe (length 4m) |
2-Nos |
|
|
Water filter (φ100, metal) and guide rope |
2-Nos |
|
|
Suction pipe wrench (100mm) |
2-Nos |
|
|
Fire hydrant wrench |
2-Nos |
|
|
Fire extinguisher(3kg) |
2-Nos |
|

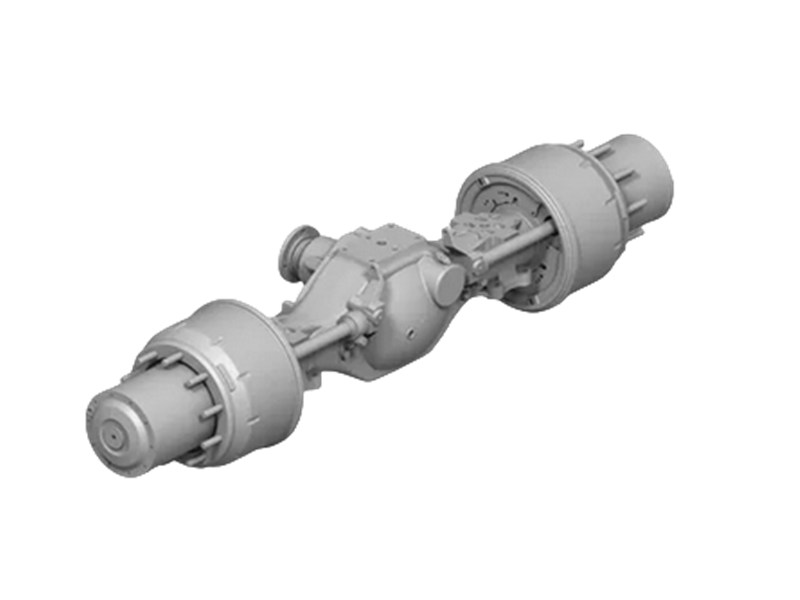

» Ⅲ. Chassis Advantages:
» Ⅳ. Upper Body Features:

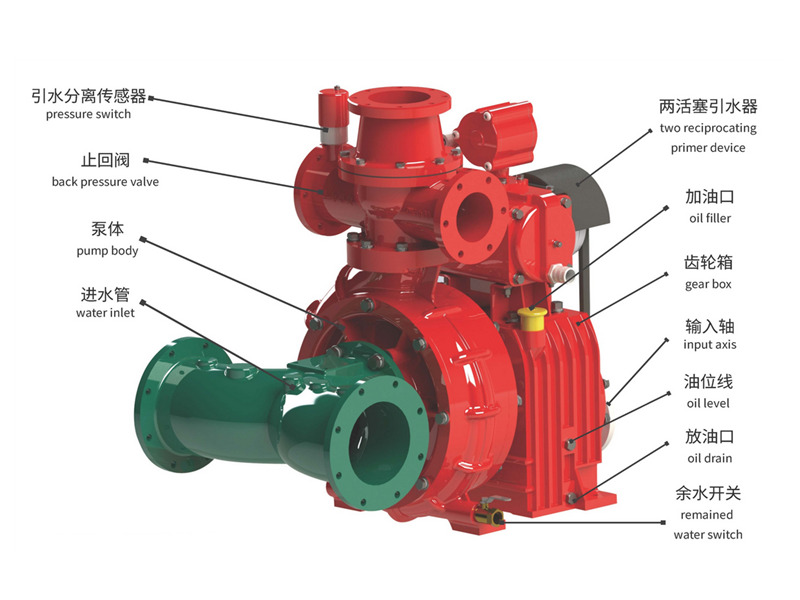

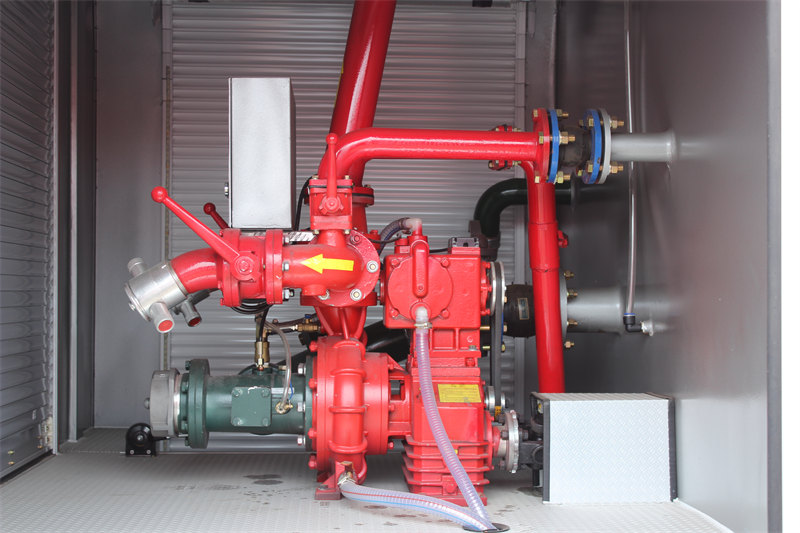

Fire pump
|
Model |
Work condition |
Flow rate (L/S) |
Outlet pressure (Mpa) |
Rated speed (r/min) |
Suction depth (m) |
|
CB10/40-XZ |
1 |
40 |
1 |
3080±50 |
3 |
|
2 |
28 |
1.3 |
3360±50 |
3 |
|
|
3 |
20 |
1 |
2990±50 |
7 |

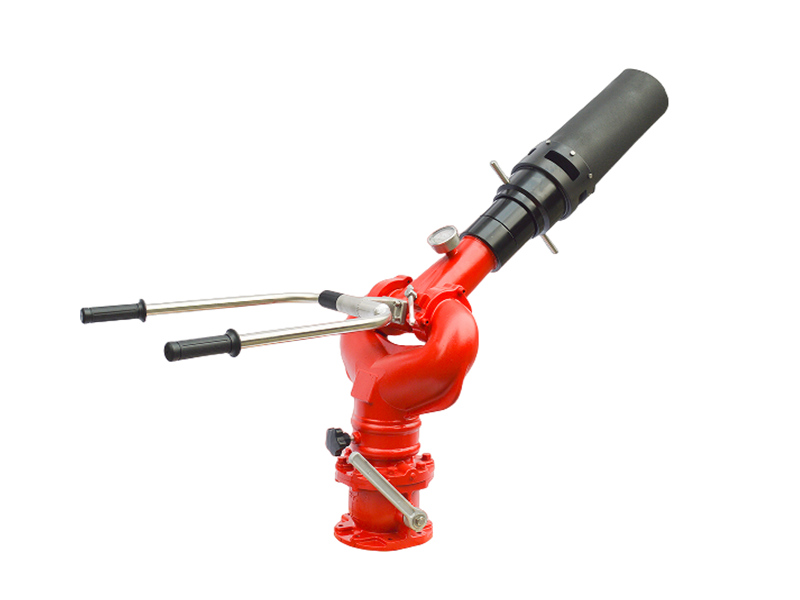

Fire monitor
Model: PS8/40W

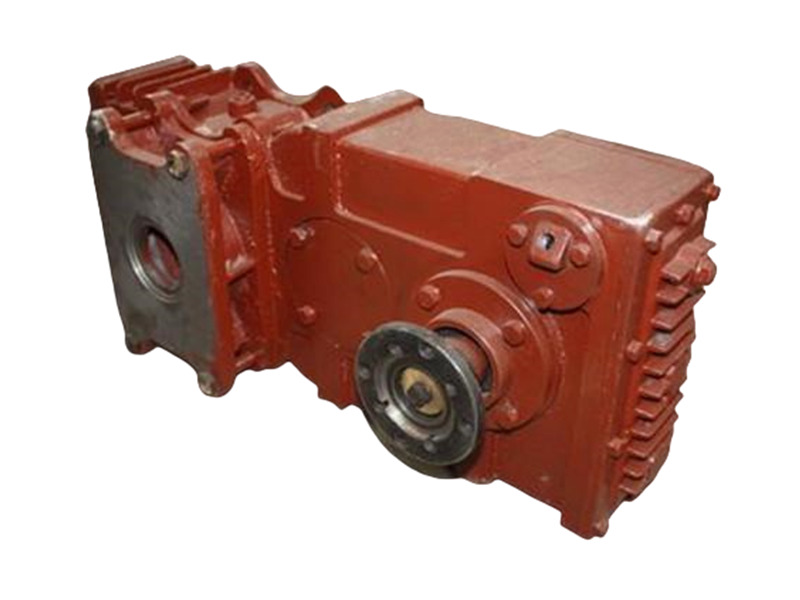

Sandwich PTO
Type: Sandwich type
Control method: electric control
Cooling method: Forced adjustable water cooling
Lubrication method: Splash oil lubrication
» Ⅴ. Product Details:

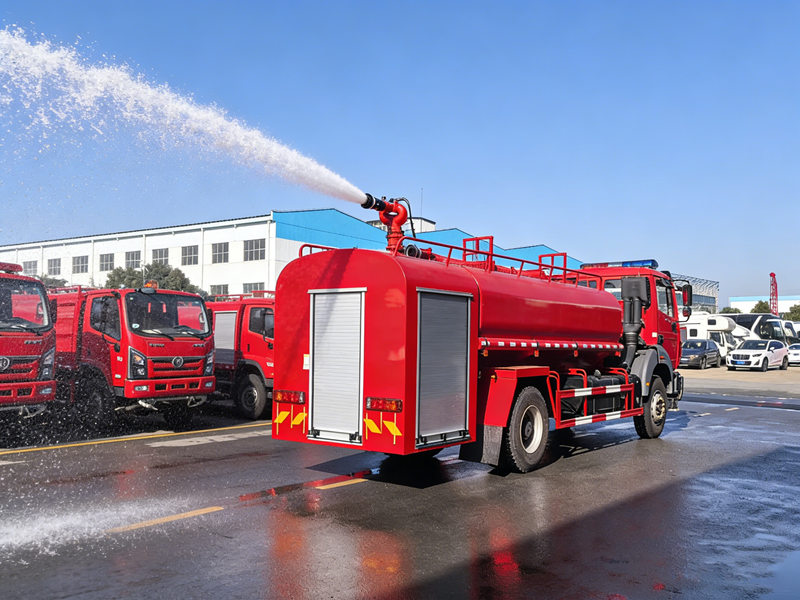

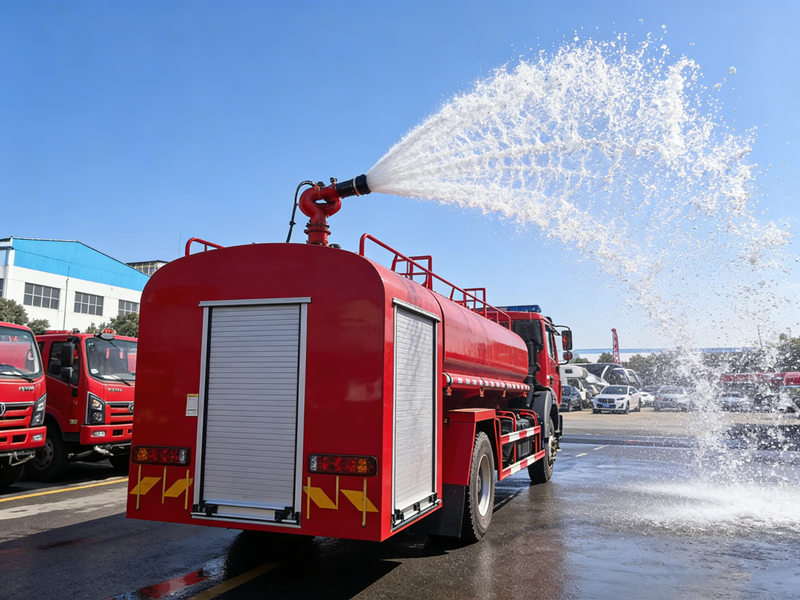

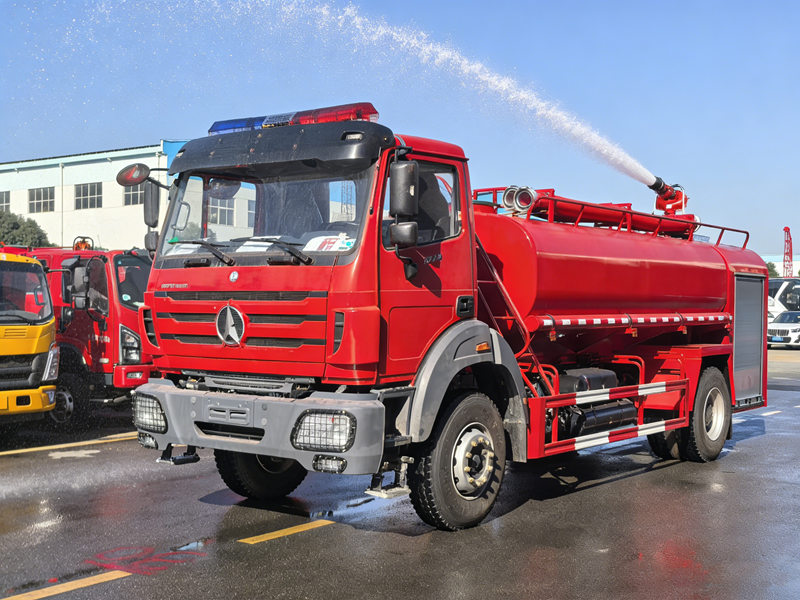

» Ⅵ. Beiben Water Tender Testing:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive firefighting trucks for option
2. Factory direct sale, supply Beiben tanker fire trucks with capacity 5000~20000 liters
3. Foam system, dry powder system can be customzied for different type of fires
4. Carbon steel, stainless steel, PP tank material is optional.
