Beiben 8x8 off-road cargo van truck

The Beiben 8×8 all-wheel-drive van truck is a heavy-duty commercial vehicle specifically designed for heavy and specialized logistics. At its core, it features a Weichai 420HP engine paired with a 12-speed transmission. Combined with an 8×8 drive system and a Benz-technology dual-reduction axle, it delivers exceptional load-bearing capacity and off-road performance. The vehicle is equipped with a robust iron cargo box of approximately 61 cubic meters and dual fuel tanks for extended range, ensuring it meets the demands of heavy-loading, large-capacity, and high-reliability operations.

  • Working Capcity:

    40 tons
  • Cabin Type:

    Beiben NG80B cabin
  • Dimension ( mm ) :

    12100×2700×3470
  • Drive System:

    8×8
  • Wheelbase (mm):

    1500+4150+1450
  • Engine Power:

    420HP/WP12.420E32
  • Gear Box:

    12JS200T
  • Remark:

    6×6, 8×4, RHD drive is optional
New Products

The Beiben 8×8 all-wheel-drive van box truck is a high-performance commercial vehicle designed for heavy-duty transportation and challenging road conditions. It is powered by a WP12.420E32 diesel engine, delivering 420 horsepower and a peak torque of 1,750 N·m. Paired with a 12-speed manual transmission and a full-time four-wheel-drive system, it ensures outstanding off-road capability and load-bearing performance. The chassis utilizes a fish-belly variable cross-section frame with multi-leaf spring suspensions at both the front and rear. Combined with a dual-reduction drive axle featuring a 5.263 gear ratio, the vehicle offers significant rated load potential and excellent stability.

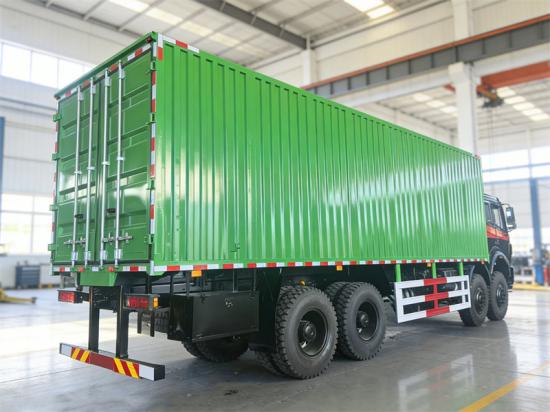

This Beiben 8WD cargo van is equipped with a fully enclosed cargo box measuring 9.4 meters in length, providing approximately 61 cubic meters of volume, making it suitable for transporting large-volume goods. Dual 400-liter iron fuel tanks enable an extended operating range, while a maximum speed of 90 km/h balances efficiency and safety. The cab is an NG80B long-roof, double-bunk version, featuring an air-suspension seat and a digital instrument panel to enhance comfort during long-haul drives. Whether in mountainous areas, construction sites, or long-distance trunk routes, this rugged and reliable all-wheel-drive van is capable of handling a wide range of heavy-duty transportation tasks.

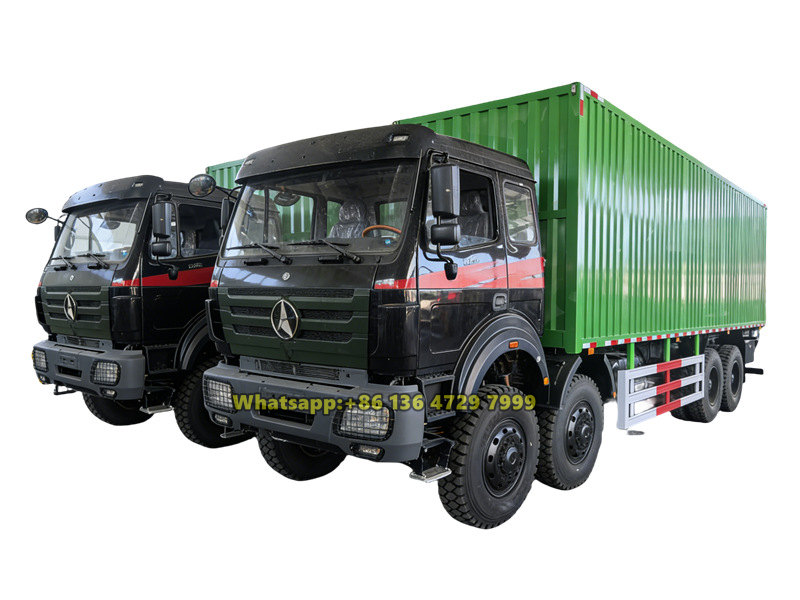

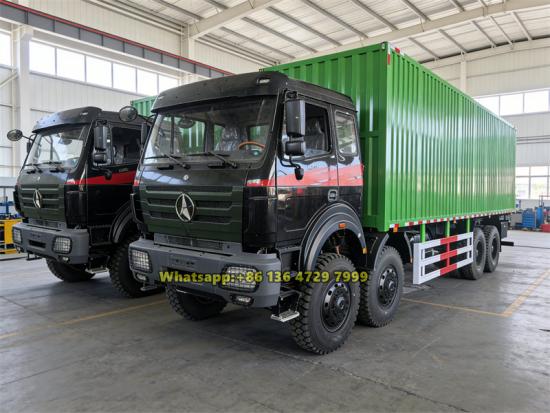

beiben 8×8 cargo box truck

*Beiben 8×8 off-road cargo box truck

-----------------------------------------------------------------

CEEC factory is authorized supplier on beiben 8x8 off-road trucks,
guarantee all beiben 8x8 drive trucks Brand-New and High-Quality.







» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS

Chassis: Beiben heavy-duty chassis, 8×8 all-wheel-drive

Engine: Weichai WP12.430E32 diesel engine, 6-cylinder, Euro 3

Transmission: FAST 12JS200T, 12-speed forwards and 2-speed reverse

Tires: 12.00R24

 Van body: 9400x2500x2600mm





» Ⅱ. Product Specifications:



Beiben 8×8 AWD Box Van Truck

Wheelbase(mm)

1500+4150+1450

L*W*H

12100X2700X3470

Curb weight(kg)

14800

Front overhang/rear overhang (mm)

1435/2855

Front wheel track (mm)

1995/1995

Rear wheel track (mm)

1800/1800

Approach angle/Departure angle

33/20

Max Speed:(Km/h)

90

Engine

Model

WP12.420E32

Type

water-cooled, four strokes, 6 cylinders straight in line, turbocharged

Fuel type

Diesel

Min rate of consuming fuel(g/(kw.h))

196g/kw.h

Rated Power / rotating(kw/(r/min)

319Kw(420HP)/2200rpm

Emission

EURO 3

Maximum Torque / rotating speed (n.m/(r/min)

1750Nm/1500-1800rpm

Displacement(ml)

11.596

Fuel tanker capacity(L)

400L+400L Iron

Transfer case

LF200

Clutch

Model

#430, Single dry frictional disc, Hydraulic boosting

Gearbox

Model

12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear.

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

8098 whole circulation in ball type, hydraulic boosting

Suspension System

Front Suspension

Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,12/12 pcs springs.

Rear Suspension

Non-free standing stabilization spring, stabilization suspension,13 pcs springs

Frame

Fish belly shape, variable width, variable sections, Based on Germany Benz Technology

Cross section dimension of frame(mm)

317×70×8.5+7+8mm

Double Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, 7500+7500kg

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13000kg+13000kg double reduction driving axle, speed ratio5.263

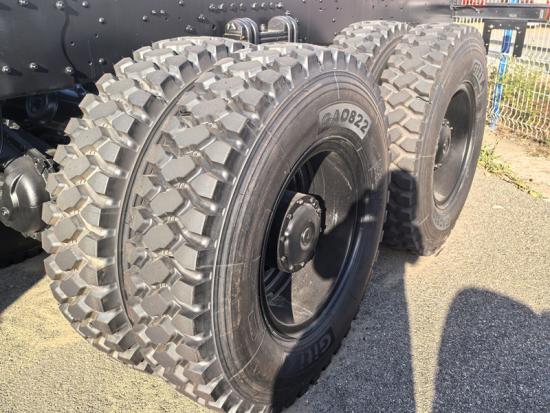

Tire

12.00R24 radial tire

Electrical system

Battery

2X12V/135Ah

Generator

28V-70A

Starter

5.58Kw/24V

Cab

NG80B
Long cab with one sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;

Interior trimming:
Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C

Exterior trimming:
Metal bumper, two steps, new mirror.

Other specifications

Two layer air filter

Upper body specifications

Van body dimensions

9400x2500x2600mm

Van body material

Corrugated iron sheet

Thickness

3mm

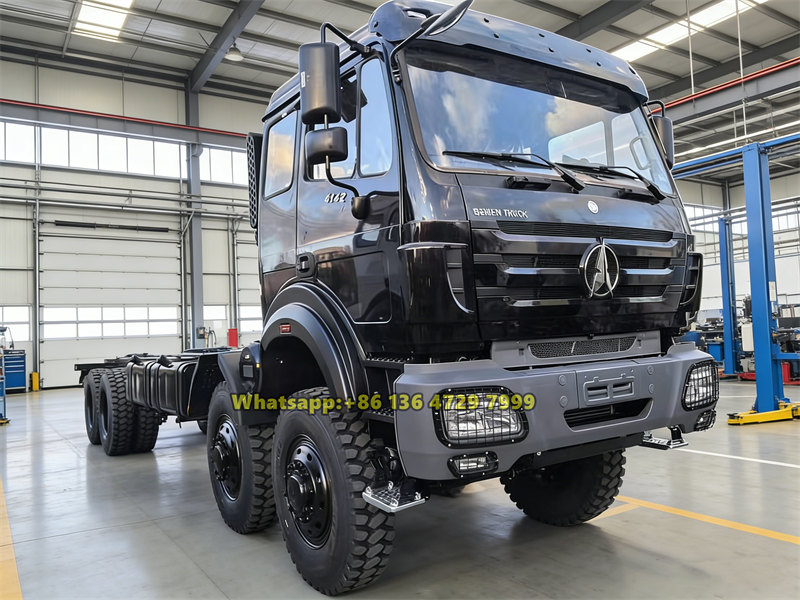

Beiben 12 wheeler 8WD chassis for sale

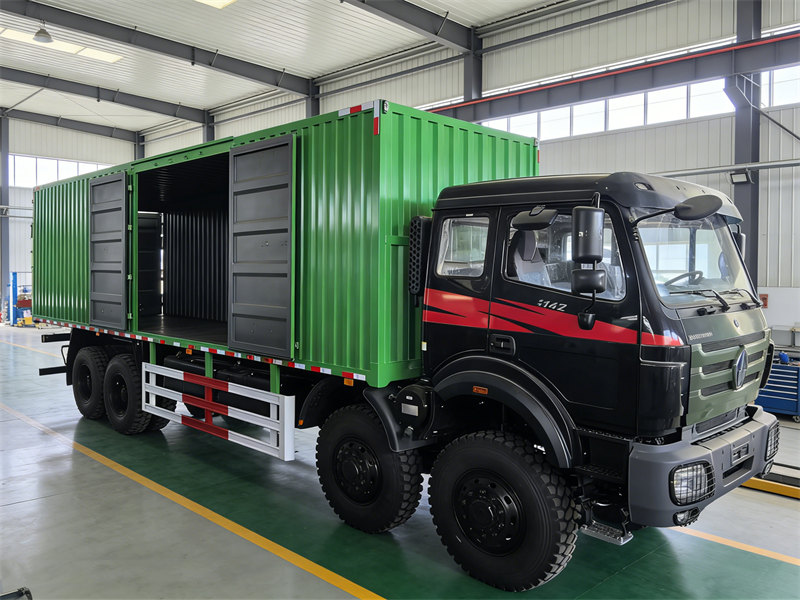

Beiben 8×8 all terrian cargo box truck



» Ⅲ. Product Advantages:

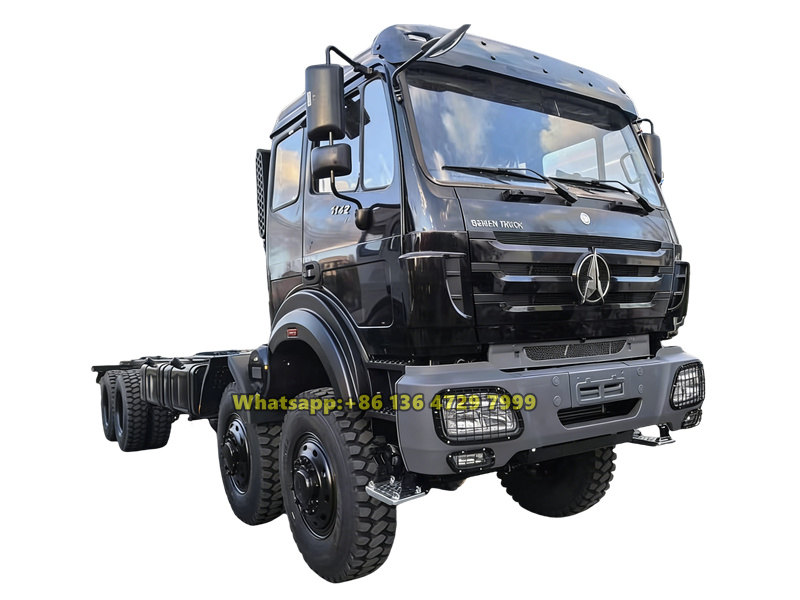

Beiben 8×8 chassis for sale



Beiben NG80B cabin

Beiben NG80B long cabin
2 seats with one sleeper bed
Full steel skeleton structure
Can be tipped forwardly





Beiben 8×8 cargo truck chassis

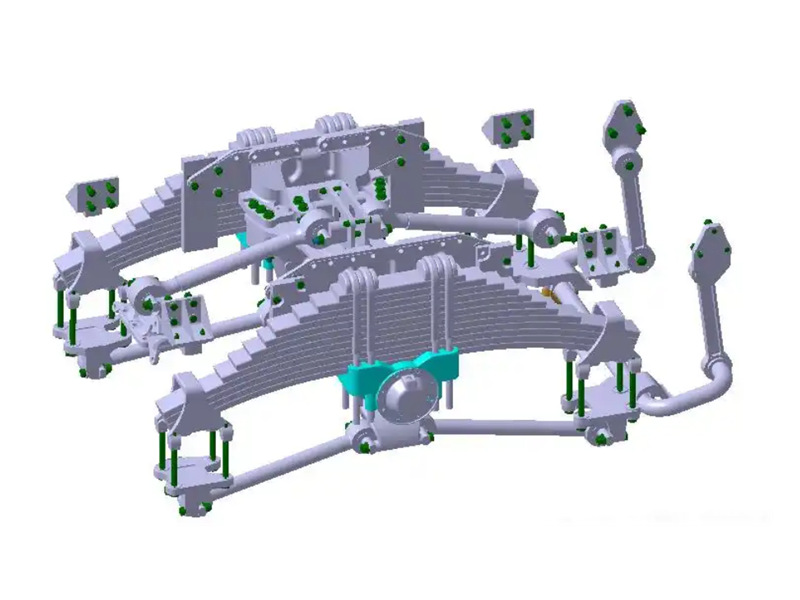

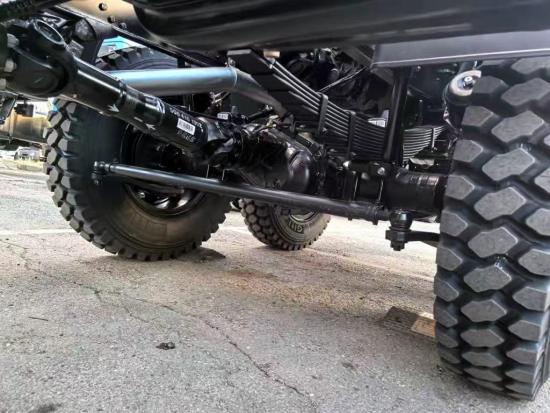

Reinforced suspension

Front leaf springs: 12/12 pcs

Rear leaf springs: 13 pcs

Number of U-shape bolts: 4





Beiben 8WD heavy duty cargo chassis

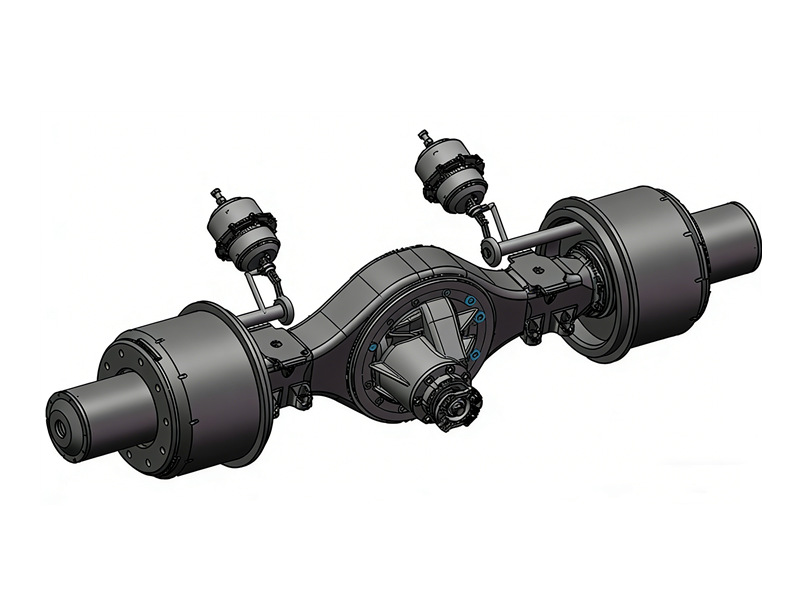

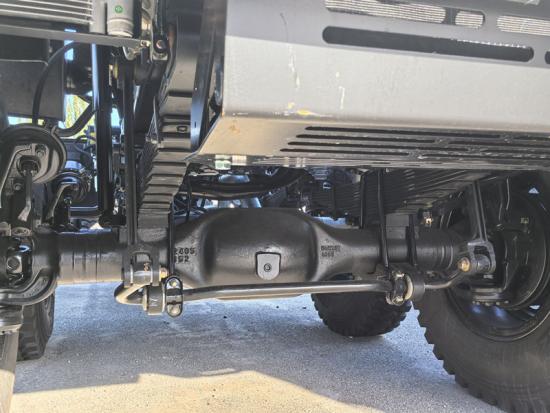

Strong axles

Front axles: driving axle, 7500kg+7500kg

Rear axles: driving axle, 13000kg+13000kg





» Ⅳ. Product Drawing:

Chassis drawing

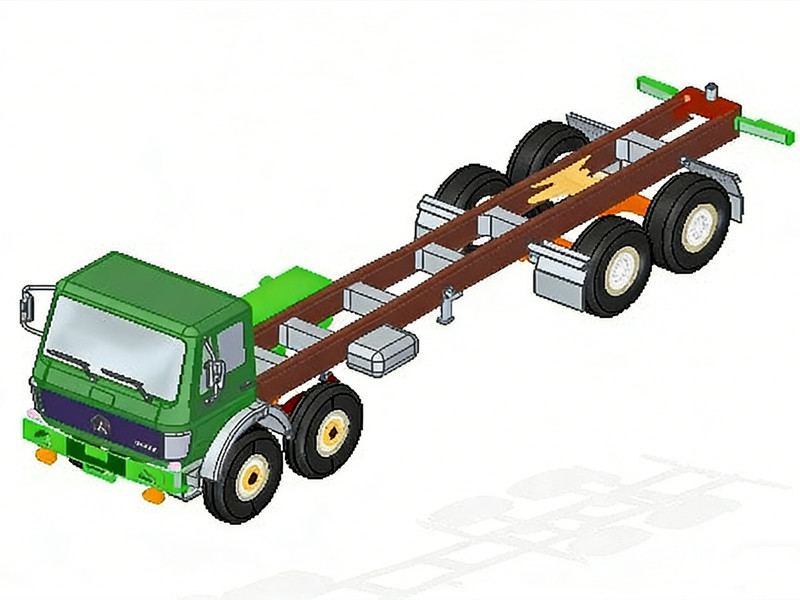

  • Beiben 8WD chassis drawing

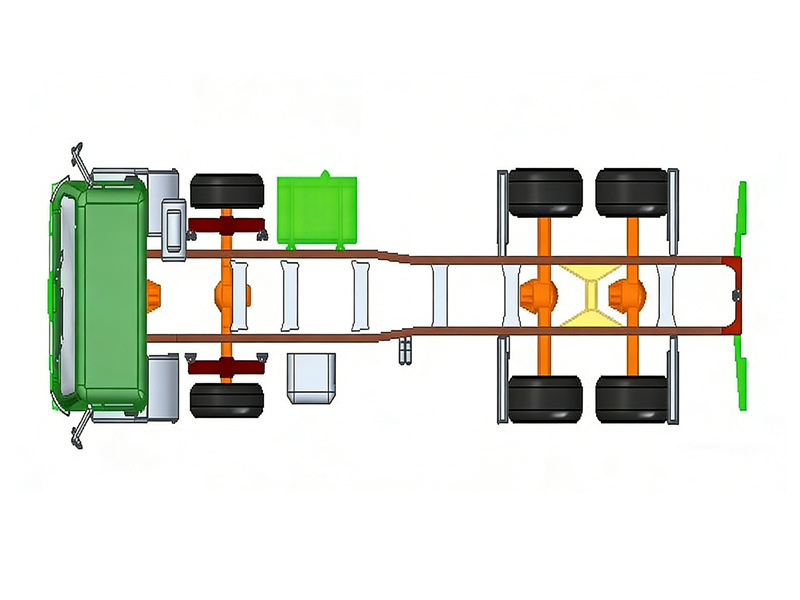

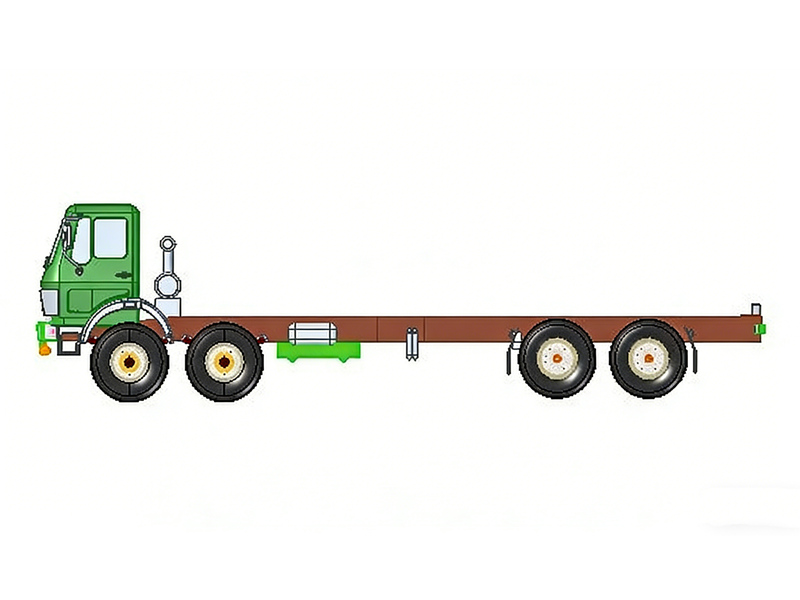

  • Beiben 8x8 cargo chassis drawing
  • Beiben 8x8 cargo chassis drawing



Upper-body drawing

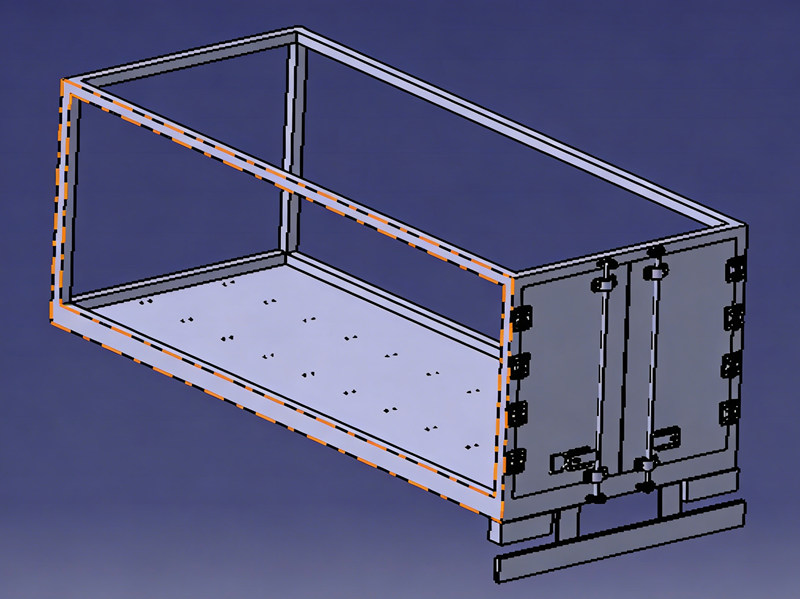

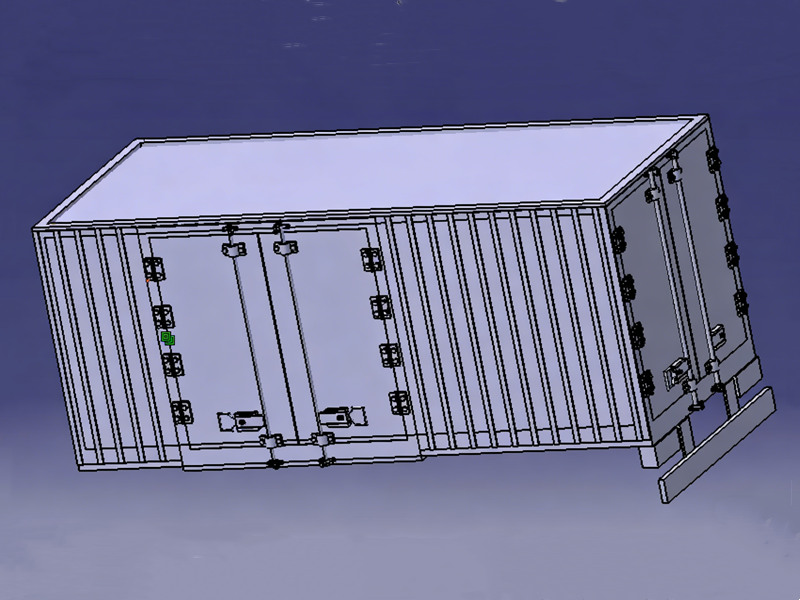

  • Beiben 8x8 cargo van drawing

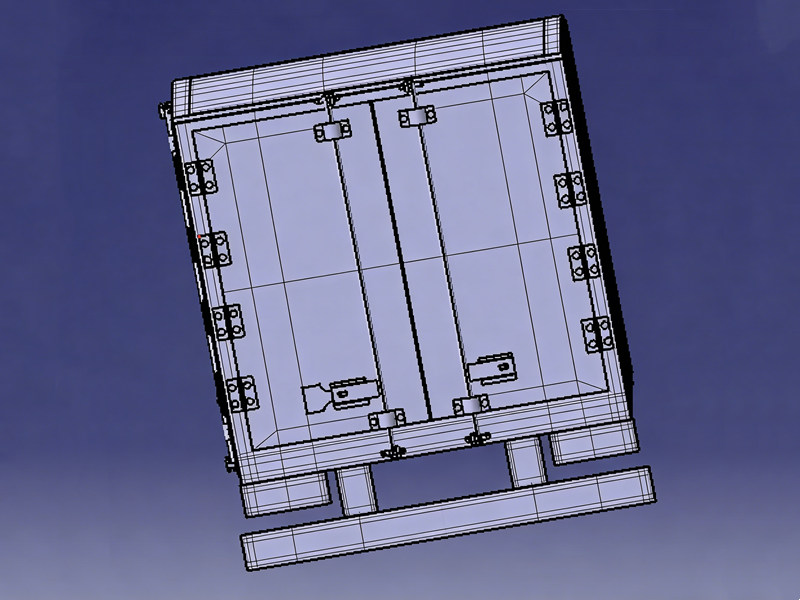

  • Beiben 8x8 cargo van drawing
  • Beiben 8x8 cargo van drawing
