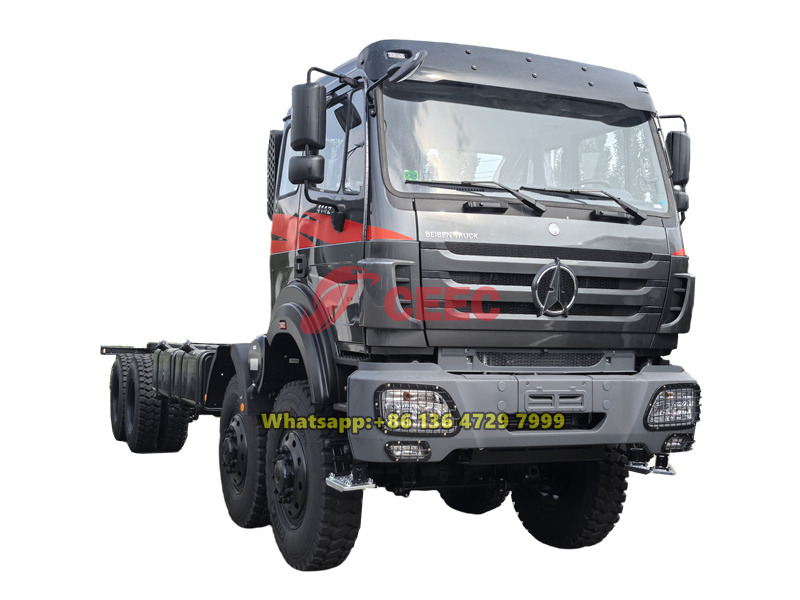

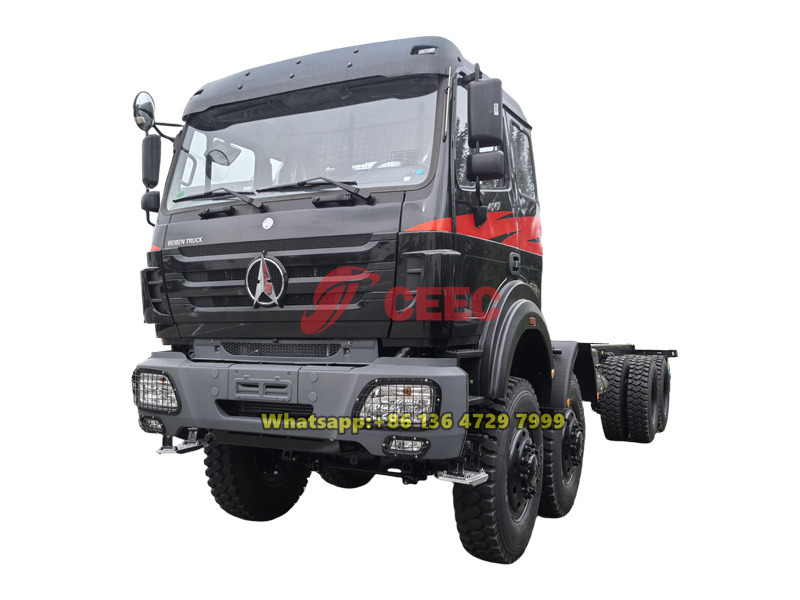

The Beiben 8×8 all-terrain truck chassis is equipped with a 420-horsepower diesel engine that delivers a powerful torque of 1750 Nm at 1200-1500 rpm. It utilizes Mercedes-Benz technology-based 7-ton front axles and 13-ton rear axles, combined with all-wheel drive and off-road tires, providing exceptional load-bearing capacity and performance on complex road conditions. The robust fish-belly frame and multiple braking systems ensure reliability and safety for heavy-duty transportation.
Working Capcity:
40 tonsCabin Type:
Beiben NG80B cabinDimension ( mm ) :
11340×2450×3200Drive System:
8×8Wheelbase (mm):
1500+4150+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
6×6, 8×4, RHD drive is optionalThe Beiben 8×8 off-road truck chassis adopts a mature and reliable all-wheel-drive design, powered by a 420-horsepower diesel engine and a 12-speed manual transmission. It delivers a powerful torque of 1750 Nm at 1200-1500 rpm, providing ample power for heavy-duty cargo transportation. The vehicle features a dual-fuel-tank configuration and a two-stage reduction rear axle with a 5.263 gear ratio, paired with 12.00R24 off-road tires, ensuring outstanding passability even in challenging road conditions.
The Beiben 8×8 all-terrain chassis integrates multiple core Mercedes-Benz technologies. The front axles are 7-ton Mercedes-Benz-technology-driven steering axle, while the rear axles are 13-ton two-stage reduction axle. Combined with a fish-belly variable-section frame and multi-leaf spring suspension, it balances structural strength and off-road adaptability. Additionally, the vehicle is equipped with a dual-circuit air brake system, an engine exhaust brake, and an air-cut handbrake, ensuring reliable braking performance under various operating conditions. The cab features a forward-tilting steel frame structure, a digital instrument cluster, and a high-performance shock-absorbing seat, balancing operational convenience and driving comfort, fully meeting the diverse demands of heavy-duty engineering transportation.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 8x8 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Beiben 8×8 truck features:
» Ⅱ. Product Specifications:
|
Wheel base(mm) |
1500+4150+1450 |
|
|
Overall size (L*W*H) (mm) |
11340X2450X3200 |
|
|
Curb weight(kg) |
8800 |
|
|
Front overhang/rear overhang (mm) |
1515/2465 |
|
|
Approach angle/Departure angle |
33/20 |
|
|
Max Speed:(Km/h) |
≤85 |
|
|
Engine |
Model |
WP12.420E32, water-cooled, four strokes,6 cylinders straight in line, turbocharged. |
|
Fuel type |
Diesel |
|
|
Min rate of consuming fuel (g/(kw.h)) |
185g/kw.h |
|
|
Displacement (ml) |
11596 |
|
|
Emission standard |
EURO3 |
|
|
Power (kw/hp) |
309KW/420HP |
|
|
Rated speed (rpm) |
2100 |
|
|
Maximum Torque |
1750Nm |
|
|
Speed at Maximum Torque |
1200-1500rpm |
|
|
Fuel tanker capacity(L) |
400L+400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |

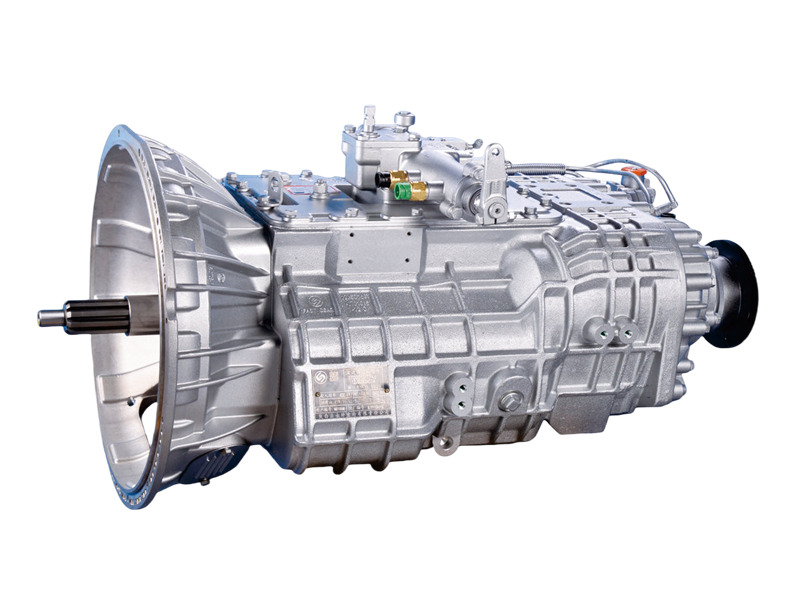

12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,12/12 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Double Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 7 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio 5.263 |
|
|
Tire |
12.00R24 radial tire |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B |
|
|
Long cab with one sleeper |
||
|
Full steel skeleton structure, covered with double layer steel plate; |
||
|
Can be tipped forwardly; |
||
|

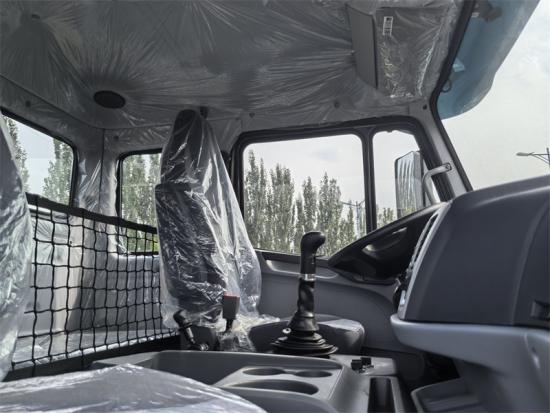

Interior trimming: |
||
|
Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C |
||
|
Exterior trimming: |
||
|
Metal bumper, two steps, new mirror. |
||
|
Other specifications |
Two layers air filter |
|
» Ⅲ. Product Advantages:

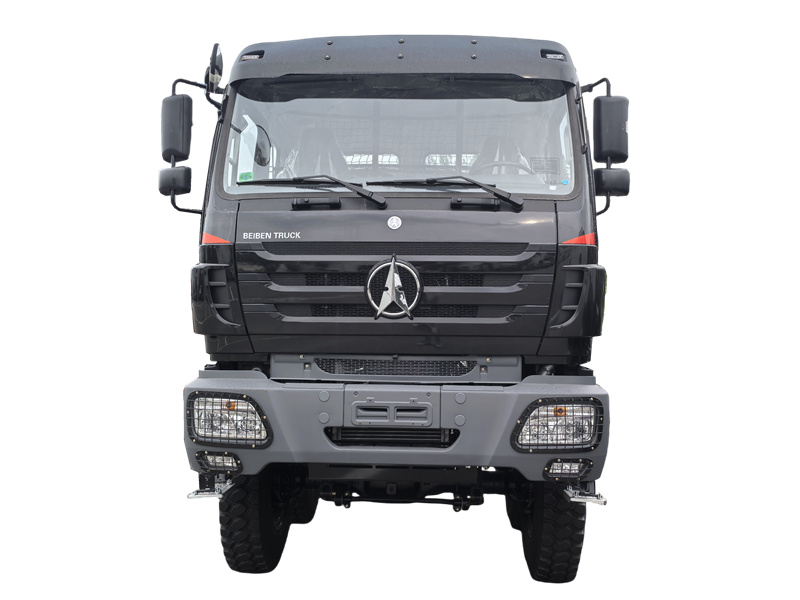

Beiben NG80B cabin
The Beiben NG80 cab ensures driver safety with its high-strength structure that meets EU crash standards, while its robust design is well-suited for both engineering and diverse operating conditions.

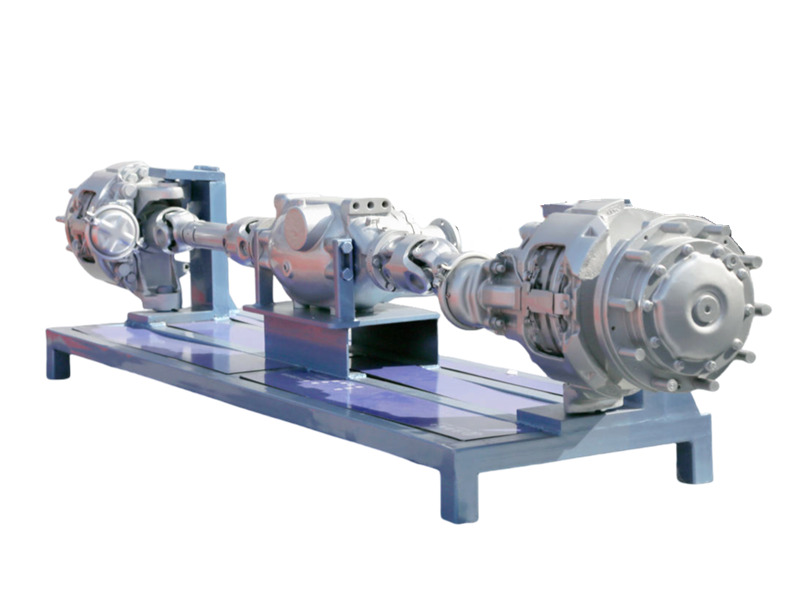

Mercedes-Benz technology axles
Equipped with 7-ton drive front axles, this genuine product introduced from Mercedes-Benz technology features a wide transmission ratio. It adapts to the complex and variable driving conditions of off-road vehicles, significantly enhancing their power performance and trafficability.

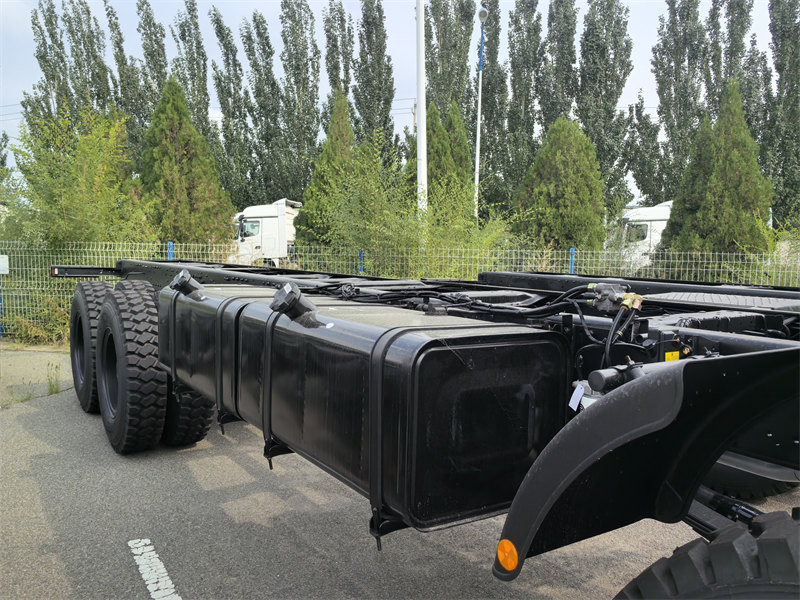

Large volume fuel tank
It is equipped with two 400L fuel tanks, providing a total capacity of 800L. This substantial fuel reserve ensures an extended driving range per refueling, which reduces refueling stops and downtime, thereby enhancing transportation efficiency.

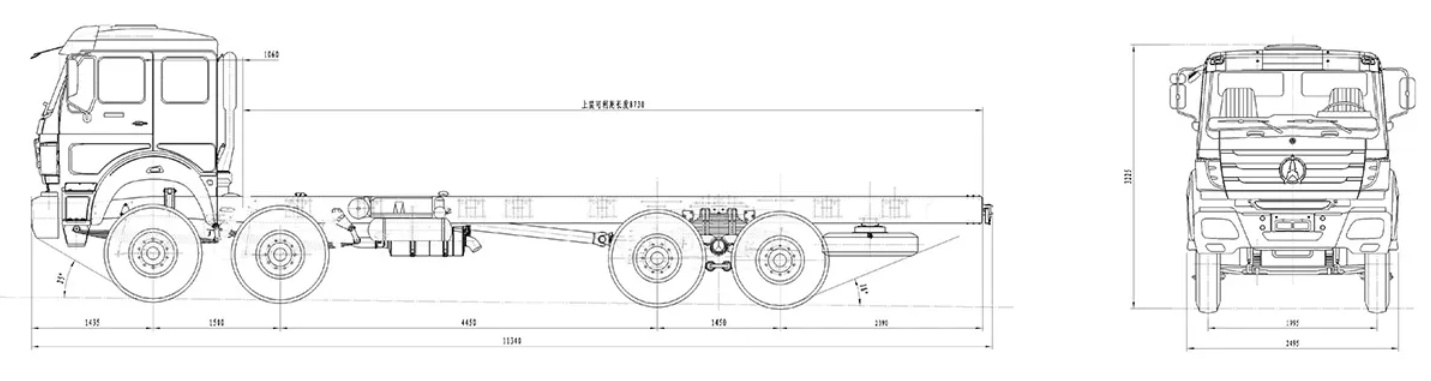

» Ⅳ. Product Drawing:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x4, 6x6, 8x8 drive tractor truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
north benz brand china beiben 8 wheel drive truck are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.

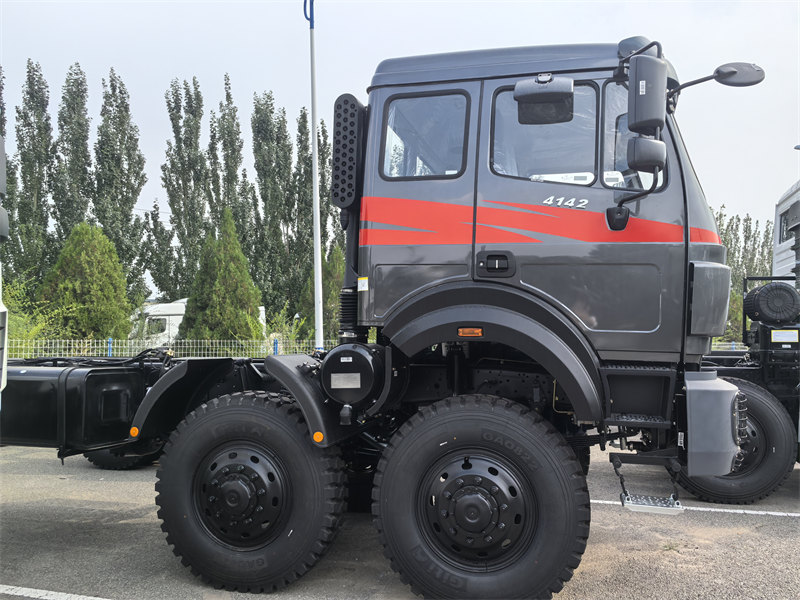

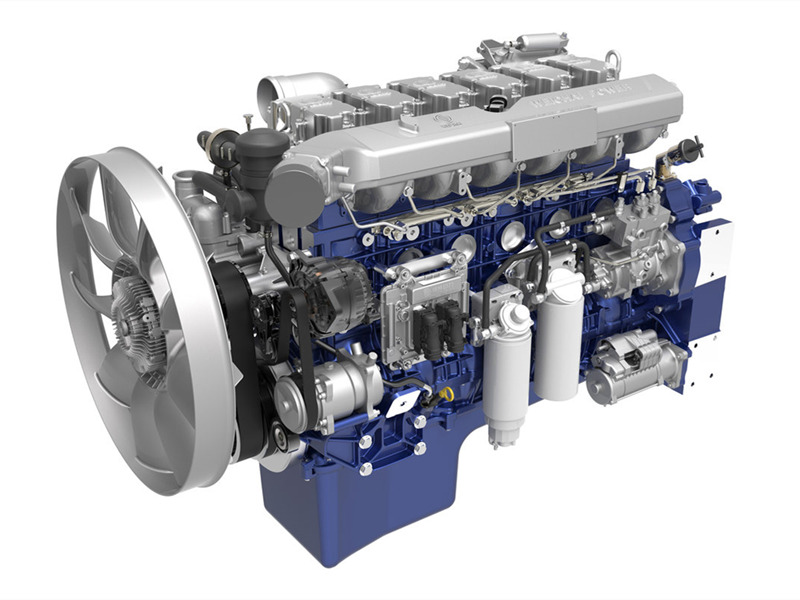

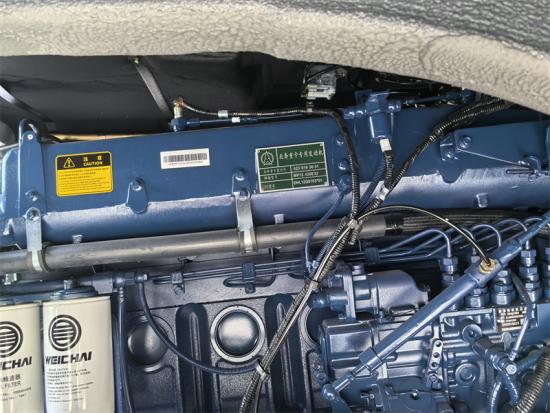

Beiben 8x8 all wheel driving cargo truck, the Beiben 4142 model truck equipped with NG80 classical cabin, mounted with 12.00R24 tires, which have a larger diameter and higher height, and the Beiben 8x8 chassis has a strong passing ability when facing uneven road surfaces with ditches, potholes and rocks. Super powerful WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, turbo charge and 6 cylinder. Stronger frame can be suitable to build all kinds of special purpose trucks.
The Beiben 8×8 all-wheel-drive chassis features a tri-axle twelve-wheel design with a wheelbase of 1500+5050+1450mm. The overall dimensions are 12100X2700X3400mm, and the curb weight is 10800kg. It is equipped with a WP12.420E32 diesel engine, rated at 319Kw (420HP), mated to a 12JS200T transmission. The chassis is fitted with a dual-circuit air brake system and a full-circulating ball-type steering system, and utilizes a fish-belly high-strength frame. With its ability to adapt to various complex environments, it is a preferred choice in the field of off-road transportation, widely used in petroleum exploration, mining, military operations, and rescue missions.
Beiben 4142 off-road military truck is a powerful vehicle designed for rugged terrain and challenging environments. Equipped with a robust WP12.420 engine, this truck is capable of delivering superior performance . With its 8x8 off-road drive system, the Beiben 4142 can traverse rough and uneven terrain with ease, making it ideal for military operations, disaster relief efforts, and other specialized missions. The truck's NG80B full steel cabin provides a safe and comfortable environment for the driver and passengers,
The Beiben 8x8 offroad drive truck is a rugged and powerful off-road vehicle designed to tackle the toughest terrains with ease. Equipped with a set of 12.00R24 tyres, this truck offers superior traction and stability, allowing it to confidently navigate through mud, snow, rocks, and other challenging conditions. Brand new Beiben 3135 V3 cargo truck chassis equipped with newly designed V3 cabin with one sleeper, A/C system for convenient working, WEICHAI diesel engine with 350HP, emission can be 9.726cc, FAST brand 12JS200T model with 12 forward and 2 reverse, as for axle capacity for the China North Benz 8x8 military truck chassis, front can be 7500kg with double turning axles and rear can be 13000kg with double driving axles, diesel tanker capacity is 400L, optional aluminum alloy material or carbon steel material, ZF8098m left hand drive or right hand drive steering suitable for all Africa market, the V3 new cabin can have painting and logos 100% as customized.
Beiben 8x8 V3 Truck Chassis is equipped with WEICHAI WP10H350 engine with 350 horsepower and 9.5 liter displacement. It adopts 12JS200T gearbox with 12 forward gears and 2 reverse gears. ZF8098 hydraulic power steering system improves handling. The front axle adopts Mercedes Benz technology and has a load capacity of 6.5 tons. The rear axle has a double reduction and a load capacity of 13 tons. The vehicle size is 9500×2500×3180 mm, the wheelbase is 1500+4150+1450 mm, the total mass is 31,000 kg, the maximum speed is 100 kilometers per hour, and the fuel tank capacity is 400 liters. It is suitable for a variety of heavy-duty transportation tasks.
Equipped with a robust 8x8 all-wheel-drive system and a high-torque diesel engine, the Beiben 3142 excels in transporting oversized military cargo, including ammunition, armored vehicles, and modular command units. Its reinforced chassis and adaptive suspension enable it to carry payloads exceeding 80 tons across extended distances, ensuring reliable supply chain continuity in conflict zones or remote areas.With independent wheel articulation and centralized tire inflation technology, the vehicle navigates extreme off-road conditions—from desert dunes to Arctic tundra
Beiben 4142 8×8 drive cargo truck is a robust military-grade heavy-duty vehicle engineered for superior off-road mobility and logistical efficiency. Equipped with a WP120.420E32 engine, this truck delivers a maximum power output of 420 horsepower and a torque of 1,600 Nm at 1,200-1,600 rpm. The 11.596-liter, six-cylinder, turbocharged diesel engine complies with Euro III emission standards.Built on an 8×8 military-grade chassis, the vehicle employs a permanent all-wheel-drive system with inter-axle and cross-axle differential locks. The 12.00R24 radial tires, featuring deep tread patterns, provide exceptional ground clearance and puncture resistance in mud, sand, or rocky environments.
