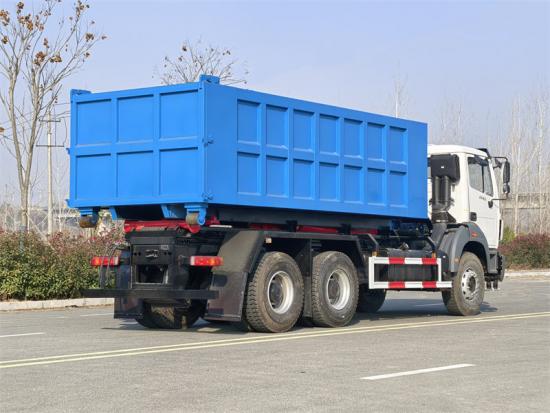

Beiben 20 ton roll off hooklift truck

The Beiben 20-ton Roll-off Hooklift Truck is a highly efficient heavy-duty waste removal vehicle. Built upon the Beiben 6×4 heavy-duty chassis, it features a 420HP engine and a 20-ton hydraulic hooklift system. Its core strength lies in the rapid loading and unloading of standard 20-cubic-meter garbage containers, completing a single operational cycle in under two minutes. This design achieves highly efficient separation between waste collection and transfer stages, enabling high-intensity operations.

  • Working Capcity:

    20 tons
  • Cabin Type:

    NG80B long cabin, with sleeper
  • Dimension ( mm ) :

    8660×2550×3390
  • Drive System:

    6×4
  • Wheelbase (mm):

    4100+1450
  • Engine Power:

    420HP/WP12.420E32
  • Gear Box:

    12JS200T
  • Remark:

    20-ton hooklift system, 20CBM garbage container
New Products

The Beiben 20-ton Hooklift Garbage Truck is a specialized detachable container garbage collection and transport vehicle built on a Beiben heavy-duty chassis. Its core function is the rapid loading, unloading, and transport of standard waste containers via its hydraulic hook-arm system. The entire vehicle utilizes the reinforced Beiben 2642 chassis, powered by a 420 HP WP12 series diesel engine paired with a 12-speed manual transmission, providing robust power and high load-bearing capacity.

This Beiben roll-off hooklift truck is equipped with a hydraulic hooklift system boasting a maximum lifting capacity of 20 tons. It features a dual-side mechanical locking mechanism and 1060mm wide guide rails, enabling it to load a garbage container in approximately 60 seconds. The complete cycle for unloading and tipping the container does not exceed 110 seconds. The 20-cubic-meter reinforced garbage container is manufactured from 4-5mm carbon steel plates and can accommodate loads from 15 to 20 tons. The vehicle integrates a dual-mode (manual and electronic control) operating system and a fully hydraulic drive mechanism, realizing an efficient and reliable modular waste collection and transport cycle.

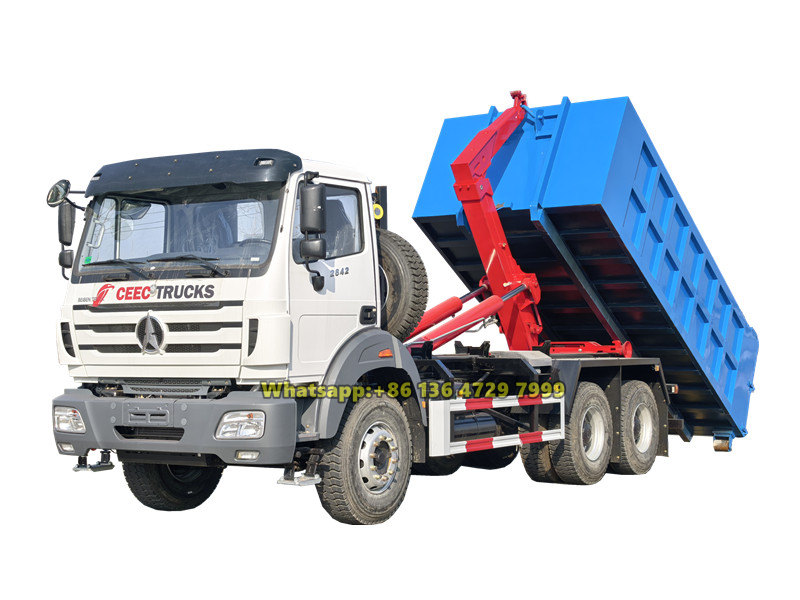

beiben 6x4 heavy-duy hooklift truck

*Beiben 6×4 20-ton hooklift dumpster truck

CEEC factory is authorized supplier on beiben garbage trucks,
guarantee all beiben hook loader trucks Brand-New and High-Quality.



» Ⅰ.Product Introduction:

Manufacturer: CEEC TRUCKS

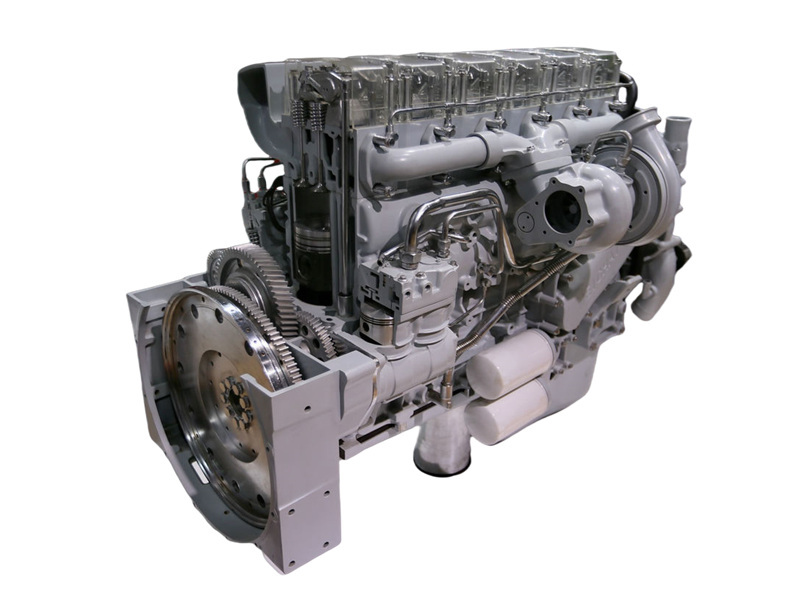

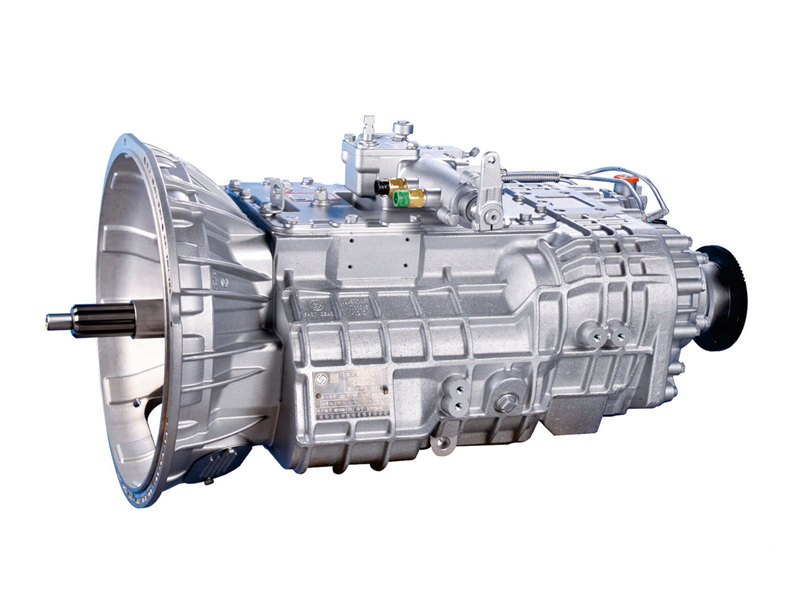

Beiben 6×4 chassis: NG80B long cabin, Weichai 420HP diesel engine, Fast 12-speed gearbox

Reliable hooklift system: Hook loader with lifting capacity up to 20 tons

Garbage container: The volume is up to 20CBM, payload 15~20 ton

Dumping angle: 50°, facilitating unloading and tilting of the container

Hydraulic cylinders: China top brand

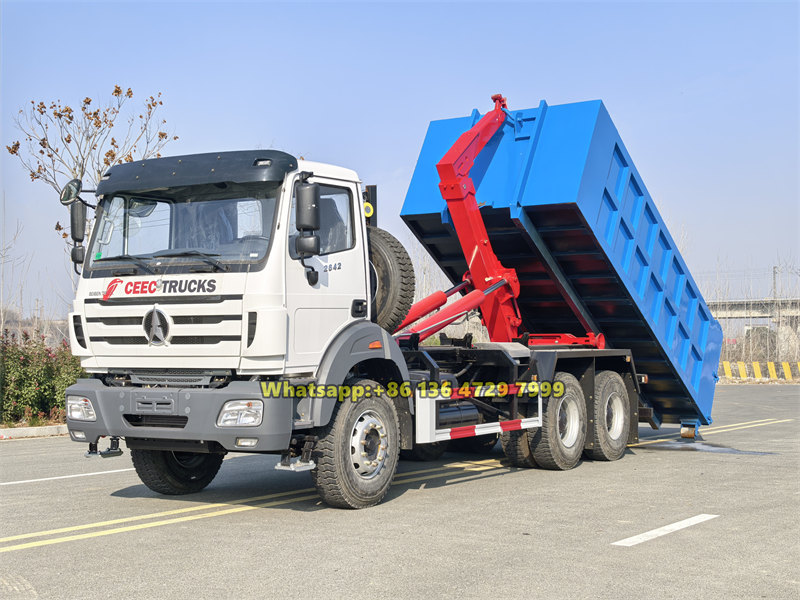

Beiben heavy-duty 20 ton hook loader truck



» Ⅱ. Product Specifications:



Beiben 10 wheels 20 ton hooklift garbage truck specifications

Truck Chassis

Chassis Model

CEEC5260ZXX

Overall Dimension

8660 x 2550 x 3390 mm

Gross Vehicle Weight

26000 kg

Curb Weight

12800 kg

Loading Weight

20000 kg

Wheel Base

4100+1450 mm

Front /Rear Axle

7500 kg / 13000 kg x 2

Engine

Model

WP12.420E32

Type

Diesel engine, four Stroke, 6 Cylinder in line,

Power

420HP(308KW)

Displacement

11596 ml

Emission standard

Euro 3

Rated speed



Max. torque



Gear box

FAST 12JS200T, manual, 12-speed forward, 2-speed reverse

Max Driving Speed

90 km/h

Cabin

  1. Beiben NG80 long cabin
  2. Left Hand Driving,
  3. 3 Passengers Allowed,
  4. with Air Conditioner

Tire

12.00R20, 10 Units with 1 Spare Tire

Fuel tank

400L

Hook Lift System

Hook lift System

Lifting Capacity

20Ton

Control

Hydraulic Control

Control Handles

Mechanical Handle Control on side of truck

Locking

2 Side Locking System

Hook center height

1570 mm

Extension of hook arm

1100 mm

Width of guild rail

1060 mm

Tipping angle

52°

Garbage Box

Capacity

20 CBM

Loading Weight

15Ton ~ 20Ton

Size

5600 x 2300 x 1500 mm

Material

Q235B Carbon Steel, 4mm Side, 5mm Bottom,

Wheel

2 Side Rear Steel Wheels

Loading System

Hydraulic Hooking, Hydraulic Pulling & Tipping System

Discharging System

Hydraulic Tipping for Discharging, Mechanical Opening Doors

Hydraulic system pressure

28 Mpa

Loading Working Time (s)

60 S

Unloading Working Time

72 S

Discharge Work Cycle Time

110 S

Control system

Manual operation + electric remote control

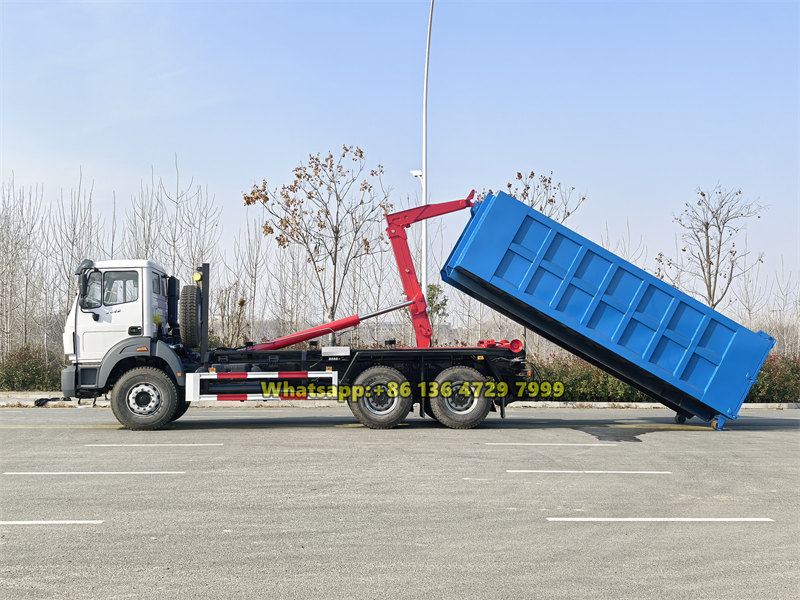

Beiben 6×4 roll off hooklift truck

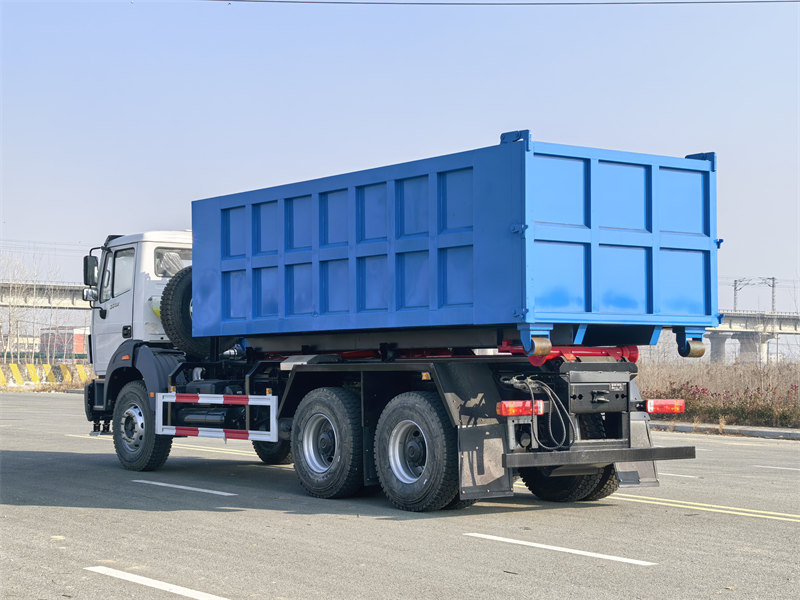

Beiben 20 ton roll off container truck

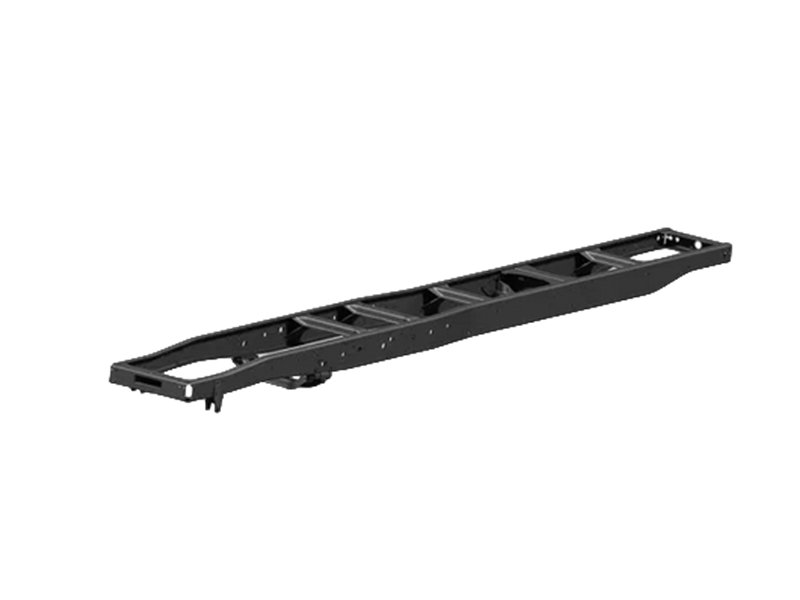

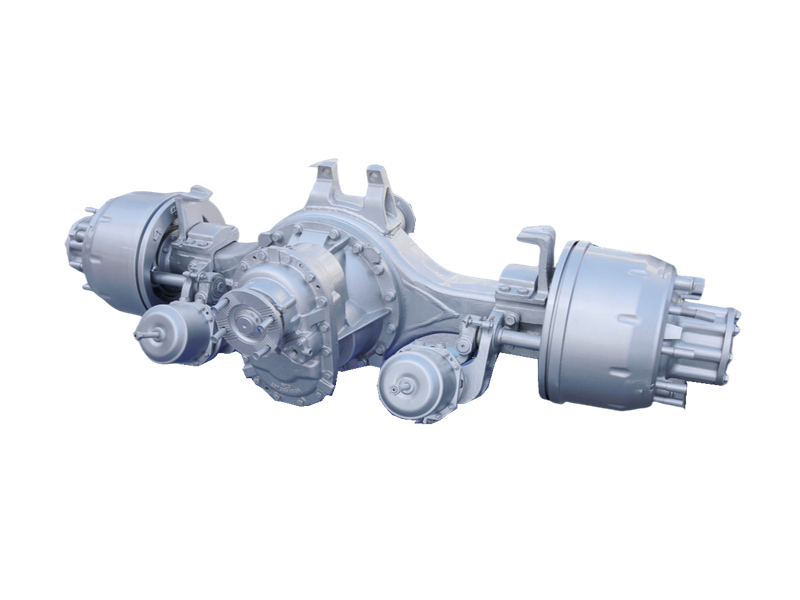

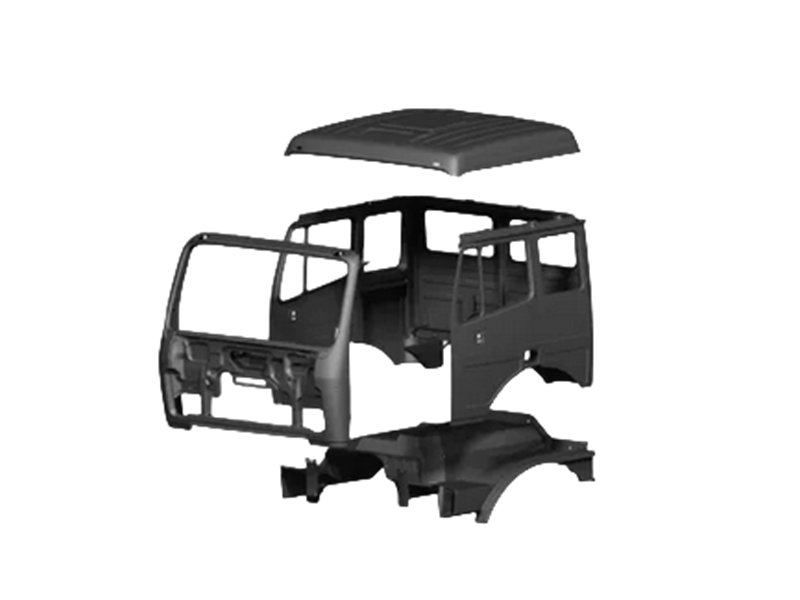

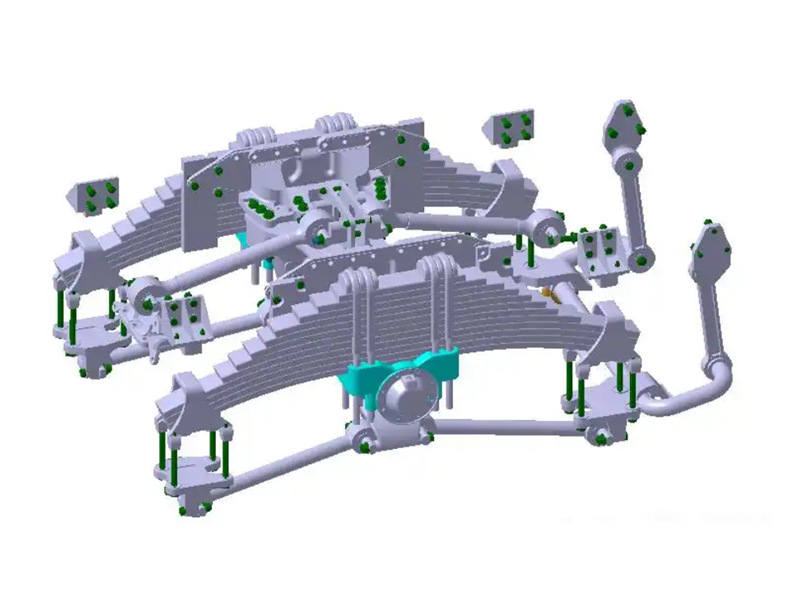

» Ⅲ. Chassis Features:

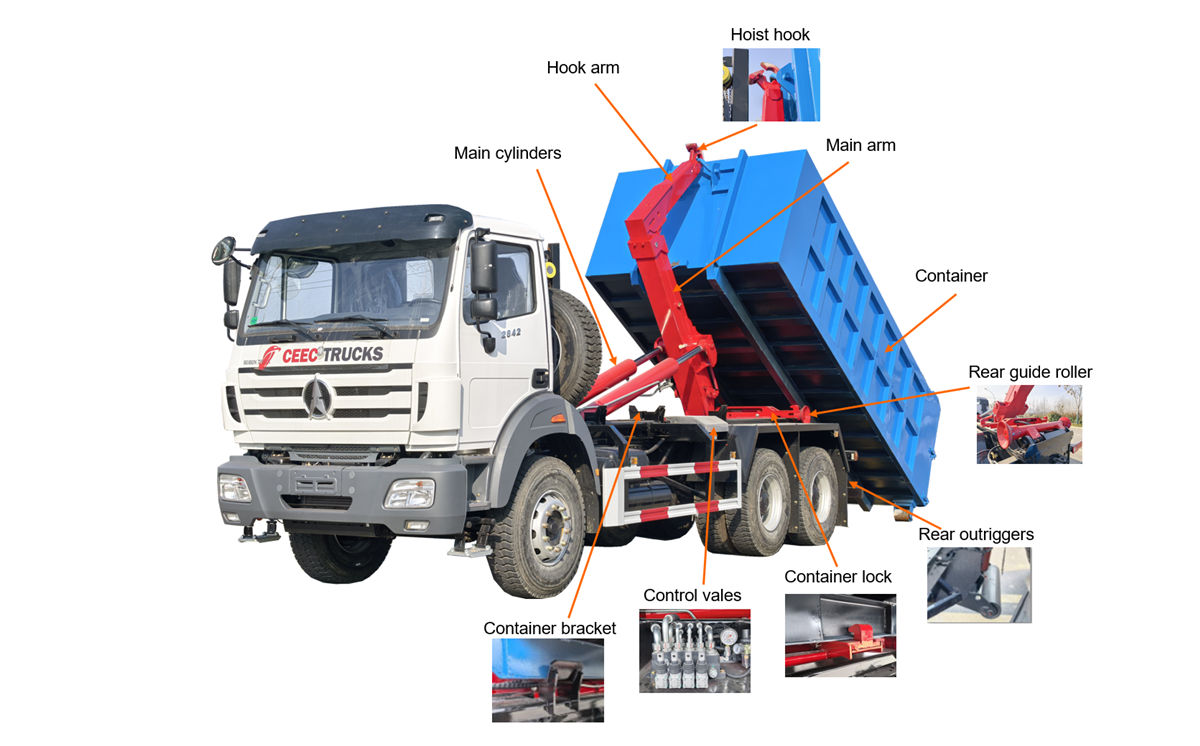

» Ⅳ. Beiben Hook Loader Structure:



Beiben hook loader truck structure



» Ⅴ. Hook Loader Specifications:

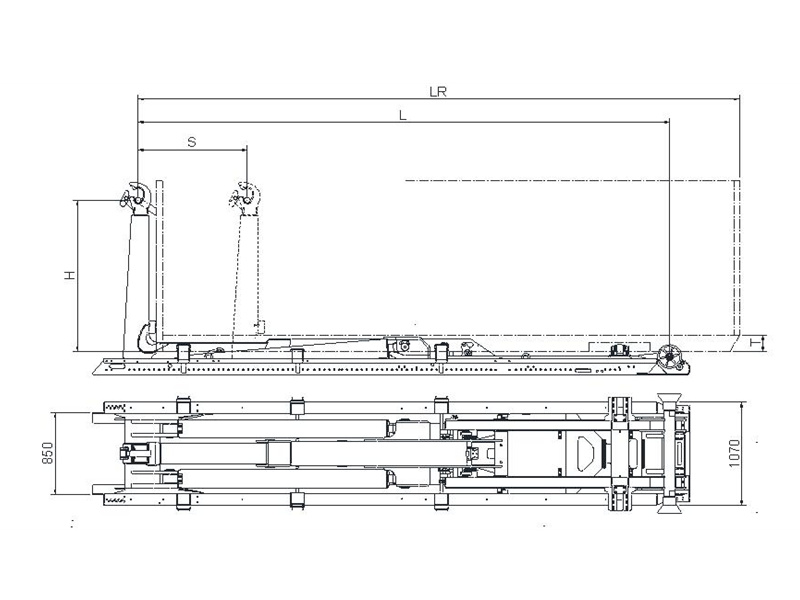

Beiben 20-ton hook loader drawing



Lifting Capacity

T

20-25

H-Hook Center Height

mm

1570

L-Width of container guide rail

mm

1060

T-Clearance Height of Container guide rail

mm

150

LR-Length of Container

mm

4700~6400

Dumping Angle

°

50

Container Lifting Time

S

55

Container Lock Type



External locking

Container Tie Rod Diameter

mm

50

Tie Rod Offset

mm

270

Hydraulic Pump Flow

ml/r

80

Hydraulic System Pressure

Mpa

30

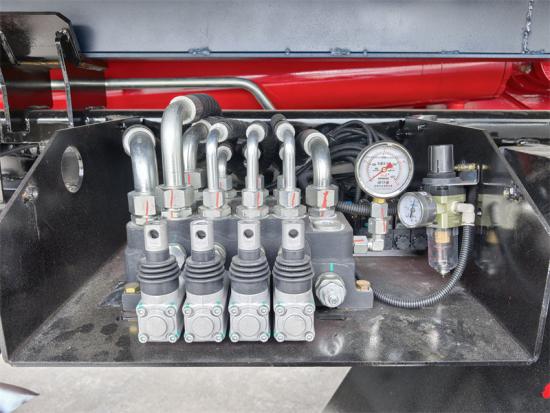

Multi-Way Valve



Imported from Italy





» Ⅶ. Product Drawing:

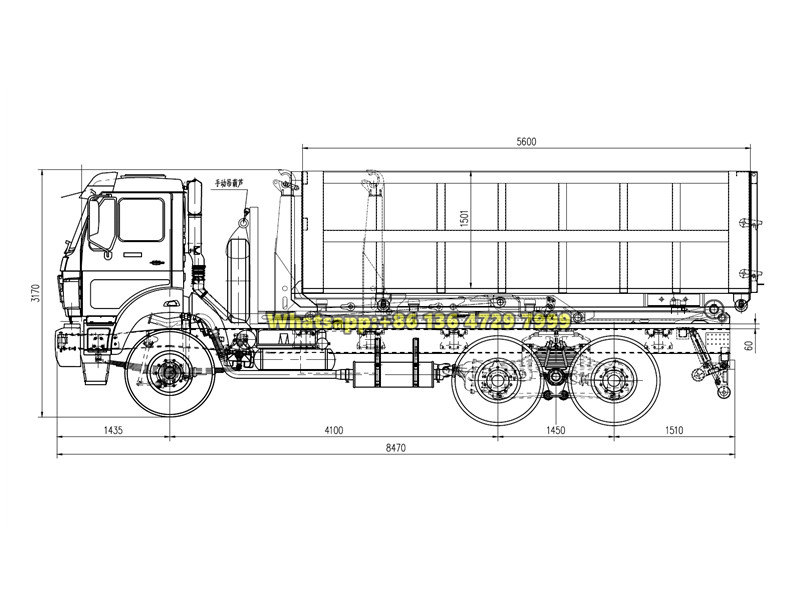

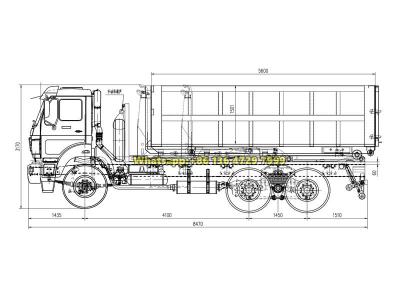

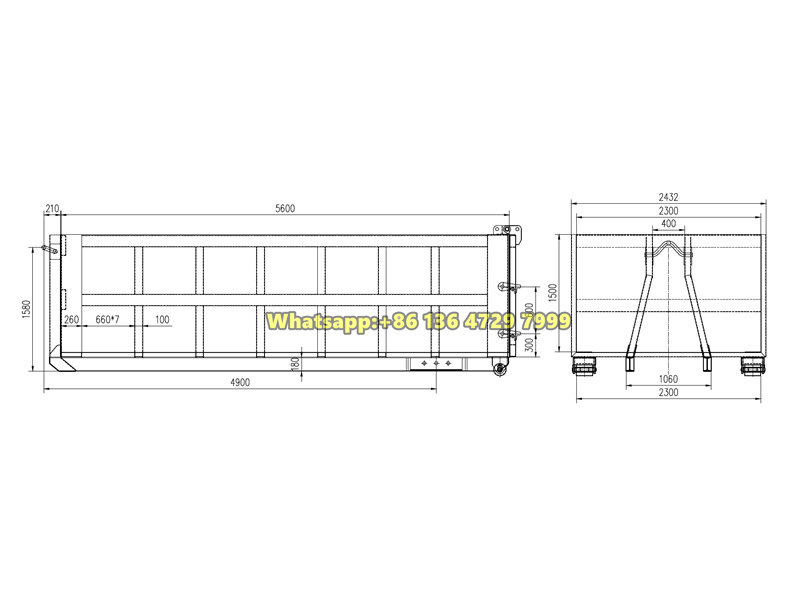

Beiben 20 ton hooklift truck drawing Beiben 20 ton hooklift truck container drawing
Vehicle drawing Container drawing

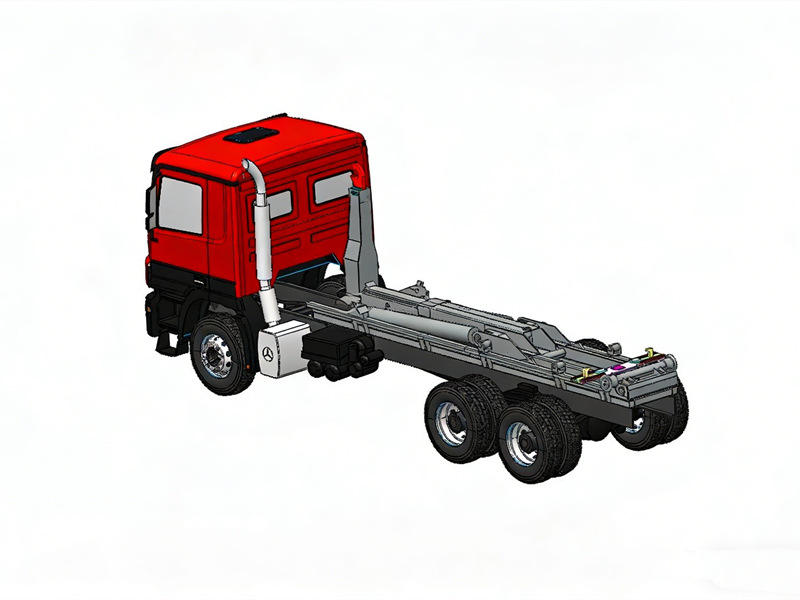

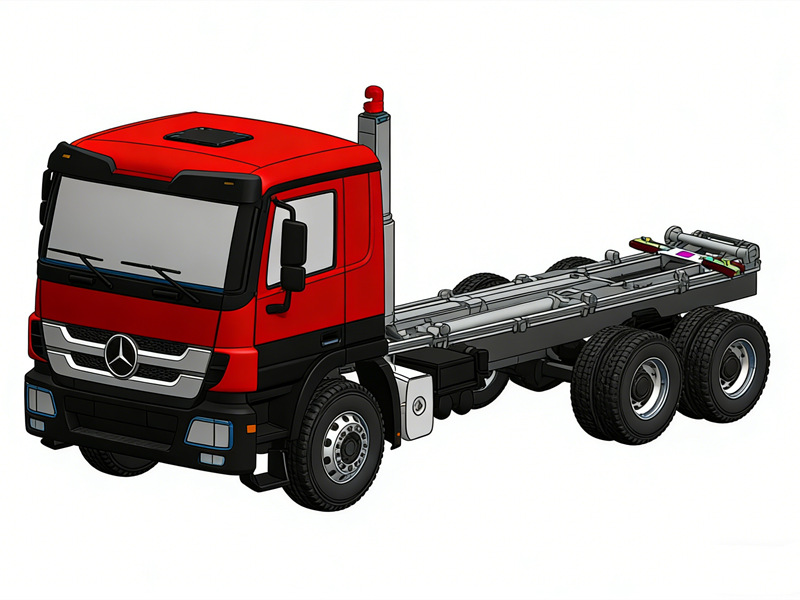

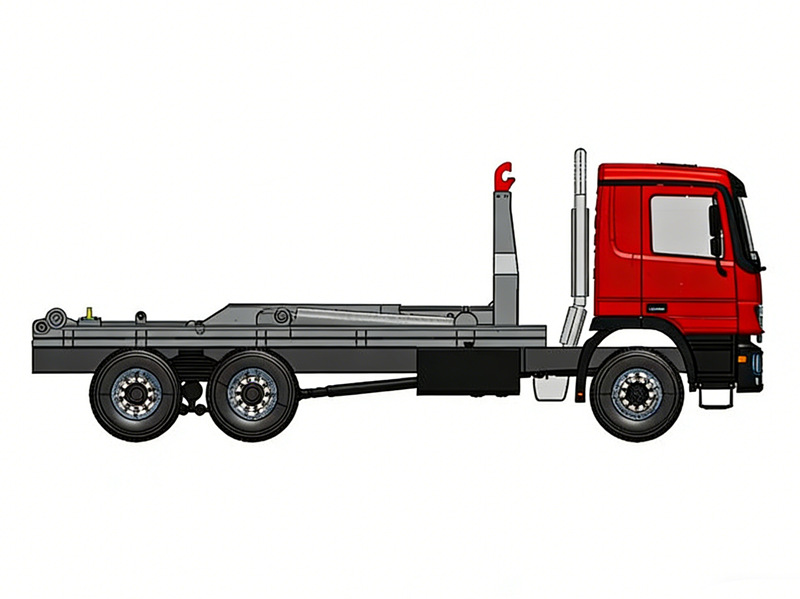

  • Beiben 6x4 hook loader drawing
  • Beiben 6x4 hook loader drawing
  • Beiben 6x4 hook loader drawing

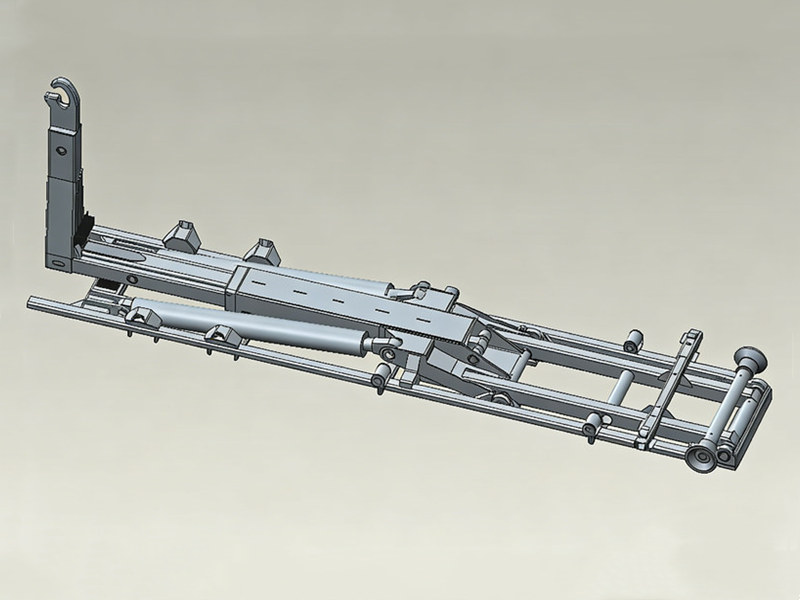

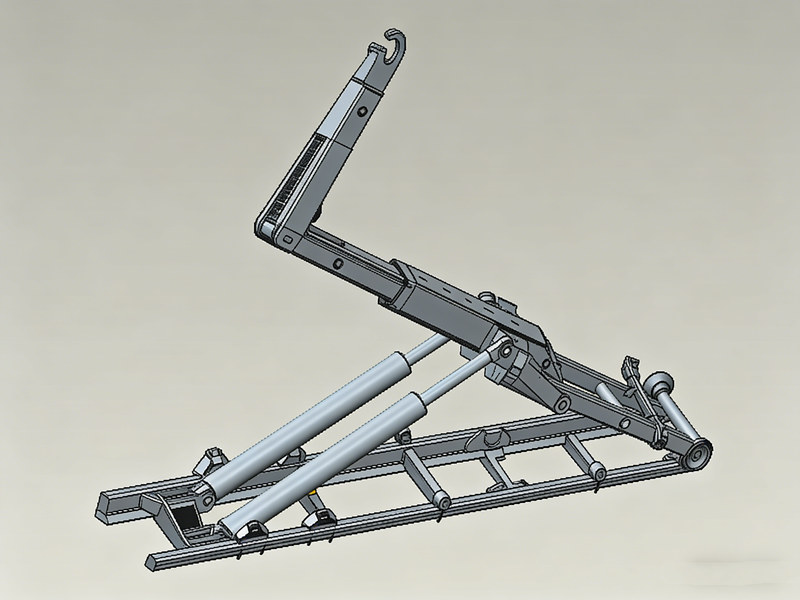

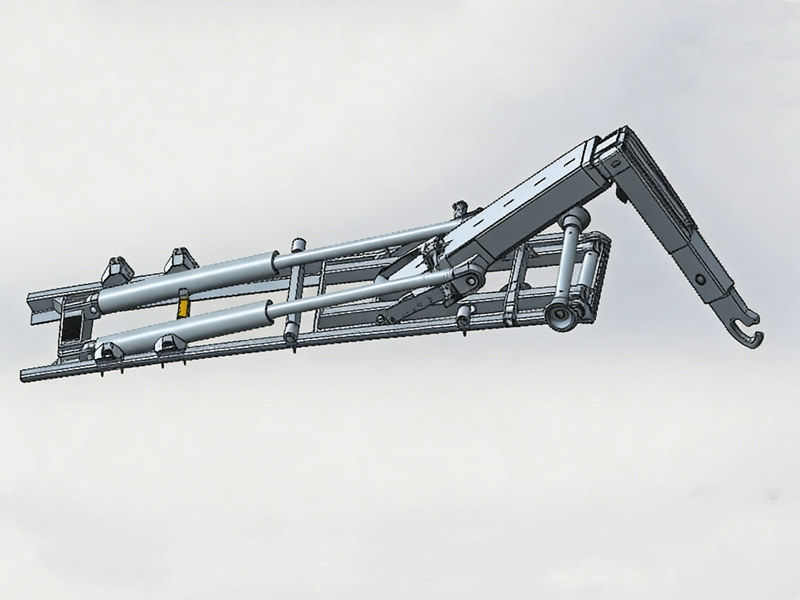

  • Beiben 6x4 hook lift truck drawing
  • Beiben 6x4 hook lift truck drawing
  • Beiben 6x4 hook lift truck drawing





» Ⅷ. Product Applications:

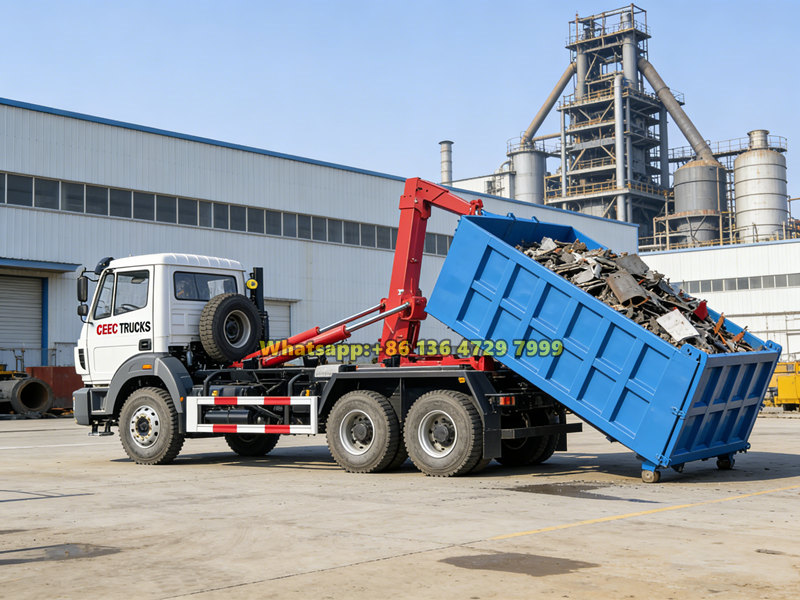

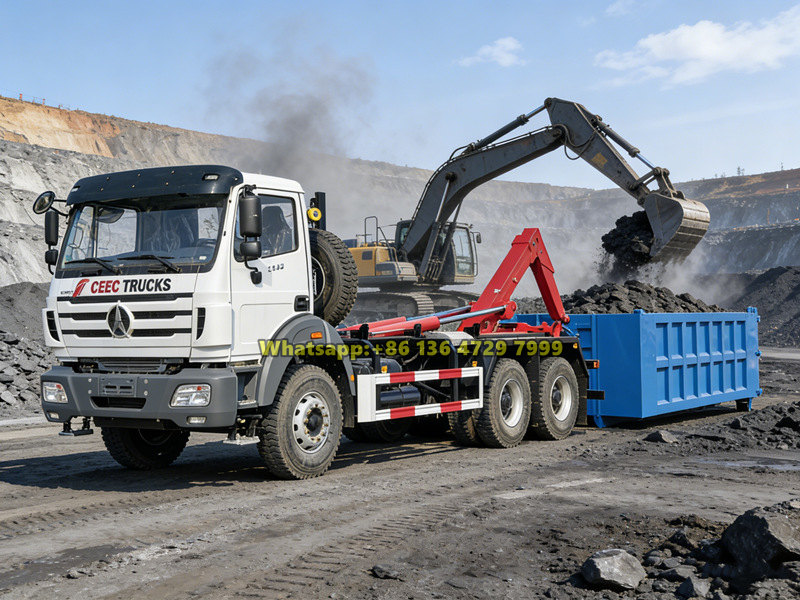

  • Beiben 20-ton hook loader application
  • Beiben 20-ton hook loader application

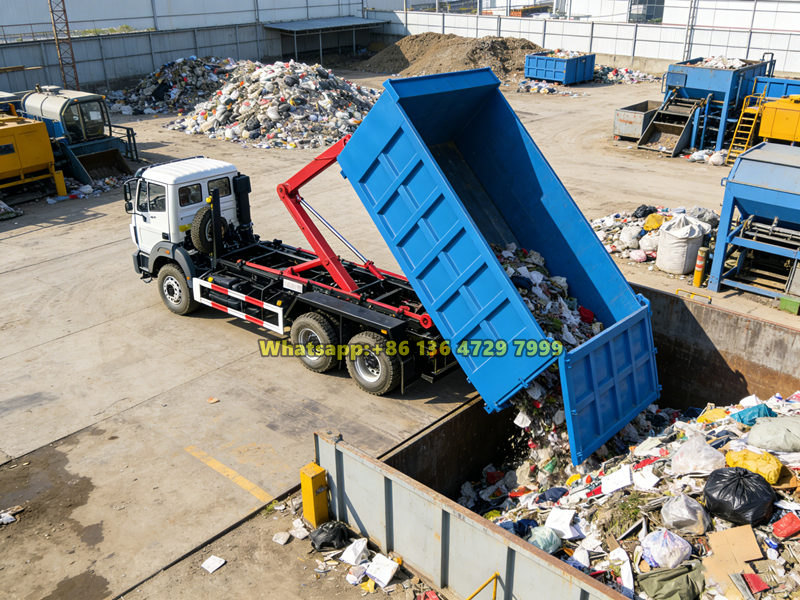

  • Beiben 30-ton hook loader application





Products--100% china beiben factory trucks!

Shipping --100% fast, Convenience, Efficient!

Guarantee--7days + 24hours Safetify Service!



1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive hooklift garbage trucks for option



2. Factory direct sale, supply Beiben 15 Ton, 20 Ton, 25 Ton, 30 T capacity hook loader trucks



3.12 months after sale service guarantee, quality assurance.



4. Beiben trucks mounted VOLER, HYVA, PALFINGER hook loader brand.
