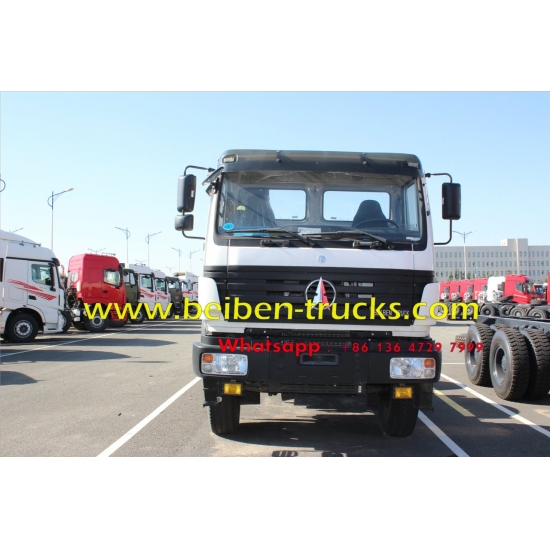

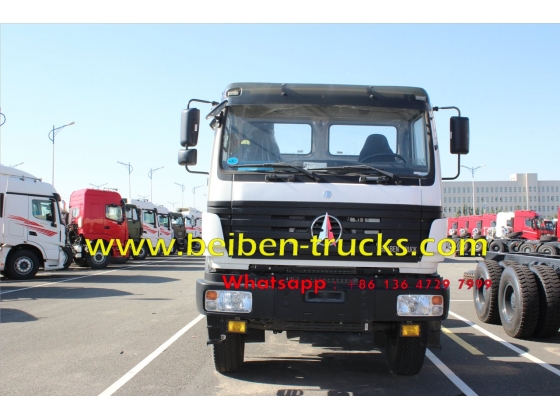

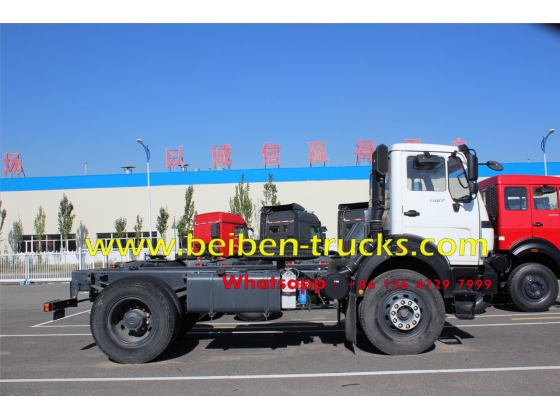

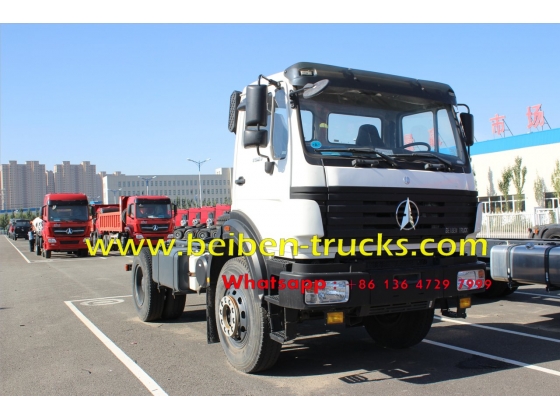

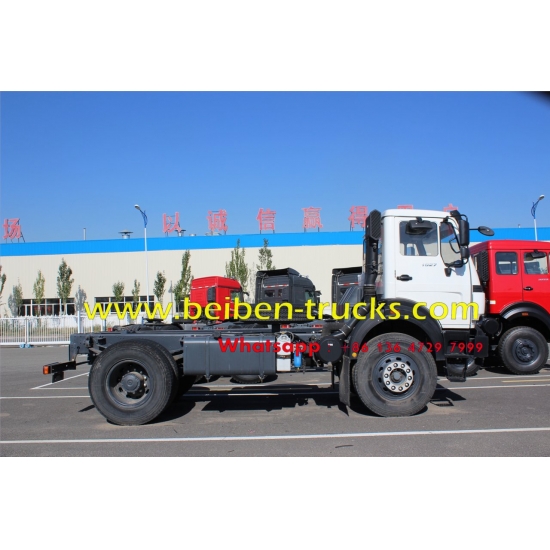

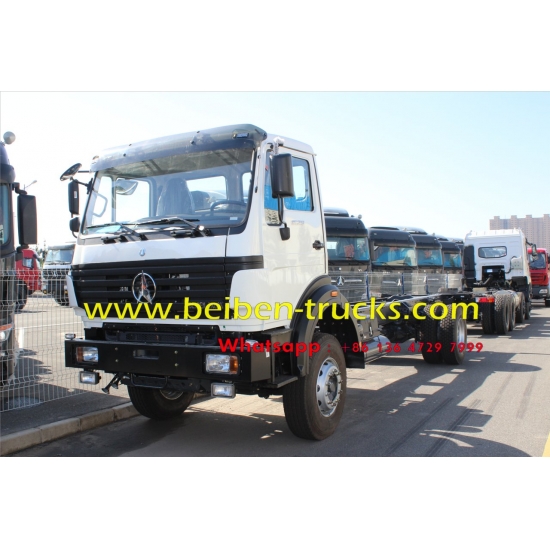

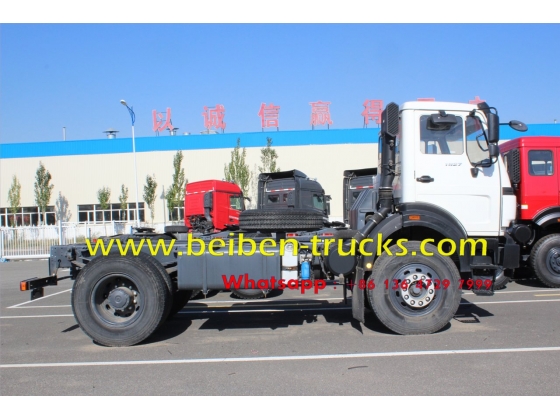

1929S /4x2/3500/Long Cab/LHD

Wheel base (mm)

3500

Curb Weight（kgs)

5800

Engine Model

WP10.290E32，290HP，water-cooled，four strokes，6 cylinders straight in line，turbocharged

Engine Fuel type

Diesel

Engine Min rate of consuming fuel（g/(kW.h)

235g/Kw.h

Engine Rated Power / rotating（KW/(r/min)

213Kw/2200rpm

Engine Emission

EURO 3

Engine Displacement（ml)

9726

Fuel tanker capacity (L)

400

Clutch Model

#430, Single dry frictional disc，Hydraulic boosting

Gearbox - Model

9JS119B/ ZF9T 160, mechanical type，Based on Fuller Eaton technology ,9 Forward speed gear.

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system - Model

ZF8098, whole circulation in ball type, hydraulic boosting

Rear Suspension

Non-free standing stabilisation spring， stabilisation suspension.

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering axle

Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Ratio：5.263

Tyre

315/80R22.5 radial tyre

Qty of tyre

7

Electrical system - Battery

2X12V/135Ah

Electrical system - Generator

28V-35A

Electrical system - Starter

5.4Kw/24V

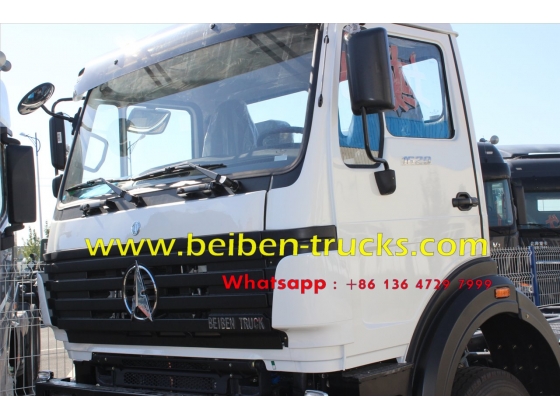

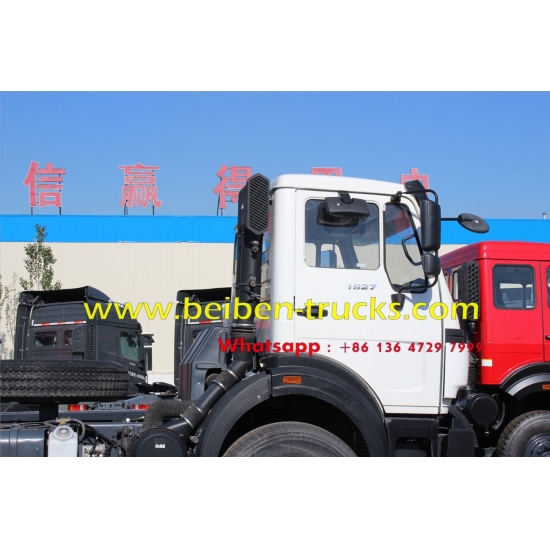

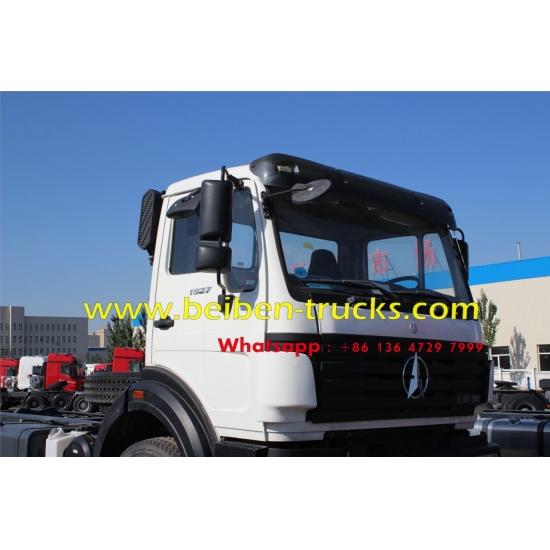

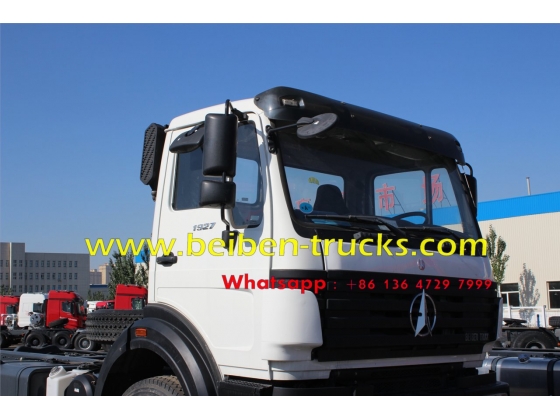

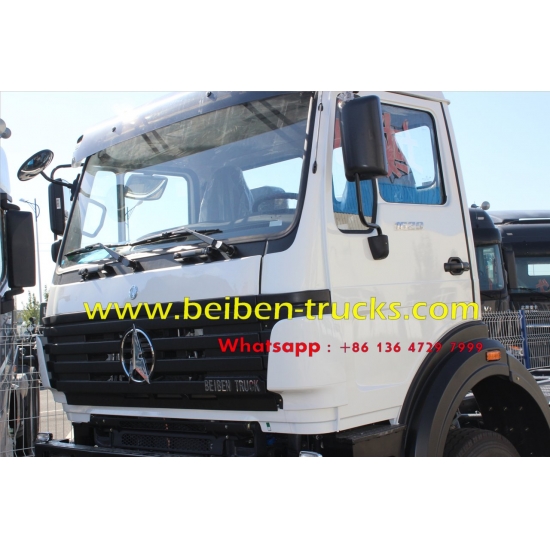

Cab

NG80B, Short cab without sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly;
Interior trimming: Integral interior trimming, Integral instrument, digital instrument, , radio (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.
Exterior trimming: Metal bumper, with new mirror. with outer sun visor ,with Headlight retainer

Fifth wheel

#90 single direction

Others

With protective plate under radiator
Insect screen in front of cooling system
30T Jack
Radio and CD player
Differential lock on rear axle
ABS (optional)
Headlamp protector
