Beiben 2638 with XCMG 5-ton folding arm truck crane is a heavy-duty engineering machinery with stable performance, safety and reliability. As the chassis that carries this crane, Beiben 2638 has strong power output and excellent control performance, ensuring the efficient operation of the crane at the construction site. The XCMG 5-ton folding arm truck crane has a stable lifting capacity and flexible folding arm design, which can meet the lifting needs in different construction scenarios.
Order(MOQ):
1Payment:
30% deposit + 70% balance before deliveryProduct Origin:
ChinaColor:
BlueShipping Port:
Shanghai, Lianyungang, Qingdao, etcLead Time:
35 daysWorking Capcity:
5000 kgCabin Type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
8875×2500×3340Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
380 HP/WP10.380E32Gear Box:
9JS150ARemark:
6×6 drive is optionalBeiben truck mounted crane ,also called boom truck crane,mobile truck crane ,folding boom crane, truck with crane, hydraulic crane telescopic boom,self loader truck with boom crane, knuckle boom truck,etc.
The main function of Beiben 2638 knuckle boom truck is to provide stable lifting support during the handling process, effectively improving the loading and unloading efficiency and operation safety. Beiben 2638 folding boom crane can lift and transport items, which makes it widely used in many fields such as municipal construction, coal mining engineering, and landscaping.
As a form of truck crane, beiben 2638 knuckle boom truck has the characteristics of flexibility and versatility. The arm design of beiben knuckle boom truck can be flexibly extended and folded, and can be adjusted according to specific operation needs, which improves the adaptability and flexibility of lifting. Compared with fixed arm crane, knuckle boom truck has higher operating efficiency in a small space and is more suitable for handling operations in small environments such as urban construction sites. In addition, beiben knuckle boom truck can also effectively change the lifting position and angle, improving the accuracy and efficiency of the operation.
beiben folding boom crane has high operating efficiency. Because the arm design of the folding arm crane is relatively flexible, it can be extended and adjusted according to needs, thereby improving the efficiency and speed of the operation. In many emergency situations, beiben folding boom crane can quickly adjust the lifting position and height, quickly complete the operation task, and reduce the operation time and cost. In addition, the folding arm crane can also realize a variety of lifting methods in the operation, such as rotating lifting, translation lifting, etc., which improves the diversity and adaptability of the operation. Therefore, beiben folding boom crane has obvious advantages in improving operation efficiency.
|

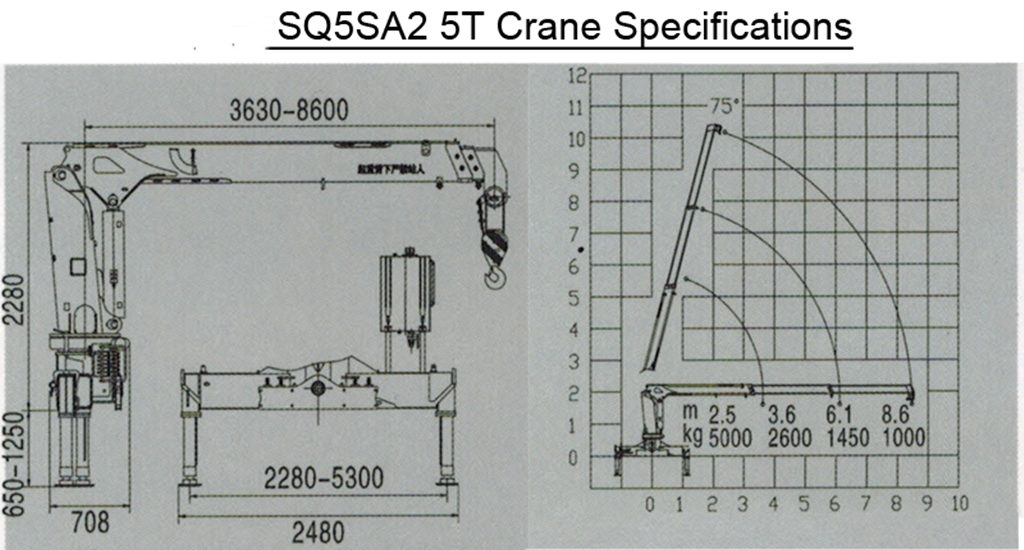

Upper Body |
||
|
Crane |
Type |
folding arm |
|
Max lifting capacity(T) |
5 |
|
|
Max torque(T.M) |
25 |
|
|
Hook part line ratio |
6 |
|
|
Max operating range(M) |
8 |
|
|
Max lifting height(M) |
11 |
|
|
Boom number |
3 |
|
|
Control position |
Ground control |
|
|
Optional high seat control |
||
|
Cargo box |
Cargo box Dimension |
6200*2500*1200MM |
|
Thicness |
bottom: 4mm, side: 3mm |
|
|
Material |
Carbon steel |
|
Beiben 2638 chassis detailed parameters
|
Required Technical Specification |
||
|
Basic parameter
|
Model |
2638KZ / 6×4 |
|
Length×width×height(mm) |
8875×2500×3340 |
|
|
Wheel-base(mm) |
3800+1450 |
|
|
Curb weight(kg) |
12000 |
|
|
Engine parameter
|
Model (six cylinder in line) |
WP10.380E32 |
|
Max. Power (HP/rpm) |
380 |
|
|
Max. Torque(Nm/rpm) |
1500/1400～1600 |
|
|
Displacement(lit) |
9.726 L |
|
|
Fuel tank capacity |
400L （Iron） |
|
|
Transmission system
|
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
9JS150A+QH50（Spline） Mechanical, 9 forward gear, manual； |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster； |
|
Brake system
|
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake |
|
|
Assisted brake |
Engine exhaust brake |
|
|
Electrical system
|
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Chassis parameter
|
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5T, Non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, ductile casting casing, speed ratio is 5.921； |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 10/13 pieces； |
|
|
Tire |
12.00R20 |
|
|
Cab |
NG80B Long/right Cabin Flat roof with single sleeper Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument, electric window lifter |
||
Show details
The Beiben 2638 6×4 knuckle boom crane truck is a multi-functional engineering vehicle that integrates efficient transportation and lifting operations, widely used in logistics, construction, power, and other fields. It is equipped with an XCMG knuckle boom crane, featuring a maximum lifting capacity of 5 tons, a maximum lifting height of 10.3 meters, and a rotation angle of 420°, demonstrating excellent lifting performance. Additionally, the vehicle adopts a 6×4 drive configuration and is powered by a robust Weichai WP10.380E32 engine, ensuring stable operation under various complex working conditions.
beiben 5 T crane truck supplier, china best beiben crane truck manufacturer, based on beiben 2538 truck chassis, with XCMG 5 T capacity crane, 40 T capacity reinforced cargo box.
congo beiben 2638 trucks, based on china beiben 2638 truck chassis, weichai 380 hp euro 2 engine, fast 9 shift transmission, 5050+1450 mm wheelbase, 12.00R20 tyre, benz 7 ton heavy duty front axle, benz 16 T double rear axle, heavy duty type cargo box with 40 T capacity, suitable for congo country.
Beiben 2638 off road knuckle crane truck incorporates Mercedes-Benz technology in its NG80B cabin, prioritizing operator comfort and safety with ergonomic design, noise reduction, and enhanced crash resistance. The Benz-derived front and rear axles further reinforce durability and load-bearing capacity, supporting smooth maneuverability in off-road conditions. Its 6x6 drive system ensures exceptional traction, enabling the truck to navigate mud, gravel, or uneven surfaces with ease. The 14.00R20 tires provide robust grip and stability, ideal for heavy lifting and transportation on rugged terrain. Mounted on the chassis is the XMCG 5-ton knuckle boom crane, offering a maximum lifting capacity of 5 tons and a flexible working radius. The crane’s articulating design allows precise load positioning, making it invaluable for material handling, equipment installation, and logistics in confined spaces.
Beiben 2638 cabin truck-mounted crane combines robust engineering with versatile material-handling capabilities. This integrated vehicle features a 6x4 all-wheel-drive chassis powered by a Weichai WP10.380E32 diesel engine, delivering 380 horsepower and 1,500Nm torque for off-road mobility.Equipped with a high-torque hydraulic system and reinforced outriggers, the 2638 model maintains operational integrity under extreme loads while complying with international safety standards. Its dual-purpose nature as both transport vehicle and mobile crane significantly reduces operational costs and downtime compared to traditional crane-truck combinationsThe crane's articulated boom, with a maximum lifting capacity of 8-12 metric tons and a working radius extending up to 16 meters
The Beiben 2638 Truck-Mounted Crane is a versatile engineering vehicle that integrates heavy-duty transport with efficient lifting capabilities. Equipped with the XCMG GSQS250-5 straight-arm crane, it delivers a maximum lifting torque of 260 kN·m and a maximum load capacity of 10 tons. With an operational height of 20 meters and 360-degree full rotation, its lifting performance is exceptional. The vehicle is also fitted with a 7.2-meter-long heavy-duty cargo box and supports a variety of optional extended functions, enabling flexible handling of various engineering tasks and material transportation needs, making it a practical and reliable piece of equipment.
Beiben 6x6 drive off-road truck is all-terrain vehicle engineered for extreme operational environments. Equipped with the Beiben 2642 NG80B cabin, it offers enhanced durability and operator comfort, featuring a reinforced structure to withstand harsh conditions. Powered by the WP12.420 engine, a 12-liter diesel unit delivering 420 horsepower, the truck ensures reliable torque and fuel efficiency for demanding tasks. The FAST 12JS200T 12-speed manual transmission provides precise gear control, optimizing power distribution across rugged terrains. Its 4450+1450 mm wheelbase configuration enhances stability and load distribution, while the 12.00R24 tires deliver superior traction on loose or uneven surfaces.
Beiben 20 CBM fuel truck supplier, china most professional beiben tanker truck manufacturer, supply benz technology 2530 fuel oil trucks, 4450+1350 mm wheelbase, 11.00R20 tyre.
The Beiben 2638 tractor truck is a heavy-duty transport vehicle with a 6X4 drive system, powered by a 380HP diesel engine with a rated power of 280 KW and a rated speed of 2200 rpm. The vehicle has a kerb weight of 8800 kg, a gross vehicle weight of 25000 kg, and a maximum towing capacity of 40000 kg. Its body dimensions are 7135 mm in length, 2495 mm in width, and 3100 mm in height, with a wheelbase of 3450+1450 mm. Equipped with a FAST 12JS200T transmission, it features 12 forward gears and 2 reverse gears, along with a 430-millimeter clutch. The front axle can bear a load of 7.5 tons, while the rear axle can handle 13 tons. With a maximum speed of 90 kilometers per hour and a maximum gradeability of 35%, coupled with a 400-liter fuel tank and a sleeper-equipped cabin, the Beiben 2638 tractor is ideal for long-distance transportation.
