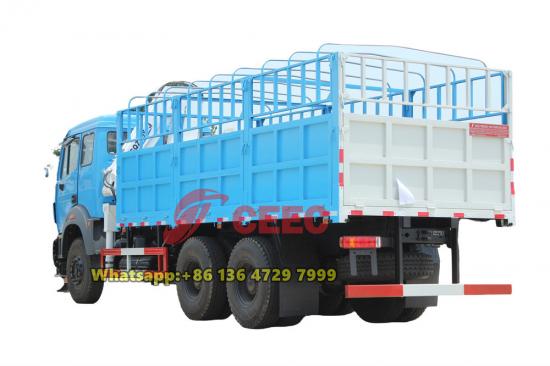

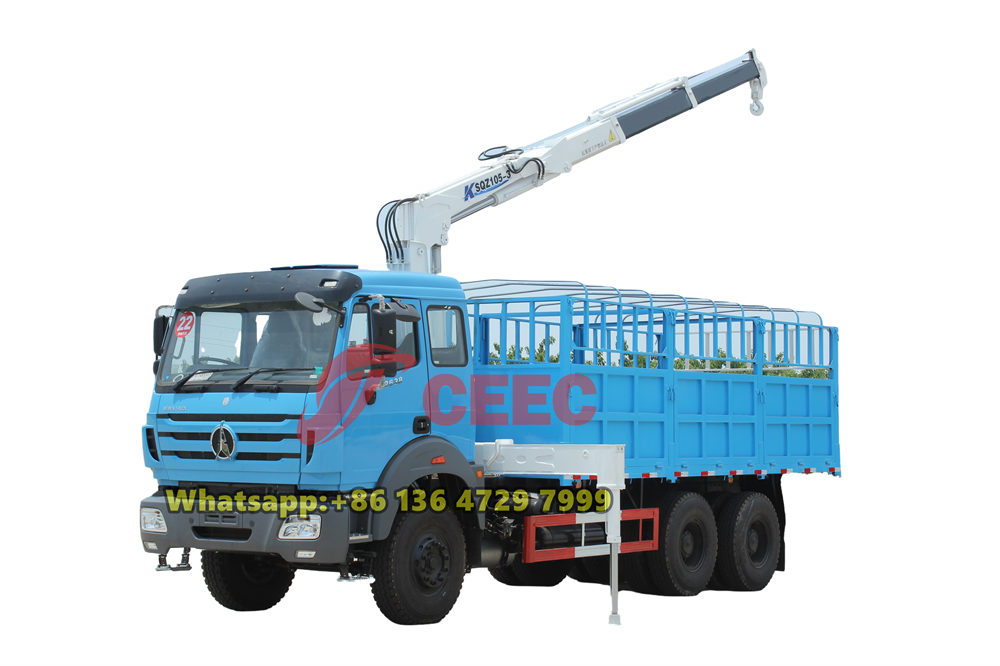

Beiben 2638 cabin truck-mounted crane combines robust engineering with versatile material-handling capabilities. This integrated vehicle features a 6x4 all-wheel-drive chassis powered by a Weichai WP10.380E32 diesel engine, delivering 380 horsepower and 1,500Nm torque for off-road mobility.Equipped with a high-torque hydraulic system and reinforced outriggers, the 2638 model maintains operational integrity under extreme loads while complying with international safety standards. Its dual-purpose nature as both transport vehicle and mobile crane significantly reduces operational costs and downtime compared to traditional crane-truck combinationsThe crane's articulated boom, with a maximum lifting capacity of 8-12 metric tons and a working radius extending up to 16 meters
Working capcity:
5 T craneCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9830 x 2600 x 3830Drive system:
6×4, RHDWheelbase (mm):
4450+1450Engine power / Model:
380HP, WP10.380E32Gear Box:
12JS200TARemark:
14.00R20 tyres, 6x6 avaiableBeiben 2638 cabin truck-mounted crane is a robust and versatile heavy-duty vehicle engineered for precision lifting and transportation tasks. In logistics and transportation, the Beiben 2638 truck mounted crane excels in cargo management. The crane’s hydraulic system allows operators to autonomously handle freight containers, palletized goods, or irregularly shaped items without external lifting aids, significantly accelerating loading cycles and reducing labor costs.
Power System: At its core lies the WP10.380E32 diesel engine, a 10.52-liter inline-six-cylinder powerplant delivering 380 hp at 1,900 rpm. Compliant with Euro III emission standards, this engine ensures high torque output (1,500 Nm at 1,200–1,600 rpm), optimizing fuel efficiency and performance in challenging terrains.
Drivetrain & Transmission: The FAST12JS200T manual transmission features 12 forward gears and 2 reverse gears, enabling seamless gear transitions and adaptability to variable loads. Designed for heavy-duty applications, its synchronized shifting mechanism enhances driver control, ensuring smooth power delivery to the drivetrain.
Chassis & Axles: The truck employs a reinforced chassis paired with a Benz 7.5-ton front axle and a Benz 13-ton rear axle, providing exceptional load distribution and stability. The 4450+1450 mm wheelbase configuration balances maneuverability and weight-bearing capacity, minimizing turning radius while maximizing structural integrity. 12.00R20 radial tires offer superior traction and shock absorption, suitable for both on-road and off-road environments.
Crane Specifications: The integrated 5-ton knuckle boom crane features a hydraulic system with multi-stage telescoping and 360-degree rotation, enabling precise load placement. Its compact design optimizes space utilization without compromising lifting capacity, supported by safety mechanisms such as overload protection and automatic stabilization.
Beiben 2638 cabin truck-mounted crane is a versatile heavy-duty vehicle designed for optimized load-handling operations across industries. Its integrated design and robust performance cater to diverse scenarios, as outlined below:
Heavy Load Transportation and Positioning
Equipped with a high-capacity hydraulic crane system, the Beiben 2638 efficiently lifts and transports bulky items weighing up to 10 tons. Its 360-degree rotating boom and extendable arm enable precise placement of construction materials, industrial machinery, or prefabricated structures in confined spaces, reducing reliance on separate cranes and forklifts.
Infrastructure and Construction Support
This model excels in urban development projects for erecting steel beams, concrete panels, and utility poles. The cabin-mounted control system allows operators to manage lifting operations safely from the vehicle, enhancing productivity at roadworks, bridge construction sites, and power grid installations while minimizing ground crew risks.
Logistics and Emergency Response
In logistics hubs, the crane accelerates container loading/unloading and cargo redistribution between transport vehicles. Its rapid deployment capability proves critical for disaster relief operations, facilitating swift removal of debris, delivery of emergency supplies, or recovery of overturned vehicles during accidents or natural calamities.
Specialized Industrial Applications
The customizable platform supports auxiliary equipment installation for specialized tasks, including aerial work platforms for maintenance crews or drilling rig attachments for geological surveys. Its reinforced chassis and stability control systems ensure safe operation on uneven terrain, making it suitable for oilfield services, mining operations, and rural infrastructure projects.
Product Specifications
|
BEIBEN 6x4 truck mounted 5Ton knuckle boom crane |
|
|
Emission Standard |
EURO 3 |
|
Chassis type |
Cargo truck type |
|
Chassis brand |
Beiben |
|
Driving Type |
6×4 |
|
Dimensions |
|
|
Wheelbase(mm) |
4450+1450 |
|
Overall Dimension(mm) |
Approx. 9960×2500×3348 |
|
Cargo box dimension(mm) |
7000x2300x800 |
|
Weight parameters |
|
|
GVW(kg) |
25,000kgs |
|
Curb weight(kg) |
Approx. 13,550kgs |
|
Real load weight(kg) |
More than 20,000kgs |
|
Chassis parameter |
|
|
Front axle |
7 Ton load capacity, drum brake |
|
Rear/middle axle |
13 Ton/axle (2 axle combined) |
|
Front/rear overhang(mm) |
1410/2530 |
|
Approach angle (°) |
34 |
|
Departure angle (°) |
24 |
|
Max speed (km/h) |
85 |
|
Suspension |
Leaf spring suspension |
|
Engine performance |
|
|
Engine model |
WP10.380 (WEICHAI brand) |
|
Engine type |
Straight in-line, 6 cylinders, 4 strokes, water-cooling, Turbo charge with inter-cooling, diesel engine |
|
No. of cylinders |
Straight-6 cylinders |
|
Displacement(L) |
9.726L |
|
Max. output (KW) |
279kw (380hp) |
|
Fuel type |
Diesel |
|
Max. output (kw/Ps/rpm) |
279kw(380ps) /2200 rpm |
|
Max torque/Speed (N.m/rpm) |
1460 N.m/1200-1600rpm |
|
Tire specification |
12.00R20, total 10 units tire+1 spare tire |
|
Drive Line |
|
|
Clutch description |
¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
|
Transmission |
12 forwarder, 2 reverse gear, synchronous meshing by manual |
|
Braking system |
Service brake: Brake gap can be adjusted automatically double circulation air brake system |
|
Suspension system |
|
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
Electrical Equipment |
|
|
Voltage |
24V |
|
Batteries |
2X12V/135Ah |
|
Starter |
6.2Kw/24V |
|
Cab description |
|
|
NG80 long cab, with one sleeper, cool and heating air-conditioner, Hydraulic suspension driver's seat, four point safety belt for driver and co-driver With FM/AM radio player, USB interface |
|
|
Crane |
|
|
Type |
Knuckle boom crane, 4 sections |
|
Max. lifting capacity |
5000 kg |
|
Max. lifting height |
12.8 meters |
|
Max. working range |
10 meters |
|
Hydraulic outriggers |
2 units |
Beiben 2638 cabin truck-mounted crane presents a lucrative opportunity in Africa’s evolving logistics and construction sectors. Its robust design, featuring a 10-ton lifting capacity and a 380-horsepower engine, enables efficient operations in challenging terrains, common across African regions. Monetization strategies for this model include leasing services to construction firms, participation in infrastructure projects, and offering specialized transport solutions to mining and agricultural enterprises.
Revenue Generation Pathways
Cargo Versatility
The Beiben 2638 accommodates diverse loads:
