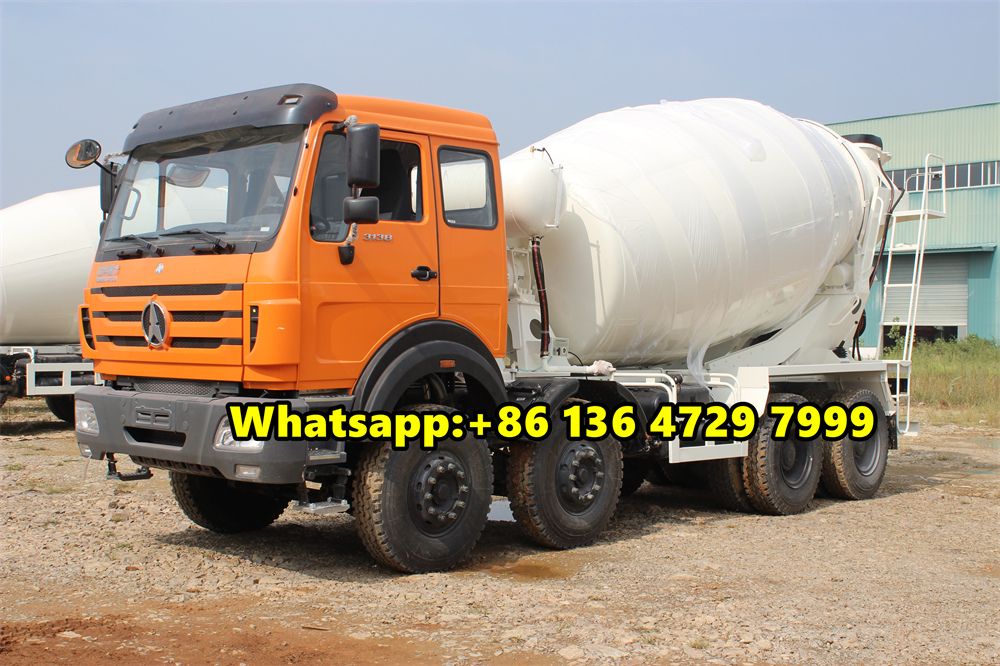

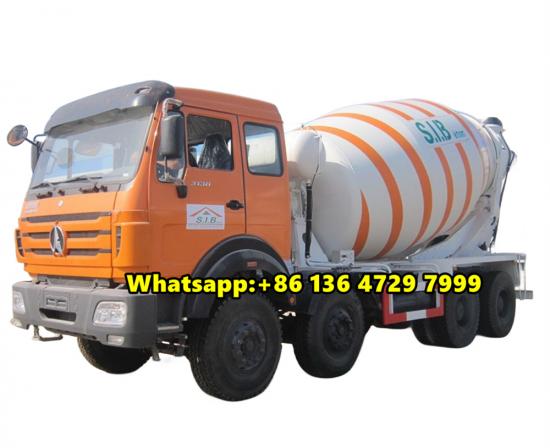

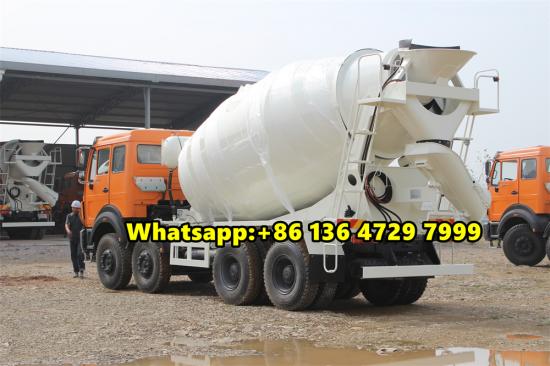

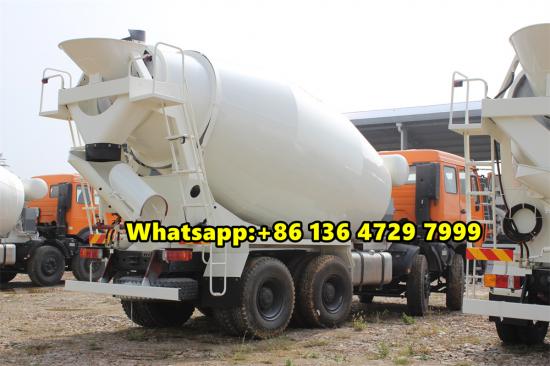

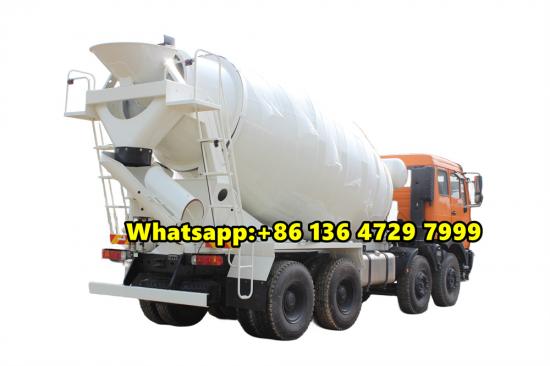

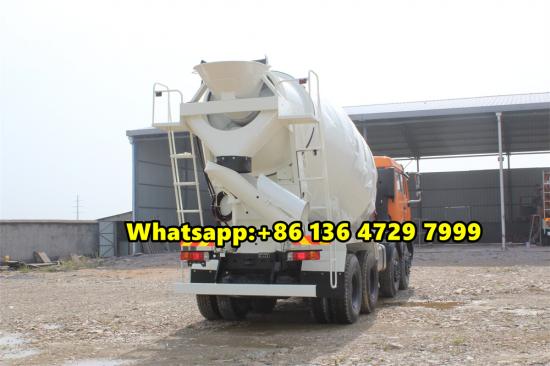

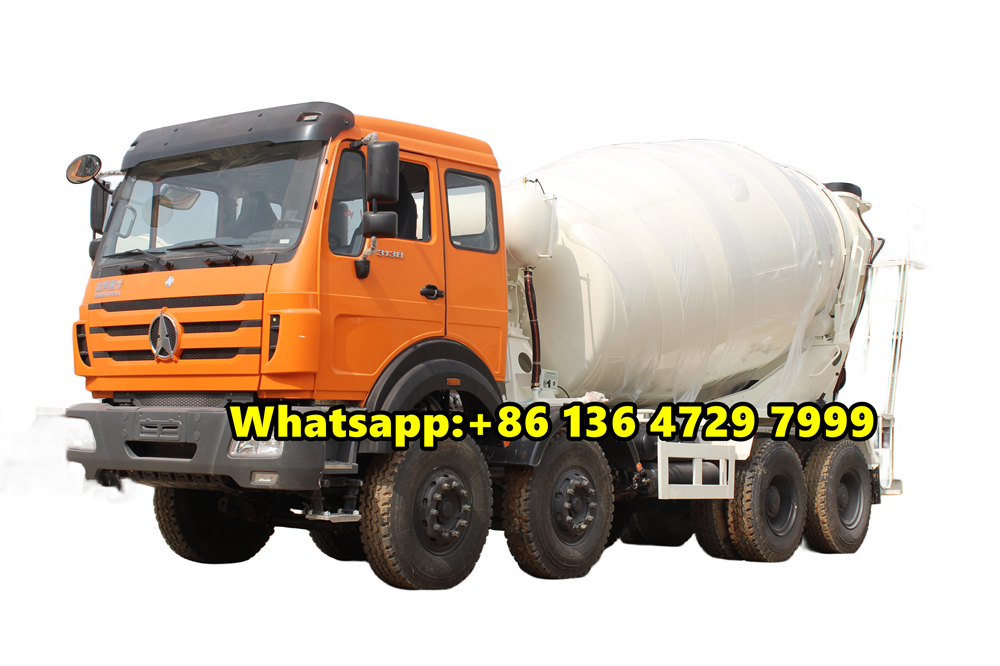

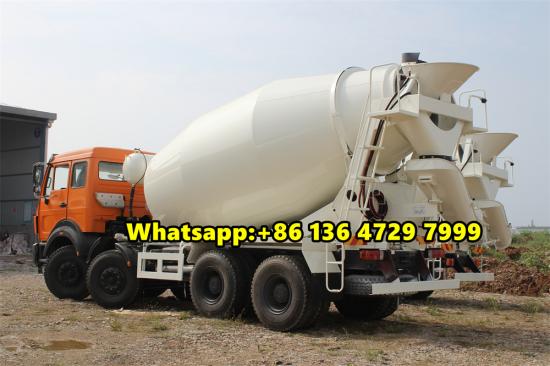

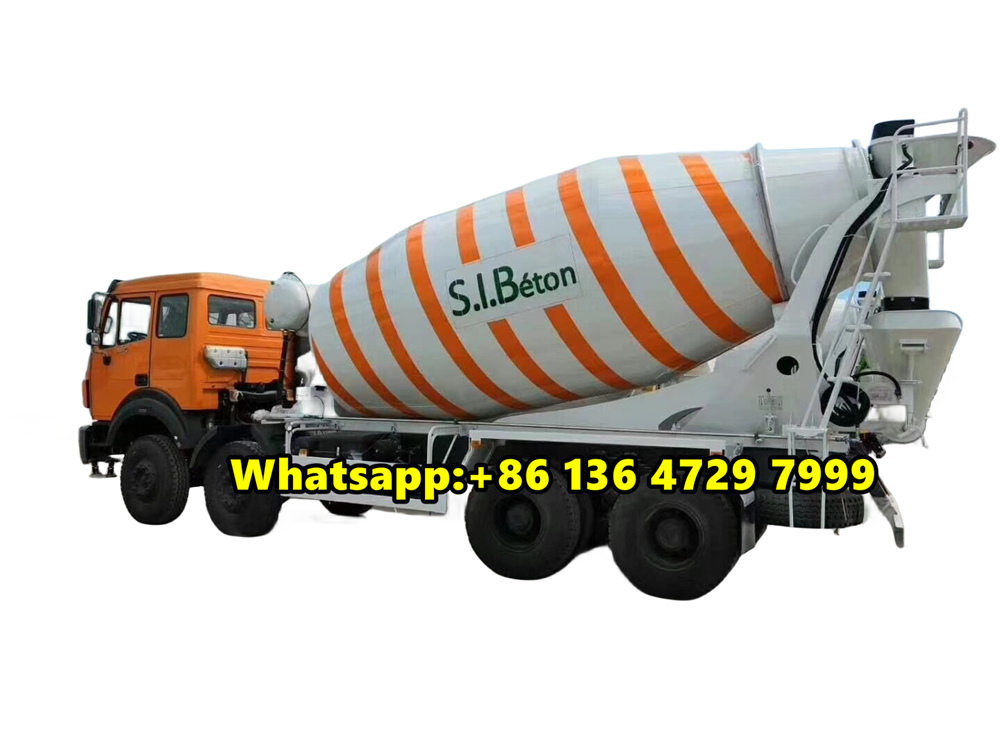

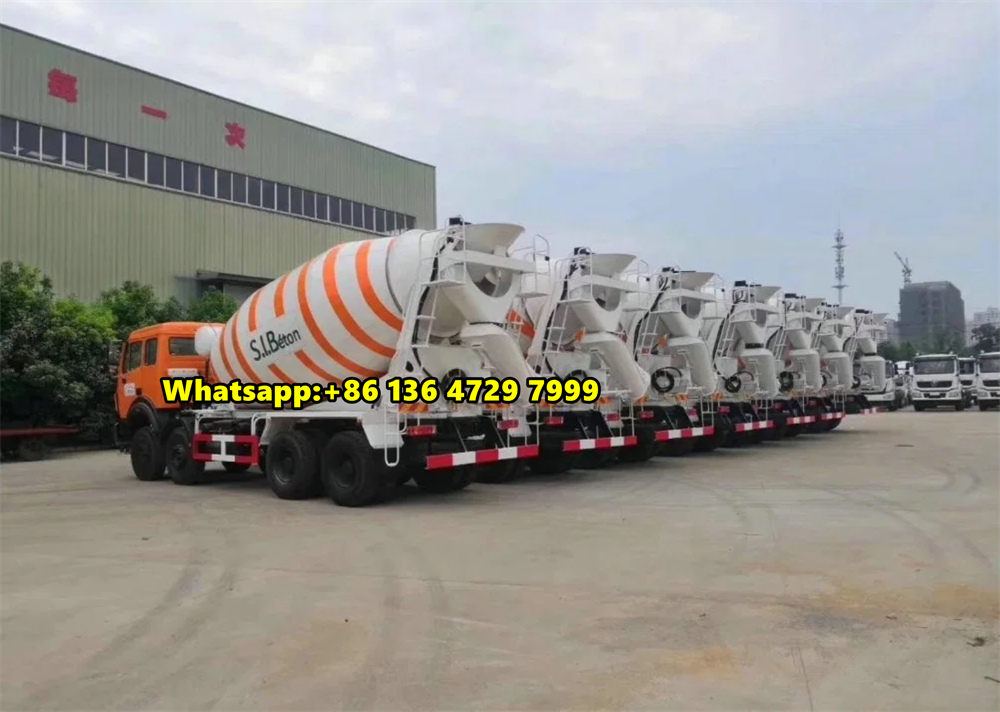

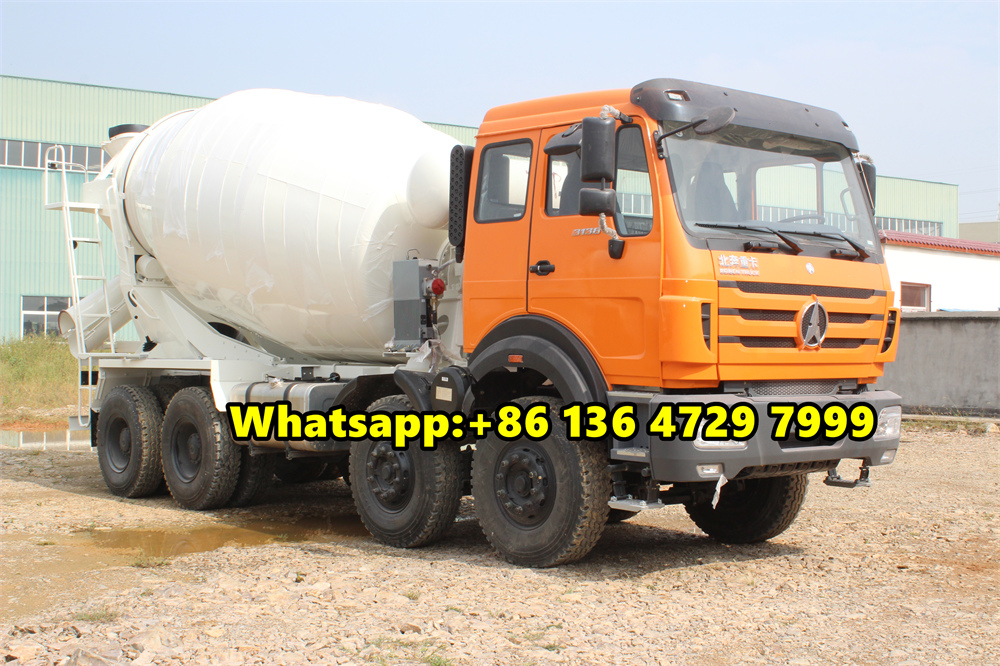

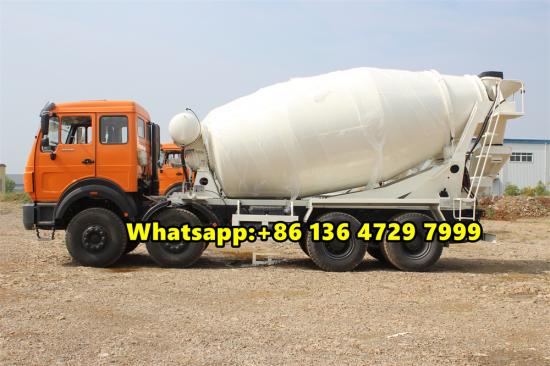

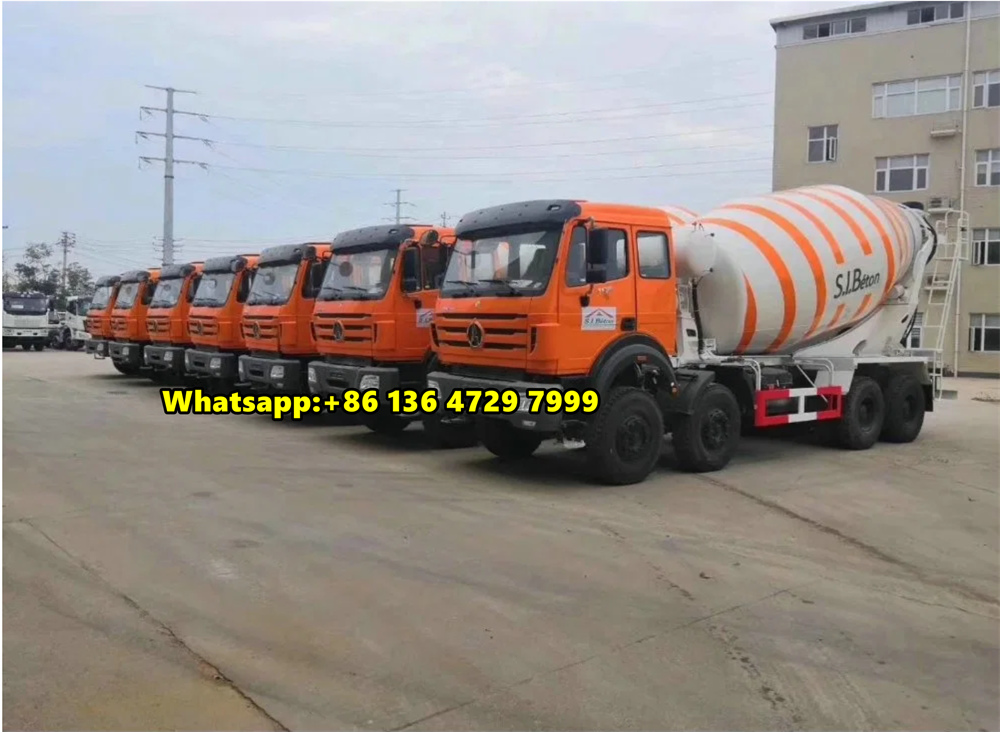

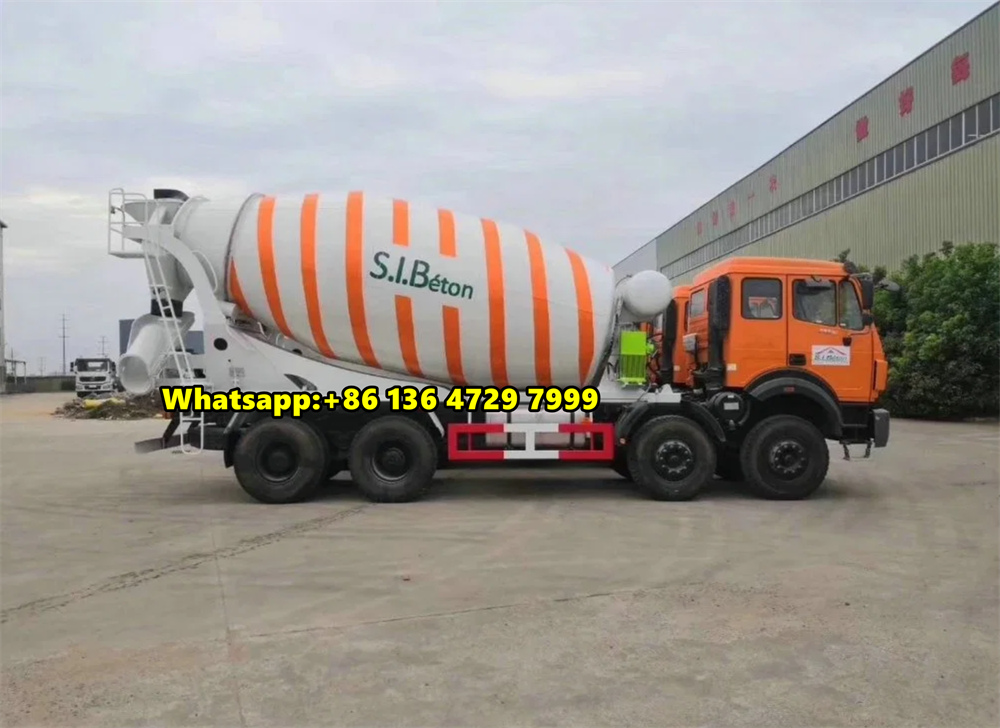

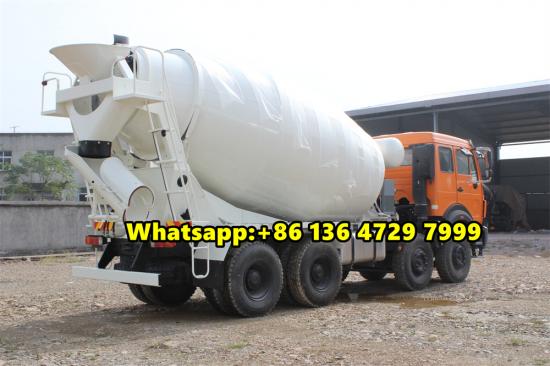

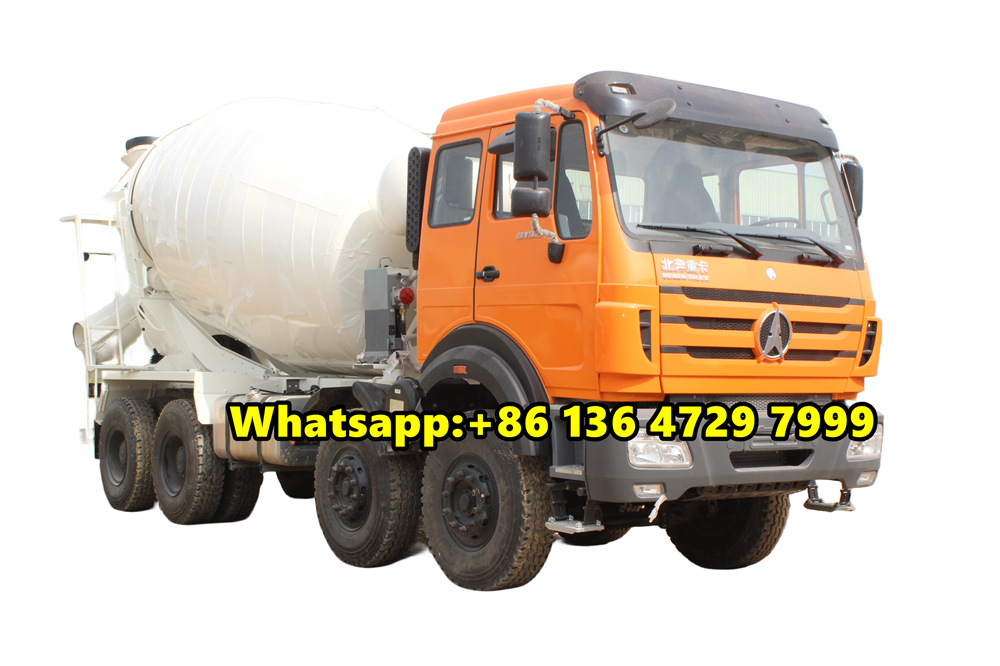

The Beiben 3138 concrete mixer truck is a robust and reliable vehicle designed for the transportation and mixing of concrete on construction sites. beiben 3138 concrete mixer truck is equipped with a powerful 380 horsepower engine that ensures smooth and efficient operation even under heavy load. The WP10.380 diesel engine is designed to provide ample power for both driving and operating the mixer.Equipped with 16 cbm reliable concrete mixing drum, the Beiben 3138 can efficiently mix large quantities of concrete on-site, ensuring a consistent and high-quality mix every time
Working Capcity:
16 CbmCabin Type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
10550×2500×3990Drive System:
8×4Wheelbase (mm):
1850+4450+1450Engine Power:
380 Hp, WP10.380Gear Box:
12JS200TARemark:
8×8 drive is optionalThe Beiben concrete mixer truck, also named as beiben transit mixer truck, beiben cement mixer truck. It is a heavy-duty vehicle specifically designed for mixing and transporting concrete to construction sites. With a powerful engine and durable chassis, Beiben 3138 concrete mixer truck is capable of carrying large volumes of concrete over long distances.
The Beiben concrete mixer truck is equipped with a high-quality mixing drum that ensures the consistency and quality of the concrete mixture. The drum is driven by a reliable hydraulic system that allows for efficient mixing of the materials. Additionally, the truck is equipped with a water tank and pump to control the moisture content of the concrete mix.
Concrete Mixer Truck for your selection, LHD and RHD cabin are both available.
| Vehicle parameters | |||
| Vehicle Model | CEEC5316GJBN | Vehicle Brand | Beiben |
| Overall dimensions | 10550X2500X3990mm | Curb weight | 16500kg |
| Loading capacity | 16m3 -18m3 | ||
The Beiben concrete mixer truck is a robust and efficient vehicle designed for the transportation of concrete mix from the batching plant to the construction site. It is equipped with a rotating drum that mixes the raw materials as it travels, ensuring a consistent and high-quality concrete mix for various construction projects. Here are four key uses of the Beiben concrete mixer truck:
1. Construction projects: One of the primary uses of the Beiben concrete mixer truck is in construction projects of all sizes. Whether it's a small residential building or a large infrastructure project, this vehicle plays a crucial role in delivering fresh concrete to the site. The ability to mix the concrete on the go ensures that the material is always ready for use, maximizing efficiency and minimizing waste.
2. Road maintenance: The Beiben concrete mixer truck is also commonly used in road maintenance projects, such as repairing potholes or resurfacing damaged sections of the road. The on-site mixing capabilities of the truck allow for quick and easy access to fresh concrete, making it ideal for fast-paced repair work that requires immediate attention.
3. Landscaping projects: Landscaping projects often require the use of concrete for various structures, such as retaining walls, pathways, and decorative elements. The Beiben concrete mixer truck is a convenient solution for delivering concrete to these projects, as it can access tight spaces and difficult terrain with ease. Its efficient mixing capabilities ensure that the concrete is always freshly prepared and ready for use.
4. Remote construction sites: In remote or hard-to-reach construction sites, the Beiben concrete mixer truck proves to be a valuable asset. Its mobility and self-sufficiency make it an ideal choice for delivering concrete to areas where traditional mixing methods are impractical. The truck's reliable performance and durability allow it to navigate challenging conditions and deliver a consistent concrete mix for construction projects in remote locations.
Overall, the Beiben concrete mixer truck is a versatile and essential vehicle for a wide range of construction applications, offering convenience, efficiency, and reliability in the transportation of concrete mix. Its uses span across various sectors, including construction, road maintenance, landscaping, and remote site projects, making it an indispensable tool for modern construction operations. With its robust design and innovative features, the Beiben concrete mixer truck continues to be a popular choice for contractors and construction professionals worldwide.
| Chassis parameters | |||||
| Chassis model | ND1316D35J | Chassis brand | North-Benz | ||
| Overall dimensions | 10555x2495x3990mm | Wheel base | 1500+3550+1450mm | ||
| Front/rear wheel track | 1995/1995/1800/1800mm | Front/rear suspension | 1410/1405 mm | ||
| Approach/departure angle | 26/33° | Maximum speed | 90km/h | ||
| Chassis Manufacturer | BEIBEN TRUCK | ||||
| Cab | Configuration | NG80B a row and a half(with sleeping berth),allowable 3 passengers,air conditioner | |||
| Color | Yellow,other color is optional | ||||
| Engine | Model | WP12.375 | |||
| Emission | Euro 3 | ||||
| Type | 6 cylinders,in-line,water-cooled,4-stroke,turbo inter-cooling, direct injection,exhaust valve brake,diesel engine | ||||
| Rated power | 375hp,rated power speed 1900rpm | ||||
| Displacement | 11596ml | ||||
| Max.torque | 1630N.m | ||||
| Bore x stroke | 126x155mm | ||||
| Manufacturer | Weichai Power Co.,Ltd | ||||
| Tire | Size | 12.00R20 steel wire tire | |||
| Number | 12+1 nos | ||||
| Clutch | 430 diaphragm clutch | ||||
| Fuel tank | 300L | ||||
| Front axle | 6.5 tons | ||||
| Rear axle | 13.0 tons | ||||
| Drive form | 8X4 | ||||
| Suspension | Multi leaf springs | ||||
| Rated voltage | 24V,DC | ||||
| Transmissions | Gearbox 9T1880,9 speed forward 1 reverse | ||||
| Steering device | Power assisted steering | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | |||||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
| Concrete mixer truck structure parameters | ||||
| Loading capacity | 16m3 | Tank material | 6mm alloy steel | |
| Tank front head | 8mm alloy steel | Reducer | Italy PMP | |
| Hydraulic pump | Italy PMP | Hydraulic motor | Italy PMP | |
| Radiator | KAIPENG | Color and Logo | Optional | |
| Standard configuration | chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
| 15-18m3 | Italy PMP reducer,Italy PMP hydraulic pump,Italy PMP hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material) | |||
| Selective configuration |
Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system. Italy Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor. |
|||
