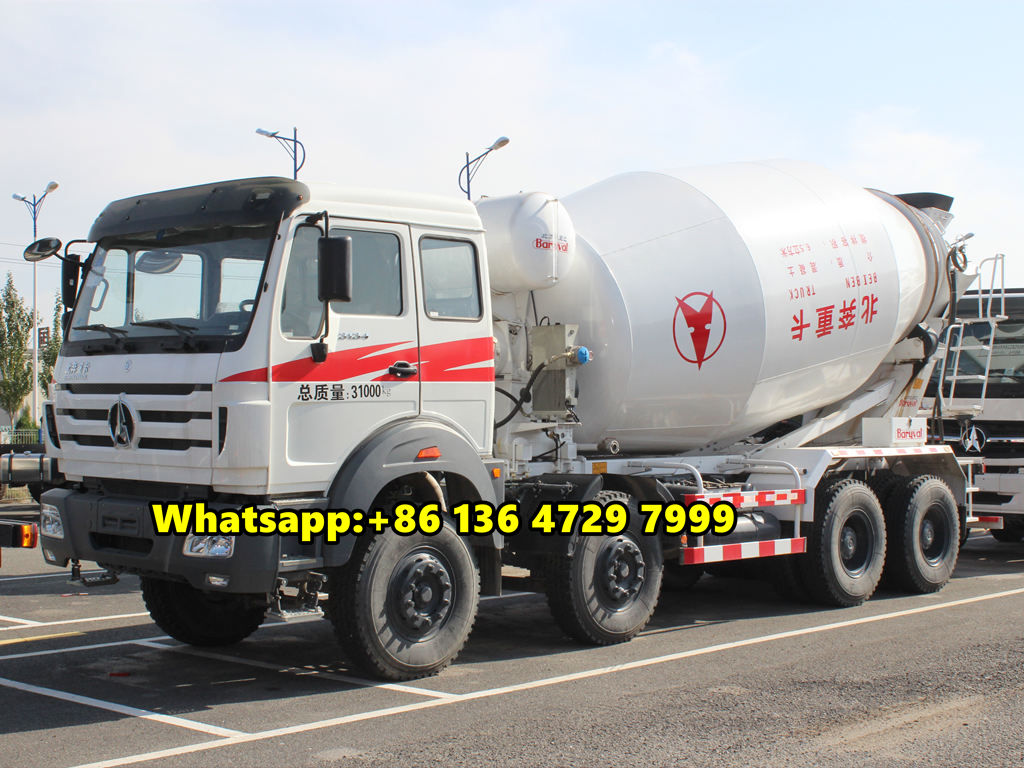

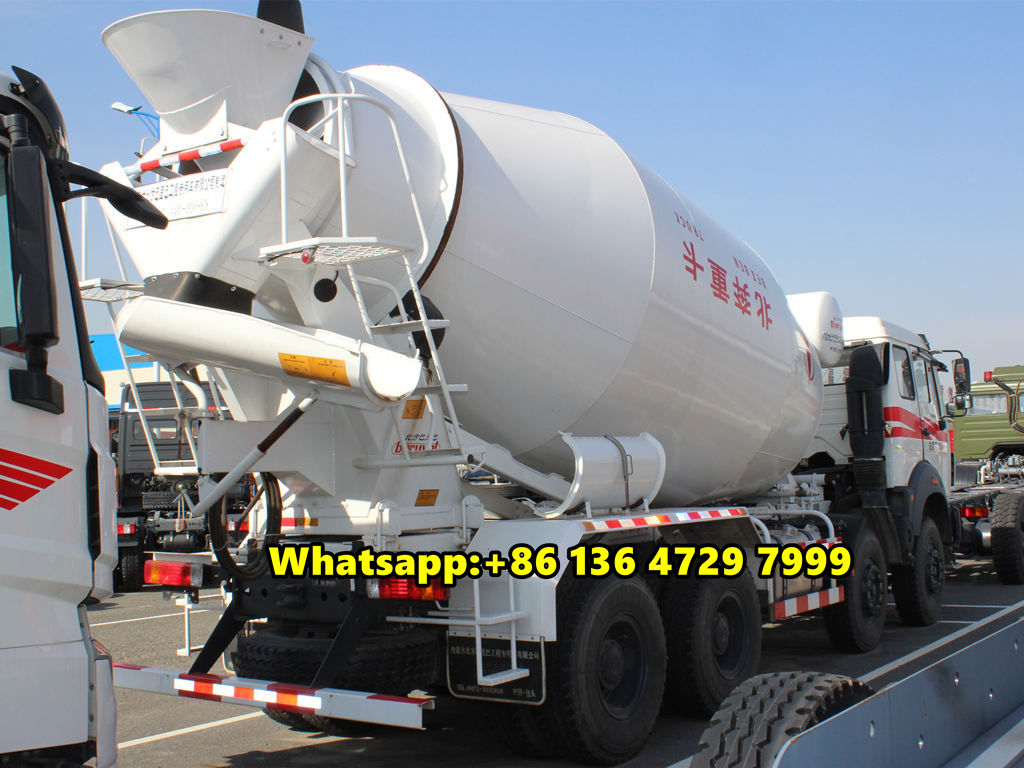

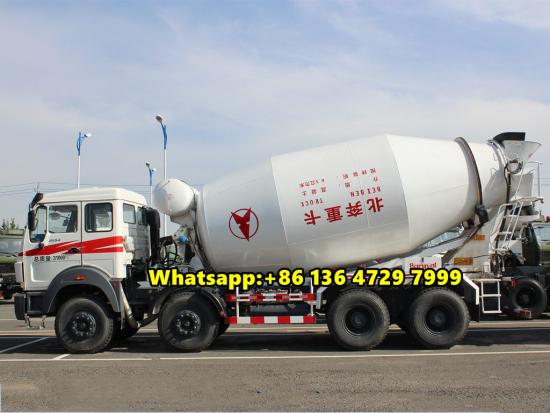

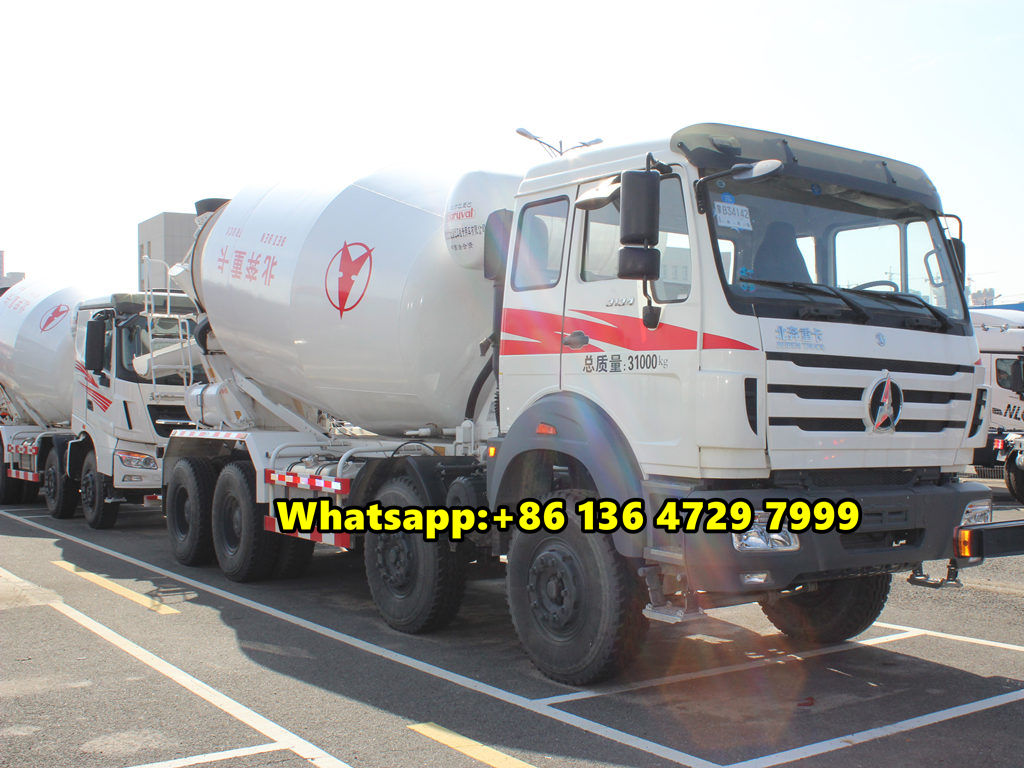

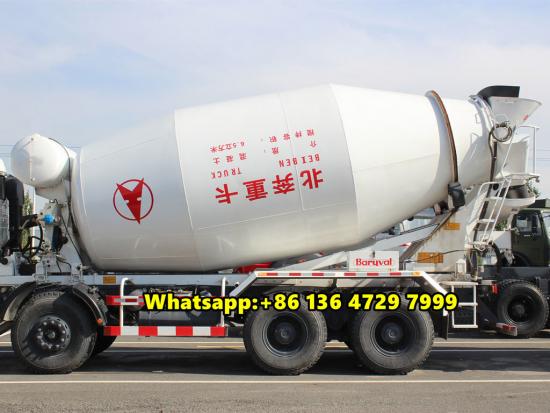

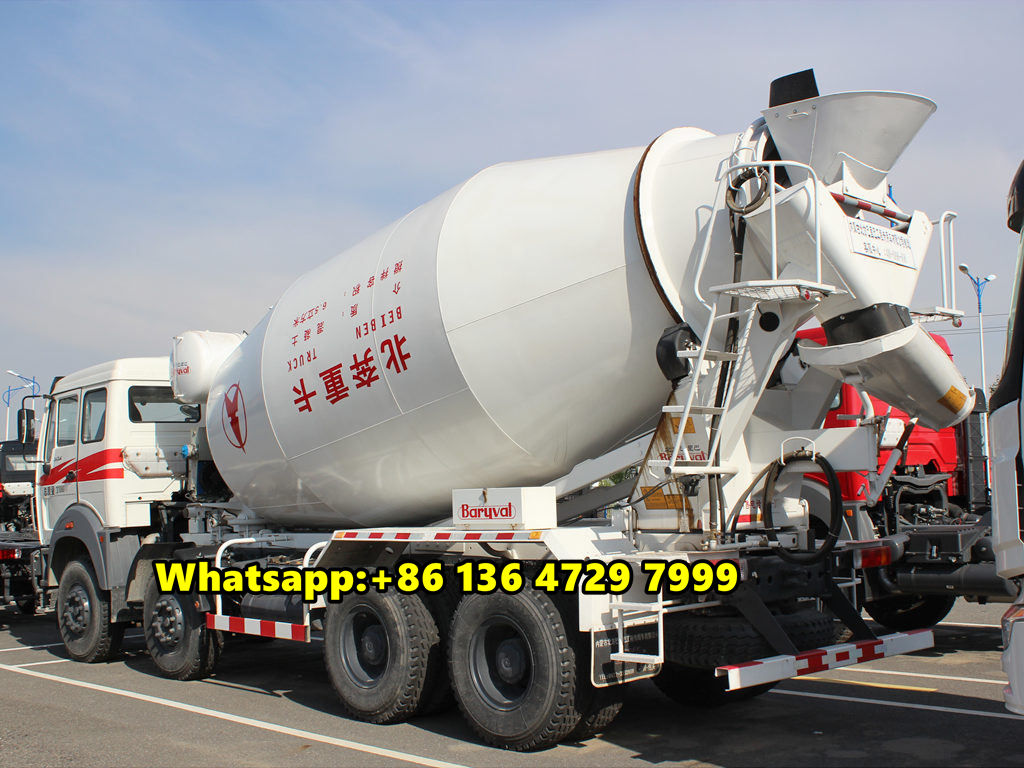

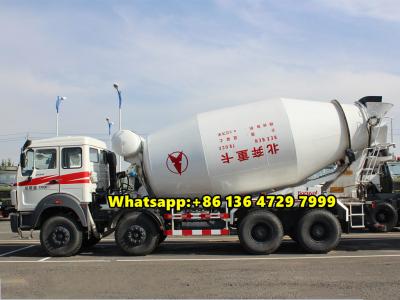

The Beiben 4142 V3 concrete mixer truck is a reliable and efficient construction vehicle designed for transporting and mixing concrete on construction sites. With a powerful engine and durable chassis, this truck can easily handle heavy loads and rough terrain.The cab of the Beiben concrete mixer truck is designed with the driver's comfort and safety in mind. It is equipped with air conditioning, adjustable seats and a modern dashboard layout. Safety features such as airbags, anti-lock brakes and stability control systems are also included to ensure the safety of the driver and passengers.
Goods Stock:
1Working Capcity:
16 CBMCabin Type:
Beiben V3 cabinDimension ( mm ) :
11800×2500×3385Drive System:
8x4Wheelbase (mm):
1850+4450+1450Engine Power:
420HP, WP12.420Gear Box:
12JS200TARemark:
8x8 is optionalBeiben 4142 V3 transit mixer truck is a high-quality and efficient vehicle designed for transporting and mixing concrete on construction sites. This truck has several advantages that make it stand out from other transit mixer trucks in the market.
One of the key advantages of the Beiben 4142 V3 transit mixer truck is its powerful engine and robust chassis. The truck is equipped with a reliable engine that provides ample power for carrying heavy loads of concrete over long distances. The sturdy chassis ensures that the truck can withstand the rigors of construction sites and rough terrain, making it a durable and long-lasting vehicle.
Another advantage of the Beiben 4142 V3 transit mixer truck is its large mixing capacity. The truck's mixer drum has a spacious capacity, allowing for the efficient mixing of large quantities of concrete. This ensures that construction projects can be completed quickly and efficiently, saving time and labor costs.
Features of Beiben V3 cement mixer truck：
1.Concrete mixing truck uses strong and firm tank, which has different volumes, and meets the customers requirements. Compact and rational structure,stable and reliable performance,gorgeous and elegant cab,safe and comfortable. It is used for various construction sites.
2.Drums and special steel plate,adopt mechanical agitation blade material thickness is not less than 5 mm ,1.6 times of abrasion
resistance for 16 Mn plank.
3.Inlet and discharge pomrt in the easy wear and tear with wear-resistant material to reinforce and extend the wear and tear.Drum welding sea in the form of lap joint , the advantage is that can form two weld, make the connection strength is higher.
4.The power of the cement mixer truck is output by the power take-off and transmitted to the hydraulic pump through the transmission shaft. The hydraulic energy generated by the hydraulic pump is transmitted to the hydraulic motor through the oil pipe. The hydraulic motor converts the hydraulic energy into kinetic energy and transmits it to the mixing tank through the reducer to reduce the speed and increase the torque. By adjusting the angle of the servo handle of the (double acting variable) hydraulic pump, the positive and negative rotation of the mixing tank and the speed are achieved, so as to achieve concrete loading, mixing, stirring, discharging and other operations.
|
Beiben 4142 chassis parameters |
||
|
Basic parameter |
Model |
4142 / 8×4 |
|
Length×width×height(mm) |
11800×2500×3385 |
|
|
Wheel-base(mm) |
1850+4450+1450 |
|
|
Curb weight(kg) |
14400 |
|
|
Engine parameter |
Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1600/1400～1600 |
|
|
Displacement(lit) |
11.596 L |
|
|
Fuel tank capacity |
400L Iron oil tanker |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 12JS200A |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake |
|
|
Assisted brake |
Engine exhaust brake |
|
|
Chassis parameter |
Front axle |
7.5 T, no-driving steering axle, drum brake； |
|
Middle & Rear axle |
13 T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263； |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 13/13 pieces； |
|
|
Tire |
12.00R24 |
|
|
Cab |
NG80B Long Cabin/ Flat roof/Left drive |
|
|
Exterior trimming: |
||
|
Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
||
|
Interior trimming: |
||
|
Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
Application scenarios of Beiben cement transport truck:
1.House construction: Beiben cement transport truck can be used for concrete construction such as foundation, floor slab, wall, etc. of building houses.
2.Road construction: In road construction projects, Beiben cement mixer truck is used for concrete construction such as pavement, bridge, tunnel, etc.
3.Bridge construction: In bridge construction, Beiben 4142 concrete mixer truck is mainly used to build concrete structures such as piers, abutments, and bridge decks.
4.Water conservancy projects: In water conservancy projects, Beiben V3 transit mixer truck is mainly used to handle concrete construction such as dams, reservoirs, and drainage ditches.
5.Urban construction: Beiben 8x4 cement transport truck can also be used for the construction of urban underground facilities, municipal roads, urban squares, etc.
|
Upper part |
||
|
Mixer tank |
Capacity |
10 cubic meters |
|
Shell Material |
Alloy steel(special wear- resistant material, enhance the service life of tank at least 3 times) |
|
|
Lining Material |
16Mn 5mm alloy steel |
|
|
End plate Material |
6mm alloy steel |
|
|
Blade Material |
Bao Steel 520 5mm alloy steel (equipped with wear-resistant strip, longer service time) |
|
|
Feed Rate (m3/min) |
≥3 |
|
|
Discharging Rate(m3/min) |
≥2 |
|
|
Discharging Residual Ratio(%) |
≤0.5 |
|
|
Discharging Rage |
180° |
|
|
Operation mode |
Control panel in cabin or on each side the mixer tank |
|
|
Hydraulic system |
Hydraulic pump |
America Eaton |
|
Hydraulic motor |
America Sauer |
|
|
Reducer |
Italy PMP |
|
|
Radiator |
Chinese brand |
|
|
Water Tank |
Volume(L) |
400 |
|
Supply system |
Air-pressure |
|
|
Description |
Provide water to concrete during transportation and to cool down the hydraulic system. With wash-hand device. |
|
