The BEIBEN RHD heavy-duty crane truck is a professional equipment specifically designed for heavy engineering transportation and lifting requirements. Built on a 6×4 chassis and powered by a 380HP Weichai engine, it delivers robust performance. Equipped with a 5-ton folding arm crane offering 11m lifting height and 360° rotation for flexible operation. Featuring a sturdy cargo box and comprehensive configurations, it combines reliability with durability. Excellent for construction, logistics and other applications, it's an ideal choice for efficient operations.
Working capcity:
5 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9800×2500×3750Drive system:
6×4Wheelbase (mm):
4450+1450Engine power / Model:
380 HP/WP10.380E32Gear Box:
9JS150ARemark:
6×6 drive is optionalThe BEIBEN 6×4 RHD heavy-duty crane truck is professional equipment designed for heavy engineering transportation and lifting needs. Built on a Beiben 6×4 heavy-duty truck chassis, it measures 9800×2550×3750mm with a gross weight of 26 tons. Powered by a Weichai WP10.380E32 diesel engine delivering 380HP coupled with a 9-speed manual transmission, it reaches a top speed of 90km/h, while its 30% gradeability adapts to complex construction environments. The right-hand drive configuration specifically meets operational requirements in Southeast Asia, Africa and other regions.
The superstructure represents one of this Beiben knuckle boom crane truck's core highlights. The folding arm crane has a maximum lifting capacity of 5 tons, easily handling various heavy loads for multiple engineering scenarios. With maximum lifting height of 11m and 360° rotation, this comprehensive operational capability enables flexible maneuvering in confined spaces, significantly improving work efficiency. The crane's maximum working pressure of 28MPa ensures stability and safety during lifting operations. Its H-type outrigger design provides a span of 5210mm, delivering solid support for crane operations - even when lifting heavy loads, it maintains vehicle stability to prevent dangerous situations like tipping caused by center-of-gravity shifts.
The cargo box of this Beiben lorry mounted crane also delivers outstanding performance, measuring 7000×2550×600mm with spacious capacity for substantial loads. Constructed from Q235 material known for excellent strength and toughness, it withstands both cargo weight and transportation impacts. With 3mm side walls and 5mm reinforced floor, the box's durability is further enhanced, effectively extending service life.
Product Specifications
|
BEIBEN 6×4 RHD Heavy-duty Knuckle Boom Crane Specifications |
|||
|
Vehicle Model |
CEEC5256JSQB6 |
||
|
Basic Parameters |
Drive Type |
6×4 |
|
|
Total Weight (kg) |
26000 |
||
|
Curb Weight(kg) |
12200 |
||
|
Vehicle Parameters |
Length (mm) |
9800 |
|
|
Width (mm) |
2550 |
||
|
Height (mm) |
3750 |
||
|
Wheelbase (mm) |
3800+1350 |
||
|
Performance Parameters |
Maximum Speed (km/h) |
90 |
|
|
Maximum Climbing Grade (°) |
30% |
||
|
Chassis Configuration Parameters |
Engine |
Model |
WP10.380E32 |
|
Brand |
Weichai |
||
|
Power |
380HP(280KW) |
||
|
Displacement(L) |
9.726 L |
||
|
Emission standard |
Euro 3 |
||
|
Rated speed (rpm) |
2200 rpm |
||
|
Max. torque (N.m) |
1600 N.m |
||
|
Cab |
Type |
Beiben NG80B long cabin, with sleeper |
|
|
Standard Configuration |
Integral Rearview Mirror, Bluetooth Player, Manual Hydraulic Flip, Driver Airbag Seat, Laminated Glass, Electric Doors And Windows, Wide Bumper, Central Locking, Multi-Function Steering Wheel |
||
|
Gearbox |
Gearbox Type |
Manual, 9 gears |
|
|
Front Axle |
Type |
Drum Brake |
|
|
Loadable Weight (Kg) |
7000 |
||
|
Rear Axle |
Gearbox Type |
Drum Brake |
|
|
Loadable Weight (Kg) |
13000 |
||
|
Speed Ratio |
5.143 |
||
|
Frame |
Section Size (mm) |
300×80×(8+8) Full Three-Layer Outsourcing |
|
|
Leaf Spring |
Number of pieces |
12Front Springs, 12 Rear Springs |
|
|
Tire |
Type |
Radial tire |
|
|
Quantity |
10+1 |
||
|
Model |
12.00R20 |
||
|
Steering System |
Type |
Hydraulic Power Steering System |
|
|
Braking System |
Brake Type |
Drum Brakes With ABS Anti-Lock Braking System |
|
|
Service Brake System Type |
Dual Circuit Air Brake |
||
|
Parking Brake System Type |
Spring Brake |
||
|
Parking Control Type |
Manual Brake Operation |
||
|
Electrical System |
System Voltage |
24V |
|
|
Battery |
140AH Dual Battery |
||
|
Upper Body Parameters |
Crane |
Maximum Lifting Weight (Kg) |
5000 |
|
Crane Brand |
CEEC |
||
|
Maximum Lifting Height (m) |
11 |
||
|
Rotation Angle (°) |
360 |
||
|
Maximum Working Pressure (MPa) |
28 |
||
|
Crane Weight (Kg) |
2035 |
||
|
Outrigger Type |
H-type |
||
|
Outrigger Span mmM) |
5210 |
||
|
Cargo Box |
Cargo Box Size (mm) |
7000×2550×600 |
|
|
Material |
Q235 |
||
|
Material Thickness |
Wall thickness 3 |
||

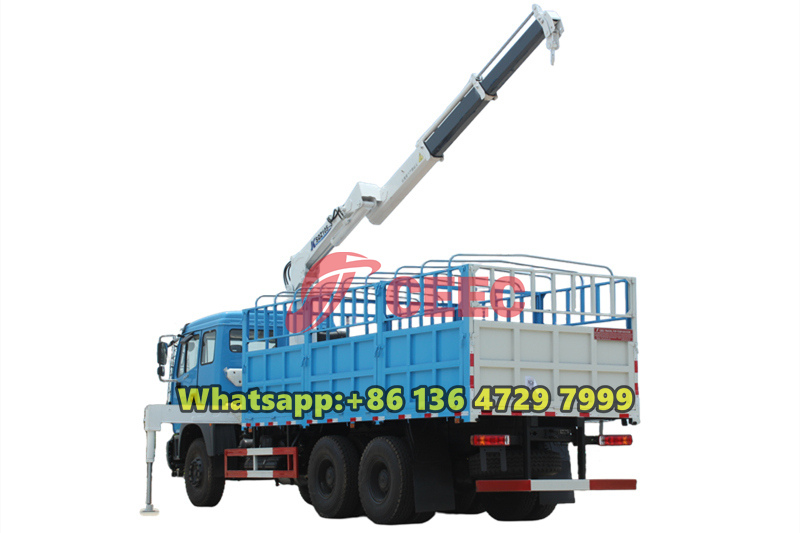

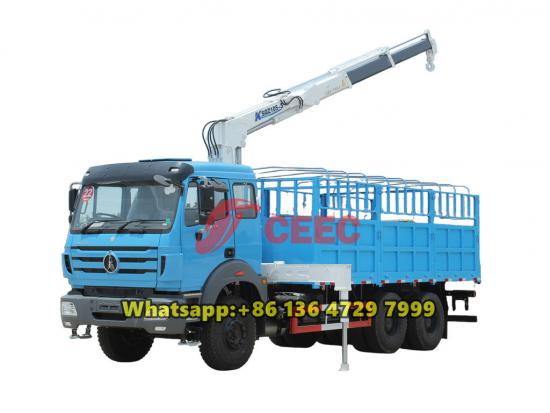

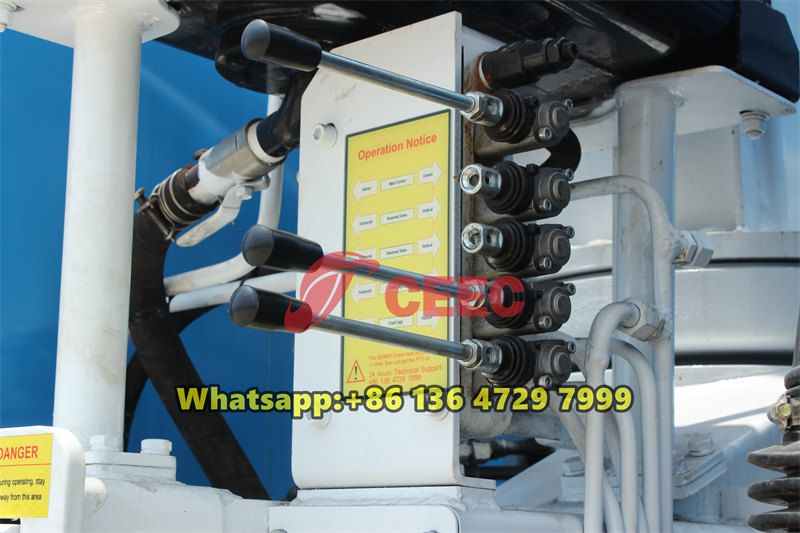

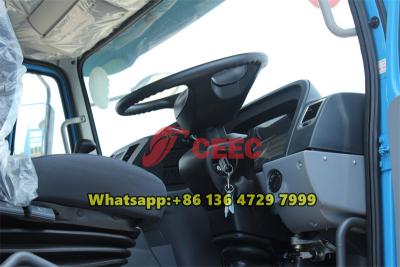

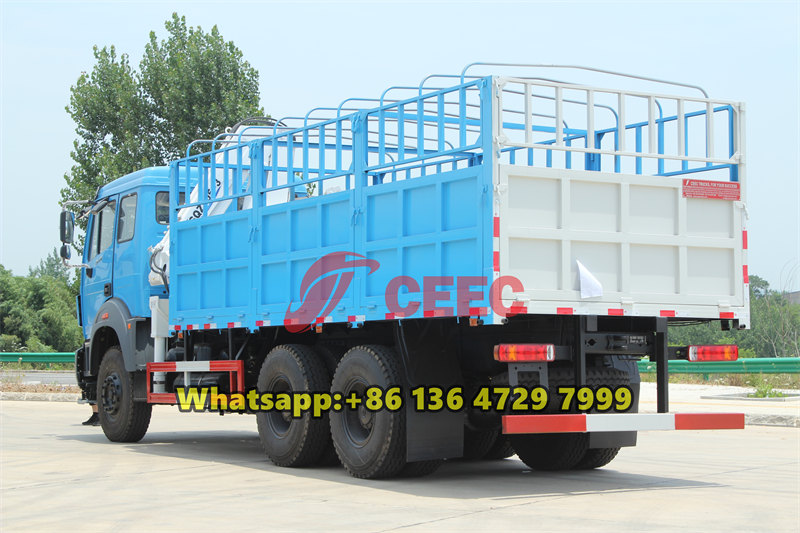

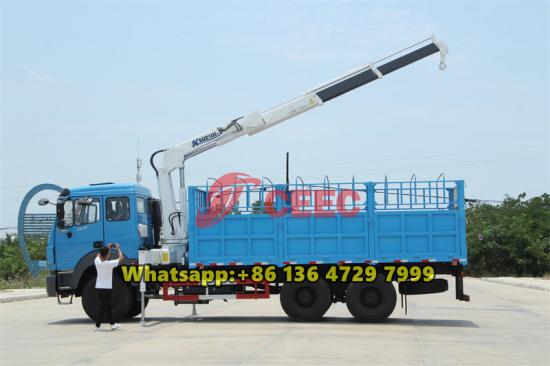

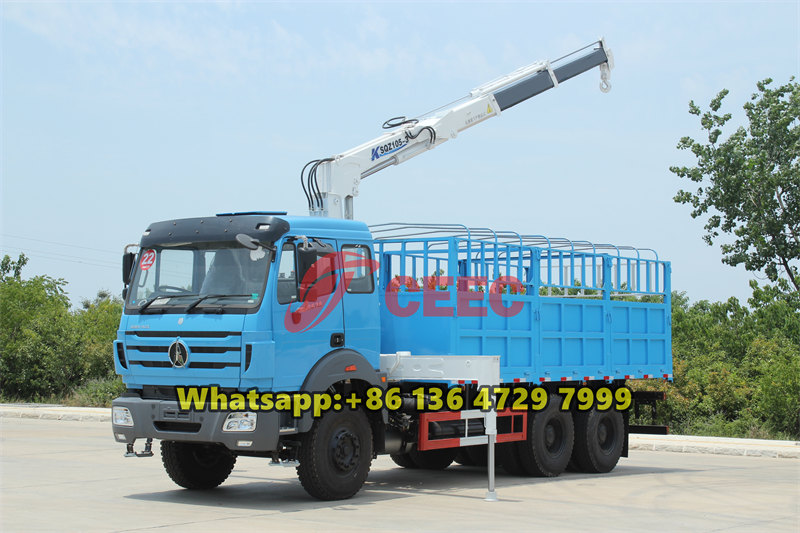

Product Pictures
16ton Beiben truck mounted crane manufacturer, best quality beiben 16 T crane trucks manufacturer.
Beiben 16 T knuckle boom crane truck , with china beiben 6*4 right hand drive chassis,with customer required colour, hiab 8 T crane.
The BEIBEN 6x4 truck-mounted SQZ200 folding arm boom crane, manufactured by CEEC TRUCK, represents a pinnacle of engineering excellence in the realm of heavy-duty lifting equipment. Built on the robust north benz 2634 truck chassis, renowned for its durability and reliability, this crane is folding arm model and boasts an 6x4 drive type, ensuring superior traction and mobility across varied terrains, making it an ideal choice for demanding industrial applications. Powering this formidable machine is the WP10.340E32 engine model, delivering an impressive 340HP of raw power. This potent engine not only ensures efficient operation but also provides the necessary muscle to tackle challenging lifting tasks with ease. BEIBEN 6x4 truck-mounted SQZ200 Boom crane stands as a testament to innovation and excellence in the realm of heavy lifting equipment. Combining robust construction, powerful performance, and advanced features, it sets a new standard for efficiency and productivity in industrial operations.
The BEIBEN V3 6×6 Truck Mounted Crane is a professional all-wheel-drive engineering vehicle equipped with a Palfinger SPS35000 hydraulic crane, offering a lifting capacity of 14 tons and a working height of 17.1 meters. Its 360° full-rotation design meets various heavy-duty lifting needs. Powered by a Weichai WP10.380E32 engine (380 HP) and a FAST 9-speed transmission, the 6×6 all-wheel-drive chassis, combined with a 30% climbing gradient, ensures excellent performance in complex terrains. The 7000mm carbon steel cargo bed and V3 flat-top cab provide exceptional load capacity and a comfortable experience, making it an ideal choice for industries such as energy and infrastructure.
2638KY Hot Sale in Africa LHD&RHD 6*4 Beiben Tractor Truck 380hp,Beiben 2532S,2536S,2538S,2542S
beiben 3138 all wheel drive camions benne for exporting , best quality china 50 T heavy duty dump truck supplier for congo country. Benz unique axle technique High EFFICIENCY
Bei ben tractor truck truck head north benz lowest price, the cheapest price for baotou beiben tractor truck head.

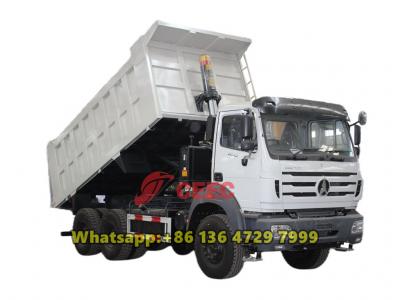

6*4 tipper truck 1.10 years experience 2.Front top lifting 3. Competitive price 4. With 3C,ISO,BV approved Beiben dump truck 6*4 340hp tipper truck
