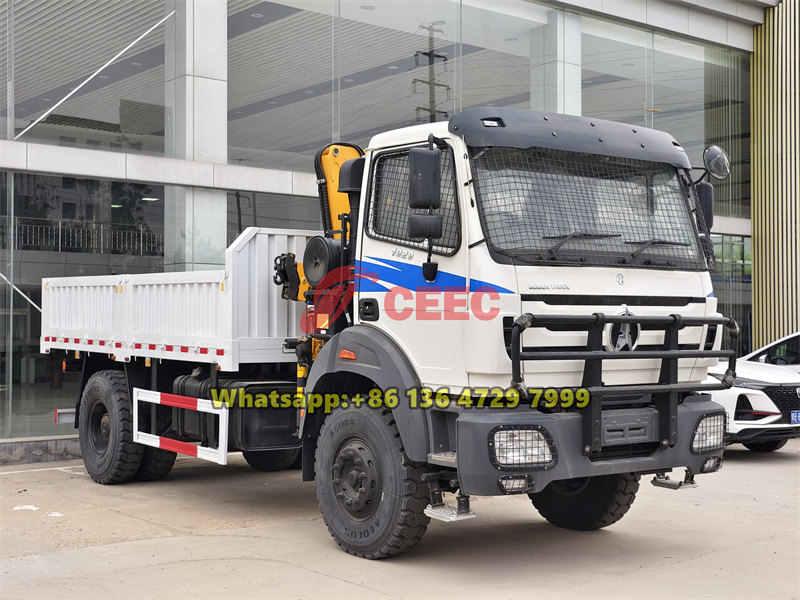

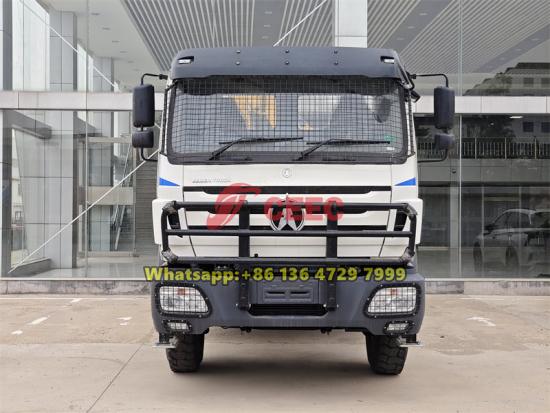

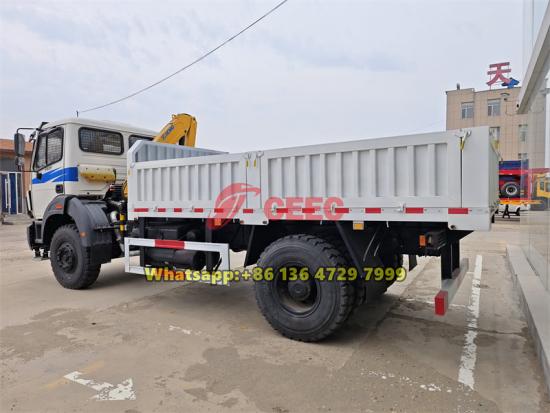

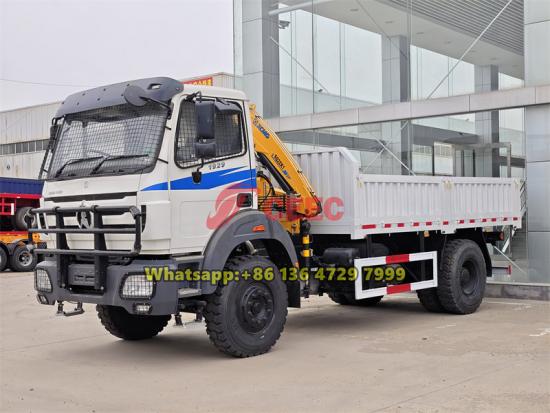

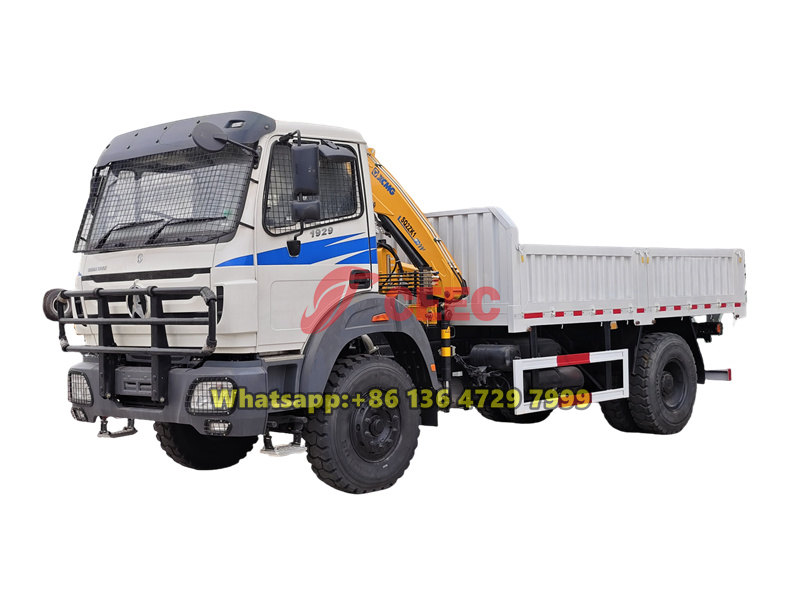

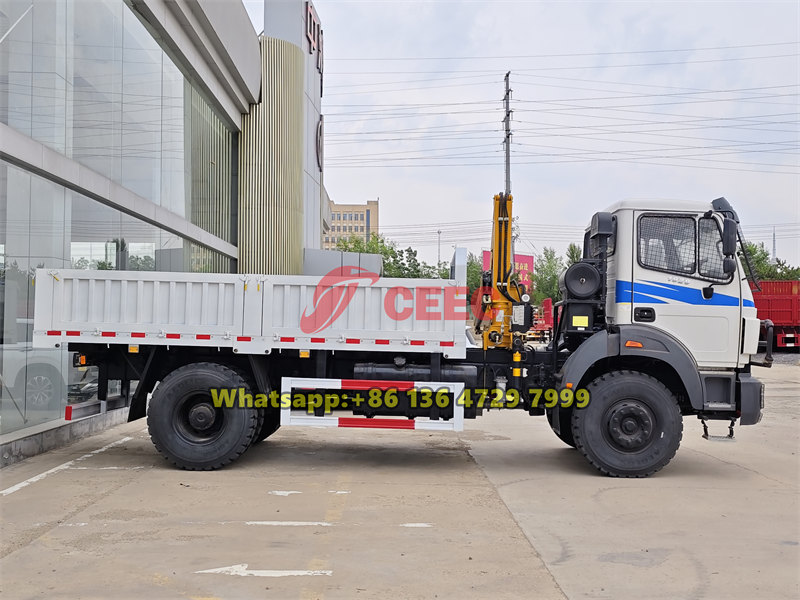

The Beiben 1929 knuckle boom truck is a versatile commercial vehicle that integrates transportation and lifting functions. Powered by a 290-horsepower Weichai engine and built on a Mercedes-Benz technology chassis, it features a 13-ton rear axle for excellent load-bearing capacity and off-road performance. The XCMG SQ2ZK1 knuckle boom crane provides a 2-ton lifting capacity with 370° full rotation. The 5-meter-long carbon steel cargo box can carry up to 9.2 tons of goods, making it an efficient and practical engineering transport solution ideal for construction, municipal maintenance, emergency rescue, and other operations.
Working capcity:
2 tonsCabin type:
Beiben NG80 short cabinDimension ( mm ) :
9000×2550×3530Drive system:
4×2, left hand driveWheelbase (mm):
4800Engine power / Model:
290HP/WP10.290E32Gear Box:
9JS150ARemark:
4×4, RHD is optionalProduct Description
The Beiben 1929 knuckle boom truck is a multifunctional commercial vehicle combining transport and lifting capabilities. With a 4×2 drive configuration, it is equipped with a Weichai WP10.290E32 diesel engine compliant with Euro III emission standards. By integrating Mercedes-Benz chassis technology with an XCMG crane, the Beiben truck mounted crane achieves seamless transport and lifting operations, making it particularly suitable for medium-distance, heavy-duty applications in engineering and municipal sectors.
Key Structural Components:
1. Chassis System:
★ Mercedes-Benz technology chassis with a 7.5-ton non-driving steering front axle and a 13-ton double-reduction drive rear axle, featuring inter-wheel and inter-axle differential locks for challenging terrains.

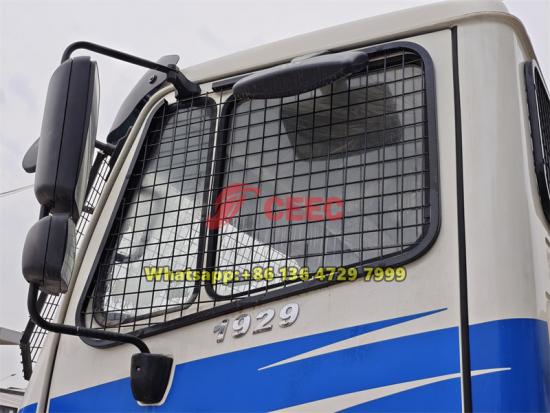

★ Fish-belly-shaped variable-section frame, 12.00R20 radial tires, and an all-steel cab (tiltable) with a reinforced structure.
2. Crane System:

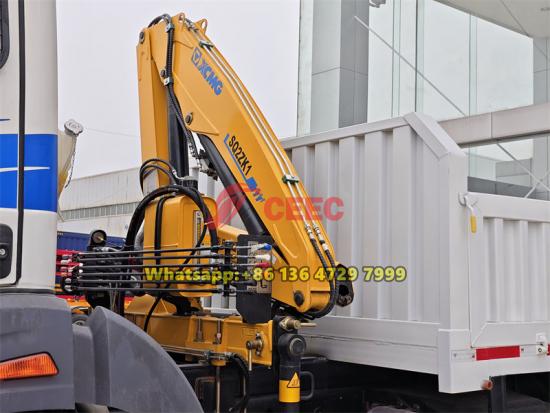

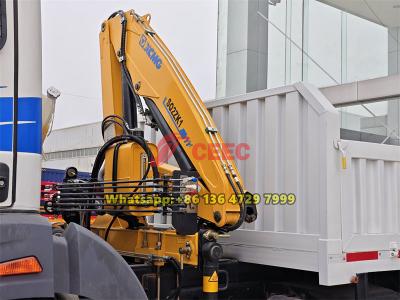

★ XCMG SQ2ZK1 knuckle boom crane with a maximum lifting moment of 3.2 t·m and a 2-ton capacity.
★ Hydraulic system flow rate: 20 L/min, supporting 370° full rotation for precise lifting operations.
3. Cargo Box & Functional Features:
★ Cargo box dimensions: 5000×2500×600mm, constructed with 3mm carbon steel walls and a 4mm floor.
Product Specifications
|
Traction type |
4×2 |
||
|
Driving type |
LHD |
||
|
Dimension (Lx W xH) |
9000×2550×3530 |
||
|
Wheel base(mm) |
4800 |
||
|
Max speed(km/h) |
110 |
||
|
Gross vehicle weight (kg) |
19000 |
||
|
Curb weight(kg) |
9800 |
||
|
Loading Weight(kg) |
9200 |
||
|
Engine |
Model |
WP10.290E32 |
|
|
Type |
Water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection with the exhaust valve brake, EGR (gas exhausted recycling), diesel engine |
||
|
Displacement(L) |
9.726 |
||
|
Bore X stroke(mm) |
126/130 |
||
|
Max power(kw/rpm) |
213/2200 |
||
|
Hose power (hp) |
290 |
||
|
Max torque(Nm/rpm) |
1160/1200-1600 |
||
|
Emission standard |
EURO 3 |
||
|
Fuel tanker(L) |
400L steel fuel tanker |
||
|
Clutch |
Model |
430 Diaphragm type |
|
|
Gearbox |
Model |
9JS150 mechanism, 9gears, 1reverse gear |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
|
Assistant brake |
Engine exhaust brake |
||
|
Park brake |
Potential springs pressing on middle and rear wheels |
||
|
Steering system |
Model |
ZF8098 |
|
|
Frame |
Fish belly, shape, variable width, variable sections, side beam structure |
||
|
Front axle (Mercedes Benz Technology) |
7.5 T Double-shoe pneumatic brake, non-driving steering axle
|
||
|
Middle and Rear axle (Mercedes Benz Technology) |
13T Double-shoe pneumatic brake, casting, double reduction driving axles with inter-wheel & inter-axles differential locks |
||
|
Tyre |
12.00R20 Radial tyre Number of tyre:10+1 spare |
||
|
Electrical system |
Battery |
2X12V/135Ah |
|
|
Generator |
28V-35A |
||
|
Starter |
5.4Kw/24V |
||
|
Cab |
Beiben NG80B cabin, with air-conditioner Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
||
|

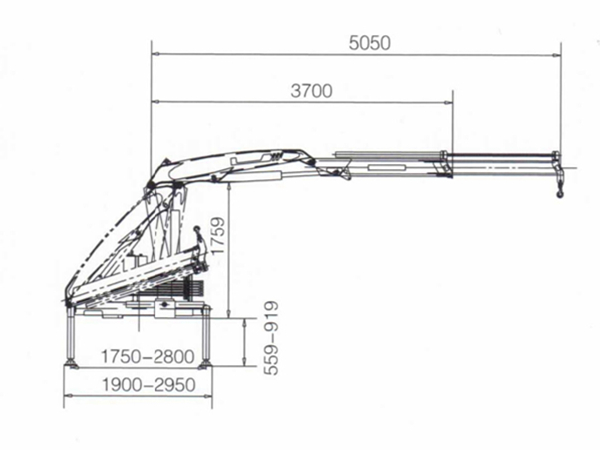

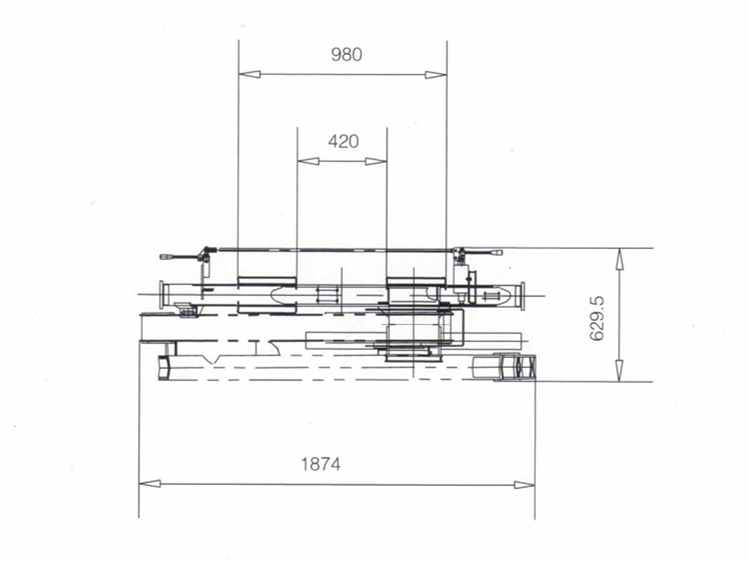

Crane Specifications |
|||
|
Brand |
XCMG |
||
|
Model |
SQ2ZK1 |
||
|
Type |
Knuckle boom |
||
|

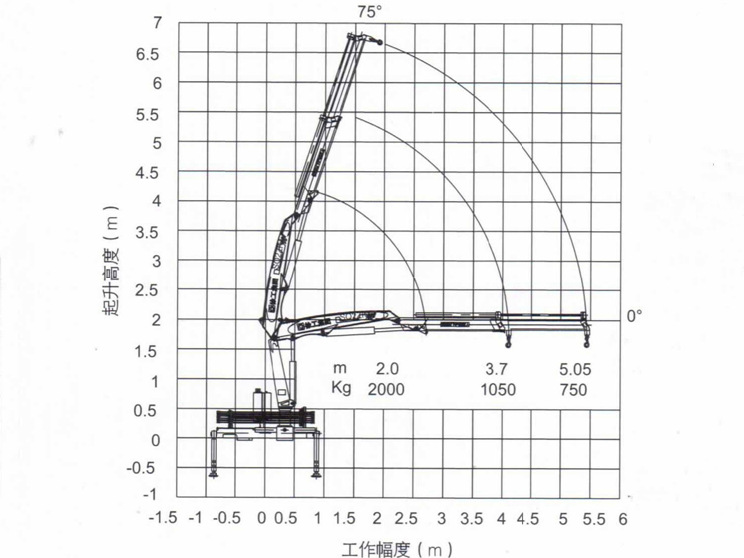

Max lifting moment |
3.2 t.m |
||
|
Max. lifting capacity |
2000 kg |
||
|
Max. oil flow of hydraulic system |
20 L |
||
|
Oil tank capacity |
25 L |
||
|
Max. operating pressure |
20 Mpa |
||
|
Rotation Angle |
370 ° |
||
|
Cargo Box |
|||
|
Size |
5000×2500×600 |
||
|
Material |
Carbon steel |
||
|
Thickness |
Walls: 3mm; floor: 4mm |
||
Product Applications
Thanks to its flexibility and robust performance, the Beiben truck mounted crane is widely used in:
• Construction: Transporting and lifting materials (e.g., steel bars, prefabricated components) with precision, reducing machinery deployment costs.
• Municipal Maintenance: Installing streetlights, relocating trees, and other elevated tasks in confined spaces.
• Emergency Rescue: Quickly moving obstacles or equipment during disasters, with differential locks ensuring off-road capability.
• Logistics & Warehousing: Self-loading/unloading of heavy machinery, enhancing operational efficiency.
