Beiben V3 6×4 Boom Crane Truck is a robust heavy-duty vehicle built on a Beiben 2543 chassis, powered by a 430HP Weichai Euro 5 engine paired with a FAST 12-speed manual transmission. It features a 300×80×8 triple-layer reinforced frame, 13-ton rear axles, and 12.00R20 radial tires for superior load-bearing capacity. The crane offers a 14-ton lifting capacity with a 17.1m max reach (360° rotation), available in Palfinger, XCMG, or UNIC brands. The 7m cargo box is made of 5mm-thick steel, ensuring durability. With ABS braking, hydraulic power steering, and a flat-top sleeper cab, it’s ideal for demanding construction and logistics operations.
Working capcity:
14 tonCabin type:
Beiben V3 cabinDimension ( mm ) :
9800×2550×3750Drive system:
6×4Wheelbase (mm):
4100+1450Engine power / Model:
430HP/WP12.430E50Gear Box:
12JS200TARemark:
6×6 drive is optionalⅠ. Product Description
The Beiben V3 14-ton crane truck is built on a Beiben 2543 heavy-duty 6×4 chassis, equipped with a Weichai 430-horsepower high-torque engine and a FAST 12-speed transmission, delivering robust power and excellent fuel efficiency. Featuring a 7-ton front axle and dual 13-ton rear axles, combined with a double-layer reinforced frame and 12.00R20 steel-belted tires, it offers outstanding load capacity and easily handles complex road conditions and heavy-duty operations. The flat-roof cab provides an ergonomic layout and excellent visibility, ensuring comfortable long-distance driving, making it particularly suitable for heavy lifting tasks in logistics and construction projects.
The Beiben 2543 boom crane truck comes with a boom crane that is easy to install and offers a large working radius, providing flexible lifting solutions for various needs. Customers can choose from crane brands such as XCMG, UNIC, or Palfinger based on operational requirements, ensuring stable performance and low maintenance costs. With its highly reliable chassis and versatile upper structure options, the Beiben V3 truck mounted crane is an ideal choice for heavy lifting applications, especially in demanding environments like mountainous areas and construction sites where strong power and high stability are essential.
Ⅱ. Product Specifications
|
BEIBEN V3 6×4 Boom Crane Truck Specifications |
|||
|
Vehicle Model |
Beiben 2543 |
||
|
Basic Vehicle Parameters |
Drive Type |
6×4 |
|
|
Total Weight (kg) |
25000 |
||
|
Curb Weight(kg) |
12200 |
||
|
Vehicle Appearance Parameters |
Length (mm) |
9800 |
|
|
Width (mm) |
2550 |
||
|
Height (mm) |
3750 |
||
|
Wheelbase (mm) |
4100+1450 |
||
|
Performance Parameters |
Maximum Speed (km/h) |
90 |
|
|
Maximum Climbing Grade (°) |
30% |
||
|
Chassis Parameters |
Engine |
Model |
WP12.430E50 |
|
Engine Emission Standards |
Euro 5 |
||
|
Brand |
WEICHAI |
||
|
Displacement(L) |
11.596 |
||
|
Rated speed (RPM) |
1900 |
||
|
Rated Power (Kw) |
316 kW |
||
|
Max. hose power |
430 HP |
||
|
Cab |
Type |
Flat Roof Cab, with one sleeper berth |
|
|
Model |
V3 |
||
|
Standard Configuration |
Integral Rearview Mirror, Bluetooth Player, Manual Hydraulic Flip, Driver Airbag Seat, Laminated Glass, Electric Doors And Windows, Wide Bumper, Central Locking, Multi-Function Steering Wheel |
||
|
Gearbox |
Gearbox Type |
Manual, FAST 12-speed |
|
|
Front Axle |
Type |
Drum Brake |
|
|
Loadable Weight (Kg) |
7500 |
||
|
Rear Axle |
Gearbox Type |
Drum Brake |
|
|
Loadable Weight (Kg) |
13000 |
||
|
Speed Ratio |
5.143 |
||
|
Frame |
Section Size (mm) |
300×80×8 Full Three-Layer Outsourcing |
|
|
Leaf Spring |
Number of pieces |
8 Front Springs, 6 Rear Springs |
|
|
Tire |
Type |
Radial tire |
|
|
Quantity |
10+1 |
||
|
Model |
12.00R20 |
||
|
Steering System |
Type |
Hydraulic Power Steering System |
|
|
Braking System |
Brake Type |
Drum Brakes With ABS Anti-Lock Braking System |
|
|
Service Brake System Type |
Dual Circuit Air Brake |
||
|
Parking Brake System Type |
Spring Brake |
||
|
Parking Control Type |
Manual Brake Operation |
||
|
Electrical System |
System Voltage |
24V |
|
|
Battery |
165AH Dual Battery |
||
|
Upper Body Parameters |
Crane |
Brand |
Palfinger (XCMG, UNIC is optional) |
|
Model |
SPS35000 |
||
|
Rated lifting capacity (Kg) |
14000 kg |
||
|
Maximum Lifting Height (M) |
17.1 m |
||
|
Rotation Angle (°) |
360 |
||
|
Working Pressure (MPa) |
32 |
||
|
Outrigger span (mm) |
6000 |
||
|
Cargo Box |
Cargo Box Size (mm) |
7000×2550×600 |
|
|
Material |
Q235 carbon steel |
||
|
Material Thickness |
Wall thickness 4; Bottom thickness 5 |
||

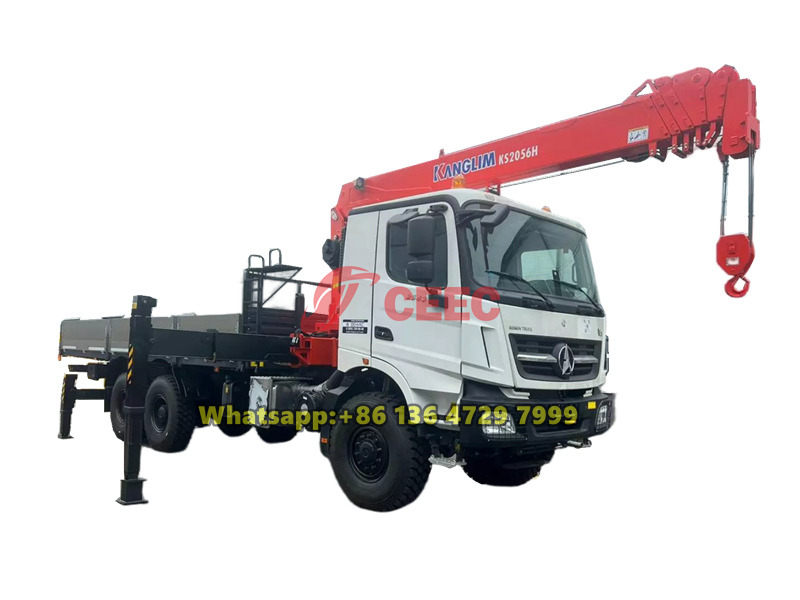

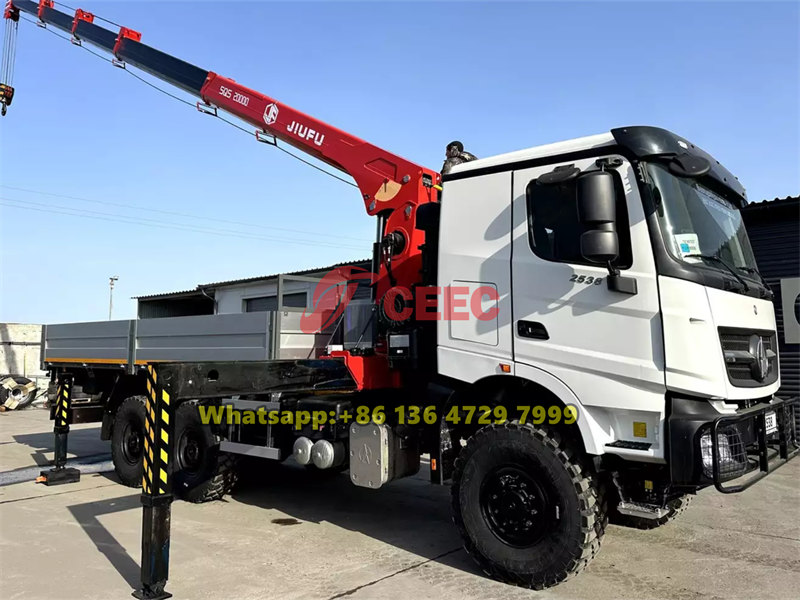

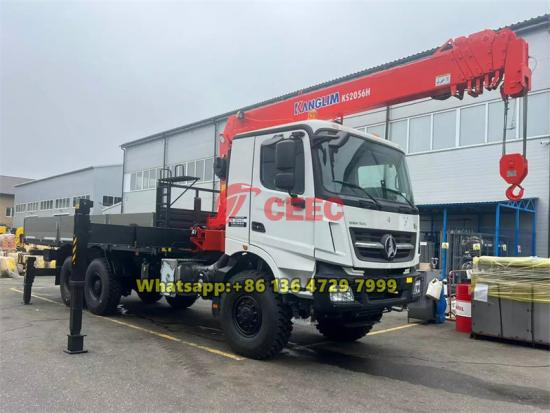

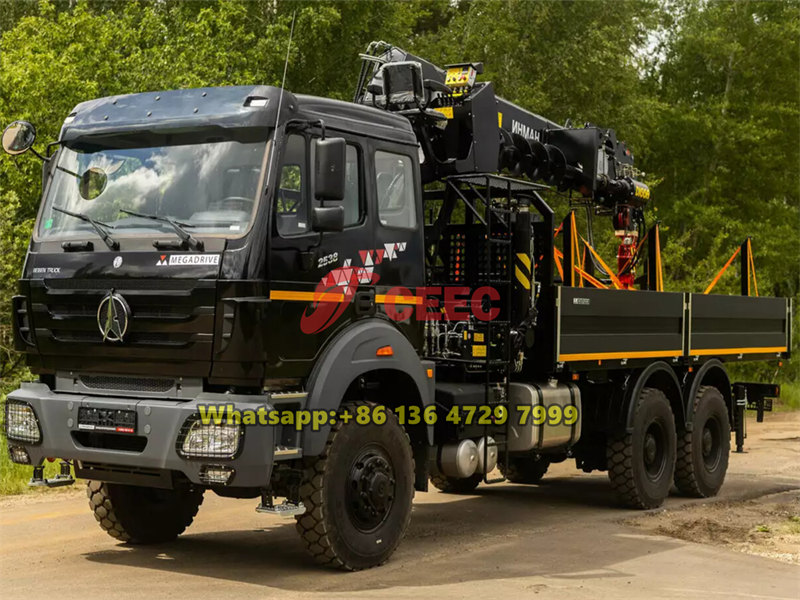

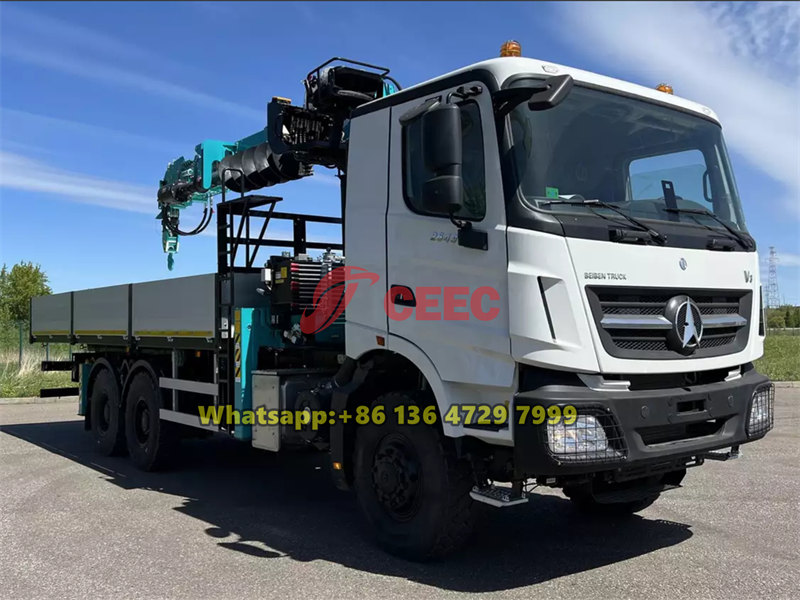

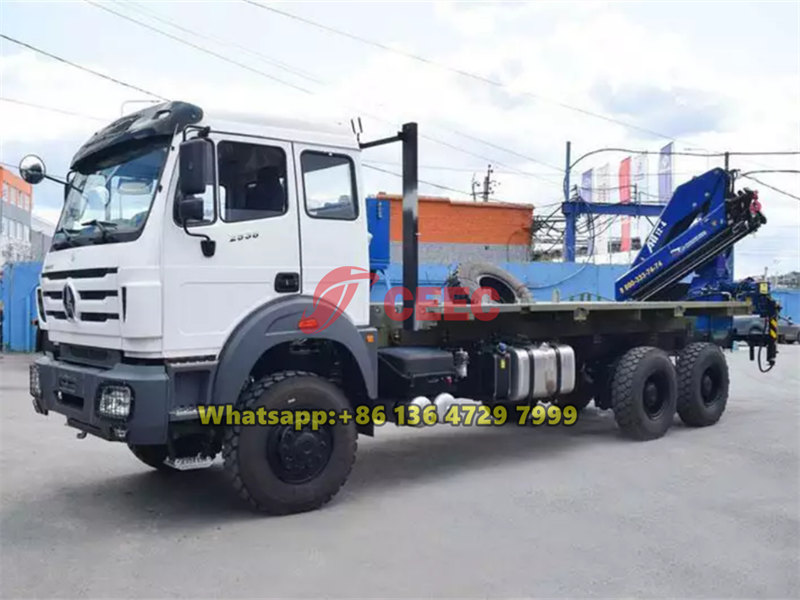

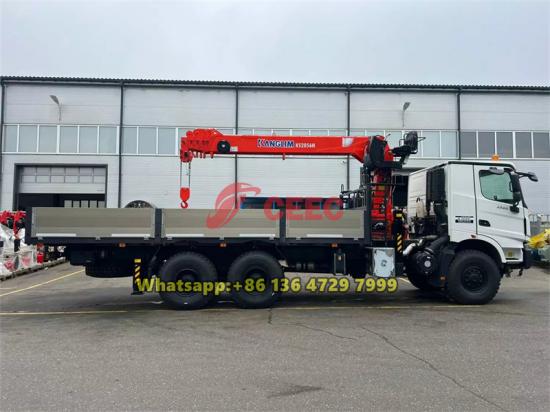

Ⅲ. Product Pictures
