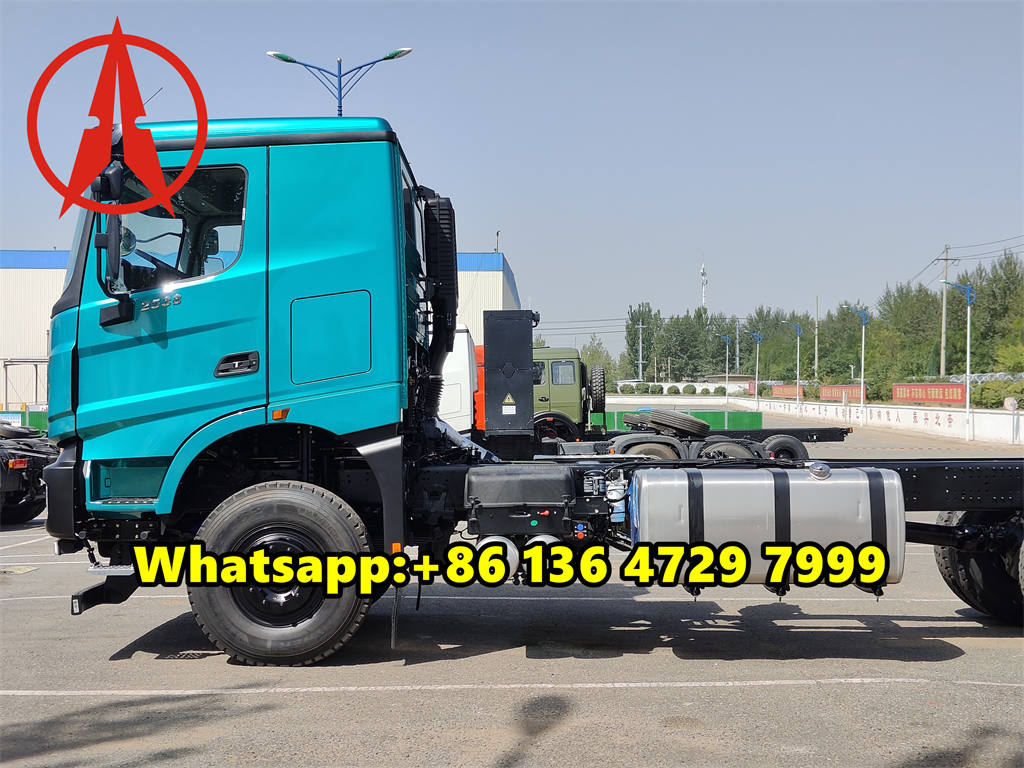

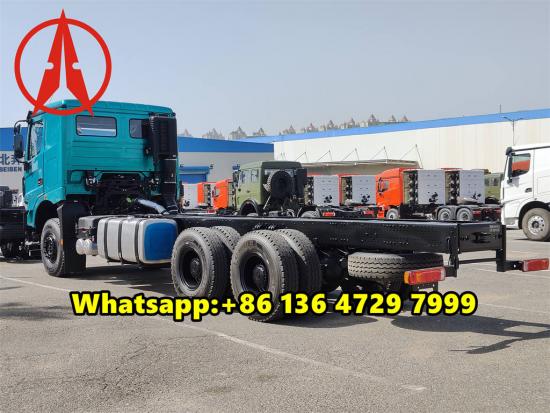

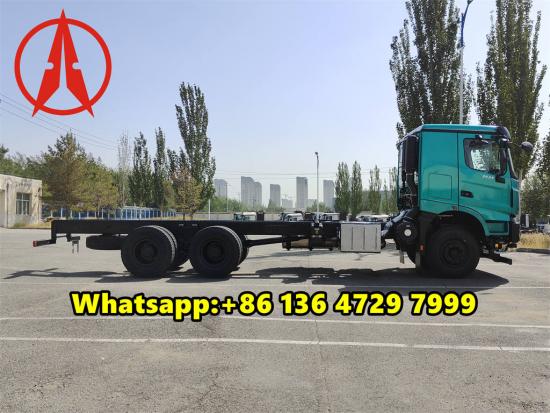

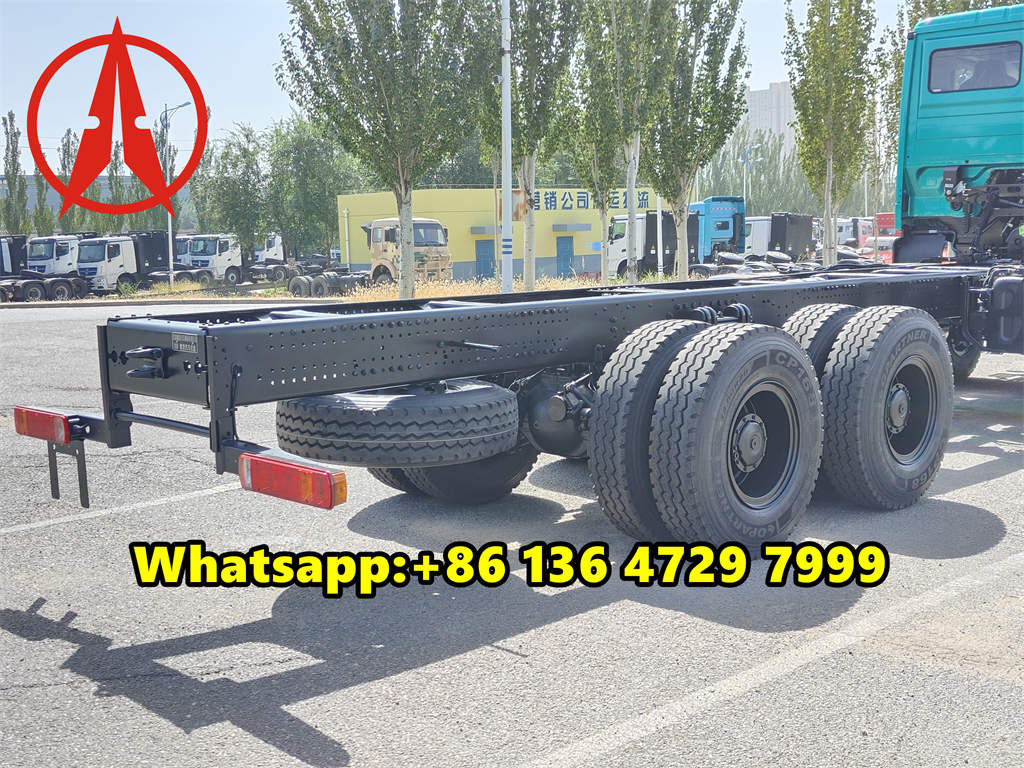

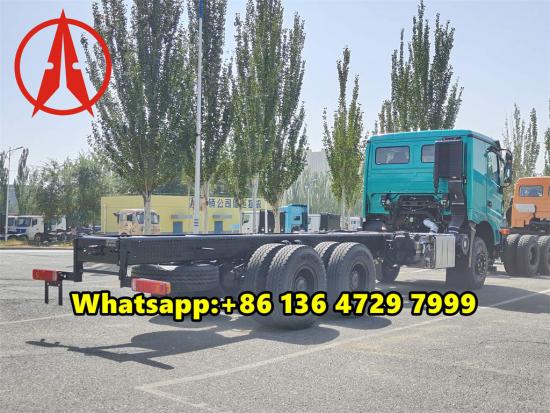

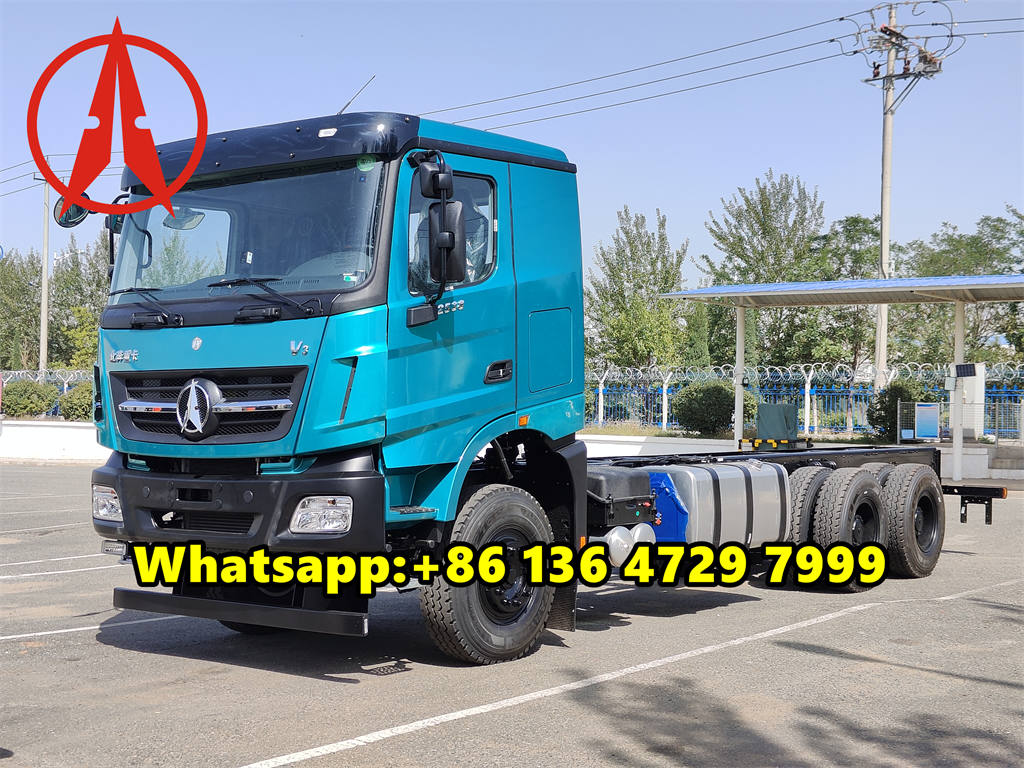

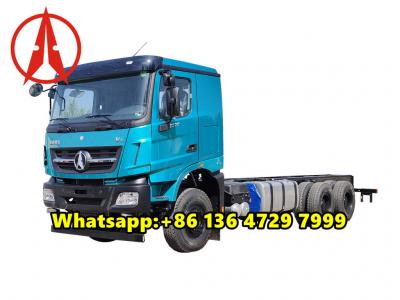

Beiben V3 6×4 chassis is a heavy-duty vehicle chassis with rich configuration and excellent performance. It is equipped with WEICHAI WP10.380E32 engine with a displacement of 9.726L and a maximum torque of 2000NM@1400-1600rpm. It adopts FAST 9-speed manual transmission, and the gear shifting is smooth. The front/rear axle adopts BENZ technology, with a load capacity of 7000kg and 13000kg respectively. The cab is equipped with air conditioning and air suspension seat to provide a comfortable driving environment.
Working capcity:
40 tonsCabin type:
Beiben V3 cabinDimension ( mm ) :
9200×2500×3458Drive system:
6×4Wheelbase (mm):
4450+1450Engine power / Model:
380 HP/WP10.380E32Gear Box:
9JS150ARemark:
6×6 is optionalProduct Description

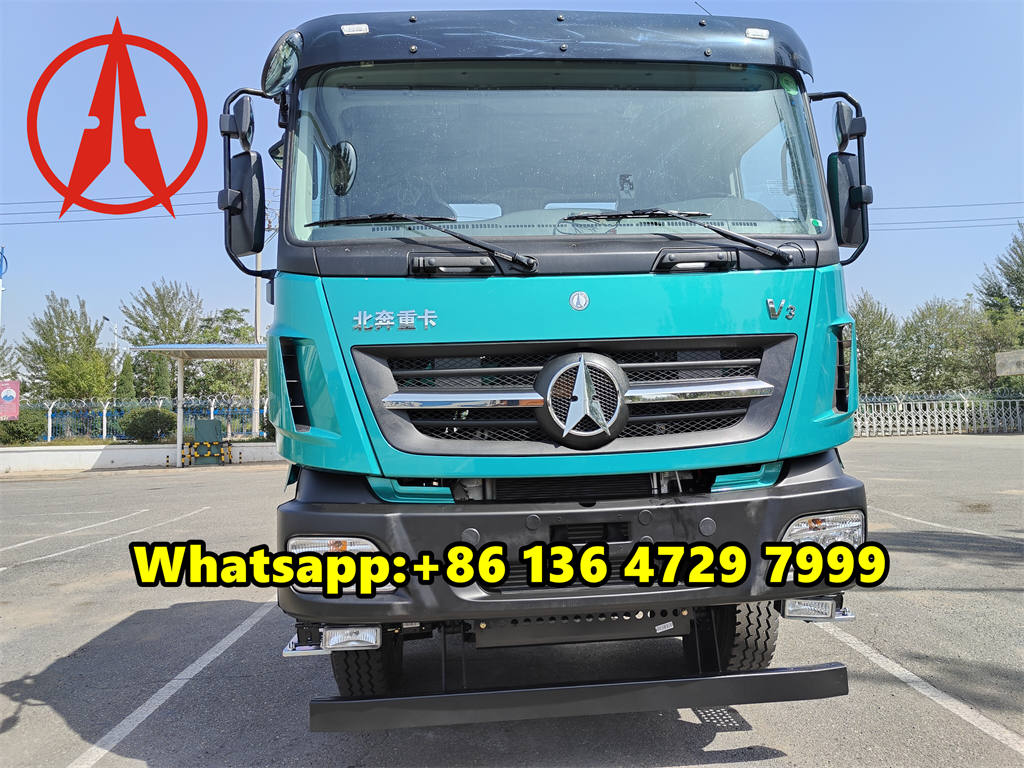

Beiben V3 6×4 chassis is a heavy-duty vehicle chassis with rich configuration and excellent performance. The cab design of this vehicle focuses on practicality and comfort. It is equipped with air conditioning and provides single or double berths to meet the rest needs of long-distance driving. The application of USB interface increases convenience, while the air suspension seat greatly improves the driving comfort. In addition, the adjustable steering wheel makes driving more flexible and convenient.

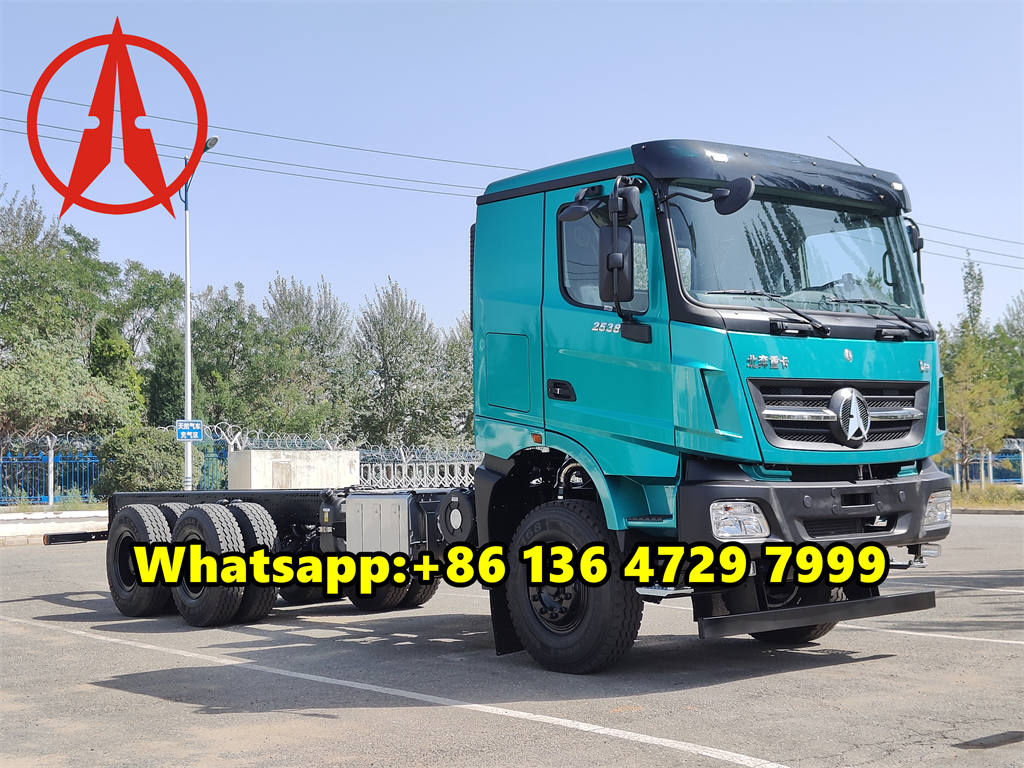

Beiben V3 2538 truck chassis is left-hand drive, 6x4 drive form, ensuring strong traction and stability. Its WEICHAI WP10 380E32 engine is a diesel four-stroke, direct injection, six-cylinder water-cooled, turbocharged and internally cooled engine with a displacement of 9.726L, which meets the European III emission standards. This engine can output a maximum torque of 2000NM in the speed range of 1400-1600rpm, providing strong power for the vehicle.

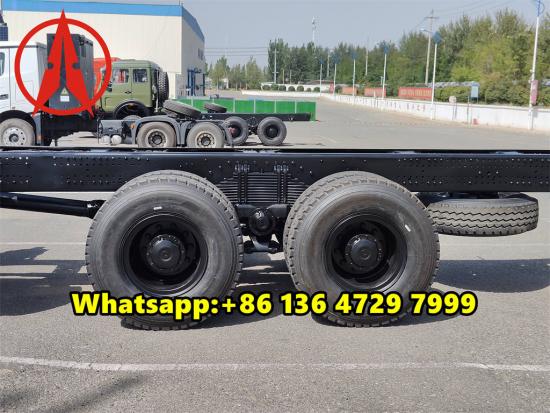

The front axle of the Beiben V3 10 wheeler chassis uses BENZ technology, with a reasonable design and a load capacity of 7000kg. The rear drive axle also uses BENZ technology, which is a pressed axle housing with optional single-stage or double-stage reduction, and a load capacity of up to 13,000 kg. The vehicle's wheelbase is 1800/1860 mm, and the tire specification is 12.00RR20, providing the vehicle with good grip and stability.
Product Specifications
|
Cabin |
Beiben V3，air condition, single or double sleeper, USB application, air suspension seat, adjustable steering wheels. |
|
|
Drive type |
Left hand drive, 6x4 |
|
|
Engine model |
WEICHAI WP10 380E32 |
|
|
Type |
Diesel 4-stroke, direct injection, 6 cylinders in line, water cooling, turbocharged& inner cooling. |
|
|
Number of cylinders |
six |
|
|
Displacement |
9.726L |
|
|
Emission standard |
Euro 3 |
|
|
Max torque (kg.m/rpm) |
Max 2000NM@1400-1600rpm |
|
|
Clutch |
||
|
Type |
φ 430 diaphragm type |
|
|
Single-plate dry clutch, mechanically operating with air assisted |
||
|
Gear box |
||
|
Model |
FAST 9-speed |
|
|
Type |
Manual, 9-speed forwards and 1 reverse |
|
|
Steering |
ZF8098 |
|
|
Front axle |
||
|
Type |
BENZ technology axle |
|
|
Payload |
7000kg |
|
|
Rear driving axle |
||
|
Model |
Benz technology driving axle |
|
|
Type |
Pressed axle housing, single/double reduction. |
|
|
Payload |
13000kg |
|
|
Track (mm) |
1800/1860 |
|
|
Tyre |
12.00RR20 |
|
|
Braking system |
Double lines penumatic (air) brake, drum brake, optional: disc brake |
|
|
Engine Brake |
EVB |
|
|
Parking brake |
Spring activated, compressed air operating on rear wheels |
|
|
Suspension system |
||
|
Type |
FR/RR |
Leaf Spring, 10/12 |
|
Electric equipment |
||
|
Operating voltage |
24v,negative grounded |
|
|
Battery voltage/capacity |
2x 12v/135A,165A |
|
|
Starter |
5.4KW/24V |
|
|
Fuel tank |
400 L |
|
|
PTO: (QH50) |
||

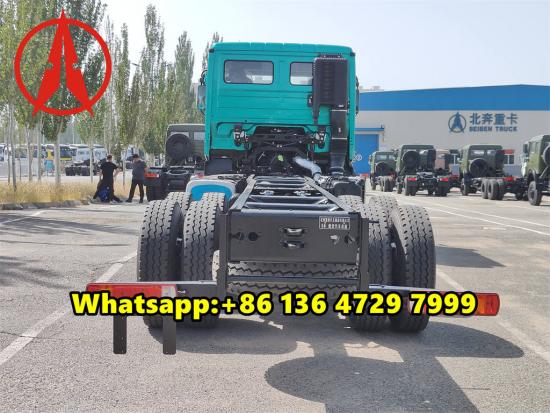

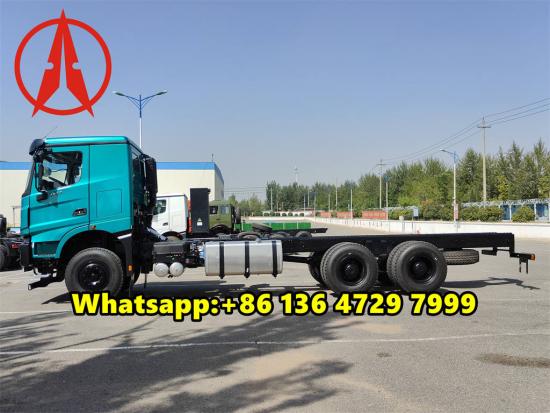

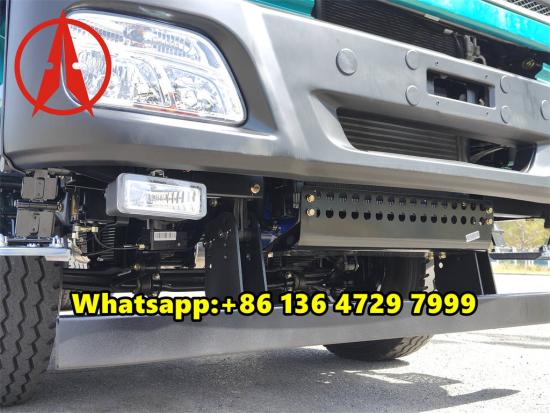

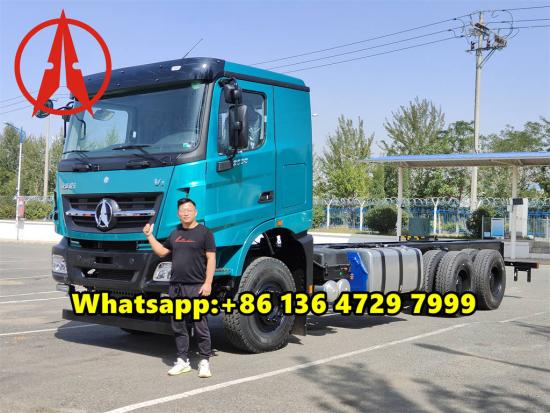

Product Details

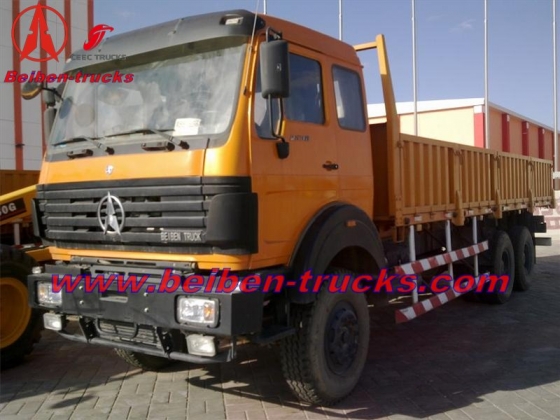

Beiben 6x4 cargo truck, based on special beiben 6*4 cargo truck chassis.
Beiben 6x4 LHD RHD 290hp Cargo Truck Lorry Truck, classical NG80B truck cabin, long cab with one sleeper, WEICHAI Brand new Model WP10.290E32 model 280hp diesel engine with 9726cc emission. Gear box is FAST brand with 9 speeds (9JS180). Clutch is single dry plate with 430 Diaphragm type. Powerful Steering device ZF8098. Front axle is Benz front axle(7.5t), Rear axle is Benz strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock). Tyres model is 12.00R20 with 10+1 pcs. Springs 13/13 pcs for heavy duty support. Wheel base is 4450+1450 mm, Front/rear overhang(mm)1410/3076, Front/rear track(mm)1995; 1800/1800, Approach/departure angle(º )26/30, Overall dimension(mm)8900x2500x3500.
The series products of Beiben trucks are ideal transport with outstanding performance and high quality, Beiben 2638 2642 cargo trucks are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. Now Beiben 6x4 6x6 cargo trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth. Beiben heavy-truck originate from Mercedes-Benz,Gremany,The Chinese local manufacturers, technical performance properties index and conform to the state and military standard.
Beiben 420HP NG80B cargo truck chassis, customized fire red painting NG80 cabinet, WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, mounted with 12.00R24 tires and 11 pcs. The Beiben 6x4 LHD truck chassis with long cabin, can be mounted as Beiben 2642 dump truck, Beiben 2642 water truck, Beiben 2642 fuel bowser, Beiben 2642 crane truck, etc. Africa customers from DR Congo, Tanzania, Nigeria, Mozambique, etc prefer to purchase and use Beiben 6x4 cargo truck and Beiben 6x6 offroad cargo truck, due to international realiable BENZ technology.
The Beiben 6×4 cargo chassis is a professional-grade heavy-duty truck platform, equipped with a 280HP Weichai engine and a FAST 9-speed transmission, boasting a maximum gross weight of 25 tons. Its wheelbase of 4500+1350mm ensures a balance between stability and maneuverability, while the 7.5-ton front axle and 13-ton dual rear axles deliver exceptional load-bearing capacity. This chassis is particularly suitable for specialized vehicle modifications such as fire trucks, truck-mounted cranes, and garbage trucks, making it an ideal choice for construction transport and municipal operations.
1. BEIBEN NG80 340HP 6X4 water tank truck 2. Flat roof cabin,single sleeper, auto-air conditioner 3. High quality and competitive price 4. Quick delivery time 5. Best after-sales

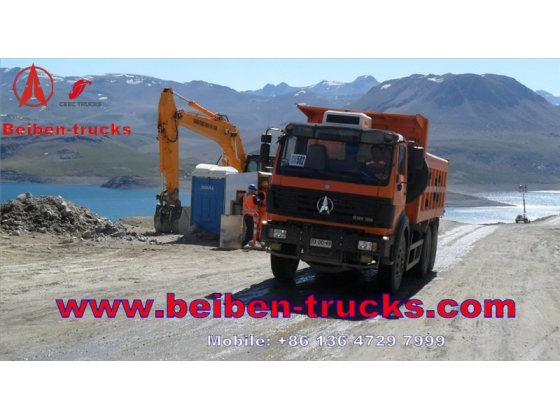

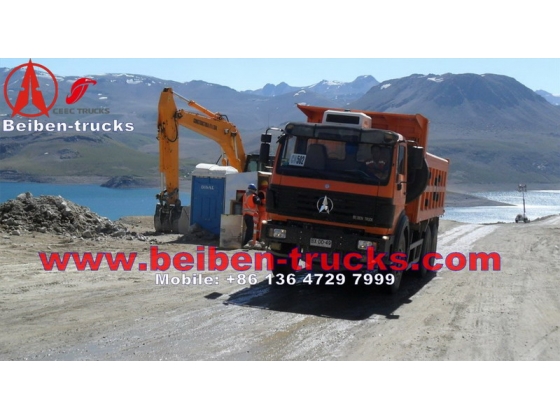

beiben 3138 heavy duty dump truck from chian baotou beiben , best quality china 50 T heavy duty dump truck supplier for congo country. Benz unique axle technique High EFFICIENCY
Beiben 10 wheels prime mover 420hp Weichai engine Fast transmission Benz technology Military quality
China 16 T truck mounted XUZHOU XCMG crane , left hand drive system, benz technoloy 7 T front axle, military benz 16 T double reducer axle, diesel weichai 300 hp engine, fast 9 shift transmission.12.00R20 tyre.
