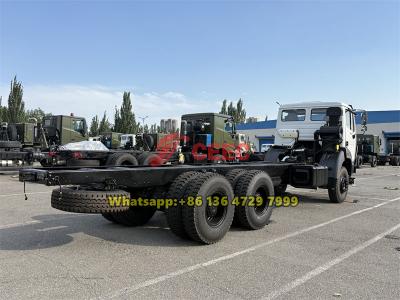

The Beiben 6×4 cargo chassis is a professional-grade heavy-duty truck platform, equipped with a 280HP Weichai engine and a FAST 9-speed transmission, boasting a maximum gross weight of 25 tons. Its wheelbase of 4500+1350mm ensures a balance between stability and maneuverability, while the 7.5-ton front axle and 13-ton dual rear axles deliver exceptional load-bearing capacity. This chassis is particularly suitable for specialized vehicle modifications such as fire trucks, truck-mounted cranes, and garbage trucks, making it an ideal choice for construction transport and municipal operations.
Working capcity:
20 tonsCabin type:
Beiben NG80 short cabinDimension ( mm ) :
9450*2500*3050Drive system:
6×4Wheelbase (mm):
4500+1350 mmEngine power / Model:
280HP/WD615.50Gear Box:
9JS150ARemark:
6×6, RHD is optionalProduct Description

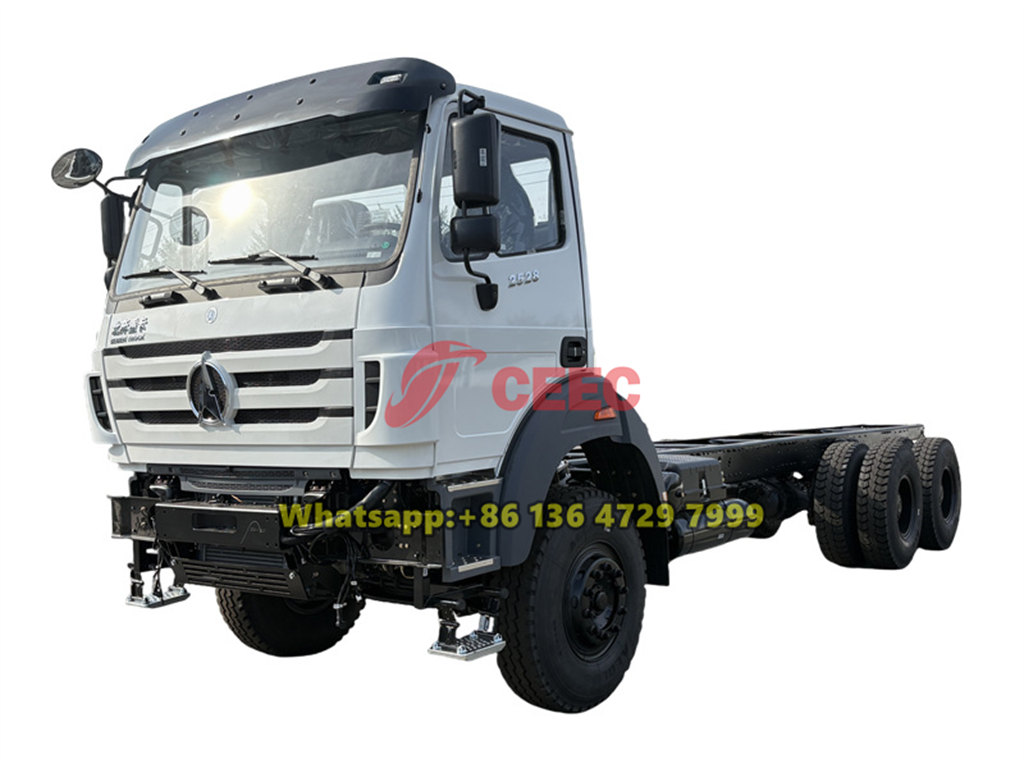

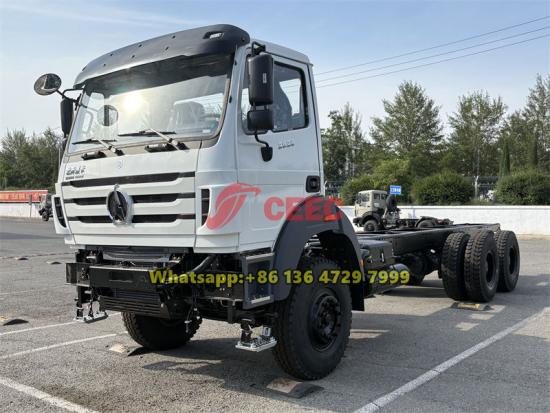

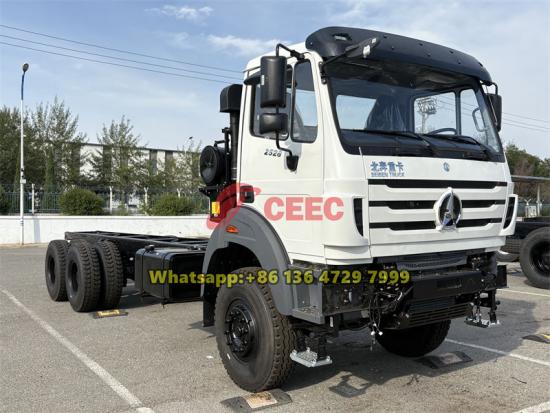

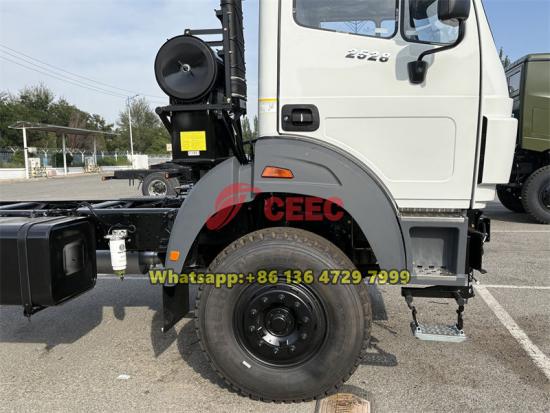

The Beiben 2528 6×4 cargo chassis is a specialized platform designed for heavy-duty transportation and special vehicle modifications. Featuring a classic three-axle, six-wheel-drive layout and left-hand drive configuration, its optimized wheelbase of 4500+1350mm ensures both vehicle stability and steering flexibility. With compact yet well-proportioned dimensions of 9450×2500×3050mm, the chassis complies with road regulations while providing ample space for superstructure customization.

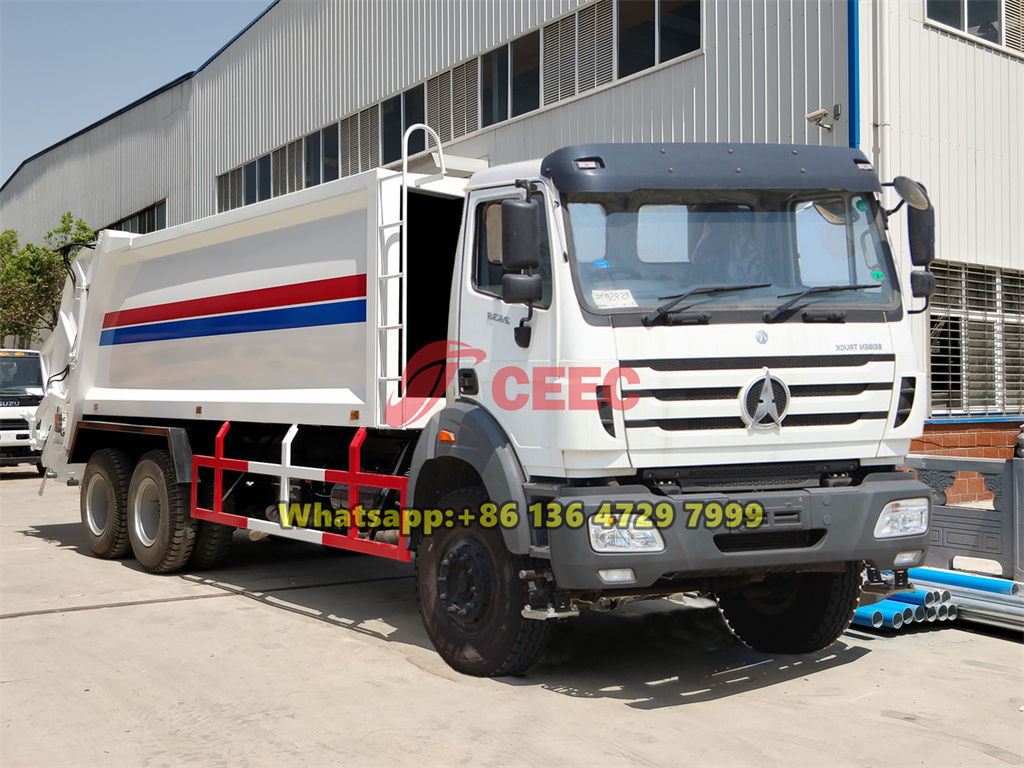

Renowned for its exceptional load-bearing capacity and robust structure, the Beiben 2528 chassis is ideal for converting into various specialized vehicles. In municipal sanitation applications, it serves as an excellent base for refuse compactors and street sweepers. For construction projects, it is the preferred choice for truck-mounted cranes and concrete pump trucks. In emergency rescue operations, it seamlessly adapts to fire trucks and disaster relief vehicles. Whether for urban operations or field engineering, this Beiben chassis delivers reliable performance support for all types of specialized equipment.
Product Specifications
|
Chassis model |
Beiben 2528 |
Drive Type |
6x4, LHD |
|
Wheelbase |
4500+1350mm |
Gross vehicle weight |
25000 kg |
|
Cab |
NG80, short can |
||
|
Overall length |
9450 mm |
Overall width |
2500mm |
|
Overall height |
3050 mm |
Fuel type |
Diesel |
|
Wheel Track |
Front track: 1940 Rear track: 1860/1860mm |
||
|
Front / rear overhang |
1410/2055 (mm) |
||
|
Max. driving speed |
110km/h |
||
|
Engine |
Engine Model: Weichai WD615.50 |
||
|
Number of cylinders: 6 |
|||
|
Fuel type: Diesel fuel |
|||
|
Displacement: 9.726 L |
|||
|
Emission standard: Euro III |
|||
|
Horsepower:280hp |
|||
|
Maximum output power:209KW |
|||
|
Max. Torque:1160 N.m |
|||
|
Rated Speed: 2200 rpm |
|||
|
Engine Type: Water-cooled, four-stroke with the exhaust valve brake, mechanical injection, direct injection, turbocharged and intercooled |
|||
|
Transmission |
Transmission Type: FAST 9-speed, manual |
||
|
Chassis |
Front Axle:7.5ton |
||
|
Drive Axle:13Ton double rear axle |
|||
|
Ratio:5.263 |
|||
|
Steering |
TAS85 |
||
|
Tire |
Number of tires:10+1(spare tire) |
||
|
Tire Size:12.00R20 |
|||
|
Tank |
Fuel tank capacity:400L |
||
|
Suitable for modified vehicles |

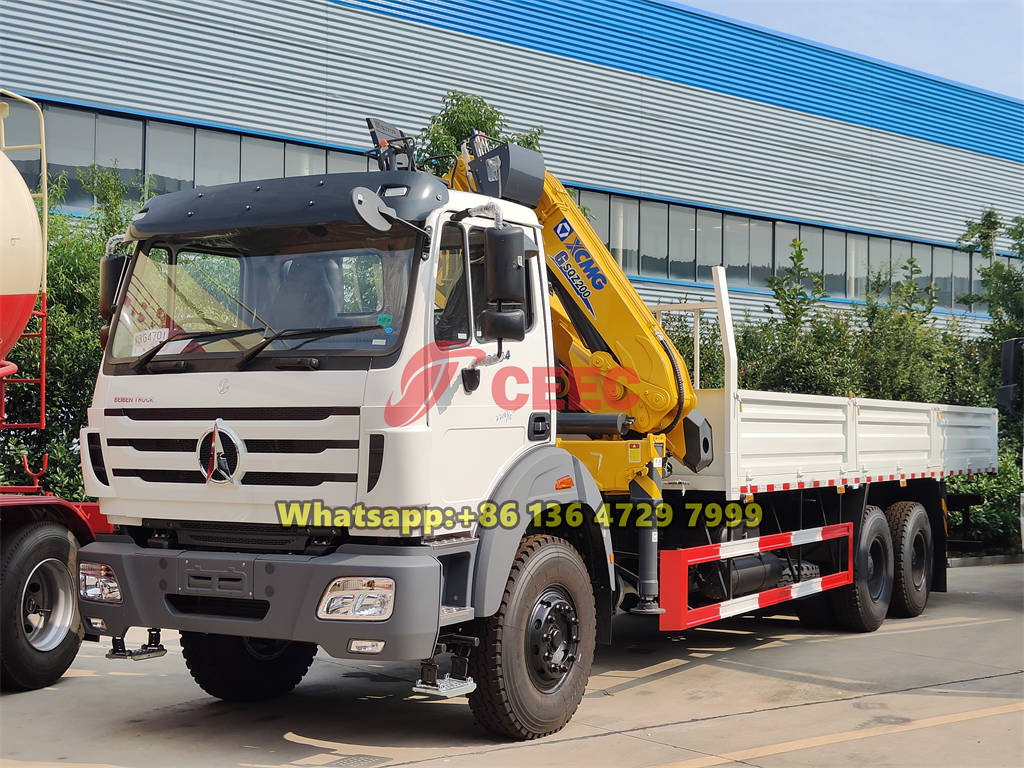

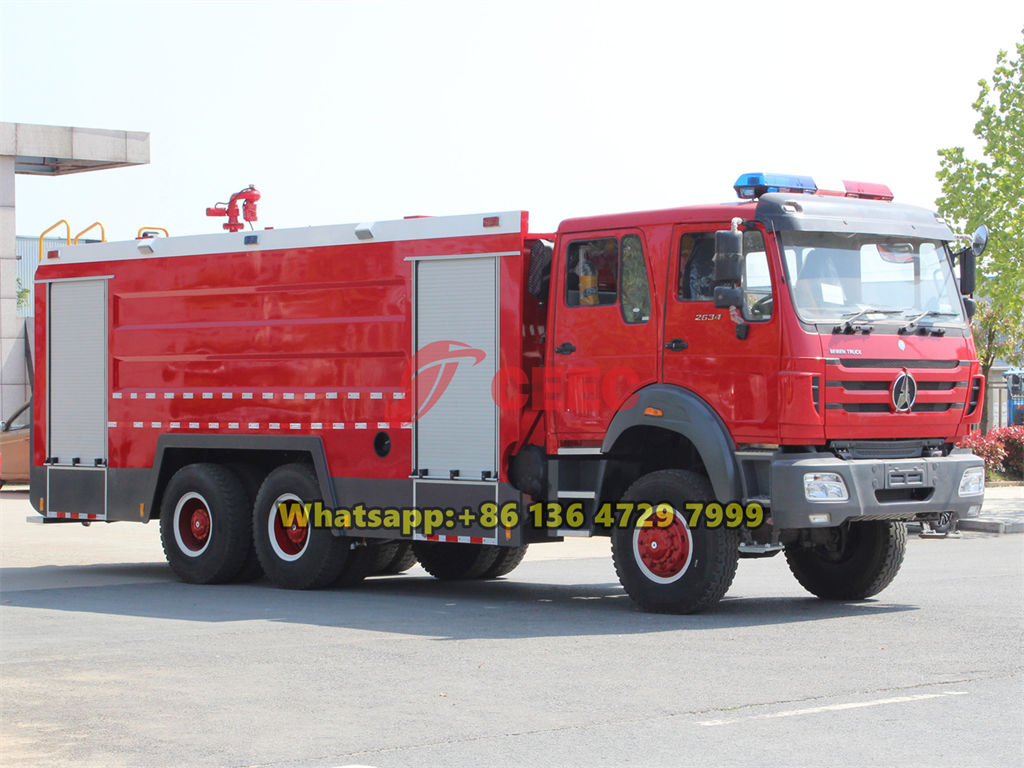

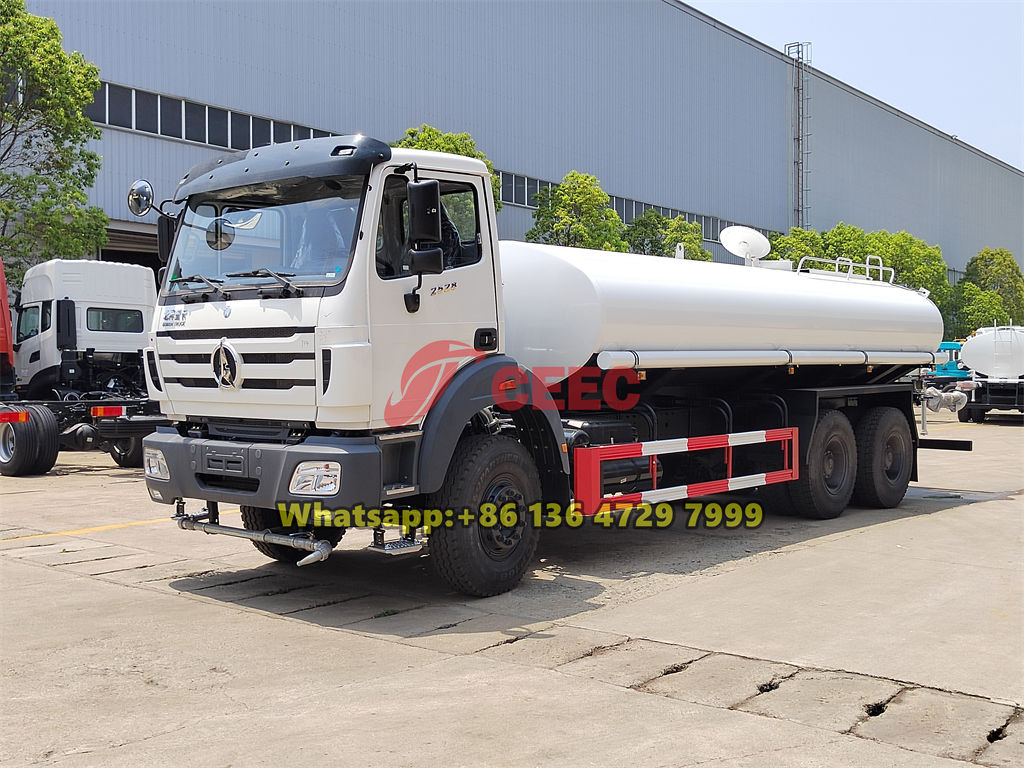

Beiben crane truck, Beiben water truck, Beiben garbage compactor truck, Beiben cargo truck, Beiben fire truck, Beiben vacuum tank truck, etc. |
||

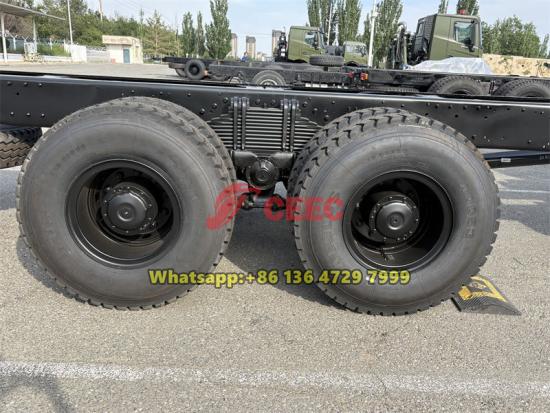

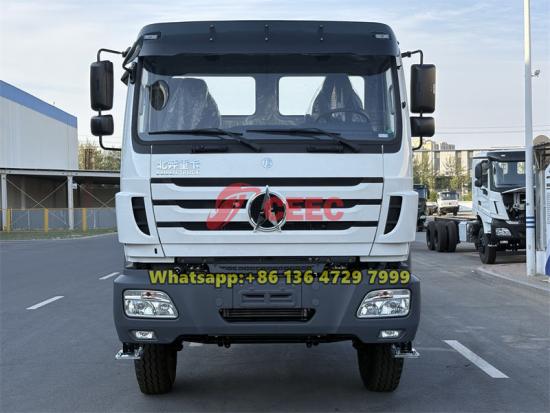

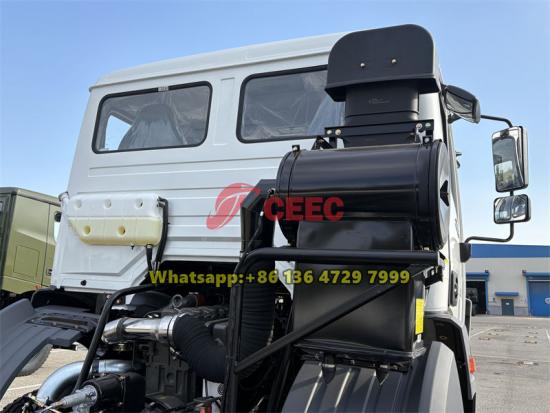

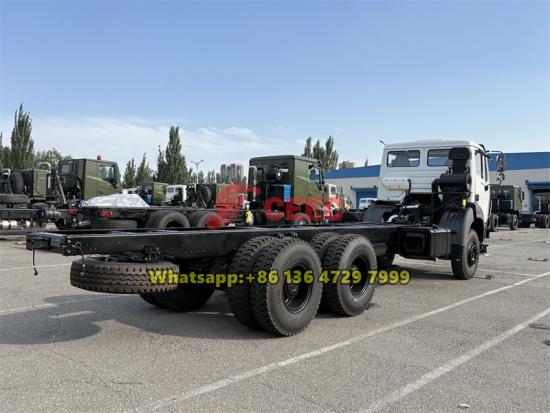

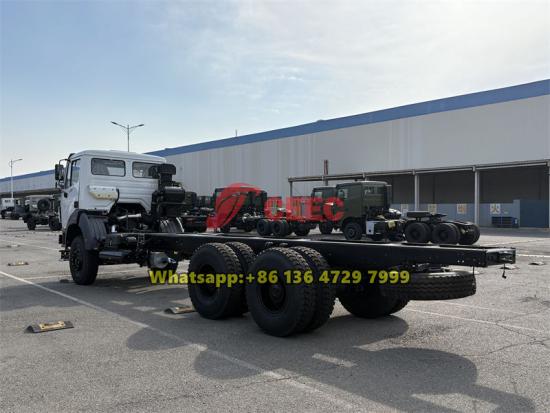

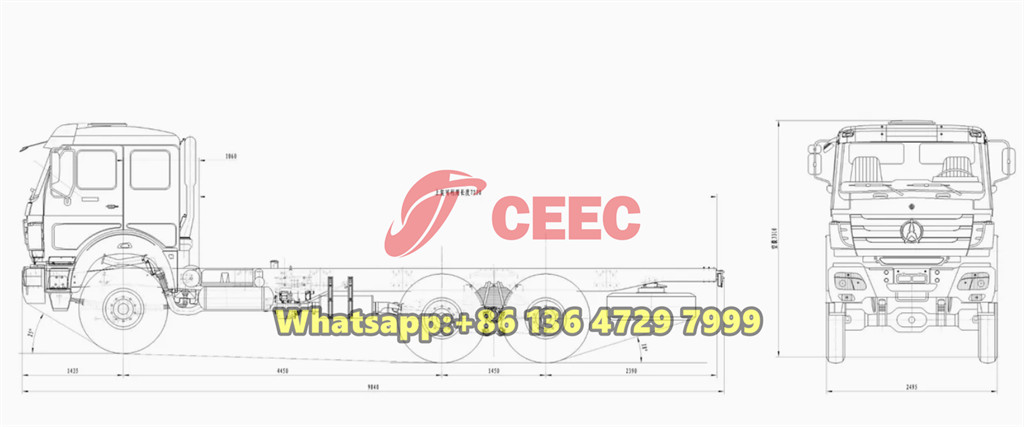

Product Drawing
Beiben Special Trucks Based on Beiben 2528 Cargo Chassis
 |
 |
 |
 |
Beiben 6x4 cargo truck, based on special beiben 6*4 cargo truck chassis.
Beiben 6x4 LHD RHD 290hp Cargo Truck Lorry Truck, classical NG80B truck cabin, long cab with one sleeper, WEICHAI Brand new Model WP10.290E32 model 280hp diesel engine with 9726cc emission. Gear box is FAST brand with 9 speeds (9JS180). Clutch is single dry plate with 430 Diaphragm type. Powerful Steering device ZF8098. Front axle is Benz front axle(7.5t), Rear axle is Benz strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock). Tyres model is 12.00R20 with 10+1 pcs. Springs 13/13 pcs for heavy duty support. Wheel base is 4450+1450 mm, Front/rear overhang(mm)1410/3076, Front/rear track(mm)1995; 1800/1800, Approach/departure angle(º )26/30, Overall dimension(mm)8900x2500x3500.
The series products of Beiben trucks are ideal transport with outstanding performance and high quality, Beiben 2638 2642 cargo trucks are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. Now Beiben 6x4 6x6 cargo trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth. Beiben heavy-truck originate from Mercedes-Benz,Gremany,The Chinese local manufacturers, technical performance properties index and conform to the state and military standard.
Beiben V3 6×4 chassis is a heavy-duty vehicle chassis with rich configuration and excellent performance. It is equipped with WEICHAI WP10.380E32 engine with a displacement of 9.726L and a maximum torque of 2000NM@1400-1600rpm. It adopts FAST 9-speed manual transmission, and the gear shifting is smooth. The front/rear axle adopts BENZ technology, with a load capacity of 7000kg and 13000kg respectively. The cab is equipped with air conditioning and air suspension seat to provide a comfortable driving environment.
Beiben 420HP NG80B cargo truck chassis, customized fire red painting NG80 cabinet, WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, mounted with 12.00R24 tires and 11 pcs. The Beiben 6x4 LHD truck chassis with long cabin, can be mounted as Beiben 2642 dump truck, Beiben 2642 water truck, Beiben 2642 fuel bowser, Beiben 2642 crane truck, etc. Africa customers from DR Congo, Tanzania, Nigeria, Mozambique, etc prefer to purchase and use Beiben 6x4 cargo truck and Beiben 6x6 offroad cargo truck, due to international realiable BENZ technology.
"GABON TYPE" log trailers with 2 x 3.10 or 3.5 m wide bunks, mounted on JOST turntables. 1 fixe stake and 1 hinged stake.
China beiben 2642 cargo truck chassis, 6 wheel drive off road system, military quality assurance, extremely reliable china weichai WP12.420 engine, 4450+1450 mm wheelbase, benz front axle and rear axle, 12.00R24 tyre
China beiben 10 wheeler prime mover 1. Benz tech 2. Weichai engine 3. Strong quality
Beiben 6x4 cargo truck, based on special beiben 6*4 cargo truck chassis.
