The Beiben 8×4 cargo chassis is a high-performance, multi-purpose heavy-duty vehicle platform featuring an 8×4 drive configuration with a GVW of 41 tons. Powered by the Weichai WP12.420E32 engine delivering 420 horsepower, it offers robust performance and adaptability to challenging working conditions. Equipped with the NG80B long cab, it ensures a comfortable driving experience. With strong expandability, this chassis is suitable for modifying into various specialized vehicles such as water trucks, fuel tankers, truck-mounted cranes, and fire trucks, meeting the demands of construction, logistics, and emergency rescue operations while balancing high load capacity and reliability.
Working capcity:
40 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9880×2500×3630Drive system:
8×4Wheelbase (mm):
1500+4750+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:
8×8, RHD is optionalProduct Description
The Beiben 8×4 truck chassis is designed for heavy-duty operations, featuring a rugged 8×4 drive system with outstanding load-bearing capacity and stability. With a gross vehicle weight (GVW) of 41 tons and a powerful Weichai WP12.420E32 engine producing 420 horsepower, it delivers ample power to handle tough terrains and heavy-load tasks with ease. The Beiben NG80B long cab, complete with a sleeper berth, provides a spacious and comfortable environment for drivers, making it ideal for long-haul transport and extended work shifts.
Its versatility makes the Beiben 12-wheeler 4142 chassis an excellent choice for modifying into various specialized vehicles, including water sprinklers, oil tankers, truck cranes, and fire trucks. With high load capacity, reliability, and adaptability, it ensures efficient performance in diverse engineering and specialized operations, meeting the professional needs of different industries.
Product Specifications
|
Beiben 8×4 cargo chassis parameters |
|
|
Drive Type |
8x4 LHD/RHD |
|
Cab |
|
|
Type |
Beiben NG80B Long Cabin |
|
Equipment |
With Air Condition, One bed |
|
Weight |
|
|
Kerb weight (kg) |
12800 |
|
GVW (kg) |
41000 |
|
Dimensions |
|
|
Length (mm) |
9880 |
|
Width (mm) |
2500 |
|
Height (mm) |
3630 |
|
Front/Rear overhang (chassis) |
1410/1870 |
|
Wheel base(mm) |
1500+4750+1450 |
|
Track width(mm) |
1995/1808 |
|
Performance |
|
|
Max. speed (km/h) |
90 |
|
Max. gradeability (%) |
30 |
|
Approach/Departure angel (°) |
26/32 |
|
Engine |
|
|
Brand |
WEICHAI |
|
Model |
WP12.420E32 |
|
Power (kw/hp) |
309KW/420HP |
|
Max torque (N.M) |
1750 N.m |
|
Displacement (L) |
11.596 |
|
Emission Standard |
Euro III |
|
Rated speed |
2100 rpm |
|
Transmission |
|
|
Brand |
FAST |
|
Model |
12JS200T |
|
Control type |
Manual |
|
Gear Shift |
12-forward & 2-reverse speeds |
|
Clutch |
|
|
Type |
Single plate, diaphragm spring |
|
Diameter (mm) |
Φ430 |
|
Action |
hydraulically operating with air assistance |
|
Brakes |
|
|
Type |
Drum |
|
Service Brake |
With dual-circuit compressed air brake |
|
Park Brake |
Power spring brake acting on rear wheel |
|
Auxiliary Brake |
WEVB |
|
Steering |
8098 |
|
Chassis |
Ladder structure with parallel straight |
|
Dimensions (mm) |
300x90x8+6+8 |
|
Suspension |
|
|
Front |
Longitudinal leaf spring |
|
Rear |
Inverted leaf spring stabilizator suspension |
|
Axles |
BENZ TECHNOLOGY |
|
Front |
BENZ TYPE: 7.5 tons |
|
Rear |
BENZ TYPE: 13tons |
|
Ratio |
5.263 |
|
Tyre |
12.00R20 radial tire |
|
Fuel tank |
|
|
Tank capacity(L) |
400 |
|
Material |
Aluminum alloy |
|
Electrics |
|
|
Type |
24V |
|
Starter |
5.58kw (24) |
|
Generator |
2.0kw (28V 70A) |
|
Battery |
2x135Ah |

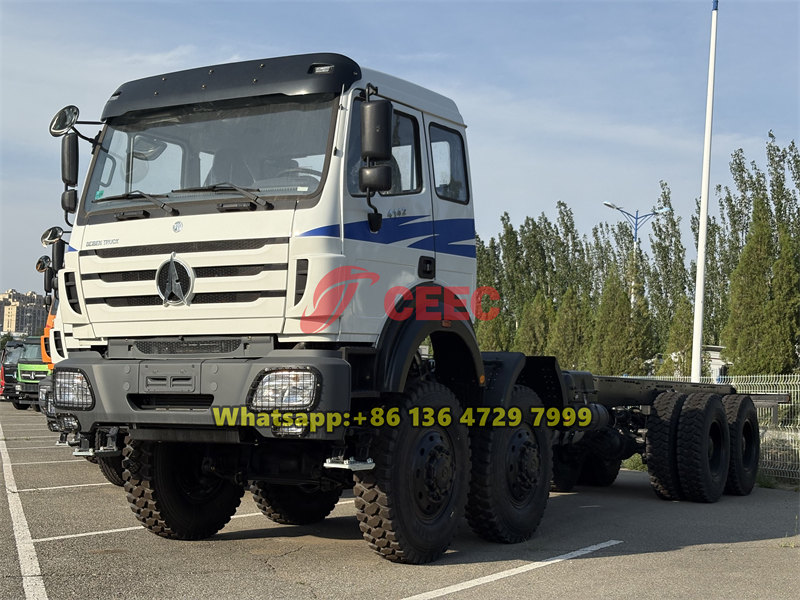

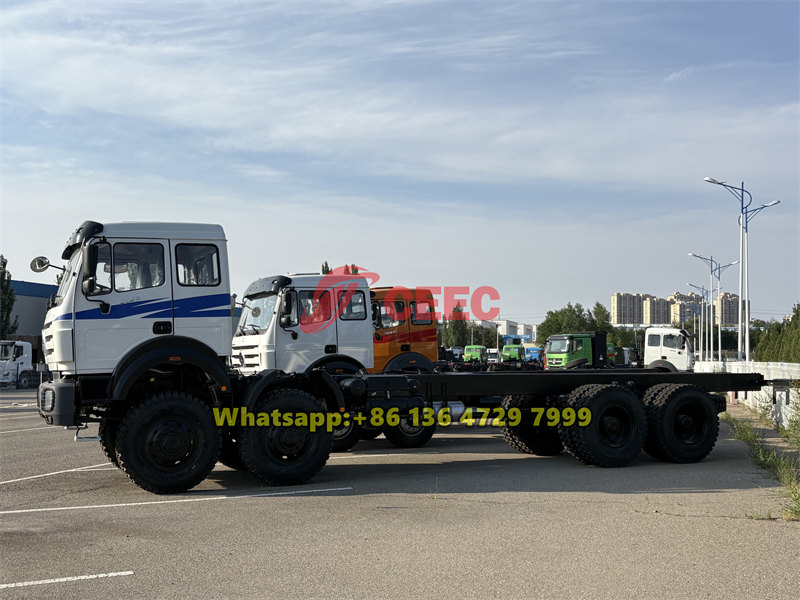

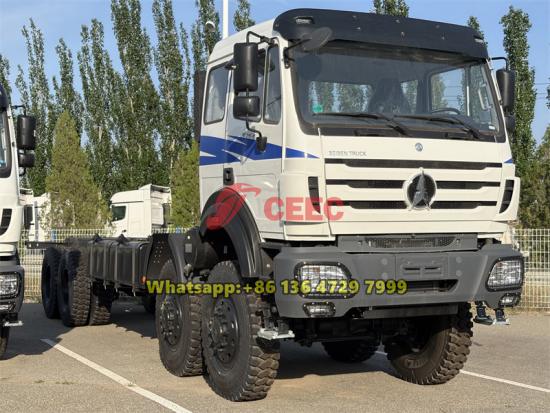

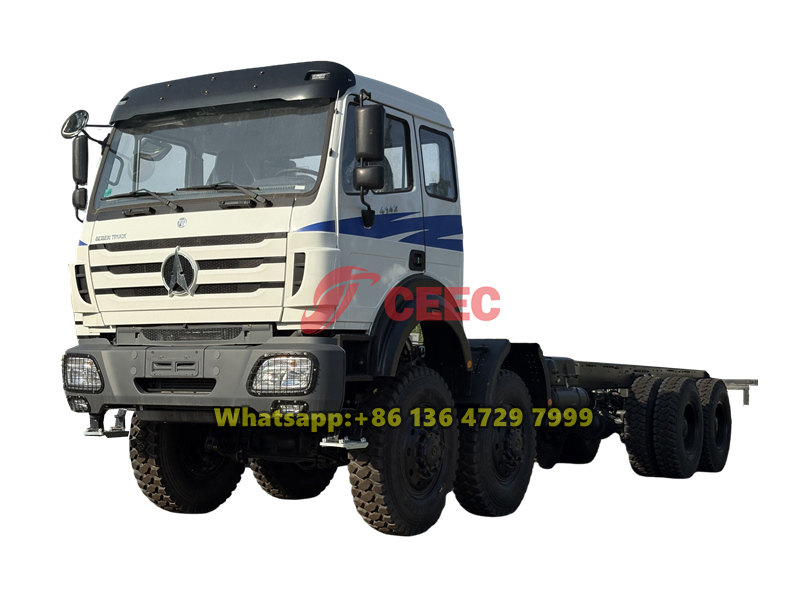

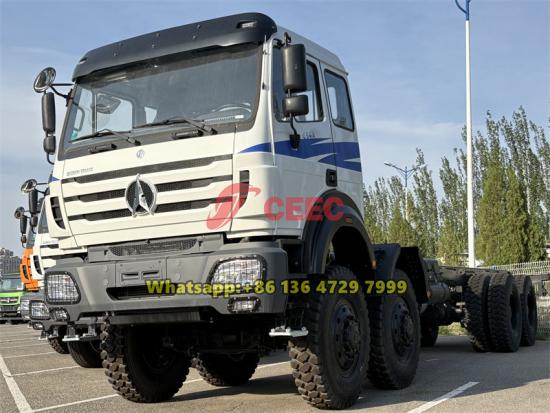

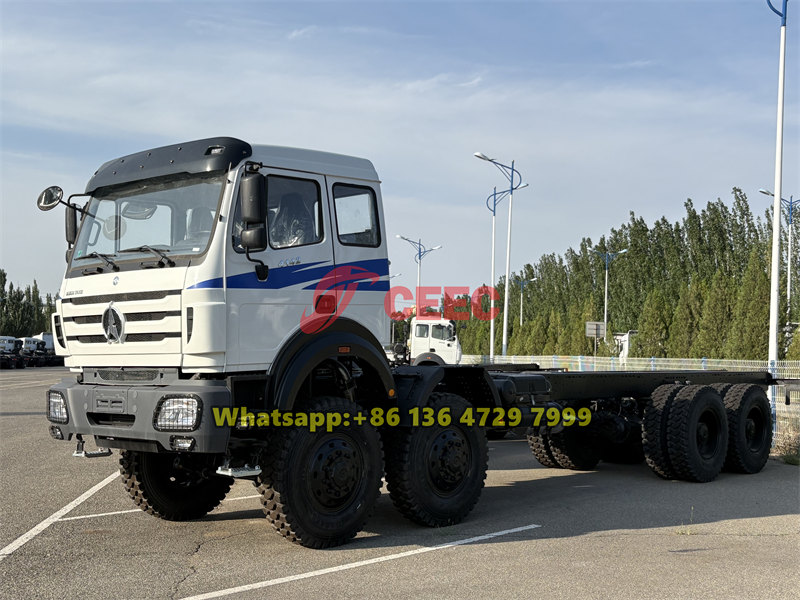

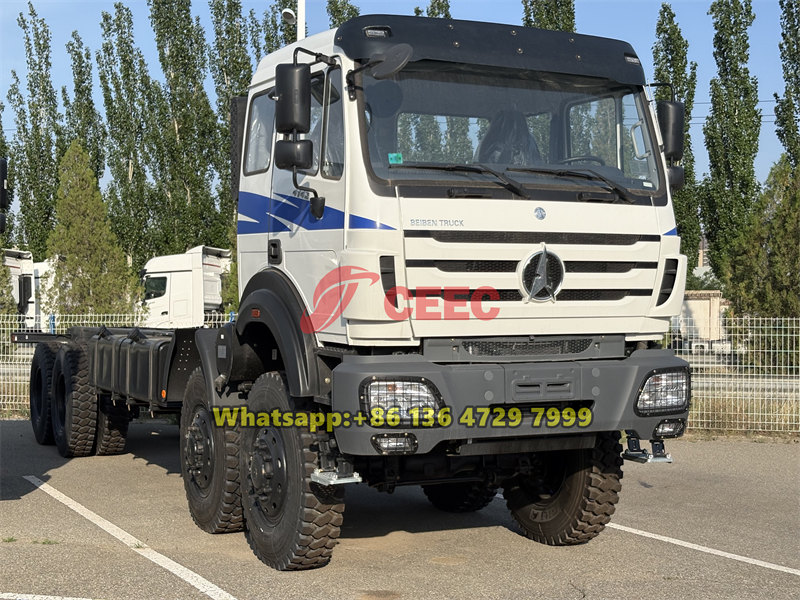

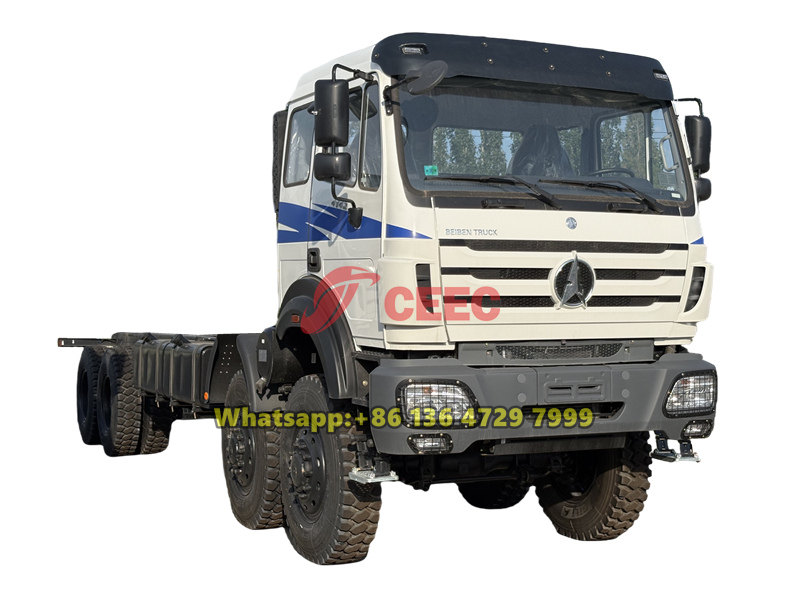

Product Pictures
 |
 |
 |
 |
As the best baotou beiben 12 wheeler dump trucks manufacturer, we can produce Beiben 12 wheeler dump truck 8*4 driving sytem, with beiben special 340 horse power diesel engine, fast gear 12 shift transmission. The north benz 340 hp dump trucks are widely used for transporting sand, construction material and low density material .
Beiben 3138 dump trucks is also called as beiben 3138 dumper, with beiben 380 hp diesel engine and full germany benz technology. Our north benz 380 hp 12 wheeler dump truck are very polulare in africa countries, such as CONGO, TANZANIA, GHANA, NIGERIA.
North benz 12 wheeler 420 Hp dumpers , with beiben 420 hp diesel engine, fast 12 shift transmission, fully applyied Benz truck technology, with latest beiben dumper trucks technology.
As the best dealer of baotou beiben heavy duty trucks plant, we can produce the best type for beiben 420 hp dump trucks. It is beiben 6*4 dumper with 420 hp engine. All the beiben 420 hp dumper from our plant will have long guarantee more than 12 months.
Made in China Powerful Beiben V3 8X4 tipper for sale With Low Price, we are best china made beiben V3 12 wheeler dump trucks manufacturer, more than 10 years in beiben V3 dump trucks producing.
Durable Beiben V3 8X4 dumper truck With Low Price , we can make sure the best price for beiben V3 dump trucks. Our price for beiben 12 wheeler dump trucks is the factory price .
Drive Wheel: 8x4 Capacity (Load): 41 - 50t Horsepower: 351 - 450hp Condition: New Transmission Type: Manual Emission Standard: Euro 3 Fuel Type: Diesel Engine Capacity: > 8L Gross Vehicle Weight: 31000 Place of Origin: Shandong, China (Mainland) Brand Name: BEIBEN Model Number: 3138K Dimensions (L x W x H) (mm): 7500x2500x1500 Color: white orange
beiben truck north benz NG80 3138 heavy dump tipper trucks dumper 8x4 380hp Africa hot sale low price,New design European vehicles security level Stemping vehicle frame Benz unique axle technique High reliability fuel economy
north benz NG80 3138 heavy dump tipper trucks manufacturer , best quality north benz 3138 dump truck for sale
