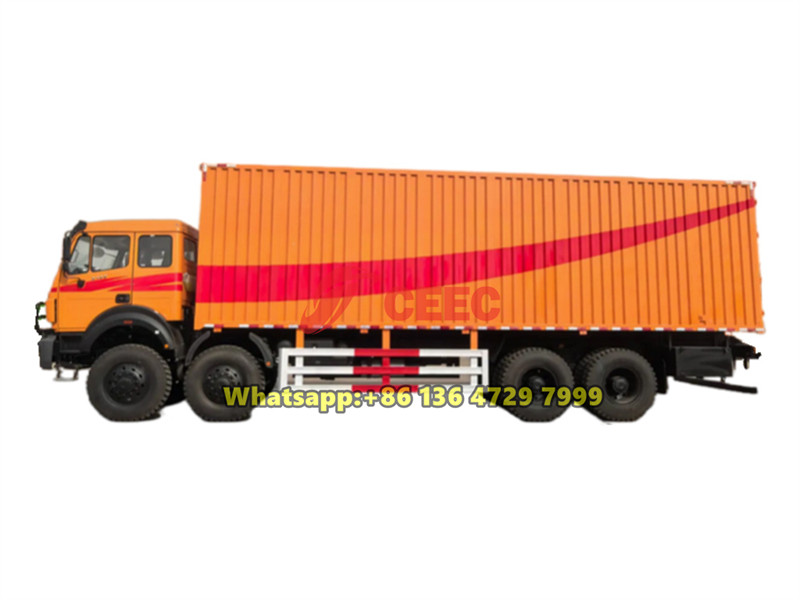

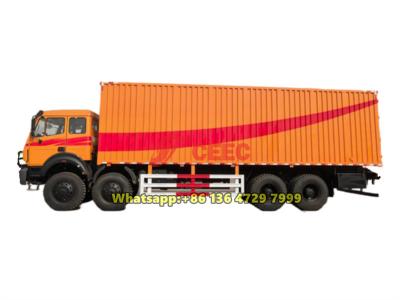

The Beiben 8×8 all-wheel-drive box truck is a high-performance freight vehicle designed for complex road conditions. Equipped with a 420-horsepower Weichai WP12 diesel engine and a 12-speed transmission, it delivers robust power and reliable drive performance. Featuring an oversized steel cargo compartment measuring 9000×2500×2500mm, it offers a massive capacity of 56.25m³, meeting the demands of heavy cargo transportation. Built on a Mercedes-Benz technology chassis with an 8×8 all-wheel-drive system and a 33° approach angle, it excels in challenging terrains. Dual 400L fuel tanks ensure long-range endurance, while air brakes + exhaust brakes guarantee safety. Ideal for transporting engineering machinery, emergency supplies, and other specialized cargo, it is an efficient and durable professional transport solution.
Working capcity:
30 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
11800×2600×3650Drive system:
8×8Wheelbase (mm):
1500+5050+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:
6×6, RHD is optionalThe Beiben 8×8 AWD van truck is a high-performance freight vehicle modified from Beiben’s mature 8×8 all-wheel-drive off-road chassis, specifically designed for complex road conditions and heavy-duty transportation needs. With its outstanding off-road capabilities and oversized cargo space, this model is an ideal choice for engineering machinery transport, special equipment delivery, and material supply in remote areas. The vehicle measures 11800×2600×3650mm and features a high-quality steel cargo compartment of 9000×2500×2500mm, providing an impressive volume of 56.25m³, capable of accommodating large equipment and bulk cargo with ease. Its 12,800kg curb weight, combined with a 13-ton rear axle design, ensures stability and reliability even under full load conditions.
The core strength of the Beiben 8×8 off-road cargo van truck lies in its exceptional off-road performance. The vehicle adopts an 8×8 drive configuration with dual front and rear axles, equipped with Mercedes-Benz technology dual-disc pneumatic braking systems and a two-stage reduction drive axle with a 5.263 gear ratio, ensuring sufficient power distribution to each wheel. With a 33° approach angle and a 20° departure angle, along with a short wheelbase layout (1,410mm front overhang and 1,940mm rear overhang), it demonstrates outstanding maneuverability on steep slopes, ditches, and other challenging terrains.
The Beiben 8×8 all-wheel-drive box van showcases unique value across multiple industries due to its adaptability and reliability. In the construction sector, it can transport heavy machinery and building materials directly to job sites, even on unpaved or temporary roads. For emergency logistics, its all-weather capability ensures timely delivery of relief supplies to disaster-stricken areas. When transporting high-value precision instruments, its sturdy cargo structure and excellent shock absorption provide dependable protection.
Product Specifications
|
Beiben 8×8 AWD cargo van truck |
|||
|
Wheelbase(mm) |
1500+5050+1450 |
||
|
L*W*H |
11800X2600X3650 |
||
|
Curb weight(kg) |
12800 |
||
|
Front overhang/rear overhang (mm) |
1410/1940 |
||
|
Approach angle/Departure angle |
33/20 |
||
|
Max Speed:(Km/h) |
≤85 |
||
|
Engine |
Model |
WP12.420E32 |
|
|
Type |
water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
||
|
Fuel type |
Diesel |
||
|
Min rate of consuming fuel(g/(kw.h)) |
196g/kw.h |
||
|
Rated Power / rotating(kw/(r/min) |
319Kw(420HP)/2200rpm |
||
|
Emission |
EURO 3 |
||
|
Maximum Torque / rotating speed (n.m/(r/min) |
1750Nm/1500-1800rpm |
||
|
Displacement(ml) |
11.596 |
||
|
Fuel tanker capacity(L) |
400L+400L Iron |
||
|
Transfer case |
LF200 |
||
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
|
Assistant brake |
Engine exhaust brake |
||
|
Park brake |
Potential springs pressing on middle and rear wheels |
||
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,12/12 pcs springs. |
|
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
||
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
||
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
||
|
Double Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
||
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
||
|
Tire |
12.00R24 radial tire |
||
|
Electrical system |
Battery |
2X12V/135Ah |
|
|
Generator |
28V-70A |
||
|
Starter |
5.58Kw/24V |
||
|
Cab |
NG80B |
||
|
Interior trimming: |
|||
|
Exterior trimming: |
|||
|
Van body |
Size |
9000×2500×2500 mm |
|
|
Material |
High quality steel |
||

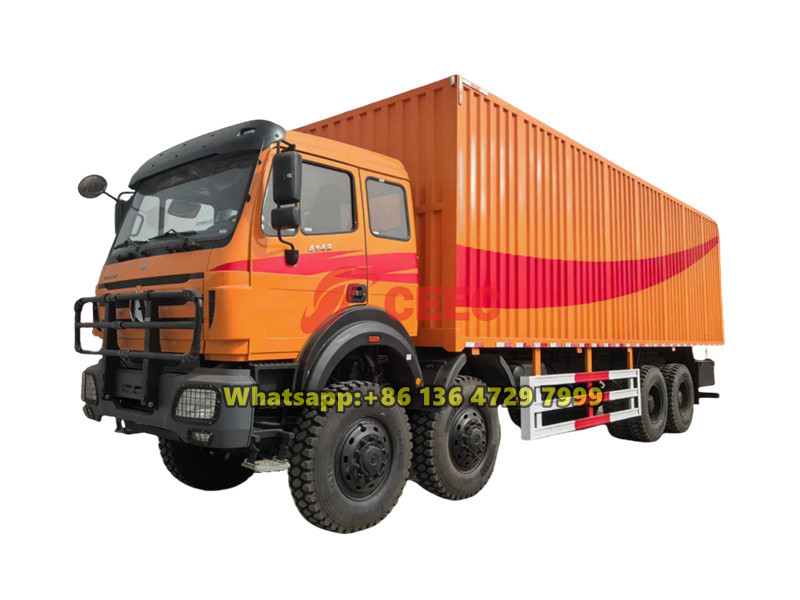

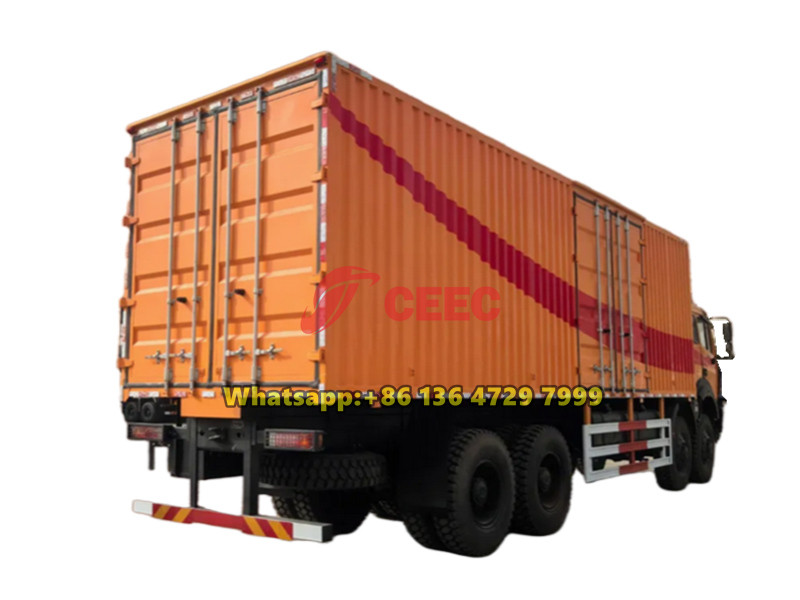

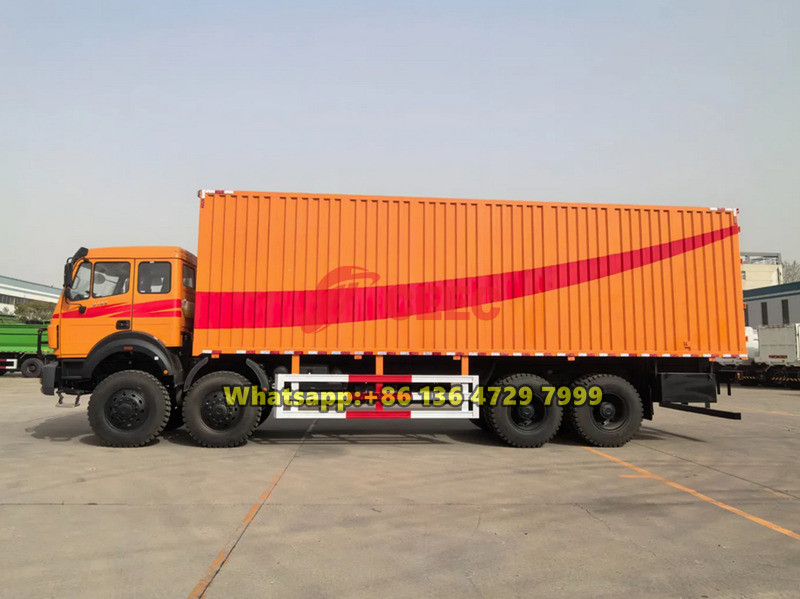

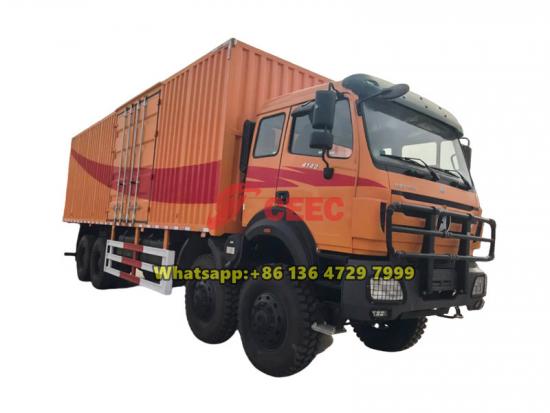

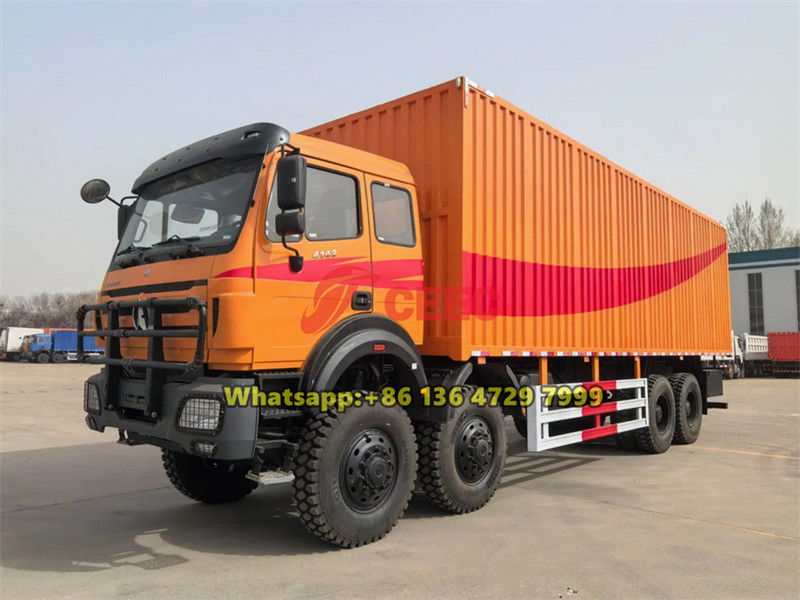

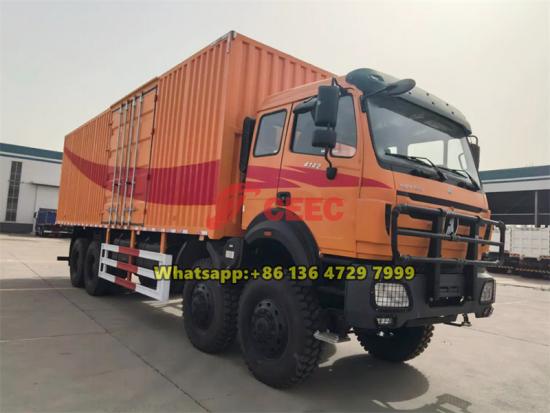

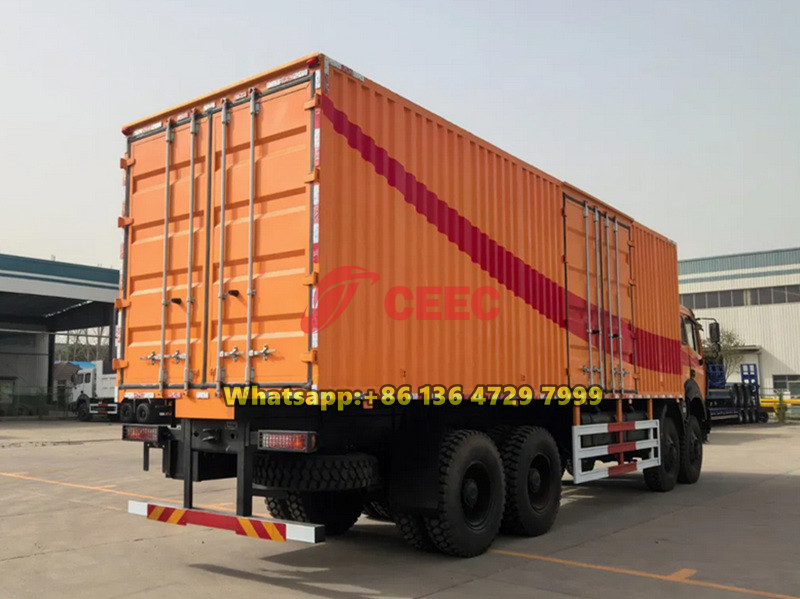

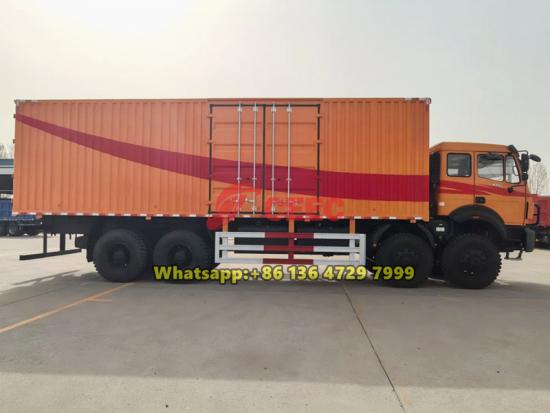

Product Pictures
